Sayfa 1-41 - Isuzu EPC

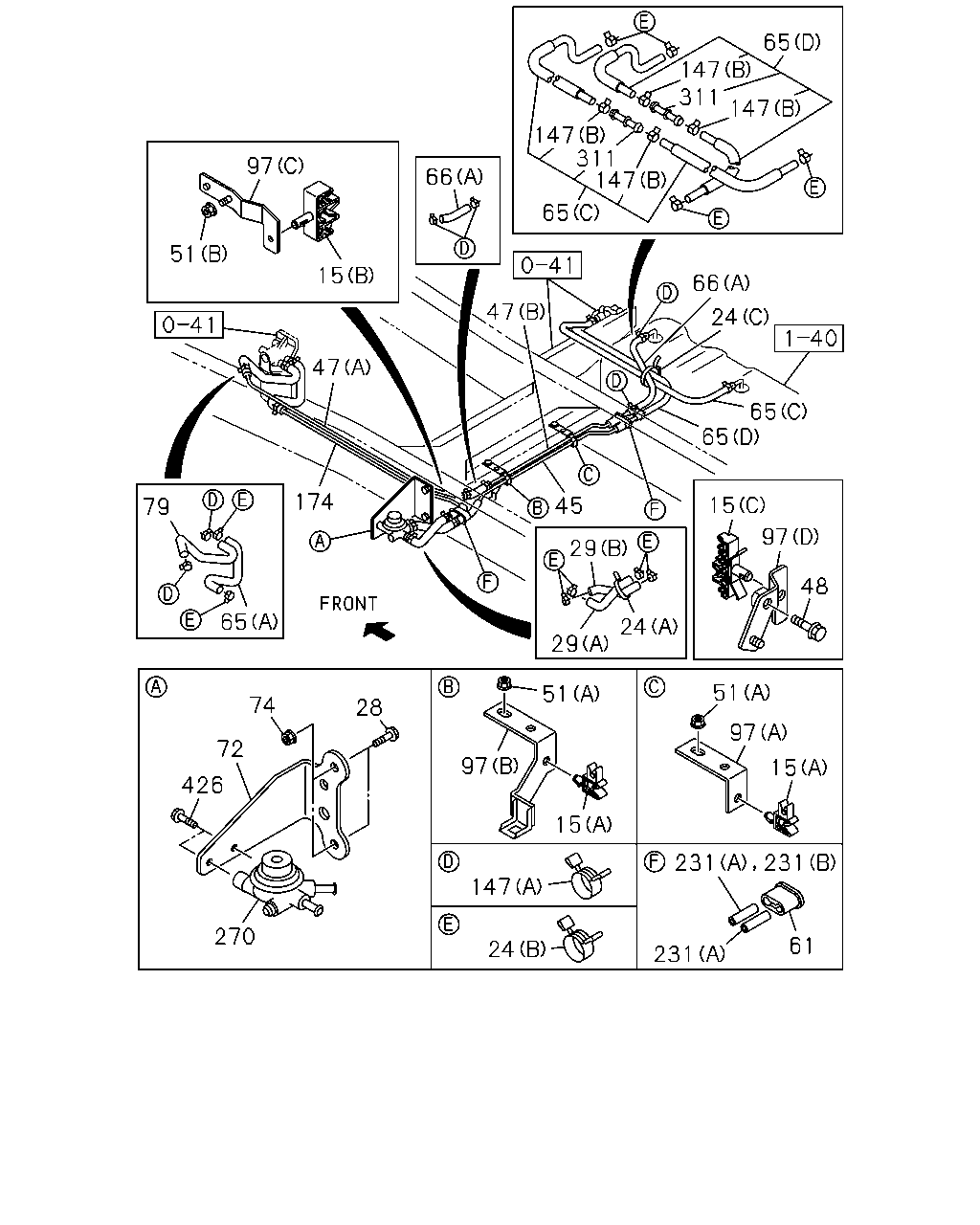

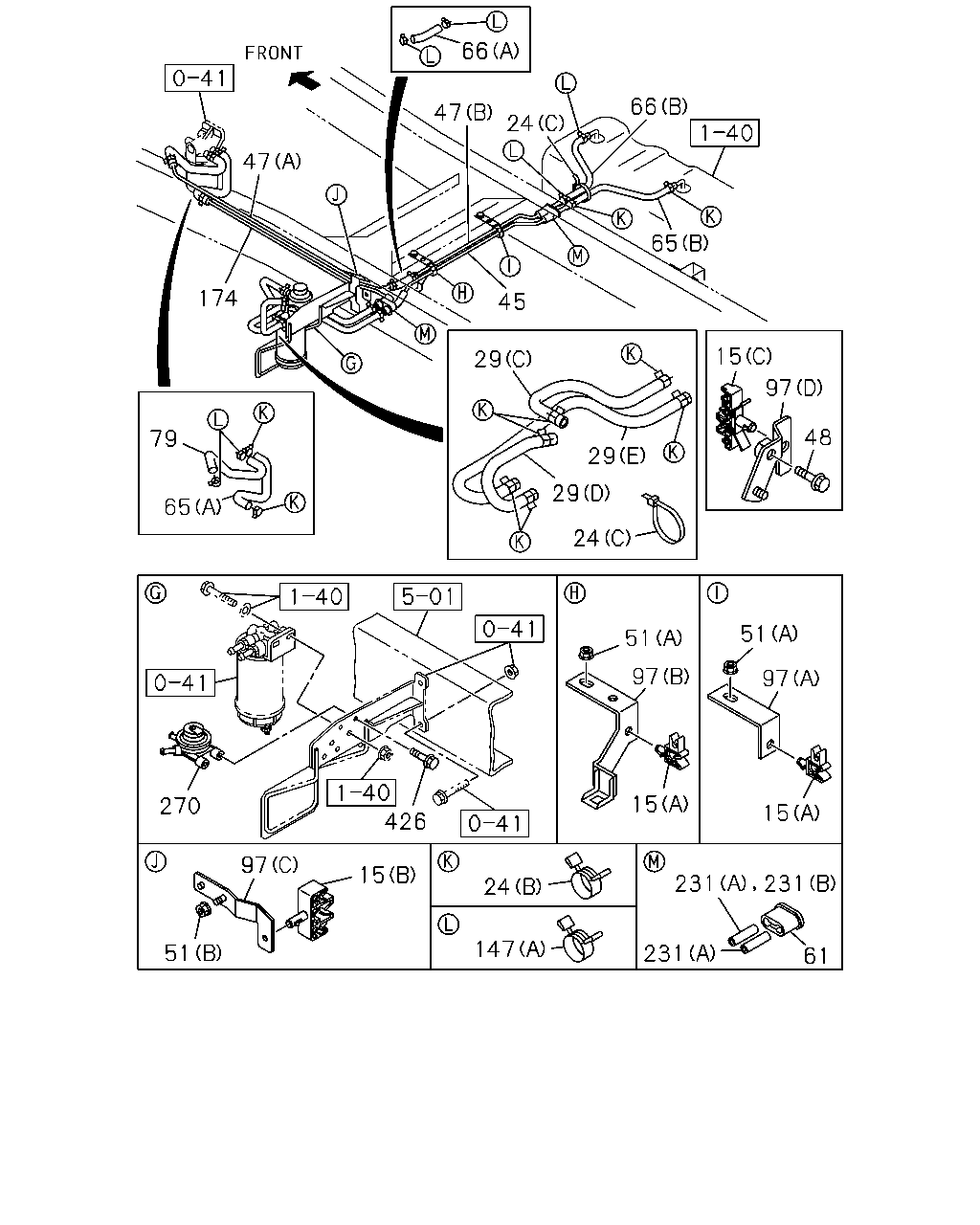

1-41 — FUEL PIPING; CHASSIS (#162486) — 157 parça

627 313 629 629 628 639 628 629 629

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
313	03.163 COOLER ASM; FUEL SUSPENSION - RR UNDER SLUNG<V4U>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ>	8-98141-558-0	01	1	1506-	●	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> EXC. SPARE WHEEL CARRIER<P10> 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1506-	●	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1506-	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 3300MM(33W) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 00.685 M6X25 FLANGE	0-28650-625-0	03	1	1506-	●
627	03.162 BOLT; FUEL CLR WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 00.685 M6X25 FLANGE	0-28650-625-0	04	1	1506-	●	●
628	03.162 NUT; FUEL CLR SUSPENSION - RR UNDER SLUNG<V4U>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 01.062 M6 FLANGE	0-91180-106-0	04	1	1506-	●	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> EXC. SPARE WHEEL CARRIER<P10> (A)	8-98142-066-1	01	1	1506-	●	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (A)	8-98142-066-1	01	1	1506-	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (A)	8-98142-066-1	01	1	1506-	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> EXC. SPARE WHEEL CARRIER<P10> (B)	8-98142-067-1	01	1	1506-	●	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (B)	8-98142-067-1	01	1	1506-	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 3300MM(33W) REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (B)	8-98142-067-1	01	1	1506-	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98142-068-1	01	1	1506-	●	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98142-069-1	01	1	1506-	●	●
629	03.162 BRACKET; FUEL CLR SUSPENSION - RR UNDER SLUNG<V4U>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> (C)	8-98146-892-0	02	1	1506-	●	●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (A)	8-98142-070-1	01	1	1506-		●
629	03.162 BRACKET; FUEL CLR WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> (B)	8-98142-071-1	01	1	1506-		●
639	03.162 BOLT; BRKT,FUEL CLR SUSPENSION - RR UNDER SLUNG<V4U>,REAR SUSPENSION - OVER SLUNG + WIDE TREAD<8PZ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1506-		●
639	03.162 BOLT; BRKT,FUEL CLR SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1506-		●
639	03.162 BOLT; BRKT,FUEL CLR REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> EXC. SPARE WHEEL CARRIER<P10> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1506-		●
639	03.162 BOLT; BRKT,FUEL CLR WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> REAR SUSPENSION - OVER SLUNG + WIDE TREAD <8PZ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-		●

47 174 47 24 66 65 45 79 65 29 29 29 24 15 97 48 270 426 15 97 51 24 147 231 231 61 231 15 97 51 51 97 15 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	1506-	●	●
15	03.162 CLIP; FUEL PIPE 04.686 (B) ID=12 & 6.35 & 4.76	8-97305-169-1	04	1	1506-	●	●
15	03.162 CLIP; FUEL PIPE (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	1506-	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (C) L=140	5-09707-031-1	01	1	1506-	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (C) L=140	5-09707-031-1	01	1	1506-	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (C) L=140	5-09707-031-1	01	1	1506-	●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	1506-		●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (B) ID=16	8-98008-098-0	10	1	1506-	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (B) ID=16	8-98008-098-0	10	1	1506-	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	10	1	1506-		●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> 02.559 (A) L=250	5-09707-030-1	01	1	1506-	●
24	03.162 CLIP; FUEL HOSE 02.559 (A) L=250	5-09707-030-1	01	1	1506-		●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (A) L=200	8-98133-838-0	01	1	1506-	●
29	03.163 HOSE; FUEL (A) L=200	8-98133-838-0	01	1	1506-		●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (B)	8-98175-084-0	01	1	1506-	●
29	03.163 HOSE; FUEL (B)	8-98175-084-0	01	1	1506-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (D)	8-98138-300-0	01	1	1506-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (E)	8-98139-112-1	01	1	1506-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (C)	8-98139-113-1	01	1	1506-	●
45	03.163 PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-580-3	01	1	1506-	●
45	03.163 PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97389-579-3	01	1	1506-	●
45	03.163 PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	1506-		●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=865	8-98137-016-0	01	1	1506-	●
47	03.163 PIPE; FUEL,RETURN (A) L=971	8-98137-013-2	01	1	1506-	●	●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=984	8-98137-015-0	01	1	1506-	●
47	03.163 PIPE; FUEL,RETURN (B) L=984	8-98137-015-0	01	1	1506-		●
48	03.162 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1506-	●	●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	1506-	●	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	1506-	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	02	1	1506-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (A)	8-98175-081-0	01	1	1506-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (A)	8-98175-081-0	01	1	1506-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98175-081-0	01	1	1506-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (C)	8-98175-082-0	01	1	1506-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (C)	8-98175-082-0	01	1	1506-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (D)	8-98175-083-0	01	1	1506-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D)	8-98175-083-0	01	1	1506-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (B)	8-98181-254-0	01	1	1506-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	1506-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	1506-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	1506-		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1506-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1506-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1506-		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (A) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1506-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1506-		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (B) L=500	8-98057-029-0	01	1	1506-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX>	8-98147-758-0	01	1	1506-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02>	8-98147-758-0	01	1	1506-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1506-		●
97	03.162 BRACKET; CLIP (A)	8-98006-480-1	01	1	1506-	●	●
97	03.162 BRACKET; CLIP (B)	8-98039-929-1	01	1	1506-	●	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	1506-	●	●
97	03.162 BRACKET; CLIP 04.686 (D)	8-98136-287-1	01	1	1506-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> 01.240 (A) ID=12	8-98150-358-0	08	1	1506-	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> 01.240 (A) ID=12	8-98150-358-0	08	1	1506-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	08	1	1506-		●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (B) ID=16	8-98008-098-0	04	1	1506-	●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	04	1	1506-		●
174	03.163 PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	1506-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	1506-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	03	1	1506-	●	●
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1506-	●	●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1506-	●	●

97 51 15 47 174 79 65 74 72 426 270 28 97 147 24 15 51 29 24 29 45 47 66 65 147 311 147 147 65 311 147 66 24 65 65 15 97 48 51 97 15 231 61 231 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE (A) ID=12 & 6.35	8-97215-437-0	02	1	1506-	●	●
15	03.162 CLIP; FUEL PIPE 04.686 (B) ID=12 & 6.35 & 4.76	8-97305-169-1	04	1	1506-	●	●
15	03.162 CLIP; FUEL PIPE (C) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	1506-	●	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (C) L=140	5-09707-031-1	01	1	1506-	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (C) L=140	5-09707-031-1	01	1	1506-	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (C) L=140	5-09707-031-1	01	1	1506-	●
24	03.162 CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	1506-		●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (B) ID=16	8-98008-098-0	10	1	1506-	●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (B) ID=16	8-98008-098-0	10	1	1506-	●
24	03.162 CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	10	1	1506-		●
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> 02.559 (A) L=250	5-09707-030-1	01	1	1506-	●
24	03.162 CLIP; FUEL HOSE 02.559 (A) L=250	5-09707-030-1	01	1	1506-		●
28	03.330 BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-	●
28	03.330 BOLT; BRKT,FUEL PUMP 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1506-		●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (A) L=200	8-98133-838-0	01	1	1506-	●
29	03.163 HOSE; FUEL (A) L=200	8-98133-838-0	01	1	1506-		●
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (B)	8-98175-084-0	01	1	1506-	●
29	03.163 HOSE; FUEL (B)	8-98175-084-0	01	1	1506-		●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (D)	8-98138-300-0	01	1	1506-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (E)	8-98139-112-1	01	1	1506-	●
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (C)	8-98139-113-1	01	1	1506-	●
45	03.163 PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97389-580-3	01	1	1506-	●
45	03.163 PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97389-579-3	01	1	1506-	●
45	03.163 PIPE; FUEL,DELIVERY	8-97389-579-3	01	1	1506-		●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=865	8-98137-016-0	01	1	1506-	●
47	03.163 PIPE; FUEL,RETURN (A) L=971	8-98137-013-2	01	1	1506-	●	●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=984	8-98137-015-0	01	1	1506-	●
47	03.163 PIPE; FUEL,RETURN (B) L=984	8-98137-015-0	01	1	1506-		●
48	03.162 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1506-	●	●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	1506-	●	●
51	03.162 NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	1506-	●	●
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	02	1	1506-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (A)	8-98175-081-0	01	1	1506-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (A)	8-98175-081-0	01	1	1506-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98175-081-0	01	1	1506-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (C)	8-98175-082-0	01	1	1506-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (C)	8-98175-082-0	01	1	1506-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (D)	8-98175-083-0	01	1	1506-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D)	8-98175-083-0	01	1	1506-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (B)	8-98181-254-0	01	1	1506-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	1506-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	1506-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=100 SERVICED BY L=3000	0-01855-300-0	01	1	1506-		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1506-	●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1506-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	1506-		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (A) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1506-	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1506-		●
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> (B) L=500	8-98057-029-0	01	1	1506-	●
72	03.901 BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W)	8-98107-370-0	01	1	1506-	●
72	03.901 BRACKET; FUEL PUMP & FILTER	8-98107-370-0	01	1	1506-		●
74	03.901 NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-	●
74	03.901 NUT; BRKT,FUEL PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	1506-		●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX>	8-98147-758-0	01	1	1506-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02>	8-98147-758-0	01	1	1506-	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98147-758-0	01	1	1506-		●
97	03.162 BRACKET; CLIP (A)	8-98006-480-1	01	1	1506-	●	●
97	03.162 BRACKET; CLIP (B)	8-98039-929-1	01	1	1506-	●	●
97	03.162 BRACKET; CLIP (C)	8-98064-442-1	01	1	1506-	●	●
97	03.162 BRACKET; CLIP 04.686 (D)	8-98136-287-1	01	1	1506-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> 01.240 (A) ID=12	8-98150-358-0	08	1	1506-	●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> 01.240 (A) ID=12	8-98150-358-0	08	1	1506-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.240 (A) ID=12	8-98150-358-0	08	1	1506-		●
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> (B) ID=16	8-98008-098-0	04	1	1506-	●
147	03.162 CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	04	1	1506-		●
174	03.163 PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	1506-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	1506-	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	03	1	1506-	●	●
270	03.900 PUMP ASM; FUEL	8-97948-892-0	01	1	1506-	●	●
311	03.163 JOINT; HOSE WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX>	8-97353-668-0	02	1	1506-	●
311	03.163 JOINT; HOSE	8-97353-668-0	02	1	1506-		●
426	03.330 BOLT; FUEL PUMP 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1506-	●	●
