11209 - LV434(RHD) EURO3/5
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#16247) — 32 parça
◀

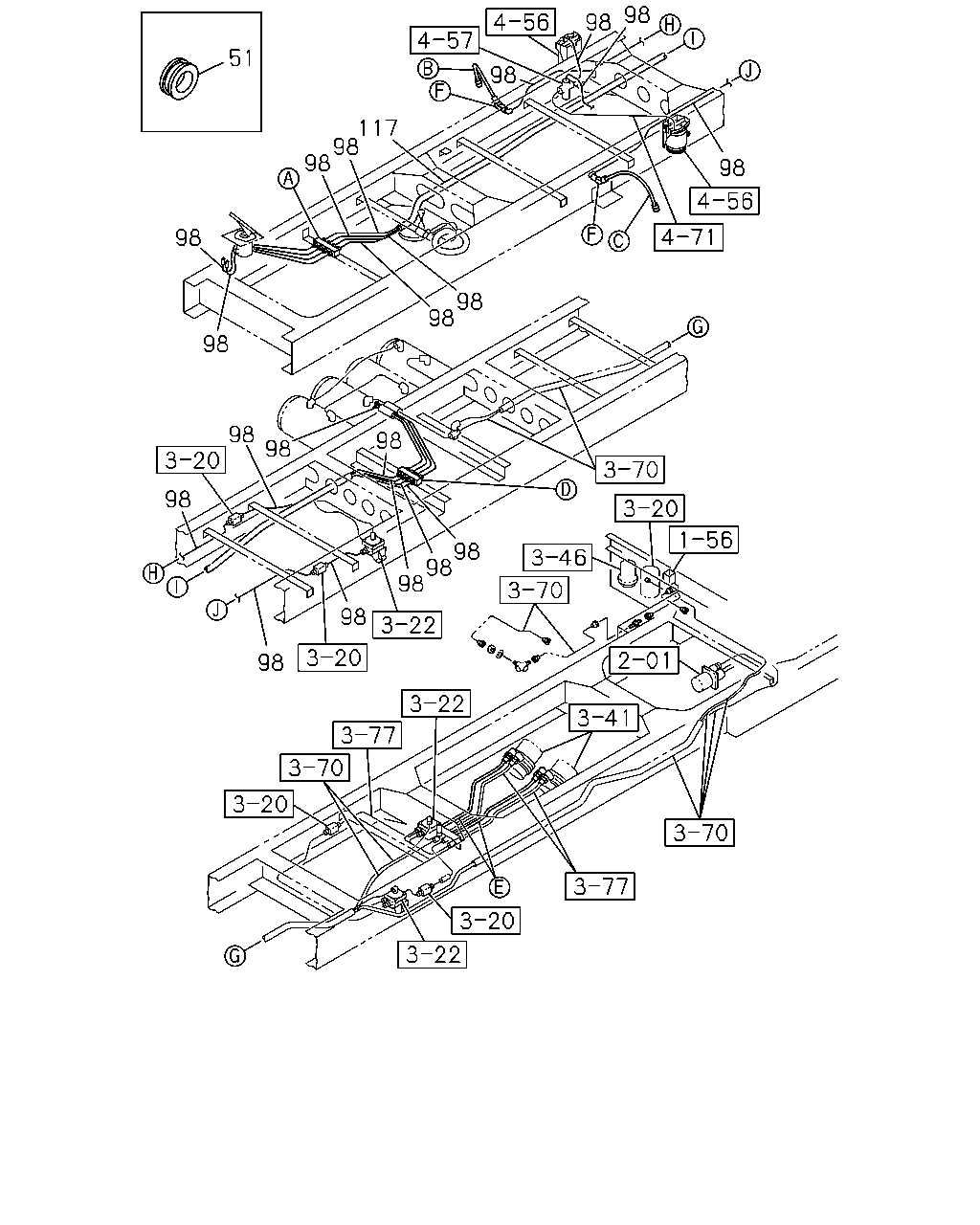

[375A] NO.1 (8 parça)

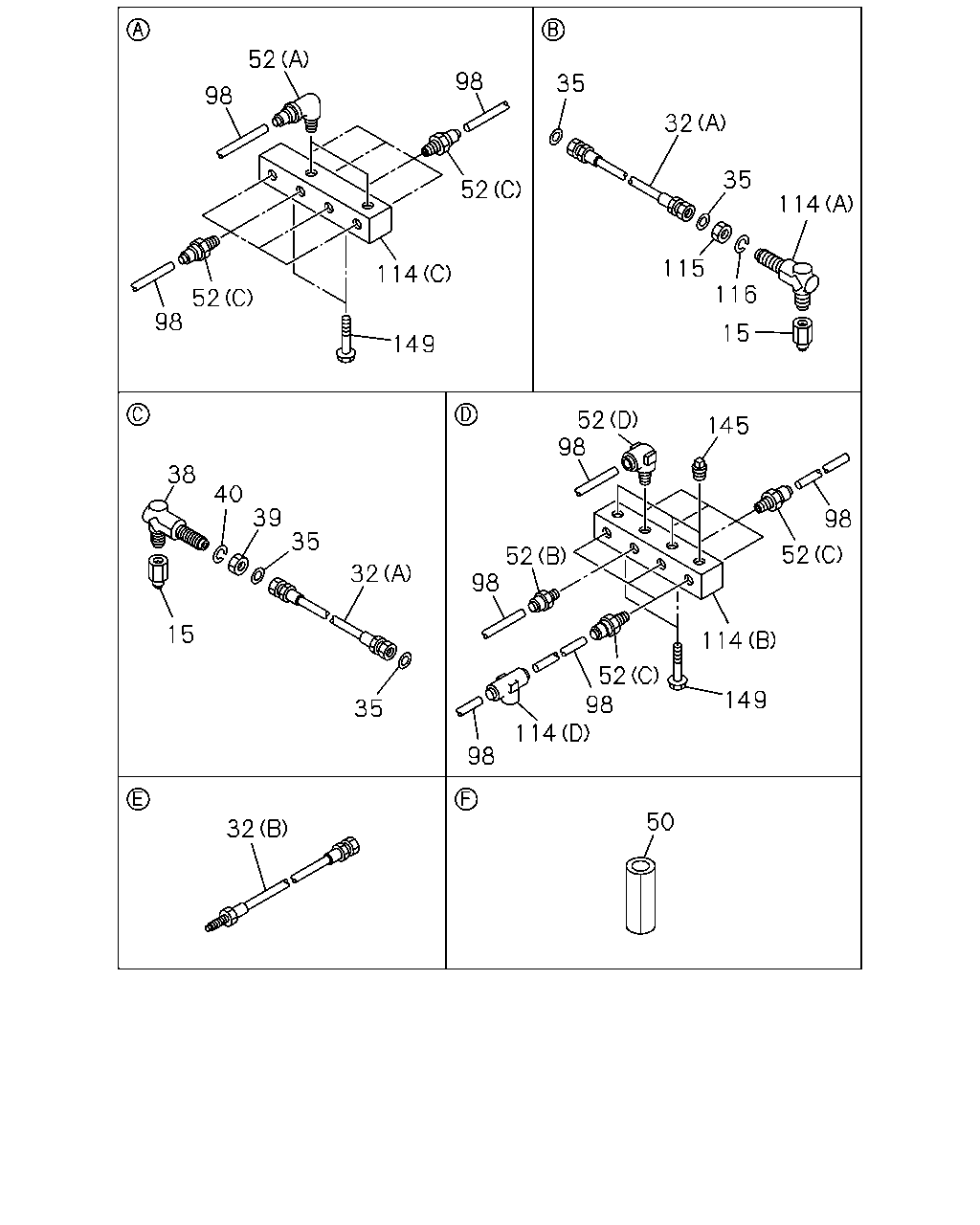

[375A] NO.2 (24 parça)
▶
98
98
51
98
117
98
98
98
98
98
98
98
98
98
98
98
98
98
98
98
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
51
GROMMET; NYLON TUBE
ID=44 OD=50 T=18
1-09332-120-0
01
1
0907-
98
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0907-
98
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0907-
98
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0907-
98
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0907-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
0907-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=15
1-87411-025-0
AR
1
0907-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87411-033-0
AR
1
0907-
52
98
35
98
32
35
52
114
115
114
116
52
98
15
149
52
98
145
38
40
39
35
98
52
52
98
32
15
114
52
98
114
149
35
98
50
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
CONNECTOR; AIR PIPE
DIN12 & M20 STRAIGHT
1-09660-877-0
02
1
0907-
32
HOSE; FLEX,FRT
(A)
0-57846-670-1
02
1
0907-
32
HOSE; FLEX,FRT
(B) L=640
1-09363-747-0
02
1
0907-
35
GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
04
1
0907-
38
UNION; AIR PIPE
M20 & M20 ELBOW
1-09654-397-1
01
1
0907-
39
NUT; PIPE UNION
M20
0-91111-520-0
01
1
0907-
40
WASHER; LK,PIPE UNION
ID=20.2
0-91510-520-0
01
1
0907-
50
SLEEVE; RUBBER,NYLON TUBE
ID=23 OD=27 L=40
1-09337-015-0
01
1
0907-
52
CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW
1-09660-956-0
02
1
0907-
52
CONNECTOR; NYLON TUBE
(D) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0907-
52
CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
09
1
0907-
52
CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 STRAIGHT
1-09660-965-0
23
1
0907-
98
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0907-
98
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0907-
98
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0907-
98
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0907-
114
UNION; NYLON TUBE
(A) M20 & M20 ELBOW
1-09654-397-1
01
1
0907-
114
UNION; NYLON TUBE
(D) DIN8X2 & M8 2WAY
1-09661-133-0
03
1
0907-
114
UNION; NYLON TUBE
(C)
1-09661-346-0
01
1
0907-
114
UNION; NYLON TUBE
(B)
1-09661-745-0
03
1
0907-
115
NUT; TUBE UNION
M20
0-91111-520-0
01
1
0907-
116
WASHER; LK,TUBE UNION
ID=20.2
0-91510-520-0
01
1
0907-
145
PLUG
PT3/8
9-09204-517-0
11
1
0907-
149
BOLT; UNION
M8X12 FLANGE
0-28050-812-0
11
1
0907-
