Isuzu WW
▶
SUV
▶
UCR
▶
51506 - UCR RHD (INDIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-55 - AUTO TRANS SHIFT CONTROL LEVER
▶

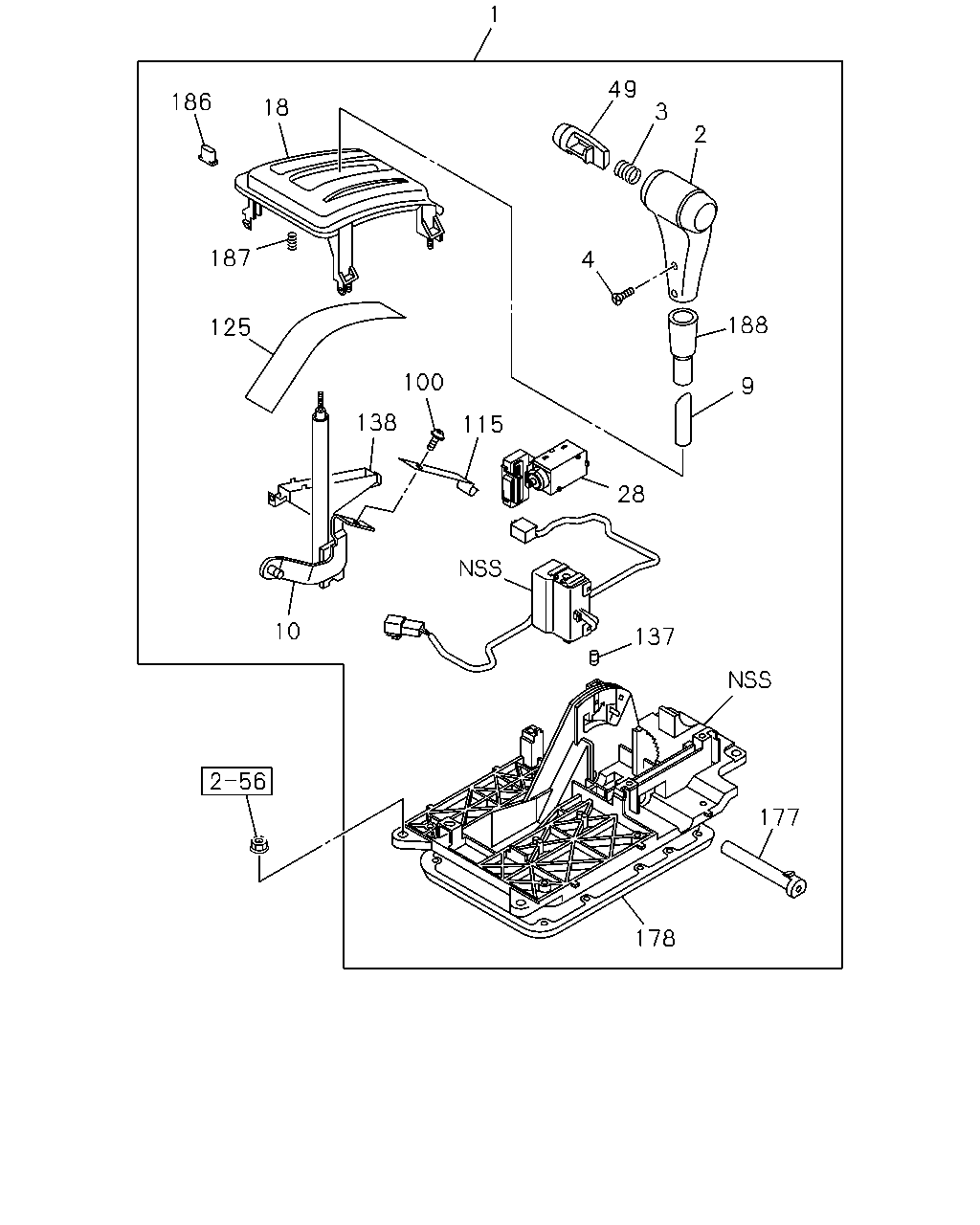

2-55 — AUTO TRANS SHIFT CONTROL LEVER
(#162450) — 19 parça
186
18
187
125
138
100
115
10
137
28
9
188
4
3
49
1
177
178
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LEVER; SHIFT,A/T
LIGHT GRAY
8-97418-476-0
01
1
1506-
2
KNOB ASM; AUTO CONT LEVER
DARK GRAY
8-97408-715-0
01
1
1506-
3
SPRING; RETURN,KNOB
8-97332-979-0
01
1
1506-
4
SCREW; KNOB TO LEVER
8-97332-950-0
02
1
1506-
9
SLEEVE; KNOB,SHIFT LEVER
8-97332-980-0
01
1
1506-
10
LEVER; A/T CONT
8-98032-564-0
01
1
1506-
18
COVER; INDICATOR,UPR
LIGHT GRAY
8-97407-874-0
01
1
1506-
28
SOLENOID ASM
8-98032-553-0
01
1
1506-
49
BUTTON; PUSH,KNOB
8-98032-538-0
01
1
1506-
100
SCREW
8-97332-953-0
01
1
1506-
115
PLATE; SPR,LEVER
8-97332-936-0
01
1
1506-
125
COVER; SHIFT LEVER
8-98052-035-0
01
1
1506-
137
CUSHION
8-97332-938-0
03
1
1506-
138
BOX; LAMP
8-98032-536-0
01
1
1506-
177
SHAFT; SHIFT LEVER,A/T
8-97332-952-0
01
1
1506-
178
SHEET; SHIFT LEVER
8-97332-935-0
01
1
1506-
186
BUTTON; SHIFT LOCK
DARK GRAY
8-97407-872-0
01
1
1506-
187
SPRING; RETURN,SHIFT
8-98032-566-0
01
1
1506-
188
COVER; KNOB
8-98032-557-0
01
1
1506-
