2-52 — AUTO TRANS OVERDRIVE GEAR (#162448) — 49 parça

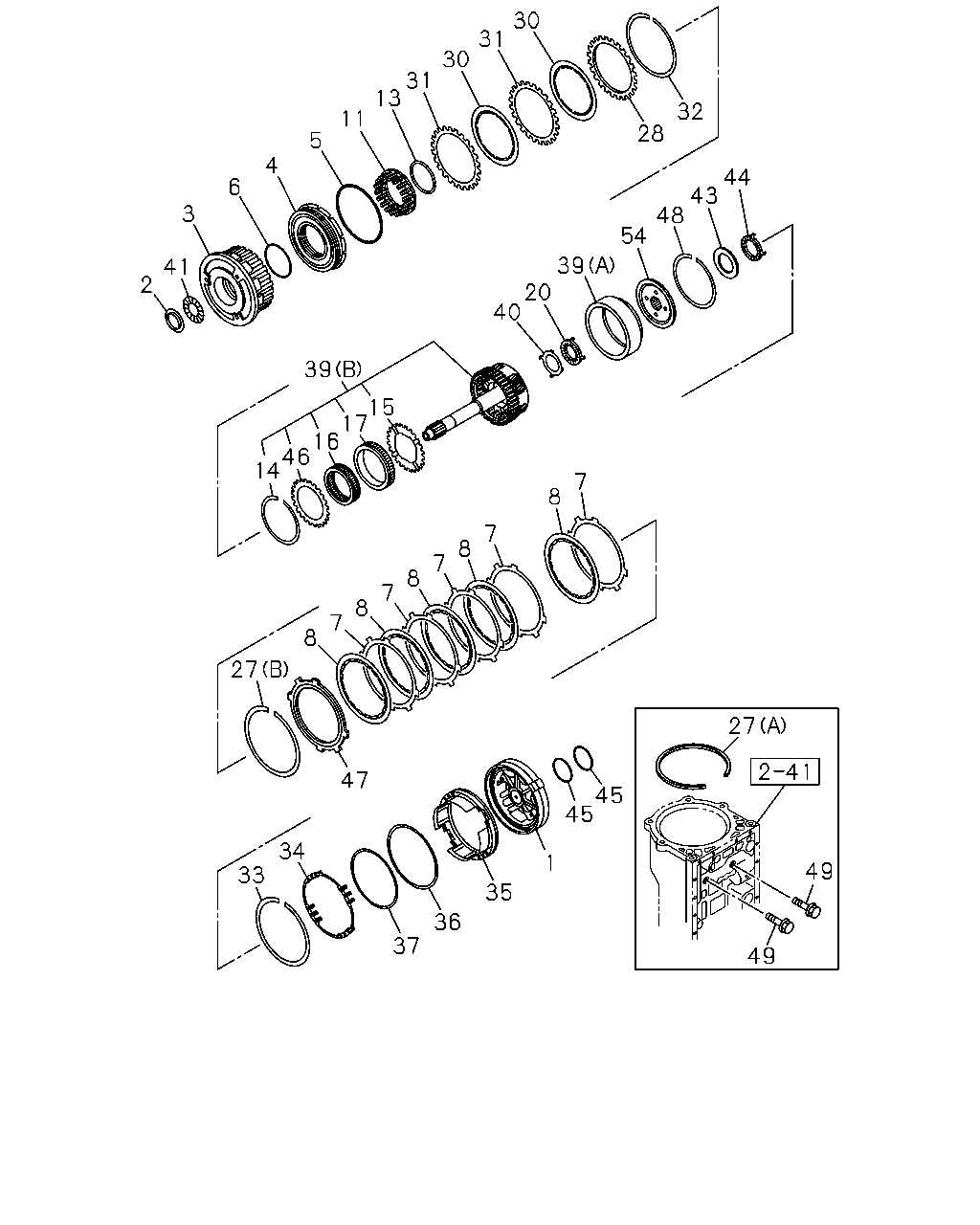

çizim 479657
2 41 3 6 4 5 11 13 31 30 31 30 32 28 39 14 46 16 17 15 40 20 39 54 48 43 44 27 8 7 7 7 7 7 8 8 8 47 33 34 37 35 36 1 45 45 49 49 27
BalonParca AdiParca NoAdetTipApplied Date
1 CASE ASM; OVERDRIVE,A/T 8-97184-516-0 01 1 1506-
2 RACE; THRUST BRG,OVERDRIVE,A/T 8-97249-736-0 01 1 1506-
3 DRUM; CLU,OVERDRIVE,A/T 8-98112-180-0 01 1 1506-
4 PISTON ASM; CLU,OVERDRIVE,A/T 8-94479-889-0 01 1 1506-
5 GASKET; CLU PISTON,OUTER,OVERDRIVE,A/T 8-97184-528-0 01 1 1506-
6 GASKET; CLU PISTON,INNER,OVERDRIVE,A/T 8-97184-321-0 01 1 1506-
7 PLATE; CLU CUSHION 8-97143-124-0 05 1 1506-
8 DISC; CLU,OVERDRIVE,A/T 8-97143-126-0 05 1 1506-
11 SPRING; CLU RETURN,OVERDRIVE,A/T 8-94479-890-0 01 1 1506-
13 RING; SNAP,OVERDRIVE,A/T 8-94479-783-0 01 1 1506-
14 RING; RET,OVERDRIVE,A/T 8-94479-882-0 01 1 1506-
15 WASHER; THRUST,OVERDRIVE,A/T 8-94479-883-0 01 1 1506-
16 CLUTCH ASM; ONEWAY,OVERDRIVE,A/T 8-97019-545-0 01 1 1506-
17 RACE; ONEWAY CLU,A/T 8-94479-885-0 01 1 1506-
20 BEARING; THRUST 8-97379-208-0 01 1 1506-
27 RING; RET,OVERDRIVE,A/T
(A) 		8-94479-859-0 01 1 1506-
27 RING; RET,OVERDRIVE,A/T
(B) 		8-94479-874-0 01 1 1506-
28 PLATE; CLU BACKING,OVERDRIVE,A/T
T=3.6 		8-97288-924-0 01 1 1506-
28 PLATE; CLU BACKING,OVERDRIVE,A/T
T=3.5 		8-97288-925-0 01 1 1506-
28 PLATE; CLU BACKING,OVERDRIVE,A/T
T=3.4 		8-97288-926-0 01 1 1506-
28 PLATE; CLU BACKING,OVERDRIVE,A/T
T=3.1 		8-97311-564-0 01 1 1506-
28 PLATE; CLU BACKING,OVERDRIVE,A/T
T=3.2 		8-97311-565-0 01 1 1506-
28 PLATE; CLU BACKING,OVERDRIVE,A/T
T=3.3 		8-97311-566-0 01 1 1506-
30 DISC; CLU,OVERDRIVE,A/T 8-97143-121-0 03 1 1506-
31 PLATE; CUSHION,OVERDRIVE,A/T 8-94479-891-0 03 1 1506-
32 RING; RET,OVERDRIVE,A/T 8-94250-342-0 01 1 1506-
33 RETAINER; BRK RETURN SPR,OVERDRIVE,A/T
ID=160 		8-97184-521-0 01 1 1506-
34 SPRING; BRK RETURN,OVERDRIVE,A/T 8-97184-526-0 01 1 1506-
35 PISTON; BRK,OVERDRIVE,A/T 8-98050-552-0 01 1 1506-
36 GASKET; PISTON,OUTER,A/T 8-97184-519-0 01 1 1506-
37 GASKET; PISTON,INNER,A/T 8-97184-520-0 01 1 1506-
39 GEAR ASM; PLANETARY INTERNAL,A/T
(A) 		8-94479-876-0 01 1 1506-
39 GEAR ASM; PLANETARY INTERNAL,A/T
(B) 		8-98112-206-0 01 1 1506-
40 RACE; THRUST BRG,OVERDRIVE,A/T 8-97379-207-0 01 1 1506-
41 BEARING; THRUST,OVERDRIVE,A/T 8-97249-734-0 01 1 1506-
43 RACE; THRUST BRG,OVERDRIVE,A/T 8-97019-548-0 01 1 1506-
44 BEARING; THRUST,OVERDRIVE,A/T 8-97019-547-0 01 1 1506-
45 RING; SEAL,OVERDRIVE,A/T 8-94479-747-0 02 1 1506-
46 PLATE; RET,OVERDRIVE CLU 8-94479-886-0 01 1 1506-
47 FLANGE; OVERDRIVE BRK,A/T
T=3.6 		8-97288-916-0 01 1 1506-
47 FLANGE; OVERDRIVE BRK,A/T
T=3.7 		8-97288-917-0 01 1 1506-
47 FLANGE; OVERDRIVE BRK,A/T
T=3.5 		8-97289-106-0 01 1 1506-
47 FLANGE; OVERDRIVE BRK,A/T
T=3.8 		8-97311-560-0 01 1 1506-
47 FLANGE; OVERDRIVE BRK,A/T
T=3.9 		8-97311-561-0 01 1 1506-
47 FLANGE; OVERDRIVE BRK,A/T
T=4.0 		8-97311-562-0 01 1 1506-
47 FLANGE; OVERDRIVE BRK,A/T
T=3.3 		8-97311-563-0 01 1 1506-
48 RING; SNAP,PLANETARY RING GEAR,OD 8-94479-853-0 01 1 1506-
49 BOLT; OVERDRIVE SUPPORT,A/T 8-97143-090-0 02 1 1506-
54 FLANGE; PLANETARY RING GEAR,OVERDRIVE 8-97379-206-0 01 1 1506-
