2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH (#162446) — 63 parça

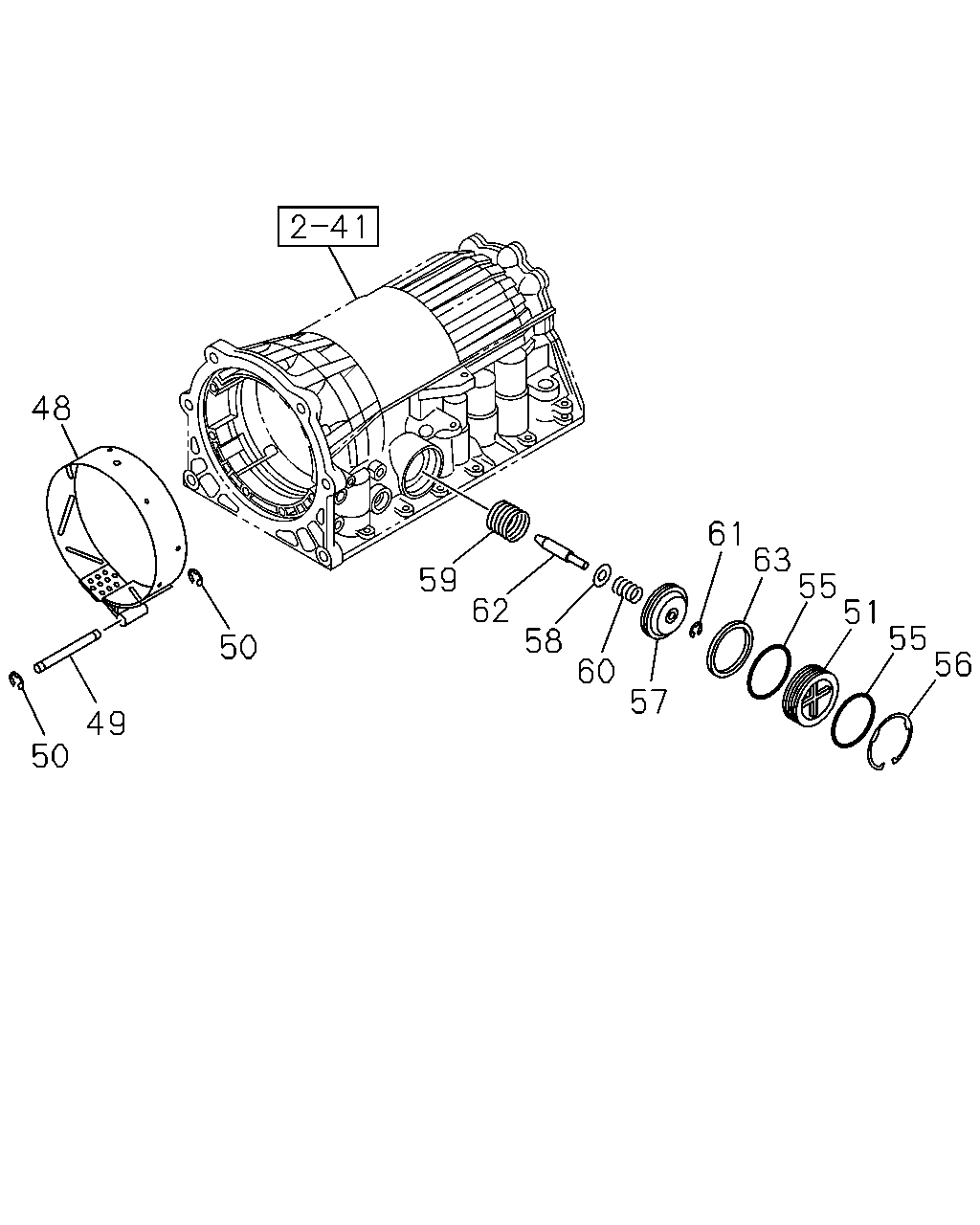

çizim 479235
48 50 50 49 59 62 58 60 57 61 63 55 56 55 51
BalonParca AdiParca NoAdetTipApplied Date
11 PISTON ASM; CLU,A/T 8-97232-055-0 01 1 1506-
48 BAND; 2ND COAST BRK 8-97143-086-0 01 1 1506-
49 PIN; 2ND COAST BRK BAND 8-94479-825-0 01 1 1506-
50 RING; SNAP,2ND COAST BRK BAND,A/T 8-94479-818-0 02 1 1506-
51 COVER; 2ND COAST BRK,A/T 8-97331-546-0 01 1 1506-
55 GASKET; COVER,2ND COAST BRK,A/T 8-94479-824-0 02 1 1506-
56 RING; SNAP,2ND COAST BRK COVER,A/T 8-97069-458-0 01 1 1506-
57 PISTON; 2ND COAST BRK,A/T 8-97331-542-0 01 1 1506-
58 WASHER; 2ND COAST BRK PISTON,A/T 8-94479-817-0 01 1 1506-
59 SPRING; OUTER,2ND COAST BRK PISTON 8-94479-812-0 01 1 1506-
60 SPRING; INNER,2ND COAST BRK PISTON 8-97331-545-0 01 1 1506-
61 RING; SNAP,2ND COAST BRK 8-94479-818-0 01 1 1506-
62 ROD; 2ND COAST BRK PISTON
L=78.4 		8-97331-543-0 01 1 1506-
62 ROD; 2ND COAST BRK PISTON
L=79.9 		8-97331-544-0 01 1 1506-
63 RING; SEAL,2ND COAST BRK PISTON 8-94479-813-0 01 1 1506-

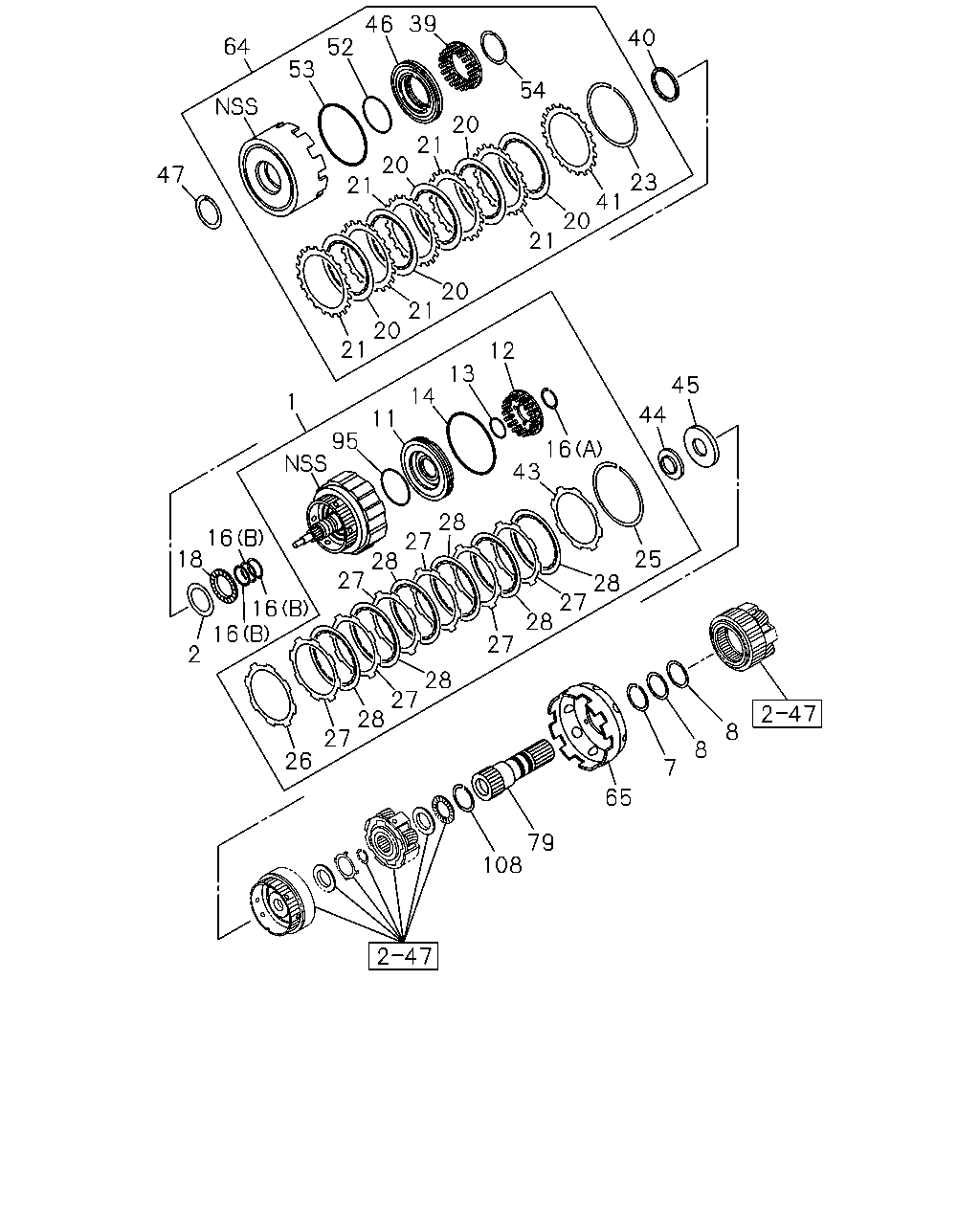

çizim 481012
64 47 53 52 46 39 21 20 21 20 54 40 21 20 21 20 21 20 41 23 18 2 16 16 95 1 14 13 12 16 27 28 27 28 43 16 44 45 26 27 28 27 28 27 28 27 28 25 108 79 65 8 8 7 1
BalonParca AdiParca NoAdetTipApplied Date
1 HUB ASM; CLU,INPUT SHAFT,A/T 8-98112-237-0 01 1 1506-
2 RACE; THRUST BRG,A/T 8-94479-763-0 01 1 1506-
7 RING; RET,PLANETARY GEAR,A/T 8-94479-844-0 01 1 1506-
8 RING; SEAL,PLANETARY GEAR,A/T 8-94166-003-0 02 1 1506-
11 PISTON ASM; CLU,A/T 8-97232-055-0 01 1 1506-
12 SPRING; CLU RETURN,A/T 8-94479-770-0 01 1 1506-
13 GASKET; INNER,CLU,A/T 8-94364-919-0 01 1 1506-
14 GASKET; OUTER,CLU,A/T 8-94364-920-0 01 1 1506-
16 RING; SNAP,CLU,A/T
(A) 		8-94479-769-0 01 1 1506-
16 RING; SNAP,CLU,A/T
(B) 		8-94479-775-0 03 1 1506-
18 BEARING; THRUST,CLU,A/T 8-94479-764-0 01 1 1506-
20 DISC; CLU,A/T 8-98050-540-0 05 1 1506-
21 DISC ASM; CLU & FACING,A/T 8-97232-057-0 05 1 1506-
23 RING; RET,CLU,A/T 8-97214-553-0 01 1 1506-
25 RING; RET,BACKING PLATE,A/T 8-94250-342-0 01 1 1506-
26 PLATE; CLU,BACKING,A/T 8-94479-772-0 01 1 1506-
27 DISC ASM; CLU & FACING,A/T 8-97232-058-0 06 1 1506-
28 DISC; CLU,A/T
T=1.7 		8-97232-041-0 06 1 1506-
39 SPRING; DIRECT CLU RETURN 8-97019-543-0 01 1 1506-
40 WASHER; THRUST,CLU DRUM,INPUT SHAFT 8-94479-796-0 01 1 1506-
41 FLANGE; DIRECT CLU
T=3.3 		8-97288-908-0 01 1 1506-
41 FLANGE; DIRECT CLU
T=3.4 		8-97288-909-0 01 1 1506-
41 FLANGE; DIRECT CLU
T=3.5 		8-97288-910-0 01 1 1506-
41 FLANGE; DIRECT CLU
T=3.6 		8-97288-911-0 01 1 1506-
41 FLANGE; DIRECT CLU
T=3.7 		8-97288-912-0 01 1 1506-
41 FLANGE; DIRECT CLU
T=3.8 		8-97288-913-0 01 1 1506-
41 FLANGE; DIRECT CLU
T=4.0 		8-97331-540-0 01 1 1506-
41 FLANGE; DIRECT CLU
T=4.2 		8-97331-541-0 01 1 1506-
43 FLANGE; FWD CLU
T=3.6 		8-97232-043-0 01 1 1506-
43 FLANGE; FWD CLU
T=3.8 		8-97232-044-0 01 1 1506-
43 FLANGE; FWD CLU
T=4.0 		8-97232-045-0 01 1 1506-
43 FLANGE; FWD CLU
T=3.2 		8-97232-046-0 01 1 1506-
43 FLANGE; FWD CLU
T=3.4 		8-97232-047-0 01 1 1506-
43 FLANGE; FWD CLU
T=3.0 		8-97331-537-0 01 1 1506-
43 FLANGE; FWD CLU
T=4.2 		8-97331-538-0 01 1 1506-
43 FLANGE; FWD CLU
T=4.4 		8-97331-539-0 01 1 1506-
44 BEARING; THRUST,INPUT SHAFT RR 8-98050-537-0 01 1 1506-
45 RACE; THRUST BRG,INPUT SHAFT 8-98050-536-0 01 1 1506-
46 PISTON; DIRECT CLU,A/T 8-94364-921-0 01 1 1506-
47 WASHER; THRUST,DIRECT CLU DRUM 8-94479-779-0 01 1 1506-
52 GASKET; PISTON INNER,DIRECT CLU,A/T 8-97184-321-0 01 1 1506-
53 GASKET; PISTON OUTER,DIRECT CLU,A/T 8-94364-920-0 01 1 1506-
54 RING; SNAP,PISTON RETURN SPRING 8-94479-783-0 01 1 1506-
64 DRUM ASM; DIRECT CLU,A/T 8-98112-190-0 01 1 1506-
65 DRUM; SUN GEAR INPUT 8-97024-255-0 01 1 1506-
79 GEAR ASM; INPUT SUN 8-98112-182-0 01 1 1506-
95 GASKET; CLU HUB 8-97122-978-0 01 1 1506-
108 RING; SNAP,SUN GEAR 8-94479-845-0 01 1 1506-
