2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#162445) — 26 parça

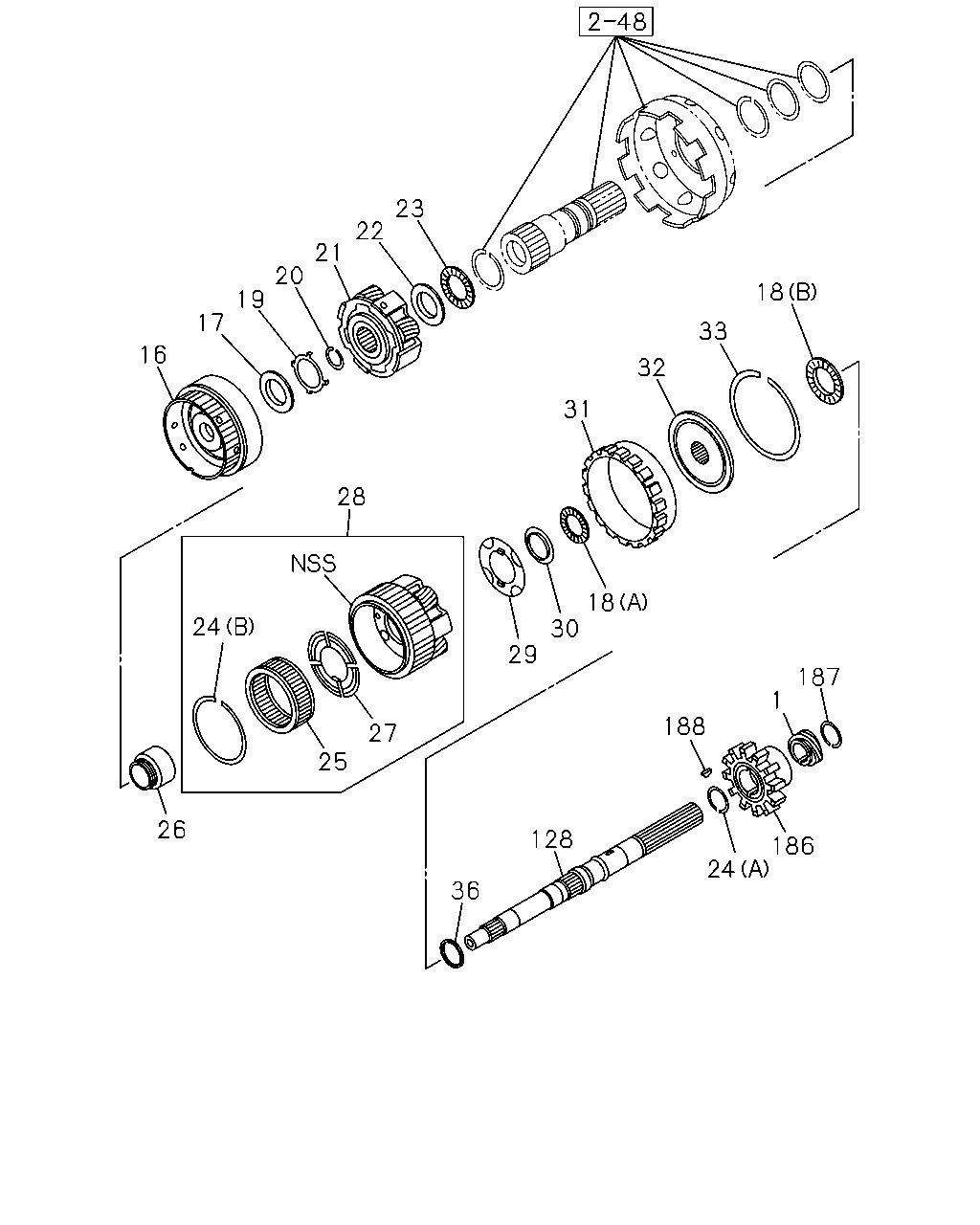

çizim 479463
16 17 19 20 21 22 23 28 24 26 25 36 27 128 188 24 1 186 187 29 18 30 31 32 33 18
BalonParca AdiParca NoAdetTipApplied Date
1 GEAR; SPEEDOMETER DRIVE,A/T 8-98056-393-0 01 1 1506-
16 GEAR ASM; FRT PLANETARY,A/T 8-98112-185-0 01 1 1506-
17 RACE; THRUST BRG,PLANETARY SHAFT,A/T 8-98050-545-0 01 1 1506-
18 BEARING; THRUST,RR PLANETARY GEAR,A/T
(B) 		8-97249-735-0 01 1 1506-
18 BEARING; THRUST,RR PLANETARY GEAR,A/T
(A) 		8-97331-548-0 01 1 1506-
19 RACE; THRUST BRG,PLANETARY SHAFT,A/T 8-98050-546-0 01 1 1506-
20 RING; RET,PLANETARY GEAR,A/T 8-94479-842-0 01 1 1506-
21 GEAR; PLANETARY,INTERNAL FRT,A/T 8-98050-547-0 01 1 1506-
22 RACE; THRUST BRG,FRT PLANETARY SHAFT,A 8-98050-548-0 01 1 1506-
23 BEARING; THRUST,PLANETARY SHAFT,A/T 8-98050-549-0 01 1 1506-
24 RING; RET,FRT PLANETARY,A/T
(A) 		8-97069-457-0 01 1 1506-
24 RING; RET,FRT PLANETARY,A/T
(B) 		8-97143-129-0 01 1 1506-
25 CLUTCH ASM; ONEWAY,FRT PLANETARY,A/T 8-94364-924-0 01 1 1506-
26 RACE; ONEWAY CLU,A/T 8-97019-542-0 01 1 1506-
27 WASHER; THRUST,FRT PLANETARY,A/T 8-98050-550-0 01 1 1506-
28 GEAR ASM; RR PLANETARY,A/T 8-98065-077-0 01 1 1506-
29 WASHER; THRUST,FRT PLANETARY,A/T 8-98050-551-0 01 1 1506-
30 RACE; THRUST BRG,RR PLANETARY FLANGE 8-97331-549-0 01 1 1506-
31 GEAR ASM; INTERNAL,PLANETARY,A/T 8-94479-854-0 01 1 1506-
32 FLANGE; RING GEAR,RR PLANETARY,A/T 8-94479-852-0 01 1 1506-
33 RING; RET,PLANETARY GEAR,A/T 8-94479-853-0 01 1 1506-
36 RING; SEALING,FRT PLANETARY SHAFT,A/T 8-94479-902-0 01 1 1506-
128 SHAFT; OUTPUT,A/T 8-98065-079-0 01 1 1506-
186 ROTOR; SPEED SENSOR 8-97331-552-0 01 1 1506-
187 RING; SNAP,ROTOR,SPEED SENSOR 8-97069-451-0 01 1 1506-
188 KEY; SPEED SENSOR ROTOR 8-94479-904-0 01 1 1506-
