◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51506 - UCR RHD (INDIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-44 - AUTO TRANS CONTROL VALVE; LOWER BODY ▶

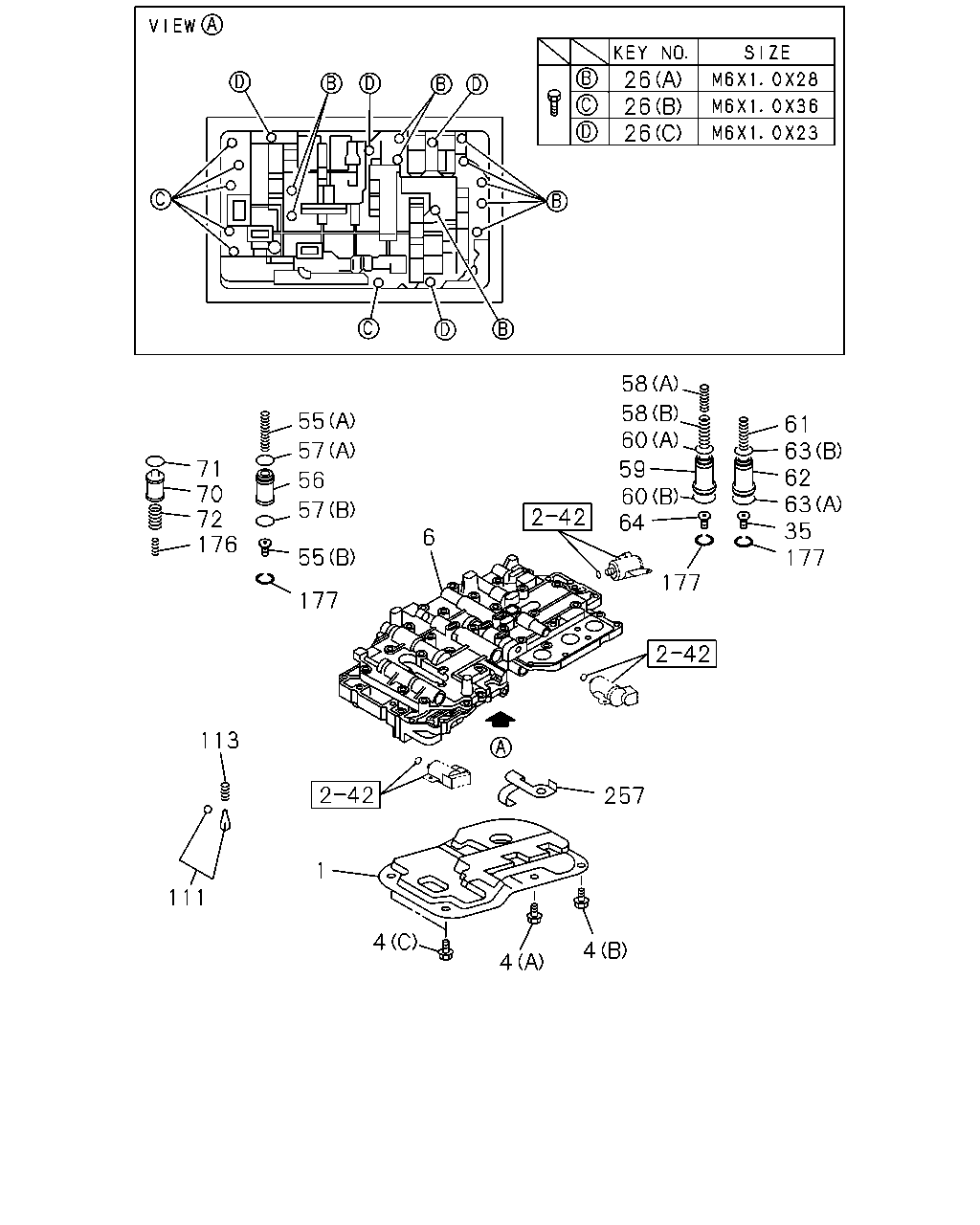

2-44 — AUTO TRANS CONTROL VALVE; LOWER BODY (#162443) — 32 parça
çizim 481022
71 72 176 72 55 177 57 55 56 57 113 111 1 4 257 4 177 64 60 59 60 58 58 177 35 63 62 63 61 4 26 26 26 6
BalonParca AdiParca NoAdetTipApplied Date
1 STRAINER ASM; OIL,A/T 8-97207-143-0 01 1 1506-
4 BOLT; OIL STRAINER,A/T
(A) M6X20 		8-94479-922-0 01 1 1506-
4 BOLT; OIL STRAINER,A/T
(B) M6X23 		8-94479-925-0 01 1 1506-
4 BOLT; OIL STRAINER,A/T
(C) 		8-97207-142-0 02 1 1506-
6 BODY ASM; VLV LWR,A/T 8-98112-200-0 01 1 1506-
26 BOLT; BODY FIX,VLV LWR,A/T
(A) M6X28 		8-94473-611-0 10 1 1506-
26 BOLT; BODY FIX,VLV LWR,A/T
(B) M6X36 		8-94473-630-0 06 1 1506-
26 BOLT; BODY FIX,VLV LWR,A/T
(C) M6X23 		8-94479-925-0 04 1 1506-
35 SPRING; LWR VLV BODY 8-97025-856-0 01 1 1506-
55 SPRING; ACCUMLATOR PISTON
(A) 		8-97027-208-0 01 1 1506-
55 SPRING; ACCUMLATOR PISTON
(B) 		8-97027-209-0 01 1 1506-
56 PISTON; ACCUMLATOR 8-97027-207-0 01 1 1506-
57 GASKET; 2ND SPD PISTON,A/T
(A) ID=20 		8-97184-885-0 01 1 1506-
57 GASKET; 2ND SPD PISTON,A/T
(B) ID=27 		8-97184-886-0 01 1 1506-
58 SPRING; DIRECT CLU (C-2 ACCUM),A/T
(A) 		8-97027-204-0 01 1 1506-
58 SPRING; DIRECT CLU (C-2 ACCUM),A/T
(B) 		8-98050-497-0 01 1 1506-
59 PISTON; DIRECT CLU,A/T 8-97025-819-0 01 1 1506-
60 GASKET; DIRECT CLU PISTON,A/T
(A) 		8-97184-887-0 01 1 1506-
60 GASKET; DIRECT CLU PISTON,A/T
(B) 		8-97184-888-0 01 1 1506-
61 SPRING; FWD CLU,(C-1 ACUUM),A/T 8-97232-088-0 01 1 1506-
62 PISTON; FWD CLU,A/T 8-97025-817-0 01 1 1506-
63 GASKET; FWD CLU,A/T
(A) 		8-97184-888-0 01 1 1506-
63 GASKET; FWD CLU,A/T
(B) ID=24 		8-97184-889-0 01 1 1506-
64 SPRING; DIRECT CLU 8-97025-820-0 01 1 1506-
70 PISTON; ACCUMLATOR 8-97027-205-0 01 1 1506-
71 GASKET; ACCUMLATOR PISTON 8-97184-884-0 01 1 1506-
72 SPRING; ACCUMLATOR PISTON 8-97027-206-0 01 1 1506-
111 BODY; CHECK BALL 8-94479-931-0 01 1 1506-
113 SPRING; CHECK BALL 8-94479-930-0 01 1 1506-
176 SPRING; ACCUM INNER 8-97025-825-0 01 1 1506-
177 RING; SNAP
ID=19 		8-97025-821-0 03 1 1506-
257 CLAMP; HARNESS 8-97232-037-0 01 1 1506-
