2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#162441) — 44 parça

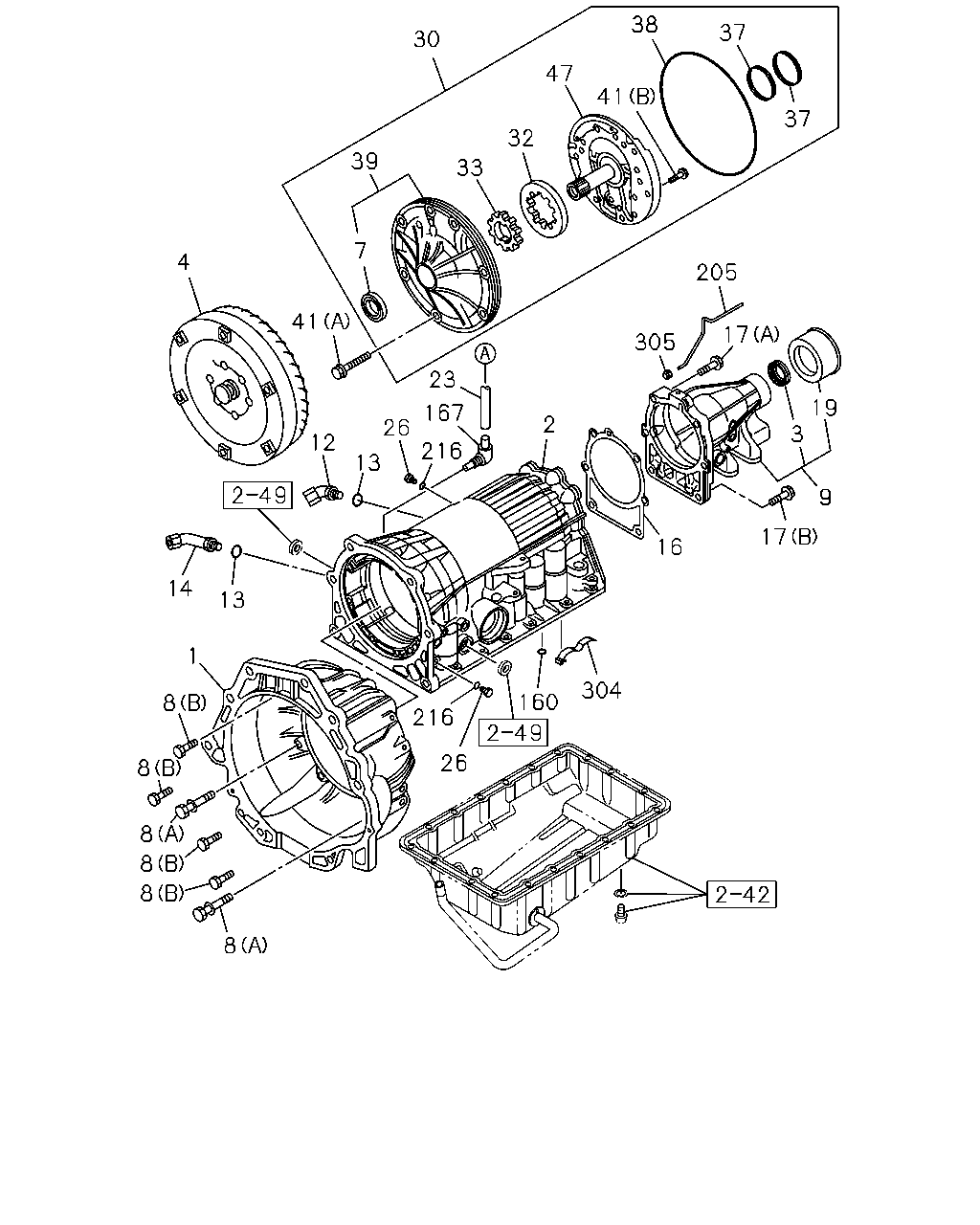

çizim 479757
30 39 37 37 41 47 32 33 7 4 41 12 23 26 167 13 216 2 305 205 17 19 3 9 16 17 14 13 1 8 8 8 8 8 8 216 26 160 304 38
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; CONV,A/T 8-97179-520-0 01 1 1506-
2 CASE ASM; A/T 8-98112-178-0 01 1 1506-
3 SEAL; OIL,RR COVER,A/T 8-97184-430-0 01 1 1506-
4 CONVERTER ASM; TORQUE,A/T 8-98056-389-0 01 1 1506-
7 SEAL; OIL,LIP,A/T 8-94479-742-1 01 1 1506-
8 BOLT; HSG TO CASE
(B) M10X35 		8-90257-082-0 04 1 1506-
8 BOLT; HSG TO CASE
(A) M12X68 		8-97025-830-0 02 1 1506-
9 COVER ASM; RR,A/T 8-98317-855-0 01 1 1506-
12 CONNECTOR; OIL COOLER OUTLET PIPE 8-94450-761-0 01 1 1506-
13 GASKET; OIL COOLER PIPE
ID=11.7 		8-94479-724-0 02 1 1506-
14 UNION; OIL COOLER RETURN PIPE 8-94450-762-0 01 1 1506-
16 GASKET; EXT HSG 8-97032-928-0 01 1 1506-
17 BOLT; REAR COVER TO CASE
(A) M10X45 		8-94473-632-0 04 1 1506-
17 BOLT; REAR COVER TO CASE
(B) M10X35 		8-94479-951-0 02 1 1506-
19 COVER; DUST,REAR COVER 8-97184-432-0 01 1 1506-
23 HOSE; BREATHER,A/T
L=240 SERVICED BY L=3000 		0-02857-300-0 02 1 1506-
26 PLUG; TRANS CASE 5-34119-002-0 02 1 1506-
30 PUMP ASM; OIL,A/T 8-97370-809-0 01 1 1506-
32 GEAR; OUTER,OIL PUMP,A/T
T=11.715 -0.016/-0.025 MARK M 		8-97370-816-0 01 1 1506-
32 GEAR; OUTER,OIL PUMP,A/T
T=11.715 -0.006/-0.015 MARK N 		8-97370-817-0 01 1 1506-
32 GEAR; OUTER,OIL PUMP,A/T
T=11.715 +0.005/-0.005 MARK P 		8-97370-818-0 01 1 1506-
32 GEAR; OUTER,OIL PUMP,A/T
T=11.715 +0.015/+0.006 MARK R 		8-97370-819-0 01 1 1506-
32 GEAR; OUTER,OIL PUMP,A/T
T=11.715 +0.025/+0.016 MARK S 		8-97370-820-0 01 1 1506-
33 GEAR; INNER,OIL PUMP,A/T
T=11.715 -0.016/-0.025 MARK M 		8-97370-811-0 01 1 1506-
33 GEAR; INNER,OIL PUMP,A/T
T=11.715 -0.006/-0.015 MARK N 		8-97370-812-0 01 1 1506-
33 GEAR; INNER,OIL PUMP,A/T
T=11.715 +0.005/-0.005 MARK P 		8-97370-813-0 01 1 1506-
33 GEAR; INNER,OIL PUMP,A/T
T=11.715 +0.015/+0.006 MARK R 		8-97370-814-0 01 1 1506-
33 GEAR; INNER,OIL PUMP,A/T
T=11.715 +0.025/+0.016 MARK S 		8-97370-815-0 01 1 1506-
37 RING; SEAL,OIL PUMP,A/T 8-94479-747-0 02 1 1506-
38 GASKET; OIL PUMP,A/T 8-94479-748-0 01 1 1506-
39 BODY SUB ASM; FRT,OIL PUMP,A/T 8-98112-183-0 01 1 1506-
41 BOLT; OIL PUMP HSG,A/T
(A) M8X35 		8-94479-749-0 07 1 1506-
41 BOLT; OIL PUMP HSG,A/T
(B) M6X15.5 		8-97019-532-0 13 1 1506-
47 SHAFT; OIL PUMP,A/T 8-98112-188-0 01 1 1506-
160 GASKET; BRK DRUM,A/T 8-94313-576-0 01 1 1506-
167 CONNECTOR; CASE,A/T 8-94479-727-0 01 1 1506-
205 TUBE; EXT HSG 8-97331-557-0 01 1 1506-
216 GASKET; SOLENOID OUTER
ID=6 		5-34119-001-0 02 1 1506-
304 SPRING; LEAF,A/T 8-97184-331-0 01 1 1506-
305 GASKET; TUBE,EXT HSG 8-97027-228-0 01 1 1506-

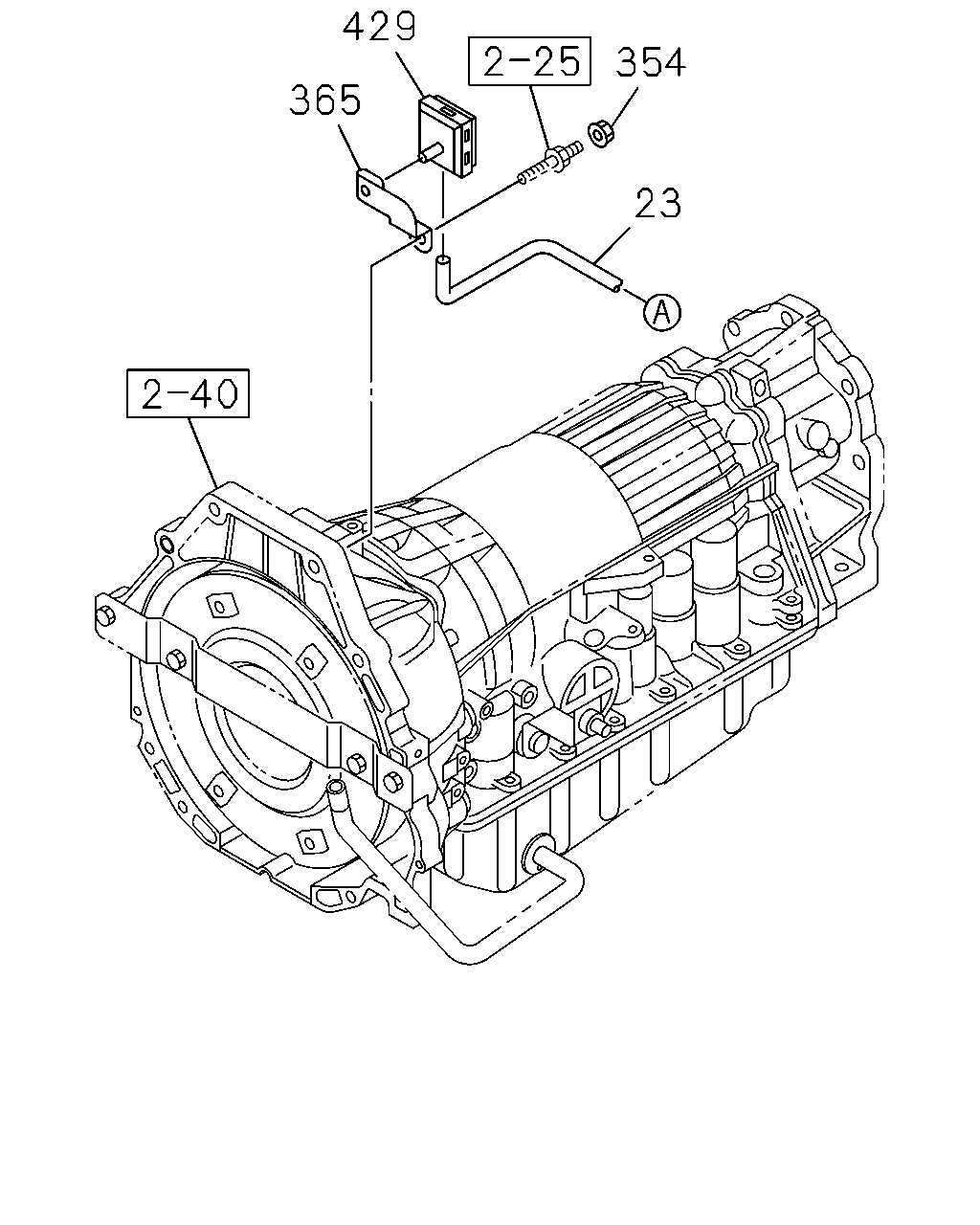

çizim 479767
429 365 354 3
BalonParca AdiParca NoAdetTipApplied Date
3 SEAL; OIL,RR COVER,A/T 8-97184-430-0 01 1 1506-
354 NUT; BRKT
M10 FLANGE IMA 		0-91180-110-0 01 1 1506-
365 BRACKET; BREATHER HOSE,A/T 8-98005-233-0 01 1 1506-
429 CLIP; BREATHER HOSE 8-97301-433-1 01 1 1506-
