◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6 ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#162439) — 117 parça

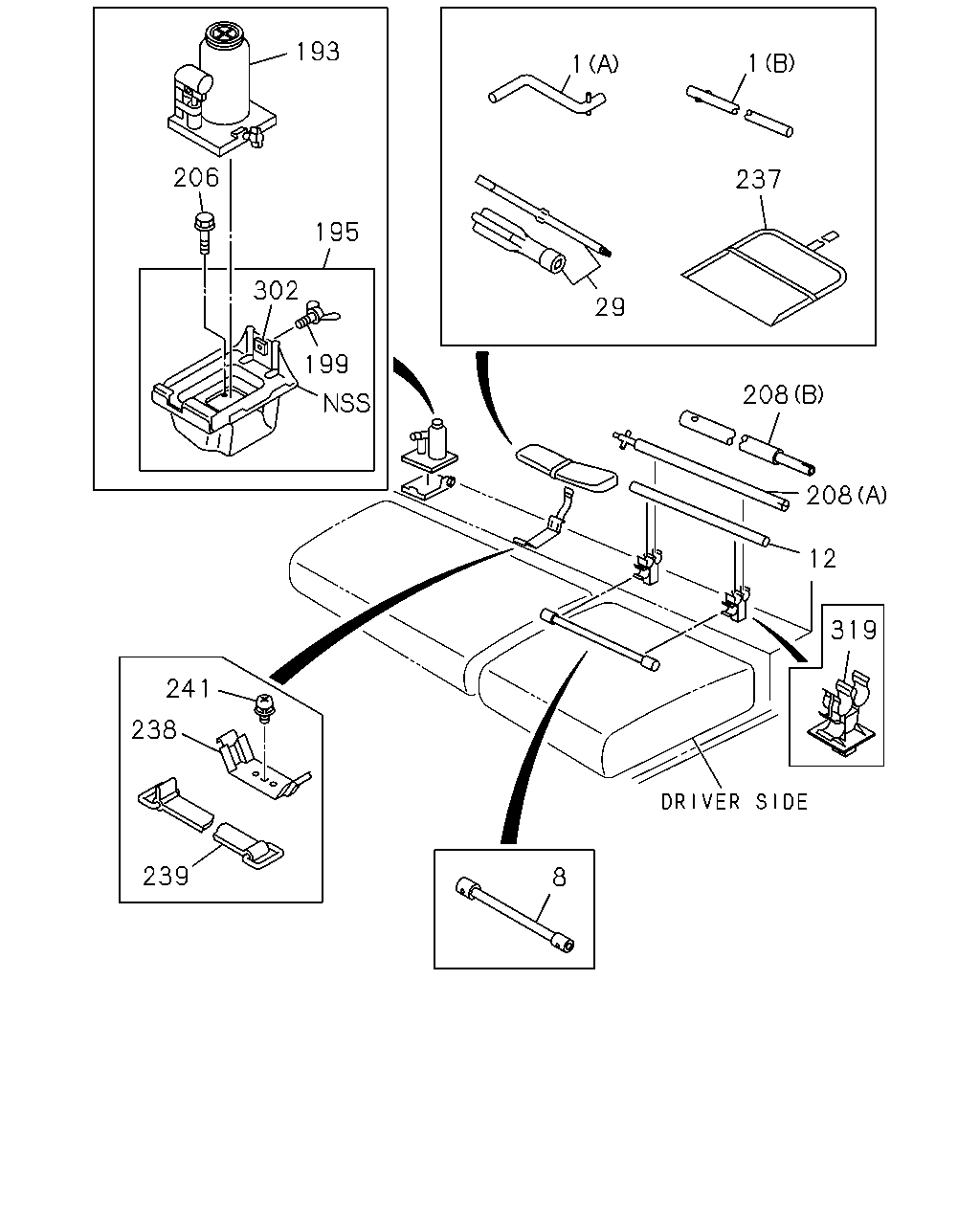

çizim 480932
193 206 195 302 199 1 29 1 237 208 208 12 319 8 241 238 239
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> (A) 		8-97218-985-0 01 1 1506-1508 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> (A) 		8-97218-985-0 01 1 1509- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO5B+ SPECIFICATION(NT5) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-97218-985-0 01 1 1509- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) SPARE WHEEL CARRIER<P10> CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97218-985-0 01 1 1509- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97218-985-0 01 1 1509- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO5B+ SPECIFICATION(NT5) SPARE WHEEL CARRIER<P10> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97218-985-0 01 1 1509- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 1509- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) EXC. SPARE WHEEL CARRIER<P10> (B) L=280 		8-98181-251-0 01 1 1506-1508 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=280 		8-98181-251-0 01 1 1506-1508 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=280 		8-98181-251-0 01 1 1506-1508 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) EXC. SPARE WHEEL CARRIER<P10> (B) L=280 		8-98181-251-0 01 1 1509- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=280 		8-98181-251-0 01 1 1509- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) SPARE WHEEL CARRIER<P10> (B) L=280 		8-98181-251-0 01 1 1509- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. SPARE WHEEL CARRIER<P10> (B) L=280 		8-98181-251-0 01 1 1509- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO5B+ SPECIFICATION(NT5) SPARE WHEEL CARRIER<P10> CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) FRAME STRAIGHT TYPE<7KJ> (B) L=280 		8-98181-251-0 01 1 1509- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SPARE WHEEL CARRIER<P10> CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=280 		8-98181-251-0 01 1 1509- ●
8 08.821 WRENCH; WHEEL
B=41X19 L=330 		8-94386-490-1 01 1 1506- ●
8 08.821 WRENCH; WHEEL
B=41X21 L=440 		1-85113-015-1 01 1 1506-1508 ●
8 08.821 WRENCH; WHEEL
B=41X21 L=440 		1-85113-015-1 01 1 1509- ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> OD=25 L=480 		8-98257-407-0 01 1 1506-1508 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> OD=25 L=480 		8-98257-407-0 01 1 1509- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO5B+ SPECIFICATION(NT5) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) OD=25 L=480 		8-98257-407-0 01 1 1509- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) SPARE WHEEL CARRIER<P10> CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=480 		8-98257-407-0 01 1 1509- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> OD=25 L=480 		8-98257-407-0 01 1 1509- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO5B+ SPECIFICATION(NT5) SPARE WHEEL CARRIER<P10> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> OD=25 L=480 		8-98257-407-0 01 1 1509- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1509- ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 1506-1508 ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 1509- ● ● ●
193 08.820 JACK ASM
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-12 7 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 5TON 		8-98114-047-0 01 1 1509- ●
193 08.820 JACK ASM
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-12 7 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) 5TON 		8-98114-047-0 01 1 1509- ●
193 08.820 JACK ASM
4TON 		8-98012-285-0 01 1 1506-1508 ● ●
193 08.820 JACK ASM
4TON 		8-98012-285-0 01 1 1509-1511 ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&R R 215/85R16 16X6K-128(CSC) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4TON 		8-98012-285-0 01 1 1509-1511 ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) 4TON 		8-98012-285-0 01 1 1509-1511 ●
193 08.820 JACK ASM
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) 4TON 		8-98012-285-0 01 1 1512- ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&R R 215/85R16 16X6K-128(CSC) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 4TON 		8-98012-285-0 01 1 1512- ●
193 08.820 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) 4TON 		8-98012-285-0 01 1 1512- ●
195 08.820 BRACKET; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-12 7 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-97589-376-2 01 1 1509- ●
195 08.820 BRACKET; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-12 7 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) 		8-97589-376-2 01 1 1509- ●
195 08.820 BRACKET; JACK 8-98033-737-2 01 1 1506-1508 ● ●
195 08.820 BRACKET; JACK 8-98033-737-2 01 1 1509-1511 ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&R R 215/85R16 16X6K-128(CSC) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-98033-737-2 01 1 1509-1511 ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) 		8-98033-737-2 01 1 1509-1511 ●
195 08.820 BRACKET; JACK
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) 		8-98033-737-2 01 1 1512- ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&R R 215/85R16 16X6K-128(CSC) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-98033-737-2 01 1 1512- ●
195 08.820 BRACKET; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) 		8-98033-737-2 01 1 1512- ●
199 08.820 BOLT; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-12 7 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) M8X30 WING 		8-98005-536-0 01 1 1509- ●
199 08.820 BOLT; JACK
FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-12 7 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M8X30 WING 		8-98005-536-0 01 1 1509- ●
199 08.820 BOLT; JACK
M8X50 WING 		8-98005-537-0 01 1 1506-1508 ● ●
199 08.820 BOLT; JACK
M8X50 WING 		8-98005-537-0 01 1 1509-1511 ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&R R 215/85R16 16X6K-128(CSC) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) M8X50 WING 		8-98005-537-0 01 1 1509-1511 ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) M8X50 WING 		8-98005-537-0 01 1 1509-1511 ●
199 08.820 BOLT; JACK
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),F&R 205/75R16C L.R.R RIB 16X5.5J-116.5 SILVER(CYS) M8X50 WING 		8-98005-537-0 01 1 1512- ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&R R 215/85R16 16X6K-128(CSC) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) M8X50 WING 		8-98005-537-0 01 1 1512- ●
199 08.820 BOLT; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) M8X50 WING 		8-98005-537-0 01 1 1512- ●
206 08.820 SCREW; OIL JACK BRKT
06.216 BOLT M8X25 FLANGE 		0-28650-825-0 01 1 1506-1508 ● ●
206 08.820 SCREW; OIL JACK BRKT
06.216 BOLT M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> (A) L=642 		8-98181-477-0 01 1 1506-1508 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> (A) L=642 		8-98181-477-0 01 1 1509- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO5B+ SPECIFICATION(NT5) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (A) L=642 		8-98181-477-0 01 1 1509- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) SPARE WHEEL CARRIER<P10> CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642 		8-98181-477-0 01 1 1509- ●
208 08.820 HANDLE; JACK
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> (A) L=642 		8-98181-477-0 01 1 1509- ●
208 08.820 HANDLE; JACK
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO5B+ SPECIFICATION(NT5) SPARE WHEEL CARRIER<P10> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> (A) L=642 		8-98181-477-0 01 1 1509- ●
208 08.820 HANDLE; JACK
(A) L=642 		8-98181-477-0 01 1 1509- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) EXC. SPARE WHEEL CARRIER<P10> (B) L=580 		8-98181-249-0 01 1 1506-1508 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=580 		8-98181-249-0 01 1 1506-1508 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=580 		8-98181-249-0 01 1 1506-1508 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) EXC. SPARE WHEEL CARRIER<P10> (B) L=580 		8-98181-249-0 01 1 1509- ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=580 		8-98181-249-0 01 1 1509- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) SPARE WHEEL CARRIER<P10> (B) L=580 		8-98181-249-0 01 1 1509- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) EXC. SPARE WHEEL CARRIER<P10> (B) L=580 		8-98181-249-0 01 1 1509- ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO5B+ SPECIFICATION(NT5) SPARE WHEEL CARRIER<P10> CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) FRAME STRAIGHT TYPE<7KJ> (B) L=580 		8-98181-249-0 01 1 1509- ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) SPARE WHEEL CARRIER<P10> CATALYSIS CONTROL WITH DPD(8JM) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=580 		8-98181-249-0 01 1 1509- ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 1506-1508 ● ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 1509- ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 1506-1508 ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 1509- ● ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 1506-1508 ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 1509- ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 1506-1508 ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 1509- ● ● ●
302 08.820 NUT; JACK BRKT 8-98021-556-0 01 1 1506-1508 ● ●
302 08.820 NUT; JACK BRKT 8-98021-556-0 01 1 1509- ● ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 1506-1508 ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 1509- ● ● ●

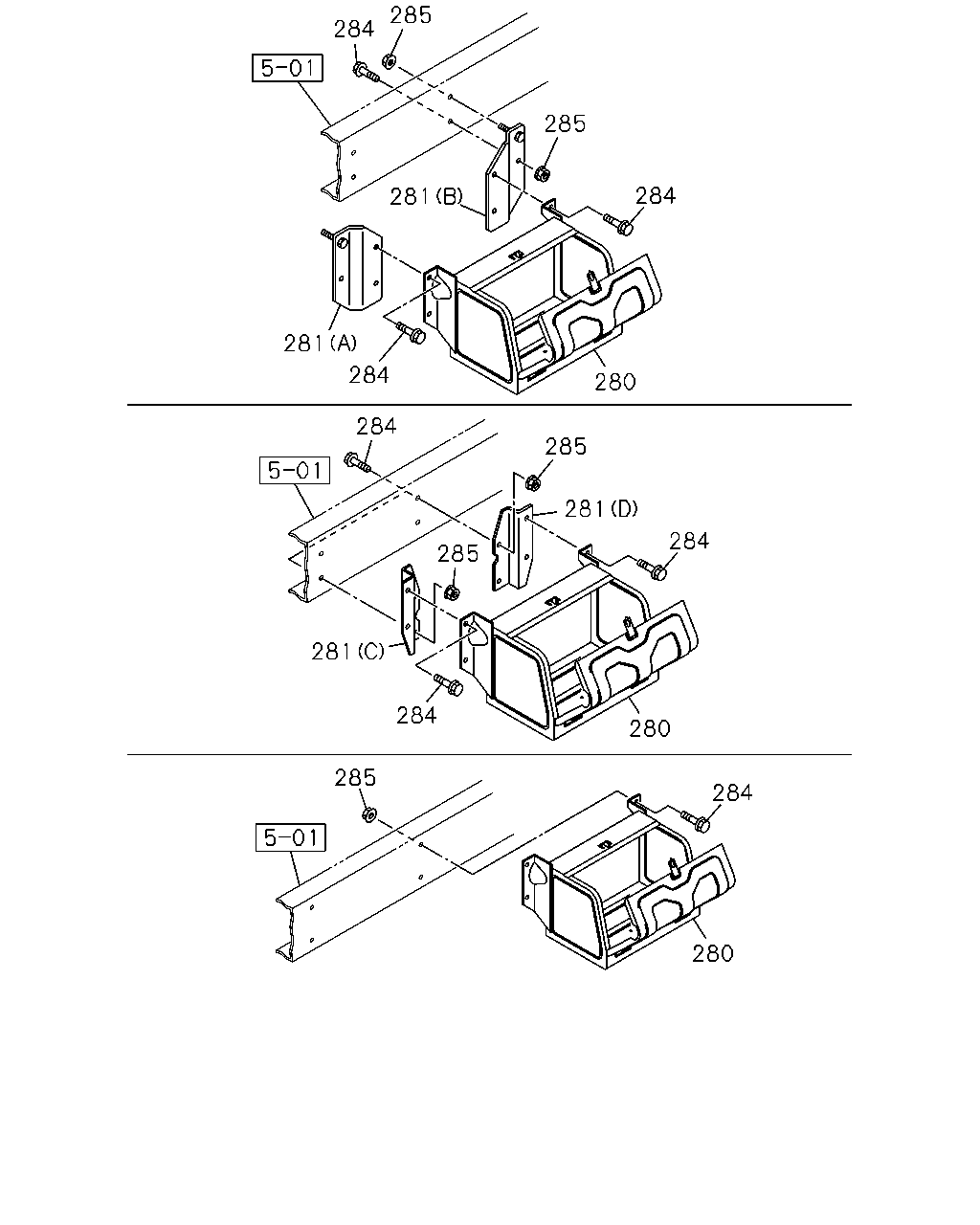

çizim 480941
284 285 281 285 284 280 284 285 281 284 280 284 281 284 285 280 281 284 285
BalonParca AdiParca NoAdetTipApplied Date A B C
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97384-079-0 01 1 1506-1508 ● ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97384-079-0 01 1 1509- ● ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (D) 		8-98045-642-1 01 1 1506-1508 ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (D) 		8-98045-642-1 01 1 1509- ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98045-642-1 01 1 1509- ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (C) 		8-98130-709-0 01 1 1506-1508 ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (C) 		8-98130-709-0 01 1 1509- ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98130-709-0 01 1 1509- ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98207-076-0 01 1 1506-1508 ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98207-076-0 01 1 1509- ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (B) 		8-98207-077-0 01 1 1506-1508 ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (B) 		8-98207-077-0 01 1 1509- ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1506-1507 ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1506-1507 ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1506-1507 ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1508-1508 ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1508-1508 ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1508-1508 ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1508-1508 ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1508-1508 ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1509- ● ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1509- ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1509- ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1509- ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1506-1508 ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1506-1508 ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1509- ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 04 1 1509- ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1509- ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1509- ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1509- ●
