◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#162437) — 74 parça

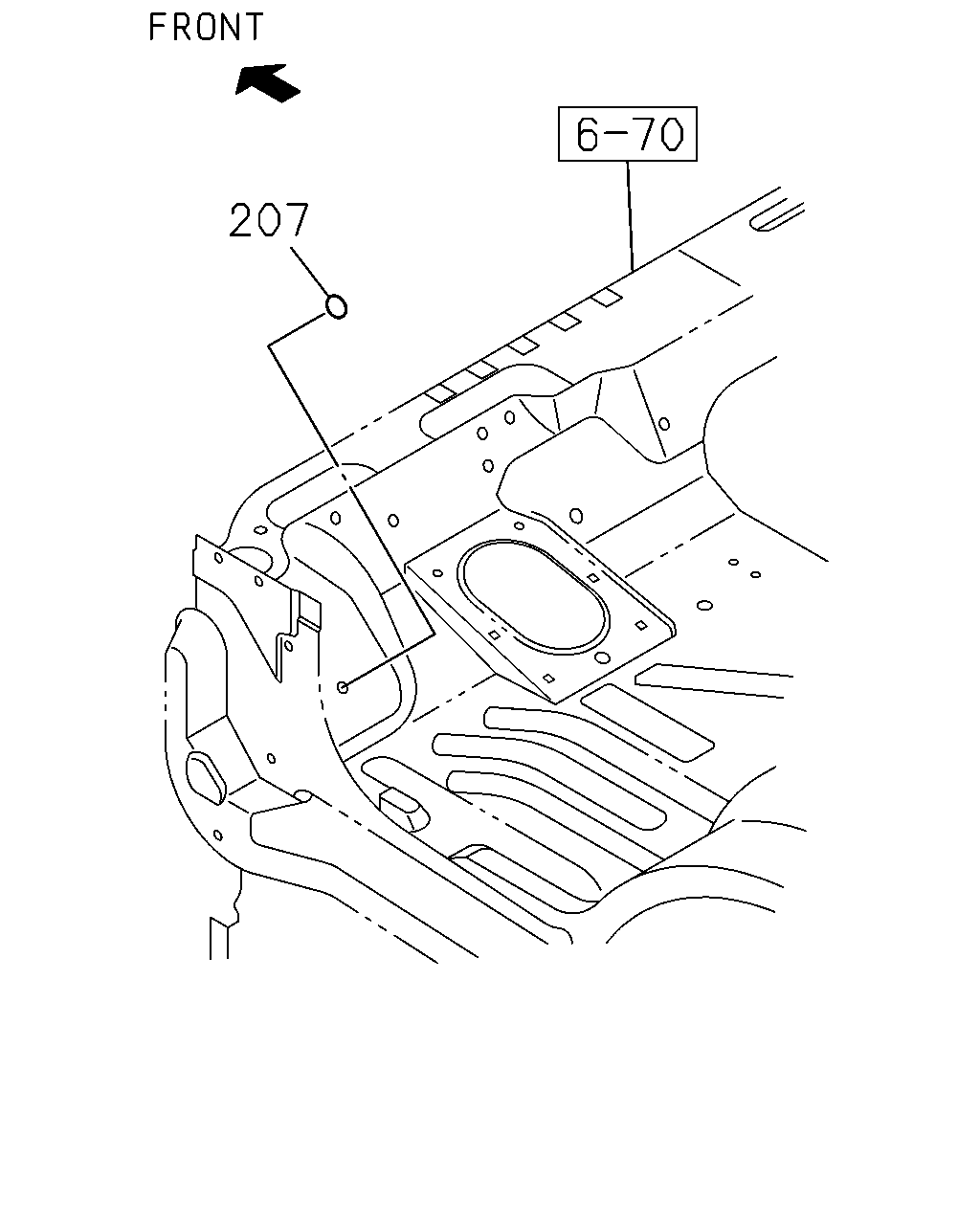

çizim 480164
207
BalonParca AdiParca NoAdetTipApplied Date A B C
207 16.064 SEAL; HOLE
16.545 OD=32 BLACK 		8-98031-126-0 01 1 1506-1508 ● ●
207 16.064 SEAL; HOLE
16.545 OD=32 BLACK 		8-98031-126-0 01 1 1509- ● ● ●

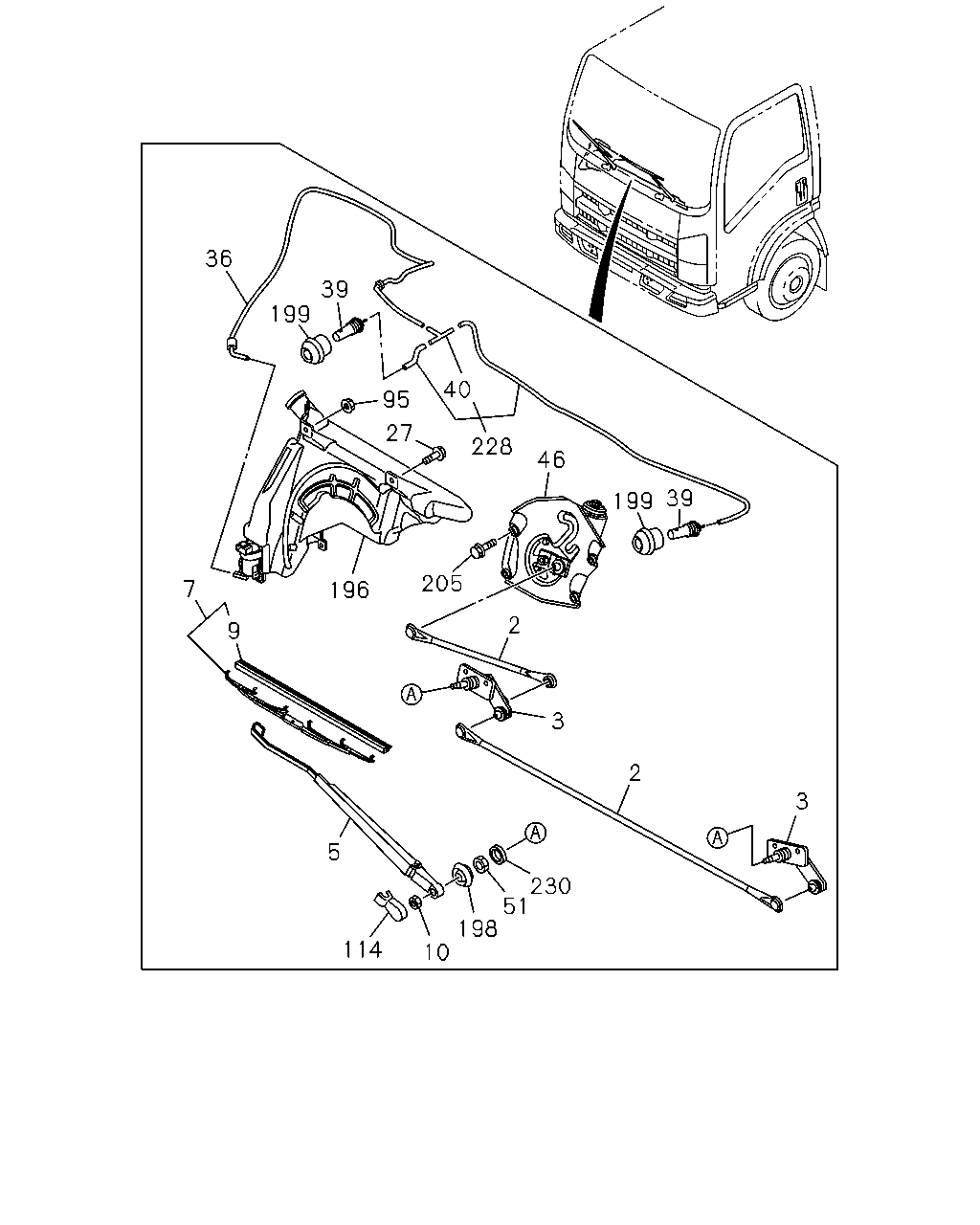

çizim 480959
36 39 199 95 40 228 46 27 199 39 205 2 3 196 7 9 2 3 230 51 198 10 114 5
BalonParca AdiParca NoAdetTipApplied Date A B C
2 16.063 LINK; FRT WIPER
PASSENGER SIDE L=350 W/CAP STAMP P 		8-98053-766-0 01 1 1506-1508 ● ●
2 16.063 LINK; FRT WIPER
PASSENGER SIDE L=350 W/CAP STAMP P 		8-98053-766-0 01 1 1509- ● ● ●
2 16.063 LINK; FRT WIPER
DRIVER SIDE L=840 W/CAP 		8-98053-771-0 01 1 1506-1508 ● ●
2 16.063 LINK; FRT WIPER
DRIVER SIDE L=840 W/CAP 		8-98053-771-0 01 1 1509- ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
PASSENGER SIDE 		8-98053-762-0 01 1 1506-1508 ● ●
3 16.063 PIVOT ASM; FRT WIPER
PASSENGER SIDE 		8-98053-762-0 01 1 1509- ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
DRIVER SIDE 		8-98053-764-0 01 1 1506-1508 ● ●
3 16.063 PIVOT ASM; FRT WIPER
DRIVER SIDE 		8-98053-764-0 01 1 1509- ● ● ●
5 16.063 ARM; WIPER 8-98053-780-0 01 1 1506-1508 ● ●
5 16.063 ARM; WIPER 8-98053-780-0 01 1 1509- ● ● ●
5 16.063 ARM; WIPER 8-98053-781-0 01 1 1506-1508 ● ●
5 16.063 ARM; WIPER 8-98053-781-0 01 1 1509- ● ● ●
7 16.062 BLADE; WIPER 8-98053-789-0 02 1 1506-1508 ● ●
7 16.062 BLADE; WIPER 8-98053-789-0 02 1 1509- ● ● ●
7 16.062 BLADE; WIPER
BEST VALUE PARTS 		5-87610-034-0 02 1 1506-1508 ● ●
7 16.062 BLADE; WIPER
BEST VALUE PARTS 		5-87610-034-0 02 1 1509- ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE
L=500 		8-98053-792-0 02 1 1506-1508 ● ●
9 16.062 RUBBER; FRT WIPER BLADE
L=500 		8-98053-792-0 02 1 1509- ● ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
02.334 M8 		0-91110-508-0 02 1 1506-1508 ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
02.334 M8 		0-91110-508-0 02 1 1509- ● ● ●
27 16.065 BOLT; WASHER TANK
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 1506-1508 ● ●
27 16.065 BOLT; WASHER TANK
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 1509- ● ● ●
36 16.065 HOSE; WASHER 8-98029-172-3 01 1 1506-1508 ● ●
36 16.065 HOSE; WASHER 8-98029-172-3 01 1 1509- ● ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-98029-139-1 02 1 1506-1508 ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-98029-139-1 02 1 1509- ● ● ●
40 16.065 JOINT; WASHER HOSE
3WAY 		5-83363-033-0 01 1 1506-1508 ● ●
40 16.065 JOINT; WASHER HOSE
3WAY 		5-83363-033-0 01 1 1509- ● ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12) 		8-98246-004-0 01 1 1509- ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-98029-124-3 01 1 1506-1508 ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-98029-124-3 01 1 1509- ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER
TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1) 		8-98029-124-3 01 1 1509- ●
51 16.063 NUT; WIPER MOTOR LINK
M24 		8-98029-167-0 02 1 1506-1508 ● ●
51 16.063 NUT; WIPER MOTOR LINK
M24 		8-98029-167-0 02 1 1509- ● ● ●
95 16.065 NUT; WASHER TANK
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ● ●
95 16.065 NUT; WASHER TANK
01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ● ●
114 16.063 COVER; FRT WIPER ARM
BLACK 		8-94282-851-0 02 1 1506-1508 ● ●
114 16.063 COVER; FRT WIPER ARM
BLACK 		8-94282-851-0 02 1 1509- ● ● ●
196 16.065 TANK; WASHER 8-98029-136-2 01 1 1506-1508 ● ●
196 16.065 TANK; WASHER 8-98029-136-2 01 1 1509- ● ● ●
198 16.063 COVER; PIVOT,WIPER 8-98029-164-0 02 1 1506-1508 ● ●
198 16.063 COVER; PIVOT,WIPER 8-98029-164-0 02 1 1509- ● ● ●
199 16.063 COVER; NOZZLE,WIPER 8-98079-030-0 02 1 1506-1508 ● ●
199 16.063 COVER; NOZZLE,WIPER 8-98079-030-0 02 1 1509- ● ● ●
205 16.064 BOLT; WIPER MOTOR
16.090 M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1506-1508 ● ●
205 16.064 BOLT; WIPER MOTOR
16.090 M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1509- ● ● ●
228 16.065 HOSE ASM; WASHER 8-98029-168-1 01 1 1506-1508 ● ●
228 16.065 HOSE ASM; WASHER 8-98029-168-1 01 1 1509- ● ● ●
230 16.064 COLLAR; WIPER LINK 8-98029-097-0 02 1 1506-1508 ● ●
230 16.064 COLLAR; WIPER LINK 8-98029-097-0 02 1 1509- ● ● ●
çizim 480977
30 43 34 196 46 135 48 74 33 137
BalonParca AdiParca NoAdetTipApplied Date A B C
30 16.065 MOTOR ASM; FRT WASHER TANK 8-97855-139-0 01 1 1506-1508 ● ●
30 16.065 MOTOR ASM; FRT WASHER TANK 8-97855-139-0 01 1 1509- ● ● ●
33 16.064 NUT; MOTOR TO ARM
M8 		8-97855-157-0 01 1 1506-1508 ● ●
33 16.064 NUT; MOTOR TO ARM
M8 		8-97855-157-0 01 1 1509- ● ● ●
34 16.065 CAP; WASHER TANK 8-97855-140-0 01 1 1506-1508 ● ●
34 16.065 CAP; WASHER TANK 8-97855-140-0 01 1 1509- ● ● ●
43 16.065 RUBBER; GASKET,TANK
10.154 		8-94352-050-0 01 1 1506-1508 ● ●
43 16.065 RUBBER; GASKET,TANK
10.154 		8-94352-050-0 01 1 1509- ● ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12) 		8-98246-004-0 01 1 1509- ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-98029-124-3 01 1 1506-1508 ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-98029-124-3 01 1 1509- ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER
TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1) 		8-98029-124-3 01 1 1509- ●
48 16.063 ARM; WIPER MOTOR 8-98052-215-0 01 1 1506-1508 ● ●
48 16.063 ARM; WIPER MOTOR 8-98052-215-0 01 1 1509- ● ● ●
74 16.063 WASHER; ARM TO MOTOR
ID=8 		8-97855-158-0 01 1 1506-1508 ● ●
74 16.063 WASHER; ARM TO MOTOR
ID=8 		8-97855-158-0 01 1 1509- ● ● ●
135 16.250 RUBBER; CUSHION,WIPER MOTOR 8-98052-214-0 04 1 1506-1508 ● ●
135 16.250 RUBBER; CUSHION,WIPER MOTOR 8-98052-214-0 04 1 1509- ● ● ●
137 16.063 SEAL; JOINT,WIPER MOTOR 8-98052-218-0 01 1 1506-1508 ● ●
137 16.063 SEAL; JOINT,WIPER MOTOR 8-98052-218-0 01 1 1509- ● ● ●
196 16.065 TANK; WASHER 8-98029-136-2 01 1 1506-1508 ● ●
196 16.065 TANK; WASHER 8-98029-136-2 01 1 1509- ● ● ●
