8-73 — BLOWER UNIT (#162435) — 44 parça

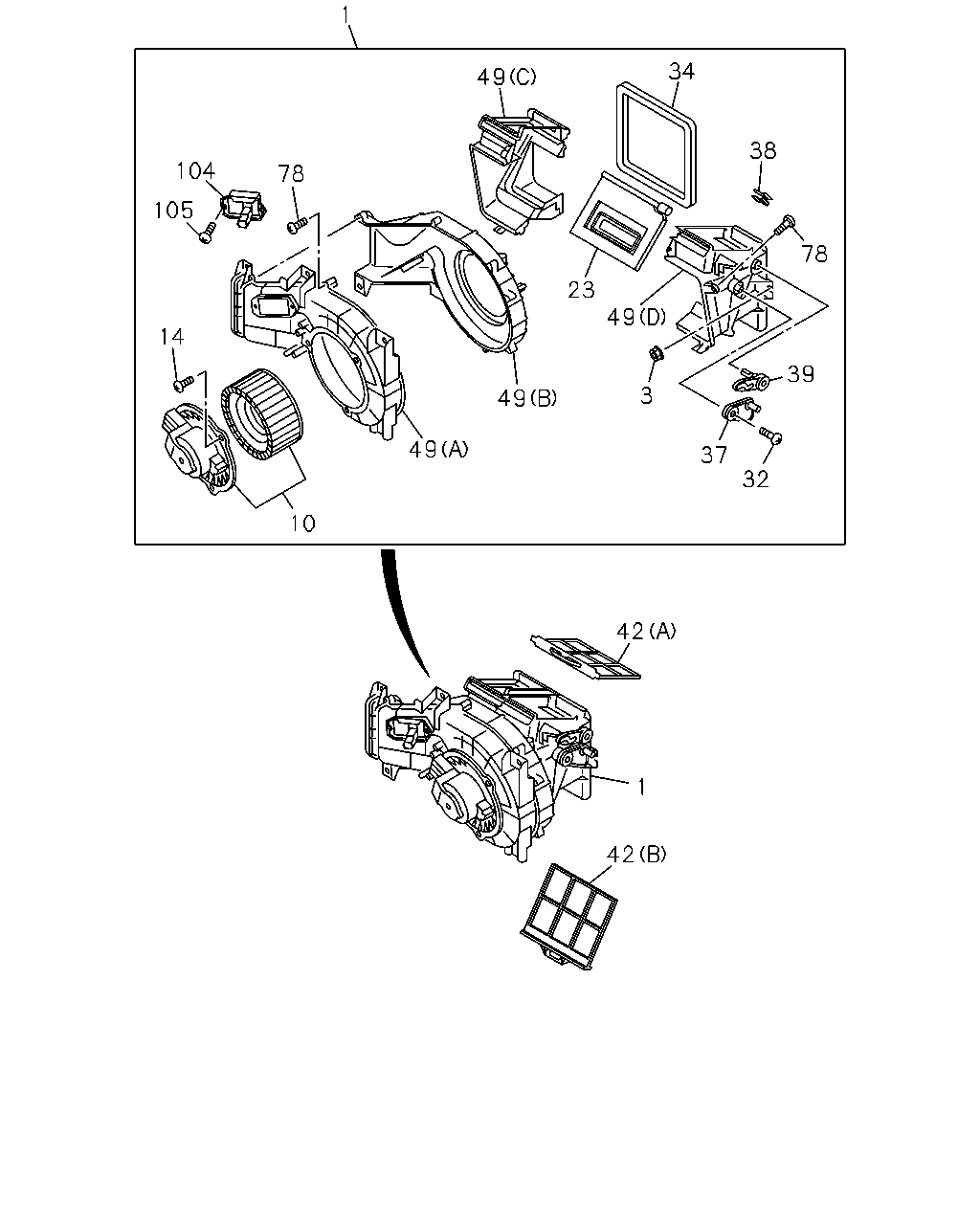

çizim 480896
49 34 38 78 39 32 37 49 49 3 49 10 14 105 104 78 23 42 42 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 08.855 BLOWER ASM
RUSSIA EQUIPMENT(B12) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98174-914-0 01 1 1509- ●
1 08.855 BLOWER ASM 8-98183-594-0 01 1 1506-1508 ● ●
1 08.855 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98183-594-0 01 1 1509- ●
1 08.855 BLOWER ASM
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98183-594-0 01 1 1509- ●
1 08.855 BLOWER ASM 8-98183-594-0 01 1 1509- ●
3 08.855 NUT; CASE
09.190 M6 		1-83539-354-0 02 1 1506-1508 ● ●
3 08.855 NUT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.190 M6 		1-83539-354-0 02 1 1509- ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
RUSSIA EQUIPMENT(B12) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98196-563-0 01 1 1509- ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-98183-926-0 01 1 1506-1508 ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98183-926-0 01 1 1509- ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98183-926-0 01 1 1509- ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT 8-98183-926-0 01 1 1509- ●
14 08.857 SCREW; COVER TO CASE
M5X16 		8-98047-448-0 03 1 1506-1508 ● ●
14 08.857 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-98047-448-0 03 1 1509- ● ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-98047-761-0 01 1 1506-1508 ● ●
23 08.857 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-761-0 01 1 1509- ● ● ●
32 08.856 SCREW; LEVER
08.852 M4X16 		8-98047-416-0 01 1 1506-1508 ● ●
32 08.856 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-98047-416-0 01 1 1509- ● ● ●
34 08.856 LINING; BLOWER UNIT 8-98047-430-0 01 1 1506-1508 ● ●
34 08.856 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-430-0 01 1 1509- ● ● ●
37 09.786 LEVER; MODE LEVER 8-98047-453-0 01 1 1506-1508 ● ●
37 09.786 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-453-0 01 1 1509- ● ● ●
38 09.787 CLIP; BLOWER UNIT
08.854 		8-98047-417-0 01 1 1506-1508 ● ●
38 09.787 CLIP; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.854 		8-98047-417-0 01 1 1509- ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT 8-98047-454-0 01 1 1506-1508 ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-454-0 01 1 1509- ● ● ●
42 08.857 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97387-096-1 01 1 1506-1508 ● ●
42 08.857 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97387-096-1 01 1 1509- ● ● ●
42 08.857 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98025-006-1 01 1 1506-1508 ● ●
42 08.857 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98025-006-1 01 1 1509- ● ● ●
49 08.857 CASE; BLOWER UNIT
(A) 		8-98047-444-0 01 1 1506-1508 ● ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-444-0 01 1 1509- ● ● ●
49 08.857 CASE; BLOWER UNIT
(B) 		8-98047-445-0 01 1 1506-1508 ● ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-445-0 01 1 1509- ● ● ●
49 08.857 CASE; BLOWER UNIT
(C) 		8-98047-446-0 01 1 1506-1508 ● ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98047-446-0 01 1 1509- ● ● ●
49 08.857 CASE; BLOWER UNIT
(D) 		8-98047-447-0 01 1 1506-1508 ● ●
49 08.857 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98047-447-0 01 1 1509- ● ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 TAPPING 		8-97957-708-0 15 1 1506-1508 ● ●
78 08.857 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 15 1 1509- ● ● ●
104 08.855 RESISTOR; BLOWER UNIT 8-98077-418-0 01 1 1506-1508 ● ●
104 08.855 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98077-418-0 01 1 1509- ● ● ●
105 08.855 SCREW; RESISTOR
08.852 M4X16 TAPPING 		8-97957-708-0 02 1 1506-1508 ● ●
105 08.855 SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 02 1 1509- ● ● ●
