Isuzu WW
▶
TRUCKS
▶
NNR
▶
51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-71 - COMPRESSOR; AIR CONDITIONING
▶

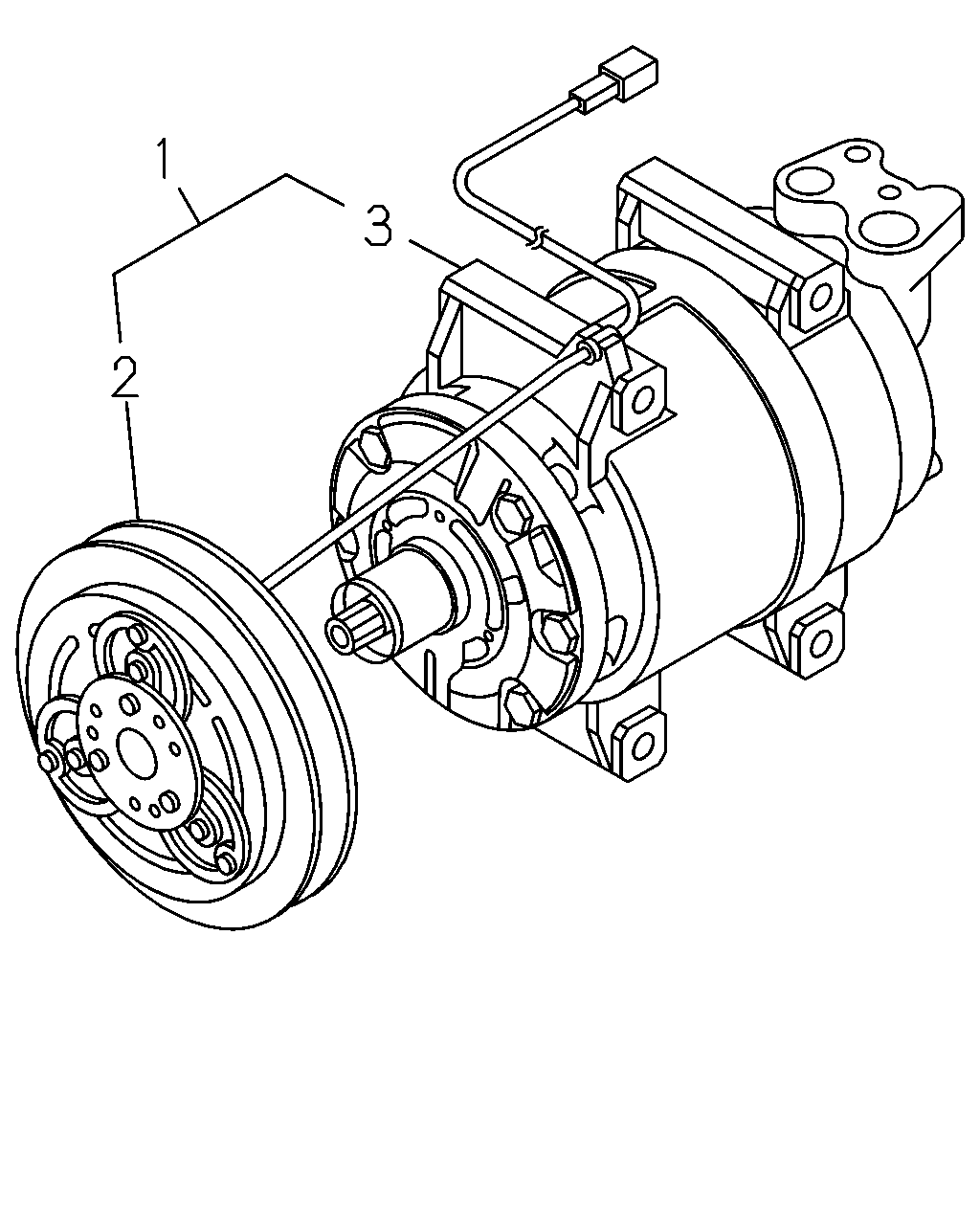

8-71 — COMPRESSOR; AIR CONDITIONING
(#162434) — 9 parça
Tümü
A - NPR6SE
B - NPR6SN
3
1
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) VALEO
8-98286-199-0
01
1
1506-
●
1
09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) VALEO
8-98286-199-0
01
1
1506-
●
1
09.170 COMPRESSOR ASM; A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) VALEO
8-98286-197-0
01
1
1506-1508
●
1
09.170 COMPRESSOR ASM; A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) VALEO
8-98286-197-0
01
1
1509-
●
2
09.188 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONT(C60)
8-98208-772-1
01
1
1506-
●
2
09.188 CLUTCH; MAGNET,A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60)
8-98208-772-1
01
1
1506-
●
2
09.188 CLUTCH; MAGNET,A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60)
8-98208-773-1
01
1
1506-1508
●
2
09.188 CLUTCH; MAGNET,A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60)
8-98208-773-1
01
1
1509-
●
3
09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60)
8-98042-531-1
01
1
1506-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
