Sayfa 8-60 - Isuzu EPC

8-60 — HEATER UNIT; FRONT (#162432) — 164 parça

41 207 234 235 235 236

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
41	08.852 THERMOSTAT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-412-0	01	1	1506-	●	●
207	08.845 CLAMP; HTR UNIT (A)	8-98047-493-0	01	1	1506-1508	●	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-493-0	01	1	1509-	●	●	●
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-413-0	01	1	1506-	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98074-120-1	01	1	1506-	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7	8-97095-907-0	01	1	1506-	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1506-	●	●
236	08.855 GASKET; HEATER (A)	8-98047-420-0	01	1	1506-1508	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-420-0	01	1	1509-	●	●	●
236	08.855 GASKET; HEATER (B)	8-98047-421-0	01	1	1506-1508	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-421-0	01	1	1509-	●	●	●

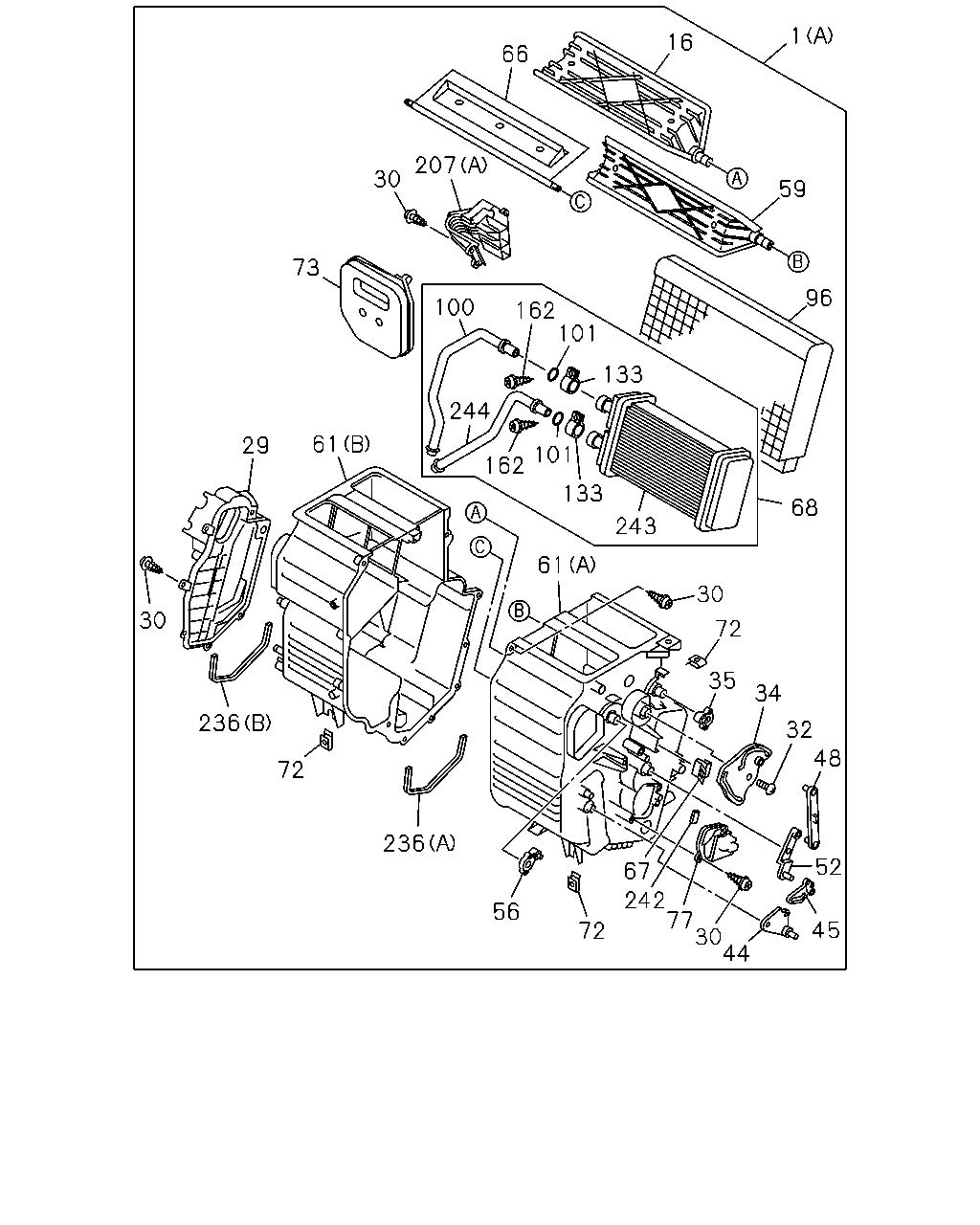

1 16 66 212 207 30 73 135 30 72 236 56 72 77 30 44 45 52 30 67 48 32 34 93 35 219 237 72 30 61 61 29 239 240 240 238 59 234 68 243 133 162 101 133 101 162 100 244

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	08.845 HEATER UNIT RUSSIA EQUIPMENT(B12) HEATER & DEFROSTER(C41) (A)	8-98175-726-0	01	1	1509-		●
1	08.845 HEATER UNIT RUSSIA EQUIPMENT(B12) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98174-913-0	01	1	1509-		●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98031-740-3	01	1	1506-1508	●	●
1	08.845 HEATER UNIT TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1) HEATER & DEFROSTER(C41) (A)	8-98031-740-3	01	1	1509-	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98034-145-3	01	1	1506-1508	●	●
1	08.845 HEATER UNIT TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98034-145-3	01	1	1509-	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR	8-98047-387-0	01	1	1506-1508	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-387-0	01	1	1509-	●	●	●
29	08.857 COVER; HTR UNIT	8-98047-480-0	01	1	1506-1508	●	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-480-0	01	1	1509-	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	28	1	1506-1508	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	28	1	1509-	●	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1506-1508	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1509-	●	●
32	08.852 SCREW; HTR UNIT M4X16	8-98047-416-0	03	1	1506-1508	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16	8-98047-416-0	03	1	1509-	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT RUSSIA EQUIPMENT(B12) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98196-569-0	01	1	1509-		●
34	09.786 LEVER; SHUTTER,HTR UNIT	8-98047-497-0	01	1	1506-1508	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-497-0	01	1	1509-	●
34	09.786 LEVER; SHUTTER,HTR UNIT TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-497-0	01	1	1509-		●
34	09.786 LEVER; SHUTTER,HTR UNIT	8-98047-497-0	01	1	1509-			●
35	08.852 LEVER; SHUTTER,HTR UNIT	8-98047-500-0	01	1	1506-1508	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-500-0	01	1	1509-	●	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT	8-98047-502-0	01	1	1506-1508	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-502-0	01	1	1509-	●	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT	8-98047-503-0	01	1	1506-1508	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-503-0	01	1	1509-	●	●	●
48	09.786 LEVER; HTR UNIT	8-98047-391-0	01	1	1506-1508	●	●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	1509-	●	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT	8-98047-498-0	01	1	1506-1508	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-498-0	01	1	1509-	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT	8-98047-501-0	01	1	1506-1508	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-501-0	01	1	1509-	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE	8-98047-386-0	01	1	1506-1508	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-386-0	01	1	1509-	●	●	●
61	08.854 CASE; HTR UNIT (A)	8-98047-478-0	01	1	1506-1508	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-478-0	01	1	1509-	●	●	●
61	08.854 CASE; HTR UNIT (B)	8-98047-479-0	01	1	1506-1508	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-479-0	01	1	1509-	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR	8-98047-385-0	01	1	1506-1508	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-385-0	01	1	1509-	●	●	●
67	08.854 CLIP; HTR UNIT	8-98047-417-0	02	1	1506-1508	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	1509-	●	●	●
68	08.854 CORE; HTR UNIT	8-98074-122-0	01	1	1506-1508	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98074-122-0	01	1	1509-	●	●	●
72	08.845 NUT; CASE,HTR UNIT M6	8-98047-428-0	03	1	1506-1508	●	●
72	08.845 NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6	8-98047-428-0	03	1	1509-	●	●	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-817-0	01	1	1506-1508	●	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-817-0	01	1	1509-	●	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-491-0	01	1	1506-	●	●
77	08.857 COVER; HTR CASE	8-98047-482-0	01	1	1506-1508	●	●
77	08.857 COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-482-0	01	1	1509-	●	●	●
93	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-427-0	01	1	1506-	●	●
100	08.854 PIPE; CORE,HTR UNIT	8-98072-532-0	01	1	1506-1508	●	●
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-532-0	01	1	1509-	●	●	●
101	08.845 GASKET; CORE,HTR UNIT	8-98072-531-0	02	1	1506-1508	●	●
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-531-0	02	1	1509-	●	●	●
133	08.845 CLIP; PIPE	8-98072-530-0	02	1	1506-1508	●	●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-530-0	02	1	1509-	●	●	●
135	08.854 COVER; HTR AIR CONDITIONER MANUAL CONT(C60)	8-98047-481-0	01	1	1506-	●	●
162	08.845 SCREW; CLIP FIX	8-98072-529-0	02	1	1506-1508	●	●
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-529-0	02	1	1509-	●	●	●
207	08.845 CLAMP; HTR UNIT (A)	8-98047-493-0	01	1	1506-1508	●	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-493-0	01	1	1509-	●	●	●
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-413-0	01	1	1506-	●	●
212	09.262 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) M5X61	8-98047-415-0	02	1	1506-	●	●
219	08.854 AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	1506-	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98074-120-1	01	1	1506-	●	●
236	08.855 GASKET; HEATER (A)	8-98047-420-0	01	1	1506-1508	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-420-0	01	1	1509-	●	●	●
236	08.855 GASKET; HEATER (B)	8-98047-421-0	01	1	1506-1508	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-421-0	01	1	1509-	●	●	●
237	08.855 INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-98047-382-0	01	1	1506-	●	●
238	08.845 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-98047-383-0	01	1	1506-	●	●
239	08.846 TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98047-504-0	01	1	1506-	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4	8-97095-906-0	01	1	1506-	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5	8-97095-908-0	01	1	1506-	●	●
243	08.854 CORE 01.656	8-98048-508-0	01	1	1506-1508	●	●
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656	8-98048-508-0	01	1	1509-	●	●	●
244	08.854 PIPE; INLET	8-98048-511-0	01	1	1506-1508	●	●
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-511-0	01	1	1509-	●	●	●

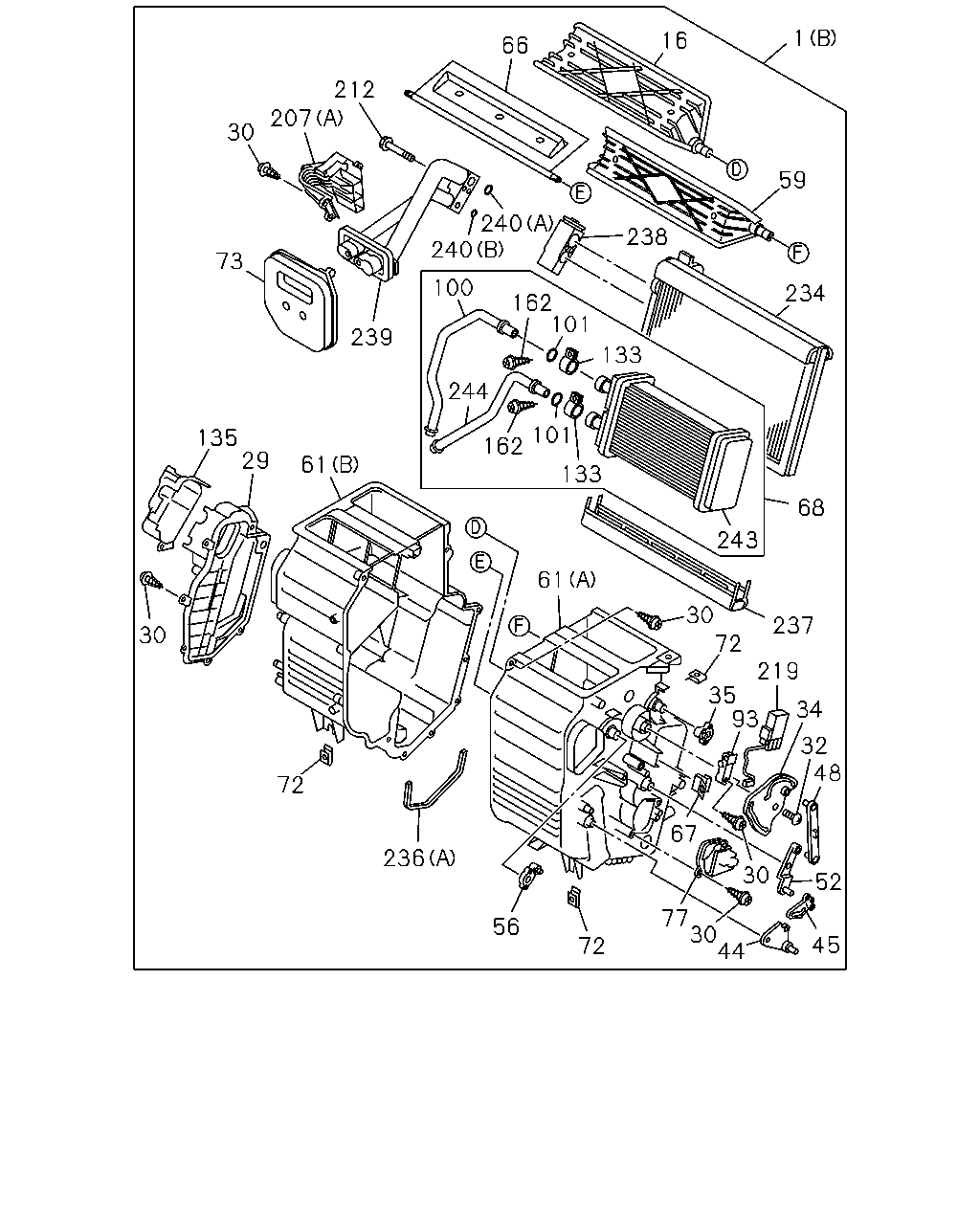

44 52 45 77 30 242 67 72 56 236 72 236 30 29 61 244 100 162 133 30 72 35 34 32 48 61 133 162 243 68 101 101 96 59 16 66 07 30 73 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	08.845 HEATER UNIT RUSSIA EQUIPMENT(B12) HEATER & DEFROSTER(C41) (A)	8-98175-726-0	01	1	1509-		●
1	08.845 HEATER UNIT RUSSIA EQUIPMENT(B12) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98174-913-0	01	1	1509-		●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98031-740-3	01	1	1506-1508	●	●
1	08.845 HEATER UNIT TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1) HEATER & DEFROSTER(C41) (A)	8-98031-740-3	01	1	1509-	●	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98034-145-3	01	1	1506-1508	●	●
1	08.845 HEATER UNIT TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98034-145-3	01	1	1509-	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR	8-98047-387-0	01	1	1506-1508	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-387-0	01	1	1509-	●	●	●
29	08.857 COVER; HTR UNIT	8-98047-480-0	01	1	1506-1508	●	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-480-0	01	1	1509-	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	28	1	1506-1508	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	28	1	1509-	●	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1506-1508	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1509-	●	●
32	08.852 SCREW; HTR UNIT M4X16	8-98047-416-0	03	1	1506-1508	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16	8-98047-416-0	03	1	1509-	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT RUSSIA EQUIPMENT(B12) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98196-569-0	01	1	1509-		●
34	09.786 LEVER; SHUTTER,HTR UNIT	8-98047-497-0	01	1	1506-1508	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-497-0	01	1	1509-	●
34	09.786 LEVER; SHUTTER,HTR UNIT TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),CHILE EQUIPMENT(KE1) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-497-0	01	1	1509-		●
34	09.786 LEVER; SHUTTER,HTR UNIT	8-98047-497-0	01	1	1509-			●
35	08.852 LEVER; SHUTTER,HTR UNIT	8-98047-500-0	01	1	1506-1508	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-500-0	01	1	1509-	●	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT	8-98047-502-0	01	1	1506-1508	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-502-0	01	1	1509-	●	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT	8-98047-503-0	01	1	1506-1508	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-503-0	01	1	1509-	●	●	●
48	09.786 LEVER; HTR UNIT	8-98047-391-0	01	1	1506-1508	●	●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	1509-	●	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT	8-98047-498-0	01	1	1506-1508	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-498-0	01	1	1509-	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT	8-98047-501-0	01	1	1506-1508	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-501-0	01	1	1509-	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE	8-98047-386-0	01	1	1506-1508	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-386-0	01	1	1509-	●	●	●
61	08.854 CASE; HTR UNIT (A)	8-98047-478-0	01	1	1506-1508	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-478-0	01	1	1509-	●	●	●
61	08.854 CASE; HTR UNIT (B)	8-98047-479-0	01	1	1506-1508	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-479-0	01	1	1509-	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR	8-98047-385-0	01	1	1506-1508	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-385-0	01	1	1509-	●	●	●
67	08.854 CLIP; HTR UNIT	8-98047-417-0	02	1	1506-1508	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	1509-	●	●	●
68	08.854 CORE; HTR UNIT	8-98074-122-0	01	1	1506-1508	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98074-122-0	01	1	1509-	●	●	●
72	08.845 NUT; CASE,HTR UNIT M6	8-98047-428-0	03	1	1506-1508	●	●
72	08.845 NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6	8-98047-428-0	03	1	1509-	●	●	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-817-0	01	1	1506-1508	●	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-817-0	01	1	1509-	●	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-491-0	01	1	1506-	●	●
77	08.857 COVER; HTR CASE	8-98047-482-0	01	1	1506-1508	●	●
77	08.857 COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-482-0	01	1	1509-	●	●	●
96	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1506-1508	●	●
96	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1509-	●	●	●
100	08.854 PIPE; CORE,HTR UNIT	8-98072-532-0	01	1	1506-1508	●	●
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-532-0	01	1	1509-	●	●	●
101	08.845 GASKET; CORE,HTR UNIT	8-98072-531-0	02	1	1506-1508	●	●
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-531-0	02	1	1509-	●	●	●
133	08.845 CLIP; PIPE	8-98072-530-0	02	1	1506-1508	●	●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-530-0	02	1	1509-	●	●	●
162	08.845 SCREW; CLIP FIX	8-98072-529-0	02	1	1506-1508	●	●
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-529-0	02	1	1509-	●	●	●
236	08.855 GASKET; HEATER (A)	8-98047-420-0	01	1	1506-1508	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-420-0	01	1	1509-	●	●	●
236	08.855 GASKET; HEATER (B)	8-98047-421-0	01	1	1506-1508	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-421-0	01	1	1509-	●	●	●
242	08.855 GASKET; CASE HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	1506-1508	●	●
242	08.855 GASKET; CASE HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	1509-	●	●	●
243	08.854 CORE 01.656	8-98048-508-0	01	1	1506-1508	●	●
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656	8-98048-508-0	01	1	1509-	●	●	●
244	08.854 PIPE; INLET	8-98048-511-0	01	1	1506-1508	●	●
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-511-0	01	1	1509-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
