Sayfa 8-52 - Isuzu EPC

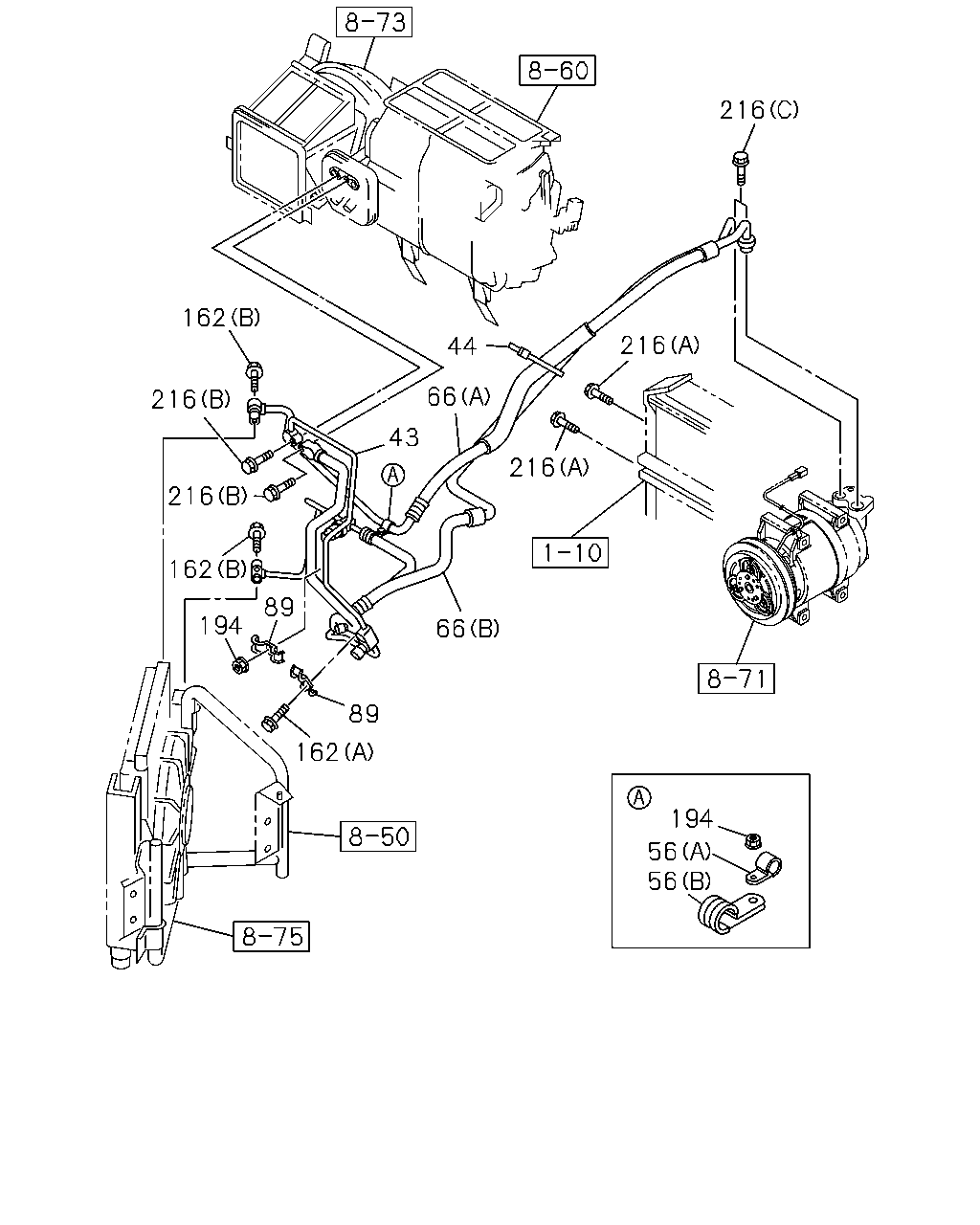

8-52 — PIPING; AIR CONDITIONING (#162431) — 166 parça

162 216 216 162 194 89 162 66 216 66 43 44 216 216 194 56 56 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-008-0	01	1	1506-	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-008-0	01	1	1506-		●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-007-0	01	1	1506-1508		●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-007-0	01	1	1509-		●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 L=140	5-09707-031-1	01	1	1506-1508	●
44	09.242 CLIP; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 03.162 L=140	5-09707-031-1	01	1	1506-1508		●
44	09.242 CLIP; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 03.162 L=140	5-09707-031-1	01	1	1509-1511	●
44	09.242 CLIP; FLEX HOSE 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO6 SPECIFICATION(NT6) 03.162 L=140	5-09707-031-1	01	1	1509-1511		●
44	09.242 CLIP; FLEX HOSE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) 03.162 L=140	5-09707-031-1	01	1	1509-1511		●
44	09.242 CLIP; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 03.162 L=140	5-09707-031-1	01	1	1512-	●
44	09.242 CLIP; FLEX HOSE 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO6 SPECIFICATION(NT6) 03.162 L=140	5-09707-031-1	01	1	1512-		●
44	09.242 CLIP; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) 03.162 L=140	5-09707-031-1	01	1	1512-		●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	01	1	1506-	●	●
44	09.242 CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 08.852 L=350	8-94152-256-1	01	1	1506-1508		●
44	09.242 CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) 08.852 L=350	8-94152-256-1	01	1	1509-1511		●
44	09.242 CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EURO6 SPECIFICATION(NT6) 08.852 L=350	8-94152-256-1	01	1	1509-1511		●
44	09.242 CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) 08.852 L=350	8-94152-256-1	01	1	1512-		●
44	09.242 CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 08.852 L=350	8-94152-256-1	01	1	1512-		●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 04.930 (A) ID=13 L=20	0-95235-232-0	01	1	1506-	●	●
56	09.242 CLIP; PIPE,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98032-641-0	01	1	1506-1508		●
56	09.242 CLIP; PIPE,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98032-641-0	01	1	1509-		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98245-983-0	01	1	1506-	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98245-983-0	01	1	1506-		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98245-984-0	01	1	1506-	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98245-984-0	01	1	1506-		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98006-103-2	01	1	1506-1508		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) (A) HIGH PRESSURE	8-98006-103-2	01	1	1509-1511		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EURO6 SPECIFICATION(NT6) (A) HIGH PRESSURE	8-98006-103-2	01	1	1509-1511		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) (A) HIGH PRESSURE	8-98006-103-2	01	1	1512-		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (A) HIGH PRESSURE	8-98006-103-2	01	1	1512-		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98222-312-0	01	1	1506-1508		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) (B) LOW PRESSURE	8-98222-312-0	01	1	1509-1511		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EURO6 SPECIFICATION(NT6) (B) LOW PRESSURE	8-98222-312-0	01	1	1509-1511		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) (B) LOW PRESSURE	8-98222-312-0	01	1	1512-		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (B) LOW PRESSURE	8-98222-312-0	01	1	1512-		●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60)	8-98151-264-0	02	1	1506-	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) M6X12 FLANGE	0-28050-612-0	03	1	1506-	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) M6X12 FLANGE	0-28050-612-0	03	1	1506-		●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	1506-	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 00.685 (B) M6X25 FLANGE	0-28650-625-0	02	1	1506-	●	●
194	09.242 NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1506-	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.680 (B) M6X30 FLANGE	0-28650-630-0	02	1	1506-	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1506-	●	●
216	09.173 BOLT; HOSE FIX 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1506-1508		●
216	09.173 BOLT; HOSE FIX 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1509-1511		●
216	09.173 BOLT; HOSE FIX 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EURO6 SPECIFICATION(NT6) 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1509-1511		●
216	09.173 BOLT; HOSE FIX 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1512-		●
216	09.173 BOLT; HOSE FIX 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1512-		●

43 66 66 50 202 50 147 148 67 67 67 148 147 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-008-0	01	1	1506-	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-008-0	01	1	1506-		●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-007-0	01	1	1506-1508		●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-007-0	01	1	1509-		●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	1506-	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98245-983-0	01	1	1506-	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98245-983-0	01	1	1506-		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98245-984-0	01	1	1506-	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98245-984-0	01	1	1506-		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98006-103-2	01	1	1506-1508		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) (A) HIGH PRESSURE	8-98006-103-2	01	1	1509-1511		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EURO6 SPECIFICATION(NT6) (A) HIGH PRESSURE	8-98006-103-2	01	1	1509-1511		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) (A) HIGH PRESSURE	8-98006-103-2	01	1	1512-		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (A) HIGH PRESSURE	8-98006-103-2	01	1	1512-		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98222-312-0	01	1	1506-1508		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) (B) LOW PRESSURE	8-98222-312-0	01	1	1509-1511		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EURO6 SPECIFICATION(NT6) (B) LOW PRESSURE	8-98222-312-0	01	1	1509-1511		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) (B) LOW PRESSURE	8-98222-312-0	01	1	1512-		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (B) LOW PRESSURE	8-98222-312-0	01	1	1512-		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	1506-	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1506-	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6	8-98036-895-0	01	1	1506-	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK L	1-83539-331-0	01	1	1506-	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H	8-97095-911-0	01	1	1506-	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-909-0	01	1	1506-	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98031-629-0	01	1	1506-	●	●
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	1506-	●	●

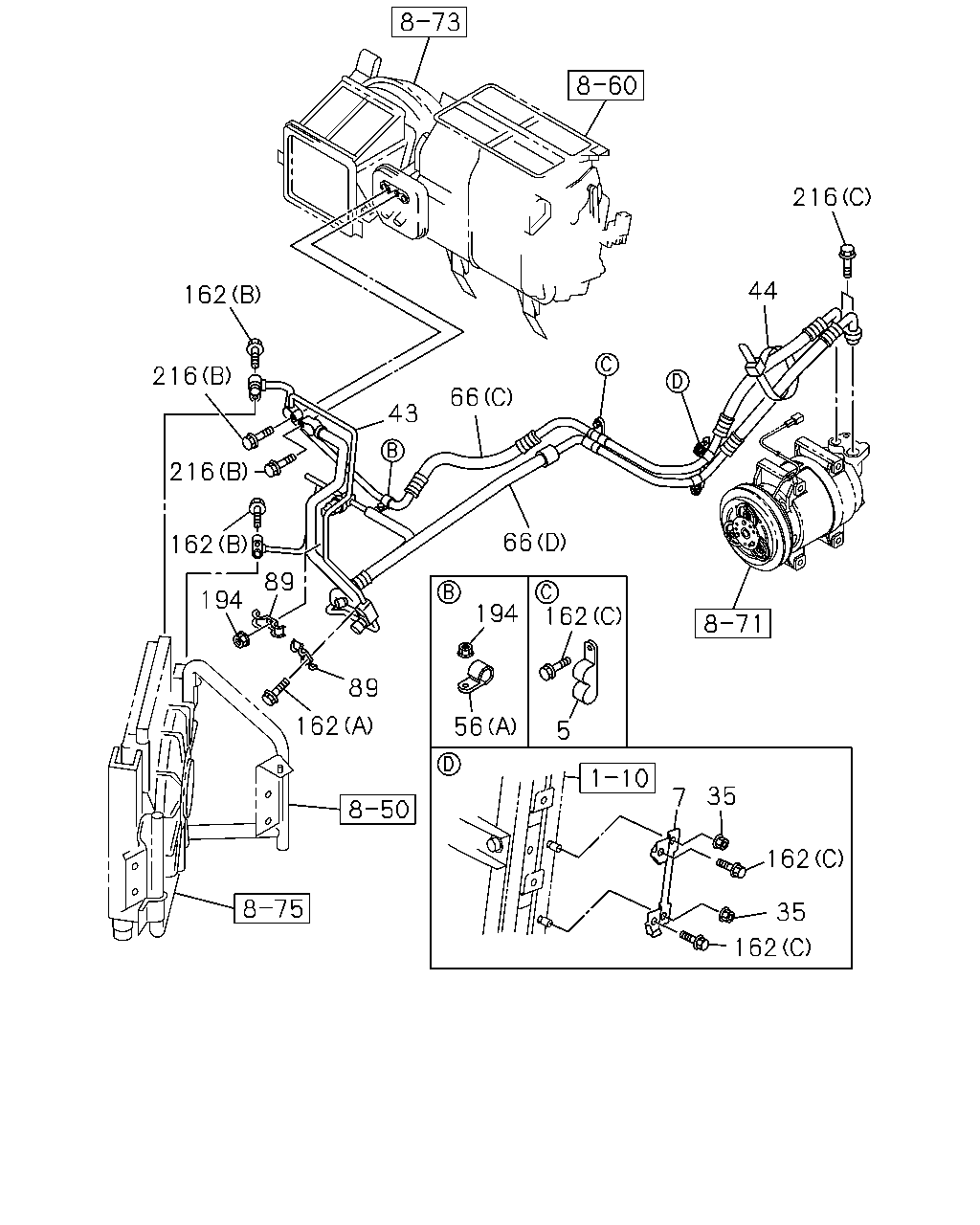

43 162 162 162 35 35 56 194 66 162 5 66 216 162 194 89 162 216 216 44 89 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60)	8-98052-857-0	01	1	1506-	●
5	09.242 CLIP; FLEX HOSE,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60)	8-98052-857-0	01	1	1506-		●
7	09.242 BRACKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97388-130-1	01	1	1506-	●
7	09.242 BRACKET; FLEX HOSE,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60)	8-97388-130-1	01	1	1506-		●
35	09.242 NUT; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1506-1508	●
35	09.242 NUT; FLEX HOSE,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1506-1508		●
35	09.242 NUT; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1509-1511	●
35	09.242 NUT; FLEX HOSE,A/C 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO6 SPECIFICATION(NT6) 01.062 M6 FLANGE	0-91180-106-0	02	1	1509-1511		●
35	09.242 NUT; FLEX HOSE,A/C 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) 01.062 M6 FLANGE	0-91180-106-0	02	1	1509-1511		●
35	09.242 NUT; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1512-	●
35	09.242 NUT; FLEX HOSE,A/C 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO6 SPECIFICATION(NT6) 01.062 M6 FLANGE	0-91180-106-0	02	1	1512-		●
35	09.242 NUT; FLEX HOSE,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) 01.062 M6 FLANGE	0-91180-106-0	02	1	1512-		●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-008-0	01	1	1506-	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-008-0	01	1	1506-		●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-007-0	01	1	1506-1508		●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-007-0	01	1	1509-		●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 L=140	5-09707-031-1	01	1	1506-1508	●
44	09.242 CLIP; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 03.162 L=140	5-09707-031-1	01	1	1506-1508		●
44	09.242 CLIP; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 03.162 L=140	5-09707-031-1	01	1	1509-1511	●
44	09.242 CLIP; FLEX HOSE 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO6 SPECIFICATION(NT6) 03.162 L=140	5-09707-031-1	01	1	1509-1511		●
44	09.242 CLIP; FLEX HOSE 4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) 03.162 L=140	5-09707-031-1	01	1	1509-1511		●
44	09.242 CLIP; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 03.162 L=140	5-09707-031-1	01	1	1512-	●
44	09.242 CLIP; FLEX HOSE 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO6 SPECIFICATION(NT6) 03.162 L=140	5-09707-031-1	01	1	1512-		●
44	09.242 CLIP; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) 03.162 L=140	5-09707-031-1	01	1	1512-		●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	01	1	1506-	●	●
44	09.242 CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 08.852 L=350	8-94152-256-1	01	1	1506-1508		●
44	09.242 CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) 08.852 L=350	8-94152-256-1	01	1	1509-1511		●
44	09.242 CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EURO6 SPECIFICATION(NT6) 08.852 L=350	8-94152-256-1	01	1	1509-1511		●
44	09.242 CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) 08.852 L=350	8-94152-256-1	01	1	1512-		●
44	09.242 CLIP; FLEX HOSE 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 08.852 L=350	8-94152-256-1	01	1	1512-		●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 04.930 (A) ID=13 L=20	0-95235-232-0	01	1	1506-	●	●
56	09.242 CLIP; PIPE,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98032-641-0	01	1	1506-1508		●
56	09.242 CLIP; PIPE,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98032-641-0	01	1	1509-		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98245-983-0	01	1	1506-	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98245-983-0	01	1	1506-		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98245-984-0	01	1	1506-	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98245-984-0	01	1	1506-		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98006-103-2	01	1	1506-1508		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) (A) HIGH PRESSURE	8-98006-103-2	01	1	1509-1511		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EURO6 SPECIFICATION(NT6) (A) HIGH PRESSURE	8-98006-103-2	01	1	1509-1511		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) (A) HIGH PRESSURE	8-98006-103-2	01	1	1512-		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (A) HIGH PRESSURE	8-98006-103-2	01	1	1512-		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98222-312-0	01	1	1506-1508		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) (B) LOW PRESSURE	8-98222-312-0	01	1	1509-1511		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EURO6 SPECIFICATION(NT6) (B) LOW PRESSURE	8-98222-312-0	01	1	1509-1511		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) (B) LOW PRESSURE	8-98222-312-0	01	1	1512-		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (B) LOW PRESSURE	8-98222-312-0	01	1	1512-		●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60)	8-98151-264-0	02	1	1506-	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) M6X12 FLANGE	0-28050-612-0	03	1	1506-	●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) M6X12 FLANGE	0-28050-612-0	03	1	1506-		●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	1506-	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 00.685 (B) M6X25 FLANGE	0-28650-625-0	02	1	1506-	●	●
194	09.242 NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1506-	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.680 (B) M6X30 FLANGE	0-28650-630-0	02	1	1506-	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1506-	●	●
216	09.173 BOLT; HOSE FIX 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1506-1508		●
216	09.173 BOLT; HOSE FIX 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1509-1511		●
216	09.173 BOLT; HOSE FIX 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EURO6 SPECIFICATION(NT6) 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1509-1511		●
216	09.173 BOLT; HOSE FIX 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1512-		●
216	09.173 BOLT; HOSE FIX 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1512-		●

66 43 66 147 148 49 67 49 67 67 50 202 50 148 147 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-008-0	01	1	1506-	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-008-0	01	1	1506-		●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-007-0	01	1	1506-1508		●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-007-0	01	1	1509-		●
49	09.242 CLAMP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98257-461-0	01	1	1506-	●
49	09.242 CLAMP; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (A)	8-98257-461-0	01	1	1506-		●
49	09.242 CLAMP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98257-462-0	01	1	1506-	●
49	09.242 CLAMP; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98257-462-0	01	1	1506-		●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	1506-	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98245-983-0	01	1	1506-	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98245-983-0	01	1	1506-		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98245-984-0	01	1	1506-	●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98245-984-0	01	1	1506-		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98006-103-2	01	1	1506-1508		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) (A) HIGH PRESSURE	8-98006-103-2	01	1	1509-1511		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EURO6 SPECIFICATION(NT6) (A) HIGH PRESSURE	8-98006-103-2	01	1	1509-1511		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) (A) HIGH PRESSURE	8-98006-103-2	01	1	1512-		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (A) HIGH PRESSURE	8-98006-103-2	01	1	1512-		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98222-312-0	01	1	1506-1508		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) (B) LOW PRESSURE	8-98222-312-0	01	1	1509-1511		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EURO6 SPECIFICATION(NT6) (B) LOW PRESSURE	8-98222-312-0	01	1	1509-1511		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) (B) LOW PRESSURE	8-98222-312-0	01	1	1512-		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) (B) LOW PRESSURE	8-98222-312-0	01	1	1512-		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	1506-	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1506-	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6	8-98036-895-0	01	1	1506-	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK L	1-83539-331-0	01	1	1506-	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H	8-97095-911-0	01	1	1506-	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-909-0	01	1	1506-	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98031-629-0	01	1	1506-	●	●
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	1506-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
