11209 - LV434(RHD) EURO3/5
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#16243) — 44 parça
◀

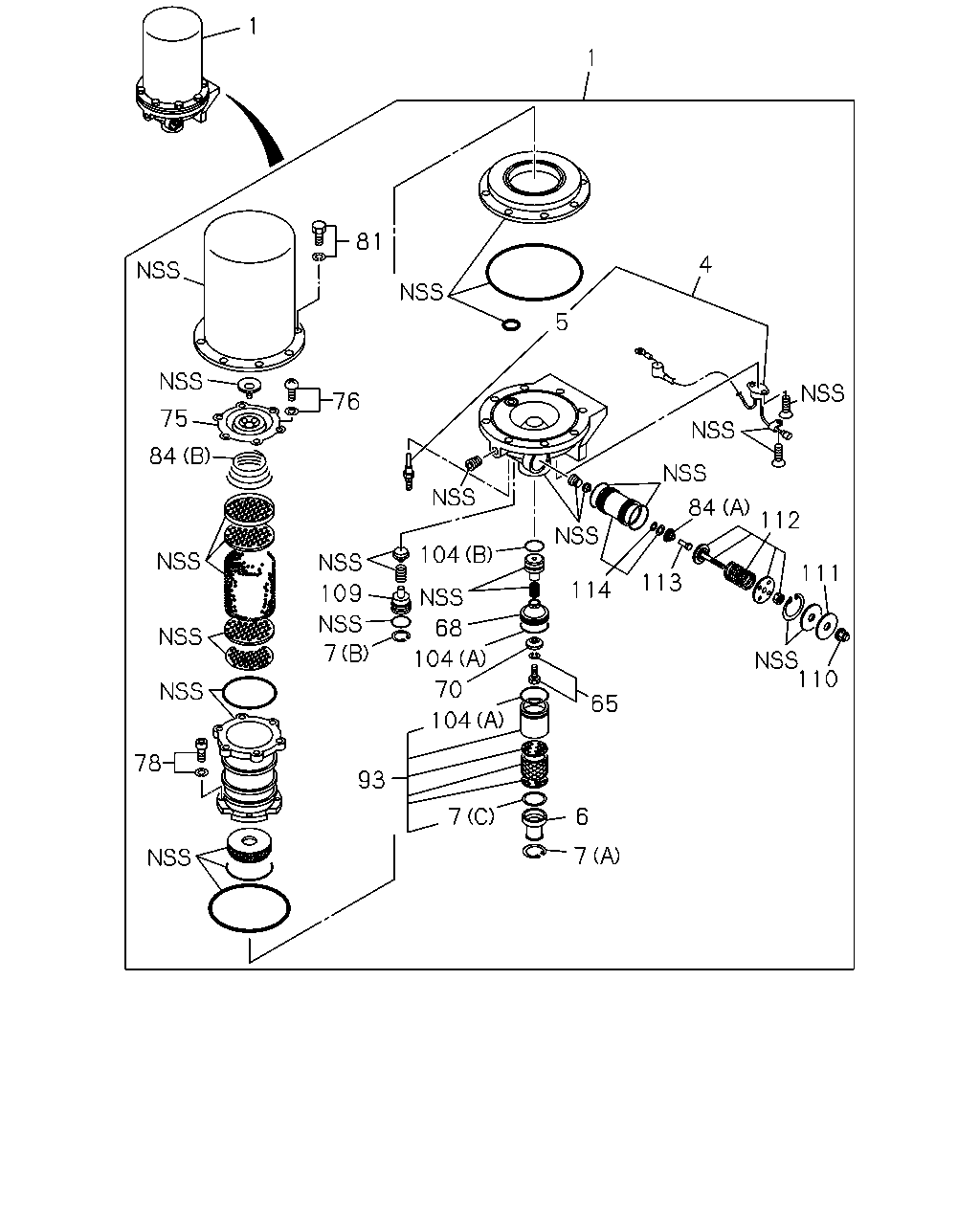

[346A] COMPONENT (26 parça)

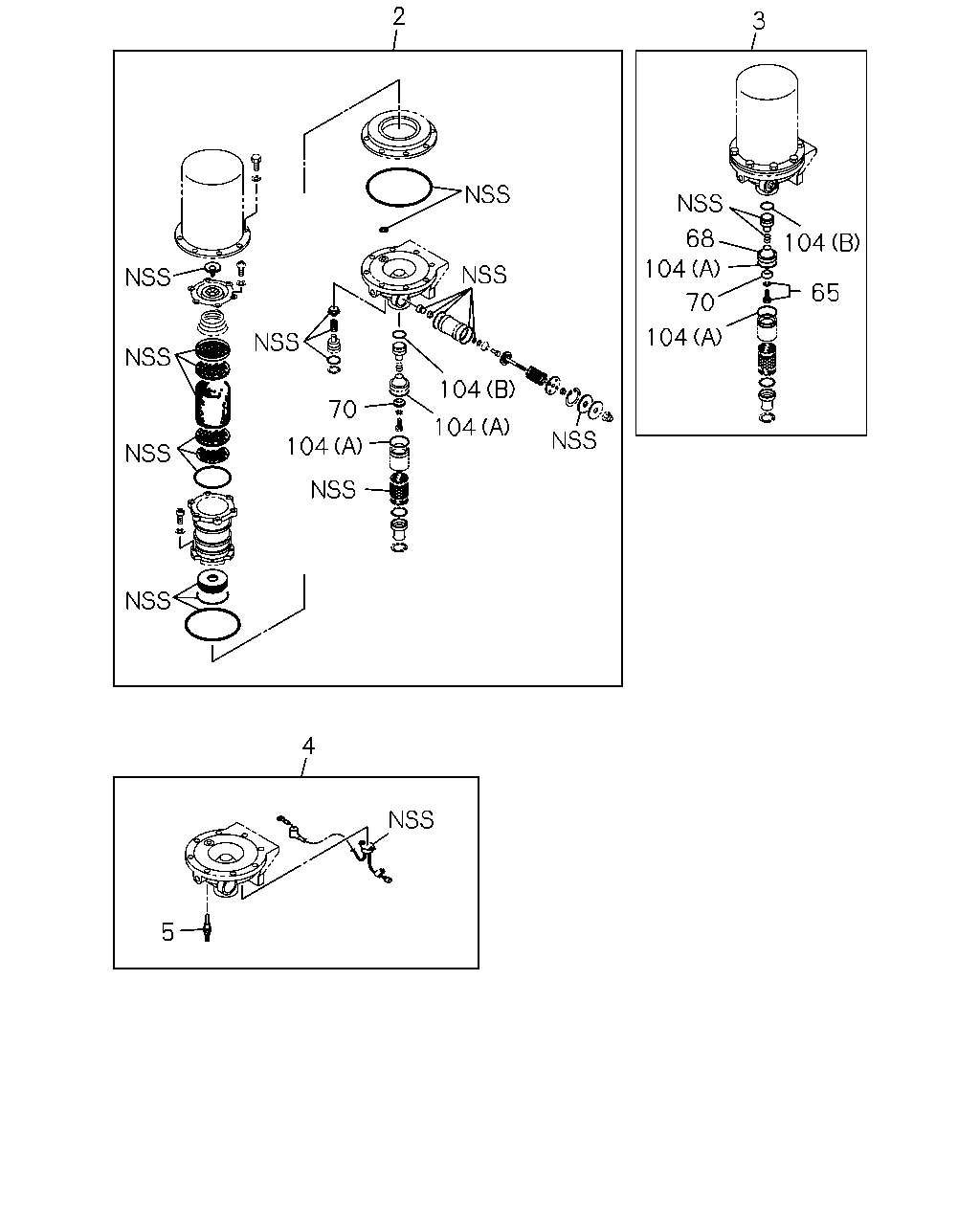

[346A] REPAIR ,PISTON AND THERMOSTAT KIT (11 parça)
[346A] FIXING (7 parça)
▶
4
5
1
1
75
76
84
78
7
109
93
6
7
7
70
104
104
104
114
113
84
111
112
110
81
68
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-359-1
01
1
0907-1211
1
DRYER; AIR
8-98225-296-0
01
1
1212-
4
THERMOSTAT KIT; AIR DRYER
1-85576-444-0
01
1
0907-
5
HEATER ASM; AIR DRYER
1-48199-530-0
01
1
0907-
6
COVER; EXH,AIR DRYER
1-48199-519-0
01
1
0907-1211
7
RING; SNAP,AIR DRYER
(C)
1-48199-154-0
01
1
0907-1211
7
RING; SNAP,AIR DRYER
(A)
1-48199-520-0
02
1
0907-
7
RING; SNAP,AIR DRYER
(B)
1-48199-529-0
01
1
0907-
65
BOLT; PURGE VLV
1-48199-517-0
01
1
0907-
68
BODY; VALVE
1-48199-515-0
01
1
0907-
70
VALVE; AIR DRYER
1-48199-504-0
01
1
0907-
75
COVER; CASE,AIR DRYER
1-48199-562-0
01
1
0907-
76
BOLT; COVER,AIR DRYER
1-48199-561-0
06
1
0907-
78
BOLT; OIL FILTER,AIR DRYER
1-48199-557-0
04
1
0907-
81
BOLT; CASE,AIR DRYER
1-48199-436-0
08
1
0907-
84
SPRING; AIR DRYER
(A)
1-48199-523-0
01
1
0907-
84
SPRING; AIR DRYER
(B)
1-48199-564-0
01
1
0907-
93
SILENCER; AIR DRYER
1-48199-518-0
01
1
0907-1211
104
GASKET
(A)
1-48199-496-0
02
1
1212-
104
GASKET
(B)
8-98226-321-0
01
1
1212-
109
STOPPER; CHECK VALVE
1-48199-539-0
01
1
0907-
110
NUT; CAP
1-48199-527-0
01
1
0907-
111
PLATE; GOVERNOR
1-48199-526-0
01
1
0907-
112
SCREW & SPRING ASM; AIR DRYER
1-48199-524-0
01
1
0907-
113
STEM; EXHAUST
1-48199-522-0
01
1
0907-
114
PISTON ASM; GOVERNOR
1-48199-521-0
01
1
0907-
104
104
104
65
3
2
68
70
104
104
104
70
4
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
1-85576-445-0
01
1
0907-1211
2
REPAIR KIT; AIR DRYER
8-98226-329-0
01
1
1212-
3
PISTON KIT; AIR DRYER
1-85576-383-0
01
1
0907-1211
3
PISTON KIT; AIR DRYER
8-98226-322-0
01
1
1212-
4
THERMOSTAT KIT; AIR DRYER
1-85576-444-0
01
1
0907-
5
HEATER ASM; AIR DRYER
1-48199-530-0
01
1
0907-
65
BOLT; PURGE VLV
1-48199-517-0
01
1
0907-
68
BODY; VALVE
1-48199-515-0
01
1
0907-
70
VALVE; AIR DRYER
1-48199-504-0
01
1
0907-
104
GASKET
(A)
1-48199-496-0
02
1
1212-
104
GASKET
(B)
8-98226-321-0
01
1
1212-
16
12
1
10
11
8
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-359-1
01
1
0907-1211
1
DRYER; AIR
8-98225-296-0
01
1
1212-
8
CONNECTOR; OUT,AIR DRYER
M22 & PT1/2 ELBOW
0-92134-315-0
02
1
0907-
10
BOLT; AIR DRYER
M12X25 FLANGE
0-28051-225-0
03
1
0907-
11
BRACKET; AIR DRYER
8-98057-794-0
01
1
0907-
12
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
04
1
0907-
16
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
0907-
