Sayfa 8-45 - Isuzu EPC

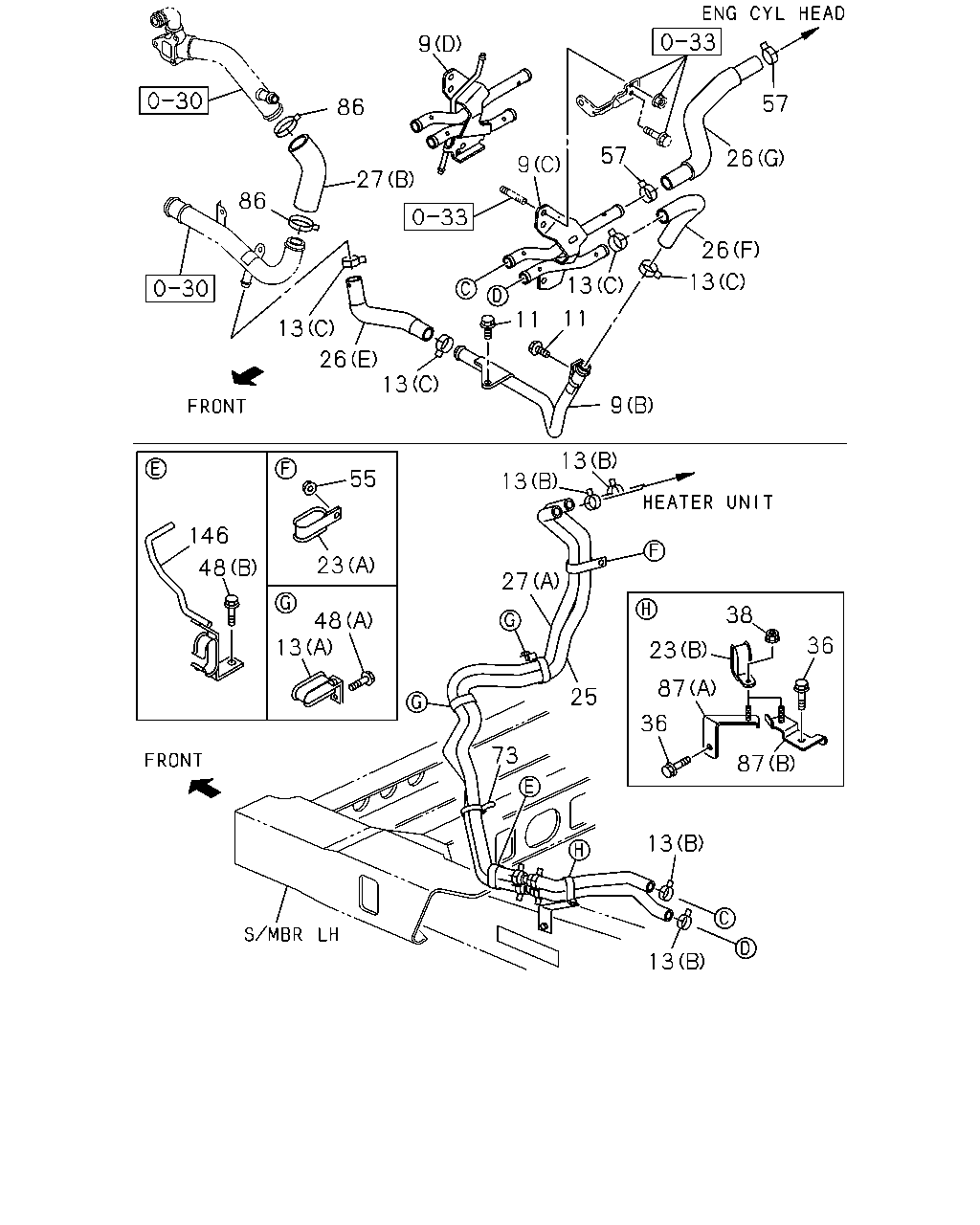

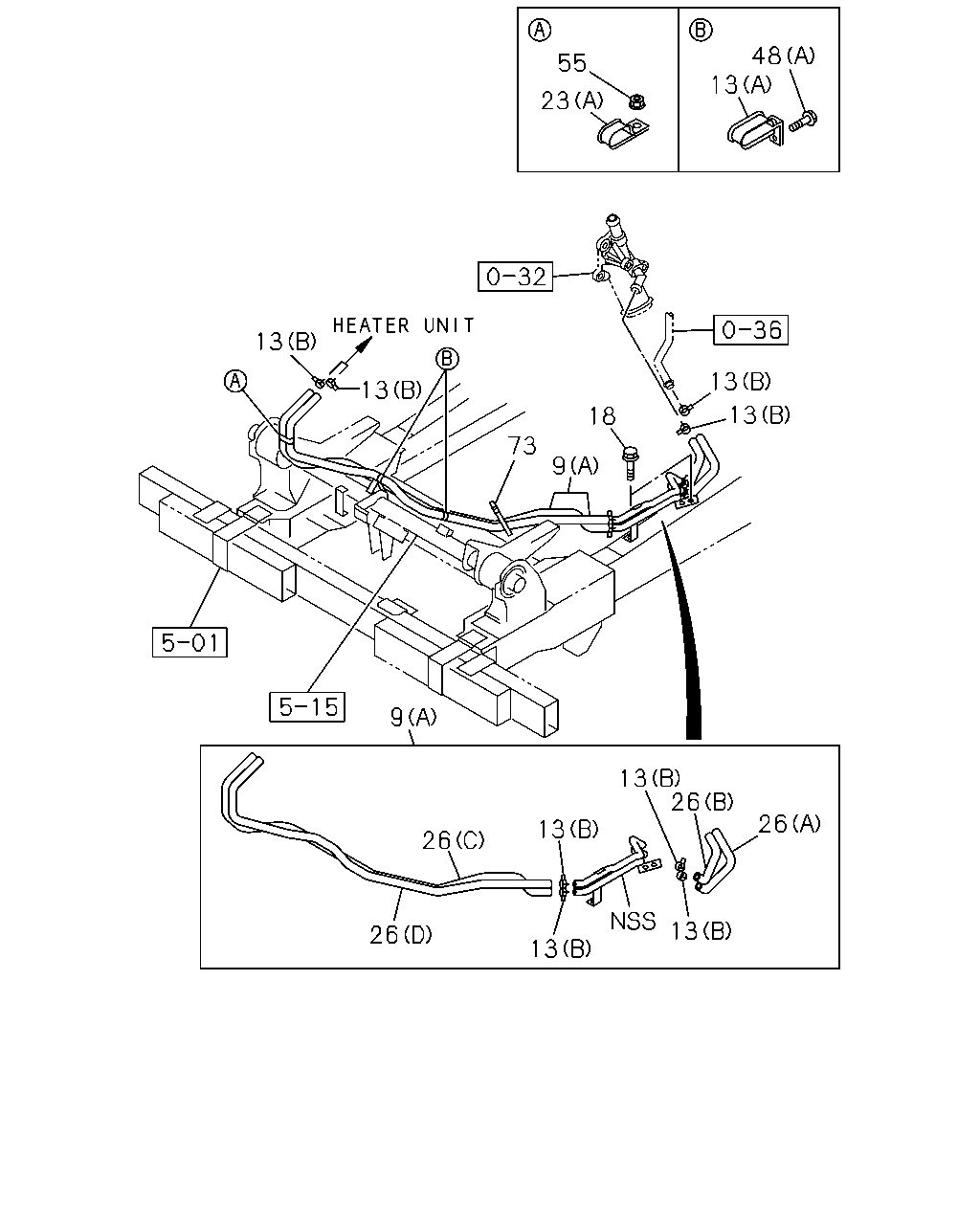

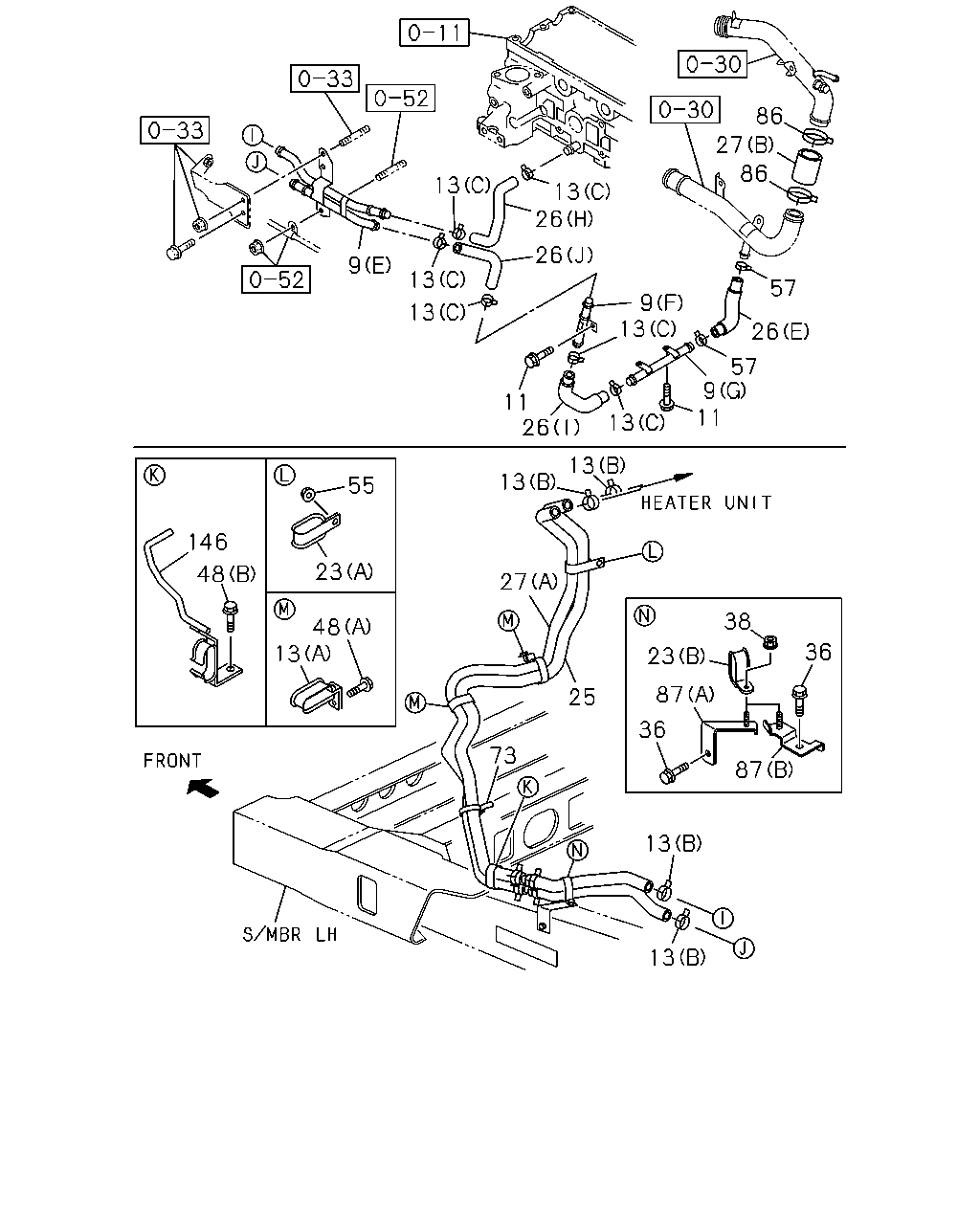

8-45 — HEATER PIPING (#162429) — 365 parça

9 86 86 27 9 57 26 57 26 13 13 11 11 9 13 26 13 55 23 48 13 48 146 13 13 27 25 23 87 38 36 87 36 13 13 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (F)	8-97381-481-3	01	1	1509-	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (G)	8-97383-035-1	01	1	1509-	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (E)	8-98028-829-1	01	1	1509-	●
9	08.846 PIPE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (A)	8-98299-751-1	01	1	1509-1511	●
9	08.846 PIPE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (A)	8-98299-751-1	01	1	1509-1511	●
9	08.846 PIPE; HTR 4HK1-TCS ENG(RJS) (A)	8-98299-751-1	01	1	1509-1511		●
9	08.846 PIPE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (A)	8-98299-751-1	01	1	1512-	●
9	08.846 PIPE; HTR 4HK1-TCS ENG(RJS) (A)	8-98299-751-1	01	1	1512-		●
9	08.846 PIPE; HTR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98006-433-1	01	1	1509-	●
9	08.846 PIPE; HTR (D)	8-98074-590-2	01	1	1506-1511			●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (D)	8-98074-590-2	01	1	1512-			●
9	08.846 PIPE; HTR (B)	8-98209-291-2	01	1	1506-1508			●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (B)	8-98209-291-2	01	1	1506-1508	●
9	08.846 PIPE; HTR (B)	8-98209-291-2	01	1	1509-			●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (B)	8-98209-291-2	01	1	1509-	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (C)	8-98088-944-1	01	1	1506-1508	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (C)	8-98088-944-1	01	1	1509-	●
9	08.846 PIPE; HTR 4HK1-TCS ENG(RJS) (A)	8-98205-051-1	01	1	1506-1508	●
9	08.846 PIPE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98205-051-1	01	1	1509-	●
11	08.845 BOLT; HTR PIPE 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1509-	●
11	08.845 BOLT; HTR PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1506-1508			●
11	08.845 BOLT; HTR PIPE 4JJ1-TCS ENG(LFB) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1506-1508	●
11	08.845 BOLT; HTR PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1509-			●
11	08.845 BOLT; HTR PIPE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1509-	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) 01.166 (C) ID=20.8	8-94125-862-1	06	1	1509-	●
13	08.846 CLIP; HTR HOSE 08.852 (A)	8-98032-129-0	02	1	1506-1508	●		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 (A)	8-98032-129-0	02	1	1509-	●	●	●
13	08.846 CLIP; HTR HOSE 03.278 (B) ID=22	8-97359-141-0	04	1	1506-1508	●		●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) 03.278 (B) ID=22	8-97359-141-0	04	1	1506-1508	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1509-1511			●
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.278 (B) ID=22	8-97359-141-0	04	1	1509-1511	●
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 03.278 (B) ID=22	8-97359-141-0	04	1	1509-1511	●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 03.278 (B) ID=22	8-97359-141-0	04	1	1509-1511	●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.278 (B) ID=22	8-97359-141-0	04	1	1509-1511	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1509-1511	●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) 03.278 (B) ID=22	8-97359-141-0	04	1	1509-1511		●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) 03.278 (B) ID=22	8-97359-141-0	04	1	1509-1511		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1512-			●
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.278 (B) ID=22	8-97359-141-0	04	1	1512-	●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.278 (B) ID=22	8-97359-141-0	04	1	1512-	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1512-	●
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 03.278 (B) ID=22	8-97359-141-0	04	1	1512-	●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) 03.278 (B) ID=22	8-97359-141-0	04	1	1512-		●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) 03.278 (B) ID=22	8-97359-141-0	04	1	1512-		●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	04	1	1506-1508			●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) 01.166 (C) ID=20.8	8-94125-862-1	04	1	1506-1508	●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	04	1	1509-			●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 01.166 (C) ID=20.8	8-94125-862-1	04	1	1509-	●
23	08.846 CLIP; WATER HOSE,DASH LWR (B) B=14	8-98029-678-0	01	1	1506-			●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JJ1-TCS ENG(LFB) (B) B=14	8-98029-678-0	01	1	1506-	●
23	08.846 CLIP; WATER HOSE,DASH LWR (A) B=18	8-98166-023-0	01	1	1506-1508	●		●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	8-98166-023-0	01	1	1509-	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT	8-98021-671-2	01	1	1506-			●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB)	8-98021-671-2	01	1	1506-	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (H)	8-97383-048-1	01	1	1509-	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (I)	8-98000-099-1	01	1	1509-	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (J)	8-98143-868-0	01	1	1509-	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98050-295-0	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (A)	8-98050-295-0	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (A)	8-98050-295-0	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (A)	8-98050-295-0	01	1	1509-1511		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98050-295-0	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (A)	8-98050-295-0	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (A)	8-98050-295-0	01	1	1512-		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98050-296-0	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (B)	8-98050-296-0	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (B)	8-98050-296-0	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (B)	8-98050-296-0	01	1	1509-1511		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98050-296-0	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (B)	8-98050-296-0	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (B)	8-98050-296-0	01	1	1512-		●
26	08.846 HOSE; HTR (G)	8-98209-510-1	01	1	1506-1511			●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (G)	8-98209-510-1	01	1	1512-			●
26	08.846 HOSE; HTR (E)	8-98000-101-2	01	1	1506-			●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (E)	8-98000-101-2	01	1	1506-	●
26	08.846 HOSE; HTR (F)	8-98114-718-0	01	1	1506-1508			●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (F)	8-98114-718-0	01	1	1506-1508	●
26	08.846 HOSE; HTR (F)	8-98114-718-0	01	1	1509-			●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (F)	8-98114-718-0	01	1	1509-	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (C)	8-98059-457-1	01	1	1506-1508	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98059-457-1	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (C)	8-98059-457-1	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (C)	8-98059-457-1	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C)	8-98059-457-1	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (C)	8-98059-457-1	01	1	1509-1511		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98059-457-1	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C)	8-98059-457-1	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (C)	8-98059-457-1	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (C)	8-98059-457-1	01	1	1512-		●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (D)	8-98059-458-1	01	1	1506-1508	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98059-458-1	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (D)	8-98059-458-1	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (D)	8-98059-458-1	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (D)	8-98059-458-1	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (D)	8-98059-458-1	01	1	1509-1511		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98059-458-1	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (D)	8-98059-458-1	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (D)	8-98059-458-1	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (D)	8-98059-458-1	01	1	1512-		●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (A)	8-98210-715-0	01	1	1506-1508	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98210-715-0	01	1	1509-	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (B)	8-98210-716-0	01	1	1506-1508	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (B)	8-98210-716-0	01	1	1509-	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI (B)	8-98021-670-3	01	1	1506-			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB) (B)	8-98021-670-3	01	1	1506-	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI (A)	8-98106-016-0	01	1	1506-			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB) (A)	8-98106-016-0	01	1	1506-	●
36	08.846 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-			●
36	08.846 BOLT; BRKT 4JJ1-TCS ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-	●
38	08.846 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-			●
38	08.846 NUT; BRKT 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-	●
48	09.262 BOLT; CLIP FIX 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1506-			●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1506-	●
48	09.262 BOLT; CLIP FIX 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1506-1508	●		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1509-	●	●	●
55	08.845 NUT; CLAMP 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-1508	●		●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1509-	●	●	●
57	08.846 CLIP; HOSE 01.166 ID=20.8	8-94125-862-1	02	1	1506-1508			●
57	08.846 CLIP; HOSE 01.166 ID=20.8	8-94125-862-1	02	1	1509-			●
57	08.846 CLIP; HOSE 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) 01.166 ID=20.8	8-94125-862-1	02	1	1509-	●
73	08.846 CLIP; HTR HOSE 02.559 L=250	5-09707-030-1	01	1	1506-1508	●		●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	01	1	1509-	●	●	●
86	08.846 CLIP; HTR HOSE	8-98110-004-0	02	1	1506-			●
86	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB)	8-98110-004-0	02	1	1506-	●
87	08.846 BRACKET; HTR HOSE CLIP (A)	8-98025-918-4	01	1	1506-			●
87	08.846 BRACKET; HTR HOSE CLIP 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98025-918-4	01	1	1506-	●
87	08.846 BRACKET; HTR HOSE CLIP 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (B)	8-98211-653-1	01	1	1506-	●
146	08.846 BRACKET; HTR HOSE	8-98108-314-0	01	1	1506-			●
146	08.846 BRACKET; HTR HOSE 4JJ1-TCS ENG(LFB)	8-98108-314-0	01	1	1506-	●

55 48 13 23 13 13 18 73 13 13 9 9 13 26 26 13 13 13 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (F)	8-97381-481-3	01	1	1509-	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (G)	8-97383-035-1	01	1	1509-	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (E)	8-98028-829-1	01	1	1509-	●
9	08.846 PIPE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (A)	8-98299-751-1	01	1	1509-1511	●
9	08.846 PIPE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (A)	8-98299-751-1	01	1	1509-1511	●
9	08.846 PIPE; HTR 4HK1-TCS ENG(RJS) (A)	8-98299-751-1	01	1	1509-1511		●
9	08.846 PIPE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (A)	8-98299-751-1	01	1	1512-	●
9	08.846 PIPE; HTR 4HK1-TCS ENG(RJS) (A)	8-98299-751-1	01	1	1512-		●
9	08.846 PIPE; HTR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98006-433-1	01	1	1509-	●
9	08.846 PIPE; HTR (D)	8-98074-590-2	01	1	1506-1511			●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (D)	8-98074-590-2	01	1	1512-			●
9	08.846 PIPE; HTR (B)	8-98209-291-2	01	1	1506-1508			●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (B)	8-98209-291-2	01	1	1506-1508	●
9	08.846 PIPE; HTR (B)	8-98209-291-2	01	1	1509-			●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (B)	8-98209-291-2	01	1	1509-	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (C)	8-98088-944-1	01	1	1506-1508	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (C)	8-98088-944-1	01	1	1509-	●
9	08.846 PIPE; HTR 4HK1-TCS ENG(RJS) (A)	8-98205-051-1	01	1	1506-1508	●
9	08.846 PIPE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98205-051-1	01	1	1509-	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) 01.166 (C) ID=20.8	8-94125-862-1	06	1	1509-	●
13	08.846 CLIP; HTR HOSE 08.852 (A)	8-98032-129-0	02	1	1506-1508	●		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 (A)	8-98032-129-0	02	1	1509-	●	●	●
13	08.846 CLIP; HTR HOSE 03.278 (B) ID=22	8-97359-141-0	04	1	1506-1508	●		●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) 03.278 (B) ID=22	8-97359-141-0	04	1	1506-1508	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1509-1511			●
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.278 (B) ID=22	8-97359-141-0	04	1	1509-1511	●
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 03.278 (B) ID=22	8-97359-141-0	04	1	1509-1511	●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 03.278 (B) ID=22	8-97359-141-0	04	1	1509-1511	●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.278 (B) ID=22	8-97359-141-0	04	1	1509-1511	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1509-1511	●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) 03.278 (B) ID=22	8-97359-141-0	04	1	1509-1511		●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) 03.278 (B) ID=22	8-97359-141-0	04	1	1509-1511		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1512-			●
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.278 (B) ID=22	8-97359-141-0	04	1	1512-	●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.278 (B) ID=22	8-97359-141-0	04	1	1512-	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1512-	●
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 03.278 (B) ID=22	8-97359-141-0	04	1	1512-	●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) 03.278 (B) ID=22	8-97359-141-0	04	1	1512-		●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) 03.278 (B) ID=22	8-97359-141-0	04	1	1512-		●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	04	1	1506-1508			●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) 01.166 (C) ID=20.8	8-94125-862-1	04	1	1506-1508	●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	04	1	1509-			●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 01.166 (C) ID=20.8	8-94125-862-1	04	1	1509-	●
18	08.866 BOLT; WATER HOSE 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1506-1508	●
18	08.866 BOLT; WATER HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1509-	●
18	08.866 BOLT; WATER HOSE 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1509-		●
23	08.846 CLIP; WATER HOSE,DASH LWR (B) B=14	8-98029-678-0	01	1	1506-			●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JJ1-TCS ENG(LFB) (B) B=14	8-98029-678-0	01	1	1506-	●
23	08.846 CLIP; WATER HOSE,DASH LWR (A) B=18	8-98166-023-0	01	1	1506-1508	●		●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	8-98166-023-0	01	1	1509-	●	●	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (H)	8-97383-048-1	01	1	1509-	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (I)	8-98000-099-1	01	1	1509-	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (J)	8-98143-868-0	01	1	1509-	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98050-295-0	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (A)	8-98050-295-0	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (A)	8-98050-295-0	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (A)	8-98050-295-0	01	1	1509-1511		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98050-295-0	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (A)	8-98050-295-0	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (A)	8-98050-295-0	01	1	1512-		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98050-296-0	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (B)	8-98050-296-0	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (B)	8-98050-296-0	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (B)	8-98050-296-0	01	1	1509-1511		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98050-296-0	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (B)	8-98050-296-0	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (B)	8-98050-296-0	01	1	1512-		●
26	08.846 HOSE; HTR (G)	8-98209-510-1	01	1	1506-1511			●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (G)	8-98209-510-1	01	1	1512-			●
26	08.846 HOSE; HTR (E)	8-98000-101-2	01	1	1506-			●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (E)	8-98000-101-2	01	1	1506-	●
26	08.846 HOSE; HTR (F)	8-98114-718-0	01	1	1506-1508			●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (F)	8-98114-718-0	01	1	1506-1508	●
26	08.846 HOSE; HTR (F)	8-98114-718-0	01	1	1509-			●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (F)	8-98114-718-0	01	1	1509-	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (C)	8-98059-457-1	01	1	1506-1508	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98059-457-1	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (C)	8-98059-457-1	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (C)	8-98059-457-1	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C)	8-98059-457-1	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (C)	8-98059-457-1	01	1	1509-1511		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98059-457-1	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C)	8-98059-457-1	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (C)	8-98059-457-1	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (C)	8-98059-457-1	01	1	1512-		●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (D)	8-98059-458-1	01	1	1506-1508	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98059-458-1	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (D)	8-98059-458-1	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (D)	8-98059-458-1	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (D)	8-98059-458-1	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (D)	8-98059-458-1	01	1	1509-1511		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98059-458-1	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (D)	8-98059-458-1	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (D)	8-98059-458-1	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (D)	8-98059-458-1	01	1	1512-		●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (A)	8-98210-715-0	01	1	1506-1508	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98210-715-0	01	1	1509-	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (B)	8-98210-716-0	01	1	1506-1508	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (B)	8-98210-716-0	01	1	1509-	●
48	09.262 BOLT; CLIP FIX 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1506-			●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1506-	●
48	09.262 BOLT; CLIP FIX 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1506-1508	●		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1509-	●	●	●
55	08.845 NUT; CLAMP 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-1508	●		●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1509-	●	●	●
73	08.846 CLIP; HTR HOSE 02.559 L=250	5-09707-030-1	01	1	1506-1508	●		●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	01	1	1509-	●	●	●

9 13 13 13 13 26 26 27 86 86 9 57 26 13 57 9 13 11 26 11 55 23 48 13 48 146 13 13 27 25 38 36 23 87 36 87 13 13 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (F)	8-97381-481-3	01	1	1509-	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (G)	8-97383-035-1	01	1	1509-	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (E)	8-98028-829-1	01	1	1509-	●
9	08.846 PIPE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (A)	8-98299-751-1	01	1	1509-1511	●
9	08.846 PIPE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (A)	8-98299-751-1	01	1	1509-1511	●
9	08.846 PIPE; HTR 4HK1-TCS ENG(RJS) (A)	8-98299-751-1	01	1	1509-1511		●
9	08.846 PIPE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (A)	8-98299-751-1	01	1	1512-	●
9	08.846 PIPE; HTR 4HK1-TCS ENG(RJS) (A)	8-98299-751-1	01	1	1512-		●
9	08.846 PIPE; HTR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98006-433-1	01	1	1509-	●
9	08.846 PIPE; HTR (D)	8-98074-590-2	01	1	1506-1511			●
9	08.846 PIPE; HTR 4JJ1-TCC ENG(RDU) (D)	8-98074-590-2	01	1	1512-			●
9	08.846 PIPE; HTR (B)	8-98209-291-2	01	1	1506-1508			●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (B)	8-98209-291-2	01	1	1506-1508	●
9	08.846 PIPE; HTR (B)	8-98209-291-2	01	1	1509-			●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (B)	8-98209-291-2	01	1	1509-	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) (C)	8-98088-944-1	01	1	1506-1508	●
9	08.846 PIPE; HTR 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (C)	8-98088-944-1	01	1	1509-	●
9	08.846 PIPE; HTR 4HK1-TCS ENG(RJS) (A)	8-98205-051-1	01	1	1506-1508	●
9	08.846 PIPE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98205-051-1	01	1	1509-	●
11	08.845 BOLT; HTR PIPE 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1509-	●
11	08.845 BOLT; HTR PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1506-1508			●
11	08.845 BOLT; HTR PIPE 4JJ1-TCS ENG(LFB) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1506-1508	●
11	08.845 BOLT; HTR PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1509-			●
11	08.845 BOLT; HTR PIPE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1509-	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) 01.166 (C) ID=20.8	8-94125-862-1	06	1	1509-	●
13	08.846 CLIP; HTR HOSE 08.852 (A)	8-98032-129-0	02	1	1506-1508	●		●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 (A)	8-98032-129-0	02	1	1509-	●	●	●
13	08.846 CLIP; HTR HOSE 03.278 (B) ID=22	8-97359-141-0	04	1	1506-1508	●		●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) 03.278 (B) ID=22	8-97359-141-0	04	1	1506-1508	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1509-1511			●
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.278 (B) ID=22	8-97359-141-0	04	1	1509-1511	●
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 03.278 (B) ID=22	8-97359-141-0	04	1	1509-1511	●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 03.278 (B) ID=22	8-97359-141-0	04	1	1509-1511	●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.278 (B) ID=22	8-97359-141-0	04	1	1509-1511	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1509-1511	●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) 03.278 (B) ID=22	8-97359-141-0	04	1	1509-1511		●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) 03.278 (B) ID=22	8-97359-141-0	04	1	1509-1511		●
13	08.846 CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1512-			●
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) 03.278 (B) ID=22	8-97359-141-0	04	1	1512-	●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.278 (B) ID=22	8-97359-141-0	04	1	1512-	●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22	8-97359-141-0	04	1	1512-	●
13	08.846 CLIP; HTR HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) 03.278 (B) ID=22	8-97359-141-0	04	1	1512-	●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) 03.278 (B) ID=22	8-97359-141-0	04	1	1512-		●
13	08.846 CLIP; HTR HOSE 4HK1-TCS ENG(RJS) 03.278 (B) ID=22	8-97359-141-0	04	1	1512-		●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	04	1	1506-1508			●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) 01.166 (C) ID=20.8	8-94125-862-1	04	1	1506-1508	●
13	08.846 CLIP; HTR HOSE 01.166 (C) ID=20.8	8-94125-862-1	04	1	1509-			●
13	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) 01.166 (C) ID=20.8	8-94125-862-1	04	1	1509-	●
23	08.846 CLIP; WATER HOSE,DASH LWR (B) B=14	8-98029-678-0	01	1	1506-			●
23	08.846 CLIP; WATER HOSE,DASH LWR 4JJ1-TCS ENG(LFB) (B) B=14	8-98029-678-0	01	1	1506-	●
23	08.846 CLIP; WATER HOSE,DASH LWR (A) B=18	8-98166-023-0	01	1	1506-1508	●		●
23	08.846 CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	8-98166-023-0	01	1	1509-	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT	8-98021-671-2	01	1	1506-			●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCS ENG(LFB)	8-98021-671-2	01	1	1506-	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (H)	8-97383-048-1	01	1	1509-	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (I)	8-98000-099-1	01	1	1509-	●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (J)	8-98143-868-0	01	1	1509-	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98050-295-0	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (A)	8-98050-295-0	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (A)	8-98050-295-0	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (A)	8-98050-295-0	01	1	1509-1511		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (A)	8-98050-295-0	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (A)	8-98050-295-0	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (A)	8-98050-295-0	01	1	1512-		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98050-296-0	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (B)	8-98050-296-0	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (B)	8-98050-296-0	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (B)	8-98050-296-0	01	1	1509-1511		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98050-296-0	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (B)	8-98050-296-0	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (B)	8-98050-296-0	01	1	1512-		●
26	08.846 HOSE; HTR (G)	8-98209-510-1	01	1	1506-1511			●
26	08.846 HOSE; HTR 4JJ1-TCC ENG(RDU) (G)	8-98209-510-1	01	1	1512-			●
26	08.846 HOSE; HTR (E)	8-98000-101-2	01	1	1506-			●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (E)	8-98000-101-2	01	1	1506-	●
26	08.846 HOSE; HTR (F)	8-98114-718-0	01	1	1506-1508			●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) (F)	8-98114-718-0	01	1	1506-1508	●
26	08.846 HOSE; HTR (F)	8-98114-718-0	01	1	1509-			●
26	08.846 HOSE; HTR 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (F)	8-98114-718-0	01	1	1509-	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (C)	8-98059-457-1	01	1	1506-1508	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98059-457-1	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (C)	8-98059-457-1	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (C)	8-98059-457-1	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C)	8-98059-457-1	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (C)	8-98059-457-1	01	1	1509-1511		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98059-457-1	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (C)	8-98059-457-1	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (C)	8-98059-457-1	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (C)	8-98059-457-1	01	1	1512-		●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (D)	8-98059-458-1	01	1	1506-1508	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98059-458-1	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (D)	8-98059-458-1	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (D)	8-98059-458-1	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (D)	8-98059-458-1	01	1	1509-1511	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (D)	8-98059-458-1	01	1	1509-1511		●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL WITH DPD(8JM) (D)	8-98059-458-1	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (D)	8-98059-458-1	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ) (D)	8-98059-458-1	01	1	1512-	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (D)	8-98059-458-1	01	1	1512-		●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (A)	8-98210-715-0	01	1	1506-1508	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (A)	8-98210-715-0	01	1	1509-	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) (B)	8-98210-716-0	01	1	1506-1508	●
26	08.846 HOSE; HTR 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) (B)	8-98210-716-0	01	1	1509-	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI (B)	8-98021-670-3	01	1	1506-			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB) (B)	8-98021-670-3	01	1	1506-	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI (A)	8-98106-016-0	01	1	1506-			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JJ1-TCS ENG(LFB) (A)	8-98106-016-0	01	1	1506-	●
36	08.846 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-			●
36	08.846 BOLT; BRKT 4JJ1-TCS ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-	●
38	08.846 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-			●
38	08.846 NUT; BRKT 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-	●
48	09.262 BOLT; CLIP FIX 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1506-			●
48	09.262 BOLT; CLIP FIX 4JJ1-TCS ENG(LFB) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	1506-	●
48	09.262 BOLT; CLIP FIX 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1506-1508	●		●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1509-	●	●	●
55	08.845 NUT; CLAMP 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-1508	●		●
55	08.845 NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	01	1	1509-	●	●	●
57	08.846 CLIP; HOSE 01.166 ID=20.8	8-94125-862-1	02	1	1506-1508			●
57	08.846 CLIP; HOSE 01.166 ID=20.8	8-94125-862-1	02	1	1509-			●
57	08.846 CLIP; HOSE 4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) 01.166 ID=20.8	8-94125-862-1	02	1	1509-	●
73	08.846 CLIP; HTR HOSE 02.559 L=250	5-09707-030-1	01	1	1506-1508	●		●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 L=250	5-09707-030-1	01	1	1509-	●	●	●
86	08.846 CLIP; HTR HOSE	8-98110-004-0	02	1	1506-			●
86	08.846 CLIP; HTR HOSE 4JJ1-TCS ENG(LFB)	8-98110-004-0	02	1	1506-	●
87	08.846 BRACKET; HTR HOSE CLIP (A)	8-98025-918-4	01	1	1506-			●
87	08.846 BRACKET; HTR HOSE CLIP 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98025-918-4	01	1	1506-	●
87	08.846 BRACKET; HTR HOSE CLIP 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (B)	8-98211-653-1	01	1	1506-	●
146	08.846 BRACKET; HTR HOSE	8-98108-314-0	01	1	1506-			●
146	08.846 BRACKET; HTR HOSE 4JJ1-TCS ENG(LFB)	8-98108-314-0	01	1	1506-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
