8-28 — CHASSIS ELECTRICAL (#162427) — 85 parça

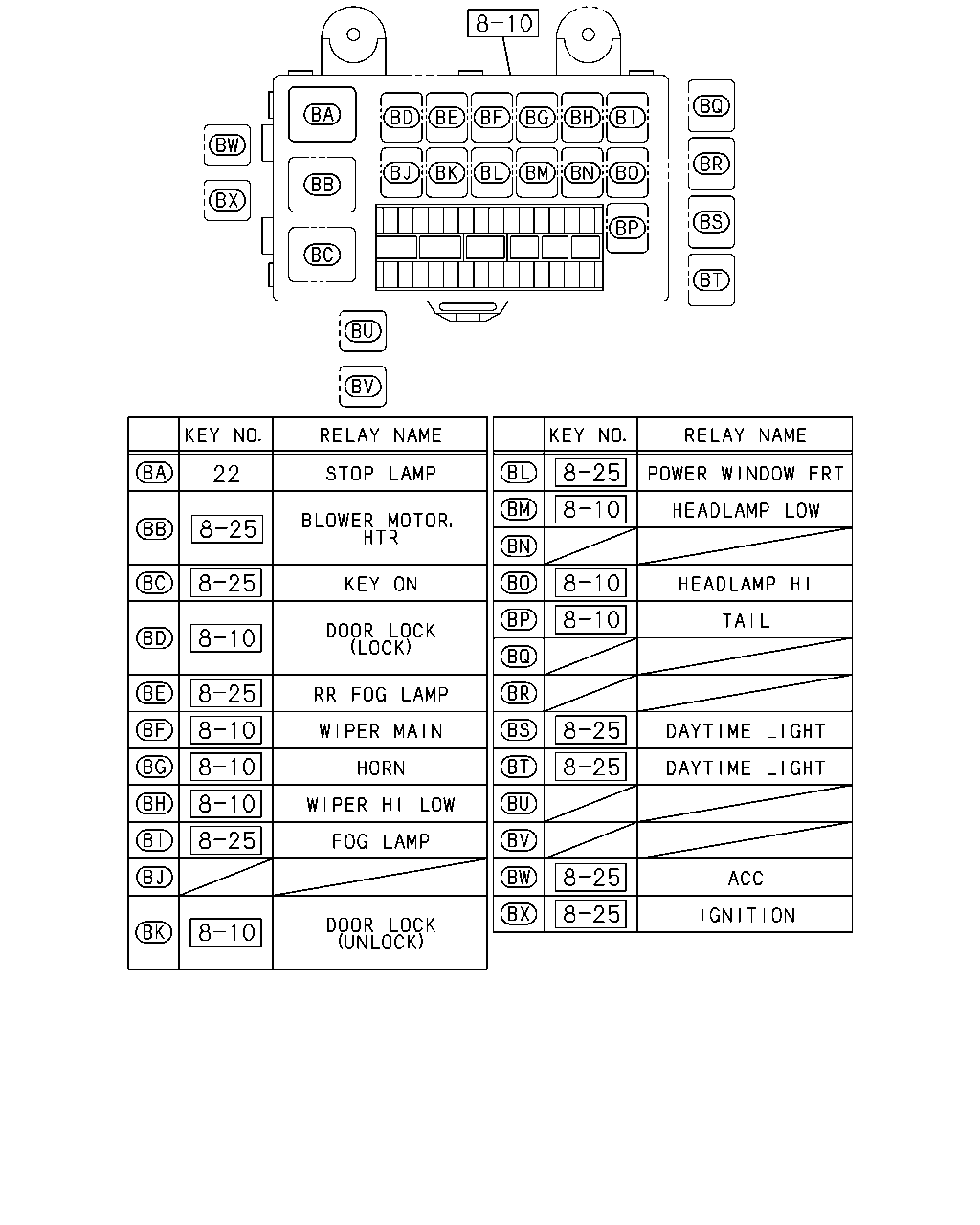

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1506-1508	●	●
	22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1509-	●	●	●

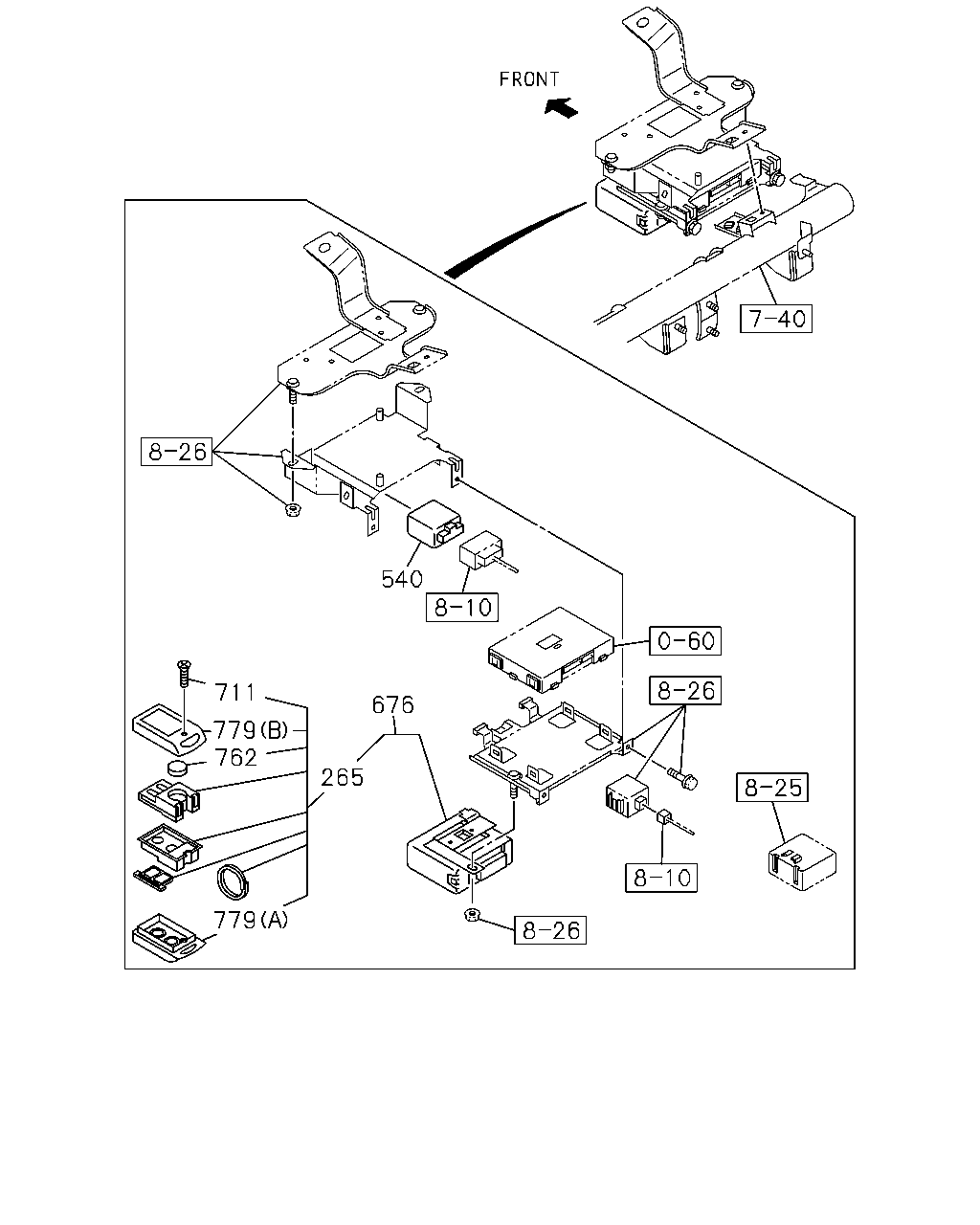

540 676 265 711 779 762 779

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK TAIWAN EQUIPMENT(B04) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) REMOTE CONT DOOR LOCK<6NF>	8-98249-522-0	02	1	1509-		●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK	8-98218-236-0	02	1	1506-1508	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF>	8-98218-236-0	02	1	1506-1508		●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK	8-98218-236-0	02	1	1509-	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK TURKEY EQUIPMENT(B11) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) REMOTE CONT DOOR LOCK<6NF>	8-98218-236-0	02	1	1509-		●
540	16.067 RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1506-1508	●	●
540	16.067 RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1509-	●
540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98233-976-0	01	1	1509-		●	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY TAIWAN EQUIPMENT(B04) EURO5B+ SPECIFICATION(NT5) REMOTE CONT DOOR LOCK<6NF>	8-98249-524-0	01	1	1509-		●
676	07.450 CONTROL UNIT; KEYLESS ENTRY TAIWAN EQUIPMENT(B04) EURO6 SPECIFICATION(NT6) REMOTE CONT DOOR LOCK<6NF>	8-98300-603-0	01	1	1509-		●
676	07.450 CONTROL UNIT; KEYLESS ENTRY TURKEY EQUIPMENT(B11) EURO5B+ SPECIFICATION(NT5) REMOTE CONT DOOR LOCK<6NF> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98218-233-0	01	1	1509-		●
676	07.450 CONTROL UNIT; KEYLESS ENTRY	8-98216-693-2	01	1	1506-1508	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF>	8-98216-693-2	01	1	1506-1508		●
676	07.450 CONTROL UNIT; KEYLESS ENTRY	8-98216-693-2	01	1	1509-	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY TURKEY EQUIPMENT(B11) EURO6 SPECIFICATION(NT6) REMOTE CONT DOOR LOCK<6NF> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98216-693-2	01	1	1509-		●
676	07.450 CONTROL UNIT; KEYLESS ENTRY TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) REMOTE CONT DOOR LOCK<6NF>	8-98216-693-2	01	1	1509-		●
711	02.510 SCREW; TRANSMITTER M2X5	8-98218-239-0	02	1	1506-1508	●
711	02.510 SCREW; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> M2X5	8-98218-239-0	02	1	1506-1508		●
711	02.510 SCREW; TRANSMITTER M2X5	8-98218-239-0	02	1	1509-	●
711	02.510 SCREW; TRANSMITTER TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) REMOTE CONT DOOR LOCK<6NF> M2X5	8-98218-239-0	02	1	1509-		●
762	02.559 BATTERY	8-98078-061-0	02	1	1506-1508	●
762	02.559 BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-061-0	02	1	1506-1508		●
762	02.559 BATTERY	8-98078-061-0	02	1	1509-	●
762	02.559 BATTERY TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) REMOTE CONT DOOR LOCK<6NF>	8-98078-061-0	02	1	1509-		●
779	04.115 COVER; TRANSMITTER TAIWAN EQUIPMENT(B04) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) REMOTE CONT DOOR LOCK<6NF> 02.510 (B)	8-98250-559-0	02	1	1509-		●
779	04.115 COVER; TRANSMITTER 02.510 (A)	8-98218-240-0	02	1	1506-1508	●
779	04.115 COVER; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> 02.510 (A)	8-98218-240-0	02	1	1506-1508		●
779	04.115 COVER; TRANSMITTER 02.510 (A)	8-98218-240-0	02	1	1509-	●
779	04.115 COVER; TRANSMITTER TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) REMOTE CONT DOOR LOCK<6NF> 02.510 (A)	8-98218-240-0	02	1	1509-		●
779	04.115 COVER; TRANSMITTER 02.510 (B)	8-98218-243-0	02	1	1506-1508	●
779	04.115 COVER; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> 02.510 (B)	8-98218-243-0	02	1	1506-1508		●
779	04.115 COVER; TRANSMITTER 02.510 (B)	8-98218-243-0	02	1	1509-	●
779	04.115 COVER; TRANSMITTER TURKEY EQUIPMENT(B11) EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) REMOTE CONT DOOR LOCK<6NF> 02.510 (B)	8-98218-243-0	02	1	1509-		●

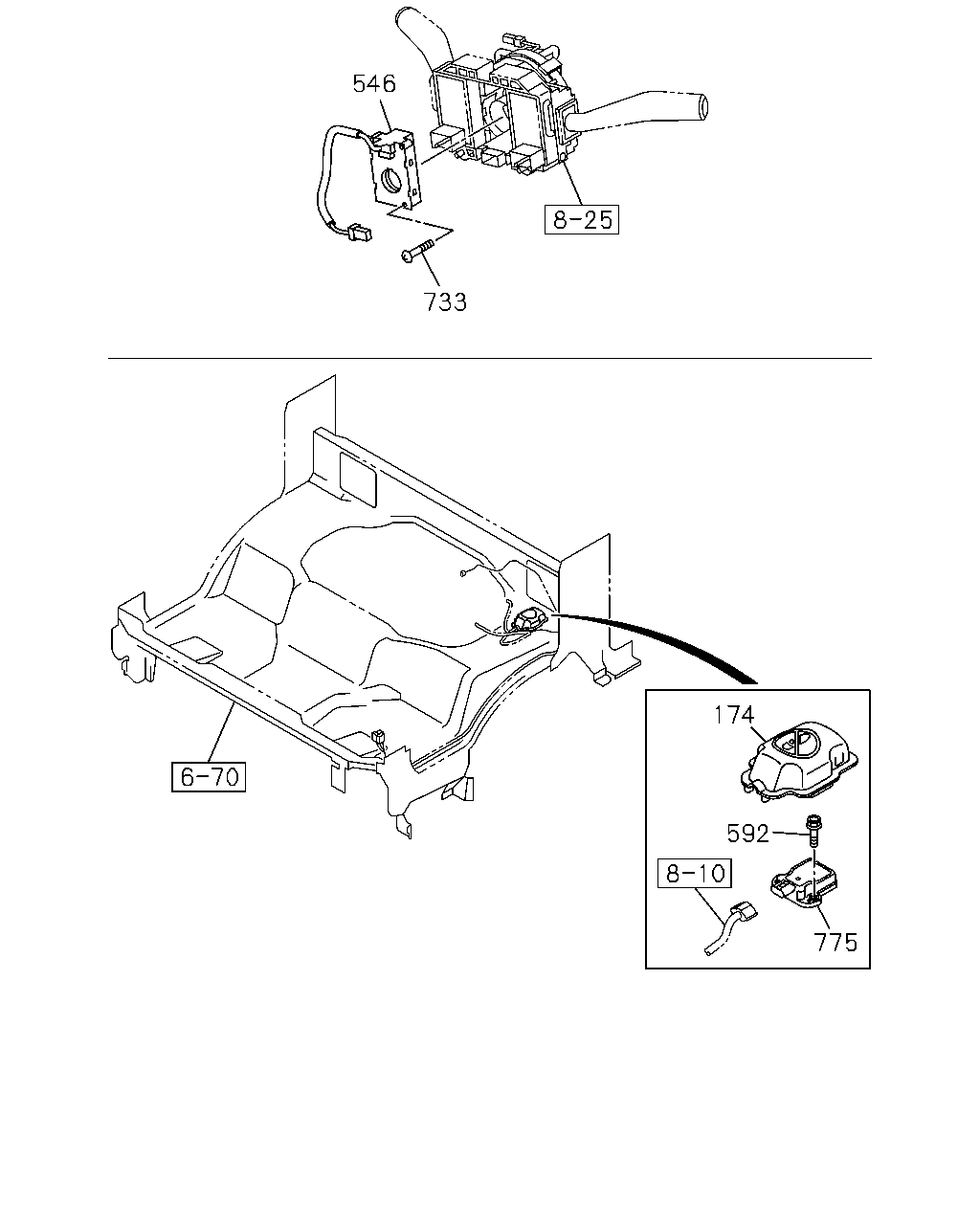

546 733 174 592 775

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
174	02.510 COVER	8-97424-538-1	01	1	1506-1508	●	●
174	02.510 COVER	8-97424-538-1	01	1	1509-	●
174	02.510 COVER TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97424-538-1	01	1	1509-		●
546	01.150 SENSOR; STEERING POSITION RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. LANE DEPARTURE WARNING<TFP>	8-98187-727-1	01	1	1509-		●
546	01.150 SENSOR; STEERING POSITION	8-98208-932-2	01	1	1506-1508	●	●
546	01.150 SENSOR; STEERING POSITION	8-98208-932-2	01	1	1509-	●
546	01.150 SENSOR; STEERING POSITION TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98208-932-2	01	1	1509-		●
592	02.490 BOLT; SENSOR 06.870 M6X18 W/PL WASHER	8-97105-796-1	02	1	1506-1508	●	●
592	02.490 BOLT; SENSOR 06.870 M6X18 W/PL WASHER	8-97105-796-1	02	1	1509-	●
592	02.490 BOLT; SENSOR TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> 06.870 M6X18 W/PL WASHER	8-97105-796-1	02	1	1509-		●
733	00.010 SCREW; SENSOR M3X25 TAPPING	0-71240-325-0	03	1	1506-1508	●	●
733	00.010 SCREW; SENSOR M3X25 TAPPING	0-71240-325-0	03	1	1509-	●
733	00.010 SCREW; SENSOR LANE DEPARTURE WARNING<TFP> M3X25 TAPPING	0-71240-325-0	03	1	1509-		●
733	00.010 SCREW; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1),LANE DEPARTURE WARNING<TFP> M3X25 TAPPING	0-71240-325-0	03	1	1509-		●
775	01.150 SENSOR ASM; YAW RATE	8-98206-892-0	01	1	1506-1508	●	●
775	01.150 SENSOR ASM; YAW RATE	8-98206-892-0	01	1	1509-	●
775	01.150 SENSOR ASM; YAW RATE TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98206-892-0	01	1	1509-		●

531 666 333

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
333	09.277 RELAY; MARKER LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1506-1508	●	●
333	09.277 RELAY; MARKER LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1509-	●
333	09.277 RELAY; MARKER LAMP RR FOG LAMP<T79> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1509-		●
531	02.769 RELAY; MAIN 02.485 24V 30A MITSUBA	8-98259-779-0	01	1	1506-1508	●
531	02.769 RELAY; MAIN 4HK1-TCS ENG(RJS) 02.485 24V 30A MITSUBA	8-98259-779-0	01	1	1506-1508		●
531	02.769 RELAY; MAIN 02.485 24V 30A MITSUBA	8-98259-779-0	01	1	1509-	●		●
531	02.769 RELAY; MAIN EURO5B+ SPECIFICATION(NT5) 02.485 24V 30A MITSUBA	8-98259-779-0	01	1	1509-		●
531	02.769 RELAY; MAIN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) 02.485 24V 30A MITSUBA	8-98259-779-0	01	1	1509-		●
666	02.173 RELAY; STARTER 24V 10A PANASONIC	8-98167-173-0	01	1	1506-1508	●	●
666	02.173 RELAY; STARTER 24V 10A PANASONIC	8-98167-173-0	01	1	1509-	●	●	●

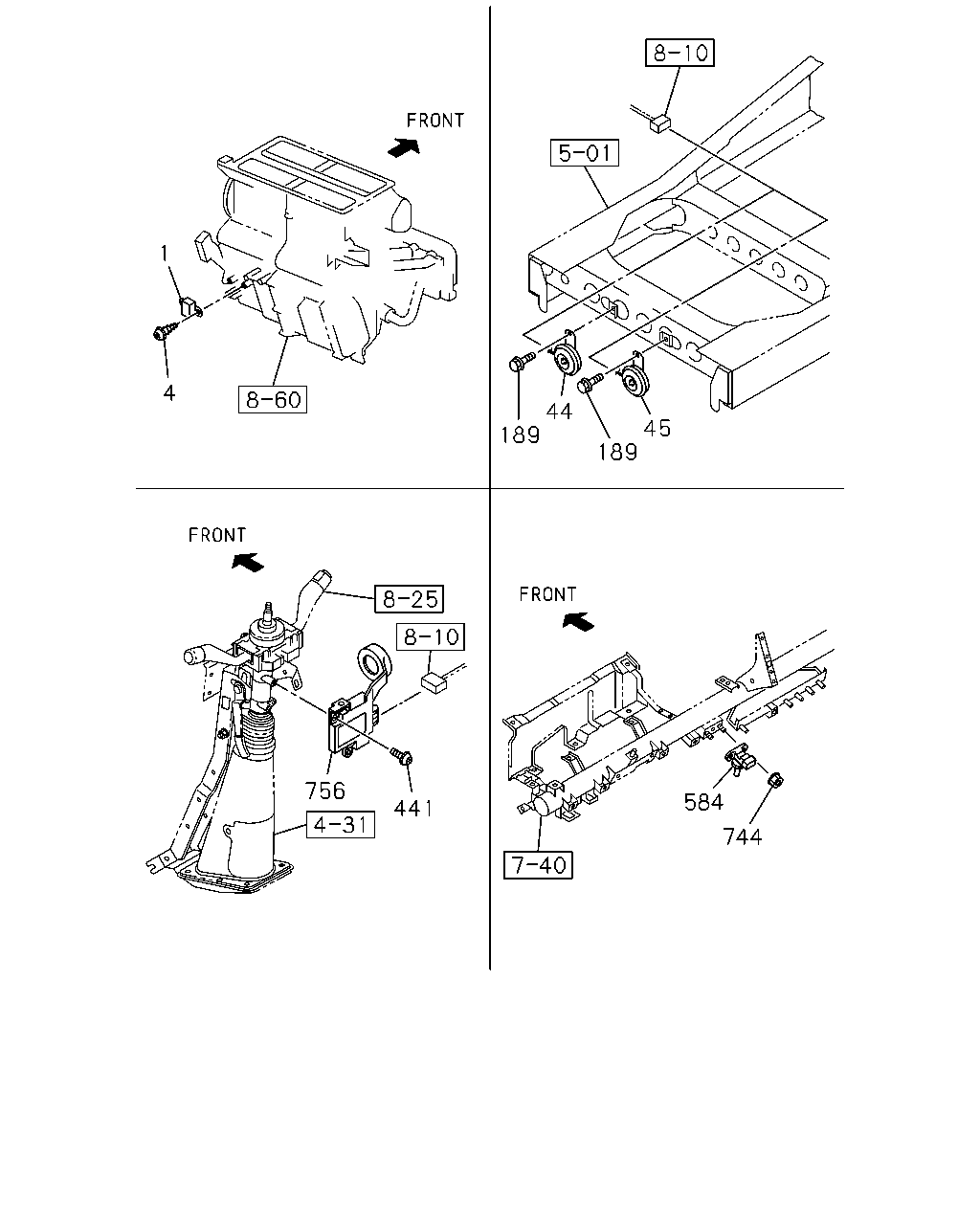

1 4 189 44 189 45 756 441 584 744

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	02.575 UNIT; FLASHER	8-98025-533-1	01	1	1506-1508	●	●
1	02.575 UNIT; FLASHER	8-98025-533-1	01	1	1509-	●	●	●
4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1506-1508	●	●
4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●	●	●
44	02.810 HORN; HIGH NOTE	8-98070-080-0	01	1	1506-1508	●	●
44	02.810 HORN; HIGH NOTE	8-98070-080-0	01	1	1509-	●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK)	8-98070-080-0	01	1	1509-		●	●
45	02.810 HORN; LOW NOTE	8-98022-023-0	01	1	1506-1508	●	●
45	02.810 HORN; LOW NOTE	8-98022-023-0	01	1	1509-	●	●	●
189	02.812 BOLT; HORN EXC. DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1509-		●	●
189	02.812 BOLT; HORN 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1506-1508	●	●
189	02.812 BOLT; HORN 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1509-	●
189	02.812 BOLT; HORN DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1509-		●	●
441	02.575 SCREW; CONT UNIT 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	1506-1508	●	●
441	02.575 SCREW; CONT UNIT 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	1509-	●
441	02.575 SCREW; CONT UNIT IMMOBILIZER SYSTEM(7KC) 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	1509-		●
584	02.440 SENSOR; PRESSURE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) 03.331	8-98020-514-0	01	1	1509-		●
584	02.440 SENSOR; PRESSURE 03.331	8-98020-514-0	01	1	1509-			●
744	09.277 NUT; SENSOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) 01.062 M6 FLANGE	0-91180-106-0	02	1	1509-		●
744	09.277 NUT; SENSOR 01.062 M6 FLANGE	0-91180-106-0	02	1	1509-			●
756	16.263 CONTROL UNIT; IMMOBILIZER	8-98158-127-0	01	1	1506-1508	●	●
756	16.263 CONTROL UNIT; IMMOBILIZER	8-98158-127-0	01	1	1509-	●
756	16.263 CONTROL UNIT; IMMOBILIZER IMMOBILIZER SYSTEM(7KC)	8-98158-127-0	01	1	1509-		●
