Sayfa 8-25 - Isuzu EPC

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#162424) — 248 parça

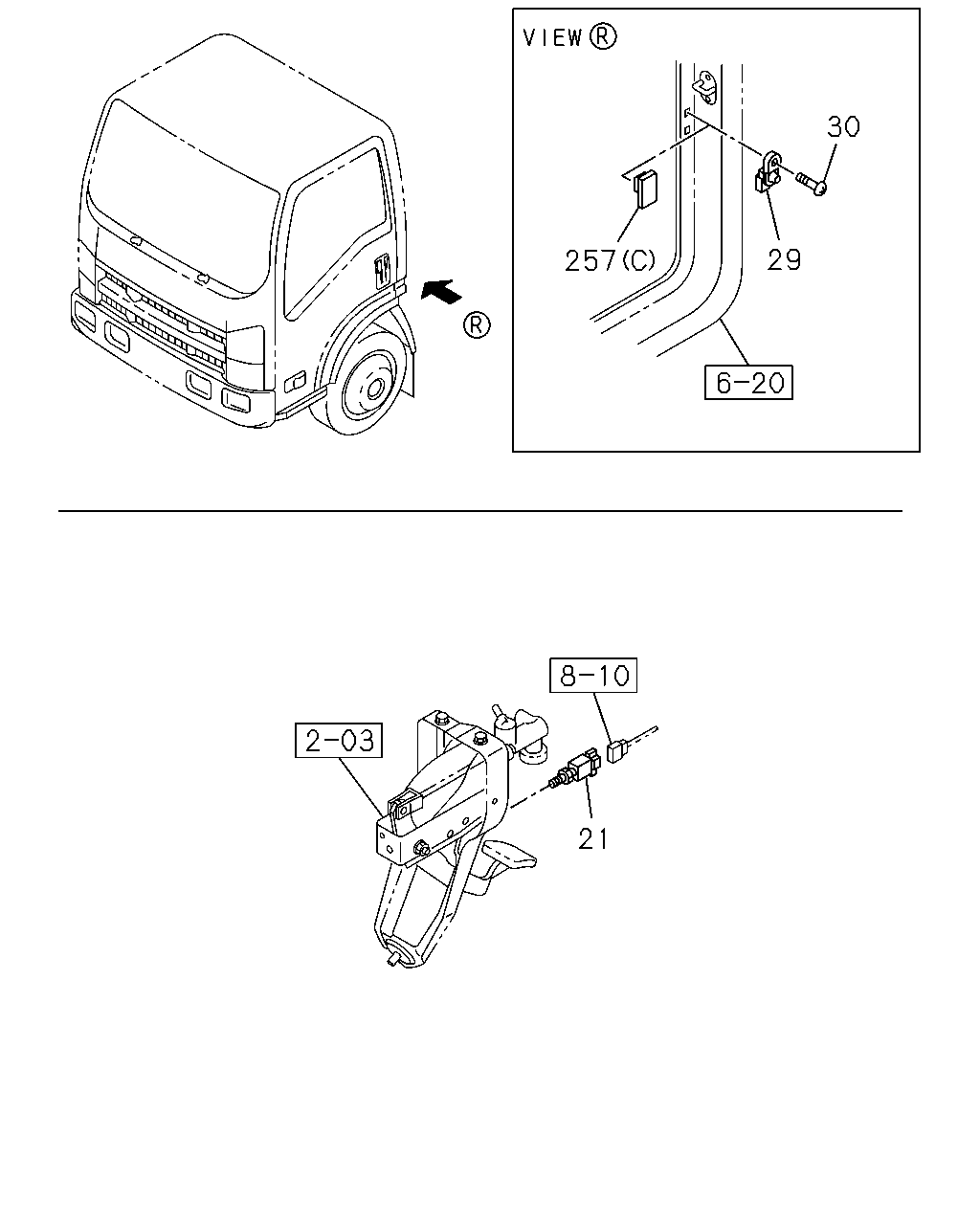

30 29 257 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
21	02.575 SWITCH; CLU	8-97358-248-0	01	1	1506-1508	●	●
21	02.575 SWITCH; CLU	8-97358-248-0	01	1	1509-1511	●		●
21	02.575 SWITCH; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-248-0	01	1	1509-1511		●
21	02.575 SWITCH; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-248-0	01	1	1512-	●	●
21	02.575 SWITCH; CLU	8-97358-248-0	01	1	1512-			●
29	16.263 SWITCH; DOOR BLACK	8-98022-211-0	01	1	1506-1508	●	●
29	16.263 SWITCH; DOOR BLACK	8-98022-211-0	01	1	1506-1508	●
29	16.263 SWITCH; DOOR ROOM LAMP W/ALL DOORS SW(SDF) BLACK	8-98022-211-0	01	1	1506-1508		●
29	16.263 SWITCH; DOOR BLACK	8-98022-211-0	01	1	1509-	●	●	●
29	16.263 SWITCH; DOOR BLACK	8-98022-211-0	01	1	1509-	●
29	16.263 SWITCH; DOOR ROOM LAMP W/ALL DOORS SW(SDF) BLACK	8-98022-211-0	01	1	1509-		●
30	16.263 SCREW; DOOR SW M5X18	8-98047-201-0	02	1	1506-	●
30	16.263 SCREW; DOOR SW ROOM LAMP W/ALL DOORS SW(SDF) M5X18	8-98047-201-0	02	1	1506-		●
30	16.263 SCREW; DOOR SW EXC. ROOM LAMP W/ALL DOORS SW(SDF) M5X18	8-98047-201-0	01	1	1506-1508		●
30	16.263 SCREW; DOOR SW EXC. ROOM LAMP W/ALL DOORS SW(SDF) M5X18	8-98047-201-0	01	1	1509-		●
30	16.263 SCREW; DOOR SW M5X18	8-98047-201-0	01	1	1509-			●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1506-1508	●	●
257	16.081 COVER; HOLE,SW PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1506-1508	●	●
257	16.081 COVER; HOLE,SW EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1506-1508	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1506-1508	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1506-1508	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1509-1511	●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1509-1511	●		●
257	16.081 COVER; HOLE,SW PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1509-1511	●		●
257	16.081 COVER; HOLE,SW EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1509-1511	●		●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1509-1511	●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	1509-1511		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (A)	8-98025-954-1	01	1	1509-1511		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. LANE DEPARTURE WARNING<TFP> (A)	8-98025-954-1	01	1	1509-1511		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1509-1511		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1509-1511		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98025-954-1	01	1	1509-1511		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1509-1511		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1509-1511		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1509-1511		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1509-1511			●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1509-1511			●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1509-1511			●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1509-1511			●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1512-	●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1512-	●		●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1512-	●
257	16.081 COVER; HOLE,SW PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1512-	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1512-	●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	1512-		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (A)	8-98025-954-1	01	1	1512-		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. LANE DEPARTURE WARNING<TFP> (A)	8-98025-954-1	01	1	1512-		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1512-		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1512-		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98025-954-1	01	1	1512-		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1512-		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1512-		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1512-		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1512-			●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1512-			●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1512-			●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1512-			●
257	16.081 COVER; HOLE,SW PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1512-			●
257	16.081 COVER; HOLE,SW EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1512-			●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	1506-1508	●	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	02	1	1509-	●	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	1506-1508	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	1509-	●	●	●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF) (C)	8-98029-917-0	01	1	1506-1508		●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF) (C)	8-98029-917-0	01	1	1509-		●
257	16.081 COVER; HOLE,SW (C)	8-98029-917-0	01	1	1509-			●

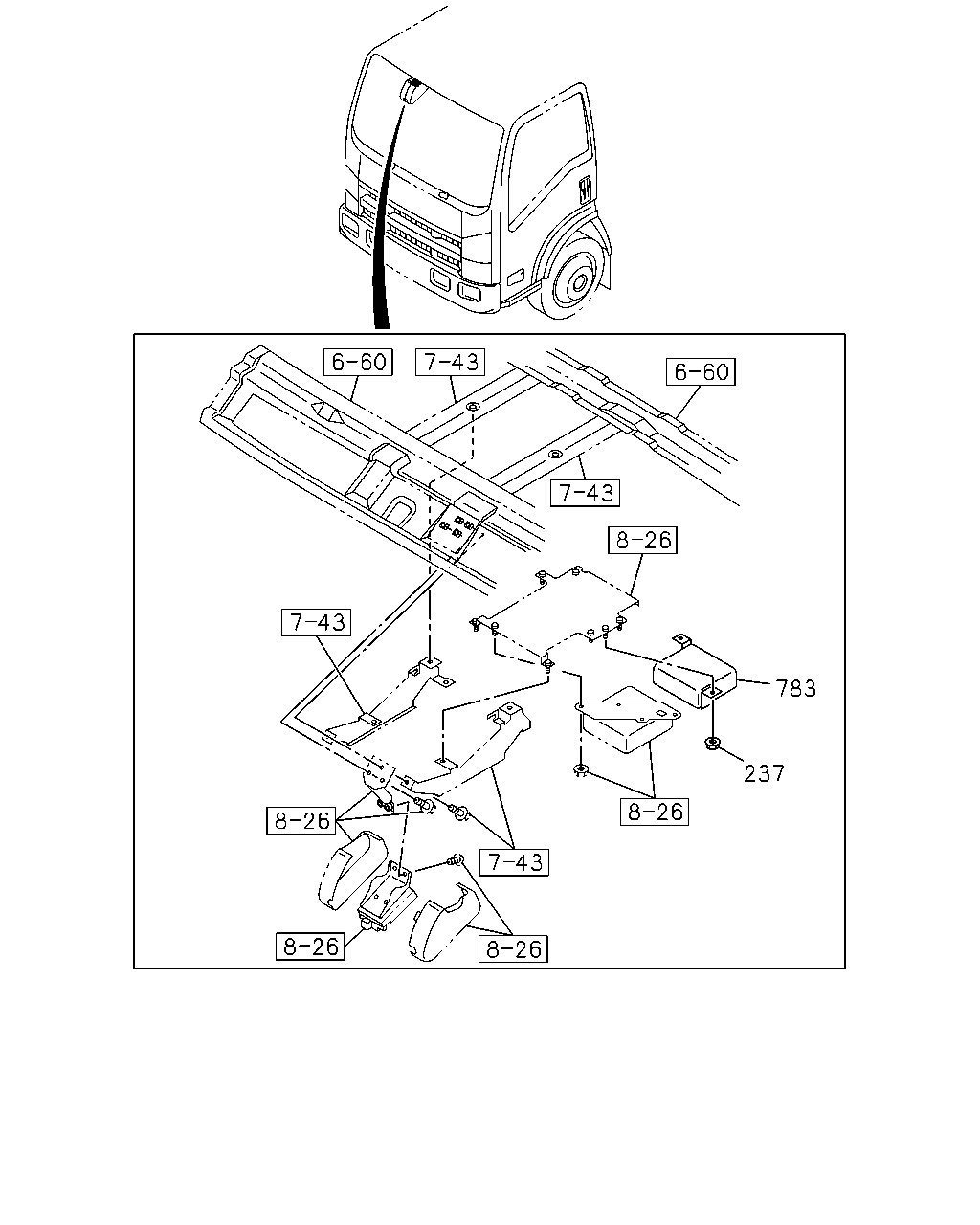

783 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
237	02.485 NUT 01.062 M6 FLANGE	0-91180-106-0	02	1	1506-1508	●
237	02.485 NUT LANE DEPARTURE WARNING<TFP> 01.062 M6 FLANGE	0-91180-106-0	02	1	1509-	●
783	03.883 MODULE ASM; VAT	8-98302-368-0	01	1	1506-1508	●
783	03.883 MODULE ASM; VAT LANE DEPARTURE WARNING<TFP>	8-98302-368-0	01	1	1509-	●

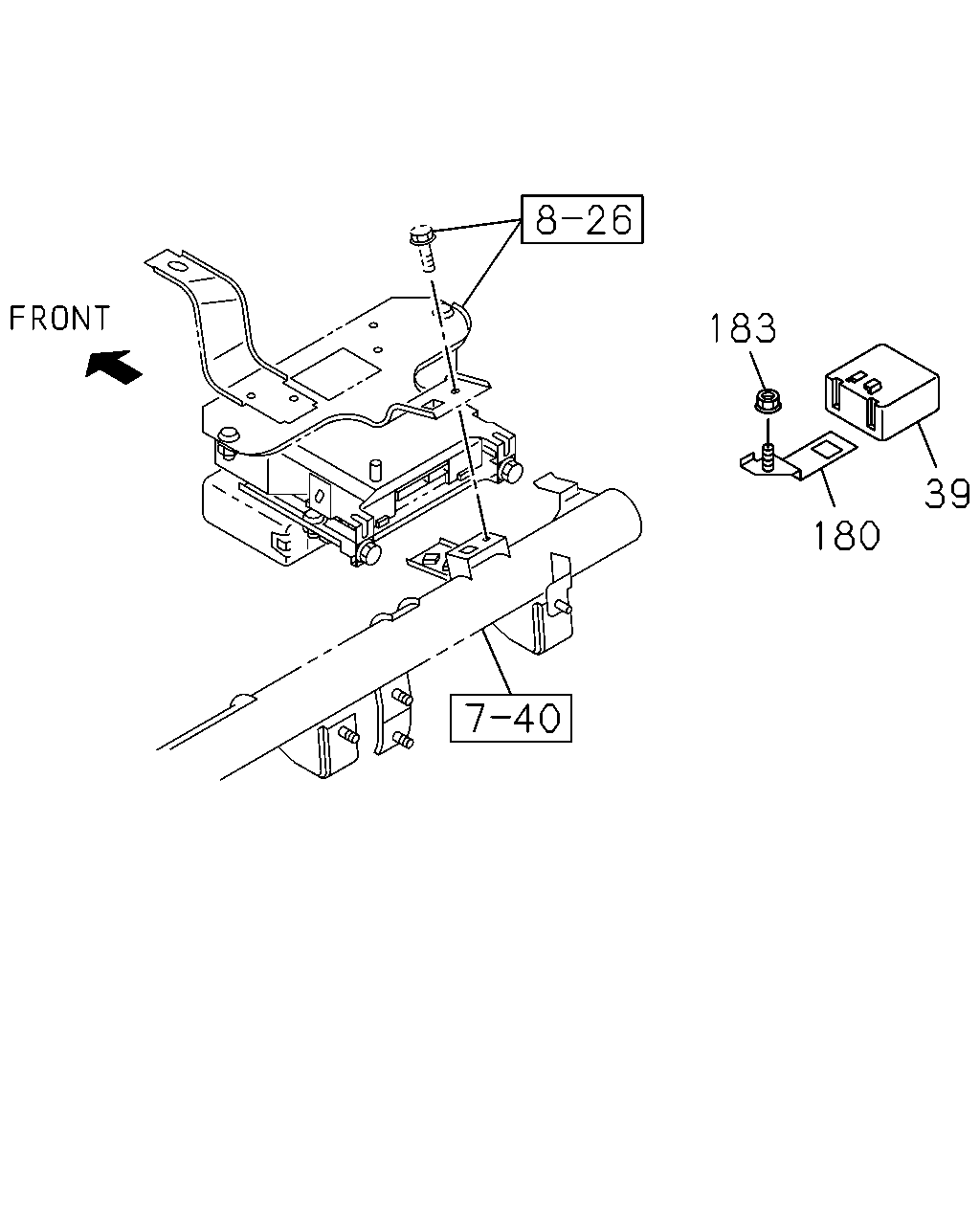

183 180 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
39	16.341 RELAY; DOOR LK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98060-789-0	01	1	1506-1508	●
39	16.341 RELAY; DOOR LK AUTO DOOR LOCK<AU4> EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. REMOTE CONT DOOR LOCK<6NF>,MULTI INFORMATION DISPLAY<7NY>	8-98060-789-0	01	1	1509-	●
39	16.341 RELAY; DOOR LK AUTO DOOR LOCK<AU4> EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, REMOTECONT DOOR LOCK<6NF>	8-98060-789-0	01	1	1509-	●
39	16.341 RELAY; DOOR LK AUTO DOOR LOCK<AU4> TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98060-789-0	01	1	1509-	●
39	16.341 RELAY; DOOR LK AUTO DOOR LOCK<AU4> 4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) MULTI INFORMATION DISPLAY<7NY> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),REMOTE CONT DOOR LOCK<6NF>	8-98060-789-0	01	1	1509-	●
39	16.341 RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-98060-789-0	01	1	1509-		●
180	02.510 BRACKET; RELAY AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98286-933-0	01	1	1506-1508	●
180	02.510 BRACKET; RELAY AUTO DOOR LOCK<AU4> TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. REMOTE CONT DOOR LOCK<6NF>	8-98286-933-0	01	1	1509-	●
180	02.510 BRACKET; RELAY AUTO DOOR LOCK<AU4> TURKEY EQUIPMENT(B11) EURO6 SPECIFICATION(NT6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, REMOTECONT DOOR LOCK<6NF>	8-98286-933-0	01	1	1509-	●
183	02.510 NUT; RELAY BRKT AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 01.062 M6 FLANGE	0-91180-106-0	01	1	1506-1508	●
183	02.510 NUT; RELAY BRKT AUTO DOOR LOCK<AU4> TURKEY EQUIPMENT(B11) EURO6 SPECIFICATION(NT6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, REMOTECONT DOOR LOCK<6NF> 01.062 M6 FLANGE	0-91180-106-0	01	1	1509-	●
183	02.510 NUT; RELAY BRKT AUTO DOOR LOCK<AU4> TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. REMOTE CONT DOOR LOCK<6NF> 01.062 M6 FLANGE	0-91180-106-0	01	1	1509-	●

608 151 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
151	09.277 RELAY; HTR & A/C AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1506-	●	●
154	09.277 RELAY; CONDENSER FAN AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1506-	●	●
608	02.485 RELAY; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 30A MITSUBA	8-98259-779-0	01	1	1509-1511		●
608	02.485 RELAY; SHIFT SMOOTHER-EX(TYPE2)(8NS) 24V 30A MITSUBA	8-98259-779-0	01	1	1512-	●
608	02.485 RELAY; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 30A MITSUBA	8-98259-779-0	01	1	1512-		●

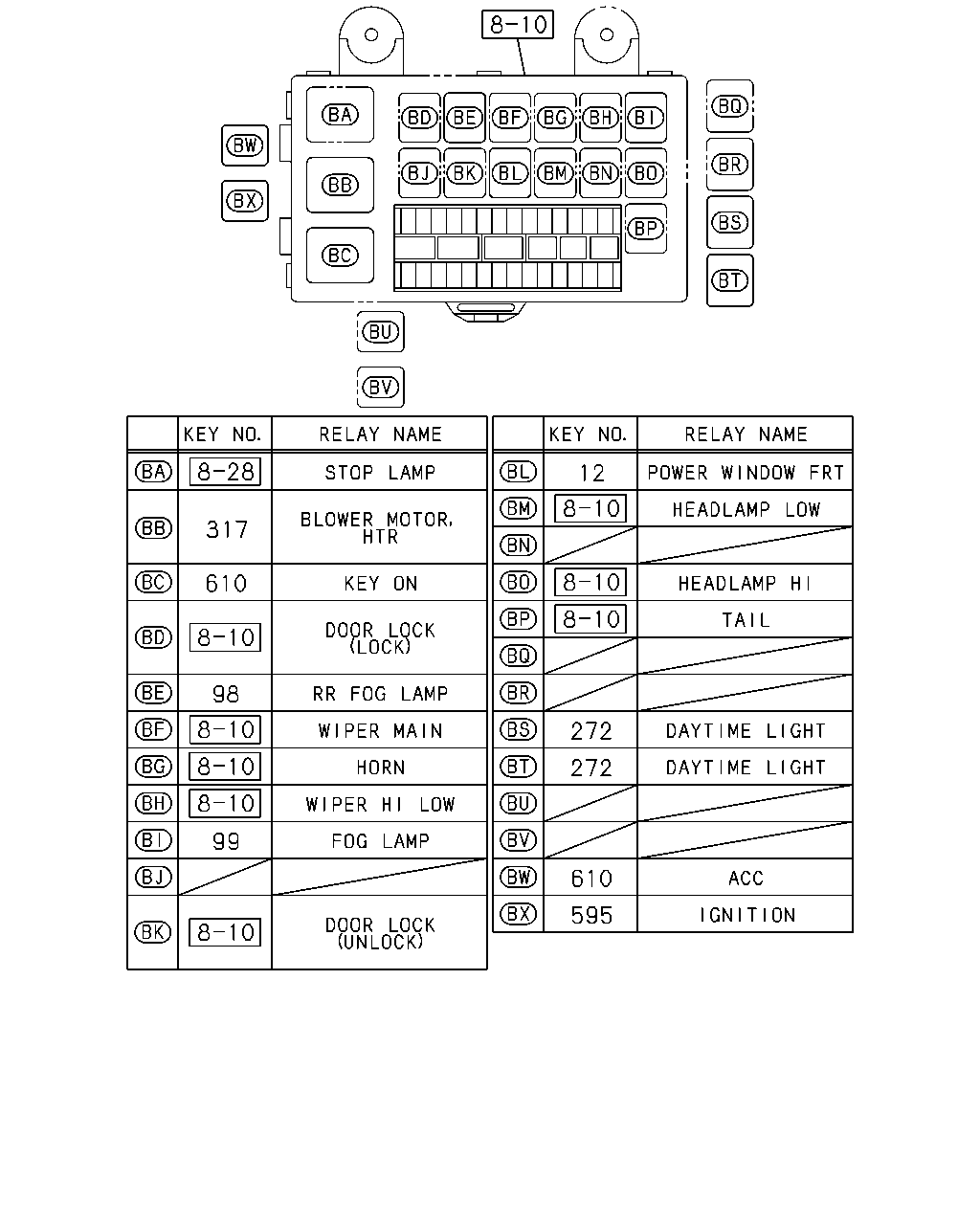

317 610 98 99 272 272 610 12 595

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	1506-1508	●	●
12	08.852 RELAY; POWER WINDOW 24V 10A PANASONIC	8-97173-035-1	01	1	1509-	●
12	08.852 RELAY; POWER WINDOW POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	1509-		●	●
98	02.485 RELAY; RR FOG LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1506-1508	●	●
98	02.485 RELAY; RR FOG LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1509-	●
98	02.485 RELAY; RR FOG LAMP RR FOG LAMP<T79> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1509-		●
99	02.485 RELAY; FOG LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1506-1508	●	●
99	02.485 RELAY; FOG LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1509-	●	●	●
272	02.510 RELAY; DAYTIME LIGHT 08.852 24V 10A PANASONIC	8-97173-035-1	02	1	1506-1508	●	●
272	02.510 RELAY; DAYTIME LIGHT 08.852 24V 10A PANASONIC	8-97173-035-1	02	1	1509-	●
272	02.510 RELAY; DAYTIME LIGHT TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) FOG LAMP FRONT VAR2<X99> 08.852 24V 10A PANASONIC	8-97173-035-1	02	1	1509-		●
317	02.510 RELAY; BLOWER MOTOR,HTR 24V 12.5A PANASONIC	8-97262-933-0	01	1	1506-1508	●	●
317	02.510 RELAY; BLOWER MOTOR,HTR 24V 12.5A PANASONIC	8-97262-933-0	01	1	1509-	●	●	●
595	02.510 RELAY; IGNITION 24V 12.5A PANASONIC	8-97262-933-0	01	1	1506-1508	●	●
595	02.510 RELAY; IGNITION 24V 12.5A PANASONIC	8-97262-933-0	01	1	1509-	●	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	02	1	1506-1508	●	●
610	02.510 RELAY; KEY ON 24V 12.5A PANASONIC	8-97262-933-0	02	1	1509-	●	●	●

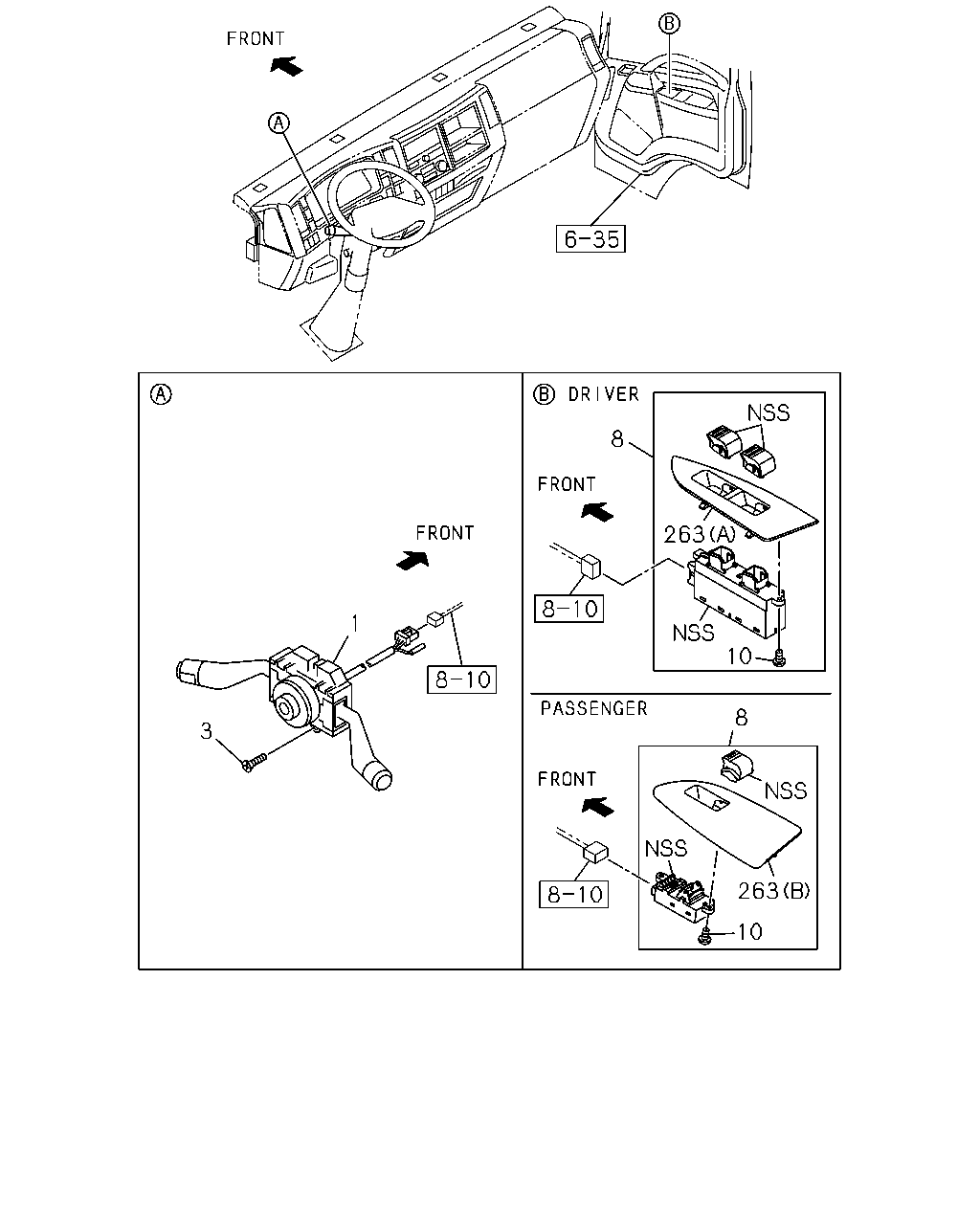

8 263 10 8 263 10 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,LANE DEPARTURE WARNING<TFP>,CORNER ING LAMP<T87>,MULTI INFORMATION DISPLAY<7NY>	8-98243-757-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,LANE DEPARTURE WARNING<TFP>,CORNER ING LAMP<T87>,TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98243-757-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,LANE DEPARTURE WARNING<TFP>,CORNER ING LAMP<T87>	8-98243-757-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> 4 WHEEL ANTI LOCK BRAKE<JE5> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,LANE DEPARTURE WARNING<TFP>,CORNERING LAMP<T87>,MULTI INFORMATI ON DISPLAY<7NY>	8-98243-757-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> 4 WHEEL ANTI LOCK BRAKE<JE5> RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,LANE DEPARTURE WARNING<TFP>,CORNERING LAMP<T87>,TRANSMISSION CO NTROL-SMOOTHER(8GF)	8-98243-757-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> 4 WHEEL ANTI LOCK BRAKE<JE5> RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,LANE DEPARTURE WARNING<TFP>,CORNERING LAMP<T87>	8-98243-757-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> CORNERING LAMP<T87> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,LANE DEPARTURE WARNING<TFP>,RR FOG LAMP<T79>,MULTI INFORMATION DISPLAY<7NY>	8-98243-749-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> CORNERING LAMP<T87> MULTI INFORMATION DISPLAY<7NY> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,LANE DEPARTURE WARNING<TFP>,RR FOG LAMP<T79>,TRANSMISSION CONTROL-SMOOTHER (8GF)	8-98243-749-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> CORNERING LAMP<T87> MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,LANE DEPARTURE WARNING<TFP>,RR FOG LAMP<T79>	8-98243-749-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> 4 WHEEL ANTI LOCK BRAKE<JE5> CORNERING LAMP<T87> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,LANE DEPARTURE WARNING<TFP>,RR FOG LAMP<T79>,MULTI INFORMATION DISPLAY<7NY>	8-98243-749-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> 4 WHEEL ANTI LOCK BRAKE<JE5> CORNERING LAMP<T87> MULTI INFORMATION DISPLAY<7NY> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,LANE DEPARTURE WARNING<TFP>,RR FOG LAMP<T79>,TRANSMISSION CONTR OL-SMOOTHER(8GF)	8-98243-749-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> 4 WHEEL ANTI LOCK BRAKE<JE5> CORNERING LAMP<T87> MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,LANE DEPARTURE WARNING<TFP>,RR FOG LAMP<T79>	8-98243-749-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4HK1-TCS ENG(RJS) INTERMITTENT WIPER<C13>	8-98243-749-0	01	1	1509-			●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13> ,4 WHEEL ANTI LOCK BRAKE<JE5>,LANE DEPARTURE WARNING<TFP>,CORNERING LAMP<T87>,MU LTI INFORMATION DISPLAY<7NY>	8-98243-750-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13> ,4 WHEEL ANTI LOCK BRAKE<JE5>,LANE DEPARTURE WARNING<TFP>,CORNERING LAMP<T87>,TR ANSMISSION CONTROL-SMOOTHER(8GF)	8-98243-750-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13> ,4 WHEEL ANTI LOCK BRAKE<JE5>,LANE DEPARTURE WARNING<TFP>,CORNERING LAMP<T87>	8-98243-750-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13> ,LANE DEPARTURE WARNING<TFP>,CORNERING LAMP<T87>,MULTI INFORMATION DISPLAY<7NY>	8-98243-750-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13> ,LANE DEPARTURE WARNING<TFP>,CORNERING LAMP<T87>,TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98243-750-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13> ,LANE DEPARTURE WARNING<TFP>,CORNERING LAMP<T87>	8-98243-750-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CORNERING LAMP<T87> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13> ,4 WHEEL ANTI LOCK BRAKE<JE5>,LANE DEPARTURE WARNING<TFP>,RR FOG LAMP<T79>,MULTI INFORMATION DISPLAY<7NY>	8-98243-748-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CORNERING LAMP<T87> MULTI INFORMATION DISPLAY<7NY> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13> ,4 WHEEL ANTI LOCK BRAKE<JE5>,LANE DEPARTURE WARNING<TFP>,RR FOG LAMP<T79>,TRANS MISSION CONTROL-SMOOTHER(8GF)	8-98243-748-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CORNERING LAMP<T87> MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13> ,4 WHEEL ANTI LOCK BRAKE<JE5>,LANE DEPARTURE WARNING<TFP>,RR FOG LAMP<T79>	8-98243-748-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> CORNERING LAMP<T87> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13> ,LANE DEPARTURE WARNING<TFP>,RR FOG LAMP<T79>,MULTI INFORMATION DISPLAY<7NY>	8-98243-748-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> CORNERING LAMP<T87> MULTI INFORMATION DISPLAY<7NY> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13> ,LANE DEPARTURE WARNING<TFP>,RR FOG LAMP<T79>,TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98243-748-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> CORNERING LAMP<T87> MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13> ,LANE DEPARTURE WARNING<TFP>,RR FOG LAMP<T79>	8-98243-748-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4HK1-TCS ENG(RJS) EXC. INTERMITTENT WIPER<C13>	8-98243-748-0	01	1	1509-			●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98243-742-0	01	1	1506-	●
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98286-924-0	01	1	1506-	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98243-740-0	01	1	1506-1508		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> LANE DEPARTURE WARNING<TFP> RR FOG LAMP<T79> EXC. CORNERING LAMP<T87>,MULTI INFORMATION DISPLAY<7NY>	8-98243-740-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> LANE DEPARTURE WARNING<TFP> RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY> EXC. CORNERING LAMP<T87>,TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98243-740-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> LANE DEPARTURE WARNING<TFP> RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CORNERING LAMP<T87>	8-98243-740-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) INTERMITTENT WIPER<C13> 4 WHEEL ANTI LOCK BRAKE<JE5> RR FOG LAMP<T79> EXC. LANE DEPARTURE WARNING<TFP>, CORNERING LAMP<T87>,MULTI INFORMATION DISPLAY<7NY>	8-98243-740-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) INTERMITTENT WIPER<C13> 4 WHEEL ANTI LOCK BRAKE<JE5> RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY> EXC. LANE DEPARTURE WARNING<TFP>, CORNERING LAMP<T87>,TRANSMISSION CONTROL-SMOOTH ER(8GF)	8-98243-740-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) INTERMITTENT WIPER<C13> 4 WHEEL ANTI LOCK BRAKE<JE5> RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. LANE DEPARTURE WARNING<TFP>, CORNERING LAMP<T87>	8-98243-740-0	01	1	1509-		●
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98286-970-0	01	1	1506-1508		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> LANE DEPARTURE WARNING<TFP> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,CORNERING LAMP<T87>, MULTI INFORMATION DISPLAY<7NY>	8-98286-970-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> LANE DEPARTURE WARNING<TFP> RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,CORNERING LAMP<T87>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98286-970-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) INTERMITTENT WIPER<C13> LANE DEPARTURE WARNING<TFP> RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,CORNERING LAMP<T87>	8-98286-970-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) INTERMITTENT WIPER<C13> 4 WHEEL ANTI LOCK BRAKE<JE5> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,LANE DEPARTURE WARNING<TFP>,CORNERING LAMP<T87>,MULTI INFORMATI ON DISPLAY<7NY>	8-98286-970-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) INTERMITTENT WIPER<C13> 4 WHEEL ANTI LOCK BRAKE<JE5> RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,LANE DEPARTURE WARNING<TFP>,CORNERING LAMP<T87>,TRANSMISSION CO NTROL-SMOOTHER(8GF)	8-98286-970-0	01	1	1509-		●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) INTERMITTENT WIPER<C13> 4 WHEEL ANTI LOCK BRAKE<JE5> RR FOG LAMP<T79> MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,LANE DEPARTURE WARNING<TFP>,CORNERING LAMP<T87>	8-98286-970-0	01	1	1509-		●
3	02.897 SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	1506-1507	●	●
3	02.897 SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	1508-1508	●	●
3	02.897 SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	1509-	●	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER SIDE	8-98001-737-2	01	1	1506-1508	●	●
8	16.263 SWITCH; POWER WINDOW PASSENGER SIDE	8-98001-737-2	01	1	1509-1509	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER SIDE	8-98001-737-2	01	1	1509-1509		●	●
8	16.263 SWITCH; POWER WINDOW PASSENGER SIDE	8-98316-418-0	01	1	1510-	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> PASSENGER SIDE	8-98316-418-0	01	1	1510-		●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> 06.609 DRIVER SIDE	8-98159-544-0	01	1	1506-1508	●	●
8	16.263 SWITCH; POWER WINDOW 06.609 DRIVER SIDE	8-98159-544-0	01	1	1509-1509	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> 06.609 DRIVER SIDE	8-98159-544-0	01	1	1509-1509		●	●
8	16.263 SWITCH; POWER WINDOW DRIVER SIDE	8-98298-751-0	01	1	1510-	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> DRIVER SIDE	8-98298-751-0	01	1	1510-		●	●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32>	8-98153-865-0	03	1	1506-1508	●	●
10	03.885 SCREW; POWER WINDOW SW	8-98153-865-0	03	1	1509-	●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32>	8-98153-865-0	03	1	1509-		●	●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32> (A)	8-98153-838-0	01	1	1506-1508	●	●
263	16.081 COVER; SW (A)	8-98153-838-0	01	1	1509-	●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32> (A)	8-98153-838-0	01	1	1509-		●	●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32> (B)	8-98153-843-0	01	1	1506-1508	●	●
263	16.081 COVER; SW (B)	8-98153-843-0	01	1	1509-	●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32> (B)	8-98153-843-0	01	1	1509-		●	●

96 104 257 257 507 689 436 307 106 257 249 784 257 257 77 257 498 755 672 257 639 257 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
77	04.439 SWITCH; PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97386-964-2	01	1	1509-1511		●
77	04.439 SWITCH; PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS)	8-97386-964-2	01	1	1512-	●
77	04.439 SWITCH; PTO TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97386-964-2	01	1	1512-		●
96	02.485 SWITCH; FOG LAMP	8-97387-031-4	01	1	1506-1508	●	●
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99>	8-97387-031-4	01	1	1509-	●	●	●
104	09.778 COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 16.081	8-98025-954-1	01	1	1509-		●	●
106	10.186 SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-97173-294-1	01	1	1506-	●	●
249	02.485 SWITCH; HAZARD	8-97386-922-1	01	1	1506-1508	●	●
249	02.485 SWITCH; HAZARD	8-97386-922-1	01	1	1509-	●	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1506-1508	●	●
257	16.081 COVER; HOLE,SW PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1506-1508	●	●
257	16.081 COVER; HOLE,SW EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1506-1508	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1506-1508	●	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1506-1508	●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1509-1511	●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1509-1511	●		●
257	16.081 COVER; HOLE,SW PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1509-1511	●		●
257	16.081 COVER; HOLE,SW EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1509-1511	●		●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1509-1511	●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	1509-1511		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (A)	8-98025-954-1	01	1	1509-1511		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. LANE DEPARTURE WARNING<TFP> (A)	8-98025-954-1	01	1	1509-1511		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1509-1511		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1509-1511		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98025-954-1	01	1	1509-1511		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1509-1511		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1509-1511		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1509-1511		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1509-1511			●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1509-1511			●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1509-1511			●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1509-1511			●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1512-	●		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1512-	●		●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1512-	●
257	16.081 COVER; HOLE,SW PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1512-	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1512-	●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A)	8-98025-954-1	01	1	1512-		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CATALYSIS CONTROL(6MZ) (A)	8-98025-954-1	01	1	1512-		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. LANE DEPARTURE WARNING<TFP> (A)	8-98025-954-1	01	1	1512-		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1512-		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (A)	8-98025-954-1	01	1	1512-		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (A)	8-98025-954-1	01	1	1512-		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	01	1	1512-		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1512-		●
257	16.081 COVER; HOLE,SW TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. THROTTLE CONTROL SYSTEM<6XH> (A)	8-98025-954-1	01	1	1512-		●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1512-			●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1512-			●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1512-			●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	01	1	1512-			●
257	16.081 COVER; HOLE,SW PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1512-			●
257	16.081 COVER; HOLE,SW EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (A)	8-98025-954-1	01	1	1512-			●
257	16.081 COVER; HOLE,SW (A)	8-98025-954-1	02	1	1506-1508	●	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98025-954-1	02	1	1509-	●	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	1506-1508	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	1509-	●	●	●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF) (C)	8-98029-917-0	01	1	1506-1508		●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF) (C)	8-98029-917-0	01	1	1509-		●
257	16.081 COVER; HOLE,SW (C)	8-98029-917-0	01	1	1509-			●
307	08.991 BULB ASM; SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V	8-98226-896-0	01	1	1506-	●	●
423	03.883 SWITCH; ENG WARMING RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1)	8-97387-010-2	01	1	1509-		●
423	03.883 SWITCH; ENG WARMING	8-97387-010-2	01	1	1509-			●
436	02.485 SWITCH; HEADLAMP LEVELING	8-97386-981-2	01	1	1506-1508	●	●
436	02.485 SWITCH; HEADLAMP LEVELING HEADLAMP LEVELING MANUAL CONTROL<TR6>	8-97386-981-2	01	1	1509-	●	●
498	03.883 SWITCH; ASR TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) THROTTLE CONTROL SYSTEM<6XH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98251-095-2	01	1	1509-		●
498	03.883 SWITCH; ASR TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> THROTTLE CONTROL SYSTEM<6XH>	8-98251-095-2	01	1	1509-		●
507	10.186 SWITCH; MIRROR HEATER O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-97386-924-3	01	1	1506-	●	●
639	16.263 SWITCH; EMERGENCY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98119-948-0	01	1	1509-1511		●
639	16.263 SWITCH; EMERGENCY SMOOTHER-EX(TYPE2)(8NS)	8-98119-948-0	01	1	1512-	●
639	16.263 SWITCH; EMERGENCY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98119-948-0	01	1	1512-		●
672	16.263 SWITCH; SMOOTHER,ADJUST TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98119-949-1	01	1	1509-1511		●
672	16.263 SWITCH; SMOOTHER,ADJUST SMOOTHER-EX(TYPE2)(8NS)	8-98119-949-1	01	1	1512-	●
672	16.263 SWITCH; SMOOTHER,ADJUST TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98119-949-1	01	1	1512-		●
689	02.780 SWITCH; DPD	8-97386-921-2	01	1	1506-1508	●	●
689	02.780 SWITCH; DPD CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM)	8-97386-921-2	01	1	1509-	●	●
755	03.883 SWITCH; ESC OFF	8-98190-384-1	01	1	1506-1508	●	●
755	03.883 SWITCH; ESC OFF	8-98190-384-1	01	1	1509-	●
755	03.883 SWITCH; ESC OFF TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> THROTTLE CONTROL SYSTEM<6XH>	8-98190-384-1	01	1	1509-		●
784	03.883 SWITCH; DSA & LDWS	8-98208-989-1	01	1	1506-1508		●
784	03.883 SWITCH; DSA & LDWS LANE DEPARTURE WARNING<TFP>	8-98208-989-1	01	1	1509-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
