◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#162421) — 538 parça

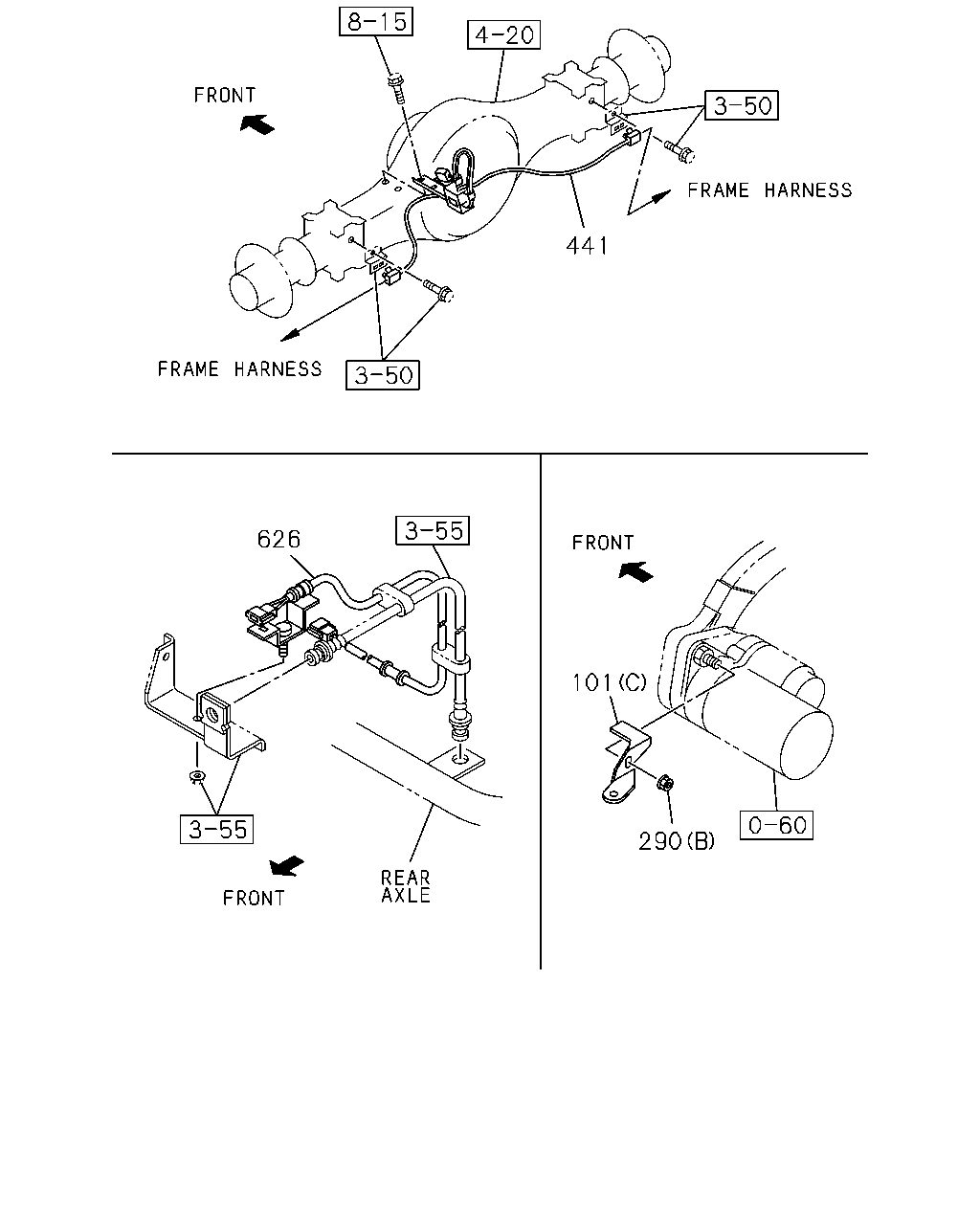

çizim 479917
290 101 441 626
BalonParca AdiParca NoAdetTipApplied Date A B C
101 02.483 BRACKET; HARNESS CONNECTOR
02.183 (C) 		8-98030-725-1 01 1 1506-1508 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) 02.183 (C) 		8-98030-725-1 01 1 1506-1508 ●
101 02.483 BRACKET; HARNESS CONNECTOR
02.183 (C) 		8-98030-725-1 01 1 1509-1511 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.183 (C) 		8-98030-725-1 01 1 1509-1511 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.183 (C) 		8-98030-725-1 01 1 1509-1511 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.183 (C) 		8-98030-725-1 01 1 1512- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.183 (C) 		8-98030-725-1 01 1 1512- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.183 (C) 		8-98030-725-1 01 1 1512- ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98228-912-1 01 1 1506-1508 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) (D) 		8-98228-912-1 01 1 1506-1508 ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98228-912-1 01 1 1509- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98228-912-1 01 1 1509- ●
101 02.483 BRACKET; HARNESS CONNECTOR
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98228-912-1 01 1 1509- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) (A) 		8-98052-805-0 01 1 1506-1508 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (A) 		8-98052-805-0 01 1 1509- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98052-805-0 01 1 1509- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) (A) 		8-98052-805-0 01 1 1509- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) (B) 		8-98222-169-2 01 1 1506-1508 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98222-169-2 01 1 1509- ● ●
290 02.483 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1509- ●
290 02.483 NUT; BRKT
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1509- ●
290 02.483 NUT; BRKT
4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 1506-1508 ●
290 02.483 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 1509- ●
290 02.483 NUT; BRKT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1506-1508 ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1506-1508 ●
290 02.483 NUT; BRKT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1509-1511 ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1509-1511 ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1509-1511 ●
290 02.483 NUT; BRKT
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1512- ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1512- ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1512- ●
441 02.480 HARNESS; CABLE,SPEED SENSOR 8-98080-697-1 01 1 1506- ●
626 02.480 HARNESS; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97253-968-1 01 1 1509- ●
626 02.480 HARNESS; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97253-969-1 01 1 1509- ●

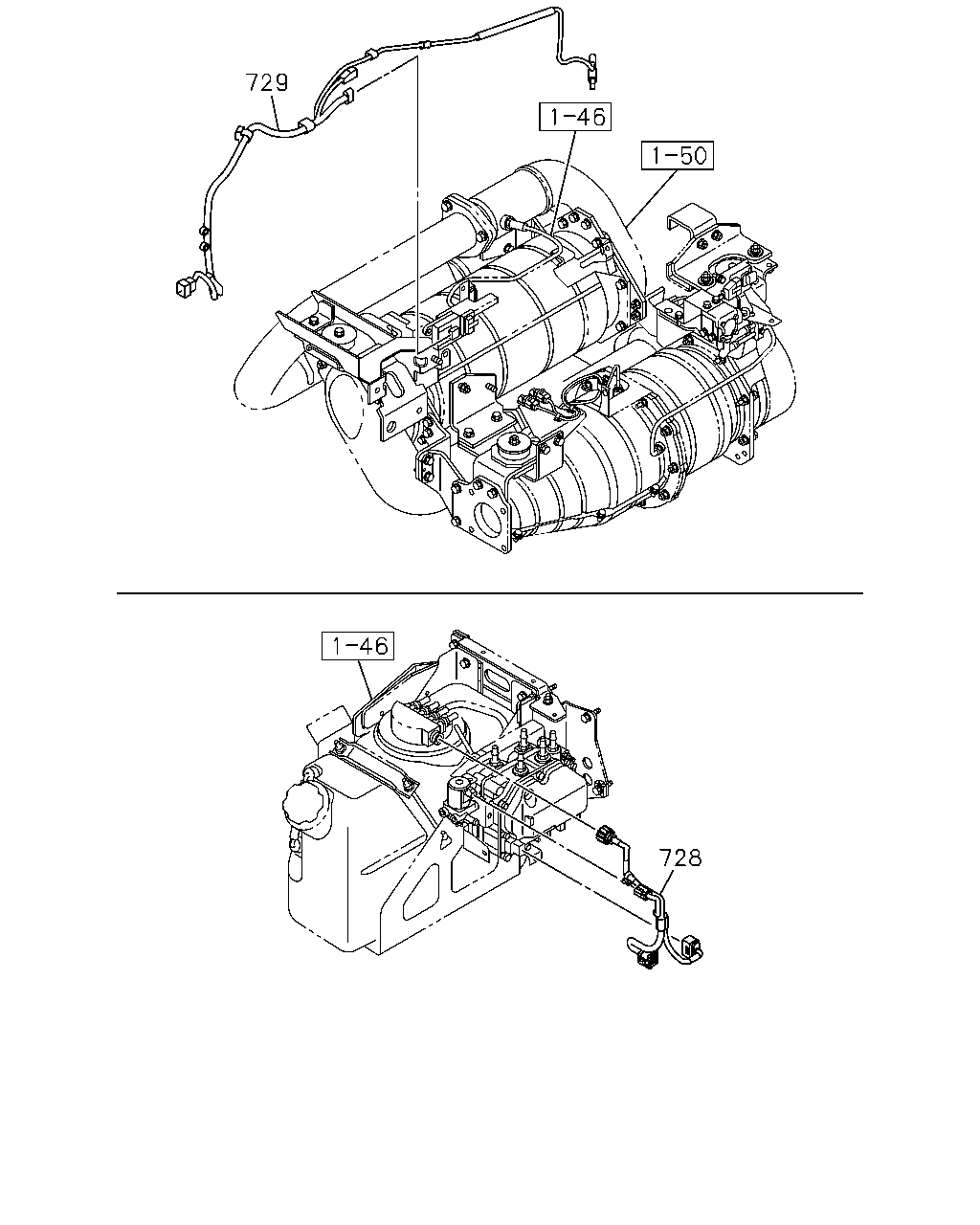

çizim 479963
728 729
BalonParca AdiParca NoAdetTipApplied Date A B C
728 02.480 HARNESS; DEF DCM SPLY
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98230-159-1 01 1 1506-1508 ●
728 02.480 HARNESS; DEF DCM SPLY
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TURKEY EQUIPMENT(B11) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 		8-98230-159-1 01 1 1509- ●
728 02.480 HARNESS; DEF DCM SPLY
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-98223-198-1 01 1 1506-1508 ●
728 02.480 HARNESS; DEF DCM SPLY
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TURKEY EQUIPMENT(B11) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 		8-98223-198-1 01 1 1509- ●
729 02.480 HARNESS; DEF DCM
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98271-967-0 01 1 1506-1508 ●
729 02.480 HARNESS; DEF DCM
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TURKEY EQUIPMENT(B11) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 		8-98271-967-0 01 1 1509- ●
729 02.480 HARNESS; DEF DCM
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 		8-98223-200-2 01 1 1506-1508 ●
729 02.480 HARNESS; DEF DCM
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TURKEY EQUIPMENT(B11) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 		8-98223-200-2 01 1 1509- ●
729 02.480 HARNESS; DEF DCM
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 		8-98223-201-2 01 1 1506-1508 ●
729 02.480 HARNESS; DEF DCM
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) TURKEY EQUIPMENT(B11) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 		8-98223-201-2 01 1 1509- ●

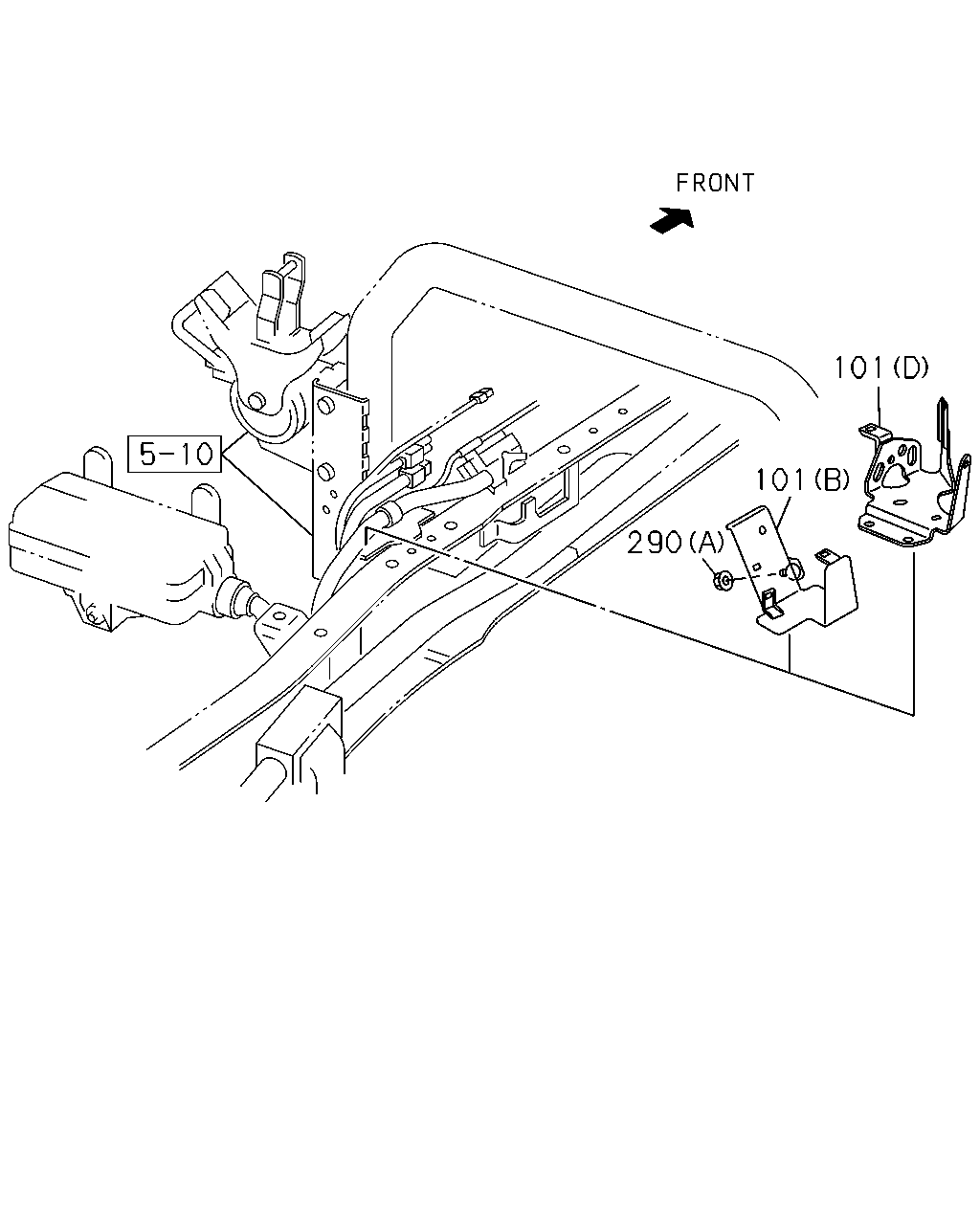

çizim 480153
101 101 290
BalonParca AdiParca NoAdetTipApplied Date A B C
101 02.483 BRACKET; HARNESS CONNECTOR
02.183 (C) 		8-98030-725-1 01 1 1506-1508 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) 02.183 (C) 		8-98030-725-1 01 1 1506-1508 ●
101 02.483 BRACKET; HARNESS CONNECTOR
02.183 (C) 		8-98030-725-1 01 1 1509-1511 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.183 (C) 		8-98030-725-1 01 1 1509-1511 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.183 (C) 		8-98030-725-1 01 1 1509-1511 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.183 (C) 		8-98030-725-1 01 1 1512- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.183 (C) 		8-98030-725-1 01 1 1512- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.183 (C) 		8-98030-725-1 01 1 1512- ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98228-912-1 01 1 1506-1508 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) (D) 		8-98228-912-1 01 1 1506-1508 ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98228-912-1 01 1 1509- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98228-912-1 01 1 1509- ●
101 02.483 BRACKET; HARNESS CONNECTOR
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98228-912-1 01 1 1509- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) (A) 		8-98052-805-0 01 1 1506-1508 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (A) 		8-98052-805-0 01 1 1509- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98052-805-0 01 1 1509- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) (A) 		8-98052-805-0 01 1 1509- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) (B) 		8-98222-169-2 01 1 1506-1508 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98222-169-2 01 1 1509- ● ●
290 02.483 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1509- ●
290 02.483 NUT; BRKT
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1509- ●
290 02.483 NUT; BRKT
4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 1506-1508 ●
290 02.483 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 1509- ●
290 02.483 NUT; BRKT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1506-1508 ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1506-1508 ●
290 02.483 NUT; BRKT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1509-1511 ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1509-1511 ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1509-1511 ●
290 02.483 NUT; BRKT
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1512- ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1512- ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1512- ●

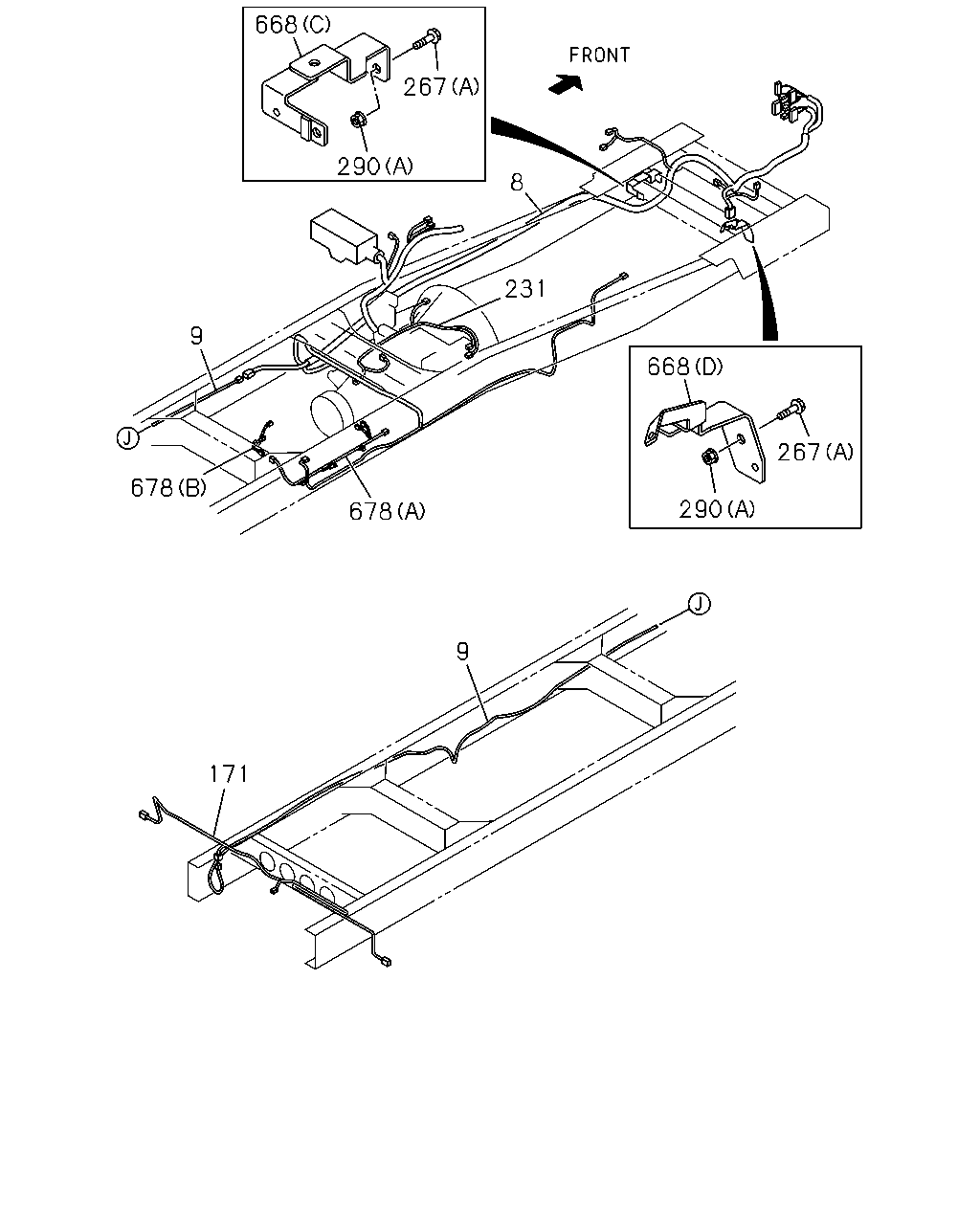

çizim 480454
9 171 678 9 678 231 668 290 267 8 267 290 668
BalonParca AdiParca NoAdetTipApplied Date A B C
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) 		8-98297-593-0 01 1 1512- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) RR FOG LAMP<T79> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC) 		8-98335-710-0 01 1 1512- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98297-916-0 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98297-915-0 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98297-919-0 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,RR FOGLAMP<T79>,IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 		8-98300-222-2 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) 		8-98300-222-2 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) RR FOG LAMP<T79> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 		8-98300-218-1 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) RR FOG LAMP<T79> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 		8-98300-221-1 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) RR FOG LAMP<T79> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 		8-98300-217-1 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) RR FOG LAMP<T79> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 		8-98300-220-1 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) RR FOG LAMP<T79> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FUEL SEDIMENTER WITH HEATER HIGH CAPACIT Y<8NK> EXC. IMMOBILIZER SYSTEM(7KC) 		8-98300-214-2 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) RR FOG LAMP<T79> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 		8-98300-215-2 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,RR FOGLAMP<T79>,IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 		8-98300-223-2 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT 8-98297-591-0 01 1 1506-1511 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-591-0 01 1 1512- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98297-044-0 01 1 1506-1508 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) TURKEY EQUIPMENT(B11) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-044-0 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98297-917-0 01 1 1506-1508 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98297-917-0 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) 		8-98297-043-1 01 1 1506-1508 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) RR FOG LAMP<T79> IMMOBILIZER SYSTEM(7KC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-043-1 01 1 1509- ●
9 02.480 HARNESS; FRAME,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 		8-98244-935-0 01 1 1509- ●
9 02.480 HARNESS; FRAME,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 		8-98244-937-0 01 1 1509- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> 		8-98117-253-0 01 1 1509- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 		8-98117-253-0 01 1 1509- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> 		8-98117-256-0 01 1 1509- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> 		8-98117-256-0 01 1 1509- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> 		8-98117-252-0 01 1 1509- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-338-0 01 1 1509- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98117-249-0 01 1 1509- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> 		8-98117-255-0 01 1 1509- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98117-250-0 01 1 1509- ●
9 02.480 HARNESS; FRAME,RR 8-98117-250-0 01 1 1509- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2700MM(27W) 		8-98046-995-1 01 1 1506-1508 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2700MM(27W) 		8-98046-995-1 01 1 1509- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98046-995-1 01 1 1509- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) 		8-98047-002-1 01 1 1506-1508 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) 		8-98047-002-1 01 1 1509- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98047-002-1 01 1 1509- ●
9 02.480 HARNESS; FRAME,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 		8-98305-662-0 01 1 1506-1508 ●
9 02.480 HARNESS; FRAME,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> 		8-98305-662-0 01 1 1509- ●
9 02.480 HARNESS; FRAME,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 		8-98244-936-0 01 1 1506-1508 ●
9 02.480 HARNESS; FRAME,RR
4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> 		8-98244-936-0 01 1 1509- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 		8-98305-653-0 01 1 1506-1508 ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> 		8-98305-653-0 01 1 1509- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 		8-98117-254-0 01 1 1506-1508 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> 		8-98117-254-0 01 1 1509- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> 		8-98117-254-0 01 1 1509- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-339-1 01 1 1506-1508 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-339-1 01 1 1509- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-341-1 01 1 1506-1508 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-341-1 01 1 1509- ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98156-025-0 01 1 1506-1508 ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98156-025-0 01 1 1509- ●
171 02.596 HARNESS; CABLE,TAIL LAMP
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) RR FOG LAMP<T79> FRAME STRAIGHT TYPE<7KJ> 		8-98156-025-0 01 1 1509- ●
171 02.596 HARNESS; CABLE,TAIL LAMP
TURKEY EQUIPMENT(B11) RR FOG LAMP<T79> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98156-025-0 01 1 1509- ●
171 02.596 HARNESS; CABLE,TAIL LAMP
CHILE EQUIPMENT(KE1) FRAME STRAIGHT TYPE<7KJ> EXC. RR FOG LAMP<T79> 		8-98222-483-0 01 1 1509- ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98222-483-0 01 1 1509- ●
231 02.480 HARNESS; TRANS
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98274-571-1 01 1 1509- ●
231 02.480 HARNESS; TRANS
4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) CATALYSIS CONTROL(6MZ),CATALYSIS CONTROLWITH DPD(8JM) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98080-121-2 01 1 1509- ●
231 02.480 HARNESS; TRANS
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98029-598-1 01 1 1509-1511 ●
231 02.480 HARNESS; TRANS
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98029-598-1 01 1 1509-1511 ●
231 02.480 HARNESS; TRANS
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98029-598-1 01 1 1509-1511 ●
231 02.480 HARNESS; TRANS
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),FRAME STRA IGHT TYPE<7KJ> 		8-98029-598-1 01 1 1509-1511 ●
231 02.480 HARNESS; TRANS
SMOOTHER-EX(TYPE2)(8NS) 		8-98029-598-1 01 1 1512- ●
231 02.480 HARNESS; TRANS
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98029-598-1 01 1 1512- ●
231 02.480 HARNESS; TRANS
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98029-598-1 01 1 1512- ●
231 02.480 HARNESS; TRANS
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98029-598-1 01 1 1512- ●
231 02.480 HARNESS; TRANS
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1),FRAME STRA IGHT TYPE<7KJ> 		8-98029-598-1 01 1 1512- ●
231 02.480 HARNESS; TRANS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98224-158-1 01 1 1509- ●

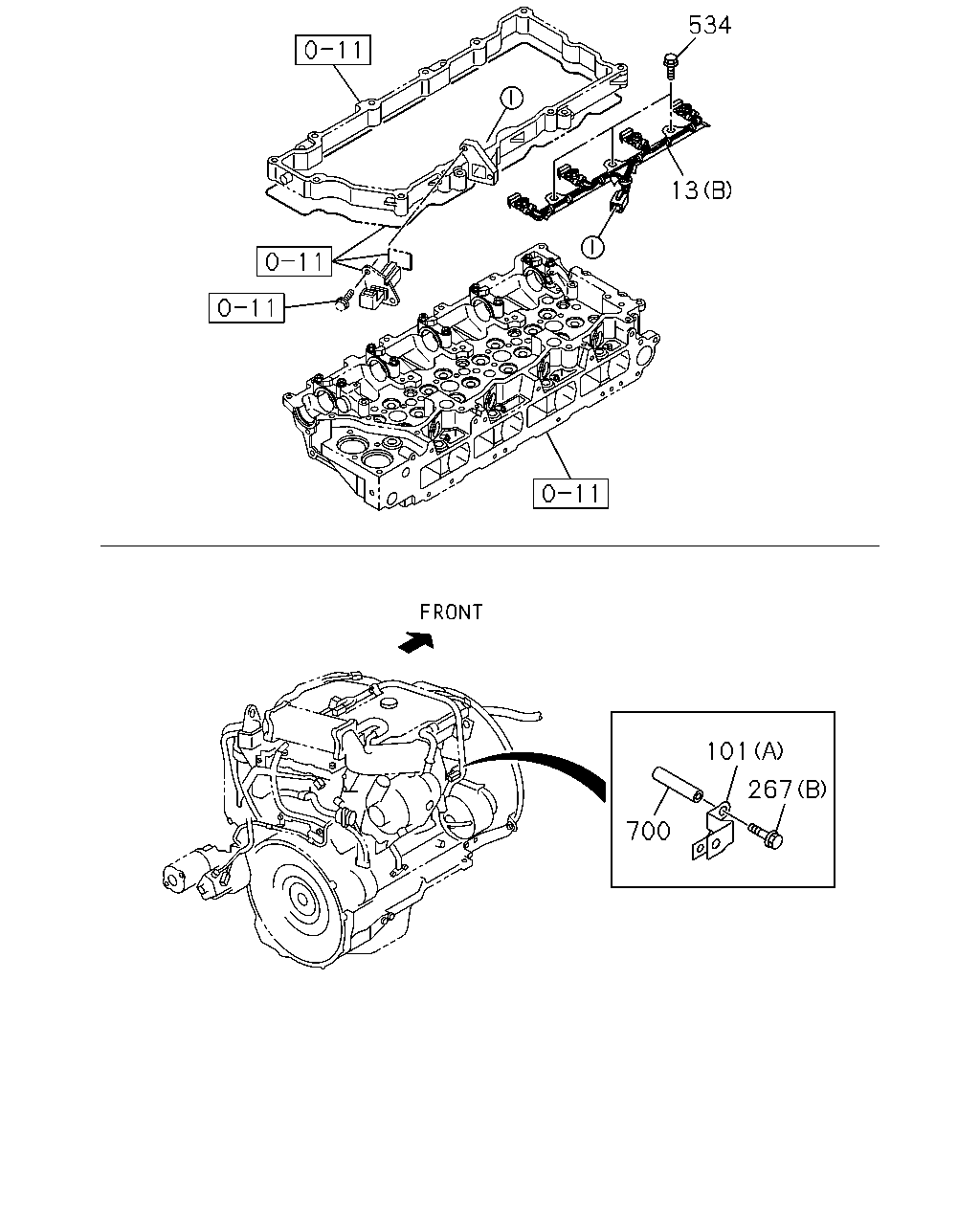

267 02.483 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1506-1508 ● ●
267 02.483 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1509- ● ●
267 02.483 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1509- ●
267 02.483 BOLT; BRKT
EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1509- ●
267 02.483 BOLT; BRKT
4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 (B) M10X120 FLANGE 		0-28156-012-0 01 1 1506-1508 ●
267 02.483 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 (B) M10X120 FLANGE 		0-28156-012-0 01 1 1509- ●
267 02.483 BOLT; BRKT
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 (B) M10X120 FLANGE 		0-28156-012-0 01 1 1509- ●
267 02.483 BOLT; BRKT
4HK1-TCS ENG(RJS) 09.171 (B) M10X120 FLANGE 		0-28156-012-0 01 1 1509- ●
290 02.483 NUT; BRKT
EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1509- ●
290 02.483 NUT; BRKT
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1509- ●
290 02.483 NUT; BRKT
4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 1506-1508 ●
290 02.483 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 03 1 1509- ●
290 02.483 NUT; BRKT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1506-1508 ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1506-1508 ●
290 02.483 NUT; BRKT
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1509-1511 ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1509-1511 ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1509-1511 ●
290 02.483 NUT; BRKT
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1512- ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1512- ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1512- ●

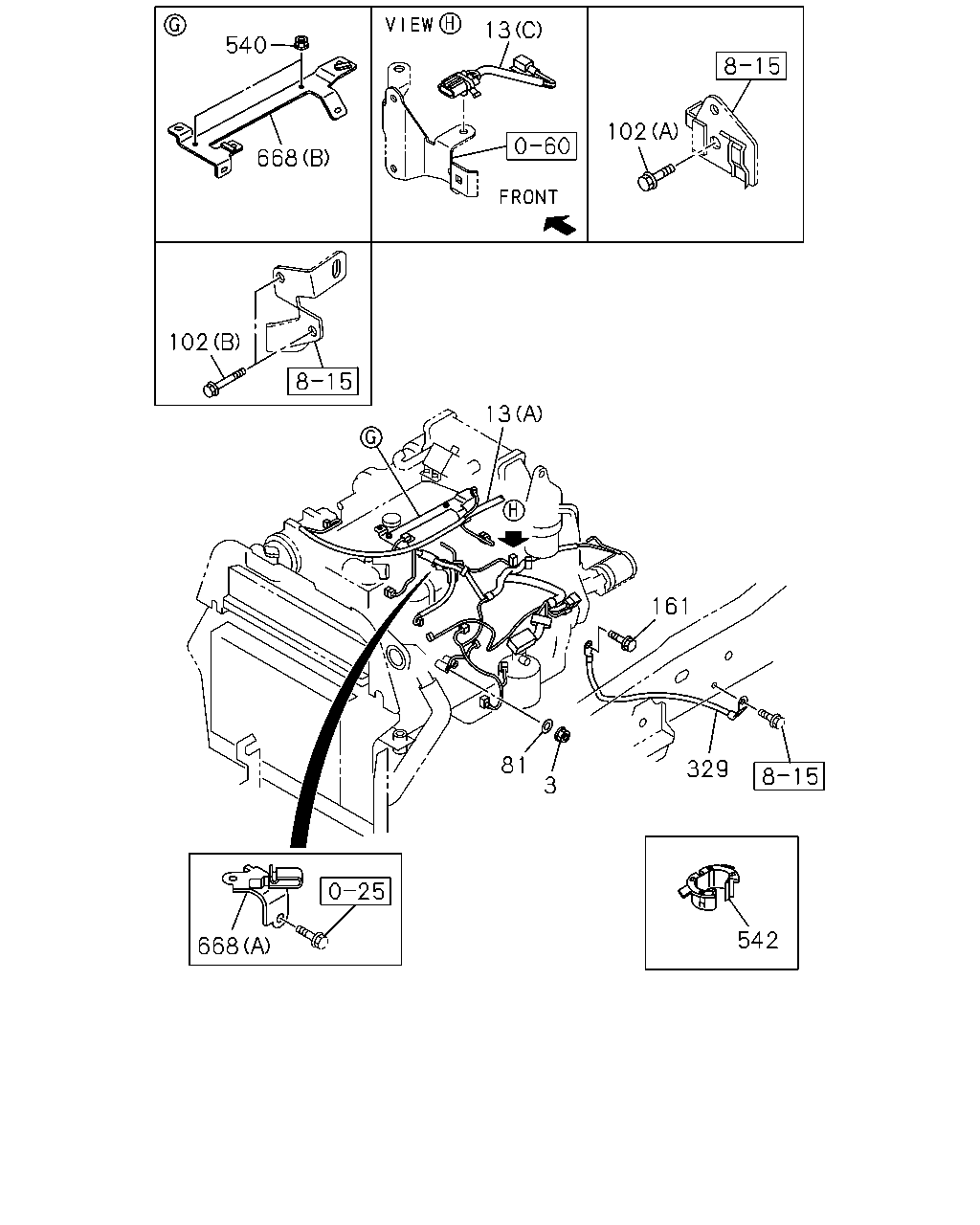

668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (A) 		8-98061-780-0 01 1 1506-1508 ●
668 02.559 BRACKET; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-98061-780-0 01 1 1509- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (B) 		8-98200-797-3 01 1 1506-1508 ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (B) 		8-98200-797-3 01 1 1509- ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) 06.672 (C) 		8-98207-479-1 01 1 1506-1508 ●
668 02.559 BRACKET; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 06.672 (C) 		8-98207-479-1 01 1 1509- ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (D) 		8-98226-452-1 01 1 1506-1508 ●
668 02.559 BRACKET; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98226-452-1 01 1 1509- ●
678 02.480 HARNESS; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98161-426-2 01 1 1506-1508 ●
678 02.480 HARNESS; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) TURKEY EQUIPMENT(B11) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98161-426-2 01 1 1509- ●
678 02.480 HARNESS; DPD
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98145-581-1 01 1 1506-1508 ●
678 02.480 HARNESS; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TURKEY EQUIPMENT(B11) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98145-581-1 01 1 1509- ●
678 02.480 HARNESS; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98161-427-2 01 1 1506-1508 ●
678 02.480 HARNESS; DPD
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) TURKEY EQUIPMENT(B11) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98161-427-2 01 1 1509- ●

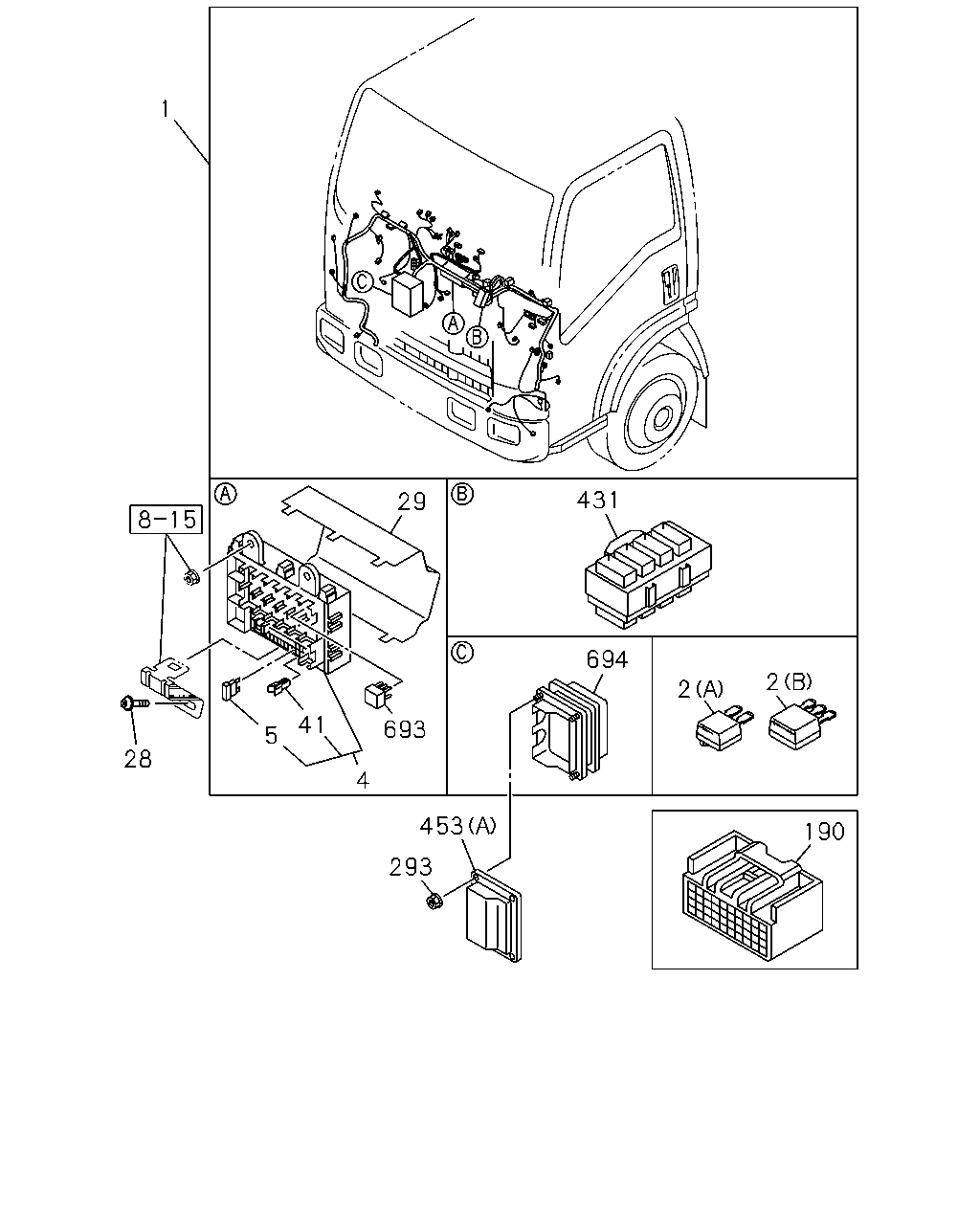

çizim 480501
1 28 5 693 4 41 453 293 29 431 694 2 190 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) 		8-98287-930-4 01 1 1512- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. LANE DEPARTURE WARNING<TFP> 		8-98287-930-4 01 1 1512- ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98334-335-0 01 1 1512- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,LANE DEPARTURE WARNING<TFP> 		8-98334-335-0 01 1 1512- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98287-897-3 01 1 1506-1508 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98287-897-3 01 1 1509-1511 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TURKEY EQUIPMENT(B11) G.V.W. 7.0-7.5TON(RPX) FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. LANE DEPARTURE WARNING<TFP> 		8-98287-897-3 01 1 1509-1511 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98287-897-3 01 1 1512- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. LANE DEPARTURE WARNING<TFP> 		8-98287-897-3 01 1 1512- ●
1 02.480 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98287-922-1 01 1 1506-1508 ●
1 02.480 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98287-922-1 01 1 1509-1511 ●
1 02.480 HARNESS; CAB
TURKEY EQUIPMENT(B11) G.V.W. 7.0-7.5TON(RPX) FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,LANE DEPARTURE WARNING<TFP> 		8-98287-922-1 01 1 1509-1511 ●
1 02.480 HARNESS; CAB
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98287-922-1 01 1 1512- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX) FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,LANE DEPARTURE WARNING<TFP> 		8-98287-922-1 01 1 1512- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> 		8-98287-918-2 01 1 1506-1508 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TURKEY EQUIPMENT(B11) G.V.W. 7.5-8.0TON(RPY) LANE DEPARTURE WARNING<TFP> FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98287-918-2 01 1 1509- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98287-919-2 01 1 1506-1508 ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TURKEY EQUIPMENT(B11) G.V.W. 7.5-8.0TON(RPY) LANE DEPARTURE WARNING<TFP> FOG LAMP FRONT VAR2<X99> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98287-919-2 01 1 1509- ●
1 02.480 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98287-920-1 01 1 1506-1508 ●
1 02.480 HARNESS; CAB
TURKEY EQUIPMENT(B11) G.V.W. 7.5-8.0TON(RPY) LANE DEPARTURE WARNING<TFP> FOG LAMP FRONT VAR2<X99> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98287-920-1 01 1 1509- ●
1 02.480 HARNESS; CAB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF> 		8-98287-921-1 01 1 1506-1508 ●
1 02.480 HARNESS; CAB
TURKEY EQUIPMENT(B11) G.V.W. 7.5-8.0TON(RPY) LANE DEPARTURE WARNING<TFP> FOG LAMP FRONT VAR2<X99> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LOCK<6NF> 		8-98287-921-1 01 1 1509- ●
1 02.480 HARNESS; CAB
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,LANE DEPARTURE WARNING<TFP> 		8-98300-193-1 01 1 1509- ●
1 02.480 HARNESS; CAB
TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,LANE DEPARTURE WARNING<TFP> 		8-98300-191-1 01 1 1509- ●
1 02.480 HARNESS; CAB
TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,LANE DEPARTURE WARNING<TFP>,REMOTE CONT DOOR LOCK<6NF> 		8-98300-192-1 01 1 1509- ●
1 02.480 HARNESS; CAB
TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,LANE DEPARTURE WARNING<TFP>,FOG LA MP FRONT VAR2<X99>,REMOTE CONT DOOR LOCK<6NF> 		8-98300-190-1 01 1 1509- ●
1 02.480 HARNESS; CAB
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,LANE DEPARTURE WARNING<TFP>,REMOTE CONT DOOR LOCK<6NF> 		8-98300-190-1 01 1 1509- ●
1 02.480 HARNESS; CAB
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) FOG LAMP FRONT VAR2<X99> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,LANE DEPARTURE WARNING<TFP>,REMOTE CONT DOOR LOCK<6NF> 		8-98300-190-1 01 1 1509- ●
1 02.480 HARNESS; CAB 8-98300-190-1 01 1 1509- ●
1 02.480 HARNESS; CAB
RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> FOG LAMP FRONT VAR2<X99> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,LANE DEPARTURE WARNING<TFP>,REMOTE CONT DOOR LOCK<6NF> 		8-98300-195-1 01 1 1509- ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1506-1508 ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1509- ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1506-1508 ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1509- ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1506-1508 ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1509- ● ● ●
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1506-1508 ● ●
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1509- ● ● ●
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1506-1508 ● ●
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1509- ● ● ●
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1506-1508 ● ●
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1509- ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1506-1508 ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1509- ● ● ●
29 02.483 COVER; FUSE BOX 8-98056-968-0 01 1 1506-1508 ● ●
29 02.483 COVER; FUSE BOX 8-98056-968-0 01 1 1509- ● ● ●
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 1506-1508 ● ●
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 1509- ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT 8-98302-775-0 01 1 1506-1508 ●
190 02.559 CONNECTOR; SHORT CIRCUIT 8-98302-775-0 01 1 1509- ●
190 02.559 CONNECTOR; SHORT CIRCUIT
TURKEY EQUIPMENT(B11) EXC. LANE DEPARTURE WARNING<TFP> 		8-98302-775-0 01 1 1509- ●
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 1506-1508 ● ●
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 1509- ● ● ●
431 02.530 CONNECTOR; JOINT 8-98046-205-0 01 1 1506-1508 ● ●
431 02.530 CONNECTOR; JOINT 8-98046-205-0 01 1 1509- ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 1506-1508 ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 1509- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (C) 		8-94417-716-0 02 1 1506-1508 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 02 1 1506-1508 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-94417-716-0 02 1 1509-1511 ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 02 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C) 		8-94417-716-0 02 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) RR FOG LAMP<T79> IMMOBILIZER SYSTEM(7KC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-94417-716-0 02 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) RR FOG LAMP<T79> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC) (C) 		8-94417-716-0 02 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR),M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,RR FOGLAMP<T79>,IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C) 		8-94417-716-0 02 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) RR FOG LAMP<T79> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C) 		8-94417-716-0 02 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) (C) 		8-94417-716-0 02 1 1512- ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 1506-1508 ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 1509- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 03 1 1506-1508 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) TURKEY EQUIPMENT(B11) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-94417-716-0 03 1 1509- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 04 1 1506-1508 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) TURKEY EQUIPMENT(B11) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 04 1 1509- ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1506-1508 ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1509- ● ● ●
694 02.483 BOX ASM; CONNECTOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-98190-772-0 01 1 1509-1511 ●
694 02.483 BOX ASM; CONNECTOR 8-98190-772-0 01 1 1509-1511 ●
694 02.483 BOX ASM; CONNECTOR
4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) 		8-98190-772-0 01 1 1512- ●
694 02.483 BOX ASM; CONNECTOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 		8-98190-772-0 01 1 1512- ●
694 02.483 BOX ASM; CONNECTOR 8-98190-772-0 01 1 1512- ●
694 02.483 BOX ASM; CONNECTOR 8-98057-772-0 01 1 1506-1508 ● ●
694 02.483 BOX ASM; CONNECTOR 8-98057-772-0 01 1 1509-1511 ●
694 02.483 BOX ASM; CONNECTOR
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) TURKEY EQUIPMENT(B11) 		8-98057-772-0 01 1 1509-1511 ●
694 02.483 BOX ASM; CONNECTOR
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98057-772-0 01 1 1512- ●
694 02.483 BOX ASM; CONNECTOR
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TURKEY EQUIPMENT(B11) 		8-98057-772-0 01 1 1512- ●

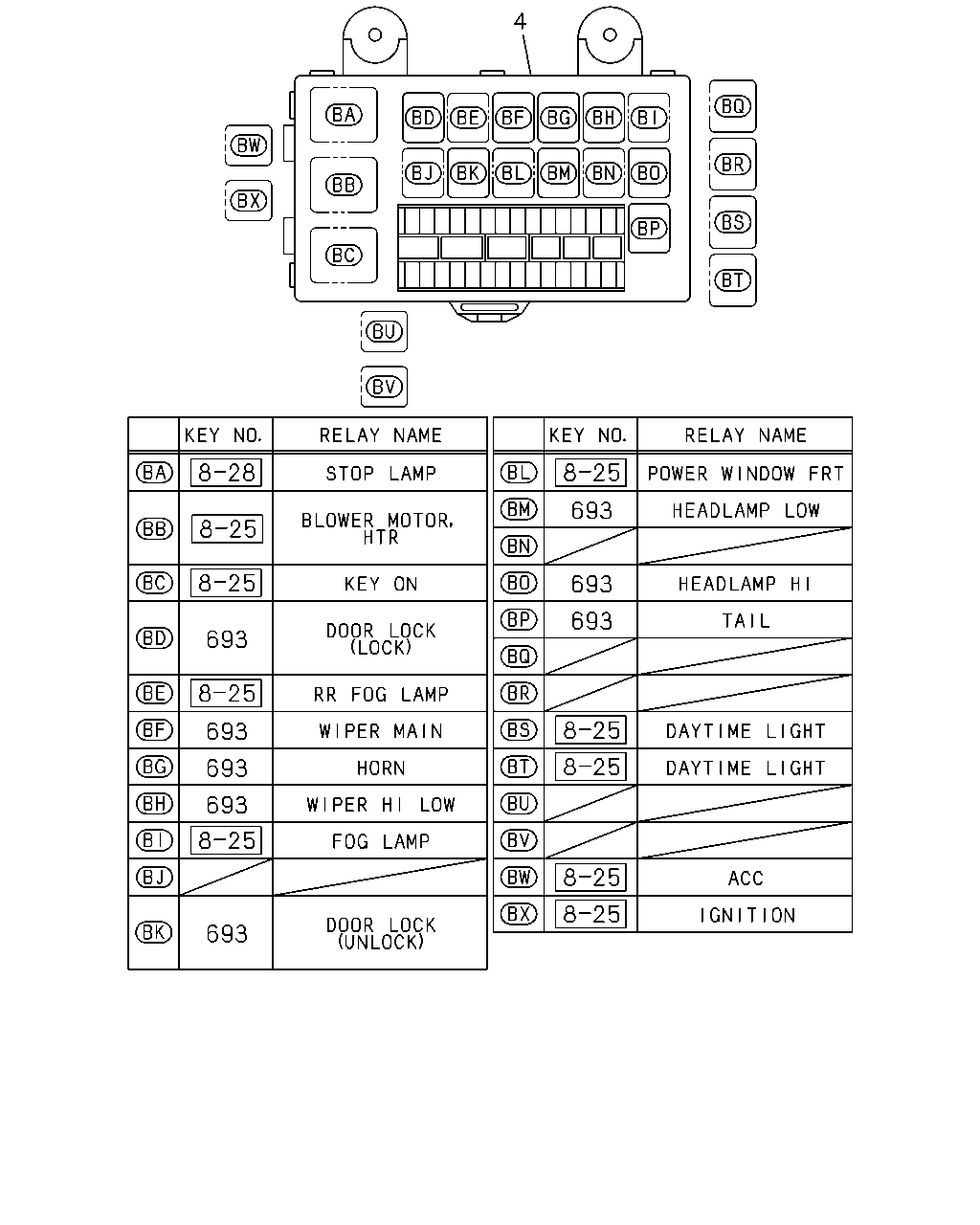

çizim 480563
693 693 693 693 693 693 693 693 4
BalonParca AdiParca NoAdetTipApplied Date A B C
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1506-1508 ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 1509- ● ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1506-1508 ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1509- ● ● ●

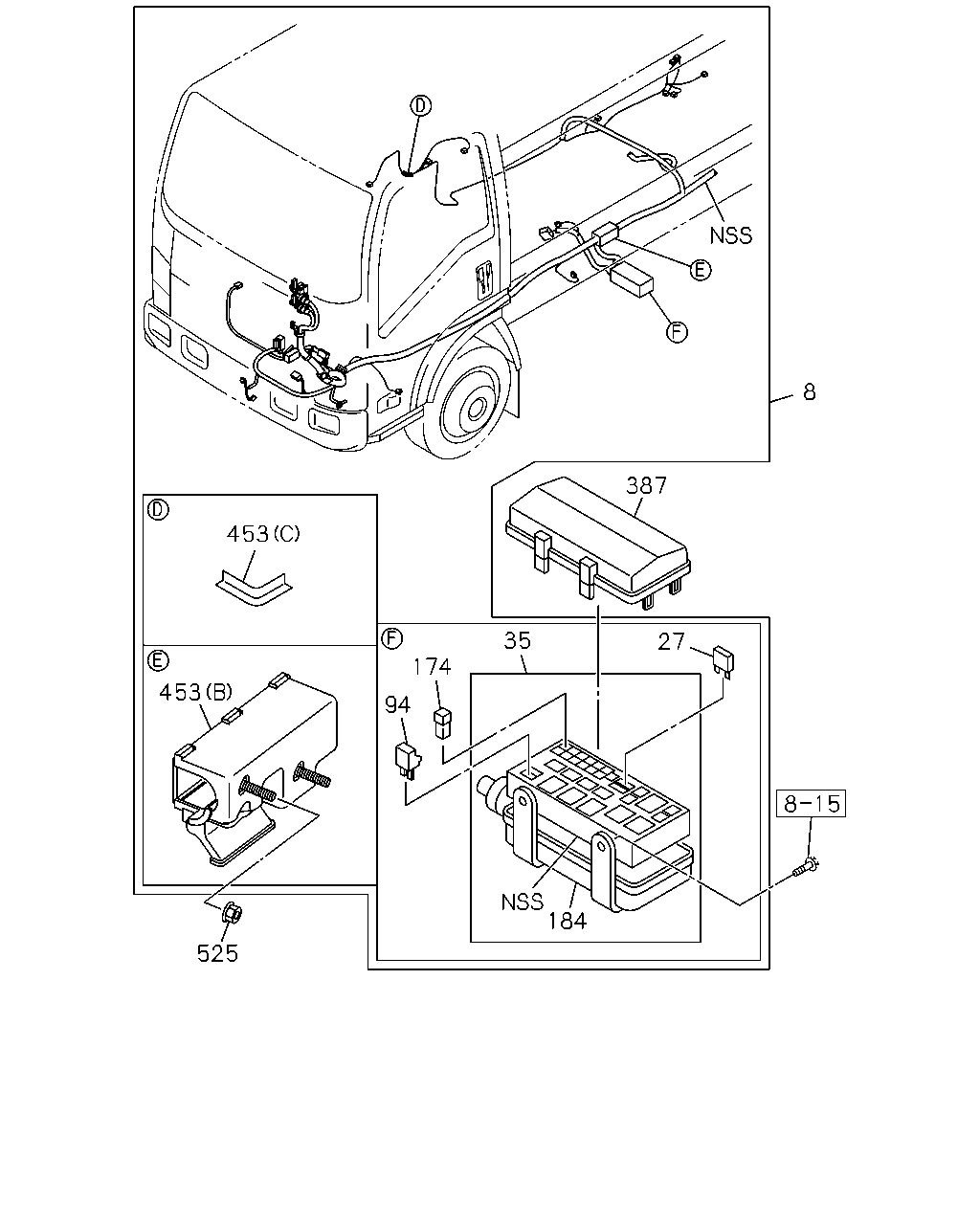

çizim 480615
8 387 453 453 525 94 174 35 27 184
BalonParca AdiParca NoAdetTipApplied Date A B C
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) SMOOTHER-EX(TYPE2)(8NS) 		8-98297-593-0 01 1 1512- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) RR FOG LAMP<T79> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC) 		8-98335-710-0 01 1 1512- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98297-916-0 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98297-915-0 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98297-919-0 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,RR FOGLAMP<T79>,IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 		8-98300-222-2 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) 		8-98300-222-2 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) RR FOG LAMP<T79> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 		8-98300-218-1 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) RR FOG LAMP<T79> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 		8-98300-221-1 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) RR FOG LAMP<T79> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 		8-98300-217-1 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) RR FOG LAMP<T79> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 		8-98300-220-1 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) RR FOG LAMP<T79> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FUEL SEDIMENTER WITH HEATER HIGH CAPACIT Y<8NK> EXC. IMMOBILIZER SYSTEM(7KC) 		8-98300-214-2 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) RR FOG LAMP<T79> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 		8-98300-215-2 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,RR FOGLAMP<T79>,IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> 		8-98300-223-2 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT 8-98297-591-0 01 1 1506-1511 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-591-0 01 1 1512- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98297-044-0 01 1 1506-1508 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) TURKEY EQUIPMENT(B11) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-044-0 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98297-917-0 01 1 1506-1508 ●
8 02.480 HARNESS; FRAME,FRT
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98297-917-0 01 1 1509- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) 		8-98297-043-1 01 1 1506-1508 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) RR FOG LAMP<T79> IMMOBILIZER SYSTEM(7KC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98297-043-1 01 1 1509- ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1506-1508 ● ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1509- ● ● ●
27 08.965 FUSE UNIT
02.485 20A YELLOW 		8-98054-259-0 AR 1 1506-1508 ● ●
27 08.965 FUSE UNIT
02.485 20A YELLOW 		8-98054-259-0 AR 1 1509- ● ● ●
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 1506-1508 ● ●
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 1509- ● ● ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 AR 1 1506-1508 ● ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 AR 1 1509-1511 ● ● ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 01 1 1512- ● ● ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 1506-1508 ● ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 1509-1511 ● ● ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 03 1 1512- ● ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 1506-1508 ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 1509-1511 ● ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 1512- ● ● ●
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 1506-1508 ● ●
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 1509-1511 ● ● ●
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 02 1 1512- ● ● ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 1506-1508 ● ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 1509-1511 ● ● ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW 		8-97219-407-0 04 1 1512- ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 1506-1508 ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 1509- ● ● ●
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 1506-1508 ● ●
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 1509- ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 1506-1508 ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 1509- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) (C) 		8-94417-716-0 02 1 1506-1508 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 02 1 1506-1508 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-94417-716-0 02 1 1509-1511 ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 02 1 1509-1511 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) (C) 		8-94417-716-0 02 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) RR FOG LAMP<T79> IMMOBILIZER SYSTEM(7KC) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-94417-716-0 02 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) RR FOG LAMP<T79> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC) (C) 		8-94417-716-0 02 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR),M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) CHILE EQUIPMENT(KE1) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,RR FOGLAMP<T79>,IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C) 		8-94417-716-0 02 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) RR FOG LAMP<T79> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IMMOBILIZER SYSTEM(7KC),FUEL SEDIMENTER WITH HEATER HIGH CAPACITY<8NK> (C) 		8-94417-716-0 02 1 1512- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) (C) 		8-94417-716-0 02 1 1512- ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 1506-1508 ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-98057-647-0 01 1 1509- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 03 1 1506-1508 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) TURKEY EQUIPMENT(B11) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-94417-716-0 03 1 1509- ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 04 1 1506-1508 ●
453 02.483 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) TURKEY EQUIPMENT(B11) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-94417-716-0 04 1 1509- ●
525 08.919 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1508 ● ●
525 08.919 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 1509- ● ● ●

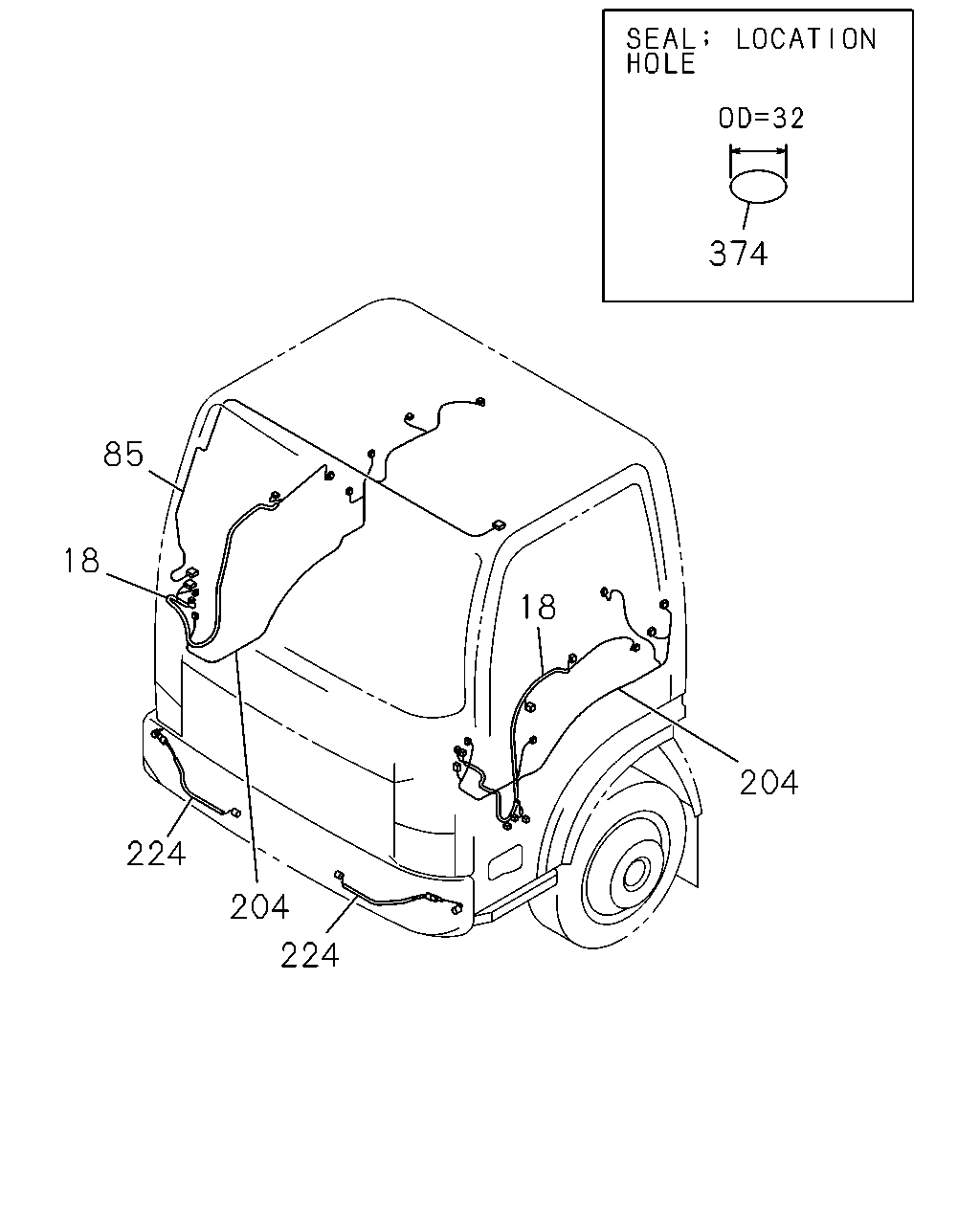

çizim 480643
374 85 18 224 204 224 18 204
BalonParca AdiParca NoAdetTipApplied Date A B C
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,LANE DEPARTURE WARNING<TFP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98077-592-3 01 1 1509- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98077-592-3 01 1 1509- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32>,LANE DEPARTURE WARNING<TFP>,CORNERING LAMP<T87> 		8-98071-081-3 01 1 1509- ●
18 02.480 HARNESS; DOOR
4JJ1-TCS ENG(LFB) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32>,LANE DEPARTURE WARNING<TFP>,CORNERING LAMP<T87> 		8-98286-579-0 01 1 1509- ●
18 02.480 HARNESS; DOOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TURKEY EQUIPMENT(B11) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32>,LANE DEPARTURE WARNING<TFP>,CORNERING LAMP<T87> 		8-98286-579-0 01 1 1509- ●
18 02.480 HARNESS; DOOR
4JJ1-TCS ENG(LFB) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,LANE DEP ARTURE WARNING<TFP>,CORNERING LAMP<T87>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98286-576-0 01 1 1509- ●
18 02.480 HARNESS; DOOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TURKEY EQUIPMENT(B11) EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,LANE DEP ARTURE WARNING<TFP>,CORNERING LAMP<T87>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98286-576-0 01 1 1509- ●
18 02.480 HARNESS; DOOR
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> TAIWAN EQUIPMENT(B04) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. LANE DEPARTURE WARNING<TFP>, CORNERING LAMP<T87> 		8-98071-090-3 01 1 1509- ●
18 02.480 HARNESS; DOOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. LANE DEPARTURE WARNING<TFP>, CORNERING LAMP<T87> 		8-98071-090-3 01 1 1509- ●
18 02.480 HARNESS; DOOR
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> TAIWAN EQUIPMENT(B04) CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,LANE DEPARTURE WARNING<TFP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98077-600-3 01 1 1509- ●
18 02.480 HARNESS; DOOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,LANE DEPARTURE WARNING<TFP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98077-600-3 01 1 1509- ●
18 02.480 HARNESS; DOOR
4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> 		8-98077-600-3 01 1 1509- ●
18 02.480 HARNESS; DOOR
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> TAIWAN EQUIPMENT(B04) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,LANE DEPARTURE WARNING<TFP>,CORNERI NG LAMP<T87>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		8-98071-088-3 01 1 1509- ●
18 02.480 HARNESS; DOOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,LANE DEPARTURE WARNING<TFP>,CORNERI NG LAMP<T87>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		8-98071-088-3 01 1 1509- ●
18 02.480 HARNESS; DOOR
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32>,LANE DEPARTURE WARNING<TFP>,CORNERING LAMP<T87> 		8-98071-089-3 01 1 1509- ●
18 02.480 HARNESS; DOOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32>,LANE DEPARTURE WARNING<TFP>,CORNERING LAMP<T87> 		8-98071-089-3 01 1 1509- ●
18 02.480 HARNESS; DOOR
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04) CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,LANE DEP ARTURE WARNING<TFP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98077-599-2 01 1 1509- ●
18 02.480 HARNESS; DOOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,LANE DEP ARTURE WARNING<TFP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98077-599-2 01 1 1509- ●
18 02.480 HARNESS; DOOR
4HK1-TCS ENG(RJS) EXC. POWER WINDOW FRT DOOR<A32> 		8-98077-599-2 01 1 1509- ●
18 02.480 HARNESS; DOOR
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04) EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,LANE DEP ARTURE WARNING<TFP>,CORNERING LAMP<T87>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98071-087-2 01 1 1509- ●
18 02.480 HARNESS; DOOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,LANE DEP ARTURE WARNING<TFP>,CORNERING LAMP<T87>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98071-087-2 01 1 1509- ●
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,LANE DEP ARTURE WARNING<TFP>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98077-591-2 01 1 1509- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-98077-591-2 01 1 1509- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,LANE DEPARTURE WARNING<TFP>,CORNERING LAMP<T87>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98071-079-2 01 1 1509- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98071-082-3 01 1 1506-1508 ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98071-082-3 01 1 1509- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. LANE DEPARTURE WARNING<TFP>, CORNERING LAMP<T87> 		8-98071-082-3 01 1 1509- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98286-580-0 01 1 1506-1508 ●
18 02.480 HARNESS; DOOR
4JJ1-TCC ENG(RDU) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98286-580-0 01 1 1509- ●
18 02.480 HARNESS; DOOR
4JJ1-TCS ENG(LFB) POWER WINDOW FRT DOOR<A32> TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. LANE DEPARTURE WARNING<TFP>, CORNERING LAMP<T87> 		8-98286-580-0 01 1 1509- ●
18 02.480 HARNESS; DOOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> TURKEY EQUIPMENT(B11) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. LANE DEPARTURE WARNING<TFP>, CORNERING LAMP<T87> 		8-98286-580-0 01 1 1509- ●
18 02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98286-577-0 01 1 1506-1508 ●
18 02.480 HARNESS; DOOR
4JJ1-TCC ENG(RDU) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98286-577-0 01 1 1509- ●
18 02.480 HARNESS; DOOR
4JJ1-TCS ENG(LFB) POWER WINDOW FRT DOOR<A32> TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,LANE DEPARTURE WARNING<TFP>,CORNERI NG LAMP<T87>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		8-98286-577-0 01 1 1509- ●
18 02.480 HARNESS; DOOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> TURKEY EQUIPMENT(B11) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,LANE DEPARTURE WARNING<TFP>,CORNERI NG LAMP<T87>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		8-98286-577-0 01 1 1509- ●
18 02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98071-080-3 01 1 1506-1508 ●
18 02.480 HARNESS; DOOR
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98071-080-3 01 1 1509- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,LANE DEPARTURE WARNING<TFP>,CORNERI NG LAMP<T87>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		8-98071-080-3 01 1 1509- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98286-575-2 01 1 1506-1508 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> LANE DEPARTURE WARNING<TFP> EXC. CORNERING LAMP<T87> 		8-98286-575-2 01 1 1509- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98286-574-2 01 1 1506-1508 ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> LANE DEPARTURE WARNING<TFP> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98286-574-2 01 1 1509- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32> 		8-98288-377-2 01 1 1506-1508 ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> LANE DEPARTURE WARNING<TFP> EXC. POWER WINDOW FRT DOOR<A32>, CORNERING LAMP<T87> 		8-98288-377-2 01 1 1509- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98286-581-0 01 1 1506-1508 ●
18 02.480 HARNESS; DOOR
4JJ1-TCS ENG(LFB) POWER WINDOW FRT DOOR<A32> TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> LANE DEPARTURE WARNING<TFP> EXC. CORNERING LAMP<T87> 		8-98286-581-0 01 1 1509- ●
18 02.480 HARNESS; DOOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> TURKEY EQUIPMENT(B11) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> LANE DEPARTURE WARNING<TFP> EXC. CORNERING LAMP<T87> 		8-98286-581-0 01 1 1509- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98286-578-0 01 1 1506-1508 ●
18 02.480 HARNESS; DOOR
4JJ1-TCS ENG(LFB) POWER WINDOW FRT DOOR<A32> TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) LANE DEPARTURE WARNING<TFP> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98286-578-0 01 1 1509- ●
18 02.480 HARNESS; DOOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> TURKEY EQUIPMENT(B11) LANE DEPARTURE WARNING<TFP> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-98286-578-0 01 1 1509- ●
18 02.480 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32> 		8-98288-375-0 01 1 1506-1508 ●
18 02.480 HARNESS; DOOR
4JJ1-TCS ENG(LFB) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> LANE DEPARTURE WARNING<TFP> EXC. POWER WINDOW FRT DOOR<A32>, CORNERING LAMP<T87> 		8-98288-375-0 01 1 1509- ●
18 02.480 HARNESS; DOOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TURKEY EQUIPMENT(B11) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> LANE DEPARTURE WARNING<TFP> EXC. POWER WINDOW FRT DOOR<A32>, CORNERING LAMP<T87> 		8-98288-375-0 01 1 1509- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR -O/SIDE RR VIEW,HEATED<7SV> 		8-98288-374-0 01 1 1506-1508 ●
18 02.480 HARNESS; DOOR
4JJ1-TCS ENG(LFB) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) LANE DEPARTURE WARNING<TFP> EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,CORNERIN G LAMP<T87>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		8-98288-374-0 01 1 1509- ●
18 02.480 HARNESS; DOOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TURKEY EQUIPMENT(B11) LANE DEPARTURE WARNING<TFP> EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,CORNERIN G LAMP<T87>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		8-98288-374-0 01 1 1509- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR -O/SIDE RR VIEW,HEATED<7SV> 		8-98288-376-2 01 1 1506-1508 ●
18 02.480 HARNESS; DOOR
LANE DEPARTURE WARNING<TFP> EXC. POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,CORNERIN G LAMP<T87>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		8-98288-376-2 01 1 1509- ●
85 06.495 HARNESS; ROOM LAMP 8-98071-096-2 01 1 1506-1508 ●
85 06.495 HARNESS; ROOM LAMP 8-98071-096-2 01 1 1509- ●
85 06.495 HARNESS; ROOM LAMP
LAMPS TWO ROOF MARKER<TEC> EXC. LANE DEPARTURE WARNING<TFP> 		8-98071-096-2 01 1 1509- ●
85 06.495 HARNESS; ROOM LAMP 8-98298-957-1 01 1 1506-1508 ●
85 06.495 HARNESS; ROOM LAMP
LAMPS TWO ROOF MARKER<TEC> LANE DEPARTURE WARNING<TFP> 		8-98298-957-1 01 1 1509- ●
85 06.495 HARNESS; ROOM LAMP
EXC. LAMPS TWO ROOF MARKER<TEC>,LANE DEPARTURE WARNING<TFP> 		8-98050-518-3 01 1 1509- ●
85 06.495 HARNESS; ROOM LAMP 8-98050-518-3 01 1 1509- ●
204 02.559 HARNESS; CABLE,FLOOR
SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98207-334-1 01 1 1512- ●
204 02.559 HARNESS; CABLE,FLOOR
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98207-334-1 01 1 1512- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98207-335-1 01 1 1509-1511 ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) 		8-98207-335-1 01 1 1512- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98207-335-1 01 1 1512- ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98240-892-0 01 1 1509- ●
204 02.559 HARNESS; CABLE,FLOOR
4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,TURKEY EQUIPMENT(B11), RUSSIA EQUIPMENT(B12) 		8-98240-892-0 01 1 1509- ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98240-890-0 01 1 1509- ●
204 02.559 HARNESS; CABLE,FLOOR
4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,TURKEY EQUIPMENT(B11), RUSSIA EQUIPMENT(B12) 		8-98240-890-0 01 1 1509- ●
204 02.559 HARNESS; CABLE,FLOOR 8-98240-890-0 01 1 1509- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98206-506-1 01 1 1506-1508 ● ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98206-506-1 01 1 1509-1511 ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98206-506-1 01 1 1509-1511 ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98206-506-1 01 1 1512- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98206-506-1 01 1 1512- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> 		8-98287-847-0 01 1 1506- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> ROOM LAMP W/ALL DOORS SW(SDF) 		8-98287-847-0 01 1 1506- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98206-505-1 01 1 1506-1508 ● ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98206-505-1 01 1 1509-1511 ●
204 02.559 HARNESS; CABLE,FLOOR
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98206-505-1 01 1 1509-1511 ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98206-505-1 01 1 1512- ●
204 02.559 HARNESS; CABLE,FLOOR
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98206-505-1 01 1 1512- ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98071-070-2 01 1 1506- ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98071-070-2 01 1 1506- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> EXC. ROOM LAMP W/ALL DOORS SW(SDF) 		8-98287-846-0 01 1 1506- ●
224 02.480 HARNESS; EXT,HEADLAMP 8-98225-330-2 02 1 1506-1508 ● ●
224 02.480 HARNESS; EXT,HEADLAMP 8-98225-330-2 02 1 1509- ●
224 02.480 HARNESS; EXT,HEADLAMP
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) FOG LAMP FRONT VAR2<X99> 		8-98225-330-2 02 1 1509- ●
374 02.530 PLUG; HARNESS CONNECTOR
EXC. AIR BAG DRIVER & PASSENGER<AK5>, ROOM LAMP W/ALL DOORS SW(SDF) 16.545 OD=32 BLACK 		8-98031-126-0 01 1 1506-1508 ●
374 02.530 PLUG; HARNESS CONNECTOR
EXC. AIR BAG DRIVER & PASSENGER<AK5>, ROOM LAMP W/ALL DOORS SW(SDF) 16.545 OD=32 BLACK 		8-98031-126-0 01 1 1509- ●
374 02.530 PLUG; HARNESS CONNECTOR
16.545 OD=32 BLACK 		8-98031-126-0 01 1 1509- ●
çizim 480787
540 102 668 542 81 3 329 161 13 668 13 102
BalonParca AdiParca NoAdetTipApplied Date A B C
3 02.559 NUT; GRAND
4HK1-TCS ENG(RJS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1506-1508 ●
3 02.559 NUT; GRAND
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A) 		8-98334-363-0 01 1 1510- ● ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (A) 		8-98334-362-0 01 1 1510- ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04) EURO5B+ SPECIFICATION(NT5) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A) 		8-98328-902-0 01 1 1509- ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04) EURO5B+ SPECIFICATION(NT5) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (A) 		8-98329-025-0 01 1 1509- ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (A) 		8-98244-734-0 01 1 1509- ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A) 		8-98285-604-3 01 1 1509-1509 ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A) 		8-98285-604-3 01 1 1510- ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) (B) 		8-98171-638-0 01 1 1509- ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (A) 		8-98283-533-3 01 1 1509-1509 ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (A) 		8-98283-533-3 01 1 1510- ●
13 02.525 HARNESS; ENG
(A) 		8-98249-768-0 01 1 1506-1511 ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) (A) 		8-98249-768-0 01 1 1512- ●
13 02.525 HARNESS; ENG
(C) 		8-98249-769-0 01 1 1506-1511 ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) (C) 		8-98249-769-0 01 1 1512- ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) (A) 		8-98209-539-3 01 1 1506-1508 ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (A) 		8-98209-539-3 01 1 1509- ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) (B) 		8-98203-297-0 01 1 1506-1508 ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (B) 		8-98203-297-0 01 1 1509- ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98302-574-1 01 1 1506-1508 ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98302-574-1 01 1 1509- ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98288-803-1 01 1 1506-1508 ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98288-803-1 01 1 1509- ●
81 00.010 WASHER; PL,EARTH
4HK1-TCS ENG(RJS) 00.029 ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 1506-1508 ●
81 00.010 WASHER; PL,EARTH
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) 00.029 ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 1509- ●
102 08.900 BOLT; BRKT,HARNESS CONNECTOR
EGR COOLER LH POSITION<KCC> 03.162 (A) M6X12 FLANGE 		0-28050-612-0 01 1 1506- ●
102 08.900 BOLT; BRKT,HARNESS CONNECTOR
EGR COOLER LH POSITION<KCC> 02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 1506- ●
161 02.559 BOLT; GROUND,HARNESS
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1506-1508 ● ●
161 02.559 BOLT; GROUND,HARNESS
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1509- ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JJ1-TCC ENG(RDU) 		8-98228-810-1 01 1 1506-1508 ●
329 02.480 CABLE; ENG TO FRAME
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-810-1 01 1 1506-1508 ●
329 02.480 CABLE; ENG TO FRAME
4JJ1-TCC ENG(RDU) 		8-98228-810-1 01 1 1509- ●
329 02.480 CABLE; ENG TO FRAME
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98228-810-1 01 1 1509- ●
329 02.480 CABLE; ENG TO FRAME
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98228-707-1 01 1 1506-1507 ●
329 02.480 CABLE; ENG TO FRAME
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98228-707-1 01 1 1508-1508 ●
329 02.480 CABLE; ENG TO FRAME
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98228-707-1 01 1 1509- ●
329 02.480 CABLE; ENG TO FRAME
4JJ1-TCS ENG(LFB) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98228-707-1 01 1 1509- ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCS ENG(RJS) 		8-98102-465-0 01 1 1506-1508 ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98102-465-0 01 1 1509- ● ●
540 02.483 NUT; BRKT FIX
4HK1-TCS ENG(RJS) 01.062 M6 FLANGE 		0-91180-106-0 03 1 1506-1508 ●
540 02.483 NUT; BRKT FIX
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) 01.062 M6 FLANGE 		0-91180-106-0 03 1 1509- ●
542 02.483 GROMMET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 01 1 1506- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (A) 		8-98061-780-0 01 1 1506-1508 ●
668 02.559 BRACKET; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-98061-780-0 01 1 1509- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (B) 		8-98200-797-3 01 1 1506-1508 ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (B) 		8-98200-797-3 01 1 1509- ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) 06.672 (C) 		8-98207-479-1 01 1 1506-1508 ●
668 02.559 BRACKET; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 06.672 (C) 		8-98207-479-1 01 1 1509- ●
668 02.559 BRACKET; HARNESS
4HK1-TCS ENG(RJS) (D) 		8-98226-452-1 01 1 1506-1508 ●
668 02.559 BRACKET; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98226-452-1 01 1 1509- ●
çizim 480843
534 101 700 267 13
BalonParca AdiParca NoAdetTipApplied Date A B C
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A) 		8-98334-363-0 01 1 1510- ● ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (A) 		8-98334-362-0 01 1 1510- ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04) EURO5B+ SPECIFICATION(NT5) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A) 		8-98328-902-0 01 1 1509- ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04) EURO5B+ SPECIFICATION(NT5) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (A) 		8-98329-025-0 01 1 1509- ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) EURO5B+ SPECIFICATION(NT5) (A) 		8-98244-734-0 01 1 1509- ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A) 		8-98285-604-3 01 1 1509-1509 ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) (A) 		8-98285-604-3 01 1 1510- ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) (B) 		8-98171-638-0 01 1 1509- ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (A) 		8-98283-533-3 01 1 1509-1509 ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) (A) 		8-98283-533-3 01 1 1510- ●
13 02.525 HARNESS; ENG
(A) 		8-98249-768-0 01 1 1506-1511 ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) (A) 		8-98249-768-0 01 1 1512- ●
13 02.525 HARNESS; ENG
(C) 		8-98249-769-0 01 1 1506-1511 ●
13 02.525 HARNESS; ENG
4JJ1-TCC ENG(RDU) (C) 		8-98249-769-0 01 1 1512- ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) (A) 		8-98209-539-3 01 1 1506-1508 ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) (A) 		8-98209-539-3 01 1 1509- ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) (B) 		8-98203-297-0 01 1 1506-1508 ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (B) 		8-98203-297-0 01 1 1509- ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98302-574-1 01 1 1506-1508 ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-90A 2.5KW(NFU) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98302-574-1 01 1 1509- ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98288-803-1 01 1 1506-1508 ●
13 02.525 HARNESS; ENG
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) GENERATOR MITSUBISHI 24V-50A 1.2KW(TLZ) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98288-803-1 01 1 1509- ●
101 02.483 BRACKET; HARNESS CONNECTOR
02.183 (C) 		8-98030-725-1 01 1 1506-1508 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) 02.183 (C) 		8-98030-725-1 01 1 1506-1508 ●
101 02.483 BRACKET; HARNESS CONNECTOR
02.183 (C) 		8-98030-725-1 01 1 1509-1511 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.183 (C) 		8-98030-725-1 01 1 1509-1511 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.183 (C) 		8-98030-725-1 01 1 1509-1511 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.183 (C) 		8-98030-725-1 01 1 1512- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.183 (C) 		8-98030-725-1 01 1 1512- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.183 (C) 		8-98030-725-1 01 1 1512- ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98228-912-1 01 1 1506-1508 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) (D) 		8-98228-912-1 01 1 1506-1508 ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98228-912-1 01 1 1509- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98228-912-1 01 1 1509- ●
101 02.483 BRACKET; HARNESS CONNECTOR
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98228-912-1 01 1 1509- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) (A) 		8-98052-805-0 01 1 1506-1508 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (A) 		8-98052-805-0 01 1 1509- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98052-805-0 01 1 1509- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) (A) 		8-98052-805-0 01 1 1509- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) (B) 		8-98222-169-2 01 1 1506-1508 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98222-169-2 01 1 1509- ● ●
267 02.483 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1506-1508 ● ●
267 02.483 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1509- ● ●
267 02.483 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1509- ●
267 02.483 BOLT; BRKT
EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1509- ●
267 02.483 BOLT; BRKT
4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 (B) M10X120 FLANGE 		0-28156-012-0 01 1 1506-1508 ●
267 02.483 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 (B) M10X120 FLANGE 		0-28156-012-0 01 1 1509- ●
267 02.483 BOLT; BRKT
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 (B) M10X120 FLANGE 		0-28156-012-0 01 1 1509- ●
267 02.483 BOLT; BRKT
4HK1-TCS ENG(RJS) 09.171 (B) M10X120 FLANGE 		0-28156-012-0 01 1 1509- ●
534 02.483 BOLT
4HK1-TCS ENG(RJS) 00.683 M10X55 FLANGE 		8-97365-449-0 03 1 1506-1508 ●
534 02.483 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.683 M10X55 FLANGE 		8-97365-449-0 03 1 1509- ● ●
700 02.483 TUBE; DISTANCE
4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONT(C60) L=105 		8-98084-726-0 01 1 1506-1508 ●
700 02.483 TUBE; DISTANCE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR CONDITIONER MANUAL CONT(C60) L=105 		8-98084-726-0 01 1 1509- ●
700 02.483 TUBE; DISTANCE
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) EXC. AIR CONDITIONER MANUAL CONT(C60) L=105 		8-98084-726-0 01 1 1509- ●
700 02.483 TUBE; DISTANCE
4HK1-TCS ENG(RJS) L=105 		8-98084-726-0 01 1 1509- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
