Sayfa 7-40 - Isuzu EPC

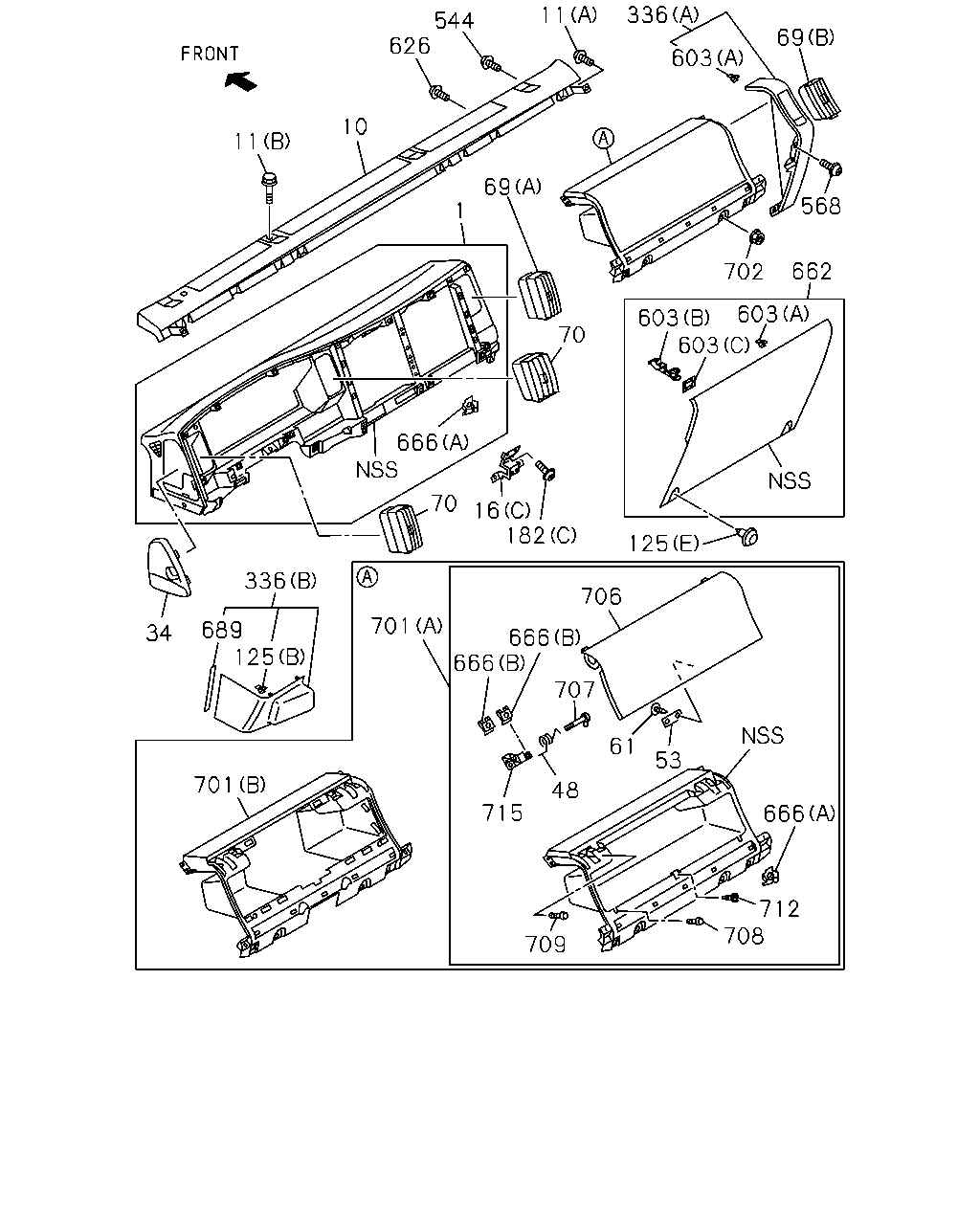

7-40 — INSTRUMENT PANEL AND BOX (#162412) — 300 parça

11 10 626 544 11 336 603 69 568 662 702 603 603 603 125 182 16 70 666 1 70 69 336 689 34 125 701 701 666 666 706 707 715 61 53 666 712 708 709 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.080 PANEL; INST GRAY	8-97406-004-4	01	1	1506-1508	●	●
1	16.080 PANEL; INST GRAY	8-97406-004-4	01	1	1509-	●	●	●
10	16.069 PANEL ASM; GARNISH GRAY	8-97419-683-5	01	1	1506-1508	●	●
10	16.069 PANEL ASM; GARNISH GRAY	8-97419-683-5	01	1	1509-	●	●	●
11	16.090 BOLT; INST PNL (A) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	08	1	1506-1508	●	●
11	16.090 BOLT; INST PNL (A) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	08	1	1509-	●	●	●
11	16.090 BOLT; INST PNL (B) M6X25 W/LK&PL WASHER	8-98018-440-0	04	1	1506-1508	●	●
11	16.090 BOLT; INST PNL (B) M6X25 W/LK&PL WASHER	8-98018-440-0	04	1	1509-	●	●	●
16	16.085 BRACKET; INST PNL TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98278-076-0	01	1	1509-1511		●
16	16.085 BRACKET; INST PNL SMOOTHER-EX(TYPE2)(8NS) (D)	8-98278-076-0	01	1	1512-	●
16	16.085 BRACKET; INST PNL TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98278-076-0	01	1	1512-		●
16	16.085 BRACKET; INST PNL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-532-0	01	1	1506-1508	●	●
16	16.085 BRACKET; INST PNL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-532-0	01	1	1509-	●	●	●
16	16.085 BRACKET; INST PNL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97585-612-2	01	1	1506-1508	●	●
16	16.085 BRACKET; INST PNL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97585-612-2	01	1	1509-	●	●	●
16	16.085 BRACKET; INST PNL PTO MANUAL CONTROL(6WC) (A)	8-98100-403-1	01	1	1506-1508	●	●
16	16.085 BRACKET; INST PNL PTO MANUAL CONTROL(6WC) (A)	8-98100-403-1	01	1	1509-	●	●	●
16	16.085 BRACKET; INST PNL EXC. PTO MANUAL CONTROL(6WC) (A)	8-98081-718-1	01	1	1506-1508	●	●
16	16.085 BRACKET; INST PNL EXC. PTO MANUAL CONTROL(6WC) (A)	8-98081-718-1	01	1	1509-	●	●	●
34	16.085 LID; OIL TANK GRAY	8-97406-003-1	01	1	1506-1508	●	●
34	16.085 LID; OIL TANK GRAY	8-97406-003-1	01	1	1509-	●	●	●
48	16.110 SPRING; GLOVE BOX LID EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98270-763-0	01	1	1506-1508	●	●
48	16.110 SPRING; GLOVE BOX LID EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98270-763-0	01	1	1509-	●	●
48	16.110 SPRING; GLOVE BOX LID	8-98270-763-0	01	1	1509-			●
48	16.110 SPRING; GLOVE BOX LID EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98270-764-0	01	1	1506-1508	●	●
48	16.110 SPRING; GLOVE BOX LID EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98270-764-0	01	1	1509-	●	●
48	16.110 SPRING; GLOVE BOX LID	8-98270-764-0	01	1	1509-			●
53	16.115 STRIKER; GLOVE BOX EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98270-765-0	01	1	1506-1508	●	●
53	16.115 STRIKER; GLOVE BOX EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98270-765-0	01	1	1509-	●	●
53	16.115 STRIKER; GLOVE BOX	8-98270-765-0	01	1	1509-			●
61	16.100 SCREW; GLOVE BOX EXC. AIR BAG DRIVER & PASSENGER<AK5> M4X85	8-97926-404-0	02	1	1506-1508	●	●
61	16.100 SCREW; GLOVE BOX EXC. AIR BAG DRIVER & PASSENGER<AK5> M4X85	8-97926-404-0	02	1	1509-	●	●
61	16.100 SCREW; GLOVE BOX M4X85	8-97926-404-0	02	1	1509-			●
69	09.264 GRILLE; SIDE,AIR OUTLET (A)	8-98028-561-2	01	1	1506-1508	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (A)	8-98028-561-2	01	1	1509-	●	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (B)	8-98028-562-2	01	1	1506-1508	●	●
69	09.264 GRILLE; SIDE,AIR OUTLET (B)	8-98028-562-2	01	1	1509-	●	●	●
70	09.264 GRILLE; CENTER,AIR OUTLET	8-98028-563-2	02	1	1506-1508	●	●
70	09.264 GRILLE; CENTER,AIR OUTLET	8-98028-563-2	02	1	1509-	●	●	●
125	16.085 CLIP; INST PANEL (A) GRAY	8-97408-063-0	02	1	1506-1508	●	●
125	16.085 CLIP; INST PANEL (A) GRAY	8-97408-063-0	02	1	1509-	●	●	●
125	16.085 CLIP; INST PANEL (D) GRAY	8-97408-817-0	02	1	1506-1508	●	●
125	16.085 CLIP; INST PANEL (D) GRAY	8-97408-817-0	02	1	1509-	●	●	●
125	16.085 CLIP; INST PANEL (E) GRAY	8-97419-968-1	02	1	1506-1508	●	●
125	16.085 CLIP; INST PANEL (E) GRAY	8-97419-968-1	02	1	1509-	●	●	●
125	16.085 CLIP; INST PANEL 16.165 (C)	8-98004-025-0	01	1	1506-1508	●	●
125	16.085 CLIP; INST PANEL 16.165 (C)	8-98004-025-0	01	1	1509-	●	●	●
125	16.085 CLIP; INST PANEL (B)	8-98021-271-0	01	1	1506-1508	●	●
125	16.085 CLIP; INST PANEL (B)	8-98021-271-0	01	1	1509-	●	●	●
125	16.085 CLIP; INST PANEL (B)	8-98021-271-0	02	1	1506-1508	●	●
125	16.085 CLIP; INST PANEL (B)	8-98021-271-0	02	1	1509-	●	●	●
182	16.085 BOLT; BRKT,INST PANEL EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 00.833 (D) M10X22 W/PL WASHER	8-97313-188-0	01	1	1509-1511		●
182	16.085 BOLT; BRKT,INST PANEL EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 00.833 (D) M10X22 W/PL WASHER	8-97313-188-0	01	1	1512-	●	●
182	16.085 BOLT; BRKT,INST PANEL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1506-1507	●	●
182	16.085 BOLT; BRKT,INST PANEL 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1508-1508	●	●
182	16.085 BOLT; BRKT,INST PANEL 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1509-	●	●	●
182	16.085 BOLT; BRKT,INST PANEL 16.650 (A) T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	03	1	1506-1508	●	●
182	16.085 BOLT; BRKT,INST PANEL 16.650 (A) T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	03	1	1509-	●	●	●
182	16.085 BOLT; BRKT,INST PANEL (C) SCREW M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1506-1508	●	●
182	16.085 BOLT; BRKT,INST PANEL (C) SCREW M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1509-	●	●	●
336	16.081 COVER; INST PANEL SIDE PTO MANUAL CONTROL(6WC) (B) GRAY	8-97415-670-1	01	1	1506-1508	●	●
336	16.081 COVER; INST PANEL SIDE PTO MANUAL CONTROL(6WC) (B) GRAY	8-97415-670-1	01	1	1509-	●	●	●
336	16.081 COVER; INST PANEL SIDE (A) GRAY	8-97406-002-3	01	1	1506-1508	●	●
336	16.081 COVER; INST PANEL SIDE (A) GRAY	8-97406-002-3	01	1	1509-	●	●	●
336	16.081 COVER; INST PANEL SIDE EXC. PTO MANUAL CONTROL(6WC) (B) GRAY	8-97406-000-4	01	1	1506-1508	●	●
336	16.081 COVER; INST PANEL SIDE EXC. PTO MANUAL CONTROL(6WC) (B) GRAY	8-97406-000-4	01	1	1509-	●	●	●
544	16.085 SCREW; TRAY 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	1506-1508	●	●
544	16.085 SCREW; TRAY 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	1509-	●	●	●
568	09.744 BOLT; COVER 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1506-1508	●	●
568	09.744 BOLT; COVER 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●	●	●
603	16.090 CLIP; COVER RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 16.085 (A)	8-98021-271-0	03	1	1509-		●
603	16.090 CLIP; COVER 16.085 (A)	8-98021-271-0	03	1	1509-			●
603	16.090 CLIP; COVER RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B)	8-98152-030-0	02	1	1509-		●
603	16.090 CLIP; COVER (B)	8-98152-030-0	02	1	1509-			●
603	16.090 CLIP; COVER RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C)	8-98152-031-0	02	1	1509-		●
603	16.090 CLIP; COVER (C)	8-98152-031-0	02	1	1509-			●
603	16.090 CLIP; COVER 16.085 (A)	8-98021-271-0	01	1	1506-1508	●	●
603	16.090 CLIP; COVER 16.085 (A)	8-98021-271-0	01	1	1509-	●	●	●
603	16.090 CLIP; COVER 16.085 (A)	8-98021-271-0	05	1	1506-1508	●	●
603	16.090 CLIP; COVER 16.085 (A)	8-98021-271-0	05	1	1509-	●
603	16.090 CLIP; COVER EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 16.085 (A)	8-98021-271-0	05	1	1509-		●
626	16.080 RETAINER 16.069 OD=15 BLACK	8-94279-804-0	02	1	1506-1508	●	●
626	16.080 RETAINER 16.069 OD=15 BLACK	8-94279-804-0	02	1	1509-	●	●	●
662	16.081 COVER; LWR,INST PANEL RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) GRAY	8-97418-533-2	01	1	1509-		●
662	16.081 COVER; LWR,INST PANEL GRAY	8-97418-533-2	01	1	1509-			●
662	16.081 COVER; LWR,INST PANEL GRAY	8-97405-258-2	01	1	1506-1508	●	●
662	16.081 COVER; LWR,INST PANEL GRAY	8-97405-258-2	01	1	1509-	●
662	16.081 COVER; LWR,INST PANEL EXC. RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) GRAY	8-97405-258-2	01	1	1509-		●
666	16.085 INSERT; INST PANEL (A)	8-98037-629-0	15	1	1506-1508	●	●
666	16.085 INSERT; INST PANEL (A)	8-98037-629-0	15	1	1509-	●	●	●
666	16.085 INSERT; INST PANEL EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) M5	8-97926-400-0	04	1	1506-1508	●	●
666	16.085 INSERT; INST PANEL EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) M5	8-97926-400-0	04	1	1509-	●	●
666	16.085 INSERT; INST PANEL (B) M5	8-97926-400-0	04	1	1509-			●
666	16.085 INSERT; INST PANEL EXC. AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98037-629-0	02	1	1506-1508	●	●
666	16.085 INSERT; INST PANEL EXC. AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98037-629-0	02	1	1509-	●	●
666	16.085 INSERT; INST PANEL (A)	8-98037-629-0	02	1	1509-			●
689	09.743 SEAL; INST EXC. PTO MANUAL CONTROL(6WC)	8-98068-244-0	01	1	1506-1508	●	●
689	09.743 SEAL; INST EXC. PTO MANUAL CONTROL(6WC)	8-98068-244-0	01	1	1509-	●	●	●
701	16.100 TRAY; INST AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY	8-97416-908-2	01	1	1506-	●	●
701	16.100 TRAY; INST EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY	8-97429-702-1	01	1	1506-1508	●	●
701	16.100 TRAY; INST EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY	8-97429-702-1	01	1	1509-	●	●
701	16.100 TRAY; INST (A) GRAY	8-97429-702-1	01	1	1509-			●
702	16.069 NUT; TRAY 01.062 M6 FLANGE	0-91180-106-0	02	1	1506-1508	●	●
702	16.069 NUT; TRAY 01.062 M6 FLANGE	0-91180-106-0	02	1	1509-	●	●	●
706	16.081 LID; TRAY INST EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97429-992-0	01	1	1506-1508	●	●
706	16.081 LID; TRAY INST EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY	8-97429-992-0	01	1	1509-	●	●
706	16.081 LID; TRAY INST GRAY	8-97429-992-0	01	1	1509-			●
707	09.744 SHAFT; TRAY INST LID EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-97926-393-0	02	1	1506-1508	●	●
707	09.744 SHAFT; TRAY INST LID EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-97926-393-0	02	1	1509-	●	●
707	09.744 SHAFT; TRAY INST LID	8-97926-393-0	02	1	1509-			●
708	16.100 STOPPER; TRAY INST LID EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98010-867-1	02	1	1506-1508	●	●
708	16.100 STOPPER; TRAY INST LID EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98010-867-1	02	1	1509-	●	●
708	16.100 STOPPER; TRAY INST LID	8-98010-867-1	02	1	1509-			●
709	16.085 SCREW; TRAY INST EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING	0-71040-516-0	04	1	1506-1508	●	●
709	16.085 SCREW; TRAY INST EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING	0-71040-516-0	04	1	1509-	●	●
709	16.085 SCREW; TRAY INST M5X16 TAPPING	0-71040-516-0	04	1	1509-			●
712	16.110 LOCK; TRAY INST LID EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98031-846-0	01	1	1506-1508	●	●
712	16.110 LOCK; TRAY INST LID EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98031-846-0	01	1	1509-	●	●
712	16.110 LOCK; TRAY INST LID	8-98031-846-0	01	1	1509-			●
715	16.081 SUPPORT; TRAY,HINGE EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-97926-396-0	01	1	1506-1508	●	●
715	16.081 SUPPORT; TRAY,HINGE EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-97926-396-0	01	1	1509-	●	●
715	16.081 SUPPORT; TRAY,HINGE	8-97926-396-0	01	1	1509-			●
715	16.081 SUPPORT; TRAY,HINGE EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-97926-397-0	01	1	1506-1508	●	●
715	16.081 SUPPORT; TRAY,HINGE EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-97926-397-0	01	1	1509-	●	●
715	16.081 SUPPORT; TRAY,HINGE	8-97926-397-0	01	1	1509-			●

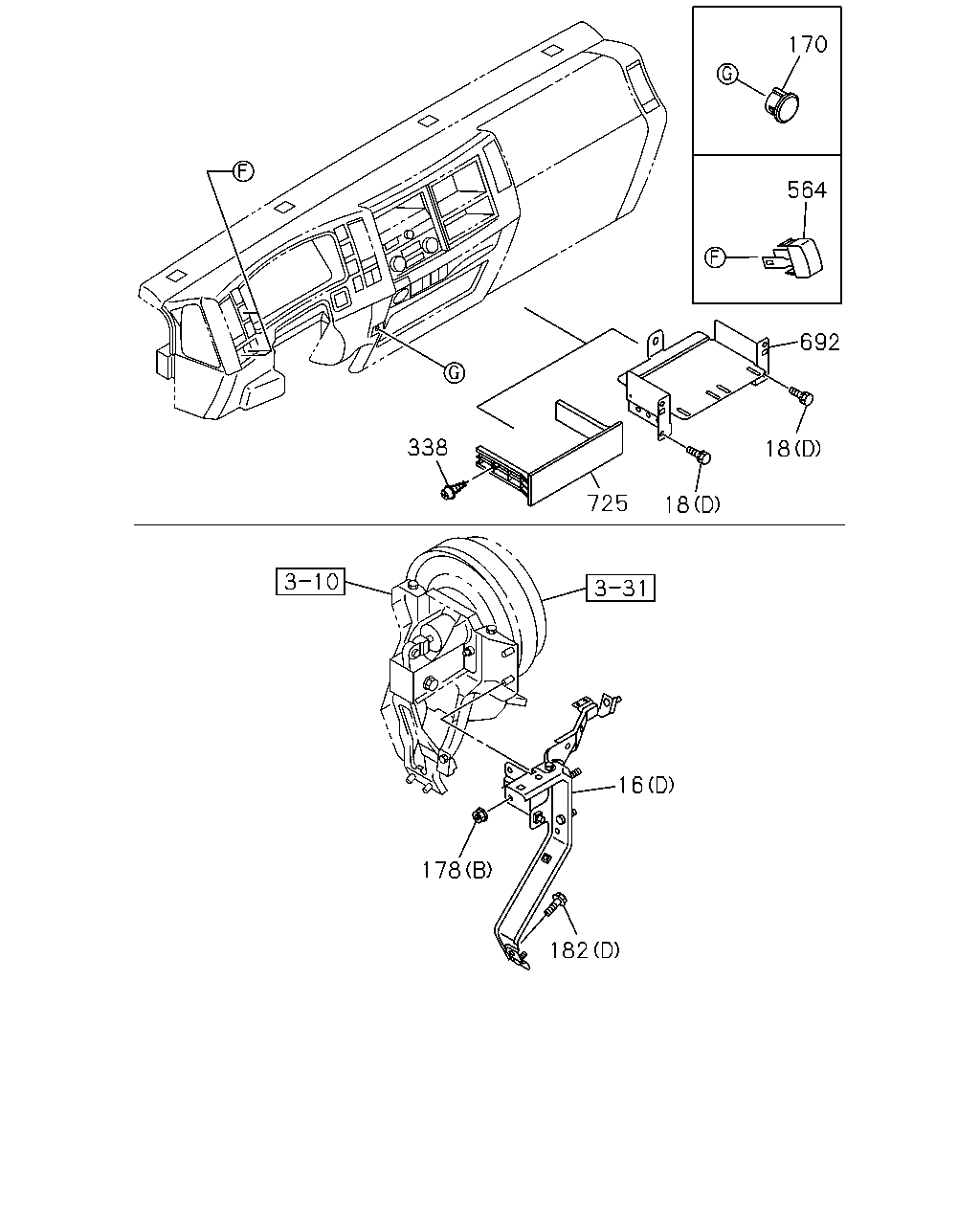

170 564 692 18 18 725 338 16 178 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	16.085 BRACKET; INST PNL TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98278-076-0	01	1	1509-1511		●
16	16.085 BRACKET; INST PNL SMOOTHER-EX(TYPE2)(8NS) (D)	8-98278-076-0	01	1	1512-	●
16	16.085 BRACKET; INST PNL TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98278-076-0	01	1	1512-		●
16	16.085 BRACKET; INST PNL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-532-0	01	1	1506-1508	●	●
16	16.085 BRACKET; INST PNL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-532-0	01	1	1509-	●	●	●
16	16.085 BRACKET; INST PNL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97585-612-2	01	1	1506-1508	●	●
16	16.085 BRACKET; INST PNL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97585-612-2	01	1	1509-	●	●	●
16	16.085 BRACKET; INST PNL PTO MANUAL CONTROL(6WC) (A)	8-98100-403-1	01	1	1506-1508	●	●
16	16.085 BRACKET; INST PNL PTO MANUAL CONTROL(6WC) (A)	8-98100-403-1	01	1	1509-	●	●	●
16	16.085 BRACKET; INST PNL EXC. PTO MANUAL CONTROL(6WC) (A)	8-98081-718-1	01	1	1506-1508	●	●
16	16.085 BRACKET; INST PNL EXC. PTO MANUAL CONTROL(6WC) (A)	8-98081-718-1	01	1	1509-	●	●	●
18	16.085 BOLT; BRKT TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1506-1508	●
18	16.085 BOLT; BRKT 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1506-1508		●
18	16.085 BOLT; BRKT TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1509-	●
18	16.085 BOLT; BRKT IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1509-		●
18	16.085 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1506-1508	●	●
18	16.085 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1509-	●	●	●
18	16.085 BOLT; BRKT 16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	02	1	1506-1508	●	●
18	16.085 BOLT; BRKT 16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	02	1	1509-	●	●	●
18	16.085 BOLT; BRKT EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR	8-98058-632-0	03	1	1506-1508	●	●
18	16.085 BOLT; BRKT EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR	8-98058-632-0	03	1	1509-	●	●	●
170	16.165 COVER; HOLE	8-98070-401-2	01	1	1506-1508	●	●
170	16.165 COVER; HOLE	8-98070-401-2	01	1	1509-	●	●	●
178	16.085 NUT; INST PANEL EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 00.777 (B) M8 W/LK WASHER	8-94279-050-0	02	1	1509-1511		●
178	16.085 NUT; INST PANEL EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 00.777 (B) M8 W/LK WASHER	8-94279-050-0	02	1	1512-	●	●
178	16.085 NUT; INST PANEL 01.062 (A) M6 FLANGE	0-91180-106-0	03	1	1506-1508	●	●
178	16.085 NUT; INST PANEL 01.062 (A) M6 FLANGE	0-91180-106-0	03	1	1509-	●	●	●
182	16.085 BOLT; BRKT,INST PANEL EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 00.833 (D) M10X22 W/PL WASHER	8-97313-188-0	01	1	1509-1511		●
182	16.085 BOLT; BRKT,INST PANEL EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 00.833 (D) M10X22 W/PL WASHER	8-97313-188-0	01	1	1512-	●	●
182	16.085 BOLT; BRKT,INST PANEL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1506-1507	●	●
182	16.085 BOLT; BRKT,INST PANEL 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1508-1508	●	●
182	16.085 BOLT; BRKT,INST PANEL 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1509-	●	●	●
182	16.085 BOLT; BRKT,INST PANEL 16.650 (A) T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	03	1	1506-1508	●	●
182	16.085 BOLT; BRKT,INST PANEL 16.650 (A) T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	03	1	1509-	●	●	●
182	16.085 BOLT; BRKT,INST PANEL (C) SCREW M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1506-1508	●	●
182	16.085 BOLT; BRKT,INST PANEL (C) SCREW M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1509-	●	●	●
338	16.081 SCREW; COVER TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 16.100 T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1506-1508	●
338	16.081 SCREW; COVER 16.100 T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1506-1508		●
338	16.081 SCREW; COVER TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 16.100 T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1509-	●
338	16.081 SCREW; COVER IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 16.100 T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1509-		●
564	16.081 COVER; SW	8-98025-954-1	03	1	1506-1508	●	●
564	16.081 COVER; SW	8-98025-954-1	03	1	1509-	●	●	●
692	16.085 BRACKET; TACHOGRAPH TACHOGRAPH DIGITAL EEC REGULATIONS<8PM>	8-98094-272-0	01	1	1506-1508	●
692	16.085 BRACKET; TACHOGRAPH	8-98094-272-0	01	1	1506-1508		●
692	16.085 BRACKET; TACHOGRAPH TACHOGRAPH DIGITAL EEC REGULATIONS<8PM>	8-98094-272-0	01	1	1509-	●
692	16.085 BRACKET; TACHOGRAPH IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM>	8-98094-272-0	01	1	1509-		●
725	16.081 COVER; TACHOGRAPH TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.650 BLACK	8-97407-896-2	01	1	1506-1508	●
725	16.081 COVER; TACHOGRAPH 09.650 BLACK	8-97407-896-2	01	1	1506-1508		●
725	16.081 COVER; TACHOGRAPH TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.650 BLACK	8-97407-896-2	01	1	1509-	●
725	16.081 COVER; TACHOGRAPH IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.650 BLACK	8-97407-896-2	01	1	1509-		●

16 182 54 59 704 704 527 54 704 704 54 704 59 705 704 59 703 167 178 182 66 569 524 525 696 18 18 580 4 14 265 699 718 125 724 700 125 125 18 698 178 697 66 16 182 125 341

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	16.080 COVER; INST PNL EXC. CUP HOLDER<7KZ> GRAY	8-97407-898-1	01	1	1506-1508	●	●
4	16.080 COVER; INST PNL EXC. CUP HOLDER<7KZ> GRAY	8-97407-898-1	01	1	1509-	●	●	●
14	16.085 SCREW; INST PNL 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1506-1508	●	●
14	16.085 SCREW; INST PNL 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1509-	●	●	●
16	16.085 BRACKET; INST PNL TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98278-076-0	01	1	1509-1511		●
16	16.085 BRACKET; INST PNL SMOOTHER-EX(TYPE2)(8NS) (D)	8-98278-076-0	01	1	1512-	●
16	16.085 BRACKET; INST PNL TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98278-076-0	01	1	1512-		●
16	16.085 BRACKET; INST PNL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-532-0	01	1	1506-1508	●	●
16	16.085 BRACKET; INST PNL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-532-0	01	1	1509-	●	●	●
16	16.085 BRACKET; INST PNL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97585-612-2	01	1	1506-1508	●	●
16	16.085 BRACKET; INST PNL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97585-612-2	01	1	1509-	●	●	●
16	16.085 BRACKET; INST PNL PTO MANUAL CONTROL(6WC) (A)	8-98100-403-1	01	1	1506-1508	●	●
16	16.085 BRACKET; INST PNL PTO MANUAL CONTROL(6WC) (A)	8-98100-403-1	01	1	1509-	●	●	●
16	16.085 BRACKET; INST PNL EXC. PTO MANUAL CONTROL(6WC) (A)	8-98081-718-1	01	1	1506-1508	●	●
16	16.085 BRACKET; INST PNL EXC. PTO MANUAL CONTROL(6WC) (A)	8-98081-718-1	01	1	1509-	●	●	●
18	16.085 BOLT; BRKT TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1506-1508	●
18	16.085 BOLT; BRKT 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1506-1508		●
18	16.085 BOLT; BRKT TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1509-	●
18	16.085 BOLT; BRKT IDENTIFICATION LABEL FOR KD<6UT> TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.647 (D) SCREW M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1509-		●
18	16.085 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1506-1508	●	●
18	16.085 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	04	1	1509-	●	●	●
18	16.085 BOLT; BRKT 16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	02	1	1506-1508	●	●
18	16.085 BOLT; BRKT 16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	02	1	1509-	●	●	●
18	16.085 BOLT; BRKT EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR	8-98058-632-0	03	1	1506-1508	●	●
18	16.085 BOLT; BRKT EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR	8-98058-632-0	03	1	1509-	●	●	●
54	16.100 POCKET; CENTER CLUSTER (C) H=69.8 BLACK	8-97408-865-3	01	1	1506-1508	●	●
54	16.100 POCKET; CENTER CLUSTER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.8 BLACK	8-97408-865-3	01	1	1506-1508	●	●
54	16.100 POCKET; CENTER CLUSTER (C) H=69.8 BLACK	8-97408-865-3	01	1	1509-	●	●	●
54	16.100 POCKET; CENTER CLUSTER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.8 BLACK	8-97408-865-3	01	1	1509-	●	●
54	16.100 POCKET; CENTER CLUSTER (B) H=58.4 BLACK	8-97408-864-3	01	1	1506-1508	●	●
54	16.100 POCKET; CENTER CLUSTER (B) H=58.4 BLACK	8-97408-864-3	01	1	1509-	●	●	●
54	16.100 POCKET; CENTER CLUSTER TACHOGRAPH 140KM/H<SM8> (B) H=58.4 BLACK	8-97408-864-3	01	1	1509-		●
54	16.100 POCKET; CENTER CLUSTER EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (A) H=108.4 BLACK	8-97407-129-3	01	1	1506-1508	●
54	16.100 POCKET; CENTER CLUSTER EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (A) H=108.4 BLACK	8-97407-129-3	01	1	1509-	●
54	16.100 POCKET; CENTER CLUSTER EXC. TACHOGRAPH 140KM/H<SM8>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (A) H=108.4 BLACK	8-97407-129-3	01	1	1509-		●
54	16.100 POCKET; CENTER CLUSTER (A) H=108.4 BLACK	8-97407-129-3	01	1	1509-			●
59	16.100 SCREW; CLUSTER POCKET T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1506-1508	●	●
59	16.100 SCREW; CLUSTER POCKET T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1506-1508	●	●
59	16.100 SCREW; CLUSTER POCKET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1506-1508	●	●
59	16.100 SCREW; CLUSTER POCKET T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1509-	●	●	●
59	16.100 SCREW; CLUSTER POCKET T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1509-	●	●	●
59	16.100 SCREW; CLUSTER POCKET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1509-	●	●
59	16.100 SCREW; CLUSTER POCKET TACHOGRAPH 140KM/H<SM8> T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	1509-		●
66	16.085 REINFORCEMENT; INST PANEL AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98192-945-0	01	1	1506-	●	●
66	16.085 REINFORCEMENT; INST PANEL (B)	8-97585-579-1	01	1	1506-1508	●	●
66	16.085 REINFORCEMENT; INST PANEL (B)	8-97585-579-1	01	1	1509-	●	●	●
66	16.085 REINFORCEMENT; INST PANEL EXC. AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98192-944-0	01	1	1506-1508	●	●
66	16.085 REINFORCEMENT; INST PANEL EXC. AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98192-944-0	01	1	1509-	●	●
66	16.085 REINFORCEMENT; INST PANEL (A)	8-98192-944-0	01	1	1509-			●
125	16.085 CLIP; INST PANEL (A) GRAY	8-97408-063-0	02	1	1506-1508	●	●
125	16.085 CLIP; INST PANEL (A) GRAY	8-97408-063-0	02	1	1509-	●	●	●
125	16.085 CLIP; INST PANEL (D) GRAY	8-97408-817-0	02	1	1506-1508	●	●
125	16.085 CLIP; INST PANEL (D) GRAY	8-97408-817-0	02	1	1509-	●	●	●
125	16.085 CLIP; INST PANEL (E) GRAY	8-97419-968-1	02	1	1506-1508	●	●
125	16.085 CLIP; INST PANEL (E) GRAY	8-97419-968-1	02	1	1509-	●	●	●
125	16.085 CLIP; INST PANEL 16.165 (C)	8-98004-025-0	01	1	1506-1508	●	●
125	16.085 CLIP; INST PANEL 16.165 (C)	8-98004-025-0	01	1	1509-	●	●	●
125	16.085 CLIP; INST PANEL (B)	8-98021-271-0	01	1	1506-1508	●	●
125	16.085 CLIP; INST PANEL (B)	8-98021-271-0	01	1	1509-	●	●	●
125	16.085 CLIP; INST PANEL (B)	8-98021-271-0	02	1	1506-1508	●	●
125	16.085 CLIP; INST PANEL (B)	8-98021-271-0	02	1	1509-	●	●	●
167	16.085 BOLT; REINF TO INST 16.090 M8X23 FLANGE	8-97264-766-0	04	1	1506-1508	●	●
167	16.085 BOLT; REINF TO INST 16.090 M8X23 FLANGE	8-97264-766-0	04	1	1509-	●	●	●
178	16.085 NUT; INST PANEL EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 00.777 (B) M8 W/LK WASHER	8-94279-050-0	02	1	1509-1511		●
178	16.085 NUT; INST PANEL EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 00.777 (B) M8 W/LK WASHER	8-94279-050-0	02	1	1512-	●	●
178	16.085 NUT; INST PANEL 01.062 (A) M6 FLANGE	0-91180-106-0	03	1	1506-1508	●	●
178	16.085 NUT; INST PANEL 01.062 (A) M6 FLANGE	0-91180-106-0	03	1	1509-	●	●	●
182	16.085 BOLT; BRKT,INST PANEL EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 00.833 (D) M10X22 W/PL WASHER	8-97313-188-0	01	1	1509-1511		●
182	16.085 BOLT; BRKT,INST PANEL EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 00.833 (D) M10X22 W/PL WASHER	8-97313-188-0	01	1	1512-	●	●
182	16.085 BOLT; BRKT,INST PANEL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1506-1507	●	●
182	16.085 BOLT; BRKT,INST PANEL 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1508-1508	●	●
182	16.085 BOLT; BRKT,INST PANEL 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1509-	●	●	●
182	16.085 BOLT; BRKT,INST PANEL 16.650 (A) T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	03	1	1506-1508	●	●
182	16.085 BOLT; BRKT,INST PANEL 16.650 (A) T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	03	1	1509-	●	●	●
182	16.085 BOLT; BRKT,INST PANEL (C) SCREW M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1506-1508	●	●
182	16.085 BOLT; BRKT,INST PANEL (C) SCREW M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1509-	●	●	●
265	16.100 HOLDER; CUP CUP HOLDER<7KZ> GRAY	8-97418-528-0	01	1	1506-1508	●	●
265	16.100 HOLDER; CUP CUP HOLDER<7KZ> GRAY	8-97418-528-0	01	1	1509-	●	●	●
341	16.110 LID; FUSE BOX GRAY	8-97423-659-0	01	1	1506-1508	●	●
341	16.110 LID; FUSE BOX GRAY	8-97423-659-0	01	1	1509-	●	●	●
524	16.100 STAND ASM; CUP,INST CUP HOLDER<7KZ>	8-98054-414-0	01	1	1506-1508	●	●
524	16.100 STAND ASM; CUP,INST CUP HOLDER<7KZ>	8-98054-414-0	01	1	1509-	●	●	●
525	16.100 SCREW; CUP STAND CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	1506-1508	●	●
525	16.100 SCREW; CUP STAND CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	1509-	●	●	●
527	16.100 CLIP; INST CLUSTER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY	8-97098-326-0	01	1	1506-	●	●
569	16.100 HOLDER; CARD	8-97410-276-1	01	1	1506-1508	●	●
569	16.100 HOLDER; CARD	8-97410-276-1	01	1	1509-	●	●	●
580	16.080 BRACKET; COVER EXC. CUP HOLDER<7KZ>	8-98091-546-0	01	1	1506-1508	●	●
580	16.080 BRACKET; COVER EXC. CUP HOLDER<7KZ>	8-98091-546-0	01	1	1509-	●	●	●
696	16.085 BRACKET; KNEE	8-98201-847-0	01	1	1506-1508	●	●
696	16.085 BRACKET; KNEE	8-98201-847-0	01	1	1509-	●	●	●
697	16.080 PANEL; INST CENTER GRAY	8-97423-657-1	01	1	1506-1508	●	●
697	16.080 PANEL; INST CENTER GRAY	8-97423-657-1	01	1	1509-	●	●	●
698	16.085 BRACKET; INST BAR SIDE	8-98089-256-1	01	1	1506-1508	●	●
698	16.085 BRACKET; INST BAR SIDE	8-98089-256-1	01	1	1509-	●	●	●
698	16.085 BRACKET; INST BAR SIDE	8-98089-257-1	01	1	1506-1508	●	●
698	16.085 BRACKET; INST BAR SIDE	8-98089-257-1	01	1	1509-	●	●	●
699	16.081 HOOK; INST PANEL GRAY	8-97408-927-0	01	1	1506-1508	●	●
699	16.081 HOOK; INST PANEL GRAY	8-97408-927-0	01	1	1509-	●	●	●
700	16.090 BOLT; HOOK M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1506-1508	●	●
700	16.090 BOLT; HOOK M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●	●	●
703	16.085 SCREW; CENTER POCKET EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 16.100 T25 L=10 HEXALOBULAR	8-98058-632-0	04	1	1506-1508	●
703	16.085 SCREW; CENTER POCKET EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 16.100 T25 L=10 HEXALOBULAR	8-98058-632-0	04	1	1509-	●
703	16.085 SCREW; CENTER POCKET EXC. TACHOGRAPH 140KM/H<SM8>,TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 16.100 T25 L=10 HEXALOBULAR	8-98058-632-0	04	1	1509-		●
703	16.085 SCREW; CENTER POCKET 16.100 T25 L=10 HEXALOBULAR	8-98058-632-0	04	1	1509-			●
704	16.085 BRACKET; CENTER POCKET (B)	8-97585-616-2	02	1	1506-1508	●	●
704	16.085 BRACKET; CENTER POCKET (B)	8-97585-616-2	02	1	1509-	●	●	●
704	16.085 BRACKET; CENTER POCKET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98107-549-0	02	1	1506-	●	●
704	16.085 BRACKET; CENTER POCKET EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (A)	8-97585-618-2	02	1	1506-1508	●
704	16.085 BRACKET; CENTER POCKET EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> (A)	8-97585-618-2	02	1	1509-	●	●
704	16.085 BRACKET; CENTER POCKET (A)	8-97585-618-2	02	1	1509-			●
705	16.100 SCREW; BRACKET CENTER POCKET 09.647 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1506-1508	●	●
705	16.100 SCREW; BRACKET CENTER POCKET EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.647 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1506-1508	●
705	16.100 SCREW; BRACKET CENTER POCKET 09.647 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1509-	●	●	●
705	16.100 SCREW; BRACKET CENTER POCKET EXC. TACHOGRAPH DIGITAL EEC REGULATIONS<8PM> 09.647 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1509-	●	●
705	16.100 SCREW; BRACKET CENTER POCKET 09.647 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	1509-			●
705	16.100 SCREW; BRACKET CENTER POCKET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	01	1	1506-	●	●
718	16.100 SEAL; COVER 5X30	8-98176-199-0	01	1	1506-1508	●	●
718	16.100 SEAL; COVER 5X30	8-98176-199-0	01	1	1509-	●	●	●
718	16.100 SEAL; COVER 8X80	8-98200-040-0	01	1	1506-1508	●	●
718	16.100 SEAL; COVER 8X80	8-98200-040-0	01	1	1509-	●	●	●
718	16.100 SEAL; COVER 4X35	8-98200-041-0	01	1	1506-1508	●	●
718	16.100 SEAL; COVER 4X35	8-98200-041-0	01	1	1509-	●	●	●
724	16.085 INSULATOR; INST PANEL	8-98200-042-0	01	1	1506-1508	●	●
724	16.085 INSULATOR; INST PANEL	8-98200-042-0	01	1	1509-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
