7-10 — CAUTION PLATE AND LABEL (#162409) — 83 parça
çizim 479803
9 48 2 96 135 96
BalonParca AdiParca NoAdetTipApplied Date A B C
2 03.680 LABEL; FUEL CAUTION
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> 		8-98083-876-0 01 1 1506- ● ●
2 03.680 LABEL; FUEL CAUTION
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> 08.808 		8-98036-252-0 01 1 1506- ● ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCN ENG(RDQ) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) RUSSIA EQUIPMENT(B12) SPEED LIMITER 90KM(NMJ) EURO5B+ SPECIFICATION(NT5) G.V.W. 7.5-8.0TON(RPY) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98323-166-0 01 1 1509- ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 39/7(GV1) FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) TURKEY EQUIPMENT(B11) SPEED LIMITER 90KM(NMJ) EURO6 SPECIFICATION(NT6) G.V.W. 7.5-8.0TON(RPY) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98301-223-0 01 1 1509- ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) TURKEY EQUIPMENT(B11) SPEED LIMITER 90KM(NMJ) EURO6 SPECIFICATION(NT6) G.V.W. 7.5-8.0TON(RPY) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98301-211-0 01 1 1509- ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 39/7(GV1) SPEED LIMITER 90KM(NMJ) 		8-98301-222-0 01 1 1506-1508 ●
9 08.808 PLATE; NAME,SPD RANGE
4JJ1-TCS ENG(LFB) FINAL GEAR RATIO 39/7(GV1) FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) TURKEY EQUIPMENT(B11) SPEED LIMITER 90KM(NMJ) EURO6 SPECIFICATION(NT6) G.V.W. 7.5-8.0TON(RPY) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98301-222-0 01 1 1509- ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) SPEED LIMITER 90KM(NMJ) 		8-98301-210-0 01 1 1506-1508 ●
9 08.808 PLATE; NAME,SPD RANGE
4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) TURKEY EQUIPMENT(B11) SPEED LIMITER 90KM(NMJ) EURO6 SPECIFICATION(NT6) G.V.W. 7.5-8.0TON(RPY) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98301-210-0 01 1 1509- ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98091-102-0 01 1 1509-1511 ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) 		8-98091-102-0 01 1 1512- ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98091-102-0 01 1 1512- ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CAUTION SPANISH<YN1> 		8-98090-262-0 01 1 1509-1511 ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) SMOOTHER-EX(TYPE2)(8NS) EXC. CAUTION SPANISH<YN1> 		8-98090-262-0 01 1 1512- ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CAUTION SPANISH<YN1> 		8-98090-262-0 01 1 1512- ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) 		8-94313-054-0 01 1 1506-1506 ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) 		8-94313-054-0 01 1 1507-1508 ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) 		8-94313-054-0 01 1 1509-1511 ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94313-054-0 01 1 1509-1511 ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94313-054-0 01 1 1512- ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) 		8-94313-054-0 01 1 1512- ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 1506-1506 ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 1507-1508 ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 1509-1511 ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 1509-1511 ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 1512- ● ●
48 08.808 PLATE; CAUTION,PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 1512- ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> (A) 		8-98036-112-0 01 1 1506- ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB) CAUTION SPANISH<YN1> (A) 		8-98036-112-0 01 1 1506- ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> (B) 		8-98036-733-0 01 1 1506- ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB) CAUTION SPANISH<YN1> (B) 		8-98036-733-0 01 1 1506- ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> (A) 		8-98036-111-1 01 1 1506- ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB) EXC. CAUTION SPANISH<YN1> (A) 		8-98036-111-1 01 1 1506- ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> (B) 		8-98036-732-0 01 1 1506- ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCS ENG(LFB) EXC. CAUTION SPANISH<YN1> (B) 		8-98036-732-0 01 1 1506- ●
135 08.808 PLATE; CAUTION,ENGINE
EGR COOLER LH POSITION<KCC> 		8-98308-088-0 01 1 1506- ●

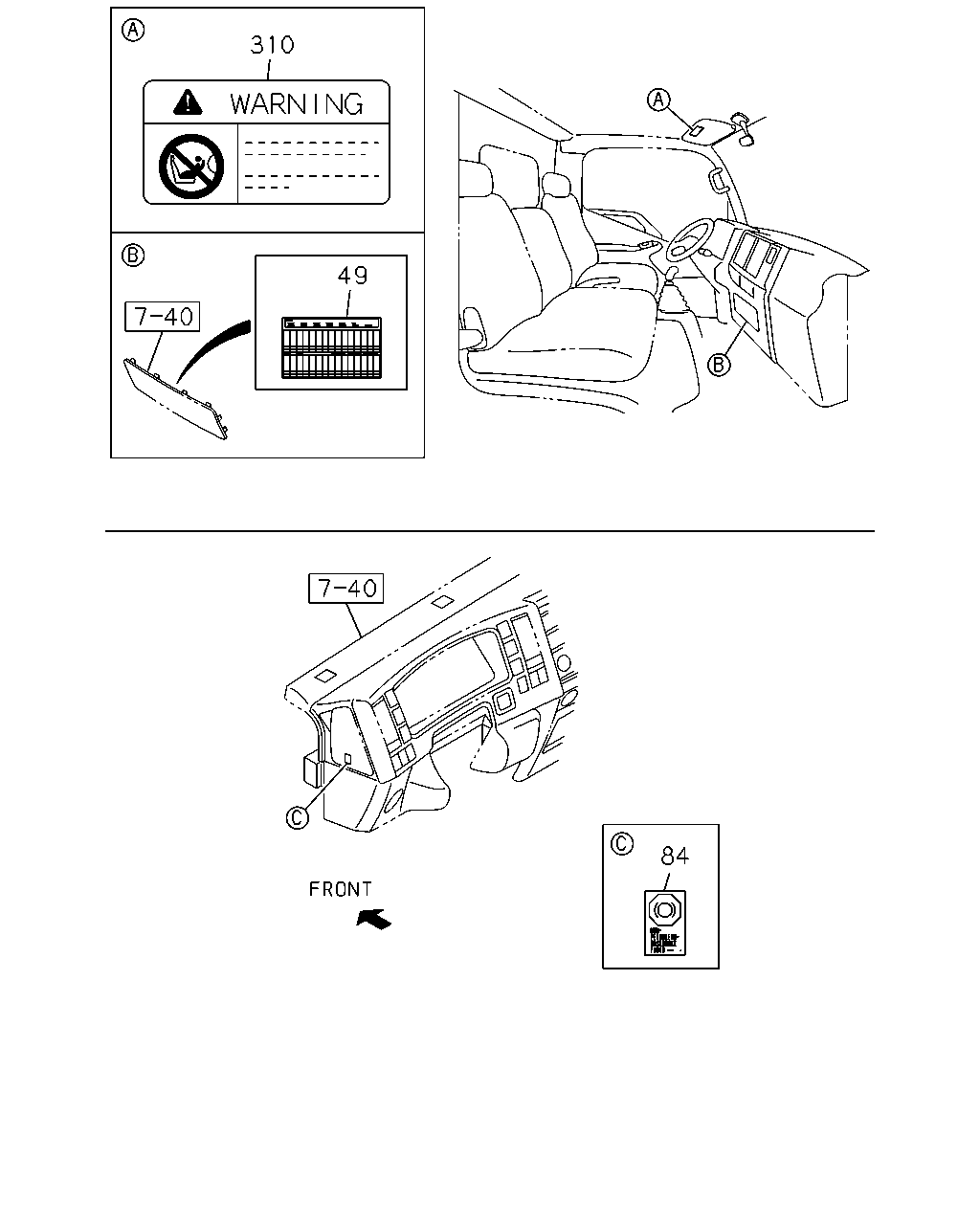

çizim 479875
84 49 310
BalonParca AdiParca NoAdetTipApplied Date A B C
49 08.808 PLATE; CAUTION,FUSE BOX 8-98090-175-0 01 1 1506-1508 ● ●
49 08.808 PLATE; CAUTION,FUSE BOX 8-98090-175-0 01 1 1509- ● ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID 8-98022-836-1 01 1 1506-1508 ● ●
84 08.808 PLATE; CAUTION,BRAKE FLUID 8-98022-836-1 01 1 1509- ●
84 08.808 PLATE; CAUTION,BRAKE FLUID
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 		8-98022-836-1 01 1 1509- ●
310 08.808 LABEL; WARNING,SRS
AIR BAG DRIVER & PASSENGER<AK5> 		8-98080-839-0 01 1 1506- ● ●

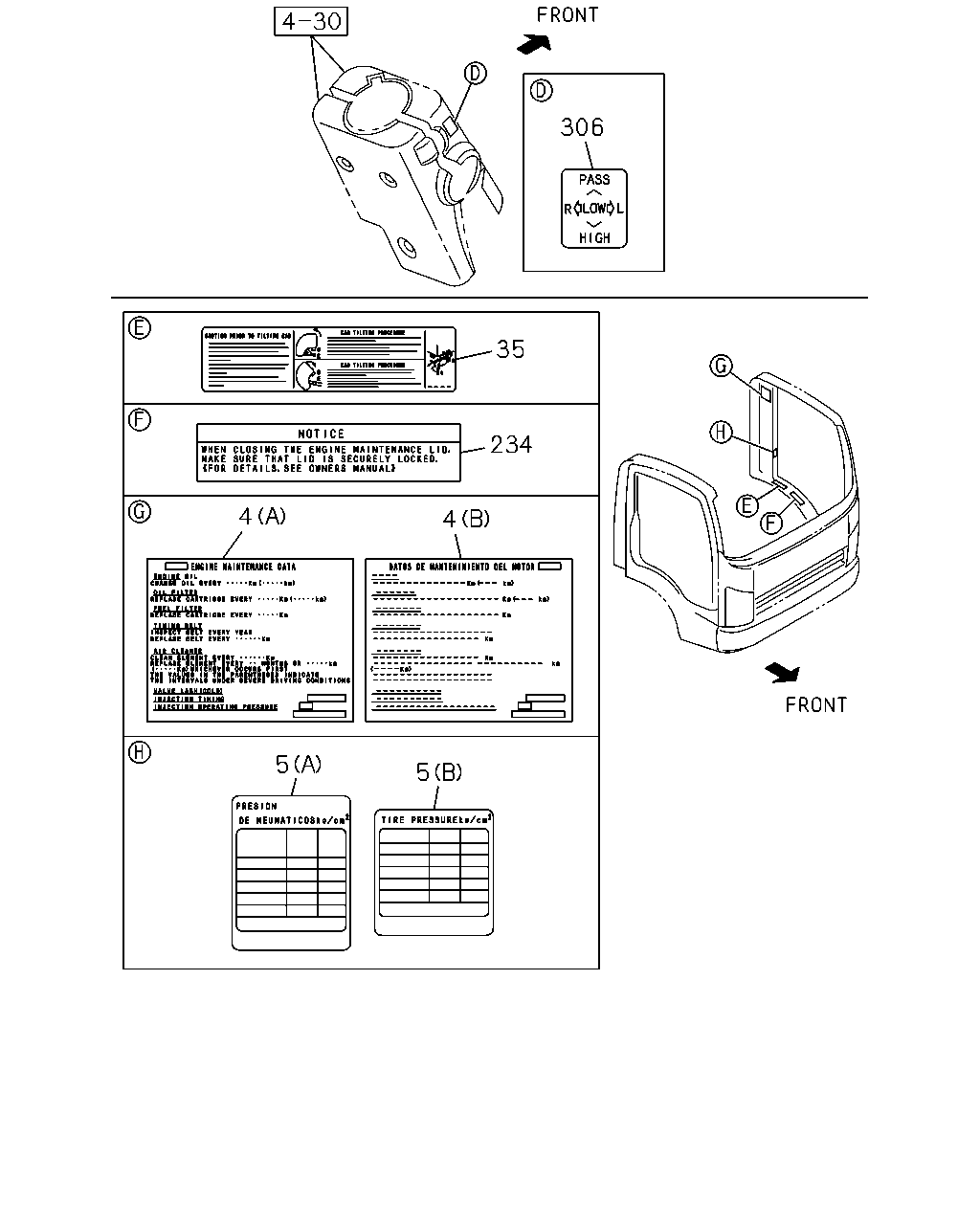

çizim 479985
5 5 4 4 234 35 306
BalonParca AdiParca NoAdetTipApplied Date A B C
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) CAUTION SPANISH<YN1> (B) 		8-98013-424-0 01 1 1509- ●
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCS ENG(RJS) CAUTION SPANISH<YN1> (B) 		8-98013-424-0 01 1 1509- ●
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) EXC. CAUTION SPANISH<YN1> (A) 		8-98013-423-0 01 1 1509- ●
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCS ENG(RJS) EXC. CAUTION SPANISH<YN1> (A) 		8-98013-423-0 01 1 1509- ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> (B) 		8-98030-803-1 01 1 1506-1508 ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCS ENG(LFB) CAUTION SPANISH<YN1> (B) 		8-98030-803-1 01 1 1506-1508 ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> (B) 		8-98030-803-1 01 1 1509- ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCS ENG(LFB) TURKEY EQUIPMENT(B11) EURO6 SPECIFICATION(NT6) CAUTION SPANISH<YN1> (B) 		8-98030-803-1 01 1 1509- ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> (A) 		8-98030-757-0 01 1 1506-1508 ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCS ENG(LFB) EXC. CAUTION SPANISH<YN1> (A) 		8-98030-757-0 01 1 1506-1508 ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> (A) 		8-98030-757-0 01 1 1509- ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCS ENG(LFB) TURKEY EQUIPMENT(B11) EURO6 SPECIFICATION(NT6) EXC. CAUTION SPANISH<YN1> (A) 		8-98030-757-0 01 1 1509- ●
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCS ENG(RJS) CAUTION SPANISH<YN1> (B) 		8-98207-330-0 01 1 1506-1508 ●
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCS ENG(RJS) CAUTION SPANISH<YN1> (B) 		8-98319-672-0 01 1 1509-1509 ●
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) CAUTION SPANISH<YN1> (B) 		8-98319-672-0 01 1 1509- ●
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCS ENG(RJS) EXC. CAUTION SPANISH<YN1> (A) 		8-98207-329-0 01 1 1506-1508 ●
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCS ENG(RJS) EXC. CAUTION SPANISH<YN1> (A) 		8-98319-671-0 01 1 1509-1509 ●
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) EXC. CAUTION SPANISH<YN1> (A) 		8-98319-671-0 01 1 1509- ●
5 05.880 LABEL; TIRE AIR PRESSURE
CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 1506-1508 ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 1509- ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 1509- ●
5 05.880 LABEL; TIRE AIR PRESSURE
EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 1506-1508 ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 1509- ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 1509- ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> 		8-98070-512-0 01 1 1506-1508 ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> 		8-98070-512-0 01 1 1509- ● ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> 		8-98067-809-0 01 1 1506-1508 ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> 		8-98067-809-0 01 1 1509- ● ● ●
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> INSPECTION ENGINE COVER<8GA> 		8-98071-067-0 01 1 1506-1508 ● ●
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> INSPECTION ENGINE COVER<8GA> 		8-98071-067-0 01 1 1509- ● ● ●
234 08.808 PLATE; CAUTION,ENG COVER
INSPECTION ENGINE COVER<8GA> EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 1506-1508 ● ●
234 08.808 PLATE; CAUTION,ENG COVER
INSPECTION ENGINE COVER<8GA> EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 1509- ● ● ●
306 08.808 LABEL; BEAM & PASS 8-98070-239-0 01 1 1506-1508 ● ●
306 08.808 LABEL; BEAM & PASS 8-98070-239-0 01 1 1509- ● ● ●
çizim 480213
274 44 318
BalonParca AdiParca NoAdetTipApplied Date A B C
44 08.155 PANEL; CAUTION PLATE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 		8-98231-935-0 01 1 1506-1508 ●
44 08.155 PANEL; CAUTION PLATE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) 		8-98231-935-0 01 1 1509- ●
274 08.808 PLATE; CAUTION,DPD
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) 03.706 		8-98145-388-0 01 1 1506-1508 ●
274 08.808 PLATE; CAUTION,DPD
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD & SCR(JCQ) EURO6 SPECIFICATION(NT6) 03.706 		8-98145-388-0 01 1 1509- ●
318 08.155 PLATE; CAUTION,DEF
03.609 		8-98158-131-0 01 1 1506-1507 ●
318 08.155 PLATE; CAUTION,DEF
03.609 		8-98158-131-0 01 1 1508-1508 ●
318 08.155 PLATE; CAUTION,DEF
EURO6 SPECIFICATION(NT6) 03.609 		8-98158-131-0 01 1 1509- ●
