6-90 — REAR BUMPER (#162407) — 103 parça

1 315 11 306 2 2 306 12 315 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.070 BUMPER; RR EXC. FRAME STRAIGHT TYPE<7KJ> STAMP D8P	8-98088-674-0	01	1	1506-1508	●	●
1	07.070 BUMPER; RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TURKEY EQUIPMENT(B11) WIDE ALUMINUM REAR BUMPER<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> STAMP D8P	8-98088-674-0	01	1	1509-	●	●
1	07.070 BUMPER; RR FRAME STRAIGHT TYPE<7KJ> STAMP D8Q	8-98088-675-0	01	1	1506-1508		●
1	07.070 BUMPER; RR WIDE ALUMINUM REAR BUMPER<7HZ> FRAME STRAIGHT TYPE<7KJ> STAMP D8Q	8-98088-675-0	01	1	1509-		●
2	07.874 BOLT; BACK BAR (A) M14X30	0-20851-430-0	08	1	1506-1507	●	●
2	07.874 BOLT; BACK BAR (A) M14X30	0-20851-430-0	08	1	1508-1508	●
2	07.874 BOLT; BACK BAR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) M14X30	0-20851-430-0	08	1	1508-1508		●
2	07.874 BOLT; BACK BAR EXC. FRAME STRAIGHT TYPE<7KJ> (A) M14X30	0-20851-430-0	08	1	1508-1508		●
2	07.874 BOLT; BACK BAR (A) M14X30	0-20851-430-0	08	1	1509-	●
2	07.874 BOLT; BACK BAR WIDE ALUMINUM REAR BUMPER<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M14X30	0-20851-430-0	08	1	1509-		●
2	07.874 BOLT; BACK BAR TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) WIDE ALUMINUM REAR BUMPER<7HZ> FRAME STRAIGHT TYPE<7KJ> (A) M14X30	0-20851-430-0	08	1	1509-		●
2	07.874 BOLT; BACK BAR 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	1506-1507	●	●
2	07.874 BOLT; BACK BAR 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	1508-1508	●
2	07.874 BOLT; BACK BAR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	1508-1508		●
2	07.874 BOLT; BACK BAR EXC. FRAME STRAIGHT TYPE<7KJ> 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	1508-1508		●
2	07.874 BOLT; BACK BAR 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	1509-	●
2	07.874 BOLT; BACK BAR WIDE ALUMINUM REAR BUMPER<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	1509-		●
2	07.874 BOLT; BACK BAR TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) WIDE ALUMINUM REAR BUMPER<7HZ> FRAME STRAIGHT TYPE<7KJ> 07.395 (B) M12X30 FLANGE	0-28651-230-0	08	1	1509-		●
11	07.829 CAP; RR BUMPER	8-98070-331-0	02	1	1506-1508	●	●
11	07.829 CAP; RR BUMPER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W)	8-98070-331-0	02	1	1509-	●
11	07.829 CAP; RR BUMPER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) WIDE ALUMINUM REAR BUMPER<7HZ> FRAME STRAIGHT TYPE<7KJ>	8-98070-331-0	02	1	1509-		●
11	07.829 CAP; RR BUMPER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TURKEY EQUIPMENT(B11) WIDE ALUMINUM REAR BUMPER<7HZ>	8-98070-331-0	02	1	1509-		●
11	07.829 CAP; RR BUMPER WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) WIDE ALUMINUM REAR BUMPER<7HZ> FRAME STRAIGHT TYPE<7KJ>	8-98070-331-0	02	1	1509-		●
12	07.833 NUT; BRKT 00.429 M14 FLANGE	0-91180-214-0	08	1	1506-1507	●	●
12	07.833 NUT; BRKT 00.429 M14 FLANGE	0-91180-214-0	08	1	1508-1508	●
12	07.833 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 00.429 M14 FLANGE	0-91180-214-0	08	1	1508-1508		●
12	07.833 NUT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 00.429 M14 FLANGE	0-91180-214-0	08	1	1508-1508		●
12	07.833 NUT; BRKT 00.429 M14 FLANGE	0-91180-214-0	08	1	1509-	●
12	07.833 NUT; BRKT WIDE ALUMINUM REAR BUMPER<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> 00.429 M14 FLANGE	0-91180-214-0	08	1	1509-		●
12	07.833 NUT; BRKT TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) WIDE ALUMINUM REAR BUMPER<7HZ> FRAME STRAIGHT TYPE<7KJ> 00.429 M14 FLANGE	0-91180-214-0	08	1	1509-		●
306	07.836 BAR; BACK,RR STAMP IA3	8-98039-408-0	01	1	1506-1507	●	●
306	07.836 BAR; BACK,RR STAMP IA3	8-98039-408-0	01	1	1508-1508	●
306	07.836 BAR; BACK,RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> STAMP IA3	8-98039-408-0	01	1	1508-1508		●
306	07.836 BAR; BACK,RR EXC. FRAME STRAIGHT TYPE<7KJ> STAMP IA3	8-98039-408-0	01	1	1508-1508		●
306	07.836 BAR; BACK,RR STAMP IA3	8-98039-408-0	01	1	1509-	●
306	07.836 BAR; BACK,RR WIDE ALUMINUM REAR BUMPER<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> STAMP IA3	8-98039-408-0	01	1	1509-		●
306	07.836 BAR; BACK,RR TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) WIDE ALUMINUM REAR BUMPER<7HZ> FRAME STRAIGHT TYPE<7KJ> STAMP IA3	8-98039-408-0	01	1	1509-		●
306	07.836 BAR; BACK,RR STAMP IA3	8-98039-409-0	01	1	1506-1508	●	●
306	07.836 BAR; BACK,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) STAMP IA3	8-98039-409-0	01	1	1509-	●
306	07.836 BAR; BACK,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) WIDE ALUMINUM REAR BUMPER<7HZ> FRAME STRAIGHT TYPE<7KJ> STAMP IA3	8-98039-409-0	01	1	1509-		●
306	07.836 BAR; BACK,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TURKEY EQUIPMENT(B11) WIDE ALUMINUM REAR BUMPER<7HZ> STAMP IA3	8-98039-409-0	01	1	1509-		●
306	07.836 BAR; BACK,RR WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) WIDE ALUMINUM REAR BUMPER<7HZ> FRAME STRAIGHT TYPE<7KJ> STAMP IA3	8-98039-409-0	01	1	1509-		●
315	07.829 RIVET; CAP	1-71290-062-0	04	1	1506-1508	●	●
315	07.829 RIVET; CAP WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W)	1-71290-062-0	04	1	1509-	●
315	07.829 RIVET; CAP WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) WIDE ALUMINUM REAR BUMPER<7HZ> FRAME STRAIGHT TYPE<7KJ>	1-71290-062-0	04	1	1509-		●
315	07.829 RIVET; CAP WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TURKEY EQUIPMENT(B11) WIDE ALUMINUM REAR BUMPER<7HZ>	1-71290-062-0	04	1	1509-		●
315	07.829 RIVET; CAP WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) WIDE ALUMINUM REAR BUMPER<7HZ> FRAME STRAIGHT TYPE<7KJ>	1-71290-062-0	04	1	1509-		●

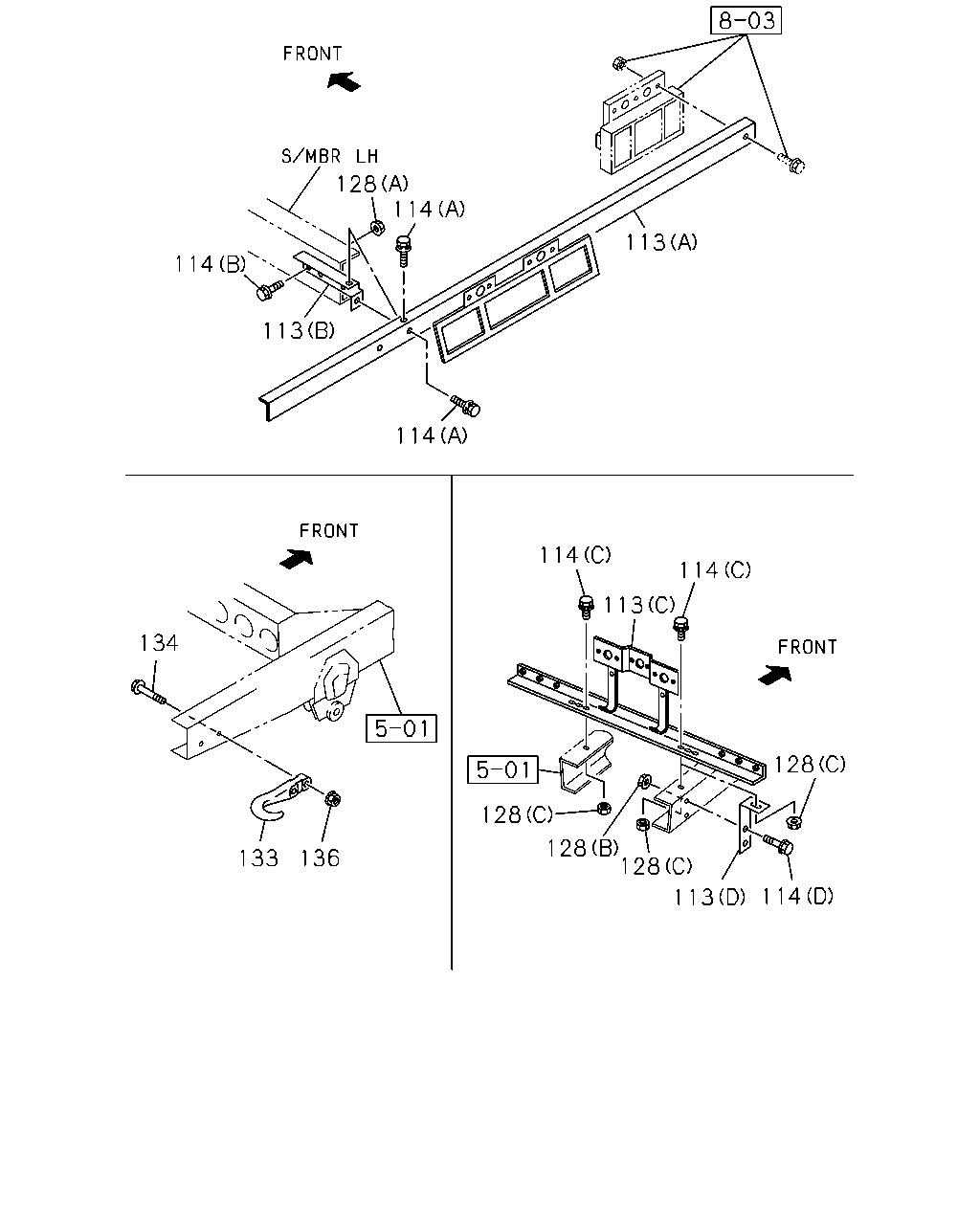

114 128 113 128 128 128 114 113 114 136 133 134 113 114 114 128 114 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
113	07.800 BRACKET; LICENSE PLATE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (C)	8-98029-390-3	01	1	1509-		●
113	07.800 BRACKET; LICENSE PLATE (C)	8-98029-390-3	01	1	1509-			●
113	07.800 BRACKET; LICENSE PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (D)	8-98091-681-0	02	1	1509-		●
113	07.800 BRACKET; LICENSE PLATE (D)	8-98091-681-0	02	1	1509-			●
113	07.800 BRACKET; LICENSE PLATE O/SIDE MIRROR RR VIEW LONG ARM<DH2> (A)	8-98079-732-0	01	1	1506-1508	●
113	07.800 BRACKET; LICENSE PLATE O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-732-0	01	1	1506-1508		●
113	07.800 BRACKET; LICENSE PLATE O/SIDE MIRROR RR VIEW LONG ARM<DH2> (A)	8-98079-732-0	01	1	1509-	●
113	07.800 BRACKET; LICENSE PLATE TURKEY EQUIPMENT(B11) O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-732-0	01	1	1509-		●
113	07.800 BRACKET; LICENSE PLATE DOOR MIRROR<6VE> (A)	8-98079-146-0	01	1	1506-1508	●
113	07.800 BRACKET; LICENSE PLATE DOOR MIRROR<6VE> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-146-0	01	1	1506-1508		●
113	07.800 BRACKET; LICENSE PLATE DOOR MIRROR<6VE> (A)	8-98079-146-0	01	1	1509-	●
113	07.800 BRACKET; LICENSE PLATE TURKEY EQUIPMENT(B11) DOOR MIRROR<6VE> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-146-0	01	1	1509-		●
113	07.800 BRACKET; LICENSE PLATE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98079-147-0	01	1	1506-1508	●
113	07.800 BRACKET; LICENSE PLATE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-147-0	01	1	1506-1508		●
113	07.800 BRACKET; LICENSE PLATE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98079-147-0	01	1	1509-	●
113	07.800 BRACKET; LICENSE PLATE TURKEY EQUIPMENT(B11) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-147-0	01	1	1509-		●
113	07.800 BRACKET; LICENSE PLATE (B)	8-98100-014-0	01	1	1506-1508	●	●
113	07.800 BRACKET; LICENSE PLATE (B)	8-98100-014-0	01	1	1509-	●
113	07.800 BRACKET; LICENSE PLATE TURKEY EQUIPMENT(B11) (B)	8-98100-014-0	01	1	1509-		●
113	07.800 BRACKET; LICENSE PLATE (B)	8-98100-015-0	01	1	1506-1508	●	●
113	07.800 BRACKET; LICENSE PLATE (B)	8-98100-015-0	01	1	1509-	●
113	07.800 BRACKET; LICENSE PLATE TURKEY EQUIPMENT(B11) (B)	8-98100-015-0	01	1	1509-		●
113	07.800 BRACKET; LICENSE PLATE O/SIDE MIRROR RR VIEW LONG ARM<DH2> FRAME STRAIGHT TYPE<7KJ> (A)	8-98070-523-0	01	1	1506-1508		●
113	07.800 BRACKET; LICENSE PLATE TURKEY EQUIPMENT(B11) O/SIDE MIRROR RR VIEW LONG ARM<DH2> FRAME STRAIGHT TYPE<7KJ> (A)	8-98070-523-0	01	1	1509-		●
113	07.800 BRACKET; LICENSE PLATE DOOR MIRROR<6VE> FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-733-0	01	1	1506-1508		●
113	07.800 BRACKET; LICENSE PLATE TURKEY EQUIPMENT(B11) DOOR MIRROR<6VE> FRAME STRAIGHT TYPE<7KJ> (A)	8-98079-733-0	01	1	1509-		●
113	07.800 BRACKET; LICENSE PLATE FRAME STRAIGHT TYPE<7KJ> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98079-734-0	01	1	1506-1508		●
113	07.800 BRACKET; LICENSE PLATE TURKEY EQUIPMENT(B11) FRAME STRAIGHT TYPE<7KJ> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A)	8-98079-734-0	01	1	1509-		●
114	07.800 BOLT; BRKT,LICENSE PLATE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 00.685 (C) M8X40 FLANGE	0-28650-840-0	02	1	1509-		●
114	07.800 BOLT; BRKT,LICENSE PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.685 (C) M8X40 FLANGE	0-28650-840-0	02	1	1509-		●
114	07.800 BOLT; BRKT,LICENSE PLATE 00.685 (C) M8X40 FLANGE	0-28650-840-0	02	1	1509-			●
114	07.800 BOLT; BRKT,LICENSE PLATE 00.685 (C) M8X40 FLANGE	0-28650-840-0	02	1	1509-			●
114	07.800 BOLT; BRKT,LICENSE PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.833 (D) M10X25 FLANGE	0-28661-025-0	04	1	1509-		●
114	07.800 BOLT; BRKT,LICENSE PLATE 07.833 (D) M10X25 FLANGE	0-28661-025-0	04	1	1509-			●
114	07.800 BOLT; BRKT,LICENSE PLATE 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	1506-1508	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	1509-	●
114	07.800 BOLT; BRKT,LICENSE PLATE TURKEY EQUIPMENT(B11) 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	1509-		●
114	07.800 BOLT; BRKT,LICENSE PLATE 07.874 (B) M14X30	0-20851-430-0	04	1	1506-1508	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE 07.874 (B) M14X30	0-20851-430-0	04	1	1509-	●
114	07.800 BOLT; BRKT,LICENSE PLATE TURKEY EQUIPMENT(B11) 07.874 (B) M14X30	0-20851-430-0	04	1	1509-		●
128	02.662 NUT; CROSS PLATE TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	1509-		●
128	02.662 NUT; CROSS PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	1509-		●
128	02.662 NUT; CROSS PLATE 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	1509-			●
128	02.662 NUT; CROSS PLATE 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	1509-			●
128	02.662 NUT; CROSS PLATE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1509-		●
128	02.662 NUT; CROSS PLATE 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1509-			●
128	02.662 NUT; CROSS PLATE 00.429 (A) M14 FLANGE	0-91180-214-0	04	1	1506-1508	●	●
128	02.662 NUT; CROSS PLATE 00.429 (A) M14 FLANGE	0-91180-214-0	04	1	1509-	●
128	02.662 NUT; CROSS PLATE TURKEY EQUIPMENT(B11) 00.429 (A) M14 FLANGE	0-91180-214-0	04	1	1509-		●
133	07.112 HOOK TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FRAME STRAIGHT TYPE<7KJ> 07.068	8-94249-270-2	01	1	1509-		●
133	07.112 HOOK 07.068	8-94249-270-2	01	1	1509-			●
134	07.068 BOLT; HOOK TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) IDENTIFICATION LABEL FOR KD<6UT> FRAME STRAIGHT TYPE<7KJ> 07.039 M14X50	0-10856-450-0	02	1	1509-		●
134	07.068 BOLT; HOOK 07.039 M14X50	0-10856-450-0	02	1	1509-			●
134	07.068 BOLT; HOOK TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FRAME STRAIGHT TYPE<7KJ> EXC. IDENTIFICATION LABEL FOR KD<6UT> M14X60	0-10861-460-0	02	1	1509-		●
136	07.068 NUT; HOOK TAIWAN EQUIPMENT(B04),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) FRAME STRAIGHT TYPE<7KJ> 00.429 M14 FLANGE	0-91180-214-0	02	1	1509-		●
136	07.068 NUT; HOOK 00.429 M14 FLANGE	0-91180-214-0	02	1	1509-			●
