◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#162404) — 47 parça

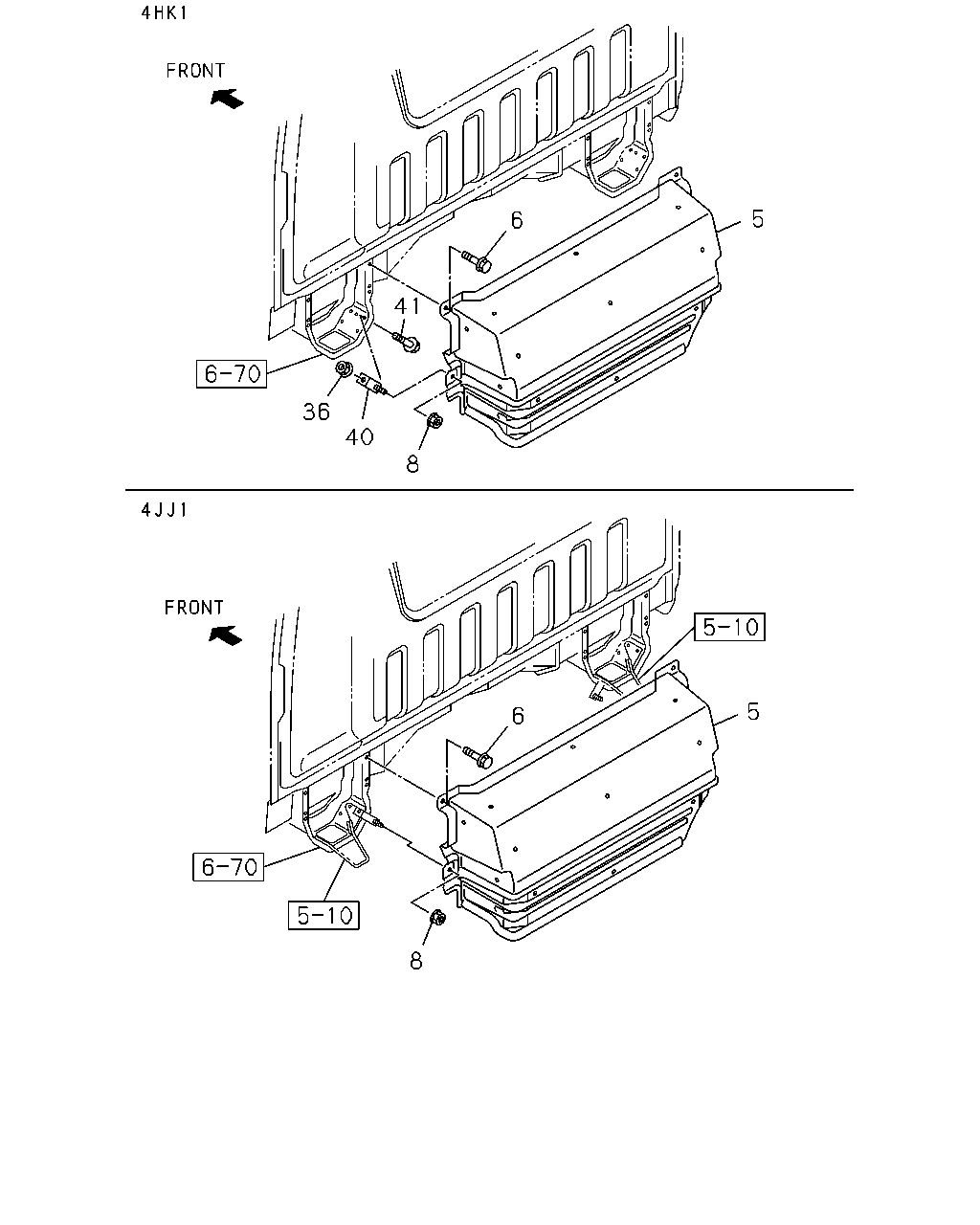

çizim 479758
5 6 41 8 40 36 5 6 8
BalonParca AdiParca NoAdetTipApplied Date A B C
5 16.587 PANEL; CAB BACK
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) 		8-98243-354-1 01 1 1506-1508 ●
5 16.587 PANEL; CAB BACK
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) EURO6 SPECIFICATION(NT6) NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98243-354-1 01 1 1509- ●
5 16.587 PANEL; CAB BACK
4HK1-TCS ENG(RJS) 		8-98011-595-0 01 1 1506-1508 ●
5 16.587 PANEL; CAB BACK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98011-595-0 01 1 1509- ●
6 16.587 BOLT; BACK PANEL
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) 08.155 M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 1506-1508 ●
6 16.587 BOLT; BACK PANEL
4HK1-TCS ENG(RJS) 08.155 M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 1506-1508 ●
6 16.587 BOLT; BACK PANEL
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) EURO6 SPECIFICATION(NT6) NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.155 M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 1509- ●
6 16.587 BOLT; BACK PANEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.155 M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 1509- ●
8 16.587 NUT; BACK PANEL
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1506-1508 ●
8 16.587 NUT; BACK PANEL
4HK1-TCS ENG(RJS) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1506-1508 ●
8 16.587 NUT; BACK PANEL
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) EURO6 SPECIFICATION(NT6) NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1509- ●
8 16.587 NUT; BACK PANEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1509- ●
36 16.587 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1509- ●
40 16.587 BRACKET; BACK PANEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 		8-97322-264-0 02 1 1509- ●
41 16.587 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1509- ●

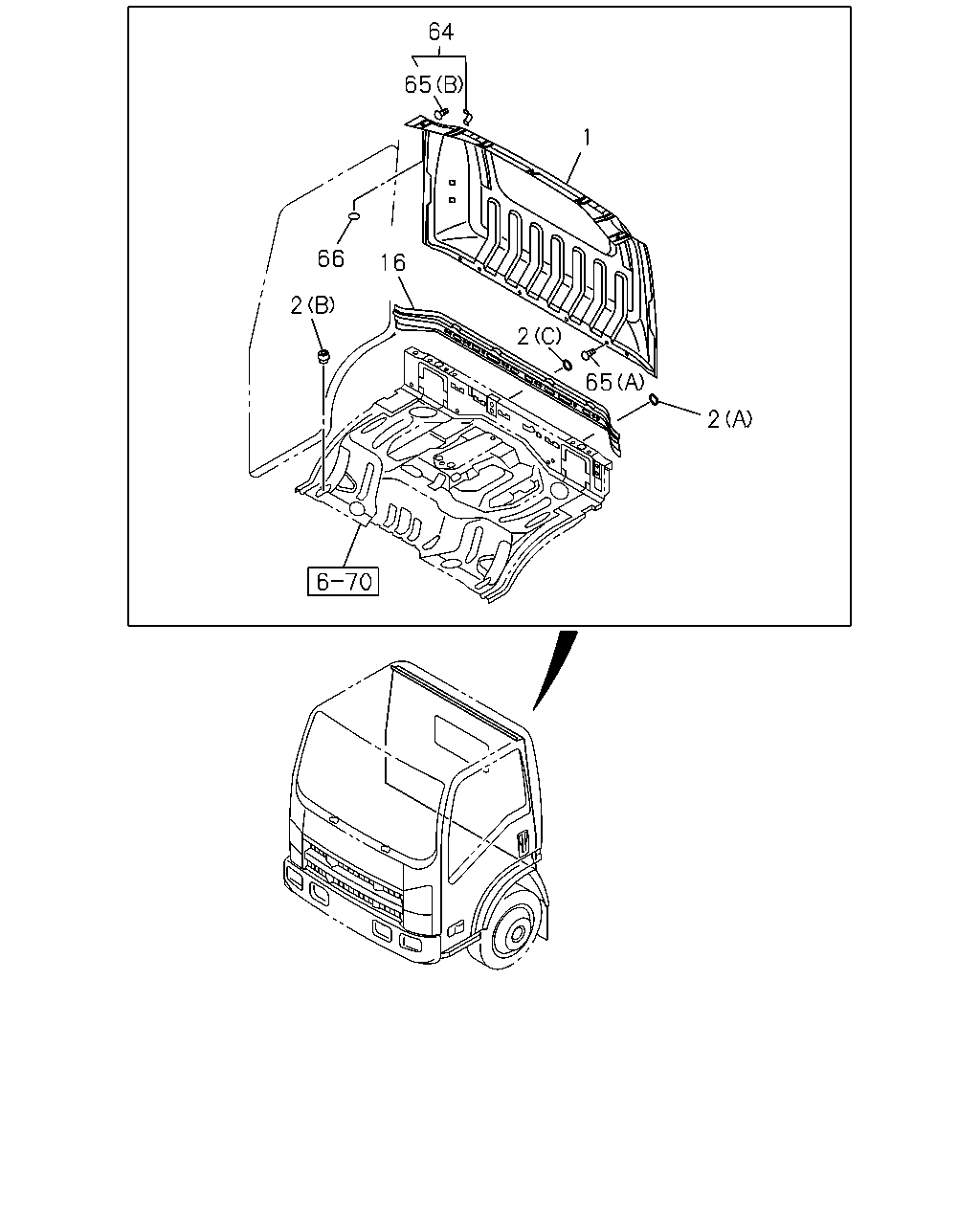

çizim 480466
64 65 16 66 2 2 2 65 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.587 PANEL; BACK OUTER
GLASS BACK LIGHT DELETE<8CA> 		8-97584-311-4 01 1 1509- ● ●
1 16.587 PANEL; BACK OUTER 8-97584-304-3 01 1 1506-1508 ● ●
1 16.587 PANEL; BACK OUTER
EXC. GLASS BACK LIGHT DELETE<8CA> 		8-97584-304-3 01 1 1509- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=12.1 		8-97898-423-0 04 1 1506-1508 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=12.1 		8-97898-423-0 04 1 1509- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1506-1507 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1508-1508 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1509- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1506-1507 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1508-1508 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1509- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 1506-1508 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 1509- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL 8-97584-608-2 01 1 1506-1508 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL 8-97584-608-2 01 1 1509- ● ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 		8-97584-611-1 01 1 1506-1508 ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 		8-97584-611-1 01 1 1509- ● ● ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 04 1 1506- ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 01 1 1506-1508 ● ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 01 1 1509- ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1506-1508 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1509- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1509- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 05 1 1506-1508 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 05 1 1509- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 05 1 1509- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1506-1508 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1509- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLO R DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BOD Y COLOR WHEATLAND YELLOW(812),BODY COLORSAHARA BEIGE(829),BODY COLOR MARINE BLU E(890),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY YELLOW(916),BODY COLOR HIGHWA Y ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BOD Y COLOR TRANS BLUE(999) COAT HOOK<S9M> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1509- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 05 1 1506-1508 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 05 1 1509- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLO R DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BOD Y COLOR WHEATLAND YELLOW(812),BODY COLORSAHARA BEIGE(829),BODY COLOR MARINE BLU E(890),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY YELLOW(916),BODY COLOR HIGHWA Y ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BOD Y COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M>,INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 05 1 1509- ●
