◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#162401) — 18 parça

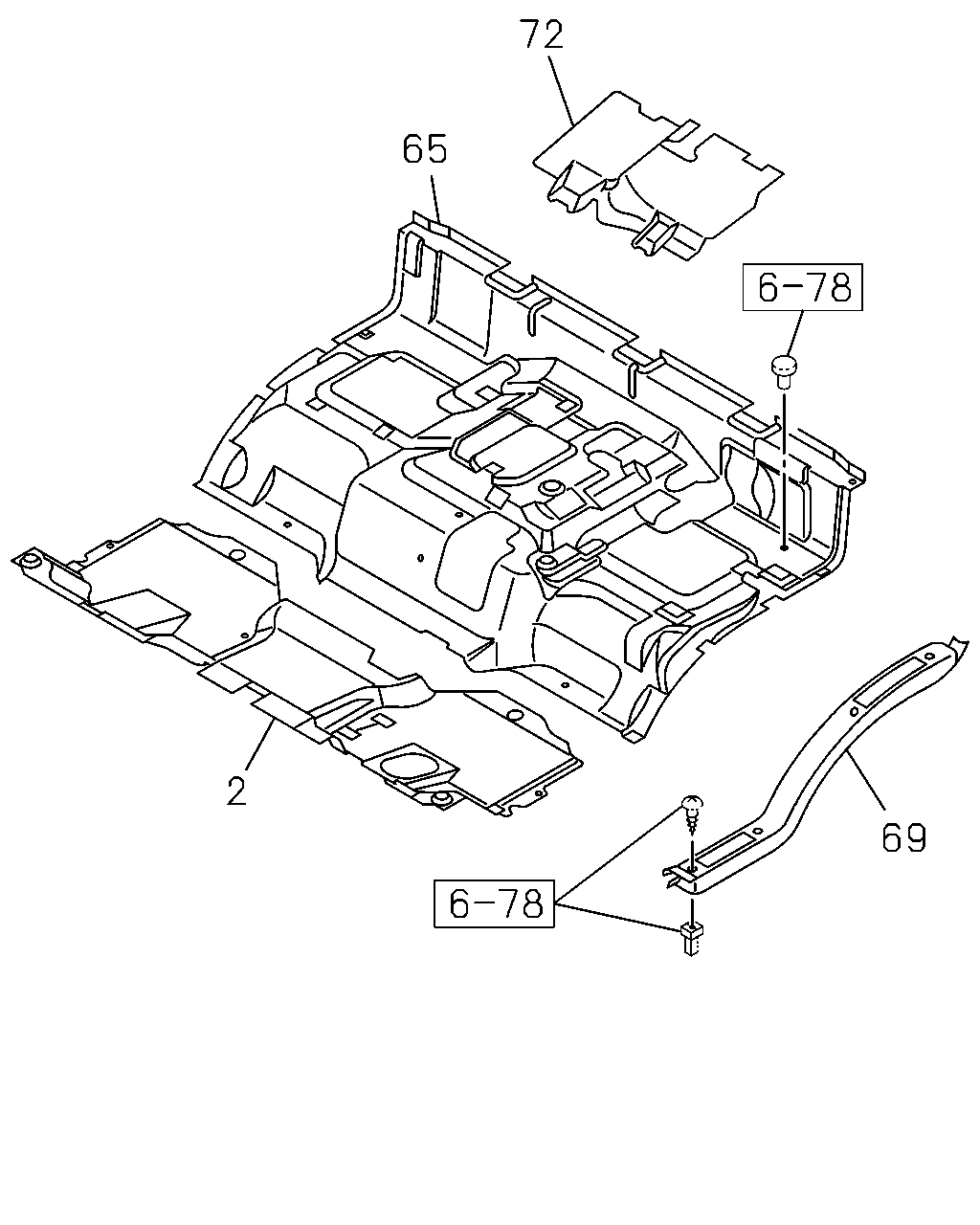

çizim 479669
72 65 69 2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 16.800 MAT; FLOOR
GRAY 		8-97405-979-4 01 1 1506-1508 ● ●
2 16.800 MAT; FLOOR
GRAY 		8-97405-979-4 01 1 1509-1511 ● ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97405-979-4 01 1 1509-1511 ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ),SMOOTHER-EX(TYPE2)(8NS) GRAY 		8-97405-979-4 01 1 1512- ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97405-979-4 01 1 1512- ●
2 16.800 MAT; FLOOR
GRAY 		8-97405-979-4 01 1 1512- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, INSPECTION ENGINE COVER<8GA> GRAY 		8-97425-127-0 01 1 1509- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),INSPECTION ENGINE COVER<8GA> GRAY 		8-97425-127-0 01 1 1509- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97425-127-0 01 1 1509- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97425-131-0 01 1 1506-1508 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97425-131-0 01 1 1509- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97425-131-0 01 1 1509- ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-388-1 01 1 1506-1508 ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-388-1 01 1 1509- ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-389-1 01 1 1506-1508 ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-389-1 01 1 1509- ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY 		8-97417-599-1 01 1 1506-1508 ● ●
72 16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY 		8-97417-599-1 01 1 1509- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
