6-70 — FLOOR PANEL (#162400) — 94 parça

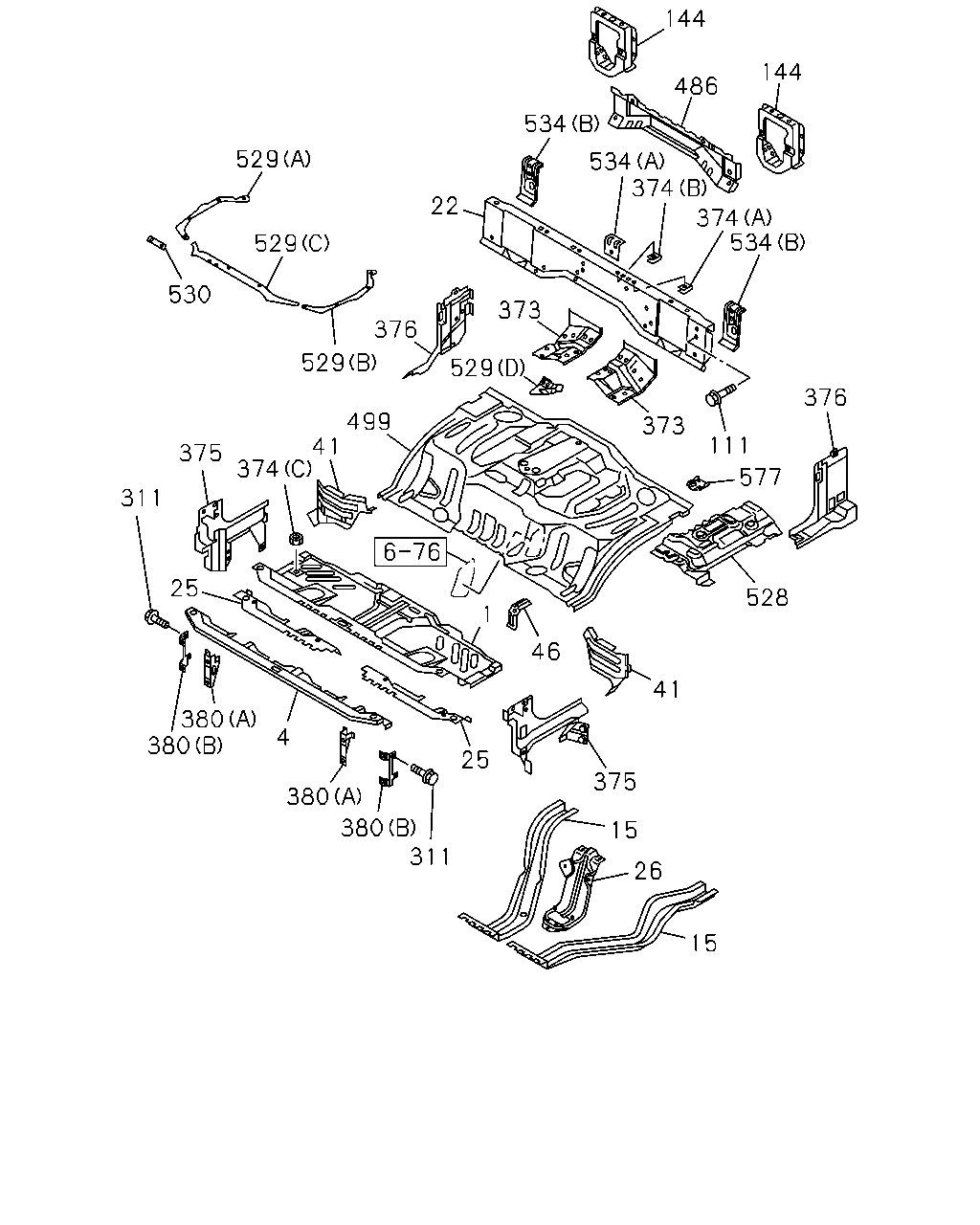

çizim 479784
529 529 530 375 311 374 499 529 376 373 529 373 577 376 534 374 374 534 534 486 144 144 111 528 41 46 41 22 25 380 380 380 380 311 25 375 15 26 15 1 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.545 PANEL; FLOOR 8-97589-407-4 01 1 1506-1508 ● ●
1 16.545 PANEL; FLOOR 8-97589-407-4 01 1 1509- ● ● ●
4 16.545 FRAME; FLOOR,FRT 8-98107-595-0 01 1 1506-1508 ● ●
4 16.545 FRAME; FLOOR,FRT 8-98107-595-0 01 1 1509- ● ● ●
15 16.545 FRAME; UNDER 8-98059-497-1 01 1 1506-1508 ● ●
15 16.545 FRAME; UNDER 8-98059-497-1 01 1 1509- ● ● ●
15 16.545 FRAME; UNDER 8-98059-498-1 01 1 1506-1508 ● ●
15 16.545 FRAME; UNDER 8-98059-498-1 01 1 1509- ● ● ●
22 16.545 FRAME; FLOOR REAR
INSPECTION ENGINE COVER<8GA> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97589-430-4 01 1 1509- ● ●
22 16.545 FRAME; FLOOR REAR
4 WHEEL ANTI LOCK BRAKE<JE5> INSPECTION ENGINE COVER<8GA> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 		8-97589-430-4 01 1 1509- ●
22 16.545 FRAME; FLOOR REAR 8-97589-418-4 01 1 1506-1508 ● ●
22 16.545 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97589-418-4 01 1 1509- ● ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97583-823-0 01 1 1506-1508 ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97583-823-0 01 1 1509- ● ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-98107-587-0 01 1 1506-1508 ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-98107-587-0 01 1 1509- ● ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97589-517-1 01 1 1506-1508 ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97589-517-1 01 1 1509- ● ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-880-1 01 1 1506-1508 ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-880-1 01 1 1509- ● ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-881-1 01 1 1506-1508 ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-881-1 01 1 1509- ● ● ●
46 16.545 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 1506-1508 ● ●
46 16.545 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 1509- ● ● ●
111 16.549 BOLT; PANEL
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506-1508 ● ●
111 16.549 BOLT; PANEL
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ● ●
144 16.545 BRACKET; MTG,RR
INSPECTION ENGINE COVER<8GA> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98112-244-2 02 1 1509- ● ●
144 16.545 BRACKET; MTG,RR
4 WHEEL ANTI LOCK BRAKE<JE5> INSPECTION ENGINE COVER<8GA> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 		8-98112-244-2 02 1 1509- ●
144 16.545 BRACKET; MTG,RR 8-97589-544-2 02 1 1506-1508 ● ●
144 16.545 BRACKET; MTG,RR
MANUAL TILT CAB<RWZ> 		8-97589-544-3 02 1 1509- ● ● ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1506-1508 ● ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1509- ● ● ●
373 16.545 REINFORCEMENT; SEAT BELT 8-98014-525-2 01 1 1506-1508 ● ●
373 16.545 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> 		8-98014-525-2 01 1 1509- ● ● ●
373 16.545 REINFORCEMENT; SEAT BELT 8-98014-526-2 01 1 1506-1508 ● ●
373 16.545 REINFORCEMENT; SEAT BELT
MANUAL TILT CAB<RWZ> 		8-98014-526-2 01 1 1509- ● ● ●
374 16.545 NUT; FLOOR
INSPECTION ENGINE COVER<8GA> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M8 		1-09984-111-0 04 1 1509- ● ●
374 16.545 NUT; FLOOR
4 WHEEL ANTI LOCK BRAKE<JE5> INSPECTION ENGINE COVER<8GA> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) (A) M8 		1-09984-111-0 04 1 1509- ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1506-1508 ● ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1509- ● ● ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 01 1 1506-1508 ● ●
374 16.545 NUT; FLOOR
MANUAL TILT CAB<RWZ> (A) M8 		1-09984-111-0 01 1 1509- ● ● ●
374 16.545 NUT; FLOOR
(C) M8 		9-09114-068-0 03 1 1506- ● ●
375 16.545 CLOSING; PILLAR 8-97583-882-3 01 1 1506-1508 ● ●
375 16.545 CLOSING; PILLAR 8-97583-882-3 01 1 1509- ● ● ●
375 16.545 CLOSING; PILLAR 8-97583-883-2 01 1 1506-1508 ● ●
375 16.545 CLOSING; PILLAR 8-97583-883-2 01 1 1509- ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97583-888-2 01 1 1506-1508 ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97583-888-2 01 1 1509- ● ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97584-618-2 01 1 1506-1508 ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97584-618-2 01 1 1509- ● ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-384-4 01 1 1506-1508 ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-384-4 01 1 1509- ● ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-385-3 01 1 1506-1508 ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-385-3 01 1 1509- ● ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 1506-1508 ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 1509- ● ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 1506-1508 ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 1509- ● ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
INSPECTION ENGINE COVER<8GA> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98030-615-2 01 1 1509- ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
4 WHEEL ANTI LOCK BRAKE<JE5> INSPECTION ENGINE COVER<8GA> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 		8-98030-615-2 01 1 1509- ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-613-2 01 1 1506-1508 ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR
MANUAL TILT CAB<RWZ> 		8-98030-613-2 01 1 1509- ● ● ●
499 16.545 PANEL; FLOOR,RR
INSPECTION ENGINE COVER<8GA> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98207-188-0 01 1 1509- ● ●
499 16.545 PANEL; FLOOR,RR
4 WHEEL ANTI LOCK BRAKE<JE5> INSPECTION ENGINE COVER<8GA> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 		8-98207-188-0 01 1 1509- ●
499 16.545 PANEL; FLOOR,RR 8-98204-799-0 01 1 1506-1508 ● ●
499 16.545 PANEL; FLOOR,RR
MANUAL TILT CAB<RWZ> 		8-98204-799-0 01 1 1509- ● ● ●
528 16.545 REINFORCEMENT; PARKING BRAKE 8-97589-410-2 01 1 1506-1508 ● ●
528 16.545 REINFORCEMENT; PARKING BRAKE
MANUAL TILT CAB<RWZ> 		8-97589-410-2 01 1 1509- ● ● ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97589-467-1 01 1 1509- ● ●
529 16.545 RETAINER; FLOOR PANEL
4 WHEEL ANTI LOCK BRAKE<JE5> INSPECTION ENGINE COVER<8GA> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) (A) 		8-97589-467-1 01 1 1509- ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97589-468-1 01 1 1509- ● ●
529 16.545 RETAINER; FLOOR PANEL
4 WHEEL ANTI LOCK BRAKE<JE5> INSPECTION ENGINE COVER<8GA> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) (B) 		8-97589-468-1 01 1 1509- ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-98006-715-0 01 1 1509- ● ●
529 16.545 RETAINER; FLOOR PANEL
4 WHEEL ANTI LOCK BRAKE<JE5> INSPECTION ENGINE COVER<8GA> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) (C) 		8-98006-715-0 01 1 1509- ●
529 16.545 RETAINER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-98031-663-0 01 1 1509- ● ●
529 16.545 RETAINER; FLOOR PANEL
4 WHEEL ANTI LOCK BRAKE<JE5> INSPECTION ENGINE COVER<8GA> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) (D) 		8-98031-663-0 01 1 1509- ●
530 16.565 BRACKET; COVER
INSPECTION ENGINE COVER<8GA> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97589-255-0 01 1 1509- ● ●
530 16.565 BRACKET; COVER
4 WHEEL ANTI LOCK BRAKE<JE5> INSPECTION ENGINE COVER<8GA> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 		8-97589-255-0 01 1 1509- ●
534 16.545 REINFORCEMENT; SEAT BACK
(B) 		8-97583-851-3 02 1 1506-1508 ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(B) 		8-97583-851-3 02 1 1509- ● ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 1506-1508 ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 1509- ● ● ●
577 16.545 BRACKET; SENSOR,YAW 8-98204-802-0 01 1 1506-1508 ● ●
577 16.545 BRACKET; SENSOR,YAW
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> MANUAL TILT CAB<RWZ> 		8-98204-802-0 01 1 1509- ● ●

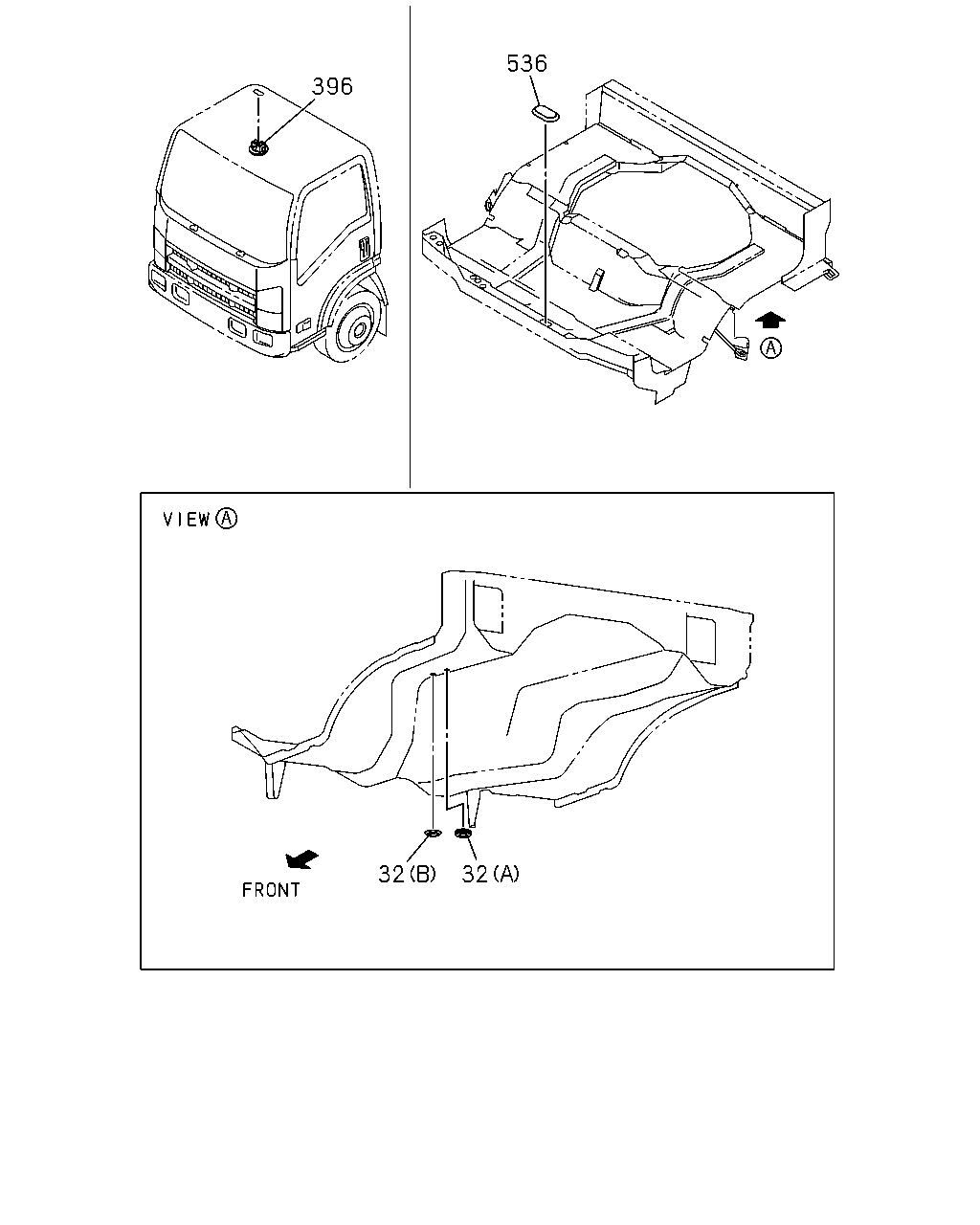

çizim 480011
396 536 32 32
BalonParca AdiParca NoAdetTipApplied Date A B C
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(A) OD=15.0 		8-94279-040-0 02 1 1506-1508 ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(A) OD=15.0 		8-94279-040-0 02 1 1509- ● ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(B) OD=12.1 		8-97898-423-0 02 1 1506-1508 ● ●
32 16.547 GROMMET; FLOOR PANEL,LOCATION HO
(B) OD=12.1 		8-97898-423-0 02 1 1509- ● ● ●
396 16.547 GROMMET; LOCATION HOLE 8-98054-990-0 02 1 1506-1508 ● ●
396 16.547 GROMMET; LOCATION HOLE 8-98054-990-0 02 1 1509- ● ●
396 16.547 GROMMET; LOCATION HOLE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 		8-98054-990-0 02 1 1509- ●
536 16.549 PLUG; CABLE,PTO
04.008 		8-98029-219-1 01 1 1506-1508 ● ●
536 16.549 PLUG; CABLE,PTO
04.008 		8-98029-219-1 01 1 1509- ● ● ●
