6-30 — FRONT DOOR AND HINGE (#162392) — 42 parça

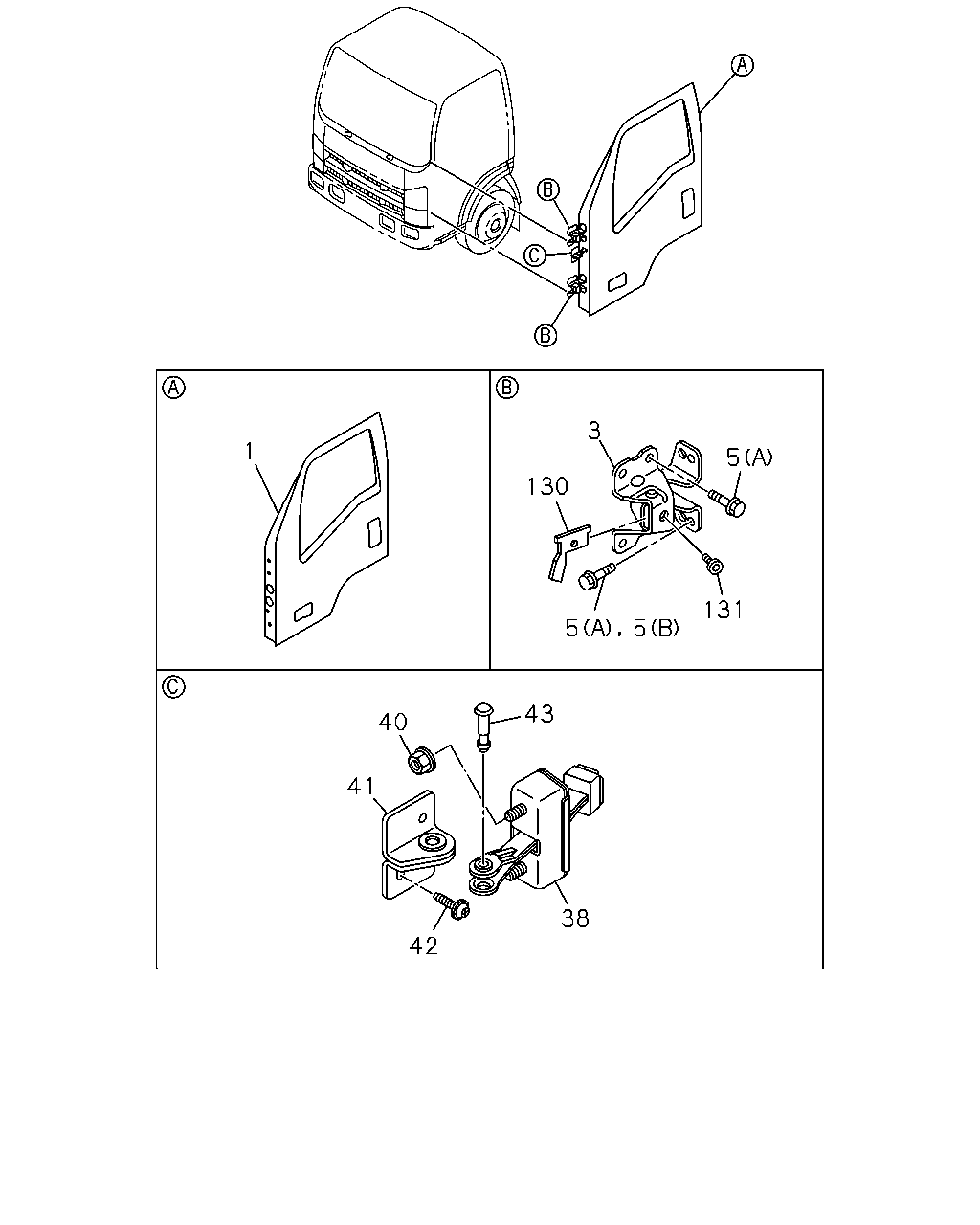

çizim 480525
1 3 130 5 131 5 5 43 40 41 38 42
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.150 DOOR ASM; FRT,WO/TRIM
CORNERING LAMP<T87> O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTENDLONG STAY<8EB> 		8-98260-593-0 01 1 1509- ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-98260-593-0 01 1 1509- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
CORNERING LAMP<T87> O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTENDLONG STAY<8EB> 		8-98260-594-0 01 1 1509- ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-98260-594-0 01 1 1509- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
CORNERING LAMP<T87> EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-98260-605-0 01 1 1509- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
CORNERING LAMP<T87> EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-98260-606-0 01 1 1509- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTENDLONG STAY<8EB> EXC. CORNERING LAMP<T87> 		8-98260-603-0 01 1 1509- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTENDLONG STAY<8EB> EXC. CORNERING LAMP<T87> 		8-98260-604-0 01 1 1509- ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-98260-601-0 01 1 1506-1508 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-98260-601-0 01 1 1509- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. CORNERING LAMP<T87>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-98260-601-0 01 1 1509- ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-98260-602-0 01 1 1506-1508 ● ●
1 16.150 DOOR ASM; FRT,WO/TRIM 8-98260-602-0 01 1 1509- ●
1 16.150 DOOR ASM; FRT,WO/TRIM
EXC. CORNERING LAMP<T87>,O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-98260-602-0 01 1 1509- ●
3 16.320 HINGE; DOOR FRT 8-98191-302-0 04 1 1506-1508 ● ●
3 16.320 HINGE; DOOR FRT 8-98191-302-0 04 1 1509- ● ● ●
5 16.320 BOLT; HINGE
KD PREPARATORY PACK VAR.4<7TV> (A) M8X20 FLANGE 		8-98049-756-0 08 1 1506-1508 ● ●
5 16.320 BOLT; HINGE
KD PREPARATORY PACK VAR.4<7TV> (A) M8X20 FLANGE 		8-98049-756-0 08 1 1509- ● ● ●
5 16.320 BOLT; HINGE
(A) M8X20 FLANGE 		8-98049-756-0 12 1 1506-1508 ● ●
5 16.320 BOLT; HINGE
(A) M8X20 FLANGE 		8-98049-756-0 12 1 1509- ● ● ●
5 16.320 BOLT; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M8X23 FLANGE 		8-98029-440-0 08 1 1506-1508 ● ●
5 16.320 BOLT; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M8X23 FLANGE 		8-98029-440-0 08 1 1506-1508 ● ●
5 16.320 BOLT; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M8X23 FLANGE 		8-98029-440-0 08 1 1509- ● ● ●
5 16.320 BOLT; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M8X23 FLANGE 		8-98029-440-0 08 1 1509- ● ● ●
38 16.320 CHECKER ASM; DOOR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTENDLONG STAY<8EB> 		8-98296-601-0 02 1 1509- ●
38 16.320 CHECKER ASM; DOOR 8-98296-601-0 02 1 1509- ●
38 16.320 CHECKER ASM; DOOR 8-98031-730-6 02 1 1506-1508 ● ●
38 16.320 CHECKER ASM; DOOR 8-98296-602-0 02 1 1509-1509 ● ●
38 16.320 CHECKER ASM; DOOR 8-98296-602-0 02 1 1509- ●
38 16.320 CHECKER ASM; DOOR
EXC. O/SIDE MIRROR ASSIST SIDE MANUAL LO NG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-98296-602-0 02 1 1509- ●
40 16.320 NUT; CHECKER
01.840 M8 W/DISHED WASHER 		8-97329-625-0 04 1 1506-1508 ● ●
40 16.320 NUT; CHECKER
01.840 M8 W/DISHED WASHER 		8-97329-625-0 04 1 1509- ● ● ●
41 16.320 BRACKET; CHECKER 8-98029-290-3 02 1 1506-1508 ● ●
41 16.320 BRACKET; CHECKER 8-98029-290-3 02 1 1509- ● ● ●
42 16.320 BOLT; BRKT
M6X20 W/PL WASHER 		8-98032-159-2 04 1 1506-1508 ● ●
42 16.320 BOLT; BRKT
M6X20 W/PL WASHER 		8-98032-159-2 04 1 1509- ● ● ●
43 16.320 PIN 8-98037-152-2 02 1 1506-1508 ● ●
43 16.320 PIN 8-98037-152-2 02 1 1509- ● ● ●
130 16.320 STOPPER; HINGE
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTENDLONG STAY<8EB> 		8-98038-299-1 04 1 1509- ●
130 16.320 STOPPER; HINGE 8-98038-299-1 04 1 1509- ●
131 16.350 BOLT; DOOR STOPPER
O/SIDE MIRROR ASSIST SIDE MANUAL LONG ST AY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTENDLONG STAY<8EB> M10X11 		8-98039-593-1 04 1 1509- ●
131 16.350 BOLT; DOOR STOPPER
M10X11 		8-98039-593-1 04 1 1509- ●
