◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#162391) — 115 parça

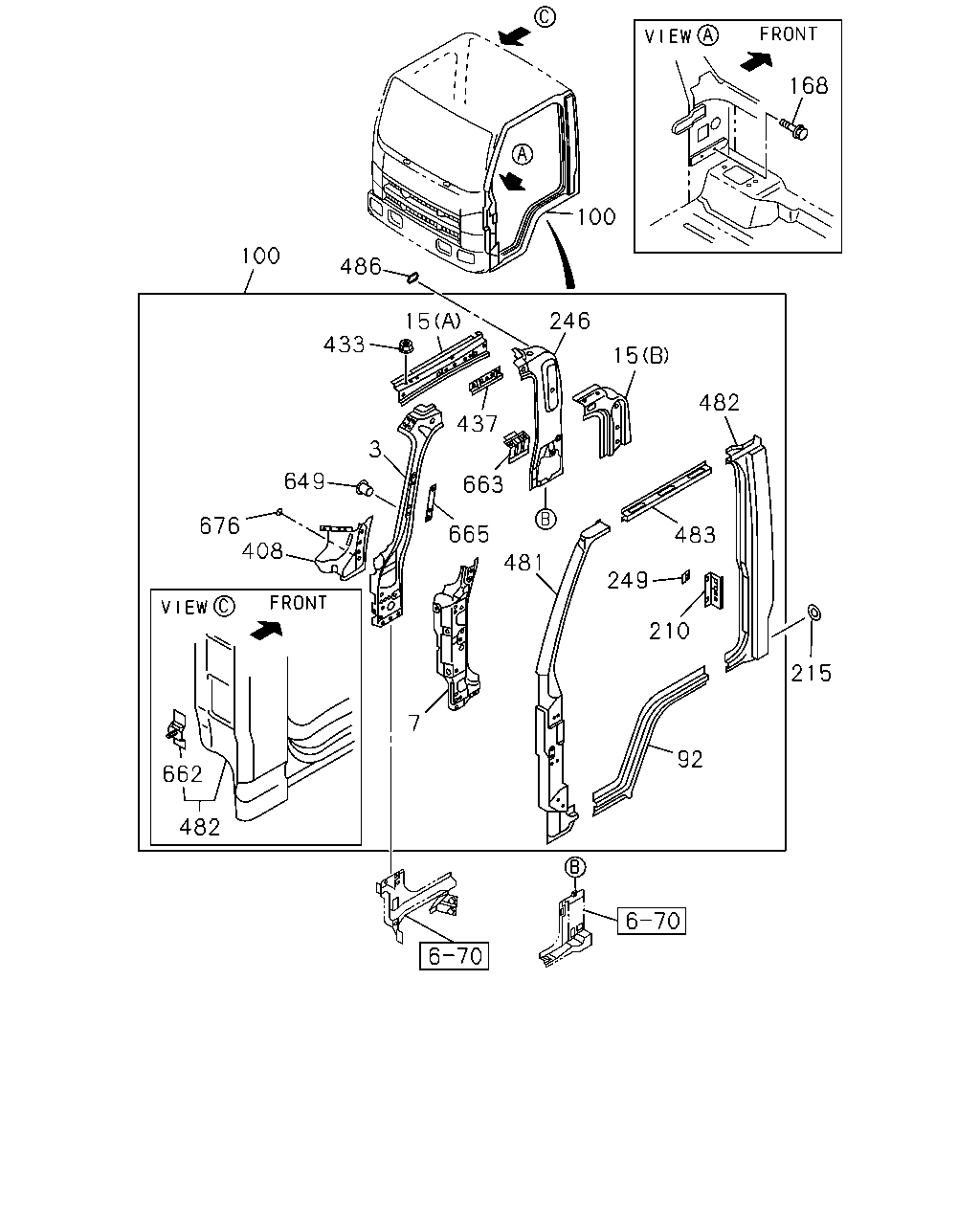

çizim 480800
168 100 246 482 483 249 210 215 92 663 437 665 3 433 649 676 100 15 486 15 408 7 481 662 482
BalonParca AdiParca NoAdetTipApplied Date A B C
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1506-1508 ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1509- ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1506-1508 ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1509- ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1506-1508 ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1509- ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1506-1508 ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1509- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 1506-1508 ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 1509- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 1506-1508 ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 1509- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 1506-1508 ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 1509- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 1506-1508 ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 1509- ● ● ●
92 16.570 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1506-1508 ● ●
92 16.570 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1509- ● ● ●
92 16.570 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1506-1508 ● ●
92 16.570 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1509- ● ● ●
100 16.570 PANEL ASM; BODY SIDE
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-047-8 01 1 1509- ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-047-8 01 1 1509- ●
100 16.570 PANEL ASM; BODY SIDE
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) LAMPS TWO ROOF MARKER<TEC> 		8-97410-853-7 01 1 1509- ●
100 16.570 PANEL ASM; BODY SIDE
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-030-6 01 1 1509- ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-030-6 01 1 1509- ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-053-9 01 1 1506-1508 ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-053-9 01 1 1509- ●
100 16.570 PANEL ASM; BODY SIDE
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) LAMPS TWO ROOF MARKER<TEC> 		8-97586-053-9 01 1 1509- ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-544-2 01 1 1506-1508 ● ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-544-2 01 1 1509- ●
100 16.570 PANEL ASM; BODY SIDE
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) LAMPS TWO ROOF MARKER<TEC> 		8-98088-544-2 01 1 1509- ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1506-1508 ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1509- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97585-260-4 01 1 1506-1508 ● ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97585-260-4 01 1 1509- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97585-261-4 01 1 1506-1508 ● ●
210 16.588 PANEL; DOOR STRIKER REINF 8-97585-261-4 01 1 1509- ● ● ●
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 1506-1508 ● ●
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 1509- ● ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 1506-1508 ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 1509- ● ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 1506-1508 ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 1509- ● ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1506-1508 ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1506-1508 ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1509- ● ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1509- ● ● ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1506-1508 ● ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1509- ● ● ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1506-1508 ● ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1509- ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1506-1508 ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1506-1508 ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1509- ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1509- ● ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1506-1508 ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1509- ● ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1506-1508 ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1509- ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98072-787-0 01 1 1509- ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-787-0 01 1 1509- ●
481 16.570 PANEL; SIDE FRT PILLAR
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98072-802-0 01 1 1509- ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-802-0 01 1 1509- ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-715-1 01 1 1506-1508 ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-715-1 01 1 1509- ●
481 16.570 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98072-715-1 01 1 1509- ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98093-581-0 01 1 1506-1508 ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98093-581-0 01 1 1509- ●
481 16.570 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98093-581-0 01 1 1509- ●
482 16.570 PANEL; SIDE RR PILLAR
TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 		8-98055-463-0 01 1 1509- ●
482 16.570 PANEL; SIDE RR PILLAR 8-98055-463-0 01 1 1509- ●
482 16.570 PANEL; SIDE RR PILLAR 8-98055-464-0 01 1 1506-1508 ● ●
482 16.570 PANEL; SIDE RR PILLAR 8-98055-464-0 01 1 1509- ● ● ●
482 16.570 PANEL; SIDE RR PILLAR 8-98092-920-0 01 1 1506-1508 ● ●
482 16.570 PANEL; SIDE RR PILLAR 8-98092-920-0 01 1 1509- ●
482 16.570 PANEL; SIDE RR PILLAR
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 		8-98092-920-0 01 1 1509- ●
483 16.570 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1506-1508 ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1509- ● ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1506-1508 ● ●
483 16.570 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1509- ● ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1506-1508 ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1509- ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1509- ●
486 16.570 SEAL; BODY SIDE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1506-1508 ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1509- ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLO R DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BOD Y COLOR WHEATLAND YELLOW(812),BODY COLORSAHARA BEIGE(829),BODY COLOR MARINE BLU E(890),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY YELLOW(916),BODY COLOR HIGHWA Y ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BOD Y COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1509- ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1506-1508 ● ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1509- ● ● ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 1506-1508 ● ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 1509- ● ● ●
663 08.228 BRACKET; AIR 8-97585-207-2 01 1 1506-1508 ● ●
663 08.228 BRACKET; AIR 8-97585-207-2 01 1 1509- ● ● ●
663 08.228 BRACKET; AIR 8-97585-208-2 01 1 1506-1508 ● ●
663 08.228 BRACKET; AIR 8-97585-208-2 01 1 1509- ● ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1506-1508 ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1506-1508 ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1509- ● ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1509- ● ● ●
676 16.520 SEAL
EXC. PTO MANUAL CONTROL(6WC) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1506-1506 ● ●
676 16.520 SEAL
EXC. PTO MANUAL CONTROL(6WC) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1507-1508 ● ●
676 16.520 SEAL
EXC. PTO MANUAL CONTROL(6WC) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1509- ● ● ●

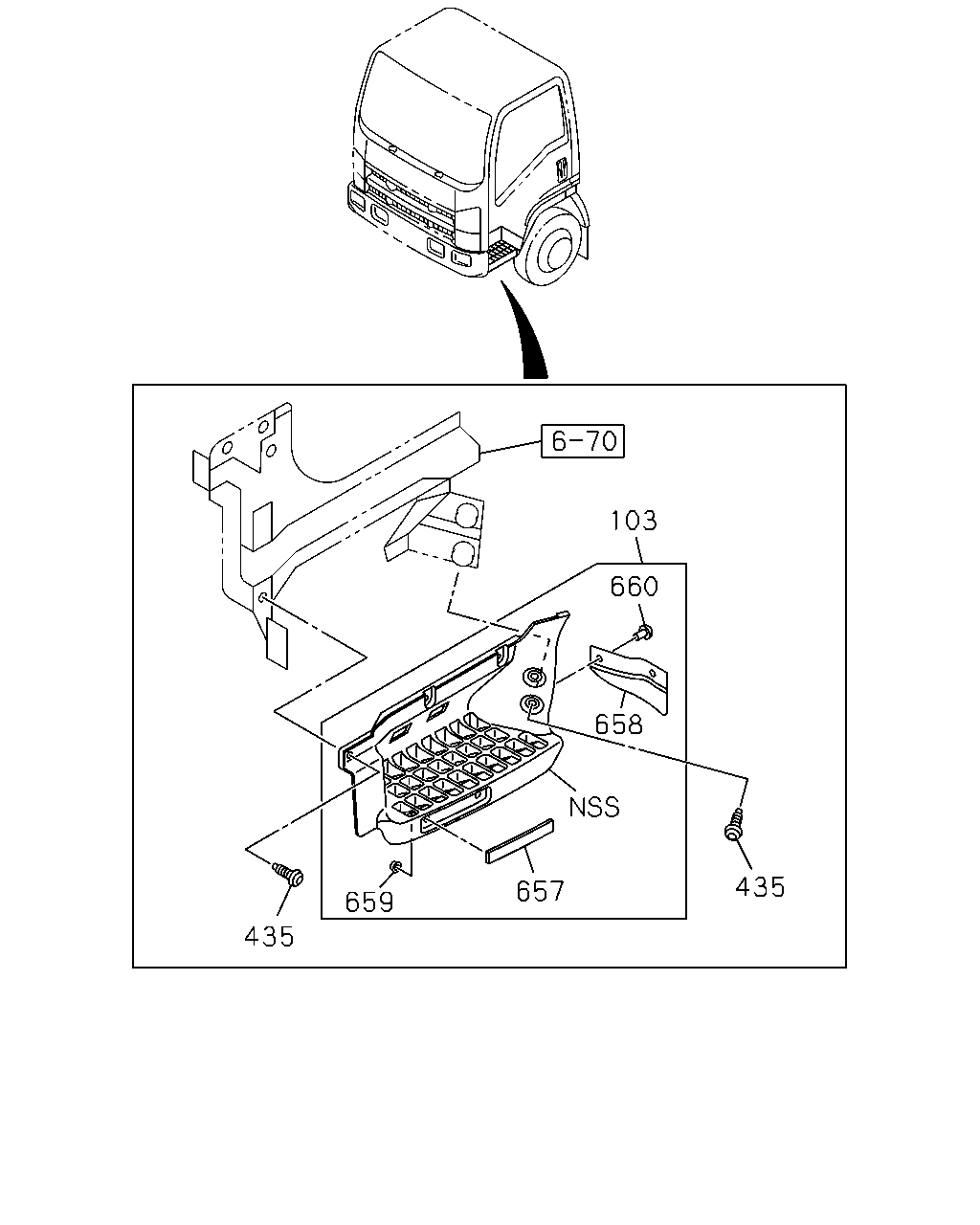

çizim 480854
103 660 658 435 657 659 435
BalonParca AdiParca NoAdetTipApplied Date A B C
103 08.228 PLATE; STEP 8-98022-774-3 01 1 1506-1508 ● ●
103 08.228 PLATE; STEP 8-98022-774-3 01 1 1509- ● ● ●
103 08.228 PLATE; STEP 8-98022-775-3 01 1 1506-1508 ● ●
103 08.228 PLATE; STEP 8-98022-775-3 01 1 1509- ● ● ●
435 08.225 BOLT; RR STEP
M8X18 		8-98004-345-0 12 1 1506-1508 ● ●
435 08.225 BOLT; RR STEP
M8X18 		8-98004-345-0 12 1 1509- ● ● ●
657 16.585 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 1506-1508 ● ●
657 16.585 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 1509- ● ● ●
658 08.228 FLAP; STEP 8-98037-560-1 02 1 1506-1508 ● ●
658 08.228 FLAP; STEP 8-98037-560-1 02 1 1509- ● ● ●
659 08.131 CLIP; SPRING NUT 8-97811-510-0 04 1 1506-1508 ● ●
659 08.131 CLIP; SPRING NUT 8-97811-510-0 04 1 1509- ● ● ●
660 08.131 CLIP; FLAP 8-98111-558-0 04 1 1506-1508 ● ●
660 08.131 CLIP; FLAP 8-98111-558-0 04 1 1509- ● ● ●
