Sayfa 3-22 - Isuzu EPC

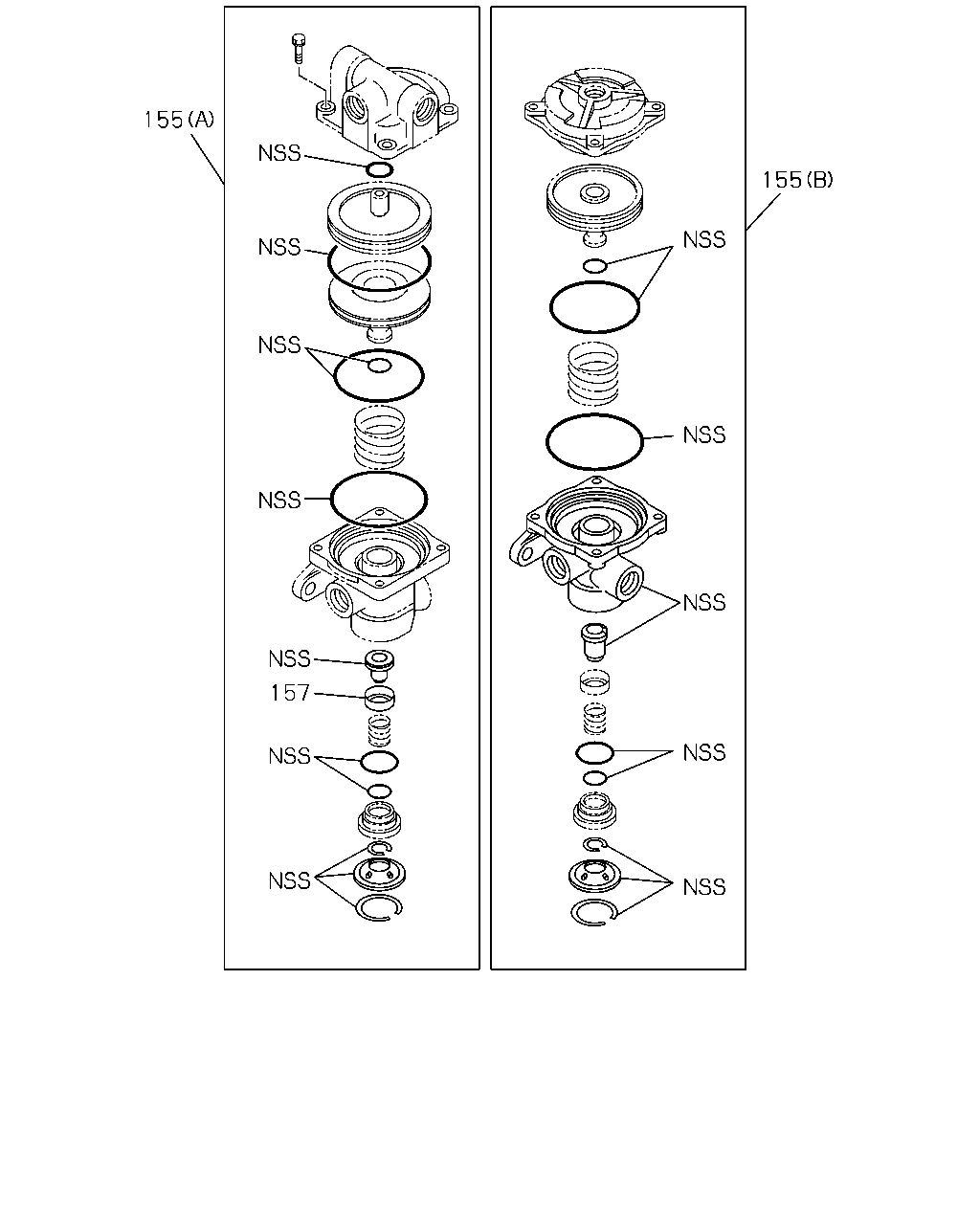

155 155 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (A)	1-85576-035-0	01	1	0907-
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	0907-
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (B)	1-85576-033-0	01	1	0907-
155	REPAIR KIT; RELAY VALVE EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-85576-033-0	02	1	0907-
157	RETAINER; VALVE	1-48213-002-0	01	1	0907-
157	RETAINER; VALVE	1-48213-002-0	02	1	0907-

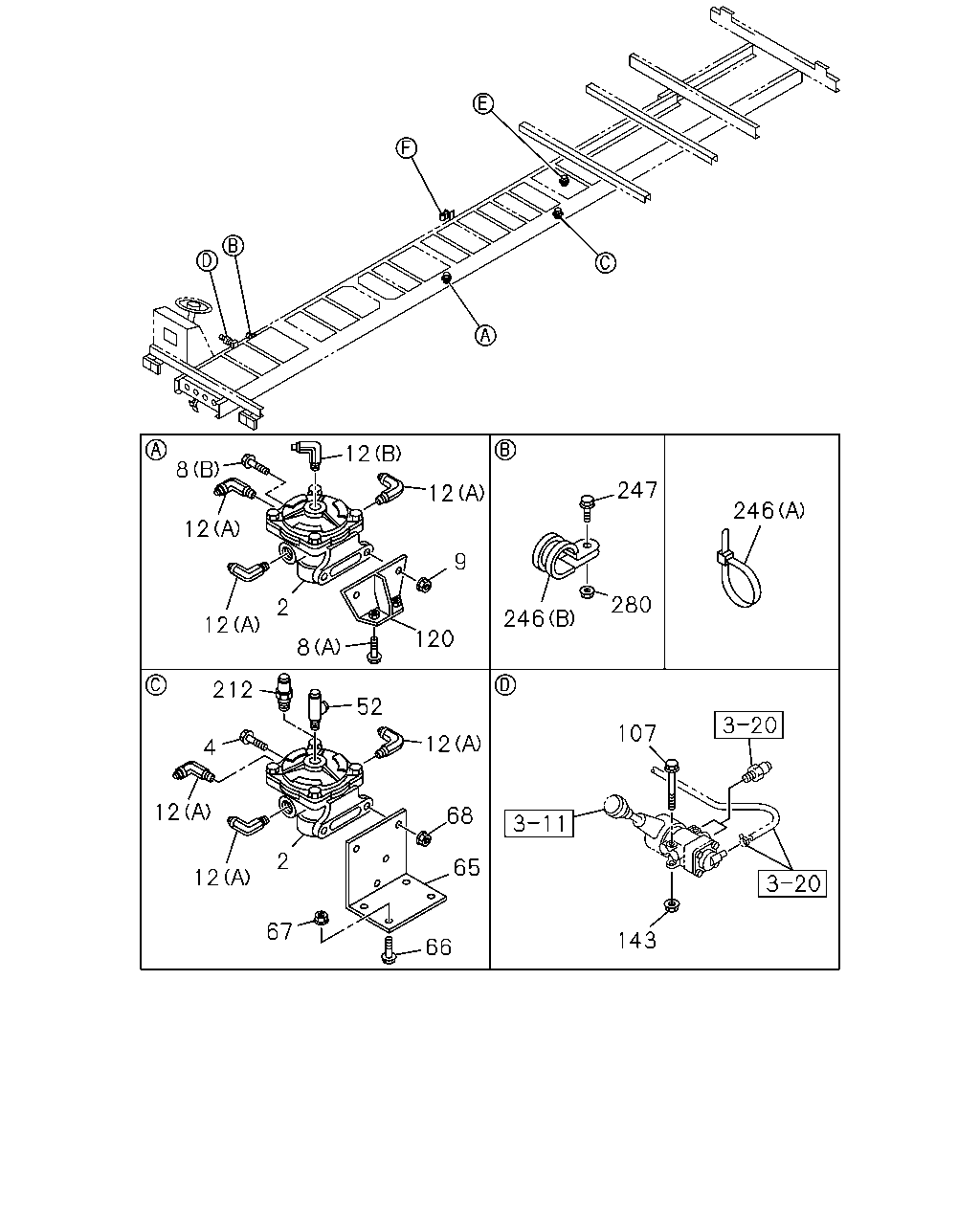

12 8 247 12 246 12 9 280 2 246 12 120 8 212 52 107 12 4 12 68 2 65 12 67 143 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY	1-48210-278-0	01	1	0907-
2	VALVE; RELAY	1-48210-278-0	01	1	0907-
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	0907-
8	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	02	1	0907-
8	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	0907-
9	NUT M10 FLANGE	0-91180-210-0	02	1	0907-
12	CONNECTOR; RELAY VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0907-
12	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 ELBOW	1-09660-960-0	03	1	0907-
12	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 ELBOW	1-09660-960-0	03	1	0907-
52	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	0907-
65	BRACKET; RELAY VLV RR	1-47471-343-0	01	1	0907-
66	BOLT; BRKT,RELAY VLV RR M10X35 FLANGE	0-28651-035-0	02	1	0907-
67	NUT; BRKT,RELAY VLV RR M10 FLANGE	0-91180-210-0	02	1	0907-
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91180-210-0	02	1	0907-
107	BOLT; VLV M8X70 FLANGE	0-28050-870-0	02	1	0907-
120	BRACKET; VLV	1-48219-145-0	01	1	0907-
143	NUT; VLV M8 FLANGE	0-91180-108-0	02	1	0907-
212	CONNECTOR; 2WAY EXC. BRAKE REGULATION HONG KONG<TCZ> DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0907-
246	CLIP; NYLON TUBE (B) ID=19 L=60	0-95235-896-0	01	1	0907-
246	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	02	1	0907-
247	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0907-
280	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0907-

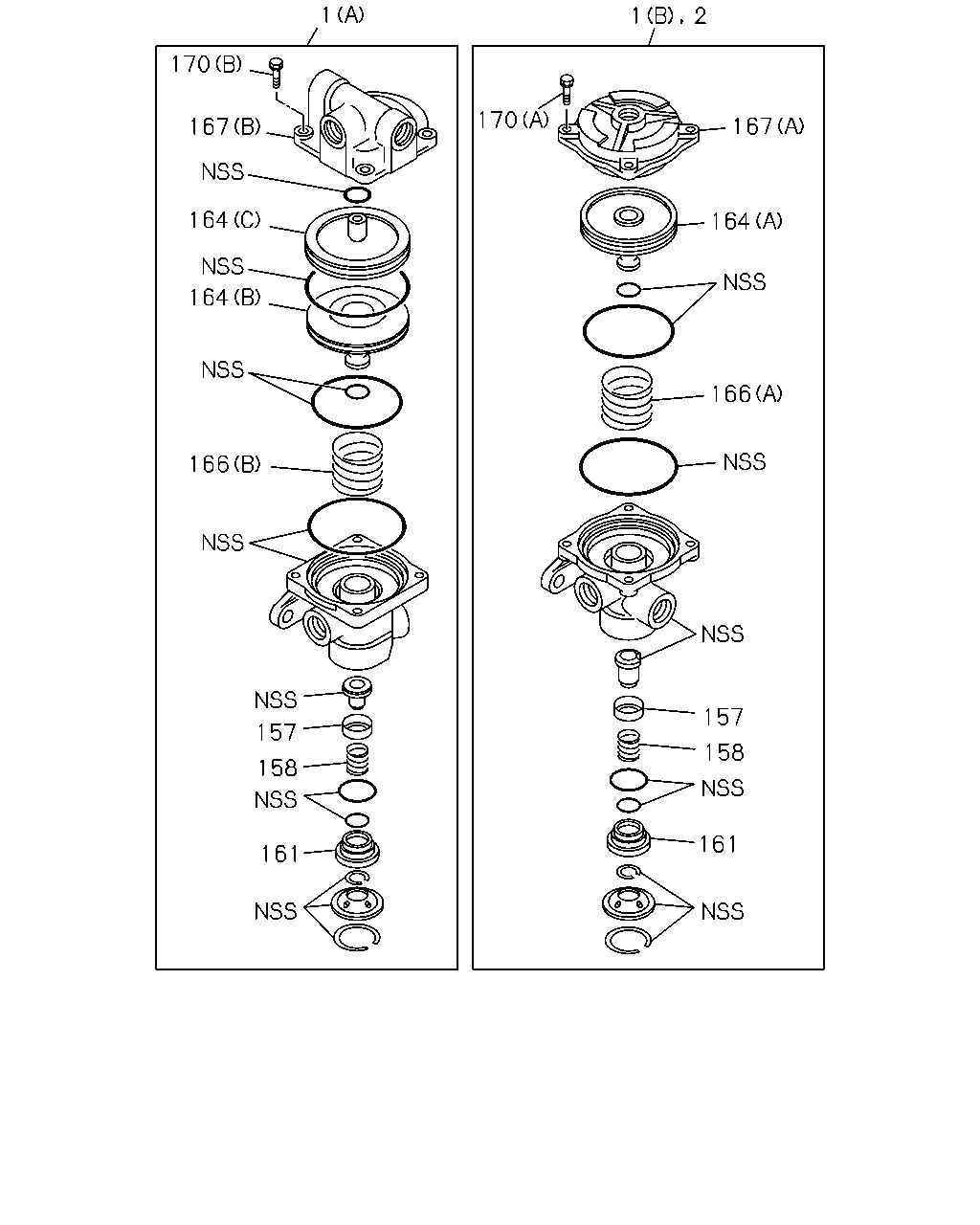

1 1 2 170 170 167 167 164 164 164 166 166 157 157 158 158 161 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR BRAKE REGULATION HONG KONG<TCZ> (A)	1-48210-143-0	01	1	0907-
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-48210-278-0	01	1	0907-
2	VALVE; RELAY	1-48210-278-0	01	1	0907-
2	VALVE; RELAY	1-48210-278-0	01	1	0907-
157	RETAINER; VALVE	1-48213-002-0	01	1	0907-
157	RETAINER; VALVE	1-48213-002-0	02	1	0907-
158	SPRING; VALVE	1-47819-089-0	01	1	0907-
158	SPRING; VALVE	1-47819-089-0	02	1	0907-
161	GUIDE; VALVE	1-48129-014-0	01	1	0907-
161	GUIDE; VALVE	1-48129-014-0	02	1	0907-
164	PISTON; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-032-0	01	1	0907-
164	PISTON; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (C)	1-48219-047-0	01	1	0907-
164	PISTON; RELAY VALVE (A)	1-48219-071-0	01	1	0907-
164	PISTON; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> (A)	1-48219-071-0	01	1	0907-
164	PISTON; RELAY VALVE EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-48219-071-0	02	1	0907-
166	SPRING; PISTON BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-048-0	01	1	0907-
166	SPRING; PISTON (A)	1-47819-090-0	01	1	0907-
166	SPRING; PISTON BRAKE REGULATION HONG KONG<TCZ> (A)	1-47819-090-0	01	1	0907-
166	SPRING; PISTON EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-47819-090-0	02	1	0907-
167	COVER; VALVE BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-050-1	01	1	0907-
167	COVER; VALVE (A)	1-48219-070-0	01	1	0907-
167	COVER; VALVE BRAKE REGULATION HONG KONG<TCZ> (A)	1-48219-070-0	01	1	0907-
167	COVER; VALVE EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-48219-070-0	02	1	0907-
170	SCREW; COVER TO BODY BRAKE REGULATION HONG KONG<TCZ> (B)	1-48219-041-0	04	1	0907-
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	0907-
170	SCREW; COVER TO BODY BRAKE REGULATION HONG KONG<TCZ> (A)	1-48219-039-0	04	1	0907-
170	SCREW; COVER TO BODY EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-48219-039-0	08	1	0907-

241 274 274

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	REPAIR KIT; PROTECTION VALVE	1-85576-224-0	01	1	0907-
	274	COVER; DUST	1-48119-450-0	02	1	0907-

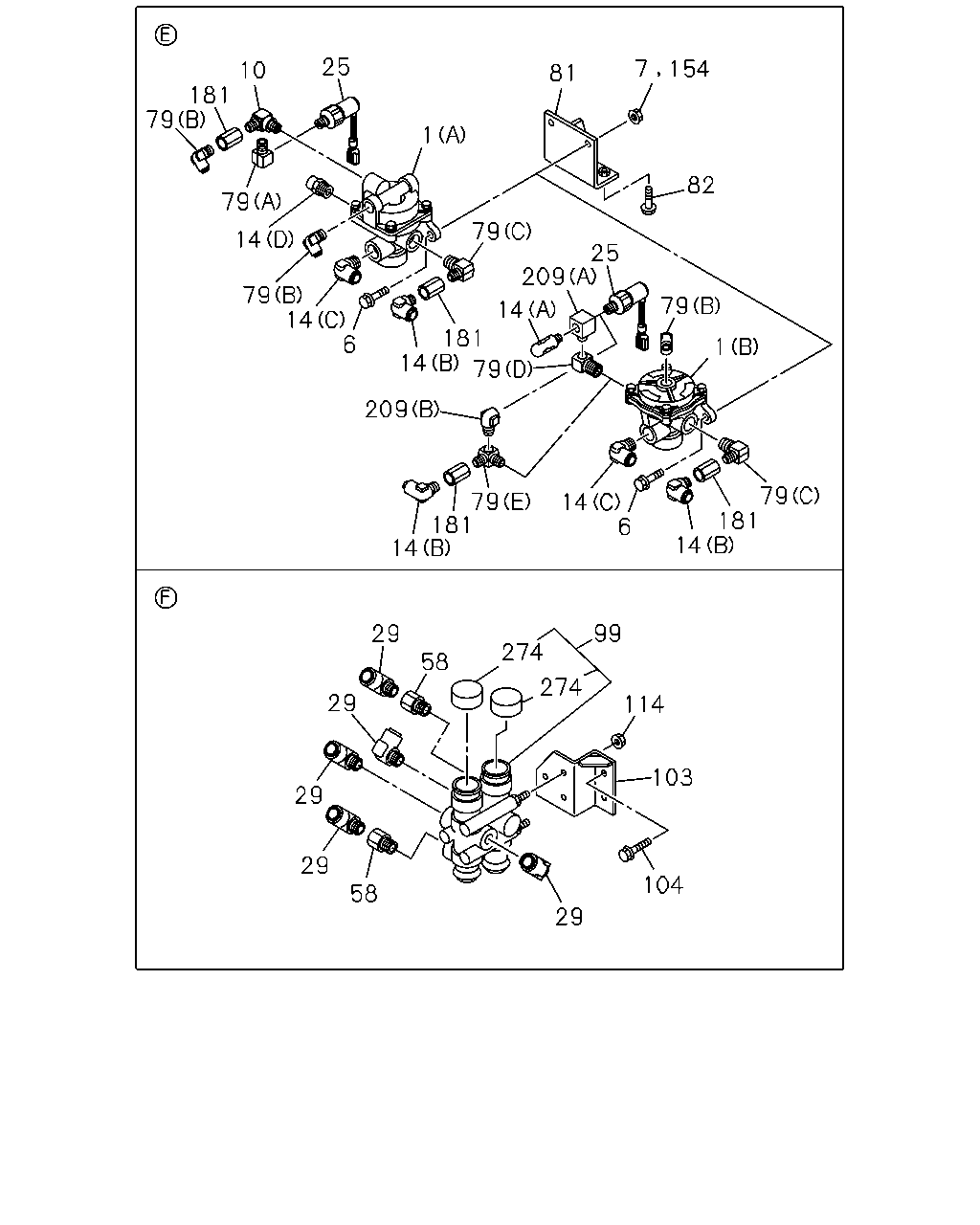

25 7 154 10 81 181 79 1 82 79 79 14 25 209 79 14 6 79 14 181 14 1 79 209 79 181 14 79 181 14 14 6 99 29 274 58 274 29 114 103 29 29 104 58 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR BRAKE REGULATION HONG KONG<TCZ> (A)	1-48210-143-0	01	1	0907-
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION HONG KONG<TCZ> (B)	1-48210-278-0	01	1	0907-
6	BOLT; VLV M10X35 FLANGE	0-28651-035-0	02	1	0907-
7	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	0907-
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> M16 PT3/8X2 3WAY	1-09656-556-1	01	1	0907-
14	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (D) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0907-
14	CONNECTOR; RELAY VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0907-0907
14	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0908-
14	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0907-
14	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (A) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	0907-0907
14	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0908-
25	SWITCH; PRESSURE	1-48340-068-0	01	1	0907-
29	CONNECTOR; AIR VLV DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0907-
58	ADAPTER PT3/8	1-09664-210-0	02	1	0907-
79	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (A) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0907-
79	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0907-
79	CONNECTOR; RELAY VLV (C) M16 & PT1/2 ELBOW	1-09650-442-0	01	1	0907-
79	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (D) PT1/2 & NPTF1/2 2WAY	1-09660-695-0	01	1	0907-0907
79	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (E) DIN8X2 & PT1/4 3WAY	1-09656-672-0	01	1	0908-
79	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0907-
81	BRACKET; RELAY VLV,PARKING BRK	1-47471-342-0	01	1	0907-
82	BOLT; BRKT,RELAY VLV M10X25 FLANGE	0-28651-025-0	02	1	0907-
99	VALVE; PROTECTION	1-48110-193-1	01	1	0907-
103	BRACKET; PROTECTION VALVE	1-47478-544-0	01	1	0907-
104	BOLT; BRKT,VALVE M8X25 FLANGE	0-28650-825-0	02	1	0907-
114	NUT; VLV M8 FLANGE	0-91180-108-0	03	1	0907-
154	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0907-1003
181	ADAPTER; PRESSURE SW BRAKE REGULATION HONG KONG<TCZ> M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	0907-0907
181	ADAPTER; PRESSURE SW M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	0908-
181	ADAPTER; PRESSURE SW EXC. BRAKE REGULATION HONG KONG<TCZ> M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0907-0907
209	CONNECTOR; 3WAY,DEL EXC. BRAKE REGULATION HONG KONG<TCZ> (A) PT1/4 MALE & PT1/4 FEMALE X2 3WAY	1-09660-363-0	01	1	0907-0907
209	CONNECTOR; 3WAY,DEL EXC. BRAKE REGULATION HONG KONG<TCZ> (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	0908-
274	COVER; DUST	1-48119-450-0	02	1	0907-
