◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6 ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#162381) — 443 parça

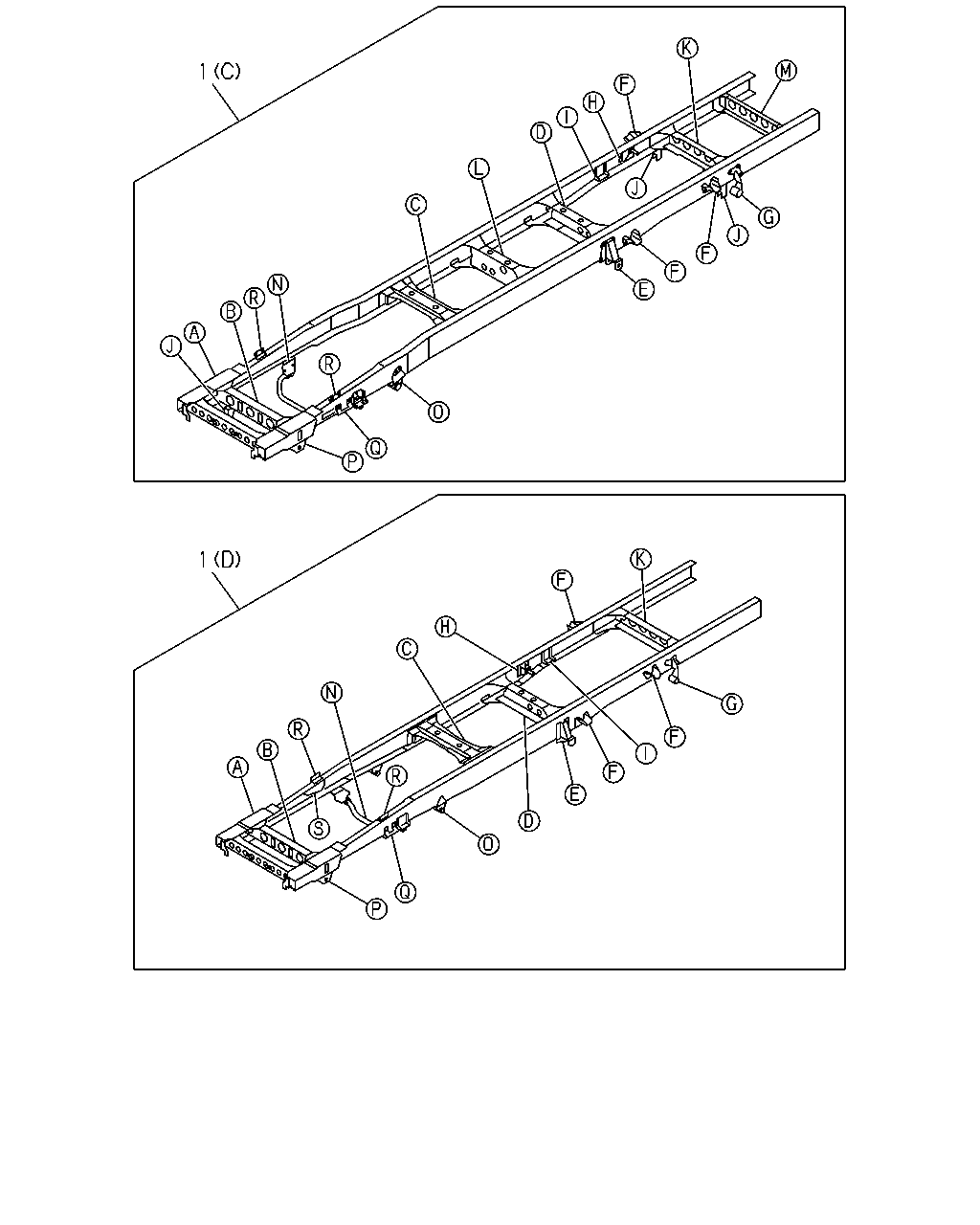

çizim 480205
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98271-882-0 01 1 1512- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98271-881-0 01 1 1512- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98271-886-0 01 1 1512- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98271-885-0 01 1 1512- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (E) 		8-98335-726-0 01 1 1512- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (E) 		8-98335-727-0 01 1 1512- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98222-913-1 01 1 1509- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98222-912-1 01 1 1509- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98222-915-1 01 1 1509- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98222-917-1 01 1 1509- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98222-916-1 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98226-146-2 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98226-145-2 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98226-150-2 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98226-154-2 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98226-153-2 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) FRONT STABILIZER SHAFT<F59> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,SPARE WHEEL CARRIER<P10> (D) 		8-98131-116-1 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) FRONT STABILIZER SHAFT<F59> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,SPARE WHEEL CARRIER<P10> (D) 		8-98131-115-1 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) 		8-98302-385-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) 		8-98304-324-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98300-702-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) 		8-98302-401-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) 		8-98304-325-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98300-701-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98304-011-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E) 		8-98300-700-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E) 		8-98304-012-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E) 		8-98304-013-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E) 		8-98304-014-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> (E) 		8-98304-016-0 01 1 1509- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98229-360-1 01 1 1506-1511 ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98229-360-1 01 1 1512- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98229-359-1 01 1 1506-1511 ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98229-359-1 01 1 1512- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98229-364-2 01 1 1506-1511 ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98229-364-2 01 1 1512- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98229-363-2 01 1 1506-1511 ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98229-363-2 01 1 1512- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98304-314-0 01 1 1506-1508 ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> (A) 		8-98304-314-0 01 1 1509- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98287-718-0 01 1 1506-1508 ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) 		8-98287-718-0 01 1 1509- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98222-914-1 01 1 1506-1508 ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT STABILIZER SHAFT<F59> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98222-914-1 01 1 1509- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> (A) 		8-98222-914-1 01 1 1509- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98287-723-0 01 1 1506-1508 ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) 		8-98287-723-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98304-312-0 01 1 1506-1508 ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> (A) 		8-98304-312-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98287-734-0 01 1 1506-1508 ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) 		8-98287-734-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98226-149-2 01 1 1506-1508 ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT STABILIZER SHAFT<F59> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98226-149-2 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> (A) 		8-98226-149-2 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98287-735-0 01 1 1506-1508 ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) 		8-98287-735-0 01 1 1509- ●

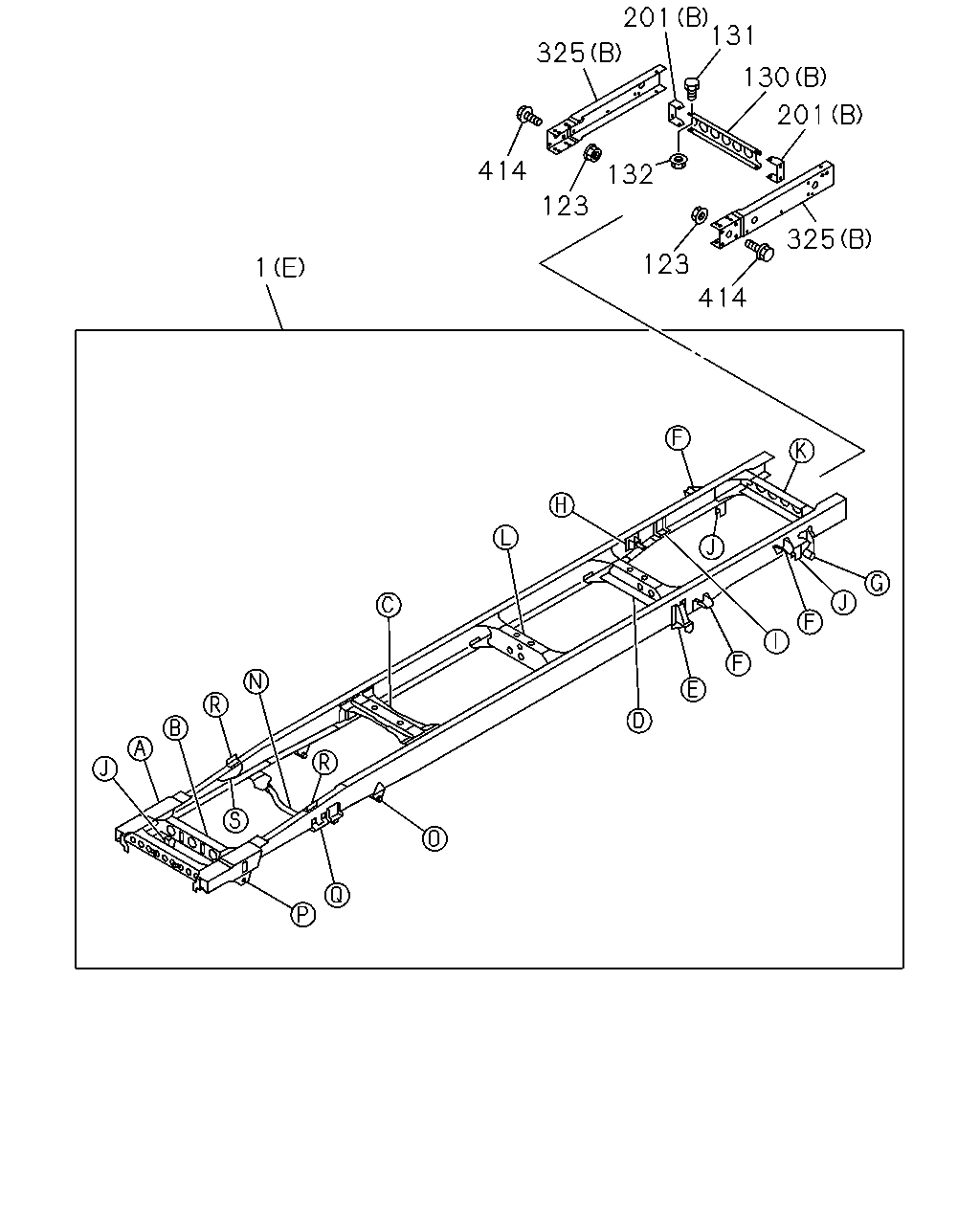

çizim 480264
1 414 132 123 123 325 414 201 130 131 201 325
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98271-882-0 01 1 1512- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98271-881-0 01 1 1512- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98271-886-0 01 1 1512- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98271-885-0 01 1 1512- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (E) 		8-98335-726-0 01 1 1512- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (E) 		8-98335-727-0 01 1 1512- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98222-913-1 01 1 1509- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98222-912-1 01 1 1509- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98222-915-1 01 1 1509- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98222-917-1 01 1 1509- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98222-916-1 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98226-146-2 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98226-145-2 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98226-150-2 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98226-154-2 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98226-153-2 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) FRONT STABILIZER SHAFT<F59> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,SPARE WHEEL CARRIER<P10> (D) 		8-98131-116-1 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) FRONT STABILIZER SHAFT<F59> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,SPARE WHEEL CARRIER<P10> (D) 		8-98131-115-1 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) 		8-98302-385-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) 		8-98304-324-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98300-702-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) 		8-98302-401-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) 		8-98304-325-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98300-701-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98304-011-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E) 		8-98300-700-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E) 		8-98304-012-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E) 		8-98304-013-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E) 		8-98304-014-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> (E) 		8-98304-016-0 01 1 1509- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98229-360-1 01 1 1506-1511 ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98229-360-1 01 1 1512- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98229-359-1 01 1 1506-1511 ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98229-359-1 01 1 1512- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98229-364-2 01 1 1506-1511 ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98229-364-2 01 1 1512- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98229-363-2 01 1 1506-1511 ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98229-363-2 01 1 1512- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98304-314-0 01 1 1506-1508 ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> (A) 		8-98304-314-0 01 1 1509- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98287-718-0 01 1 1506-1508 ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) 		8-98287-718-0 01 1 1509- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98222-914-1 01 1 1506-1508 ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT STABILIZER SHAFT<F59> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98222-914-1 01 1 1509- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> (A) 		8-98222-914-1 01 1 1509- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98287-723-0 01 1 1506-1508 ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) 		8-98287-723-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98304-312-0 01 1 1506-1508 ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> (A) 		8-98304-312-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98287-734-0 01 1 1506-1508 ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) 		8-98287-734-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98226-149-2 01 1 1506-1508 ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT STABILIZER SHAFT<F59> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98226-149-2 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> (A) 		8-98226-149-2 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98287-735-0 01 1 1506-1508 ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) 		8-98287-735-0 01 1 1509- ●
123 07.039 NUT
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.395 M12 		8-97360-126-0 16 1 1509- ●
123 07.039 NUT
07.395 M12 		8-97360-126-0 16 1 1509- ●
130 07.014 MEMBER; CROSS,END
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-97205-394-0 01 1 1509- ●
130 07.014 MEMBER; CROSS,END
(B) 		8-97205-394-0 01 1 1509- ●
130 07.014 MEMBER; CROSS,END
WHEEL BASE 3300MM(33W) (A) 		8-98000-492-0 01 1 1506- ●
130 07.014 MEMBER; CROSS,END
(A) 		8-97080-872-0 01 1 1506-1508 ●
130 07.014 MEMBER; CROSS,END
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-97080-872-0 01 1 1509- ●
131 07.014 BOLT; END C/MBR
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 07.833 M10X25 FLANGE 		0-28661-025-0 08 1 1509- ●
131 07.014 BOLT; END C/MBR
07.833 M10X25 FLANGE 		0-28661-025-0 08 1 1509- ●
132 07.014 NUT; END C/MBR
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE 		0-91180-110-0 08 1 1509- ●
132 07.014 NUT; END C/MBR
03.162 M10 FLANGE 		0-91180-110-0 08 1 1509- ●
201 07.039 GUSSET; C/MBR
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-97128-805-0 02 1 1509- ●
201 07.039 GUSSET; C/MBR
(B) 		8-97128-805-0 02 1 1509- ●
201 07.039 GUSSET; C/MBR
WHEEL BASE 3300MM(33W) (A) 		8-97096-871-0 02 1 1506-1508 ●
201 07.039 GUSSET; C/MBR
(A) 		8-97096-871-0 02 1 1506-1508 ●
201 07.039 GUSSET; C/MBR
WHEEL BASE 3300MM(33W) (A) 		8-97096-871-0 02 1 1509- ●
201 07.039 GUSSET; C/MBR
(A) 		8-97096-871-0 02 1 1509- ● ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-97222-891-1 01 1 1509- ●
325 07.039 EXTENSION; FRAME
(B) 		8-97222-891-1 01 1 1509- ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-97222-892-1 01 1 1509- ●
325 07.039 EXTENSION; FRAME
(B) 		8-97222-892-1 01 1 1509- ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97128-752-3 01 1 1509- ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97128-753-3 01 1 1509- ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-342-0 01 1 1506- ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-343-0 01 1 1506- ●
325 07.039 EXTENSION; FRAME
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98073-350-0 01 1 1506-1508 ●
325 07.039 EXTENSION; FRAME
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-350-0 01 1 1509- ●
325 07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98073-350-0 01 1 1509- ●
325 07.039 EXTENSION; FRAME
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98073-351-1 01 1 1506-1508 ●
325 07.039 EXTENSION; FRAME
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-351-1 01 1 1509- ●
325 07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98073-351-1 01 1 1509- ●
325 07.039 EXTENSION; FRAME
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98073-346-0 01 1 1506-1508 ●
325 07.039 EXTENSION; FRAME
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98073-346-0 01 1 1509- ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-346-0 01 1 1509- ●
325 07.039 EXTENSION; FRAME
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98073-347-1 01 1 1506-1508 ●
325 07.039 EXTENSION; FRAME
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98073-347-1 01 1 1509- ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-347-1 01 1 1509- ●
414 07.011 BOLT
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 06.509 M12X30 FLANGE 		0-28661-230-0 12 1 1509- ●
414 07.011 BOLT
06.509 M12X30 FLANGE 		0-28661-230-0 12 1 1509- ●
414 07.011 BOLT
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M12X40 FLANGE 		0-28661-240-0 04 1 1509- ●
414 07.011 BOLT
M12X40 FLANGE 		0-28661-240-0 04 1 1509- ●

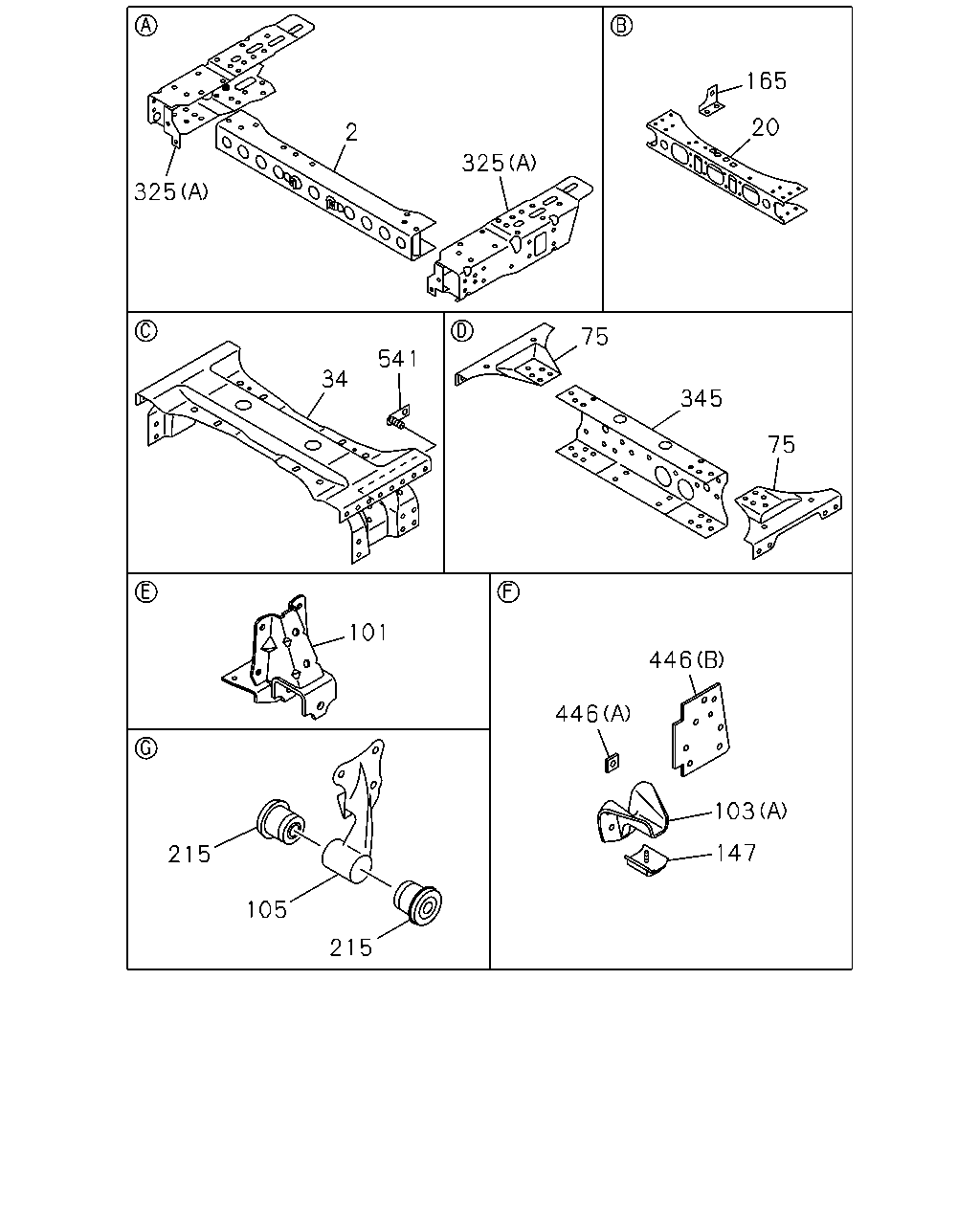

çizim 480288
325 2 34 541 75 325 165 345 75 446 446 103 147 215 105 215 101 20
BalonParca AdiParca NoAdetTipApplied Date A B C
2 07.010 MEMBER; CROSS,1ST 8-97387-866-5 01 1 1506-1508 ● ●
2 07.010 MEMBER; CROSS,1ST 8-97387-866-5 01 1 1509- ● ● ●
20 07.012 MEMBER; CROSS,2ND
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98066-045-4 01 1 1506- ●
20 07.012 MEMBER; CROSS,2ND
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98080-335-0 01 1 1506- ●
20 07.012 MEMBER; CROSS,2ND 8-98014-074-7 01 1 1506-1508 ●
20 07.012 MEMBER; CROSS,2ND 8-98014-074-7 01 1 1509- ● ●
34 07.012 MEMBER; CROSS,3RD
SMOOTHER-EX(TYPE2)(8NS) 		8-98008-947-5 01 1 1512- ●
34 07.012 MEMBER; CROSS,3RD
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98239-250-0 01 1 1509- ●
34 07.012 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98014-078-6 01 1 1509- ●
34 07.012 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98074-640-2 01 1 1509- ●
34 07.012 MEMBER; CROSS,3RD
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98074-640-2 01 1 1509- ●
34 07.012 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98074-639-4 01 1 1509- ●
34 07.012 MEMBER; CROSS,3RD
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98074-639-4 01 1 1509- ●
34 07.012 MEMBER; CROSS,3RD 8-98000-489-4 01 1 1506-1511 ●
34 07.012 MEMBER; CROSS,3RD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98000-489-4 01 1 1512- ●
34 07.012 MEMBER; CROSS,3RD
4JJ1-TCS ENG(LFB) 		8-98239-251-0 01 1 1506-1508 ●
34 07.012 MEMBER; CROSS,3RD
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98239-251-0 01 1 1509- ●
34 07.012 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) 		8-98072-038-1 01 1 1506-1508 ●
34 07.012 MEMBER; CROSS,3RD
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98072-038-1 01 1 1509- ●
34 07.012 MEMBER; CROSS,3RD 8-98072-038-1 01 1 1509- ●
75 07.039 GUSSET; 5TH C/MBR
RH-UPPER,LH-LOWER 		8-98000-585-1 02 1 1506- ●
75 07.039 GUSSET; 5TH C/MBR
RH-LOWER,LH-UPPER 		8-98000-586-1 02 1 1506- ●
75 07.039 GUSSET; 5TH C/MBR
RH-UPPER,LH-LOWER 		8-98000-583-0 02 1 1506-1508 ●
75 07.039 GUSSET; 5TH C/MBR
RH-UPPER,LH-LOWER 		8-98000-583-0 02 1 1509- ● ●
75 07.039 GUSSET; 5TH C/MBR
RH-LOWER,LH-UPPER 		8-98000-584-0 02 1 1506-1508 ●
75 07.039 GUSSET; 5TH C/MBR
RH-LOWER,LH-UPPER 		8-98000-584-0 02 1 1509- ● ●
101 07.112 BRACKET; RR SPR,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) 		8-97042-245-1 02 1 1509- ●
101 07.112 BRACKET; RR SPR,FRT 8-98243-605-0 02 1 1506-1508 ● ●
101 07.112 BRACKET; RR SPR,FRT 8-98243-605-0 02 1 1509- ● ●
101 07.112 BRACKET; RR SPR,FRT
4JJ1-TCS ENG(LFB) 		8-98243-605-0 02 1 1509- ●
101 07.112 BRACKET; RR SPR,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 		8-98243-605-0 02 1 1509- ●
103 07.420 STOPPER; SUB SPR
07.524 (B) 		8-97079-659-1 02 1 1506-1508 ● ●
103 07.420 STOPPER; SUB SPR
07.524 (B) 		8-97079-659-1 02 1 1509- ● ● ●
103 07.420 STOPPER; SUB SPR
(A) 		8-97223-748-0 04 1 1506-1508 ●
103 07.420 STOPPER; SUB SPR
(A) 		8-97223-748-0 04 1 1509- ● ●
105 07.112 BRACKET; RR SPR,RR 8-98032-488-0 01 1 1506-1508 ● ●
105 07.112 BRACKET; RR SPR,RR 8-98032-488-0 01 1 1509- ● ● ●
105 07.112 BRACKET; RR SPR,RR 8-98032-489-0 01 1 1506-1508 ● ●
105 07.112 BRACKET; RR SPR,RR 8-98032-489-0 01 1 1509- ● ● ●
147 07.535 RUBBER; SUB SPRING 8-97254-387-0 04 1 1506-1508 ●
147 07.535 RUBBER; SUB SPRING 8-97254-387-0 04 1 1509- ● ●
165 01.270 BRACKET; RAD STAY 8-98000-886-0 01 1 1506-1508 ● ●
165 01.270 BRACKET; RAD STAY 8-98000-886-0 01 1 1509- ● ● ●
215 07.524 BUSHING; BRKT,RR SPRING 8-97184-699-1 04 1 1506-1508 ● ●
215 07.524 BUSHING; BRKT,RR SPRING 8-97184-699-1 04 1 1509- ● ● ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-97222-891-1 01 1 1509- ●
325 07.039 EXTENSION; FRAME
(B) 		8-97222-891-1 01 1 1509- ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),CHILE EQUIPMENT(KE1) (B) 		8-97222-892-1 01 1 1509- ●
325 07.039 EXTENSION; FRAME
(B) 		8-97222-892-1 01 1 1509- ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97128-752-3 01 1 1509- ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97128-753-3 01 1 1509- ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-342-0 01 1 1506- ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-343-0 01 1 1506- ●
325 07.039 EXTENSION; FRAME
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98073-350-0 01 1 1506-1508 ●
325 07.039 EXTENSION; FRAME
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-350-0 01 1 1509- ●
325 07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98073-350-0 01 1 1509- ●
325 07.039 EXTENSION; FRAME
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98073-351-1 01 1 1506-1508 ●
325 07.039 EXTENSION; FRAME
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98073-351-1 01 1 1509- ●
325 07.039 EXTENSION; FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98073-351-1 01 1 1509- ●
325 07.039 EXTENSION; FRAME
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98073-346-0 01 1 1506-1508 ●
325 07.039 EXTENSION; FRAME
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98073-346-0 01 1 1509- ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-346-0 01 1 1509- ●
325 07.039 EXTENSION; FRAME
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98073-347-1 01 1 1506-1508 ●
325 07.039 EXTENSION; FRAME
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98073-347-1 01 1 1509- ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-347-1 01 1 1509- ●
345 07.012 MEMBER; CROSS,5TH 8-98000-490-2 01 1 1506- ●
345 07.012 MEMBER; CROSS,5TH 8-97175-993-3 01 1 1506-1508 ●
345 07.012 MEMBER; CROSS,5TH 8-97175-993-3 01 1 1509- ● ●
446 07.112 STIFFENER; SPRING STOPPER
WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (B) 		8-98014-080-1 02 1 1509- ●
446 07.112 STIFFENER; SPRING STOPPER
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (B) 		8-98014-080-1 02 1 1509- ●
446 07.112 STIFFENER; SPRING STOPPER
WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98014-080-1 02 1 1509- ●
446 07.112 STIFFENER; SPRING STOPPER
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98014-080-1 02 1 1509- ●
446 07.112 STIFFENER; SPRING STOPPER
WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98014-080-1 02 1 1509- ●
446 07.112 STIFFENER; SPRING STOPPER
(A) 		8-97122-173-0 02 1 1506-1508 ●
446 07.112 STIFFENER; SPRING STOPPER
FUEL TANK 140 LITTER<N19> (A) 		8-97122-173-0 02 1 1509- ●
446 07.112 STIFFENER; SPRING STOPPER
FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) (A) 		8-97122-173-0 02 1 1509- ●
446 07.112 STIFFENER; SPRING STOPPER
FUEL TANK 100 LITTER<N02> EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97122-173-0 02 1 1509- ●
446 07.112 STIFFENER; SPRING STOPPER
FUEL TANK 100 LITTER<N02> EURO5B+ SPECIFICATION(NT5) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97122-173-0 02 1 1509- ●
541 07.112 PLATE; STUD BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) FRONT STABILIZER SHAFT<F59> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,SPARE WHEEL CARRIER<P10> 		8-98061-650-0 01 1 1509-1511 ●
541 07.112 PLATE; STUD BOLT
WHEEL BASE 2700MM(27W) SMOOTHER-EX(TYPE2)(8NS) 		8-98061-650-0 01 1 1512- ●
541 07.112 PLATE; STUD BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-650-0 01 1 1512- ●

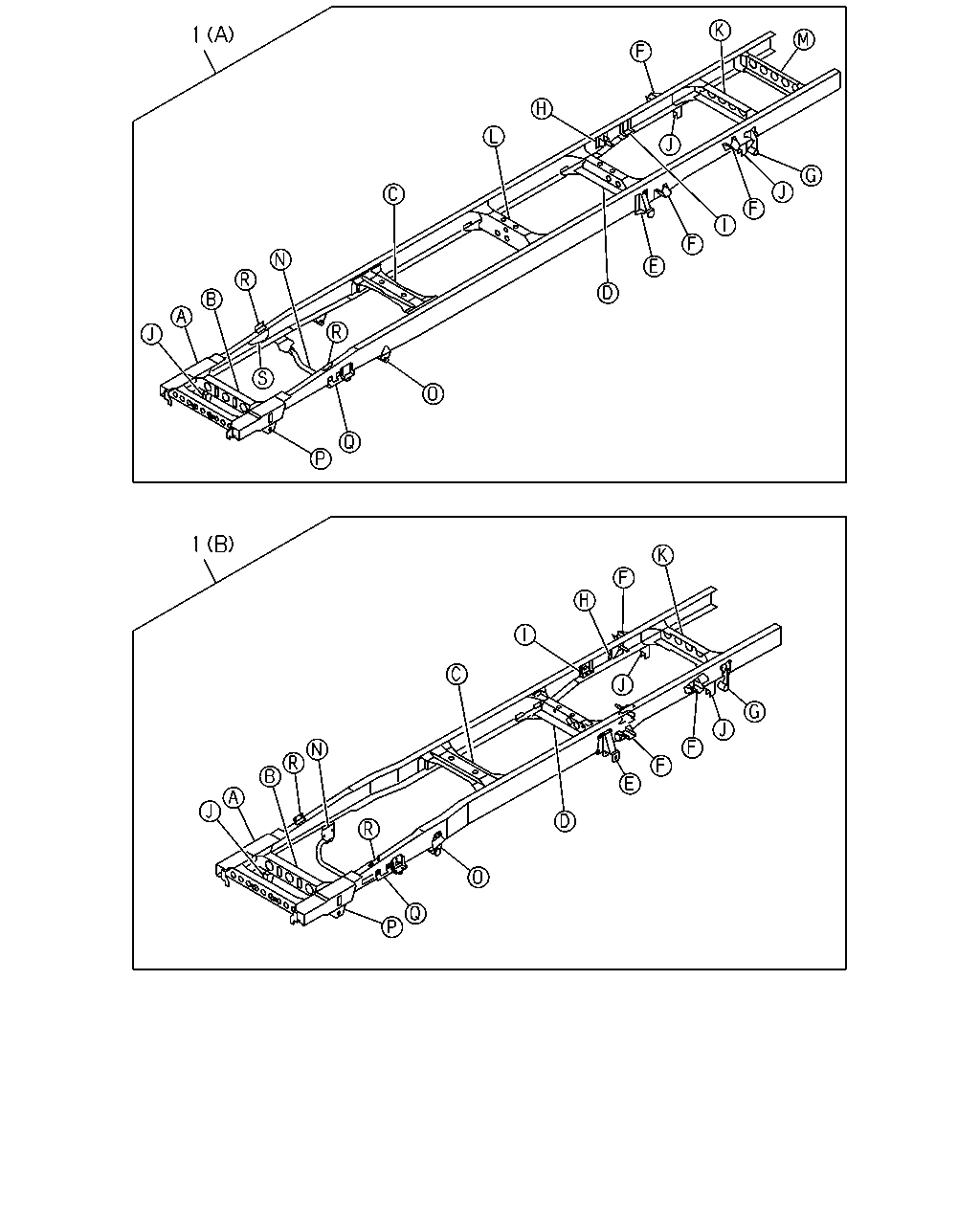

çizim 480394
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) (B) 		8-98271-882-0 01 1 1512- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98271-881-0 01 1 1512- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SMOOTHER-EX(TYPE2)(8NS) (C) 		8-98271-886-0 01 1 1512- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) SMOOTHER-EX(TYPE2)(8NS) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98271-885-0 01 1 1512- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (E) 		8-98335-726-0 01 1 1512- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 4100MM(41W) POOR QUALITY DIESEL FUEL(KF0) EURO5B+ SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (E) 		8-98335-727-0 01 1 1512- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98222-913-1 01 1 1509- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98222-912-1 01 1 1509- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98222-915-1 01 1 1509- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98222-917-1 01 1 1509- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98222-916-1 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98226-146-2 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98226-145-2 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98226-150-2 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98226-154-2 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98226-153-2 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) FRONT STABILIZER SHAFT<F59> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,SPARE WHEEL CARRIER<P10> (D) 		8-98131-116-1 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) FRONT STABILIZER SHAFT<F59> CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,SPARE WHEEL CARRIER<P10> (D) 		8-98131-115-1 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) 		8-98302-385-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) 		8-98304-324-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98300-702-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) 		8-98302-401-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) CATALYSIS CONTROL WITH DPD & SCR(JCQ), CATALYSIS CONTROL WITH DPD(8JM) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) 		8-98304-325-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98300-701-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98304-011-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E) 		8-98300-700-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E) 		8-98304-012-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E) 		8-98304-013-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>,BATTERY 115E41L<8MA> CATALYSIS CONTROL(6MZ) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (E) 		8-98304-014-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> (E) 		8-98304-016-0 01 1 1509- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98229-360-1 01 1 1506-1511 ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98229-360-1 01 1 1512- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98229-359-1 01 1 1506-1511 ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98229-359-1 01 1 1512- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98229-364-2 01 1 1506-1511 ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98229-364-2 01 1 1512- ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98229-363-2 01 1 1506-1511 ●
1 07.003 FRAME ASM
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 		8-98229-363-2 01 1 1512- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98304-314-0 01 1 1506-1508 ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> (A) 		8-98304-314-0 01 1 1509- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98287-718-0 01 1 1506-1508 ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) 		8-98287-718-0 01 1 1509- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98222-914-1 01 1 1506-1508 ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT STABILIZER SHAFT<F59> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98222-914-1 01 1 1509- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> (A) 		8-98222-914-1 01 1 1509- ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98287-723-0 01 1 1506-1508 ●
1 07.003 FRAME ASM
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) 		8-98287-723-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98304-312-0 01 1 1506-1508 ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> (A) 		8-98304-312-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98287-734-0 01 1 1506-1508 ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) 		8-98287-734-0 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98226-149-2 01 1 1506-1508 ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FRONT STABILIZER SHAFT<F59> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98226-149-2 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EURO6 SPECIFICATION(NT6) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> (A) 		8-98226-149-2 01 1 1509- ●
1 07.003 FRAME ASM
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98287-735-0 01 1 1506-1508 ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) EURO6 SPECIFICATION(NT6) FUEL TANK 140 LITTER<N19> SPARE WHEEL CARRIER<P10> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (A) 		8-98287-735-0 01 1 1509- ●

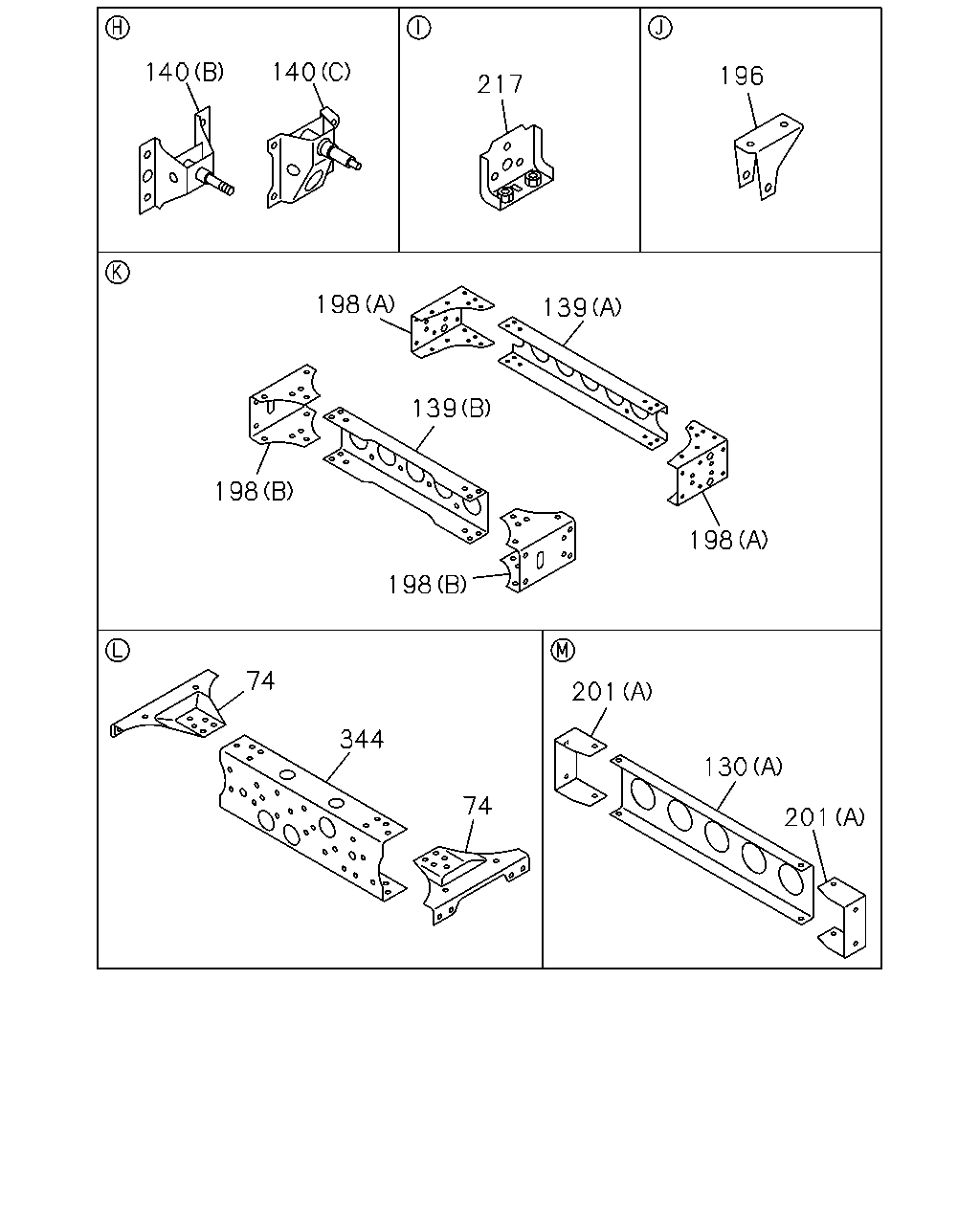

çizim 480401
140 140 217 196 139 198 139 198 198 74 344 74 201 130 201 198
BalonParca AdiParca NoAdetTipApplied Date A B C
74 07.039 GUSSET; 4TH C/MBR
WHEEL BASE 3300MM(33W) RH-LOWER,LH-UPPER 		8-98000-585-1 02 1 1506- ●
74 07.039 GUSSET; 4TH C/MBR
WHEEL BASE 3300MM(33W) RH-UPPER,LH-LOWER 		8-98000-586-1 02 1 1506- ●
74 07.039 GUSSET; 4TH C/MBR
RH-LOWER,LH-UPPER 		8-98000-583-0 02 1 1506-1508 ●
74 07.039 GUSSET; 4TH C/MBR
RH-LOWER,LH-UPPER 		8-98000-583-0 02 1 1509- ● ●
74 07.039 GUSSET; 4TH C/MBR
RH-UPPER,LH-LOWER 		8-98000-584-0 02 1 1506-1508 ●
74 07.039 GUSSET; 4TH C/MBR
RH-UPPER,LH-LOWER 		8-98000-584-0 02 1 1509- ● ●
130 07.014 MEMBER; CROSS,END
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-97205-394-0 01 1 1509- ●
130 07.014 MEMBER; CROSS,END
(B) 		8-97205-394-0 01 1 1509- ●
130 07.014 MEMBER; CROSS,END
WHEEL BASE 3300MM(33W) (A) 		8-98000-492-0 01 1 1506- ●
130 07.014 MEMBER; CROSS,END
(A) 		8-97080-872-0 01 1 1506-1508 ●
130 07.014 MEMBER; CROSS,END
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A) 		8-97080-872-0 01 1 1509- ●
139 07.012 MEMBER; CROSS,6TH
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) (A) 		8-97326-394-0 01 1 1509- ●
139 07.012 MEMBER; CROSS,6TH
(B) 		8-98000-491-0 01 1 1506- ●
139 07.012 MEMBER; CROSS,6TH
(A) 		8-97107-384-0 01 1 1506-1508 ●
139 07.012 MEMBER; CROSS,6TH
(A) 		8-97107-384-0 01 1 1509- ● ●
140 07.112 BRACKET; S/ABS,RR
(C) 		8-98000-587-1 02 1 1506- ●
140 07.112 BRACKET; S/ABS,RR
07.395 (A) 		8-97302-511-0 02 1 1506-1508 ● ●
140 07.112 BRACKET; S/ABS,RR
07.395 (A) 		8-97302-511-0 02 1 1509- ● ● ●
140 07.112 BRACKET; S/ABS,RR
(B) 		8-97080-884-1 02 1 1506-1508 ●
140 07.112 BRACKET; S/ABS,RR
(B) 		8-97080-884-1 02 1 1509- ● ●
196 07.242 BRACKET; STAB TO FRAME 8-98033-523-0 04 1 1506-1508 ●
196 07.242 BRACKET; STAB TO FRAME
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98033-523-0 04 1 1506-1508 ●
196 07.242 BRACKET; STAB TO FRAME
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> 		8-98033-523-0 02 1 1509- ●
196 07.242 BRACKET; STAB TO FRAME
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02> CATALYSIS CONTROL(6MZ) 		8-98033-523-0 02 1 1509- ●
196 07.242 BRACKET; STAB TO FRAME
WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> 		8-98033-523-0 02 1 1509- ●
196 07.242 BRACKET; STAB TO FRAME
WHEEL BASE 3800MM(38W) FUEL TANK 140 LITTER<N19> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98033-523-0 02 1 1509- ●
196 07.242 BRACKET; STAB TO FRAME
WHEEL BASE 4100MM(41W) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) 		8-98033-523-0 02 1 1509- ●
196 07.242 BRACKET; STAB TO FRAME
WHEEL BASE 4400MM(44W) CATALYSIS CONTROL(6MZ) 		8-98033-523-0 02 1 1509- ●
196 07.242 BRACKET; STAB TO FRAME
WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98033-523-0 02 1 1506-1508 ●
196 07.242 BRACKET; STAB TO FRAME
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98033-523-0 02 1 1506-1508 ●
196 07.242 BRACKET; STAB TO FRAME 8-98033-523-0 04 1 1509- ●
196 07.242 BRACKET; STAB TO FRAME
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 4400MM(44W) 		8-98033-523-0 04 1 1509- ●
196 07.242 BRACKET; STAB TO FRAME
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> 		8-98033-523-0 04 1 1509- ●
196 07.242 BRACKET; STAB TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98033-523-0 04 1 1509- ●
196 07.242 BRACKET; STAB TO FRAME
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98033-523-0 04 1 1509- ●
196 07.242 BRACKET; STAB TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98033-523-0 04 1 1509- ●
198 07.039 GUSSET; 6TH C/MBR
(B) 		8-98009-044-1 02 1 1506- ●
198 07.039 GUSSET; 6TH C/MBR
(A) 		8-98014-079-1 02 1 1506-1508 ●
198 07.039 GUSSET; 6TH C/MBR
(A) 		8-98014-079-1 02 1 1509- ● ●
201 07.039 GUSSET; C/MBR
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) 		8-97128-805-0 02 1 1509- ●
201 07.039 GUSSET; C/MBR
(B) 		8-97128-805-0 02 1 1509- ●
201 07.039 GUSSET; C/MBR
WHEEL BASE 3300MM(33W) (A) 		8-97096-871-0 02 1 1506-1508 ●
201 07.039 GUSSET; C/MBR
(A) 		8-97096-871-0 02 1 1506-1508 ●
201 07.039 GUSSET; C/MBR
WHEEL BASE 3300MM(33W) (A) 		8-97096-871-0 02 1 1509- ●
201 07.039 GUSSET; C/MBR
(A) 		8-97096-871-0 02 1 1509- ● ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING 8-97202-417-0 02 1 1506-1508 ● ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING 8-97202-417-0 02 1 1509- ● ● ●
344 07.012 MEMBER; CROSS,4TH
WHEEL BASE 3300MM(33W) 		8-98000-490-2 01 1 1506- ●
344 07.012 MEMBER; CROSS,4TH 8-97175-993-3 01 1 1506-1508 ●
344 07.012 MEMBER; CROSS,4TH 8-97175-993-3 01 1 1509- ● ●

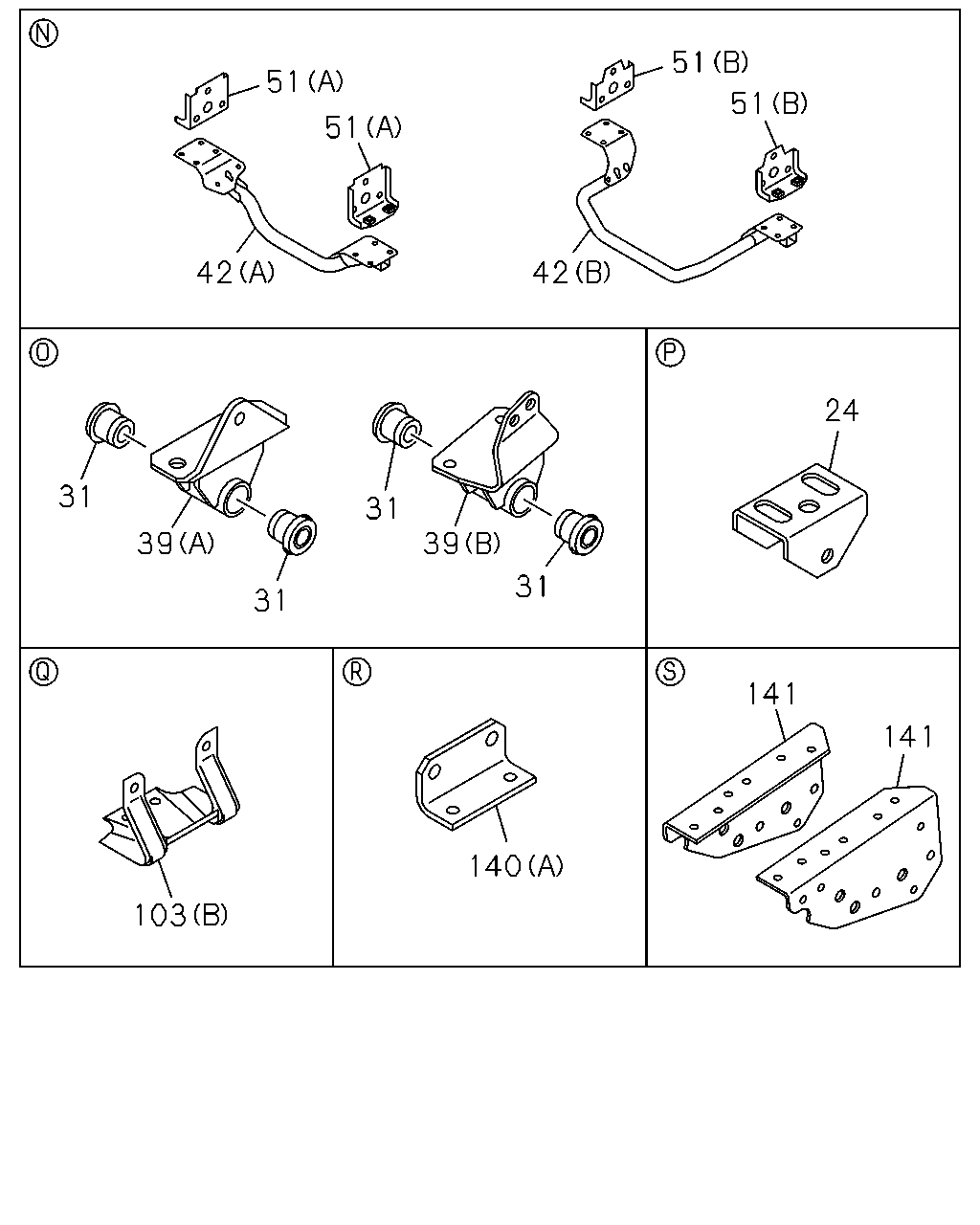

çizim 480516
51 42 51 42 51 51 24 141 141 140 103 31 39 31 31 31 39
BalonParca AdiParca NoAdetTipApplied Date A B C
24 07.105 BRACKET; FRT SPR,FRT 8-98015-274-0 02 1 1506-1508 ● ●
24 07.105 BRACKET; FRT SPR,FRT 8-98015-274-0 02 1 1509- ● ● ●
31 07.428 BUSHING; FRT SPR,RR
07.524 		8-97184-699-1 04 1 1506-1508 ● ●
31 07.428 BUSHING; FRT SPR,RR
07.524 		8-97184-699-1 04 1 1509- ● ● ●
39 07.112 BRACKET; FRT SPR,RR
(B) 		8-98064-729-0 01 1 1506- ●
39 07.112 BRACKET; FRT SPR,RR
(B) 		8-98064-731-0 01 1 1506- ●
39 07.112 BRACKET; FRT SPR,RR
(A) 		8-98014-125-0 02 1 1506-1508 ●
39 07.112 BRACKET; FRT SPR,RR
(A) 		8-98014-125-0 02 1 1509- ● ●
42 07.011 MEMBER; CROSS,ENG MTG
(B) 		8-98049-111-0 01 1 1506- ●
42 07.011 MEMBER; CROSS,ENG MTG
4JJ1-TCS ENG(LFB) (B) 		8-98049-111-0 01 1 1506- ●
42 07.011 MEMBER; CROSS,ENG MTG
4HK1-TCS ENG(RJS) (A) 		8-98032-389-0 01 1 1506-1508 ●
42 07.011 MEMBER; CROSS,ENG MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-98032-389-0 01 1 1509- ●
42 07.011 MEMBER; CROSS,ENG MTG
(A) 		8-98032-389-0 01 1 1509- ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
(B) 		8-98032-390-0 02 1 1506- ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
(A) 		8-98034-961-0 02 1 1506-1508 ●
51 07.011 BRACKET; ENG SUPPORT,OUTER
(A) 		8-98034-961-0 02 1 1509- ● ●
103 07.420 STOPPER; SUB SPR
07.524 (B) 		8-97079-659-1 02 1 1506-1508 ● ●
103 07.420 STOPPER; SUB SPR
07.524 (B) 		8-97079-659-1 02 1 1509- ● ● ●
103 07.420 STOPPER; SUB SPR
(A) 		8-97223-748-0 04 1 1506-1508 ●
103 07.420 STOPPER; SUB SPR
(A) 		8-97223-748-0 04 1 1509- ● ●
140 07.112 BRACKET; S/ABS,RR
(C) 		8-98000-587-1 02 1 1506- ●
140 07.112 BRACKET; S/ABS,RR
07.395 (A) 		8-97302-511-0 02 1 1506-1508 ● ●
140 07.112 BRACKET; S/ABS,RR
07.395 (A) 		8-97302-511-0 02 1 1509- ● ● ●
140 07.112 BRACKET; S/ABS,RR
(B) 		8-97080-884-1 02 1 1506-1508 ●
140 07.112 BRACKET; S/ABS,RR
(B) 		8-97080-884-1 02 1 1509- ● ●
141 07.112 STIFFENER 8-98064-354-2 01 1 1506-1508 ●
141 07.112 STIFFENER 8-98064-354-2 01 1 1509- ● ●
141 07.112 STIFFENER 8-98064-355-2 01 1 1506-1508 ●
141 07.112 STIFFENER 8-98064-355-2 01 1 1509- ● ●
çizim 492935
376 376 376 376 376 376 376 376 376 376 376 376 376 176 176 296 535 536 67 537 538 118
BalonParca AdiParca NoAdetTipApplied Date A B C
67 07.011 NUT; C/MBR
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE 		0-91180-210-0 14 1 1509- ●
67 07.011 NUT; C/MBR
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE 		0-91180-210-0 15 1 1509- ●
67 07.011 NUT; C/MBR
04.085 M10 FLANGE 		0-91180-210-0 04 1 1506- ●
67 07.011 NUT; C/MBR
4JJ1-TCS ENG(LFB) 04.085 M10 FLANGE 		0-91180-210-0 17 1 1506-1508 ●
67 07.011 NUT; C/MBR
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE 		0-91180-210-0 17 1 1509- ●
67 07.011 NUT; C/MBR
04.085 M10 FLANGE 		0-91180-210-0 17 1 1509- ●
67 07.011 NUT; C/MBR
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE 		0-91180-210-0 16 1 1506-1508 ●
67 07.011 NUT; C/MBR
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE 		0-91180-210-0 18 1 1509- ●
67 07.011 NUT; C/MBR
4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE 		0-91180-210-0 18 1 1509- ●
67 07.011 NUT; C/MBR
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE 		0-91180-210-0 18 1 1509- ●
67 07.011 NUT; C/MBR
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRONT STABILIZER SHAFT<F59> 04.085 M10 FLANGE 		0-91180-210-0 18 1 1509- ●
67 07.011 NUT; C/MBR
4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE 		0-91180-210-0 18 1 1509- ●
67 07.011 NUT; C/MBR
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 04.085 M10 FLANGE 		0-91180-210-0 15 1 1506-1508 ●
67 07.011 NUT; C/MBR
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE 		0-91180-210-0 16 1 1509- ●
118 07.529 NUT; STOPPER
M8 LOCK NUT 		0-91370-008-0 02 1 1506-1508 ●
118 07.529 NUT; STOPPER
M8 LOCK NUT 		0-91370-008-0 02 1 1509- ● ●
176 04.085 BOLT; C/MBR,ENG MTG
03.890 (B) M10X30 FLANGE 		0-28051-030-0 08 1 1506- ●
176 04.085 BOLT; C/MBR,ENG MTG
4JJ1-TCS ENG(LFB) 03.890 (B) M10X30 FLANGE 		0-28051-030-0 08 1 1506- ●
176 04.085 BOLT; C/MBR,ENG MTG
4HK1-TCS ENG(RJS) 03.890 (B) M10X30 FLANGE 		0-28051-030-0 04 1 1506-1508 ●
176 04.085 BOLT; C/MBR,ENG MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.890 (B) M10X30 FLANGE 		0-28051-030-0 04 1 1509- ●
176 04.085 BOLT; C/MBR,ENG MTG
03.890 (B) M10X30 FLANGE 		0-28051-030-0 04 1 1509- ●
176 04.085 BOLT; C/MBR,ENG MTG
4HK1-TCS ENG(RJS) 00.029 (A) M10X25 FLANGE 		0-28651-025-0 04 1 1506-1508 ●
176 04.085 BOLT; C/MBR,ENG MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.029 (A) M10X25 FLANGE 		0-28651-025-0 04 1 1509- ●
176 04.085 BOLT; C/MBR,ENG MTG
00.029 (A) M10X25 FLANGE 		0-28651-025-0 04 1 1509- ●
296 07.039 BOLT; 3RD C/MBR
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 M10X30 FLANGE 		0-28651-030-0 13 1 1509- ●
296 07.039 BOLT; 3RD C/MBR
4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE 		0-28651-030-0 15 1 1506-1508 ●
296 07.039 BOLT; 3RD C/MBR
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 M10X30 FLANGE 		0-28651-030-0 15 1 1509- ●
296 07.039 BOLT; 3RD C/MBR
TRANSMISSION CONTROL-SMOOTHER(8GF) FRONT STABILIZER SHAFT<F59> 00.029 M10X30 FLANGE 		0-28651-030-0 15 1 1509- ●
296 07.039 BOLT; 3RD C/MBR
4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE 		0-28651-030-0 14 1 1506-1508 ●
296 07.039 BOLT; 3RD C/MBR
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 M10X30 FLANGE 		0-28651-030-0 16 1 1509- ●
296 07.039 BOLT; 3RD C/MBR
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRONT STABILIZER SHAFT<F59> 00.029 M10X30 FLANGE 		0-28651-030-0 16 1 1509- ●
296 07.039 BOLT; 3RD C/MBR
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.029 M10X30 FLANGE 		0-28651-030-0 16 1 1509- ●
296 07.039 BOLT; 3RD C/MBR
00.029 M10X30 FLANGE 		0-28651-030-0 16 1 1509- ●
296 07.039 BOLT; 3RD C/MBR
4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 00.029 M10X30 FLANGE 		0-28651-030-0 13 1 1506-1508 ●
296 07.039 BOLT; 3RD C/MBR
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE 		0-28651-030-0 14 1 1509- ●
296 07.039 BOLT; 3RD C/MBR
M/T MZZ6U(RSF),M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 00.029 M10X30 FLANGE 		0-28651-030-0 14 1 1509- ●
376 07.039 RIVET; FRAME
07.011 (A) D8X24 TAPER END 		9-06750-824-0 AR 1 1506-1508 ● ●
376 07.039 RIVET; FRAME
07.011 (A) D8X24 TAPER END 		9-06750-824-0 AR 1 1509- ● ● ●
376 07.039 RIVET; FRAME
(B) D10X22 TAPER END 		9-06751-022-0 AR 1 1506-1508 ● ●
376 07.039 RIVET; FRAME
(B) D10X22 TAPER END 		9-06751-022-0 AR 1 1509- ● ● ●
376 07.039 RIVET; FRAME
(C) D10X24 TAPER END 		9-06751-024-0 AR 1 1506-1508 ● ●
376 07.039 RIVET; FRAME
(C) D10X24 TAPER END 		9-06751-024-0 AR 1 1509- ● ● ●
376 07.039 RIVET; FRAME
(D) D10X26 TAPER END 		9-06751-026-0 AR 1 1506-1508 ● ●
376 07.039 RIVET; FRAME
(D) D10X26 TAPER END 		9-06751-026-0 AR 1 1509- ● ● ●
376 07.039 RIVET; FRAME
(E) D10X28 TAPER END 		9-06751-028-0 AR 1 1506-1508 ● ●
376 07.039 RIVET; FRAME
(E) D10X28 TAPER END 		9-06751-028-0 AR 1 1509- ● ● ●
376 07.039 RIVET; FRAME
(F) D10X30 TAPER END 		9-06751-030-0 AR 1 1506-1508 ● ●
376 07.039 RIVET; FRAME
(F) D10X30 TAPER END 		9-06751-030-0 AR 1 1509- ● ● ●
376 07.039 RIVET; FRAME
(G) D10X32 TAPER END 		9-06751-032-0 AR 1 1506-1508 ● ●
376 07.039 RIVET; FRAME
(G) D10X32 TAPER END 		9-06751-032-0 AR 1 1509- ● ● ●
376 07.039 RIVET; FRAME
(H) D10X36 TAPER END 		9-06751-036-0 AR 1 1506-1508 ● ●
376 07.039 RIVET; FRAME
(H) D10X36 TAPER END 		9-06751-036-0 AR 1 1509- ● ● ●
376 07.039 RIVET; FRAME
(I) D11X26 TAPER END 		9-06751-126-0 AR 1 1506-1508 ● ●
376 07.039 RIVET; FRAME
(I) D11X26 TAPER END 		9-06751-126-0 AR 1 1509- ● ● ●
376 07.039 RIVET; FRAME
(J) D11X30 TAPER END 		9-06751-130-0 AR 1 1506-1508 ● ●
376 07.039 RIVET; FRAME
(J) D11X30 TAPER END 		9-06751-130-0 AR 1 1509- ● ● ●
376 07.039 RIVET; FRAME
07.105 (K) D12X30 TAPER END 		9-06751-230-0 AR 1 1506-1508 ● ●
376 07.039 RIVET; FRAME
07.105 (K) D12X30 TAPER END 		9-06751-230-0 AR 1 1509- ● ● ●
376 07.039 RIVET; FRAME
07.428 (L) D12X36 TAPER END 		9-06751-236-0 AR 1 1506-1508 ● ●
376 07.039 RIVET; FRAME
07.428 (L) D12X36 TAPER END 		9-06751-236-0 AR 1 1509- ● ● ●
376 07.039 RIVET; FRAME
07.112 (M) D12X40 TAPER END 		9-06751-240-0 AR 1 1506-1508 ● ●
376 07.039 RIVET; FRAME
07.112 (M) D12X40 TAPER END 		9-06751-240-0 AR 1 1509- ● ● ●
535 01.270 BOLT; FRAME UPPER
WHEEL BASE 2700MM(27W) 03.890 M10X30 FLANGE 		0-28051-030-0 06 1 1506-1511 ●
535 01.270 BOLT; FRAME UPPER
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.890 M10X30 FLANGE 		0-28051-030-0 06 1 1512- ●
535 01.270 BOLT; FRAME UPPER
WHEEL BASE 3300MM(33W) 03.890 M10X30 FLANGE 		0-28051-030-0 08 1 1506-1511 ●
535 01.270 BOLT; FRAME UPPER
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.890 M10X30 FLANGE 		0-28051-030-0 08 1 1512- ●
535 01.270 BOLT; FRAME UPPER
SMOOTHER-EX(TYPE2)(8NS) 03.890 M10X30 FLANGE 		0-28051-030-0 08 1 1512- ●
536 01.270 BOLT; FRAME LOWER
03.890 M10X30 FLANGE 		0-28051-030-0 08 1 1506- ●
537 01.270 NUT; FRAME LOWER
04.085 M10 FLANGE 		0-91180-210-0 08 1 1506- ●
538 01.270 NUT; FRAME UPPER
WHEEL BASE 2700MM(27W) 04.085 M10 FLANGE 		0-91180-210-0 02 1 1506-1511 ●
538 01.270 NUT; FRAME UPPER
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE 		0-91180-210-0 02 1 1512- ●
538 01.270 NUT; FRAME UPPER
WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE 		0-91180-210-0 04 1 1506-1511 ●
538 01.270 NUT; FRAME UPPER
WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE 		0-91180-210-0 04 1 1512- ●
538 01.270 NUT; FRAME UPPER
SMOOTHER-EX(TYPE2)(8NS) 04.085 M10 FLANGE 		0-91180-210-0 04 1 1512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
