4-80 — ROAD WHEEL (#162380) — 85 parça

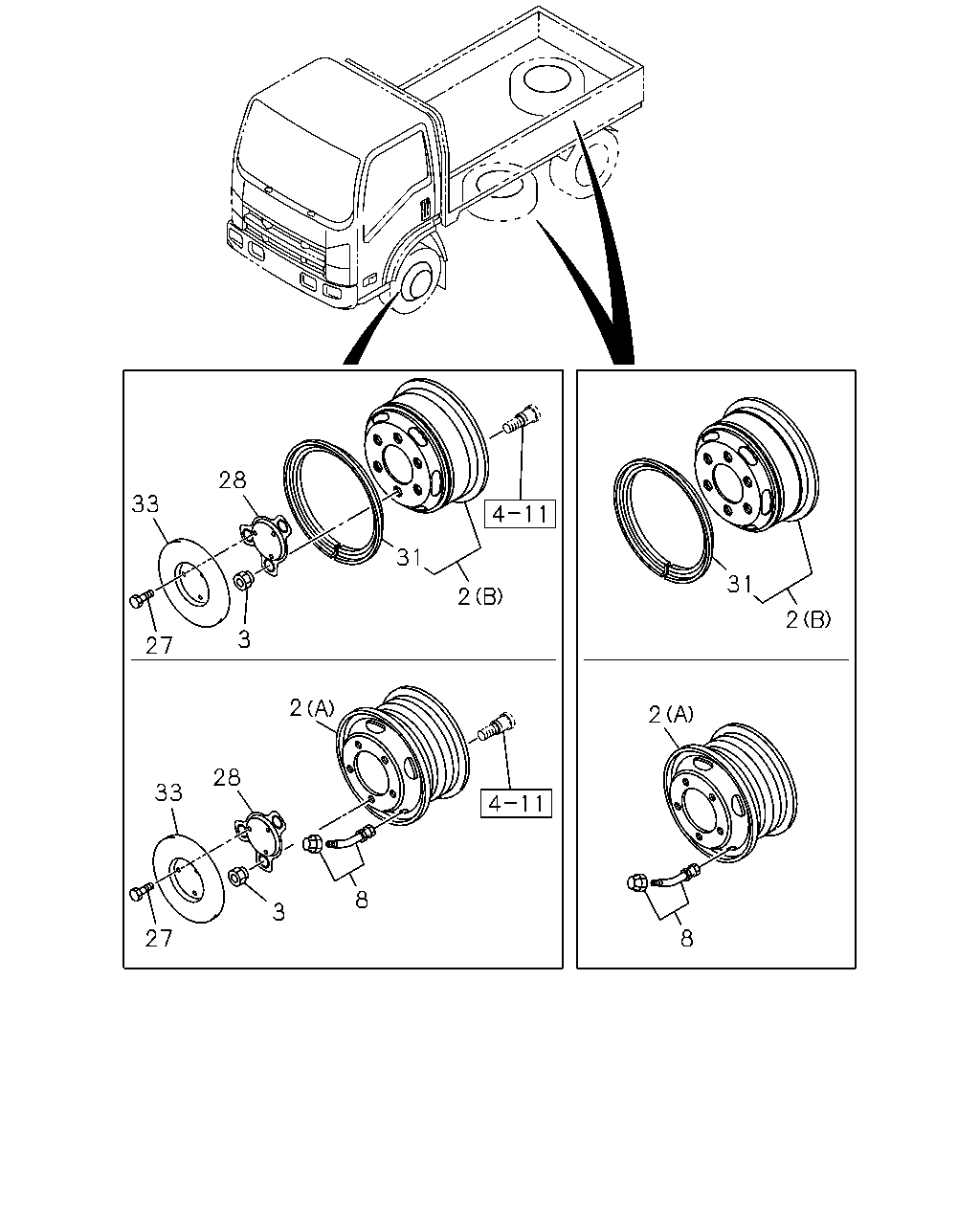

2 31 2 8 2 8 3 28 33 27 2 31 28 33 3 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	05.803 WHEEL; DISC FRT&RR 215/85R16 16X6K-128(CSC) (A) SPARE 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE	8-97233-665-1	01	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR 215/85R16 16X6K-128(CSC) (A) FRONT,REAR 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE	8-97233-665-1	06	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-12 7 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) (B) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	01	1	1509-	●	●
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-12 7 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) (B) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	06	1	1509-	●	●
2	05.803 WHEEL; DISC (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1506-			●
2	05.803 WHEEL; DISC (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1506-			●
2	05.803 WHEEL; DISC (A) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	01	1	1506-1508	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (A) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	01	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (A) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	01	1	1509-		●
2	05.803 WHEEL; DISC (A) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	02	1	1506-1508	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (A) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	02	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (A) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	02	1	1509-		●
2	05.803 WHEEL; DISC (A) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	04	1	1506-1508	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (A) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	04	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (A) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	04	1	1509-		●
3	05.813 NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	1506-			●
3	05.813 NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	1506-			●
3	05.813 NUT; WHEEL,FRT AXLE M20 RH THREAD	8-97359-807-0	06	1	1506-1508	●
3	05.813 NUT; WHEEL,FRT AXLE M20 RH THREAD	8-97359-807-0	06	1	1509-	●	●
3	05.813 NUT; WHEEL,FRT AXLE M20 LH THREAD	8-97359-808-0	06	1	1506-1508	●
3	05.813 NUT; WHEEL,FRT AXLE M20 LH THREAD	8-97359-808-0	06	1	1509-	●	●
8	05.875 VALVE; TIRE SPARE	8-98221-106-0	01	1	1506-1508			●
8	05.875 VALVE; TIRE SPARE	8-98221-106-0	01	1	1509-			●
8	05.875 VALVE; TIRE FRT&RR 215/85R16 16X6K-128(CSC) SPARE	8-98221-106-0	01	1	1509-	●
8	05.875 VALVE; TIRE FRONT,REAR	8-98221-106-0	06	1	1506-1508			●
8	05.875 VALVE; TIRE FRONT,REAR	8-98221-106-0	06	1	1509-			●
8	05.875 VALVE; TIRE FRT&RR 215/85R16 16X6K-128(CSC) FRONT,REAR	8-98221-106-0	06	1	1509-	●
8	05.875 VALVE; TIRE SPARE	8-98221-112-0	01	1	1506-1508	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) SPARE	8-98221-112-0	01	1	1509-	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) SPARE	8-98221-112-0	01	1	1509-		●
8	05.875 VALVE; TIRE FRONT	8-98221-112-0	02	1	1506-1508	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) FRONT	8-98221-112-0	02	1	1509-	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) FRONT	8-98221-112-0	02	1	1509-		●
8	05.875 VALVE; TIRE REAR	8-98221-112-0	04	1	1506-1508	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) REAR	8-98221-112-0	04	1	1509-	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) REAR	8-98221-112-0	04	1	1509-		●
27	05.871 BOLT; COVER RUSSIA EQUIPMENT(B12) 02.343 M10X20 FLANGE	0-28651-020-0	06	1	1509-	●
28	05.864 BRACKET; COVER RUSSIA EQUIPMENT(B12)	8-97169-250-0	02	1	1509-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-12 7 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	1509-	●	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-12 7 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) FRONT,REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	06	1	1509-	●	●
33	05.858 COVER; WHEEL RUSSIA EQUIPMENT(B12)	8-97167-658-0	02	1	1509-	●

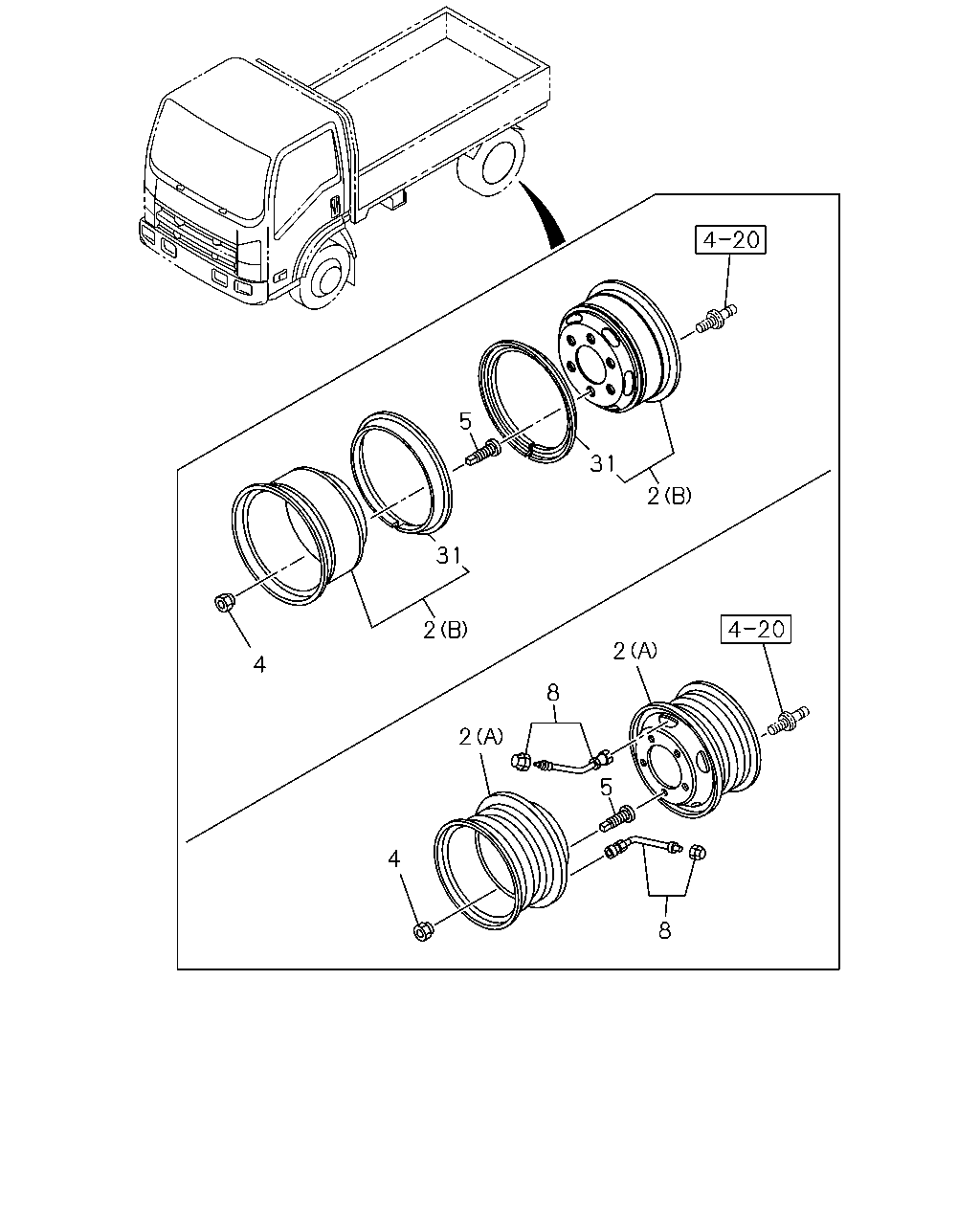

2 31 5 31 2 4 2 8 2 4 5 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	05.803 WHEEL; DISC FRT&RR 215/85R16 16X6K-128(CSC) (A) SPARE 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE	8-97233-665-1	01	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR 215/85R16 16X6K-128(CSC) (A) FRONT,REAR 16X6K OFFSET=128 PLATINUM SILVER 6-HOLE	8-97233-665-1	06	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-12 7 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) (B) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	01	1	1509-	●	●
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-12 7 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) (B) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	06	1	1509-	●	●
2	05.803 WHEEL; DISC (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1506-			●
2	05.803 WHEEL; DISC (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1506-			●
2	05.803 WHEEL; DISC (A) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	01	1	1506-1508	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (A) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	01	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (A) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	01	1	1509-		●
2	05.803 WHEEL; DISC (A) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	02	1	1506-1508	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (A) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	02	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (A) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	02	1	1509-		●
2	05.803 WHEEL; DISC (A) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	04	1	1506-1508	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) (A) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	04	1	1509-	●
2	05.803 WHEEL; DISC FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) (A) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	04	1	1509-		●
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	1506-			●
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	1506-			●
4	05.813 NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	06	1	1506-1508	●
4	05.813 NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	06	1	1509-	●	●
4	05.813 NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	06	1	1506-1508	●
4	05.813 NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	06	1	1509-	●	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	1506-			●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	1506-			●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	1506-1508	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	1509-	●	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	1506-1508	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	1509-	●	●
8	05.875 VALVE; TIRE SPARE	8-98221-106-0	01	1	1506-1508			●
8	05.875 VALVE; TIRE SPARE	8-98221-106-0	01	1	1509-			●
8	05.875 VALVE; TIRE FRT&RR 215/85R16 16X6K-128(CSC) SPARE	8-98221-106-0	01	1	1509-	●
8	05.875 VALVE; TIRE FRONT,REAR	8-98221-106-0	06	1	1506-1508			●
8	05.875 VALVE; TIRE FRONT,REAR	8-98221-106-0	06	1	1509-			●
8	05.875 VALVE; TIRE FRT&RR 215/85R16 16X6K-128(CSC) FRONT,REAR	8-98221-106-0	06	1	1509-	●
8	05.875 VALVE; TIRE SPARE	8-98221-112-0	01	1	1506-1508	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) SPARE	8-98221-112-0	01	1	1509-	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) SPARE	8-98221-112-0	01	1	1509-		●
8	05.875 VALVE; TIRE FRONT	8-98221-112-0	02	1	1506-1508	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) FRONT	8-98221-112-0	02	1	1509-	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) FRONT	8-98221-112-0	02	1	1509-		●
8	05.875 VALVE; TIRE REAR	8-98221-112-0	04	1	1506-1508	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) REAR	8-98221-112-0	04	1	1509-	●
8	05.875 VALVE; TIRE FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) REAR	8-98221-112-0	04	1	1509-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-12 7 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	1509-	●	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-12 7 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) FRONT,REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	06	1	1509-	●	●
