◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55B - FRONT LEAF SPRING ▶
4-55B — FRONT LEAF SPRING (#162375) — 14 parça

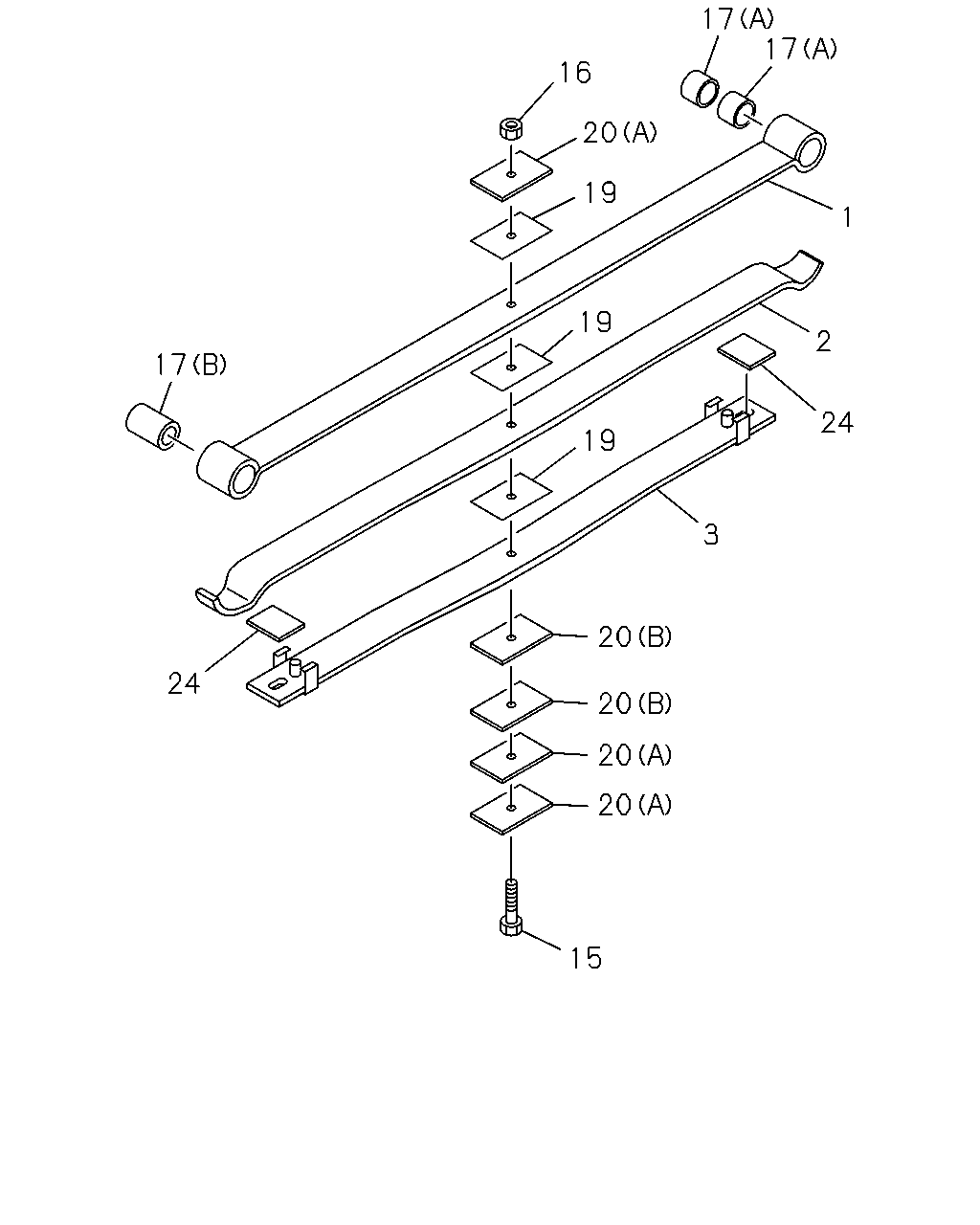

çizim 480380
15 20 20 20 20 24 3 2 1 17 17 16 20 19 19 19 17 24
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98079-917-0, 98079917 		8-98077-437-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98242-672-0, 98242672 		8-98245-059-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98079-917-0, 98079917 		8-98077-438-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98242-672-0, 98242672 		8-98245-060-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98079-917-0, 98079917 		8-98077-439-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-98242-672-0, 98242672 		8-98245-061-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=100 ASM PART: A = 8-98079-917-0, 98079917, B = 8-98242-672-0, 98242672 		8-98063-771-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-98079-917-0, 98079917, B = 8-98242-672-0, 98242672 		1-09400-055-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.524, (A) ASM PART: A = 8-98079-917-0, 98079917, B = 8-98242-672-0, 98242672 		8-94118-588-1 02 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.105, (B) ASM PART: A = 8-98079-917-0, 98079917, B = 8-98242-672-0, 98242672 		8-94130-354-0 01 1 -
19 07.425 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98079-917-0, 98079917, B = 8-98242-672-0, 98242672 		8-97084-845-0 03 1 -
20 07.425 SEAT; LEAF SPR,FRT
(A) ASM PART: A = 8-98079-917-0, 98079917, B = 8-98242-672-0, 98242672 		8-98034-521-0 03 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B) ASM PART: A = 8-98079-917-0, 98079917, B = 8-98242-672-0, 98242672 		8-98034-522-0 02 1 -
24 07.436 LINER; LEAF SPR,FWD FRT
ASM PART: A = 8-98079-917-0, 98079917, B = 8-98242-672-0, 98242672 		8-97084-848-0 02 1 -
