◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55A - FRONT LEAF SPRING ▶
4-55A — FRONT LEAF SPRING (#162374) — 11 parça

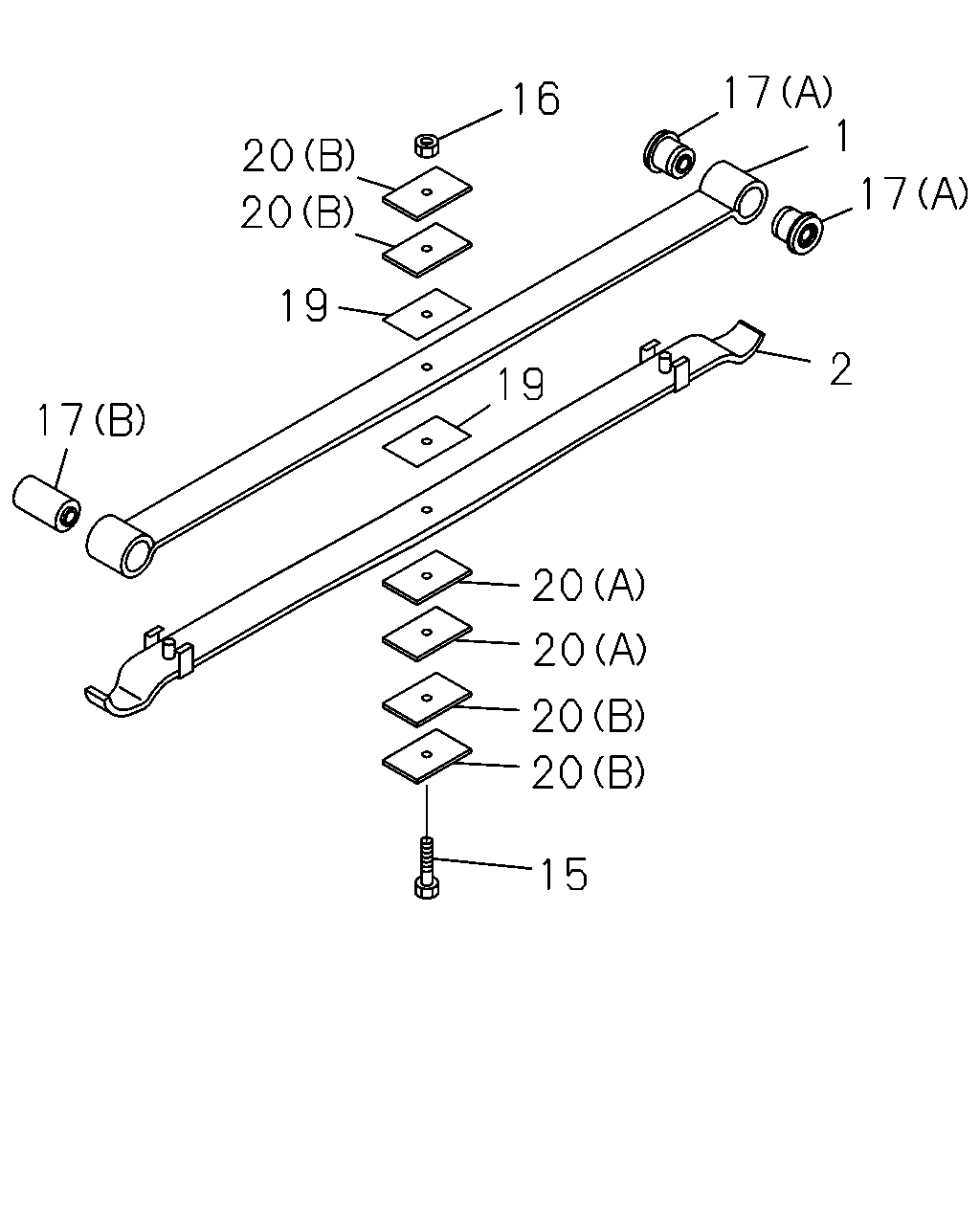

çizim 480355
15 20 20 20 17 20 2 19 19 20 20 16 17 1 17
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98197-602-0, 98197602 		8-98198-647-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98197-603-0, 98197603 		8-98198-649-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98197-602-0, 98197602 		8-98198-648-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98197-603-0, 98197603 		8-98198-650-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=90 ASM PART: A = 8-98197-602-0, 98197602, B = 8-98197-603-0, 98197603 		8-98081-401-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-98197-602-0, 98197602, B = 8-98197-603-0, 98197603 		1-09400-055-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.524, (A) ASM PART: A = 8-98197-602-0, 98197602, B = 8-98197-603-0, 98197603 		8-94118-588-1 02 1 -
17 07.413 BUSHING; LEAF SPR,FRT
(B), OD=42 L=81 ASM PART: A = 8-98197-602-0, 98197602, B = 8-98197-603-0, 98197603 		8-97081-586-0 01 1 -
19 07.425 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98197-602-0, 98197602, B = 8-98197-603-0, 98197603 		8-97084-845-0 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
(A) ASM PART: A = 8-98197-602-0, 98197602, B = 8-98197-603-0, 98197603 		8-98039-233-0 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B) ASM PART: A = 8-98197-602-0, 98197602, B = 8-98197-603-0, 98197603 		8-98041-368-0 04 1 -
