◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#162370) — 39 parça

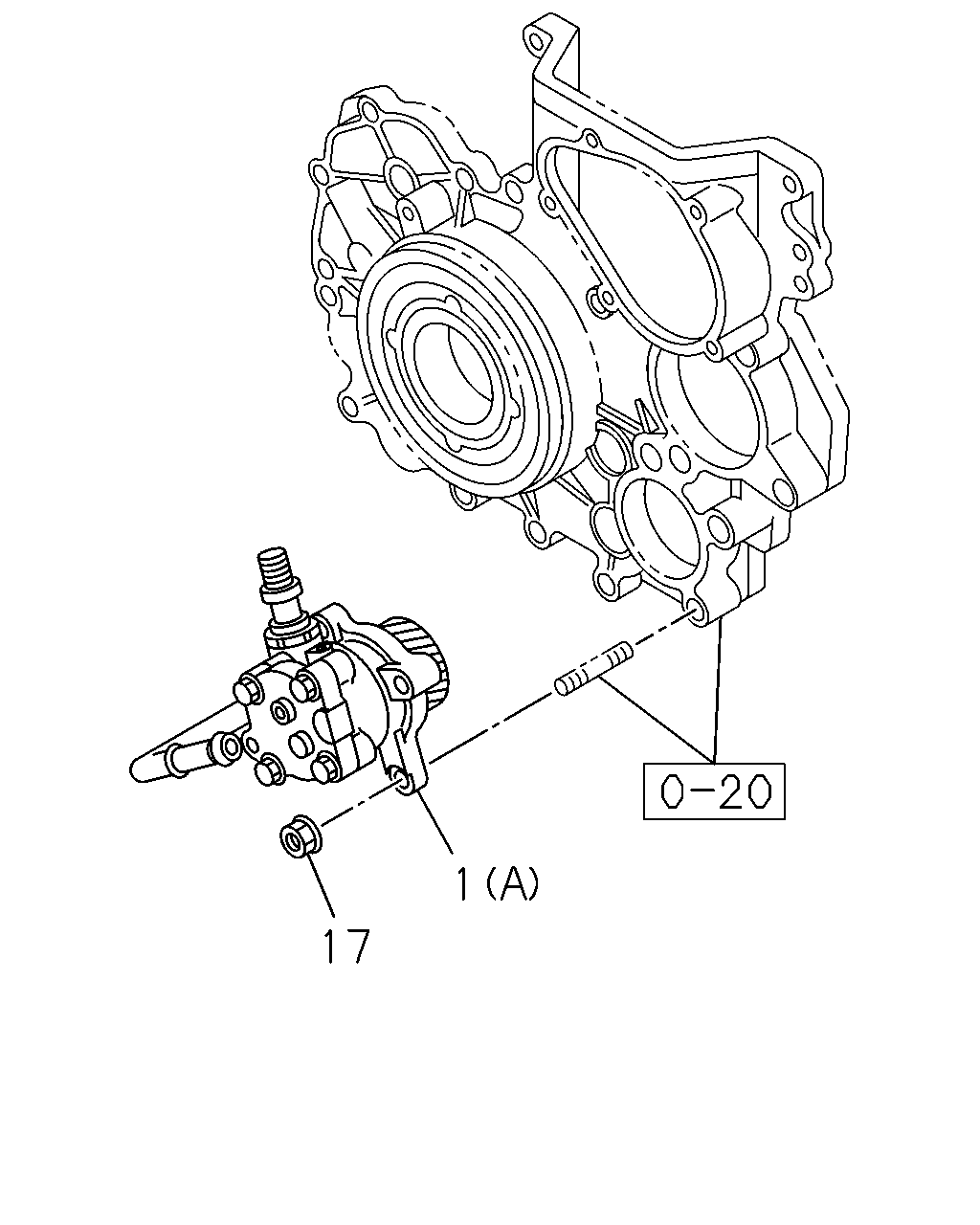

çizim 479747
1 17
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) TAIWAN EQUIPMENT(B04) (C) 		8-98055-007-2 01 1 1509- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) (C) 		8-98055-007-2 01 1 1509- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (C) 		8-98055-007-2 01 1 1509- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-98043-204-4 01 1 1506- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) (A) 		8-98043-204-4 01 1 1506- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) (B) 		8-98238-238-1 01 1 1506-1508 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) CHILE EQUIPMENT(KE1) (B) 		8-98006-793-4 01 1 1509- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) RUSSIA EQUIPMENT(B12) (B) 		8-98238-238-1 01 1 1509- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (B) 		8-98238-238-1 01 1 1509- ●
17 06.606 NUT; POWER STRG PUMP
01.540 M8 FLANGE 		0-91180-208-0 03 1 1506- ●
17 06.606 NUT; POWER STRG PUMP
4JJ1-TCS ENG(LFB) 01.540 M8 FLANGE 		0-91180-208-0 03 1 1506- ●

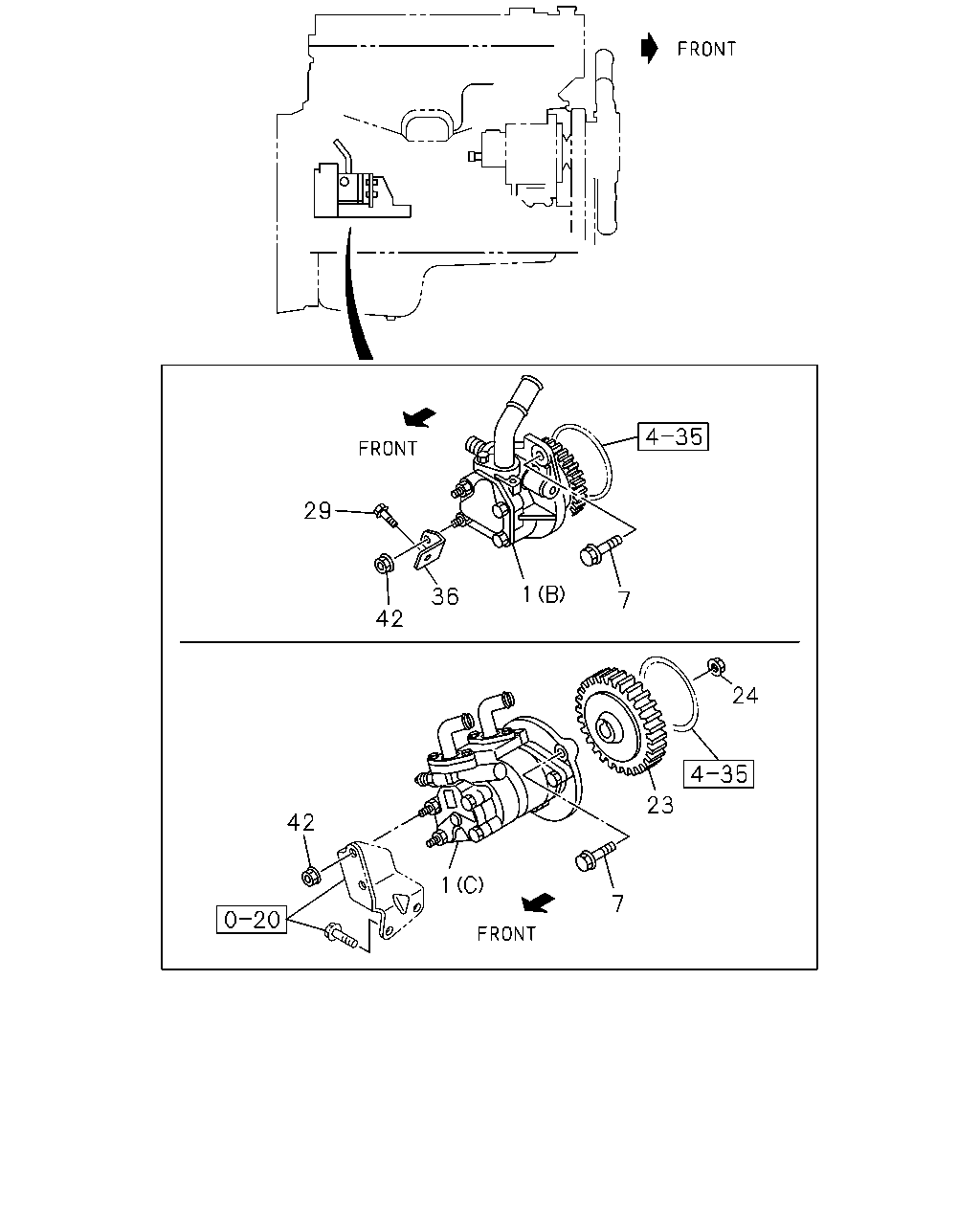

çizim 480273
24 23 7 36 1 42 29 42 1 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) TAIWAN EQUIPMENT(B04) (C) 		8-98055-007-2 01 1 1509- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) (C) 		8-98055-007-2 01 1 1509- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. (C) 		8-98055-007-2 01 1 1509- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		8-98043-204-4 01 1 1506- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JJ1-TCS ENG(LFB) (A) 		8-98043-204-4 01 1 1506- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) (B) 		8-98238-238-1 01 1 1506-1508 ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) CHILE EQUIPMENT(KE1) (B) 		8-98006-793-4 01 1 1509- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCN ENG(RDQ) RUSSIA EQUIPMENT(B12) (B) 		8-98238-238-1 01 1 1509- ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (B) 		8-98238-238-1 01 1 1509- ●
7 09.181 BOLT; OIL PUMP,P/S
4HK1-TCS ENG(RJS) 00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1506-1508 ●
7 09.181 BOLT; OIL PUMP,P/S
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1509- ●
7 09.181 BOLT; OIL PUMP,P/S
00.780 M10X30 FLANGE 		0-28751-030-0 02 1 1509- ●
23 06.660 GEAR; OIL PUMP
4HK1-TCN ENG(RDQ) TAIWAN EQUIPMENT(B04) 		8-97114-550-1 01 1 1509- ●
23 06.660 GEAR; OIL PUMP
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) 		8-97114-550-1 01 1 1509- ●
23 06.660 GEAR; OIL PUMP 8-97114-550-1 01 1 1509- ●
24 06.673 NUT; GEAR,P/S PUMP
4HK1-TCN ENG(RDQ) TAIWAN EQUIPMENT(B04) 05.816 M12 FLANGE 		0-91180-212-0 01 1 1509- ●
24 06.673 NUT; GEAR,P/S PUMP
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) 05.816 M12 FLANGE 		0-91180-212-0 01 1 1509- ●
24 06.673 NUT; GEAR,P/S PUMP
05.816 M12 FLANGE 		0-91180-212-0 01 1 1509- ●
29 09.171 BOLT; BRKT,POWER STRG
4HK1-TCS ENG(RJS) M14X20 FLANGE 		0-28851-420-0 01 1 1506-1508 ●
29 09.171 BOLT; BRKT,POWER STRG
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) M14X20 FLANGE 		0-28851-420-0 01 1 1509- ●
29 09.171 BOLT; BRKT,POWER STRG
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) M14X20 FLANGE 		0-28851-420-0 01 1 1509- ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HK1-TCS ENG(RJS) 		8-98036-532-0 01 1 1506-1508 ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) 		8-98036-532-0 01 1 1509- ●
36 06.606 BRACKET; PLATE,P/S PUMP
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98036-532-0 01 1 1509- ●
42 06.672 NUT; ADJ PLATE
4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ●
42 06.672 NUT; ADJ PLATE
HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ●
42 06.672 NUT; ADJ PLATE
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
42 06.672 NUT; ADJ PLATE
4HK1-TCN ENG(RDQ) EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
