Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#162369) — 249 parça

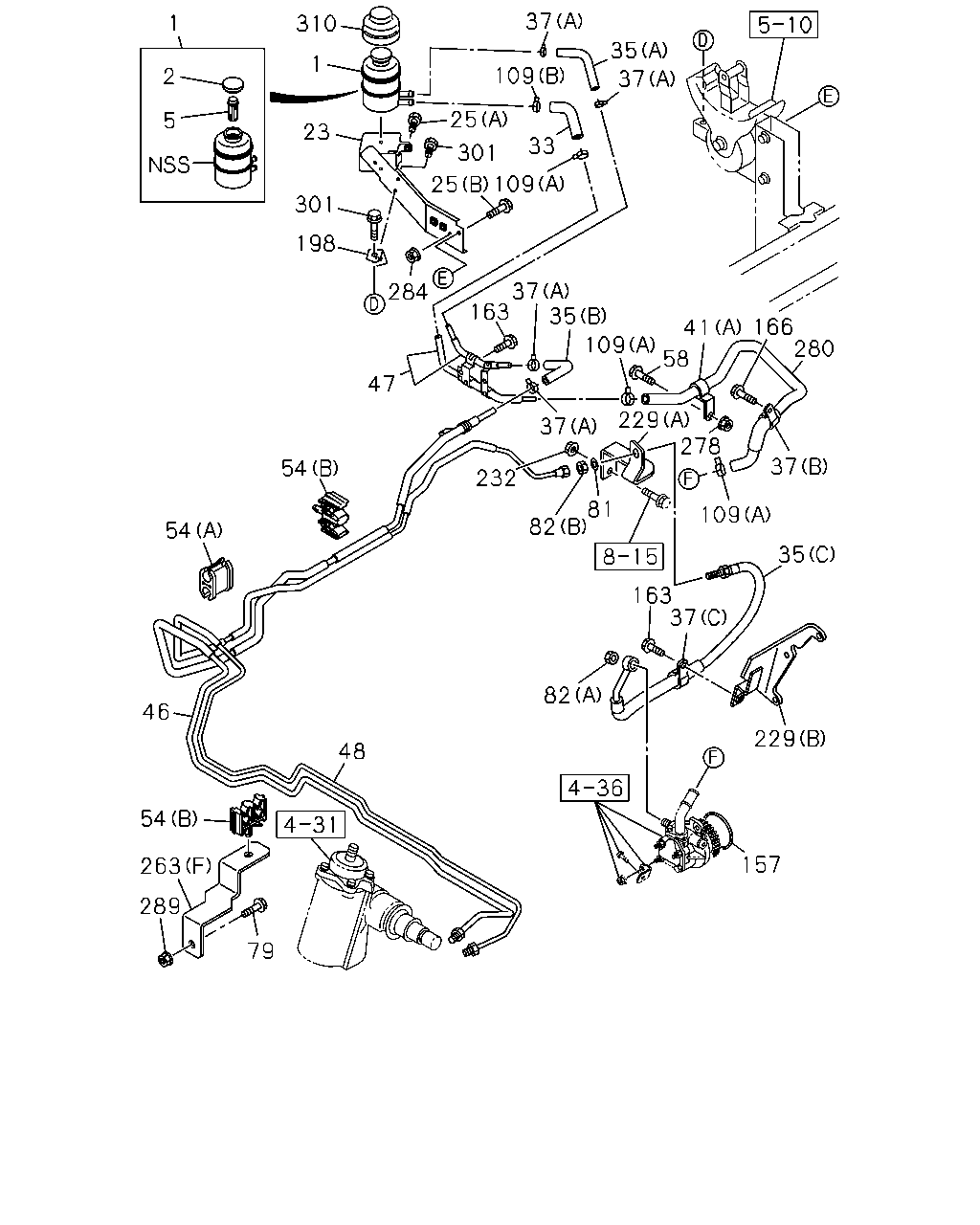

1 2 5 23 301 198 310 1 37 109 25 301 25 109 33 35 37 37 163 109 35 41 166 58 280 37 109 37 163 35 229 157 82 82 232 81 47 54 54 46 54 263 289 79 48 37 229 278 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1506-1508	●	●
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1509-	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1506-1508	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1509-	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1506-1508	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1509-	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1506-1508	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1509-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1506-1508	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1509-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1506-1508	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1509-	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1506-1508	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1509-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1506-1508	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1509-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1506-1508	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1509-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4HK1-TCS ENG(RJS) (C)	8-97389-832-2	01	1	1506-1508		●
35	06.671 HOSE; RETURN,P/S TANK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C)	8-97389-832-2	01	1	1509-		●	●
37	01.762 CLIP; HOSE,P/S 04.681 (D) ID=21	8-98150-355-0	02	1	1506-	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 04.681 (D) ID=21	8-98150-355-0	02	1	1506-		●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1506-1508	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1509-	●	●	●
37	01.762 CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) (C) ID=26 L=26	1-09701-236-0	01	1	1506-1508		●
37	01.762 CLIP; HOSE,P/S 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) ID=26 L=26	1-09701-236-0	01	1	1509-		●	●
37	01.762 CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	1506-1508		●
37	01.762 CLIP; HOSE,P/S 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	1509-		●	●
41	06.672 CLIP; HOSE,P/S 08.846 (C) ID=21.7	8-97203-074-0	01	1	1506-	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 08.846 (C) ID=21.7	8-97203-074-0	01	1	1506-		●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1506-	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 04.681 (B) ID=21	8-98150-355-0	01	1	1506-		●
41	06.672 CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) (A)	8-98074-004-0	01	1	1506-1508		●
41	06.672 CLIP; HOSE,P/S 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98074-004-0	01	1	1509-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) FRONT WIDE TREAD<7GV> L=2558	8-98296-432-1	01	1	1509-		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD & SCR(JCQ),FRONT WIDE TREAD<7GV>,CATALYSIS CONTR OL WITH DPD(8JM) L=2599	8-98296-430-1	01	1	1509-		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK L=2599	8-98296-430-1	01	1	1509-			●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD & SCR(JCQ),CATALYSIS CONTROL(6MZ),FRONT WIDE TRE AD<7GV> L=2651	8-98131-674-0	01	1	1509-		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) L=2597	8-98207-478-1	01	1	1506-1508		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) L=2597	8-98207-478-1	01	1	1509-		●
47	06.671 PIPE; RETURN	8-98046-933-2	01	1	1506-	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB)	8-98046-933-2	01	1	1506-		●
47	06.671 PIPE; RETURN 4HK1-TCS ENG(RJS)	8-98033-896-4	01	1	1506-1508		●
47	06.671 PIPE; RETURN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98033-896-4	01	1	1509-		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) FRONT WIDE TREAD<7GV> L=2753	8-98296-431-1	01	1	1509-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD & SCR(JCQ),FRONT WIDE TREAD<7GV>,CATALYSIS CONTR OL WITH DPD(8JM) L=2791	8-98296-429-1	01	1	1509-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT L=2791	8-98296-429-1	01	1	1509-			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD & SCR(JCQ),CATALYSIS CONTROL(6MZ),FRONT WIDE TRE AD<7GV> L=2846	8-98131-673-0	01	1	1509-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98156-809-0	01	1	1506-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCS ENG(LFB)	8-98156-809-0	01	1	1506-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HK1-TCS ENG(RJS) L=2794	8-98207-475-1	01	1	1506-1508		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) L=2794	8-98207-475-1	01	1	1509-		●
54	06.672 CLIP; OIL PIPE 4HK1-TCS ENG(RJS) (A) ID=10X2 H=22	8-94252-455-2	01	1	1506-1508		●
54	06.672 CLIP; OIL PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) ID=10X2 H=22	8-94252-455-2	01	1	1509-		●	●
54	06.672 CLIP; OIL PIPE 4HK1-TCS ENG(RJS) 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	04	1	1506-1508		●
54	06.672 CLIP; OIL PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.930 (B) ID=10X2 H=37.5	8-97018-546-0	04	1	1509-		●	●
58	06.672 BOLT; CLIP 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-1508		●
58	06.672 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-		●	●
79	06.672 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1506-	●
79	06.672 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1506-		●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-1508		●
79	06.672 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-		●
79	06.672 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-			●
81	06.672 WASHER; LK,FLEX HOSE 4HK1-TCS ENG(RJS) ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1506-1508		●
81	06.672 WASHER; LK,FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1509-		●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1506-1508	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1509-	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4HK1-TCS ENG(RJS) 06.897 (B) M16	8-94370-339-0	01	1	1506-1508		●
82	06.672 NUT; FLEX HOSE,P/S 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.897 (B) M16	8-94370-339-0	01	1	1509-		●	●
109	06.672 CLIP; RUBBER HOSE 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) 04.681 (A) ID=21	8-98150-355-0	02	1	1509-		●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1506-	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB) (C) ID=10X2 H=22	8-94252-455-2	01	1	1506-		●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1506-1508	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1509-	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1506-1508	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1509-	●
109	06.672 CLIP; RUBBER HOSE EURO6 SPECIFICATION(NT6) 04.681 (A) ID=21	8-98150-355-0	01	1	1509-		●
109	06.672 CLIP; RUBBER HOSE 4HK1-TCS ENG(RJS) 04.681 (A) ID=21	8-98150-355-0	02	1	1506-1508		●
109	06.672 CLIP; RUBBER HOSE EURO5B+ SPECIFICATION(NT5) 04.681 (A) ID=21	8-98150-355-0	03	1	1509-		●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	03	1	1509-			●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS)	8-97101-875-2	01	1	1506-1508		●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS).	8-97101-875-2	01	1	1509-		●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	1509-			●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1506-	●
163	06.671 BOLT; OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1506-		●
163	06.671 BOLT; OIL PIPE 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1506-		●
163	06.671 BOLT; OIL PIPE FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-1508		●
163	06.671 BOLT; OIL PIPE 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-1508		●
163	06.671 BOLT; OIL PIPE FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-		●	●
163	06.671 BOLT; OIL PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-		●	●
166	06.672 BOLT; CLIP 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-1508		●
166	06.672 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-		●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1506-1508	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1509-	●	●	●
229	06.606 BRACKET; HOSE,POWER STRG TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (B)	8-98011-639-1	01	1	1509-		●
229	06.606 BRACKET; HOSE,POWER STRG 4HK1-TCS ENG(RJS) (A)	8-98079-341-0	01	1	1506-1508		●
229	06.606 BRACKET; HOSE,POWER STRG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98079-341-0	01	1	1509-		●	●
232	06.672 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1506-1508		●
232	06.672 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	1509-		●	●
263	06.672 BRACKET; P/S PIPE EURO5B+ SPECIFICATION(NT5) (F)	8-98034-113-0	01	1	1509-		●
263	06.672 BRACKET; P/S PIPE (F)	8-98034-113-0	01	1	1509-			●
263	06.672 BRACKET; P/S PIPE (C)	8-98006-233-1	01	1	1506-	●
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98006-233-1	01	1	1506-		●
263	06.672 BRACKET; P/S PIPE (B)	8-98047-048-3	01	1	1506-	●
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98047-048-3	01	1	1506-		●
263	06.672 BRACKET; P/S PIPE (A)	8-98117-646-1	02	1	1506-	●
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98117-646-1	02	1	1506-		●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (D)	8-98212-882-0	01	1	1506-		●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (E)	8-98212-883-1	02	1	1506-		●
278	06.670 NUT; HOSE CLIP 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1508		●
278	06.670 NUT; HOSE CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL HYDRO BRAKE BOOSTER(7QQ)	8-98052-247-1	01	1	1509-		●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98052-247-1	01	1	1509-			●
280	06.672 HOSE; P/S OIL PUMP,INL L=260	0-09814-400-0	01	1	1506-	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCS ENG(LFB) L=260	0-09814-400-0	01	1	1506-		●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS)	8-98052-248-1	01	1	1506-1508		●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98052-248-1	01	1	1509-		●
284	06.670 NUT; PIPE 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1508		●
284	06.670 NUT; PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-		●	●
289	06.673 NUT; BRKT,POWER STRG EURO5B+ SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-		●
289	06.673 NUT; BRKT,POWER STRG 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-			●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-		●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-1508	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-	●	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1506-1508	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1509-	●	●	●

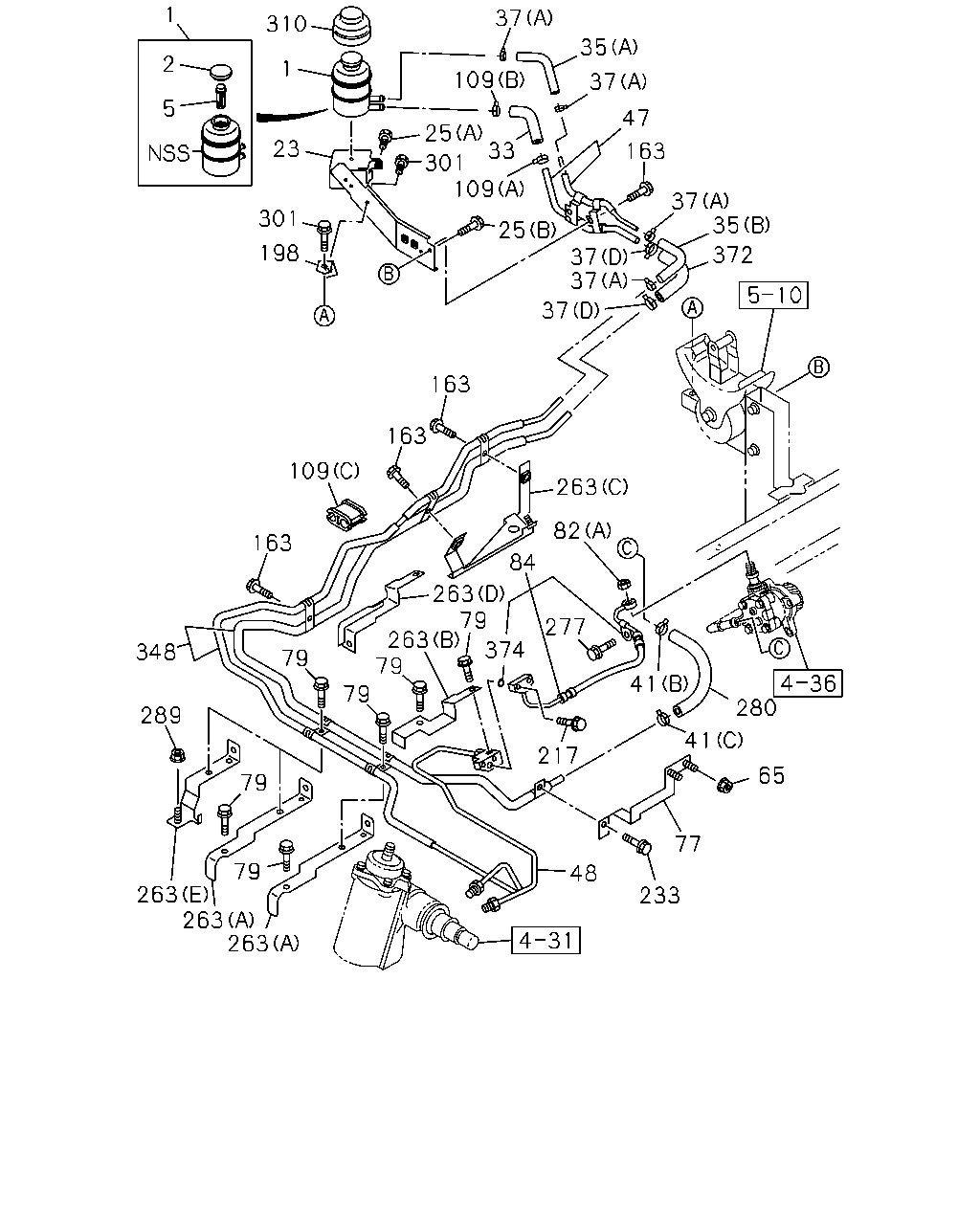

1 2 5 23 301 198 310 1 37 109 25 301 33 109 25 37 37 37 37 35 372 35 37 47 163 263 82 163 163 109 163 348 289 263 263 79 79 79 79 280 65 41 41 277 263 79 374 263 79 263 217 48 233 77 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1506-1508	●	●
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1509-	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1506-1508	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1509-	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1506-1508	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1509-	●	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1506-1508	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1509-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1506-1508	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1509-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1506-1508	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1509-	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1506-1508	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1509-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1506-1508	●	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1509-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1506-1508	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1509-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4HK1-TCS ENG(RJS) (C)	8-97389-832-2	01	1	1506-1508		●
35	06.671 HOSE; RETURN,P/S TANK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C)	8-97389-832-2	01	1	1509-		●	●
37	01.762 CLIP; HOSE,P/S 04.681 (D) ID=21	8-98150-355-0	02	1	1506-	●
37	01.762 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 04.681 (D) ID=21	8-98150-355-0	02	1	1506-		●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1506-1508	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1509-	●	●	●
37	01.762 CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) (C) ID=26 L=26	1-09701-236-0	01	1	1506-1508		●
37	01.762 CLIP; HOSE,P/S 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) ID=26 L=26	1-09701-236-0	01	1	1509-		●	●
37	01.762 CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	1506-1508		●
37	01.762 CLIP; HOSE,P/S 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	1509-		●	●
41	06.672 CLIP; HOSE,P/S 08.846 (C) ID=21.7	8-97203-074-0	01	1	1506-	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 08.846 (C) ID=21.7	8-97203-074-0	01	1	1506-		●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1506-	●
41	06.672 CLIP; HOSE,P/S 4JJ1-TCS ENG(LFB) 04.681 (B) ID=21	8-98150-355-0	01	1	1506-		●
41	06.672 CLIP; HOSE,P/S 4HK1-TCS ENG(RJS) (A)	8-98074-004-0	01	1	1506-1508		●
41	06.672 CLIP; HOSE,P/S 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98074-004-0	01	1	1509-		●	●
47	06.671 PIPE; RETURN	8-98046-933-2	01	1	1506-	●
47	06.671 PIPE; RETURN 4JJ1-TCS ENG(LFB)	8-98046-933-2	01	1	1506-		●
47	06.671 PIPE; RETURN 4HK1-TCS ENG(RJS)	8-98033-896-4	01	1	1506-1508		●
47	06.671 PIPE; RETURN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98033-896-4	01	1	1509-		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) FRONT WIDE TREAD<7GV> L=2753	8-98296-431-1	01	1	1509-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD & SCR(JCQ),FRONT WIDE TREAD<7GV>,CATALYSIS CONTR OL WITH DPD(8JM) L=2791	8-98296-429-1	01	1	1509-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT L=2791	8-98296-429-1	01	1	1509-			●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> EXC. CATALYSIS CONTROL WITH DPD & SCR(JCQ),CATALYSIS CONTROL(6MZ),FRONT WIDE TRE AD<7GV> L=2846	8-98131-673-0	01	1	1509-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98156-809-0	01	1	1506-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JJ1-TCS ENG(LFB)	8-98156-809-0	01	1	1506-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HK1-TCS ENG(RJS) L=2794	8-98207-475-1	01	1	1506-1508		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) L=2794	8-98207-475-1	01	1	1509-		●
65	06.672 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1507	●	●
65	06.672 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-1508	●
65	06.672 NUT; BRKT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-1508		●
65	06.672 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC),FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-1508		●
65	06.672 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●
65	06.672 NUT; BRKT 4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-		●
65	06.672 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC),FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-		●
77	06.672 BRACKET; POWER STEERING HOSE EXC. PTO MANUAL CONTROL(6WC),FRAME STRAIGHT TYPE<7KJ>	8-98047-049-2	01	1	1506-	●	●
79	06.672 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1506-	●
79	06.672 BOLT; BRKT EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1506-		●
79	06.672 BOLT; BRKT 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-1508		●
79	06.672 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-		●
79	06.672 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-			●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1506-1508	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1509-	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4HK1-TCS ENG(RJS) 06.897 (B) M16	8-94370-339-0	01	1	1506-1508		●
82	06.672 NUT; FLEX HOSE,P/S 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.897 (B) M16	8-94370-339-0	01	1	1509-		●	●
84	06.670 HOSE; FLEX,P/S	8-98175-560-0	01	1	1506-	●
84	06.670 HOSE; FLEX,P/S 4JJ1-TCS ENG(LFB)	8-98175-560-0	01	1	1506-		●
109	06.672 CLIP; RUBBER HOSE 4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) 04.681 (A) ID=21	8-98150-355-0	02	1	1509-		●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1506-	●
109	06.672 CLIP; RUBBER HOSE 4JJ1-TCS ENG(LFB) (C) ID=10X2 H=22	8-94252-455-2	01	1	1506-		●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1506-1508	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1509-	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1506-1508	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1509-	●
109	06.672 CLIP; RUBBER HOSE EURO6 SPECIFICATION(NT6) 04.681 (A) ID=21	8-98150-355-0	01	1	1509-		●
109	06.672 CLIP; RUBBER HOSE 4HK1-TCS ENG(RJS) 04.681 (A) ID=21	8-98150-355-0	02	1	1506-1508		●
109	06.672 CLIP; RUBBER HOSE EURO5B+ SPECIFICATION(NT5) 04.681 (A) ID=21	8-98150-355-0	03	1	1509-		●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	03	1	1509-			●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1506-	●
163	06.671 BOLT; OIL PIPE EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1506-		●
163	06.671 BOLT; OIL PIPE 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1506-		●
163	06.671 BOLT; OIL PIPE FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-1508		●
163	06.671 BOLT; OIL PIPE 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-1508		●
163	06.671 BOLT; OIL PIPE FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-		●	●
163	06.671 BOLT; OIL PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-		●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1506-1508	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1509-	●	●	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1506-	●
217	06.672 BOLT; FLEX HOSE,P/S 4JJ1-TCS ENG(LFB) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1506-		●
233	06.672 BOLT; PIPE CLIP,P/S 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-	●
233	06.672 BOLT; PIPE CLIP,P/S 4JJ1-TCS ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-		●
263	06.672 BRACKET; P/S PIPE EURO5B+ SPECIFICATION(NT5) (F)	8-98034-113-0	01	1	1509-		●
263	06.672 BRACKET; P/S PIPE (F)	8-98034-113-0	01	1	1509-			●
263	06.672 BRACKET; P/S PIPE (C)	8-98006-233-1	01	1	1506-	●
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-98006-233-1	01	1	1506-		●
263	06.672 BRACKET; P/S PIPE (B)	8-98047-048-3	01	1	1506-	●
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98047-048-3	01	1	1506-		●
263	06.672 BRACKET; P/S PIPE (A)	8-98117-646-1	02	1	1506-	●
263	06.672 BRACKET; P/S PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98117-646-1	02	1	1506-		●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (D)	8-98212-882-0	01	1	1506-		●
263	06.672 BRACKET; P/S PIPE 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (E)	8-98212-883-1	02	1	1506-		●
277	06.672 BOLT; HOSE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1506-	●
277	06.672 BOLT; HOSE CLIP 4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1506-		●
280	06.672 HOSE; P/S OIL PUMP,INL HYDRO BRAKE BOOSTER(7QQ)	8-98052-247-1	01	1	1509-		●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98052-247-1	01	1	1509-			●
280	06.672 HOSE; P/S OIL PUMP,INL L=260	0-09814-400-0	01	1	1506-	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JJ1-TCS ENG(LFB) L=260	0-09814-400-0	01	1	1506-		●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCS ENG(RJS)	8-98052-248-1	01	1	1506-1508		●
280	06.672 HOSE; P/S OIL PUMP,INL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98052-248-1	01	1	1509-		●
289	06.673 NUT; BRKT,POWER STRG EURO5B+ SPECIFICATION(NT5) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-		●
289	06.673 NUT; BRKT,POWER STRG 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-			●
289	06.673 NUT; BRKT,POWER STRG 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-		●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1506-1508	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1509-	●	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1506-1508	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1509-	●	●	●
348	06.671 PIPE; OIL,P/S PRESS	8-98101-609-1	01	1	1506-1507	●
348	06.671 PIPE; OIL,P/S PRESS EXC. FRAME STRAIGHT TYPE<7KJ>	8-98101-609-1	01	1	1506-1507		●
348	06.671 PIPE; OIL,P/S PRESS	8-98101-609-1	01	1	1508-	●
348	06.671 PIPE; OIL,P/S PRESS EXC. FRAME STRAIGHT TYPE<7KJ>	8-98101-609-1	01	1	1508-		●
348	06.671 PIPE; OIL,P/S PRESS 4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ>	8-98212-885-3	01	1	1506-		●
372	06.673 HOSE; RUBBER 06.672	8-98171-278-0	01	1	1506-	●
372	06.673 HOSE; RUBBER 4JJ1-TCS ENG(LFB) 06.672	8-98171-278-0	01	1	1506-		●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1506-	●
374	06.673 GASKET; HOSE,P/S 4JJ1-TCS ENG(LFB)	8-98139-036-0	01	1	1506-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
