4-31 — STEERING COLUMN AND SHAFT (#162367) — 80 parça

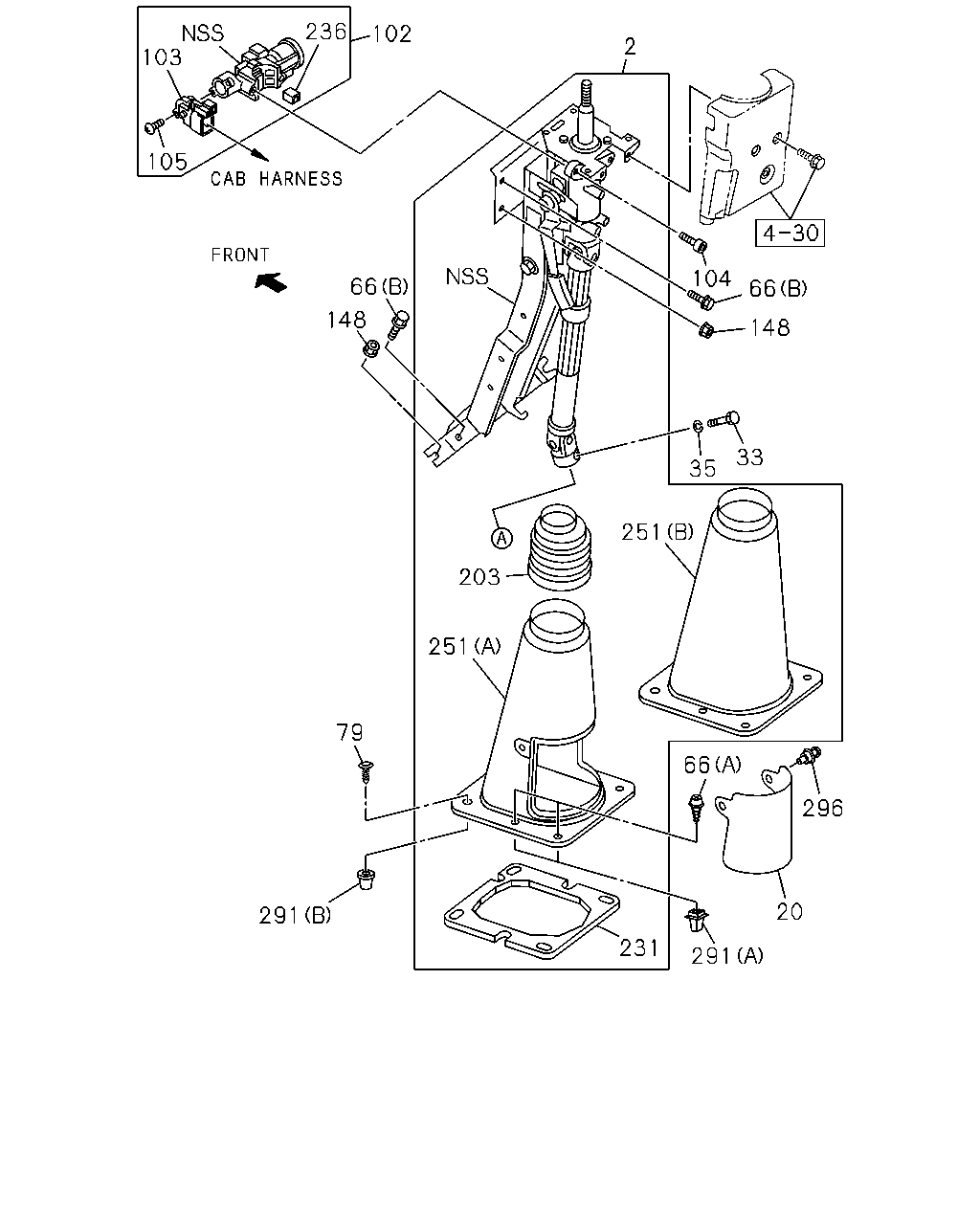

çizim 480284
103 236 102 2 104 66 148 33 35 251 296 66 291 20 231 291 79 66 148 203 251 105
BalonParca AdiParca NoAdetTipApplied Date A B C
2 06.518 SHAFT ASM; STRG
MANUAL TILT CAB<RWZ> BLACK 		8-97418-802-2 01 1 1506-1508 ● ●
2 06.518 SHAFT ASM; STRG
MANUAL TILT CAB<RWZ> BLACK 		8-97418-802-2 01 1 1509- ● ● ●
2 06.518 SHAFT ASM; STRG
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97406-375-8 01 1 1506-1508 ● ●
2 06.518 SHAFT ASM; STRG
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97406-375-8 01 1 1509- ● ● ●
20 06.525 COVER; STRG SHAFT
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97405-159-0 01 1 1506-1508 ● ●
20 06.525 COVER; STRG SHAFT
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97405-159-0 01 1 1509- ● ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
M8X30 		8-97359-615-0 01 1 1506-1508 ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
M8X30 		8-97359-615-0 01 1 1509- ● ● ●
35 06.525 WASHER; LK,STRG SHAFT
02.559 ID=8.2 		0-91510-808-0 01 1 1506-1508 ● ●
35 06.525 WASHER; LK,STRG SHAFT
02.559 ID=8.2 		0-91510-808-0 01 1 1509- ● ● ●
66 06.514 BOLT; STRG COLUMN
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1506-1508 ● ●
66 06.514 BOLT; STRG COLUMN
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 1509- ● ● ●
66 06.514 BOLT; STRG COLUMN
(A) M5X18 TAPPING 		0-72180-518-0 04 1 1506-1508 ● ●
66 06.514 BOLT; STRG COLUMN
(A) M5X18 TAPPING 		0-72180-518-0 04 1 1509- ● ● ●
66 06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 02 1 1506-1508 ● ●
66 06.514 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 02 1 1509- ● ● ●
79 06.760 CLIP; STRG COLUMN COVER
16.800 L=19 BLACK 		8-94363-776-0 02 1 1506-1508 ● ●
79 06.760 CLIP; STRG COLUMN COVER
16.800 L=19 BLACK 		8-94363-776-0 02 1 1509- ● ● ●
102 06.500 LOCK ASM; STRG 8-97387-036-0 01 1 1506-1508 ● ●
102 06.500 LOCK ASM; STRG 8-97387-036-0 01 1 1509-1511 ● ●
102 06.500 LOCK ASM; STRG
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97387-036-0 01 1 1509-1511 ●
102 06.500 LOCK ASM; STRG 8-97387-036-0 01 1 1512- ● ● ●
103 02.188 SWITCH; IGNITION 8-98045-349-0 01 1 1506-1508 ● ●
103 02.188 SWITCH; IGNITION 8-98045-349-0 01 1 1509-1511 ● ●
103 02.188 SWITCH; IGNITION
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98045-349-0 01 1 1509-1511 ●
103 02.188 SWITCH; IGNITION 8-98045-349-0 01 1 1512- ● ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT 		8-97321-385-0 02 1 1506-1508 ● ●
104 06.500 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT 		8-97321-385-0 02 1 1509- ● ● ●
105 06.500 SCREW; IGN SW 8-98045-346-0 02 1 1506-1508 ● ●
105 06.500 SCREW; IGN SW 8-98045-346-0 02 1 1509-1511 ● ●
105 06.500 SCREW; IGN SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98045-346-0 02 1 1509-1511 ●
105 06.500 SCREW; IGN SW 8-98045-346-0 02 1 1512- ● ● ●
148 06.514 NUT; COLUMN TO BRKT
01.840 M8 W/DISHED WASHER 		8-97329-625-0 03 1 1506-1508 ● ●
148 06.514 NUT; COLUMN TO BRKT
01.840 M8 W/DISHED WASHER 		8-97329-625-0 03 1 1509- ● ● ●
203 06.525 BOOT; STRG COLUMN LWR 8-98137-331-0 01 1 1506-1508 ● ●
203 06.525 BOOT; STRG COLUMN LWR 8-98137-331-0 01 1 1509- ● ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN 8-98137-329-0 01 1 1506-1508 ● ●
231 06.525 SEAL; RUBBER,STRG COLUMN 8-98137-329-0 01 1 1509- ● ● ●
236 02.195 SWITCH; DOOR WARNING,STRG LOCK 8-98045-350-0 01 1 1506-1508 ● ●
236 02.195 SWITCH; DOOR WARNING,STRG LOCK 8-98045-350-0 01 1 1509-1511 ● ●
236 02.195 SWITCH; DOOR WARNING,STRG LOCK
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98045-350-0 01 1 1509-1511 ●
236 02.195 SWITCH; DOOR WARNING,STRG LOCK 8-98045-350-0 01 1 1512- ● ● ●
251 06.518 COVER; LWR
MANUAL TILT CAB<RWZ> (B) BLACK 		8-97418-804-0 01 1 1506-1508 ● ●
251 06.518 COVER; LWR
MANUAL TILT CAB<RWZ> (B) BLACK 		8-97418-804-0 01 1 1509- ● ● ●
251 06.518 COVER; LWR
EXC. MANUAL TILT CAB<RWZ> (A) BLACK 		8-97417-049-0 01 1 1506-1508 ● ●
251 06.518 COVER; LWR
EXC. MANUAL TILT CAB<RWZ> (A) BLACK 		8-97417-049-0 01 1 1509- ● ● ●
291 06.518 GROMMET; STRG SHAFT COVER
04.931 (A) H=15 		8-94463-268-1 04 1 1506-1508 ● ●
291 06.518 GROMMET; STRG SHAFT COVER
04.931 (A) H=15 		8-94463-268-1 04 1 1509- ● ● ●
291 06.518 GROMMET; STRG SHAFT COVER
(B) 		8-98029-442-1 02 1 1506-1508 ● ●
291 06.518 GROMMET; STRG SHAFT COVER
(B) 		8-98029-442-1 02 1 1509- ● ● ●
296 06.525 CLIP; COVER
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97868-409-0 01 1 1506-1508 ● ●
296 06.525 CLIP; COVER
EXC. MANUAL TILT CAB<RWZ> BLACK 		8-97868-409-0 01 1 1509- ● ● ●

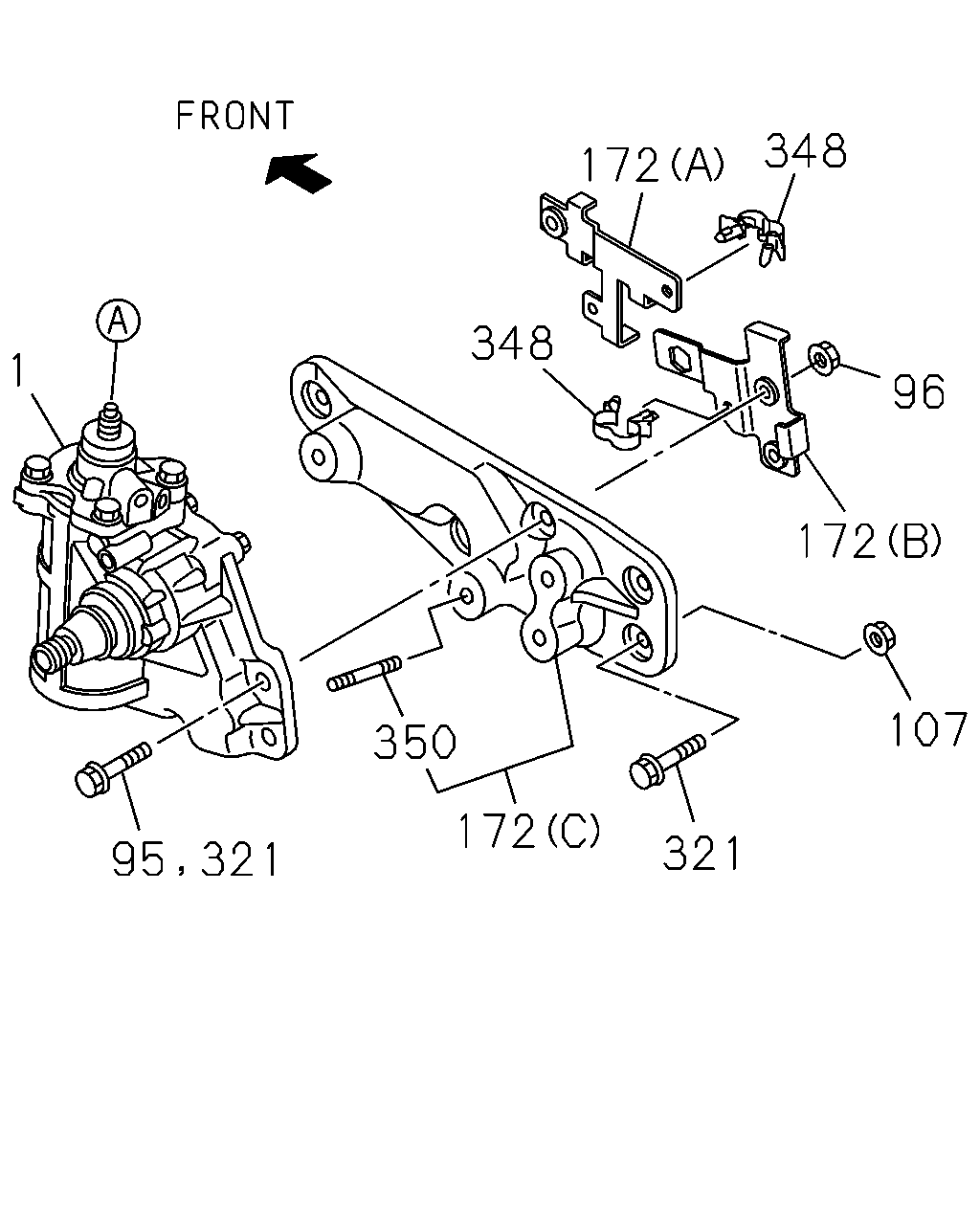

çizim 492722
172 348 348 96 172 107 321 172 350 321 95 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-98110-220-5 01 1 1506-1508 ● ●
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-98110-220-5 01 1 1509- ● ● ●
95 06.509 BOLT; STRG UNIT
FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> M12X47 FLANGE 		8-98055-055-0 03 1 1509- ●
95 06.509 BOLT; STRG UNIT
M12X47 FLANGE 		8-98055-055-0 04 1 1506-1508 ● ●
95 06.509 BOLT; STRG UNIT
M12X47 FLANGE 		8-98055-055-0 04 1 1509- ● ●
95 06.509 BOLT; STRG UNIT
EXC. FRONT WIDE TREAD<7GV> M12X47 FLANGE 		8-98055-055-0 04 1 1509- ●
96 06.509 NUT; STRG UNIT
M12 FLANGE 		8-97359-618-0 01 1 1506-1508 ● ●
96 06.509 NUT; STRG UNIT
M12 FLANGE 		8-97359-618-0 01 1 1509- ● ● ●
107 06.514 NUT; BRKT
FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 06.509 M12 FLANGE 		8-97359-618-0 03 1 1509- ●
172 06.509 BRACKET; STRG
FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> (C) 		8-98196-128-0 01 1 1509- ●
172 06.509 BRACKET; STRG
(A) 		8-98073-917-0 01 1 1506-1508 ● ●
172 06.509 BRACKET; STRG
(A) 		8-98073-917-0 01 1 1509- ● ● ●
172 06.509 BRACKET; STRG
(B) 		8-98073-918-1 01 1 1506-1508 ●
172 06.509 BRACKET; STRG
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98073-918-1 01 1 1506-1508 ●
172 06.509 BRACKET; STRG
(B) 		8-98073-918-1 01 1 1509- ●
172 06.509 BRACKET; STRG
EXC. FRONT WIDE TREAD<7GV>,FRAME STRAIGHT TYPE<7KJ> (B) 		8-98073-918-1 01 1 1509- ●
172 06.509 BRACKET; STRG
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98055-259-0 01 1 1506-1508 ●
172 06.509 BRACKET; STRG
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98055-259-0 01 1 1509- ●
172 06.509 BRACKET; STRG
(B) 		8-98055-259-0 01 1 1509- ●
321 06.514 BOLT; BRKT,STRG
FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 06.509 M12X47 FLANGE 		8-98055-055-0 06 1 1509- ●
348 06.525 CLIP; BRKT,STRG
ID=5-12 L=18 		1-09709-287-0 02 1 1506-1508 ●
348 06.525 CLIP; BRKT,STRG
EXC. FRAME STRAIGHT TYPE<7KJ> ID=5-12 L=18 		1-09709-287-0 02 1 1506-1508 ●
348 06.525 CLIP; BRKT,STRG
ID=5-12 L=18 		1-09709-287-0 02 1 1509- ●
348 06.525 CLIP; BRKT,STRG
EXC. FRONT WIDE TREAD<7GV>,FRAME STRAIGHT TYPE<7KJ> ID=5-12 L=18 		1-09709-287-0 02 1 1509- ●
348 06.525 CLIP; BRKT,STRG
FRAME STRAIGHT TYPE<7KJ> ID=5-12 L=22 		1-09709-288-0 02 1 1506-1508 ●
348 06.525 CLIP; BRKT,STRG
FRAME STRAIGHT TYPE<7KJ> ID=5-12 L=22 		1-09709-288-0 02 1 1509- ●
348 06.525 CLIP; BRKT,STRG
ID=5-12 L=22 		1-09709-288-0 02 1 1509- ●
350 06.509 STUD; BRACKET
FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 		8-98196-098-0 01 1 1509- ●
