4-30 — STEERING WHEEL AND COWL (#162366) — 92 parça

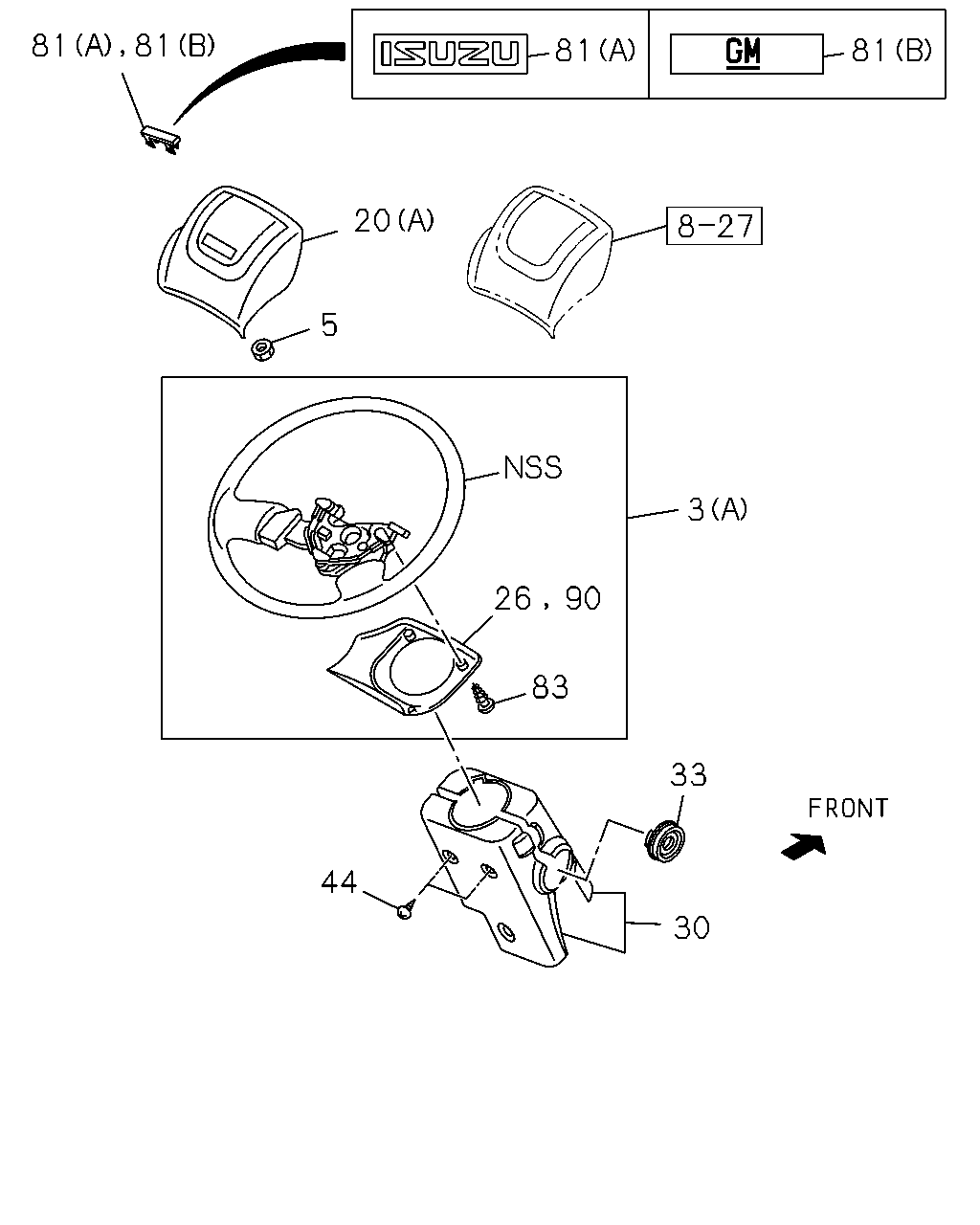

81 81 81 81 20 5 26 90 3 83 33 30 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPECIAL PACKAGE<7BB> (B) DARK GRAY	8-97423-997-0	01	1	1509-	●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),SPECIAL PACKAGE<7BB> (B) DARK GRAY	8-97423-997-0	01	1	1509-	●
3	06.513 WHEEL; STRG SPECIAL PACKAGE<7BB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5> (A) DARK GRAY	8-97465-649-2	01	1	1509-	●
3	06.513 WHEEL; STRG 4 WHEEL ANTI LOCK BRAKE<JE5> SPECIAL PACKAGE<7BB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,TURKEY EQUIPMENT(B11), RUSSIA EQUIPMENT(B12) (A) DARK GRAY	8-97465-649-2	01	1	1509-	●
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,SPECIAL PACKAGE<7BB> (C) DARK GRAY	8-97412-556-1	01	1	1509-	●
3	06.513 WHEEL; STRG 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,TURKEY EQUIPMENT(B11), RUSSIA EQUIPMENT(B12),SPECIAL PACKAGE<7BB> (C) DARK GRAY	8-97412-556-1	01	1	1509-	●
3	06.513 WHEEL; STRG (C) DARK GRAY	8-97412-556-1	01	1	1509-		●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97428-464-5	01	1	1506-1508	●		●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97428-464-5	01	1	1509-			●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SPECIAL PACKAGE<7BB> (A) DARK GRAY	8-97428-464-5	01	1	1509-	●
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97466-361-0	01	1	1506-1508	●		●
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97466-361-0	01	1	1509-			●
3	06.513 WHEEL; STRG TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> SPECIAL PACKAGE<7BB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97466-361-0	01	1	1509-	●
5	06.515 NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	1506-1508	●		●
5	06.515 NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	1509-	●	●	●
20	06.512 SHROUD; PAD,STRG WHEEL CHEVROLET BRAND<RWE>,GM BRAND<X61> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,SPECIAL PACKAGE<7BB> (B) DARK GRAY	8-97405-985-1	01	1	1509-	●
20	06.512 SHROUD; PAD,STRG WHEEL CHEVROLET BRAND<RWE>,GM BRAND<X61> (B) DARK GRAY	8-97405-985-1	01	1	1509-		●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97465-647-0	01	1	1506-1508	●		●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97465-647-0	01	1	1509-			●
20	06.512 SHROUD; PAD,STRG WHEEL SPECIAL PACKAGE<7BB> ISUZU BRAND<7WL> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97465-647-0	01	1	1509-	●
26	06.514 COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPECIAL PACKAGE<7BB> DARK GRAY	8-97421-978-0	01	1	1509-	●
26	06.514 COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),SPECIAL PACKAGE<7BB> DARK GRAY	8-97421-978-0	01	1	1509-	●
26	06.514 COVER; STRG WHEEL,LWR SPECIAL PACKAGE<7BB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5> DARK GRAY	8-97465-650-0	01	1	1509-	●
26	06.514 COVER; STRG WHEEL,LWR 4 WHEEL ANTI LOCK BRAKE<JE5> SPECIAL PACKAGE<7BB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,TURKEY EQUIPMENT(B11), RUSSIA EQUIPMENT(B12) DARK GRAY	8-97465-650-0	01	1	1509-	●
26	06.514 COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,SPECIAL PACKAGE<7BB> DARK GRAY	8-97409-275-2	01	1	1509-	●
26	06.514 COVER; STRG WHEEL,LWR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,TURKEY EQUIPMENT(B11), RUSSIA EQUIPMENT(B12),SPECIAL PACKAGE<7BB> DARK GRAY	8-97409-275-2	01	1	1509-	●
26	06.514 COVER; STRG WHEEL,LWR DARK GRAY	8-97409-275-2	01	1	1509-		●
30	06.518 COWL; STEERING DARK GRAY	8-97418-761-1	01	1	1506-1508	●		●
30	06.518 COWL; STEERING DARK GRAY	8-97418-761-1	01	1	1509-	●	●	●
33	06.518 COVER; STRG COWL EXC. IMMOBILIZER SYSTEM(7KC) DARK GRAY	8-97409-495-0	01	1	1509-	●
33	06.518 COVER; STRG COWL DARK GRAY	8-97409-495-0	01	1	1509-		●
44	06.514 SCREW; STRG COWL M5X12	0-38050-512-0	03	1	1506-1508	●		●
44	06.514 SCREW; STRG COWL M5X12	0-38050-512-0	03	1	1509-	●	●	●
81	02.820 EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,SPECIAL PACKAGE<7BB>, ISUZU BRAND<7WL> (B) DARK GRAY	8-97405-987-0	01	1	1509-	●
81	02.820 EMBLEM; STRG WHEEL (B) DARK GRAY	8-97405-987-0	01	1	1509-		●
81	02.820 EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97465-648-0	01	1	1506-1508	●		●
81	02.820 EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97465-648-0	01	1	1509-			●
81	02.820 EMBLEM; STRG WHEEL SPECIAL PACKAGE<7BB> ISUZU BRAND<7WL> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97465-648-0	01	1	1509-	●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M4X10 TAPPING	8-98319-680-0	03	1	1506-1508	●		●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M4X10 TAPPING	8-98319-680-0	03	1	1509-			●
83	06.514 SCREW; LWR COVER TO WHEEL AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SPECIAL PACKAGE<7BB> M4X10 TAPPING	8-98319-680-0	03	1	1509-	●
83	06.514 SCREW; LWR COVER TO WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 09.242 M4X10 TAPPING	0-71240-410-0	03	1	1506-1508	●		●
83	06.514 SCREW; LWR COVER TO WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 09.242 M4X10 TAPPING	0-71240-410-0	03	1	1509-			●
83	06.514 SCREW; LWR COVER TO WHEEL SPECIAL PACKAGE<7BB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 09.242 M4X10 TAPPING	0-71240-410-0	03	1	1509-	●
90	06.578 COVER ASM; STRG WHEEL,LWR DARK GRAY	8-97465-726-2	01	1	1506-1508	●		●
90	06.578 COVER ASM; STRG WHEEL,LWR DARK GRAY	8-97465-726-2	01	1	1509-			●
90	06.578 COVER ASM; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SPECIAL PACKAGE<7BB> DARK GRAY	8-97465-726-2	01	1	1509-	●
90	06.578 COVER ASM; STRG WHEEL,LWR TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> SPECIAL PACKAGE<7BB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY	8-97465-726-2	01	1	1509-	●

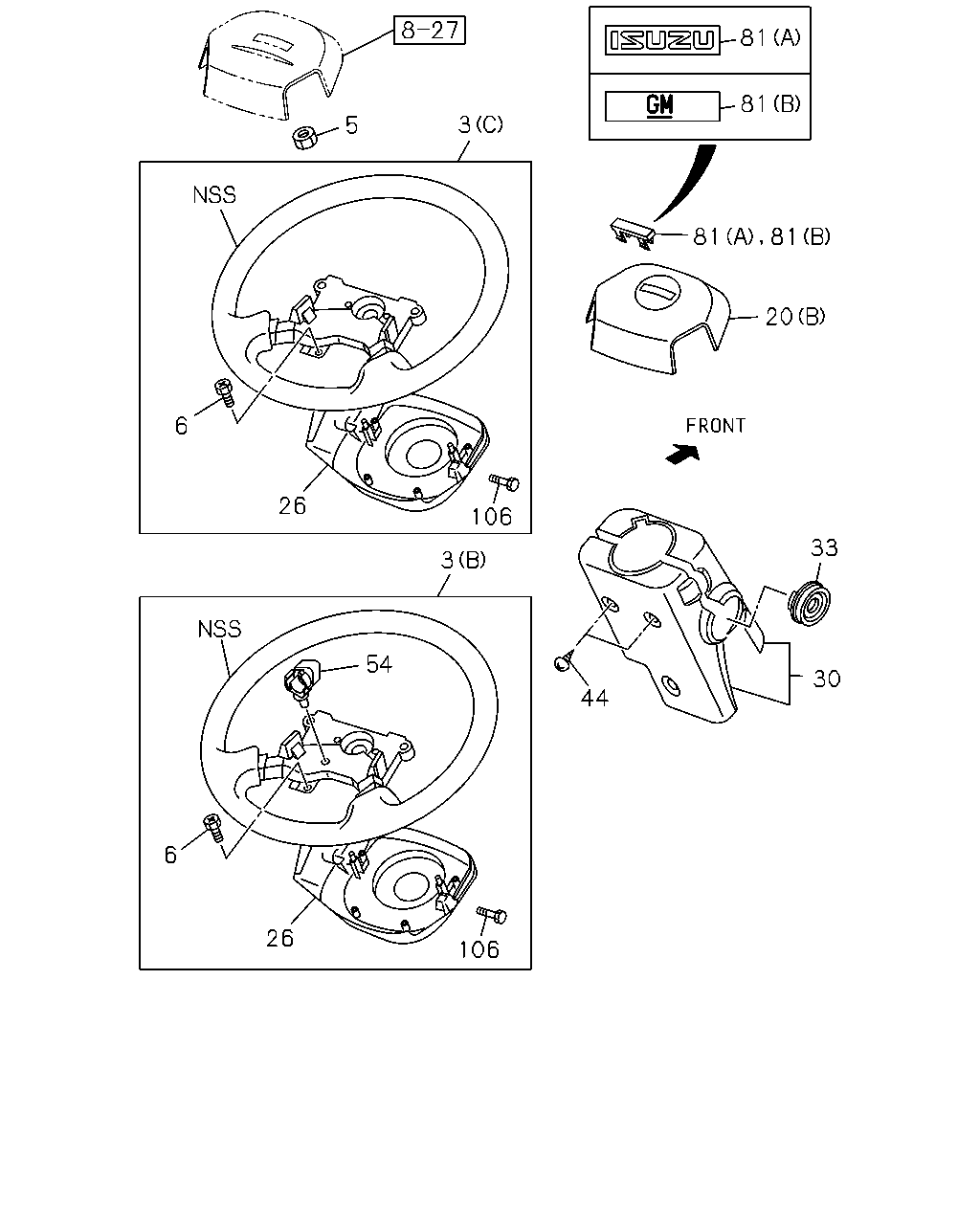

5 3 81 81 20 6 26 106 3 54 6 26 106 44 33 30 81 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPECIAL PACKAGE<7BB> (B) DARK GRAY	8-97423-997-0	01	1	1509-	●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),SPECIAL PACKAGE<7BB> (B) DARK GRAY	8-97423-997-0	01	1	1509-	●
3	06.513 WHEEL; STRG SPECIAL PACKAGE<7BB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5> (A) DARK GRAY	8-97465-649-2	01	1	1509-	●
3	06.513 WHEEL; STRG 4 WHEEL ANTI LOCK BRAKE<JE5> SPECIAL PACKAGE<7BB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,TURKEY EQUIPMENT(B11), RUSSIA EQUIPMENT(B12) (A) DARK GRAY	8-97465-649-2	01	1	1509-	●
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,SPECIAL PACKAGE<7BB> (C) DARK GRAY	8-97412-556-1	01	1	1509-	●
3	06.513 WHEEL; STRG 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,TURKEY EQUIPMENT(B11), RUSSIA EQUIPMENT(B12),SPECIAL PACKAGE<7BB> (C) DARK GRAY	8-97412-556-1	01	1	1509-	●
3	06.513 WHEEL; STRG (C) DARK GRAY	8-97412-556-1	01	1	1509-		●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97428-464-5	01	1	1506-1508	●		●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97428-464-5	01	1	1509-			●
3	06.513 WHEEL; STRG AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SPECIAL PACKAGE<7BB> (A) DARK GRAY	8-97428-464-5	01	1	1509-	●
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97466-361-0	01	1	1506-1508	●		●
3	06.513 WHEEL; STRG EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97466-361-0	01	1	1509-			●
3	06.513 WHEEL; STRG TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> SPECIAL PACKAGE<7BB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97466-361-0	01	1	1509-	●
5	06.515 NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	1506-1508	●		●
5	06.515 NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	1509-	●	●	●
6	02.820 SCREW; HORN SPR CONTACT EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),SPECIAL PACKAGE<7BB> M4X12	8-97167-588-0	04	1	1509-	●
6	02.820 SCREW; HORN SPR CONTACT M4X12	8-97167-588-0	04	1	1509-		●
20	06.512 SHROUD; PAD,STRG WHEEL CHEVROLET BRAND<RWE>,GM BRAND<X61> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,SPECIAL PACKAGE<7BB> (B) DARK GRAY	8-97405-985-1	01	1	1509-	●
20	06.512 SHROUD; PAD,STRG WHEEL CHEVROLET BRAND<RWE>,GM BRAND<X61> (B) DARK GRAY	8-97405-985-1	01	1	1509-		●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97465-647-0	01	1	1506-1508	●		●
20	06.512 SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97465-647-0	01	1	1509-			●
20	06.512 SHROUD; PAD,STRG WHEEL SPECIAL PACKAGE<7BB> ISUZU BRAND<7WL> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97465-647-0	01	1	1509-	●
26	06.514 COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPECIAL PACKAGE<7BB> DARK GRAY	8-97421-978-0	01	1	1509-	●
26	06.514 COVER; STRG WHEEL,LWR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),SPECIAL PACKAGE<7BB> DARK GRAY	8-97421-978-0	01	1	1509-	●
26	06.514 COVER; STRG WHEEL,LWR SPECIAL PACKAGE<7BB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5> DARK GRAY	8-97465-650-0	01	1	1509-	●
26	06.514 COVER; STRG WHEEL,LWR 4 WHEEL ANTI LOCK BRAKE<JE5> SPECIAL PACKAGE<7BB> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,TURKEY EQUIPMENT(B11), RUSSIA EQUIPMENT(B12) DARK GRAY	8-97465-650-0	01	1	1509-	●
26	06.514 COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5>,SPECIAL PACKAGE<7BB> DARK GRAY	8-97409-275-2	01	1	1509-	●
26	06.514 COVER; STRG WHEEL,LWR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,TURKEY EQUIPMENT(B11), RUSSIA EQUIPMENT(B12),SPECIAL PACKAGE<7BB> DARK GRAY	8-97409-275-2	01	1	1509-	●
26	06.514 COVER; STRG WHEEL,LWR DARK GRAY	8-97409-275-2	01	1	1509-		●
30	06.518 COWL; STEERING DARK GRAY	8-97418-761-1	01	1	1506-1508	●		●
30	06.518 COWL; STEERING DARK GRAY	8-97418-761-1	01	1	1509-	●	●	●
33	06.518 COVER; STRG COWL EXC. IMMOBILIZER SYSTEM(7KC) DARK GRAY	8-97409-495-0	01	1	1509-	●
33	06.518 COVER; STRG COWL DARK GRAY	8-97409-495-0	01	1	1509-		●
44	06.514 SCREW; STRG COWL M5X12	0-38050-512-0	03	1	1506-1508	●		●
44	06.514 SCREW; STRG COWL M5X12	0-38050-512-0	03	1	1509-	●	●	●
54	02.559 CLIP; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SPECIAL PACKAGE<7BB>	8-98165-703-0	01	1	1509-	●
54	02.559 CLIP; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),SPECIAL PACKAGE<7BB>	8-98165-703-0	01	1	1509-	●
81	02.820 EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,SPECIAL PACKAGE<7BB>, ISUZU BRAND<7WL> (B) DARK GRAY	8-97405-987-0	01	1	1509-	●
81	02.820 EMBLEM; STRG WHEEL (B) DARK GRAY	8-97405-987-0	01	1	1509-		●
81	02.820 EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97465-648-0	01	1	1506-1508	●		●
81	02.820 EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97465-648-0	01	1	1509-			●
81	02.820 EMBLEM; STRG WHEEL SPECIAL PACKAGE<7BB> ISUZU BRAND<7WL> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY	8-97465-648-0	01	1	1509-	●
106	05.453 BOLT; TORX EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),SPECIAL PACKAGE<7BB>	8-98231-397-0	02	1	1509-	●
106	05.453 BOLT; TORX	8-98231-397-0	02	1	1509-		●
