1 |

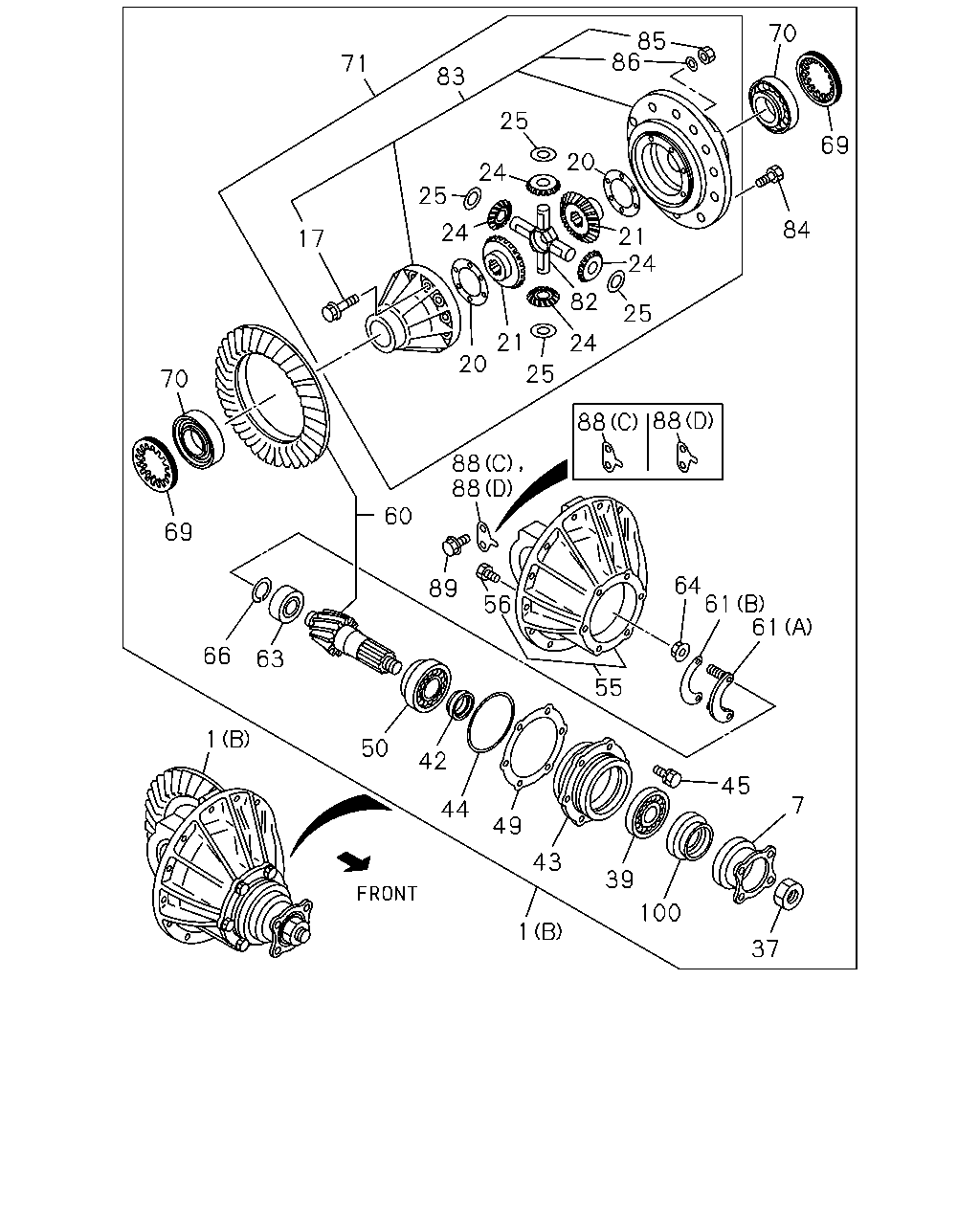

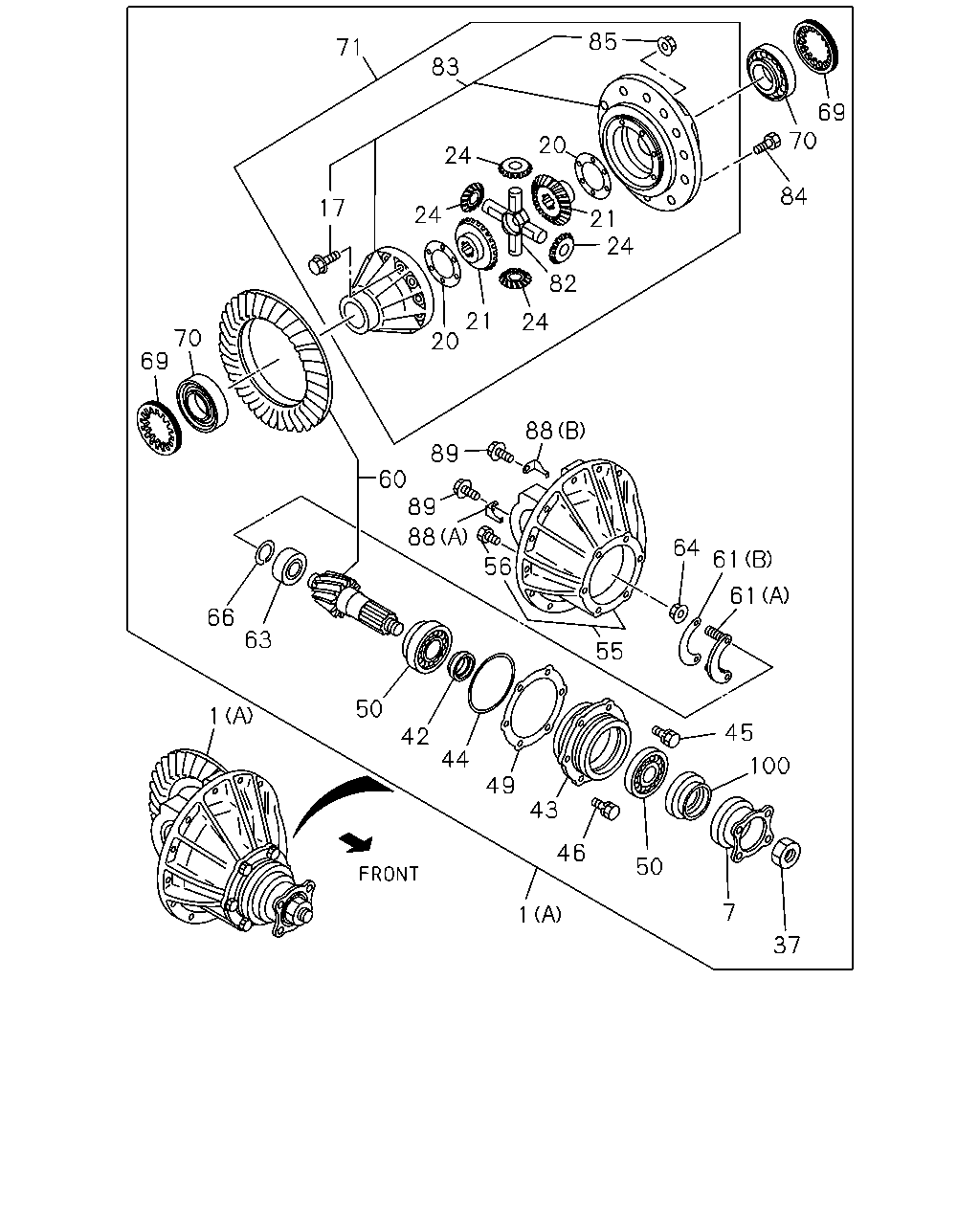

05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/10(GT5)
DRIVE GEAR NOISE CONTROL<8KU>
(B)
41/10
|
8-98145-542-0 |
01 |
1 |
1509- |
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
G.V.W. 7.0-7.5TON(RPX)
(B)
41/9
|
8-97388-702-0 |
01 |
1 |
1509- |
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
(B)
41/9
|
8-97388-702-0 |
01 |
1 |
1509- |
|
● |
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/10(S7C)
(B)
43/10
|
8-97388-701-0 |
01 |
1 |
1509- |
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
(A)
43/11
|
8-98015-134-0 |
01 |
1 |
1506- |
|
|
● |
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 39/7(GV1)
(B)
39/7
|
8-97388-710-0 |
01 |
1 |
1506-1508 |
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
FINAL GEAR RATIO 39/7(GV1)
EXC. TRANSMISSION CONTROL-SMOOTHER DELET
E(8GJ)
(B)
39/7
|
8-97388-710-0 |
01 |
1 |
1509- |
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
FINAL GEAR RATIO 39/7(GV1)
(B)
39/7
|
8-97388-710-0 |
01 |
1 |
1509- |
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/10(GT5)
(B)
41/10
|
8-97388-700-0 |
01 |
1 |
1506-1508 |
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/10(GT5)
EXC. DRIVE GEAR NOISE CONTROL<8KU>
(B)
41/10
|
8-97388-700-0 |
01 |
1 |
1509- |
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HK1-TCS ENG(RJS)
FINAL GEAR RATIO 39/7(GV1)
(B)
39/7
|
8-97388-705-0 |
01 |
1 |
1506-1508 |
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
FINAL GEAR RATIO 39/7(GV1)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
39/7
|
8-97388-705-0 |
01 |
1 |
1509- |
● |
|
|
| |
1 |
05.505 DRIVE ASM; FINAL,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
FINAL GEAR RATIO 39/7(GV1)
(B)
39/7
|
8-97388-705-0 |
01 |
1 |
1509- |
● |
|
|
| |
7 |
05.545 FLANGE; FINAL
|
8-94477-723-4 |
01 |
1 |
1506- |
|
|
● |
| |
7 |
05.545 FLANGE; FINAL
4JJ1-TCS ENG(LFB)
FINAL GEAR RATIO 39/7(GV1)
|
8-97073-802-2 |
01 |
1 |
1506-1508 |
● |
|
|
| |
7 |
05.545 FLANGE; FINAL
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
FINAL GEAR RATIO 39/7(GV1)
EXC. TRANSMISSION CONTROL-SMOOTHER DELET
E(8GJ)
|
8-97073-802-2 |
01 |
1 |
1509- |
● |
|
|
| |
7 |
05.545 FLANGE; FINAL
4JJ1-TCS ENG(LFB)
WHEEL BASE 2700MM(27W),WHEEL BASE
3300MM(33W),WHEEL BASE 3800MM(38W)
FINAL GEAR RATIO 39/7(GV1)
|
8-97073-802-2 |
01 |
1 |
1509- |
● |
|
|
| |
7 |
05.545 FLANGE; FINAL
4HK1-TCS ENG(RJS)
FINAL GEAR RATIO 39/7(GV1)
|
8-97047-095-2 |
01 |
1 |
1506-1508 |
● |
|
|
| |
7 |
05.545 FLANGE; FINAL
FINAL GEAR RATIO 41/10(GT5)
|
8-97047-095-2 |
01 |
1 |
1506-1508 |
● |
|
|
| |
7 |
05.545 FLANGE; FINAL
4JJ1-TCS ENG(LFB)
WHEEL BASE 4400MM(44W)
FINAL GEAR RATIO 39/7(GV1)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
|
8-97047-095-2 |
01 |
1 |
1509- |
● |
|
|
| |
7 |
05.545 FLANGE; FINAL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)
FINAL GEAR RATIO 39/7(GV1)
|
8-97047-095-2 |
01 |
1 |
1509- |
● |
|
|
| |
7 |
05.545 FLANGE; FINAL
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 41/9(HC6),FINAL GEAR RATIO
43/10(S7C)
|
8-97047-095-2 |
01 |
1 |
1509- |
● |
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
M10X75 FLANGE
|
8-97232-161-0 |
12 |
1 |
1506- |
|
|
● |
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
M12X90
|
8-98219-448-0 |
12 |
1 |
1506-1508 |
● |
|
|
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
M12X90
|
8-98219-448-0 |
12 |
1 |
1509- |
● |
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=1.40
|
9-41562-601-0 |
02 |
1 |
1506- |
|
|
● |
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=2.80
|
1-41562-073-0 |
AR |
1 |
1506-1508 |
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=2.80
|
1-41562-073-0 |
AR |
1 |
1509- |
● |
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=2.90
|
1-41562-074-0 |
AR |
1 |
1506-1508 |
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=2.90
|
1-41562-074-0 |
AR |
1 |
1509- |
● |
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.00
|
1-41562-075-0 |
AR |
1 |
1506-1508 |
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.00
|
1-41562-075-0 |
AR |
1 |
1509- |
● |
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.10
|
1-41562-076-0 |
AR |
1 |
1506-1508 |
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.10
|
1-41562-076-0 |
AR |
1 |
1509- |
● |
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.20
|
1-41562-077-0 |
AR |
1 |
1506-1508 |
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.20
|
1-41562-077-0 |
AR |
1 |
1509- |
● |
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.30
|
1-41562-078-0 |
AR |
1 |
1506-1508 |
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.30
|
1-41562-078-0 |
AR |
1 |
1509- |
● |
● |
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.40
|
1-41562-079-0 |
AR |
1 |
1506-1508 |
● |
|
|
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=3.40
|
1-41562-079-0 |
AR |
1 |
1509- |
● |
● |
|
| |
21 |
05.528 GEAR; SIDE,DIFF
05.515
Z=20
|
8-97362-599-1 |
02 |
1 |
1506- |
|
|
● |
| |
21 |
05.528 GEAR; SIDE,DIFF
Z=16
|
8-98165-935-0 |
02 |
1 |
1506-1508 |
● |
|
|
| |
21 |
05.528 GEAR; SIDE,DIFF
Z=16
|
8-98165-935-0 |
02 |
1 |
1509- |
● |
● |
|
| |
24 |
05.526 GEAR; PINION,DIFF
Z=10
|
8-98015-202-0 |
04 |
1 |
1506- |
|
|
● |
| |
24 |
05.526 GEAR; PINION,DIFF
Z=10
|
1-41551-050-0 |
04 |
1 |
1506-1508 |
● |
|
|
| |
24 |
05.526 GEAR; PINION,DIFF
Z=10
|
1-41551-050-0 |
04 |
1 |
1509- |
● |
● |
|
| |
25 |
05.528 WASHER; THRUST,PINION
|
1-41552-020-0 |
04 |
1 |
1506-1508 |
● |
|
|
| |
25 |
05.528 WASHER; THRUST,PINION
|
1-41552-020-0 |
04 |
1 |
1509- |
● |
● |
|
| |
37 |
05.595 NUT; DRIVING PINION
M24 FLANGE
|
8-94329-526-1 |
01 |
1 |
1506- |
|
|
● |
| |
37 |
05.595 NUT; DRIVING PINION
M30 FLANGE
|
8-97047-146-0 |
01 |
1 |
1506-1508 |
● |
|
|
| |
37 |
05.595 NUT; DRIVING PINION
M30 FLANGE
|
8-97047-146-0 |
01 |
1 |
1509- |
● |
● |
|
| |
39 |
05.484 BEARING; FINAL PINION
JTEKT
|
5-09812-062-1 |
01 |
1 |
1506-1508 |
● |
|
|
| |
39 |
05.484 BEARING; FINAL PINION
JTEKT
|
5-09812-062-1 |
01 |
1 |
1509- |
● |
● |
|
| |
39 |
05.484 BEARING; FINAL PINION
NSK
|
5-09812-063-0 |
01 |
1 |
1506-1508 |
● |
|
|
| |
39 |
05.484 BEARING; FINAL PINION
NSK
|
5-09812-063-0 |
01 |
1 |
1509- |
● |
● |
|
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
L=19.6
|
9-41219-603-1 |
01 |
1 |
1506- |
|
|
● |
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
|
8-97047-097-0 |
01 |
1 |
1506-1508 |
● |
|
|
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
|
8-97047-097-0 |
01 |
1 |
1509- |
● |
● |
|
| |
43 |
05.453 CAGE; FINAL PINION
|
8-94400-890-0 |
01 |
1 |
1506- |
|
|
● |
| |
43 |
05.453 CAGE; FINAL PINION
|
8-97047-098-0 |
01 |
1 |
1506-1508 |
● |
|
|
| |
43 |
05.453 CAGE; FINAL PINION
|
8-97047-098-0 |
01 |
1 |
1509- |
● |
● |
|
| |
44 |
05.476 GASKET; PINION CAGE
05.458
|
9-09720-505-0 |
01 |
1 |
1506- |
|
|
● |
| |
44 |
05.476 GASKET; PINION CAGE
|
8-97048-053-0 |
01 |
1 |
1506-1508 |
● |
|
|
| |
44 |
05.476 GASKET; PINION CAGE
|
8-97048-053-0 |
01 |
1 |
1509- |
● |
● |
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
M12X38 W/LK WASHER
|
8-98221-264-0 |
05 |
1 |
1506- |
|
|
● |
| |
45 |
05.453 BOLT; FINAL PINION CAGE
M12X40 W/LK WASHER
|
8-98220-227-0 |
06 |
1 |
1506-1508 |
● |
|
|
| |
45 |
05.453 BOLT; FINAL PINION CAGE
M12X40 W/LK WASHER
|
8-98220-227-0 |
06 |
1 |
1509- |
● |
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.10
|
8-94401-335-0 |
AR |
1 |
1506- |
|
|
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.12
|
8-94401-336-0 |
AR |
1 |
1506- |
|
|
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.14
|
8-94401-337-0 |
AR |
1 |
1506- |
|
|
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.16
|
8-94401-338-0 |
AR |
1 |
1506- |
|
|
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.18
|
8-94401-339-0 |
AR |
1 |
1506- |
|
|
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.20
|
8-94401-340-0 |
AR |
1 |
1506- |
|
|
● |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.12
|
8-97047-298-0 |
AR |
1 |
1506-1508 |
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.12
|
8-97047-298-0 |
AR |
1 |
1509- |
● |
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.15
|
8-97047-299-0 |
AR |
1 |
1506-1508 |
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.15
|
8-97047-299-0 |
AR |
1 |
1509- |
● |
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.20
|
8-97047-300-0 |
AR |
1 |
1506-1508 |
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.20
|
8-97047-300-0 |
AR |
1 |
1509- |
● |
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.25
|
8-97048-418-0 |
AR |
1 |
1506-1508 |
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=142 T=0.25
|
8-97048-418-0 |
AR |
1 |
1509- |
● |
● |
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
05.528
ID=142 T=0.50
|
8-97048-419-0 |
AR |
1 |
1506-1508 |
● |
|
|
| |
49 |
05.458 SHIM; FINAL PINION CAGE
05.528
ID=142 T=0.50
|
8-97048-419-0 |
AR |
1 |
1509- |
● |
● |
|
| |
50 |
05.447 BEARING; FINAL PINION
05.484
JTEKT
|
5-09812-062-1 |
02 |
1 |
1506- |
|
|
● |
| |
50 |
05.447 BEARING; FINAL PINION
05.484
NSK
|
5-09812-063-0 |
02 |
1 |
1506- |
|
|
● |
| |
50 |
05.447 BEARING; FINAL PINION
05.484
NSK
|
1-09812-041-2 |
01 |
1 |
1506-1508 |
● |
|
|
| |
50 |
05.447 BEARING; FINAL PINION
05.484
NSK
|
1-09812-041-2 |
01 |
1 |
1509- |
● |
● |
|
| |
50 |
05.447 BEARING; FINAL PINION
JTEKT
|
1-09812-042-1 |
01 |
1 |
1506-1508 |
● |
|
|
| |
50 |
05.447 BEARING; FINAL PINION
JTEKT
|
1-09812-042-1 |
01 |
1 |
1509- |
● |
● |
|
| |
55 |
05.505 CARRIER; DIFF
|
8-97307-760-0 |
01 |
1 |
1506- |
|
|
● |
| |
55 |
05.505 CARRIER; DIFF
|
8-97094-637-0 |
01 |
1 |
1506-1508 |
● |
|
|
| |
55 |
05.505 CARRIER; DIFF
|
8-97094-637-0 |
01 |
1 |
1509- |
● |
● |
|
| |
56 |
05.506 BOLT; BRG CAP
05.387
M14X80
|
8-94365-377-3 |
04 |
1 |
1506- |
|
|
● |
| |
56 |
05.506 BOLT; BRG CAP
M14X95 FLANGE
|
1-09070-027-0 |
04 |
1 |
1506-1508 |
● |
|
|
| |
56 |
05.506 BOLT; BRG CAP
M14X95 FLANGE
|
1-09070-027-0 |
04 |
1 |
1509- |
● |
● |
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/10(GT5)
DRIVE GEAR NOISE CONTROL<8KU>
41/10
|
8-98145-543-0 |
01 |
1 |
1509- |
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
G.V.W. 7.0-7.5TON(RPX)
41/9
|
8-97078-635-1 |
01 |
1 |
1509- |
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
41/9
|
8-97078-635-1 |
01 |
1 |
1509- |
|
● |
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 43/10(S7C)
43/10
|
8-97047-115-0 |
01 |
1 |
1509- |
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
43/11
|
8-97263-251-1 |
01 |
1 |
1506- |
|
|
● |
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97121-593-1 |
01 |
1 |
1506- |
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/10(GT5)
41/10
|
8-97061-846-0 |
01 |
1 |
1506-1508 |
● |
|
|
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/10(GT5)
EXC. DRIVE GEAR NOISE CONTROL<8KU>
41/10
|
8-97061-846-0 |
01 |
1 |
1509- |
● |
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(A)
W/STUD
|
5-41227-001-0 |
01 |
1 |
1506- |
|
|
● |
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(B)
|
9-41227-601-0 |
01 |
1 |
1506- |
|
|
● |
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(A)
W/STUD
|
8-97047-149-0 |
01 |
1 |
1506-1508 |
● |
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(A)
W/STUD
|
8-97047-149-0 |
01 |
1 |
1509- |
● |
● |
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(B)
|
8-97047-150-0 |
01 |
1 |
1506-1508 |
● |
|
|
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(B)
|
8-97047-150-0 |
01 |
1 |
1509- |
● |
● |
|
| |
63 |
05.447 BEARING; PINION PILOT
NSK
|
8-97309-525-0 |
01 |
1 |
1506- |
|
|
● |
| |
63 |
05.447 BEARING; PINION PILOT
JTEKT
|
8-97309-526-0 |
01 |
1 |
1506- |
|
|
● |
| |
63 |
05.447 BEARING; PINION PILOT
NSK
|
8-97047-296-0 |
01 |
1 |
1506-1508 |
● |
|
|
| |
63 |
05.447 BEARING; PINION PILOT
NSK
|
8-97047-296-0 |
01 |
1 |
1509- |
● |
● |
|
| |
63 |
05.447 BEARING; PINION PILOT
JTEKT
|
8-97047-928-0 |
01 |
1 |
1506-1508 |
● |
|
|
| |
63 |
05.447 BEARING; PINION PILOT
JTEKT
|
8-97047-928-0 |
01 |
1 |
1509- |
● |
● |
|
| |
64 |
05.476 NUT; RET
01.062
M6 FLANGE
|
0-91180-106-0 |
02 |
1 |
1506-1508 |
● |
|
● |
| |
64 |
05.476 NUT; RET
01.062
M6 FLANGE
|
0-91180-106-0 |
02 |
1 |
1509- |
● |
● |
● |
| |
66 |
05.476 RING; SNAP,PILOT BRG
|
9-09752-002-0 |
01 |
1 |
1506- |
|
|
● |
| |
66 |
05.476 RING; SNAP,PILOT BRG
|
8-97047-297-0 |
01 |
1 |
1506-1508 |
● |
|
|
| |
66 |
05.476 RING; SNAP,PILOT BRG
|
8-97047-297-0 |
01 |
1 |
1509- |
● |
● |
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
M110 H=10
|
5-41121-001-0 |
02 |
1 |
1506- |
|
|
● |
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
M115 H=20
|
1-41121-039-0 |
02 |
1 |
1506-1508 |
● |
|
|
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
M115 H=20
|
1-41121-039-0 |
02 |
1 |
1509- |
● |
● |
|
| |
70 |
05.536 BEARING; DIFF CAGE
NSK
|
9-00093-602-0 |
02 |
1 |
1506- |
|
|
● |
| |
70 |
05.536 BEARING; DIFF CAGE
JTEKT ID=66.7 OD=113 T=30
|
9-00093-130-0 |
02 |
1 |
1506-1508 |
● |
|
|
| |
70 |
05.536 BEARING; DIFF CAGE
JTEKT ID=66.7 OD=113 T=30
|
9-00093-130-0 |
02 |
1 |
1509- |
● |
● |
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
|
8-98015-180-1 |
01 |
1 |
1506- |
|
|
● |
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR RATIO 39/7(GV1)
|
8-97047-100-4 |
01 |
1 |
1506- |
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR RATIO 41/10(GT5)
|
8-97047-099-4 |
01 |
1 |
1506-1508 |
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 41/9(HC6),FINAL GEAR RATIO
43/10(S7C)
|
8-97047-099-4 |
01 |
1 |
1509- |
● |
|
|
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
|
8-97047-099-4 |
01 |
1 |
1509- |
|
● |
|
| |
82 |
05.517 SPIDER; DIFF PINION
05.520
|
5-41521-008-0 |
01 |
1 |
1506- |
|
|
● |
| |
82 |
05.517 SPIDER; DIFF PINION
05.520
|
1-41521-035-2 |
01 |
1 |
1506-1508 |
● |
|
|
| |
82 |
05.517 SPIDER; DIFF PINION
05.520
|
1-41521-035-2 |
01 |
1 |
1509- |
● |
● |
|
| |
83 |
05.510 CAGE ASM; DIFF
|
8-97262-082-2 |
01 |
1 |
1506- |
|
|
● |
| |
83 |
05.510 CAGE ASM; DIFF
FINAL GEAR RATIO 39/7(GV1)
|
8-98219-707-0 |
01 |
1 |
1506- |
● |
|
|
| |
83 |
05.510 CAGE ASM; DIFF
FINAL GEAR RATIO 41/10(GT5)
|
8-98219-705-0 |
01 |
1 |
1506-1508 |
● |
|
|
| |
83 |
05.510 CAGE ASM; DIFF
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR
RATIO 41/9(HC6),FINAL GEAR RATIO
43/10(S7C)
|
8-98219-705-0 |
01 |
1 |
1509- |
● |
|
|
| |
83 |
05.510 CAGE ASM; DIFF
|
8-98219-705-0 |
01 |
1 |
1509- |
|
● |
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
M14X25
|
8-97318-938-1 |
12 |
1 |
1506- |
|
|
● |
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
M16X30
|
8-97047-147-0 |
12 |
1 |
1506-1508 |
● |
|
|
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
M16X30
|
8-97047-147-0 |
12 |
1 |
1509- |
● |
● |
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
04.085
M10 FLANGE
|
0-91180-210-0 |
12 |
1 |
1506- |
|
|
● |
| |
85 |
05.510 NUT; DIFF CAGE SETTING
M12
|
8-97065-214-0 |
12 |
1 |
1506-1508 |
● |
|
|
| |
85 |
05.510 NUT; DIFF CAGE SETTING
M12
|
8-97065-214-0 |
12 |
1 |
1509- |
● |
● |
|
| |
86 |
05.510 WASHER; PL,DIFF CAGE SETTING
ID=12.5 OD=22 T=2
|
8-97047-294-0 |
12 |
1 |
1506-1508 |
● |
|
|
| |
86 |
05.510 WASHER; PL,DIFF CAGE SETTING
ID=12.5 OD=22 T=2
|
8-97047-294-0 |
12 |
1 |
1509- |
● |
● |
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
(A)
|
8-97027-281-0 |
AR |
1 |
1506- |
|
|
● |
| |
88 |
05.506 PLATE; LK,ADJ NUT
(B)
|
8-97027-282-0 |
AR |
1 |
1506- |
|
|
● |
| |
88 |
05.506 PLATE; LK,ADJ NUT
(D)
T=2.3
|
8-97087-821-0 |
AR |
1 |
1506-1508 |
● |
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
(D)
T=2.3
|
8-97087-821-0 |
AR |
1 |
1509- |
● |
● |
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
(C)
T=2.3
|
9-41124-015-0 |
AR |
1 |
1506-1508 |
● |
|
|
| |
88 |
05.506 PLATE; LK,ADJ NUT
(C)
T=2.3
|
9-41124-015-0 |
AR |
1 |
1509- |
● |
● |
|
| |
89 |
05.506 BOLT; LK PLATE
02.343
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
1506- |
|
|
● |
| |
89 |
05.506 BOLT; LK PLATE
02.343
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
1506-1508 |
● |
|
|
| |
89 |
05.506 BOLT; LK PLATE
02.343
M8X16 FLANGE
|
0-28050-816-0 |
04 |
1 |
1509- |
● |
● |
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
OD=103
|
8-94408-083-0 |
01 |
1 |
1506- |
|
|
● |
| |
100 |
05.469 SEAL; OIL,FINAL PINION
NOK
|
1-09625-484-1 |
01 |
1 |
1506-1508 |
● |
|
|
| |
100 |
05.469 SEAL; OIL,FINAL PINION
NOK
|
1-09625-484-1 |
01 |
1 |
1509- |
● |
● |
|
