Sayfa 4-20 - Isuzu EPC

4-20 — REAR AXLE CASE AND SHAFT (#162364) — 191 parça

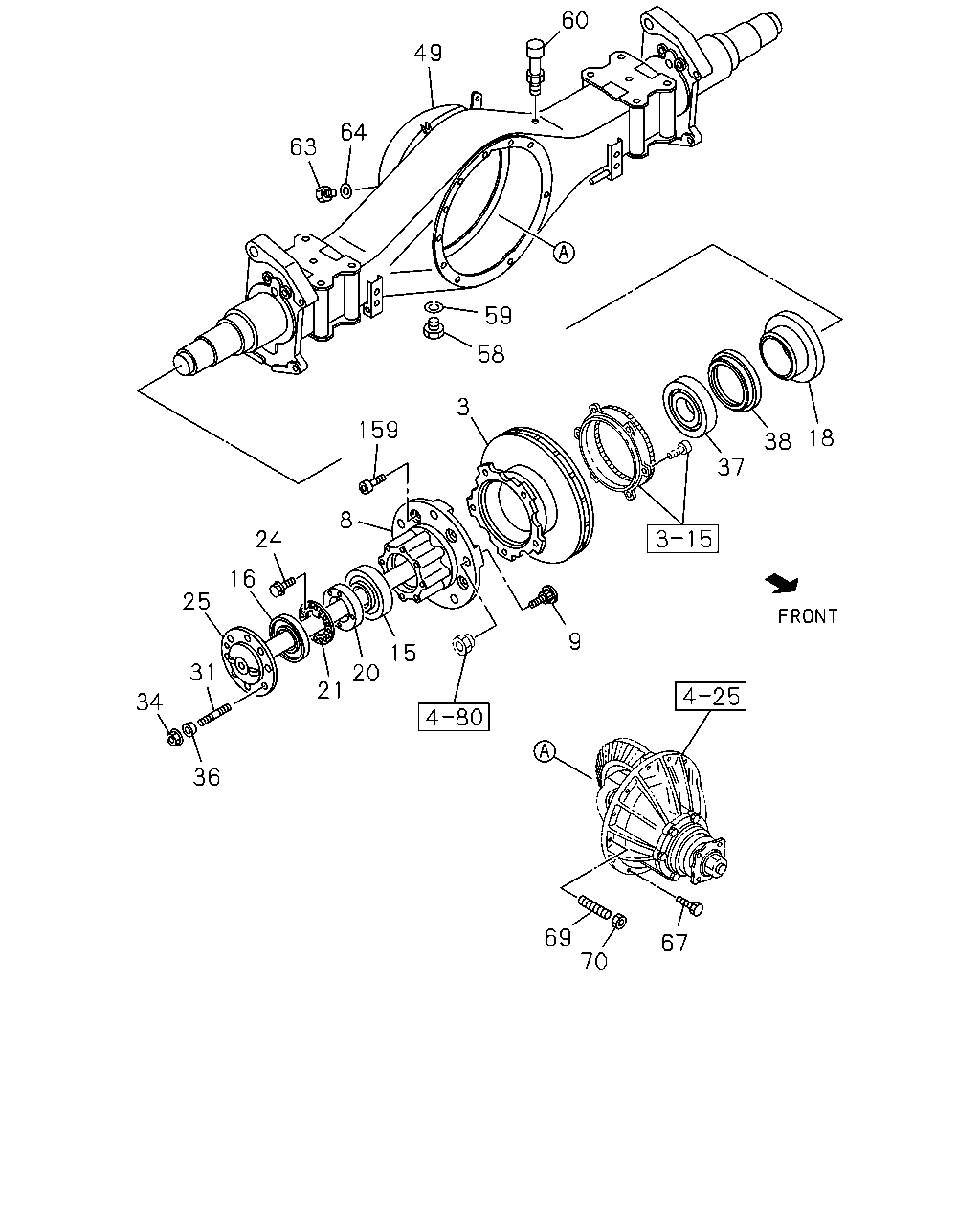

18 38 37 9 15 20 21 67 70 69 36 31 25 34 16 24 159 8 3 58 59 60 49 64 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	05.809 ROTOR; DISC BRK,RR	8-98248-897-0	02	1	1506-	●
3	05.809 ROTOR; DISC BRK,RR	8-98191-956-0	02	1	1506-1508		●
3	05.809 ROTOR; DISC BRK,RR G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9>	8-98191-956-0	02	1	1509-		●
8	05.809 HUB; RR AXLE G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97250-321-1	02	1	1509-		●
8	05.809 HUB; RR AXLE G.V.W. 7.0-7.5TON(RPX)	8-97081-323-2	02	1	1509-		●
8	05.809 HUB; RR AXLE	8-97107-549-2	02	1	1509-			●
8	05.809 HUB; RR AXLE	8-98022-462-0	02	1	1506-	●
8	05.809 HUB; RR AXLE	8-98192-924-0	02	1	1506-1508		●
8	05.809 HUB; RR AXLE G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9>	8-98192-924-0	02	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> M20X28,M22X57 RH THREAD	8-97081-584-4	06	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE M20X28,M22X57 RH THREAD	8-97081-584-4	06	1	1509-			●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> M20X28 LH THREAD,M22X57 RH THREAD	8-97081-585-4	06	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE M20X28 LH THREAD,M22X57 RH THREAD	8-97081-585-4	06	1	1509-			●
9	05.812 PIN; WHEEL,RR AXLE M18X46 RH THREAD	8-98028-532-1	05	1	1506-	●
9	05.812 PIN; WHEEL,RR AXLE M18X46 LH THREAD	8-98028-533-1	05	1	1506-	●
9	05.812 PIN; WHEEL,RR AXLE M20X53 RH THREAD	8-97168-456-2	06	1	1506-1508		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> M20X53 RH THREAD	8-97168-456-2	06	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE M20X53 LH THREAD	8-97168-457-2	06	1	1506-1508		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> M20X53 LH THREAD	8-97168-457-2	06	1	1509-		●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	1506-	●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-607-0	02	1	1506-1508		●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-607-0	02	1	1509-		●	●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	1506-	●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-139-0	02	1	1506-1508		●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-139-0	02	1	1509-		●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1506-	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-912-0	02	1	1506-1508		●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-912-0	02	1	1509-		●	●
18	05.822 RETAINER; RR AXLE	8-98232-252-0	02	1	1506-	●
18	05.822 RETAINER; RR AXLE	8-98032-677-0	02	1	1506-1508		●
18	05.822 RETAINER; RR AXLE G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9>	8-98032-677-0	02	1	1509-		●
20	05.830 NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1506-	●
20	05.830 NUT; BRG,RR HUB M55	8-97137-094-0	02	1	1506-1508		●
20	05.830 NUT; BRG,RR HUB M55	8-97137-094-0	02	1	1509-		●	●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-1	02	1	1506-	●
21	05.830 WASHER; LK,BRG NUT ID=55	9-09653-002-0	02	1	1506-1508		●
21	05.830 WASHER; LK,BRG NUT ID=55	9-09653-002-1	02	1	1509-		●	●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE	0-28050-610-0	04	1	1506-1508	●	●
24	05.830 BOLT; LK WASHER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1509-	●	●	●
25	05.420 SHAFT; AXLE,RR L=804.5	8-97032-497-0	02	1	1506-	●
25	05.420 SHAFT; AXLE,RR L=885	8-97134-439-0	02	1	1506-1508		●
25	05.420 SHAFT; AXLE,RR L=885	8-97134-439-0	02	1	1509-		●	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	1506-1508	●	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	1509-	●	●	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	1506-1508	●	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	1509-	●	●	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	1506-1508	●	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	1509-	●	●	●
37	05.855 BEARING; HUB INNER,RR AXLE G.V.W. 7.0-7.5TON(RPX) NSK	9-00093-624-0	02	1	1509-		●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	1506-	●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	8-97122-938-0	02	1	1506-1508		●
37	05.855 BEARING; HUB INNER,RR AXLE G.V.W. 7.5-8.0TON(RPY) NSK	8-97122-938-0	02	1	1509-		●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	8-97122-938-0	02	1	1509-			●
37	05.855 BEARING; HUB INNER,RR AXLE JTEKT	8-97123-119-0	02	1	1506-1508		●
37	05.855 BEARING; HUB INNER,RR AXLE G.V.W. 7.5-8.0TON(RPY) JTEKT	8-97123-119-0	02	1	1509-		●
37	05.855 BEARING; HUB INNER,RR AXLE JTEKT	8-97123-119-0	02	1	1509-			●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	1506-	●
37	05.855 BEARING; HUB INNER,RR AXLE G.V.W. 7.0-7.5TON(RPX) BEST VALUE PARTS	5-87610-141-0	02	1	1509-		●
38	05.822 SEAL; OIL,RR HUB,INNER G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> NOK	8-97122-937-0	02	1	1509-		●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-97122-937-0	02	1	1509-			●
38	05.822 SEAL; OIL,RR HUB,INNER G.V.W. 7.0-7.5TON(RPX) TKK	8-94336-316-1	02	1	1509-		●
38	05.822 SEAL; OIL,RR HUB,INNER G.V.W. 7.0-7.5TON(RPX) NOK	8-94367-958-0	02	1	1509-		●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-98037-080-0	02	1	1506-	●
38	05.822 SEAL; OIL,RR HUB,INNER	8-98194-208-0	02	1	1506-1508		●
38	05.822 SEAL; OIL,RR HUB,INNER G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9>	8-98194-208-0	02	1	1509-		●
49	05.387 CASE; RR AXLE G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97250-319-3	01	1	1509-		●
49	05.387 CASE; RR AXLE G.V.W. 7.0-7.5TON(RPX)	8-97222-080-3	01	1	1509-		●
49	05.387 CASE; RR AXLE	8-97222-079-4	01	1	1509-			●
49	05.387 CASE; RR AXLE	8-98022-460-6	01	1	1506-	●
49	05.387 CASE; RR AXLE	8-98192-921-1	01	1	1506-1508		●
49	05.387 CASE; RR AXLE G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9>	8-98192-921-1	01	1	1509-		●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	1506-1508	●	●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	1509-	●	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	1506-1508	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	1509-	●	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1506-1508	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1509-	●	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1506-1508	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1509-	●	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	1506-1508	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	1509-	●	●	●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1506-	●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	07	1	1506-1508		●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	07	1	1509-		●	●
67	05.387 BOLT; FINAL DRIVE SETTING M10X50 W/LK WASHER	0-50561-050-0	04	1	1506-1508		●
67	05.387 BOLT; FINAL DRIVE SETTING M10X50 W/LK WASHER	0-50561-050-0	04	1	1509-		●	●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1506-1508	●	●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1509-	●	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	1506-1508	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	1509-	●	●	●
159	05.822 BOLT; ROTOR TO HUB 05.812	8-98021-780-0	10	1	1506-	●
159	05.822 BOLT; ROTOR TO HUB 05.812	8-98021-780-0	12	1	1506-1508		●
159	05.822 BOLT; ROTOR TO HUB G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> 05.812	8-98021-780-0	12	1	1509-		●

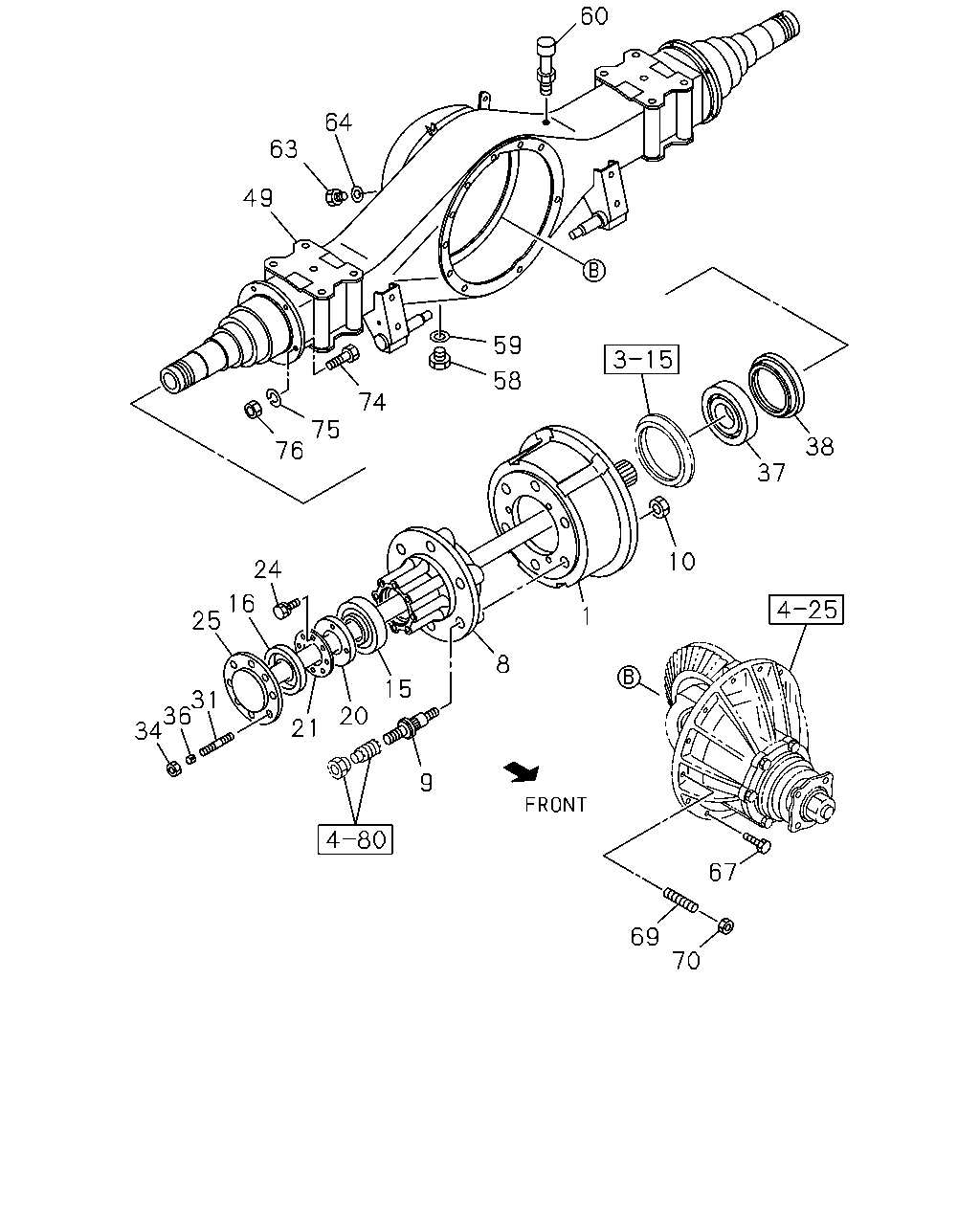

38 37 10 1 8 67 69 70 9 15 20 21 24 16 25 31 36 34 76 75 74 58 59 60 64 63 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	05.809 DRUM; BRK,RR G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97102-001-3	02	1	1509-		●
1	05.809 DRUM; BRK,RR	8-97102-001-3	02	1	1509-			●
1	05.809 DRUM; BRK,RR G.V.W. 7.0-7.5TON(RPX)	8-97081-219-2	02	1	1509-		●
8	05.809 HUB; RR AXLE G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97250-321-1	02	1	1509-		●
8	05.809 HUB; RR AXLE G.V.W. 7.0-7.5TON(RPX)	8-97081-323-2	02	1	1509-		●
8	05.809 HUB; RR AXLE	8-97107-549-2	02	1	1509-			●
8	05.809 HUB; RR AXLE	8-98022-462-0	02	1	1506-	●
8	05.809 HUB; RR AXLE	8-98192-924-0	02	1	1506-1508		●
8	05.809 HUB; RR AXLE G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9>	8-98192-924-0	02	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> M20X28,M22X57 RH THREAD	8-97081-584-4	06	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE M20X28,M22X57 RH THREAD	8-97081-584-4	06	1	1509-			●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> M20X28 LH THREAD,M22X57 RH THREAD	8-97081-585-4	06	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE M20X28 LH THREAD,M22X57 RH THREAD	8-97081-585-4	06	1	1509-			●
9	05.812 PIN; WHEEL,RR AXLE M18X46 RH THREAD	8-98028-532-1	05	1	1506-	●
9	05.812 PIN; WHEEL,RR AXLE M18X46 LH THREAD	8-98028-533-1	05	1	1506-	●
9	05.812 PIN; WHEEL,RR AXLE M20X53 RH THREAD	8-97168-456-2	06	1	1506-1508		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> M20X53 RH THREAD	8-97168-456-2	06	1	1509-		●
9	05.812 PIN; WHEEL,RR AXLE M20X53 LH THREAD	8-97168-457-2	06	1	1506-1508		●
9	05.812 PIN; WHEEL,RR AXLE G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> M20X53 LH THREAD	8-97168-457-2	06	1	1509-		●
10	05.813 NUT; WHEEL PIN,RR AXLE G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 07.172 M22	0-91110-522-0	12	1	1509-		●
10	05.813 NUT; WHEEL PIN,RR AXLE 07.172 M22	0-91110-522-0	12	1	1509-			●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-082-0	02	1	1506-	●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-607-0	02	1	1506-1508		●
15	05.855 BEARING; HUB OUTER,RR AXLE NSK	9-00093-607-0	02	1	1509-		●	●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-140-0	02	1	1506-	●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-139-0	02	1	1506-1508		●
15	05.855 BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	5-87610-139-0	02	1	1509-		●	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-911-0	02	1	1506-	●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-912-0	02	1	1506-1508		●
16	05.822 SEAL; OIL,RR HUB,OUTER NOK	8-98202-912-0	02	1	1509-		●	●
20	05.830 NUT; BRG,RR HUB M52	8-98236-850-0	02	1	1506-	●
20	05.830 NUT; BRG,RR HUB M55	8-97137-094-0	02	1	1506-1508		●
20	05.830 NUT; BRG,RR HUB M55	8-97137-094-0	02	1	1509-		●	●
21	05.830 WASHER; LK,BRG NUT ID=52	9-09853-214-1	02	1	1506-	●
21	05.830 WASHER; LK,BRG NUT ID=55	9-09653-002-0	02	1	1506-1508		●
21	05.830 WASHER; LK,BRG NUT ID=55	9-09653-002-1	02	1	1509-		●	●
24	05.830 BOLT; LK WASHER 03.671 M6X10 FLANGE	0-28050-610-0	04	1	1506-1508	●	●
24	05.830 BOLT; LK WASHER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	1509-	●	●	●
25	05.420 SHAFT; AXLE,RR L=804.5	8-97032-497-0	02	1	1506-	●
25	05.420 SHAFT; AXLE,RR L=885	8-97134-439-0	02	1	1506-1508		●
25	05.420 SHAFT; AXLE,RR L=885	8-97134-439-0	02	1	1509-		●	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	1506-1508	●	●
31	05.422 STUD; AXLE SHAFT TO HUB M10X30 L=49	8-97359-803-0	16	1	1509-	●	●	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	1506-1508	●	●
34	05.387 NUT; AXLE SHAFT 04.085 M10 FLANGE	0-91180-210-0	16	1	1509-	●	●	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	1506-1508	●	●
36	05.422 WASHER; SPECIAL,AXLE SHAFT ID=10.5	8-97360-004-0	16	1	1509-	●	●	●
37	05.855 BEARING; HUB INNER,RR AXLE G.V.W. 7.0-7.5TON(RPX) NSK	9-00093-624-0	02	1	1509-		●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	9-00093-081-0	02	1	1506-	●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	8-97122-938-0	02	1	1506-1508		●
37	05.855 BEARING; HUB INNER,RR AXLE G.V.W. 7.5-8.0TON(RPY) NSK	8-97122-938-0	02	1	1509-		●
37	05.855 BEARING; HUB INNER,RR AXLE NSK	8-97122-938-0	02	1	1509-			●
37	05.855 BEARING; HUB INNER,RR AXLE JTEKT	8-97123-119-0	02	1	1506-1508		●
37	05.855 BEARING; HUB INNER,RR AXLE G.V.W. 7.5-8.0TON(RPY) JTEKT	8-97123-119-0	02	1	1509-		●
37	05.855 BEARING; HUB INNER,RR AXLE JTEKT	8-97123-119-0	02	1	1509-			●
37	05.855 BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	5-87610-142-0	02	1	1506-	●
37	05.855 BEARING; HUB INNER,RR AXLE G.V.W. 7.0-7.5TON(RPX) BEST VALUE PARTS	5-87610-141-0	02	1	1509-		●
38	05.822 SEAL; OIL,RR HUB,INNER G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> NOK	8-97122-937-0	02	1	1509-		●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-97122-937-0	02	1	1509-			●
38	05.822 SEAL; OIL,RR HUB,INNER G.V.W. 7.0-7.5TON(RPX) TKK	8-94336-316-1	02	1	1509-		●
38	05.822 SEAL; OIL,RR HUB,INNER G.V.W. 7.0-7.5TON(RPX) NOK	8-94367-958-0	02	1	1509-		●
38	05.822 SEAL; OIL,RR HUB,INNER NOK	8-98037-080-0	02	1	1506-	●
38	05.822 SEAL; OIL,RR HUB,INNER	8-98194-208-0	02	1	1506-1508		●
38	05.822 SEAL; OIL,RR HUB,INNER G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9>	8-98194-208-0	02	1	1509-		●
49	05.387 CASE; RR AXLE G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97250-319-3	01	1	1509-		●
49	05.387 CASE; RR AXLE G.V.W. 7.0-7.5TON(RPX)	8-97222-080-3	01	1	1509-		●
49	05.387 CASE; RR AXLE	8-97222-079-4	01	1	1509-			●
49	05.387 CASE; RR AXLE	8-98022-460-6	01	1	1506-	●
49	05.387 CASE; RR AXLE	8-98192-921-1	01	1	1506-1508		●
49	05.387 CASE; RR AXLE G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9>	8-98192-921-1	01	1	1509-		●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	1506-1508	●	●
58	05.508 PLUG; DRAIN,AXLE CASE M16X12.5	8-97307-060-0	01	1	1509-	●	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	1506-1508	●	●
59	05.400 GASKET; DRAIN PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	1509-	●	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1506-1508	●	●
60	05.387 BREATHER; RR AXLE CASE L=29	8-98006-960-0	01	1	1509-	●	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1506-1508	●	●
63	05.400 PLUG; OIL FILLER,AXLE CASE M20X10.5	8-98009-333-0	01	1	1509-	●	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	1506-1508	●	●
64	05.400 GASKET; OIL FILLER,AXLE CASE ID=20 OD=30	8-94462-734-0	01	1	1509-	●	●	●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	11	1	1506-	●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	07	1	1506-1508		●
67	05.387 BOLT; FINAL DRIVE SETTING 06.156 M10X40 W/LK WASHER	0-50561-040-0	07	1	1509-		●	●
67	05.387 BOLT; FINAL DRIVE SETTING M10X50 W/LK WASHER	0-50561-050-0	04	1	1506-1508		●
67	05.387 BOLT; FINAL DRIVE SETTING M10X50 W/LK WASHER	0-50561-050-0	04	1	1509-		●	●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1506-1508	●	●
69	05.387 STUD; AXLE CASE M10X40.5 L=52.5	8-97359-802-0	02	1	1509-	●	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	1506-1508	●	●
70	05.387 NUT; CARRIER 04.085 M10 FLANGE	0-91180-210-0	02	1	1509-	●	●	●
74	05.002 BOLT; RR BRK ASM SETTING G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> M14X40	8-98007-879-0	12	1	1509-		●
74	05.002 BOLT; RR BRK ASM SETTING M14X40	8-98007-879-0	12	1	1509-			●
74	05.002 BOLT; RR BRK ASM SETTING G.V.W. 7.0-7.5TON(RPX) M12X32	8-97359-819-0	12	1	1509-		●
75	05.002 WASHER; LK,RR BRK ASM SETTING G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 06.174 ID=14.2	0-91510-814-0	12	1	1509-		●
75	05.002 WASHER; LK,RR BRK ASM SETTING 06.174 ID=14.2	0-91510-814-0	12	1	1509-			●
75	05.002 WASHER; LK,RR BRK ASM SETTING G.V.W. 7.0-7.5TON(RPX) 07.347 ID=12.2	0-91510-812-0	12	1	1509-		●
76	05.002 NUT; RR BRK ASM SETTING G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 07.833 M14	0-91110-514-0	12	1	1509-		●
76	05.002 NUT; RR BRK ASM SETTING 07.833 M14	0-91110-514-0	12	1	1509-			●
76	05.002 NUT; RR BRK ASM SETTING G.V.W. 7.0-7.5TON(RPX) M12	0-91110-512-0	12	1	1509-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
