4-11 — FRONT HUB AND DRUM OR ROTOR (#162363) — 101 parça

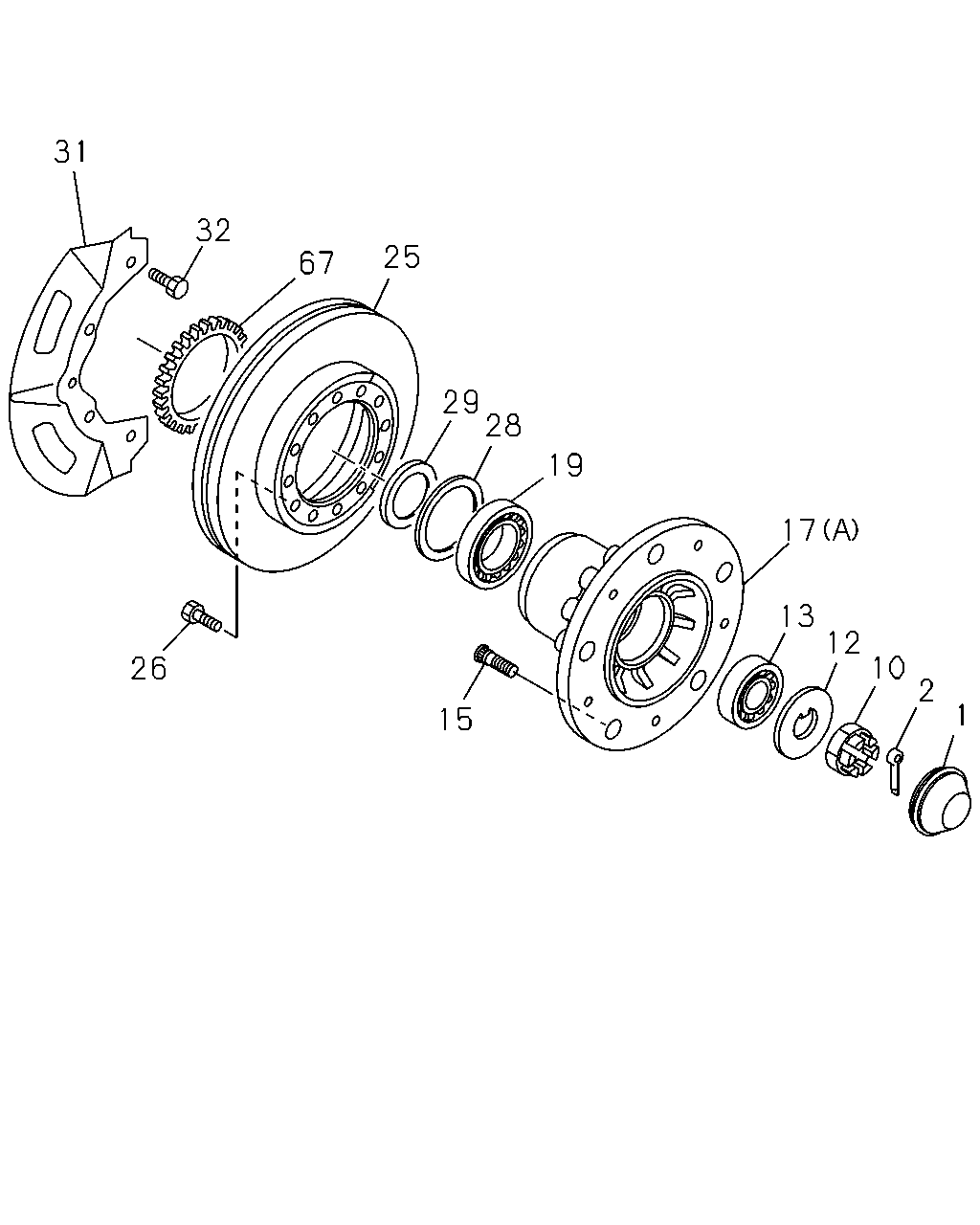

31 32 25 67 29 26 15 19 28 17 13 12 10 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.330 CAP; HUB,FRT AXLE	8-98276-604-0	02	1	1506-1508	●	●
1	06.330 CAP; HUB,FRT AXLE	8-98276-604-0	02	1	1509-	●	●	●
2	05.812 PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	1506-1508	●	●
2	05.812 PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	1509-	●	●	●
10	05.812 NUT; FRT HUB BRG 06.022	8-94247-357-1	02	1	1506-1508	●	●
10	05.812 NUT; FRT HUB BRG 06.022	8-94247-357-1	02	1	1509-	●	●	●
12	06.321 WASHER; LK,FRT HUB BRG 05.812	8-98282-435-0	02	1	1506-1508	●	●
12	06.321 WASHER; LK,FRT HUB BRG 05.812	8-98282-435-0	02	1	1509-	●	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	1506-1508	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	1509-	●	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	1506-1508	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	1509-	●	●	●
15	05.812 PIN; WHEEL,FRT AXLE G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> M20X28,M22X50 RH THREAD	8-97131-283-3	06	1	1509-		●
15	05.812 PIN; WHEEL,FRT AXLE M20X28,M22X50 RH THREAD	8-97131-283-3	06	1	1509-			●
15	05.812 PIN; WHEEL,FRT AXLE G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> M20X28 LH THREAD,M22X50 RH THREAD	8-97131-284-3	06	1	1509-		●
15	05.812 PIN; WHEEL,FRT AXLE M20X28 LH THREAD,M22X50 RH THREAD	8-97131-284-3	06	1	1509-			●
15	05.812 PIN; WHEEL,FRT AXLE G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> M20X28,M22X57 RH THREAD	8-97081-584-4	06	1	1509-		●
15	05.812 PIN; WHEEL,FRT AXLE G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> M20X28 LH THREAD,M22X57 RH THREAD	8-97081-585-4	06	1	1509-		●
15	05.812 PIN; WHEEL,FRT AXLE M18X46 RH THREAD	8-98028-532-1	05	1	1506-	●
15	05.812 PIN; WHEEL,FRT AXLE M18X46 LH THREAD	8-98028-533-1	05	1	1506-	●
15	05.812 PIN; WHEEL,FRT AXLE M20X53 RH THREAD	8-97168-456-2	06	1	1506-1508		●
15	05.812 PIN; WHEEL,FRT AXLE 4 WHEEL DISC BRAKE<JF9> M20X53 RH THREAD	8-97168-456-2	06	1	1509-		●
15	05.812 PIN; WHEEL,FRT AXLE M20X53 LH THREAD	8-97168-457-2	06	1	1506-1508		●
15	05.812 PIN; WHEEL,FRT AXLE 4 WHEEL DISC BRAKE<JF9> M20X53 LH THREAD	8-97168-457-2	06	1	1509-		●
17	06.307 HUB; FRT AXLE G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-97349-911-0	02	1	1509-		●
17	06.307 HUB; FRT AXLE G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-97081-322-0	02	1	1509-		●
17	06.307 HUB; FRT AXLE (B)	8-97131-236-0	02	1	1509-			●
17	06.307 HUB; FRT AXLE (A)	8-97035-160-0	02	1	1506-	●
17	06.307 HUB; FRT AXLE (A)	8-97168-460-0	02	1	1506-1508		●
17	06.307 HUB; FRT AXLE 4 WHEEL DISC BRAKE<JF9> (A)	8-97168-460-0	02	1	1509-		●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1506-1508	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1509-	●	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1506-1508	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1509-	●	●	●
25	05.809 ROTOR; DISC BRK,FRT	8-97387-229-0	02	1	1506-	●
25	05.809 ROTOR; DISC BRK,FRT	8-98248-895-0	02	1	1506-1508		●
25	05.809 ROTOR; DISC BRK,FRT 4 WHEEL DISC BRAKE<JF9>	8-98248-895-0	02	1	1509-		●
26	05.812 BOLT; BRK,DISC TO HUB	8-94474-923-0	24	1	1506-1508	●	●
26	05.812 BOLT; BRK,DISC TO HUB	8-94474-923-0	24	1	1509-	●
26	05.812 BOLT; BRK,DISC TO HUB 4 WHEEL DISC BRAKE<JF9>	8-94474-923-0	24	1	1509-		●
28	06.326 SEAL; OIL,FRT HUB	8-94248-117-1	02	1	1506-1508	●	●
28	06.326 SEAL; OIL,FRT HUB	8-94248-117-1	02	1	1509-	●	●	●
29	06.326 DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	1506-1508	●	●
29	06.326 DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	1509-	●	●	●
31	04.665 COVER; DUST,FRT BRAKE	8-98037-377-0	02	1	1506-1508	●	●
31	04.665 COVER; DUST,FRT BRAKE	8-98037-377-0	02	1	1509-	●
31	04.665 COVER; DUST,FRT BRAKE 4 WHEEL DISC BRAKE<JF9>	8-98037-377-0	02	1	1509-		●
32	04.665 BOLT; DUST COVER TO KNUCKLE 02.343 M8X12 FLANGE	0-28050-812-0	08	1	1506-1508	●	●
32	04.665 BOLT; DUST COVER TO KNUCKLE 02.343 M8X12 FLANGE	0-28050-812-0	08	1	1509-	●
32	04.665 BOLT; DUST COVER TO KNUCKLE 4 WHEEL DISC BRAKE<JF9> 02.343 M8X12 FLANGE	0-28050-812-0	08	1	1509-		●
67	05.811 ROTOR; SENSOR G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97387-158-0	02	1	1509-		●
67	05.811 ROTOR; SENSOR	8-97387-159-0	02	1	1506-1508	●	●
67	05.811 ROTOR; SENSOR	8-97387-159-0	02	1	1509-	●
67	05.811 ROTOR; SENSOR 4 WHEEL DISC BRAKE<JF9>	8-97387-159-0	02	1	1509-		●

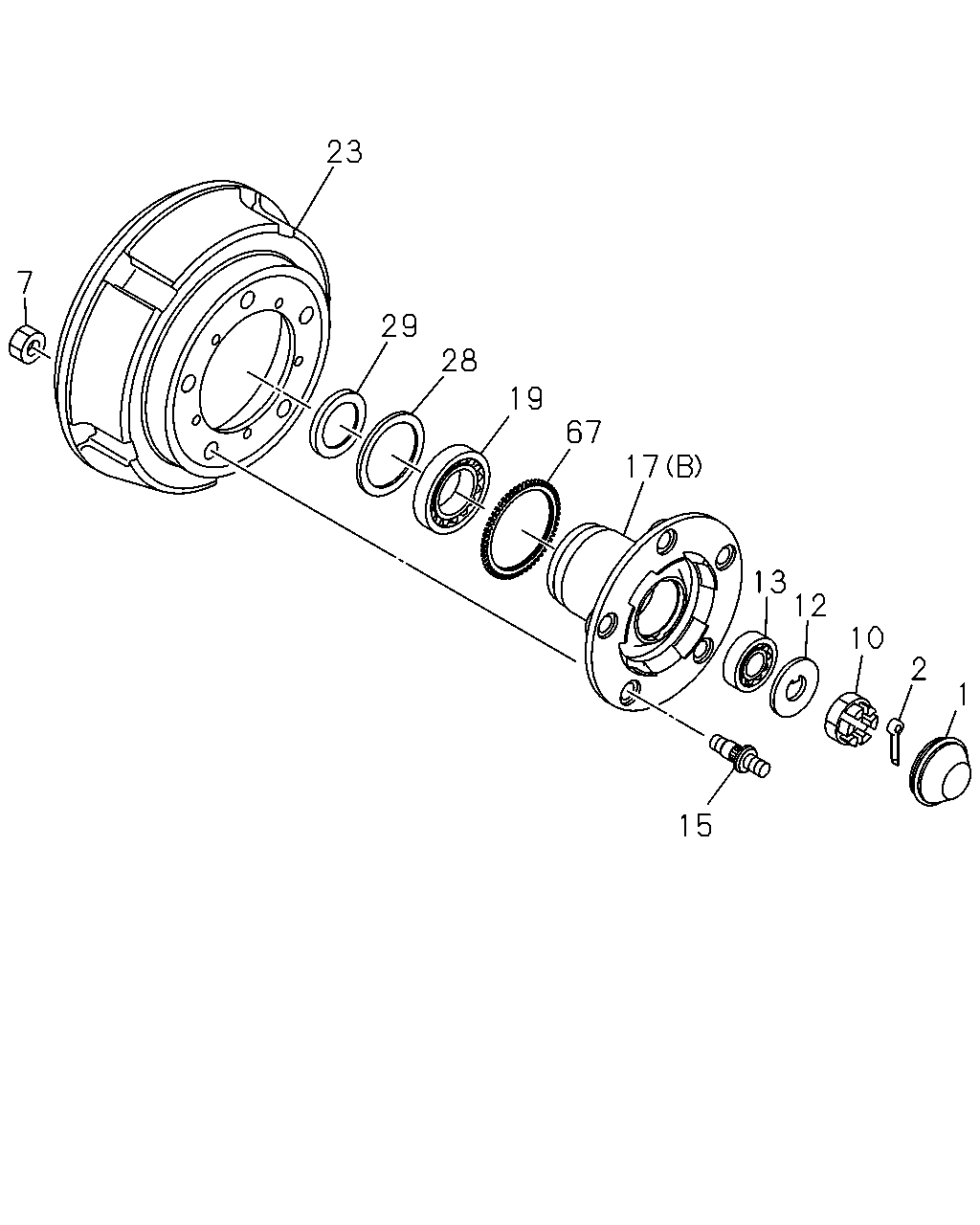

23 29 19 28 67 13 12 17 10 2 1 15 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.330 CAP; HUB,FRT AXLE	8-98276-604-0	02	1	1506-1508	●	●
1	06.330 CAP; HUB,FRT AXLE	8-98276-604-0	02	1	1509-	●	●	●
2	05.812 PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	1506-1508	●	●
2	05.812 PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	1509-	●	●	●
7	05.812 NUT; FRT HUB EXC. 4 WHEEL DISC BRAKE<JF9> 07.172 M22	0-91110-522-0	12	1	1509-		●
7	05.812 NUT; FRT HUB 07.172 M22	0-91110-522-0	12	1	1509-			●
10	05.812 NUT; FRT HUB BRG 06.022	8-94247-357-1	02	1	1506-1508	●	●
10	05.812 NUT; FRT HUB BRG 06.022	8-94247-357-1	02	1	1509-	●	●	●
12	06.321 WASHER; LK,FRT HUB BRG 05.812	8-98282-435-0	02	1	1506-1508	●	●
12	06.321 WASHER; LK,FRT HUB BRG 05.812	8-98282-435-0	02	1	1509-	●	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	1506-1508	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	1509-	●	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	1506-1508	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	1509-	●	●	●
15	05.812 PIN; WHEEL,FRT AXLE G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> M20X28,M22X50 RH THREAD	8-97131-283-3	06	1	1509-		●
15	05.812 PIN; WHEEL,FRT AXLE M20X28,M22X50 RH THREAD	8-97131-283-3	06	1	1509-			●
15	05.812 PIN; WHEEL,FRT AXLE G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> M20X28 LH THREAD,M22X50 RH THREAD	8-97131-284-3	06	1	1509-		●
15	05.812 PIN; WHEEL,FRT AXLE M20X28 LH THREAD,M22X50 RH THREAD	8-97131-284-3	06	1	1509-			●
15	05.812 PIN; WHEEL,FRT AXLE G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> M20X28,M22X57 RH THREAD	8-97081-584-4	06	1	1509-		●
15	05.812 PIN; WHEEL,FRT AXLE G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> M20X28 LH THREAD,M22X57 RH THREAD	8-97081-585-4	06	1	1509-		●
15	05.812 PIN; WHEEL,FRT AXLE M18X46 RH THREAD	8-98028-532-1	05	1	1506-	●
15	05.812 PIN; WHEEL,FRT AXLE M18X46 LH THREAD	8-98028-533-1	05	1	1506-	●
15	05.812 PIN; WHEEL,FRT AXLE M20X53 RH THREAD	8-97168-456-2	06	1	1506-1508		●
15	05.812 PIN; WHEEL,FRT AXLE 4 WHEEL DISC BRAKE<JF9> M20X53 RH THREAD	8-97168-456-2	06	1	1509-		●
15	05.812 PIN; WHEEL,FRT AXLE M20X53 LH THREAD	8-97168-457-2	06	1	1506-1508		●
15	05.812 PIN; WHEEL,FRT AXLE 4 WHEEL DISC BRAKE<JF9> M20X53 LH THREAD	8-97168-457-2	06	1	1509-		●
17	06.307 HUB; FRT AXLE G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-97349-911-0	02	1	1509-		●
17	06.307 HUB; FRT AXLE G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-97081-322-0	02	1	1509-		●
17	06.307 HUB; FRT AXLE (B)	8-97131-236-0	02	1	1509-			●
17	06.307 HUB; FRT AXLE (A)	8-97035-160-0	02	1	1506-	●
17	06.307 HUB; FRT AXLE (A)	8-97168-460-0	02	1	1506-1508		●
17	06.307 HUB; FRT AXLE 4 WHEEL DISC BRAKE<JF9> (A)	8-97168-460-0	02	1	1509-		●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1506-1508	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1509-	●	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1506-1508	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1509-	●	●	●
23	05.809 DRUM; BRK,FRT G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97188-115-0	02	1	1509-		●
23	05.809 DRUM; BRK,FRT	8-97188-115-0	02	1	1509-			●
23	05.809 DRUM; BRK,FRT G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97081-218-2	02	1	1509-		●
28	06.326 SEAL; OIL,FRT HUB	8-94248-117-1	02	1	1506-1508	●	●
28	06.326 SEAL; OIL,FRT HUB	8-94248-117-1	02	1	1509-	●	●	●
29	06.326 DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	1506-1508	●	●
29	06.326 DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	1509-	●	●	●
67	05.811 ROTOR; SENSOR G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9>	8-97387-158-0	02	1	1509-		●
67	05.811 ROTOR; SENSOR	8-97387-159-0	02	1	1506-1508	●	●
67	05.811 ROTOR; SENSOR	8-97387-159-0	02	1	1509-	●
67	05.811 ROTOR; SENSOR 4 WHEEL DISC BRAKE<JF9>	8-97387-159-0	02	1	1509-		●
