◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6 ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#162359) — 134 parça

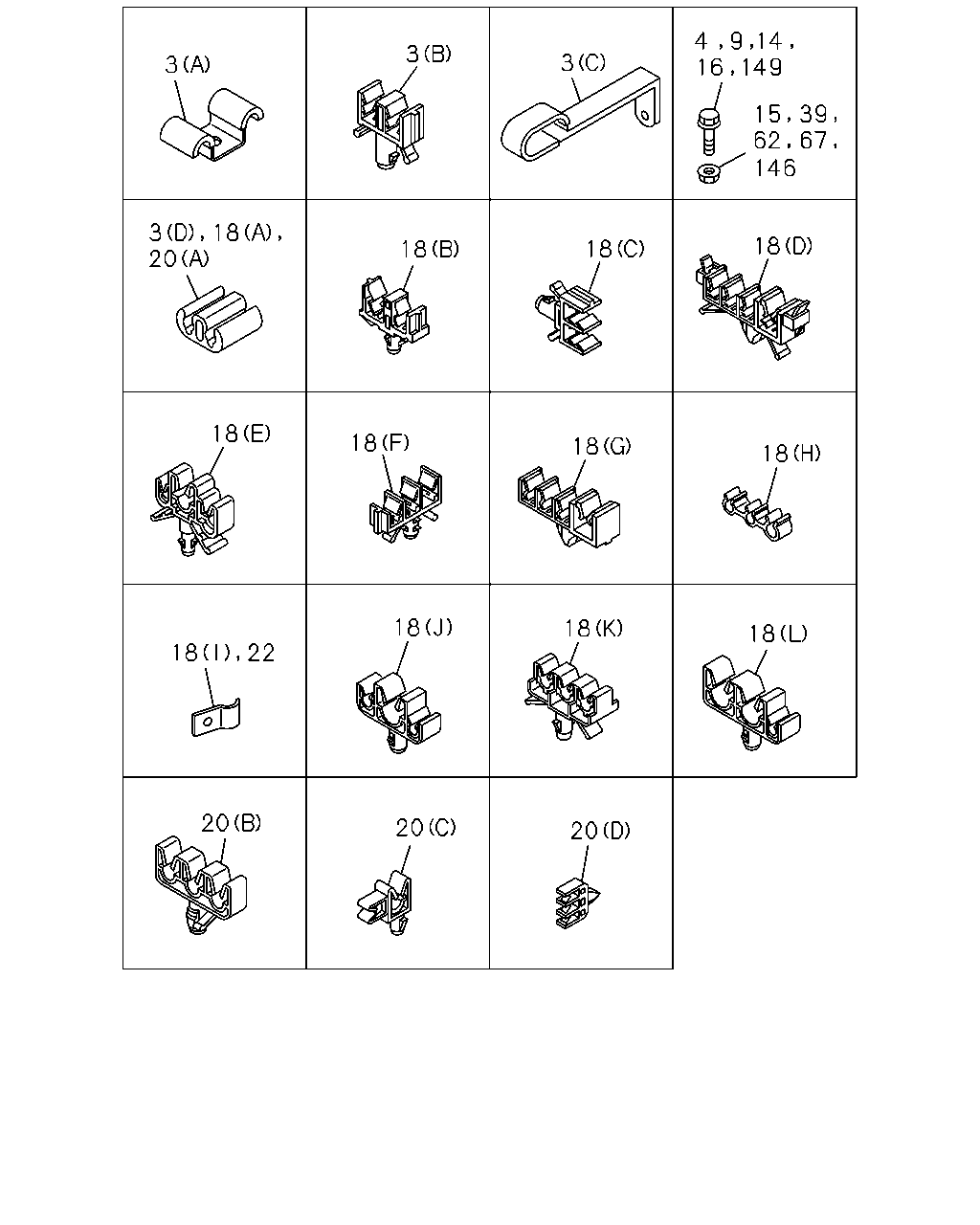

çizim 479432
3 3 18 20 18 18 22 20 3 18 18 18 20 3 18 18 18 20 4 9 14 16 149 15 39 62 67 146 18 18 18
BalonParca AdiParca NoAdetTipApplied Date A B C
3 04.685 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.047 (A) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 1509- ●
3 04.685 CLIP; BRK PIPE
04.047 (A) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 1509- ●
3 04.685 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.047 (C) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 1509- ●
3 04.685 CLIP; BRK PIPE
04.047 (C) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 1509- ●
3 04.685 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 06.672 (D) ID=10X2 H=22 		8-94252-455-2 03 1 1509- ●
3 04.685 CLIP; BRK PIPE
06.672 (D) ID=10X2 H=22 		8-94252-455-2 03 1 1509- ●
3 04.685 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=10X2 H=37.5 		8-97018-546-0 01 1 1509- ●
3 04.685 CLIP; BRK PIPE
04.930 (B) ID=10X2 H=37.5 		8-97018-546-0 01 1 1509- ●
4 04.686 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1509- ●
4 04.686 BOLT; BRKT
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1509- ●
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1506-1508 ● ●
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1509- ● ● ●
9 04.686 BOLT; BRKT
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ●
9 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ●
9 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1506-1508 ● ●
9 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1509- ●
9 04.686 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1509- ●
14 04.686 BOLT; CLIP,OIL PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506- ●
14 04.686 BOLT; CLIP,OIL PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506- ●
14 04.686 BOLT; CLIP,OIL PIPE
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1506-1508 ●
14 04.686 BOLT; CLIP,OIL PIPE
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1509- ●
14 04.686 BOLT; CLIP,OIL PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1509- ●
15 04.686 NUT; CLIP,OIL PIPE
01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1508 ● ●
15 04.686 NUT; CLIP,OIL PIPE
01.062 M8 FLANGE 		0-91180-108-0 02 1 1509- ● ● ●
16 04.686 BOLT; BRKT TO FRAME
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1506- ● ●
18 04.686 CLIP; BRK PIPE
03.162 (E) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35 		8-98153-939-1 01 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> (D) ID=10 & 4.76X3 		8-97326-158-1 08 1 1509- ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.128 (L) ID=10 OR 12X2 & 4.76 		8-98058-323-0 02 1 1509-1511 ●
18 04.686 CLIP; BRK PIPE
04.128 (L) ID=10 OR 12X2 & 4.76 		8-98058-323-0 02 1 1512- ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.128 (L) ID=10 OR 12X2 & 4.76 		8-98058-323-0 02 1 1512- ●
18 04.686 CLIP; BRK PIPE
(D) ID=10 & 4.76X3 		8-97326-158-1 07 1 1509- ● ● ●
18 04.686 CLIP; BRK PIPE
03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 1506- ●
18 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 1506- ●
18 04.686 CLIP; BRK PIPE
(G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1506-1507 ●
18 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1506-1507 ●
18 04.686 CLIP; BRK PIPE
(G) ID=10 & 4.76X3 		8-97168-819-0 02 1 1508-1508 ● ●
18 04.686 CLIP; BRK PIPE
(G) ID=10 & 4.76X3 		8-97168-819-0 02 1 1509- ● ● ●
18 04.686 CLIP; BRK PIPE
(J) ID=12 & 6.35 & 4.76 		8-97305-169-1 02 1 1506- ●
18 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=12 & 6.35 & 4.76 		8-97305-169-1 02 1 1506- ●
18 04.686 CLIP; BRK PIPE
(K) ID=4.76X3 		8-97314-976-0 01 1 1506- ●
18 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (K) ID=4.76X3 		8-97314-976-0 01 1 1506- ●
18 04.686 CLIP; BRK PIPE
(D) ID=10 & 4.76X3 		8-97326-158-1 07 1 1506-1508 ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2700MM(27W) (D) ID=10 & 4.76X3 		8-97326-158-1 02 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2700MM(27W) (D) ID=10 & 4.76X3 		8-97326-158-1 02 1 1506-1508 ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) (D) ID=10 & 4.76X3 		8-97326-158-1 04 1 1509- ● ●
18 04.686 CLIP; BRK PIPE
(C) ID=4.8X2 		8-94316-410-0 03 1 1506- ●
18 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2 		8-94316-410-0 03 1 1506- ●
18 04.686 CLIP; BRK PIPE
(G) ID=10 & 4.76X3 		8-97168-819-0 02 1 1506-1507 ● ●
18 04.686 CLIP; BRK PIPE
(G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1508-1508 ●
18 04.686 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1508-1508 ●
18 04.686 CLIP; BRK PIPE
(G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1509- ● ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) (D) ID=10 & 4.76X3 		8-97326-158-1 04 1 1506-1508 ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3800MM(38W) (D) ID=10 & 4.76X3 		8-97326-158-1 05 1 1509- ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3800MM(38W) (D) ID=10 & 4.76X3 		8-97326-158-1 05 1 1506-1508 ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 4100MM(41W) (D) ID=10 & 4.76X3 		8-97326-158-1 06 1 1509- ●
18 04.686 CLIP; BRK PIPE
(D) ID=10 & 4.76X3 		8-97326-158-1 06 1 1509- ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2 		8-94316-410-0 01 1 1506-1508 ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2 		8-94316-410-0 01 1 1509- ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 		8-94389-060-0 01 1 1506-1508 ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2 		8-94389-060-0 01 1 1509- ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8X2 		8-94455-816-0 01 1 1506-1508 ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8X2 		8-94455-816-0 01 1 1509- ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35 		8-98153-939-1 01 1 1506-1508 ●
18 04.686 CLIP; BRK PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 03.162 (E) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35 		8-98153-939-1 02 1 1509- ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,FRONT WIDE TREAD<7GV> 03.162 (E) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35 		8-98153-939-1 02 1 1509- ●
18 04.686 CLIP; BRK PIPE
FRONT WIDE TREAD<7GV> 03.162 (E) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35 		8-98153-939-1 02 1 1509- ●
18 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRONT WIDE TREAD<7GV> 03.162 (E) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35 		8-98153-939-1 02 1 1509- ●
18 04.686 CLIP; BRK PIPE
03.162 (E) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35 		8-98153-939-1 02 1 1509- ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (I) B=18 L=20 		1-09700-372-0 02 1 1506-1508 ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (I) B=18 L=20 		1-09700-372-0 02 1 1509- ●
18 04.686 CLIP; BRK PIPE
(I) B=18 L=20 		1-09700-372-0 02 1 1509- ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (H) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 1506-1508 ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> (H) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 1509- ●
18 04.686 CLIP; BRK PIPE
(H) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 1509- ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 1506-1508 ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> 03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 1509- ●
18 04.686 CLIP; BRK PIPE
03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 1509- ●
18 04.686 CLIP; BRK PIPE
FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35 		8-98153-939-1 03 1 1506-1508 ●
18 04.686 CLIP; BRK PIPE
EURO6 SPECIFICATION(NT6) G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 03.162 (E) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35 		8-98153-939-1 03 1 1509- ●
20 04.686 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) ID=6.35 & 6.35 		8-94474-113-0 03 1 1509- ●
20 04.686 CLIP; BRK PIPE
03.162 (A) ID=6.35 & 6.35 		8-94474-113-0 03 1 1509- ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 1509- ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) (D) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 1509- ●
20 04.686 CLIP; BRK PIPE
(D) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 1509- ●
20 04.686 CLIP; BRK PIPE
03.162 (A) ID=6.35 & 6.35 		8-94474-113-0 02 1 1506-1508 ● ●
20 04.686 CLIP; BRK PIPE
03.162 (A) ID=6.35 & 6.35 		8-94474-113-0 02 1 1509- ●
20 04.686 CLIP; BRK PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) ID=6.35 & 6.35 		8-94474-113-0 02 1 1509- ●
20 04.686 CLIP; BRK PIPE
03.162 (C) ID=12 & 6.35 		8-97215-437-0 01 1 1506-1508 ● ●
20 04.686 CLIP; BRK PIPE
03.162 (C) ID=12 & 6.35 		8-97215-437-0 01 1 1509-1511 ● ●
20 04.686 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) ID=12 & 6.35 		8-97215-437-0 01 1 1509-1511 ●
20 04.686 CLIP; BRK PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) ID=12 & 6.35 		8-97215-437-0 01 1 1509-1511 ●
20 04.686 CLIP; BRK PIPE
03.162 (C) ID=12 & 6.35 		8-97215-437-0 01 1 1509-1511 ●
20 04.686 CLIP; BRK PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (C) ID=12 & 6.35 		8-97215-437-0 01 1 1512- ● ●
20 04.686 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) ID=12 & 6.35 		8-97215-437-0 01 1 1512- ●
20 04.686 CLIP; BRK PIPE
03.162 (C) ID=12 & 6.35 		8-97215-437-0 01 1 1512- ●
20 04.686 CLIP; BRK PIPE
03.162 (C) ID=12 & 6.35 		8-97215-437-0 01 1 1512- ●
20 04.686 CLIP; BRK PIPE
(B) ID=4.76X3 		8-98196-265-0 01 1 1506-1508 ● ●
20 04.686 CLIP; BRK PIPE
(B) ID=4.76X3 		8-98196-265-0 01 1 1509- ●
20 04.686 CLIP; BRK PIPE
TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.76X3 		8-98196-265-0 01 1 1509- ●
22 04.686 CLIP; PIPE TO FRAME
B=18 L=20 		1-09700-372-0 02 1 1506- ●
22 04.686 CLIP; PIPE TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ> B=18 L=20 		1-09700-372-0 02 1 1506- ●
39 04.686 NUT; BRKT FIX
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
39 04.686 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
39 04.686 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1508 ● ●
39 04.686 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 02 1 1509- ●
39 04.686 NUT; BRKT FIX
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1509- ●
62 04.686 NUT
HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ●
62 04.686 NUT
03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ●
67 04.686 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 06.515 M14 		0-91111-514-0 01 1 1509- ●
67 04.686 NUT; BRKT
06.515 M14 		0-91111-514-0 01 1 1509- ●
67 04.686 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
67 04.686 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
67 04.686 NUT; BRKT
00.837 M10 		8-98034-487-1 01 1 1506- ●
67 04.686 NUT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 00.837 M10 		8-98034-487-1 01 1 1506- ●
67 04.686 NUT; BRKT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506- ● ●
67 04.686 NUT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 03 1 1506- ● ●
146 04.686 NUT; PIPE
HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
146 04.686 NUT; PIPE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ●
146 04.686 NUT; PIPE
HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ●
146 04.686 NUT; PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ●
149 04.686 BOLT; HOSE
HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 1509- ●
149 04.686 BOLT; HOSE
03.162 M6X20 FLANGE 		0-28650-620-0 01 1 1509- ●
çizim 492517
19 49 49 68 68 68 68
BalonParca AdiParca NoAdetTipApplied Date A B C
19 04.686 BRACKET; OIL PIPE 8-97389-845-2 01 1 1506-1508 ● ●
19 04.686 BRACKET; OIL PIPE 8-97389-845-2 01 1 1509- ● ● ●
49 04.686 BRACKET; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98033-802-1 01 1 1509- ●
49 04.686 BRACKET; BRK PIPE
(B) 		8-98033-802-1 01 1 1509- ●
49 04.686 BRACKET; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98187-801-0 01 1 1509- ●
49 04.686 BRACKET; BRK PIPE
(A) 		8-98187-801-0 01 1 1509- ●
68 04.686 BRACKET; CLIP
(B) 		8-98017-159-0 01 1 1506- ●
68 04.686 BRACKET; CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98017-159-0 01 1 1506- ●
68 04.686 BRACKET; CLIP
(C) 		8-98034-786-0 01 1 1506- ●
68 04.686 BRACKET; CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-786-0 01 1 1506- ●
68 04.686 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (A) 		8-98049-137-1 01 1 1506- ● ●
68 04.686 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> (D) 		8-98060-016-3 01 1 1506- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
