◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6 ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#162358) — 191 parça

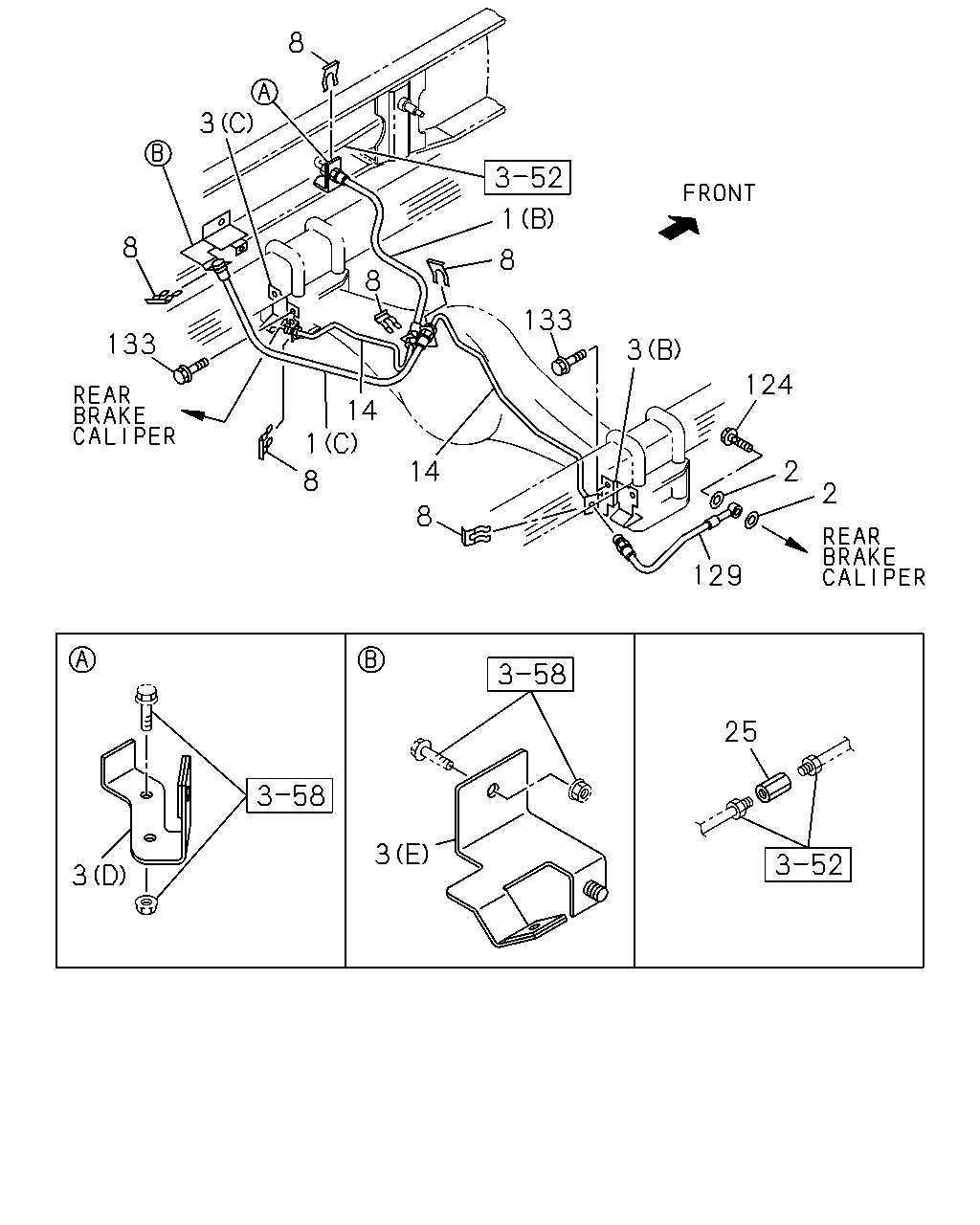

çizim 479386
8 3 8 1 133 3 124 2 2 129 25 3 3 133 14 14 1 8 8 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97253-569-0 01 1 1509- ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97253-570-0 01 1 1509- ●
1 04.680 HOSE; FLEX,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) L=405 		8-97089-061-0 01 1 1509- ●
1 04.680 HOSE; FLEX,RR BRK
(D) L=405 		8-97089-061-0 01 1 1509- ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=310 		8-97035-063-1 01 1 1506-1507 ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=310 		8-97035-063-1 01 1 1508- ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=310 		8-97035-063-1 01 1 1508- ●
1 04.680 HOSE; FLEX,RR BRK
(C) L=345 		8-97230-284-1 01 1 1506-1507 ●
1 04.680 HOSE; FLEX,RR BRK
(C) L=345 		8-97230-284-1 01 1 1508- ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=345 		8-97230-284-1 01 1 1508- ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98194-302-0 01 1 1506-1508 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98194-302-0 01 1 1509- ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98194-303-0 01 1 1506-1508 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98194-303-0 01 1 1509- ●
2 04.686 GASKET; FLEX HOSE,RR BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1506-1508 ● ●
2 04.686 GASKET; FLEX HOSE,RR BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1509-1511 ● ● ●
2 04.686 GASKET; FLEX HOSE,RR BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1512- ●
2 04.686 GASKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1512- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 02 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (D) 		8-97205-199-1 01 1 1506- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (D) 		8-97205-199-1 01 1 1506- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(E) 		8-98117-514-1 01 1 1506- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98117-514-1 01 1 1506- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98037-625-3 01 1 1506-1508 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98037-625-3 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (B) 		8-98037-625-3 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(C) 		8-98037-626-3 01 1 1506-1508 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(C) 		8-98037-626-3 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (C) 		8-98037-626-3 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 02 1 1506-1508 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97205-714-1 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 1509- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 1506-1508 ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 1509- ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97360-054-0 04 1 1509- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1506-1508 ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1509- ● ●
8 04.686 CLIP; RR BRK
4 WHEEL DISC BRAKE<JF9> 		8-97360-054-0 02 1 1509- ●
8 04.686 CLIP; RR BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9> 		8-97360-054-0 02 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97359-749-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97359-748-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9> 		8-97359-746-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98026-040-0 01 1 1506- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98027-462-0 01 1 1506- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98193-493-0 01 1 1506-1508 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) 		8-98193-493-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98193-494-0 01 1 1506-1508 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) 		8-98193-494-0 01 1 1509- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 02 1 1509- ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT 		0-92107-005-0 02 1 1509- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 02 1 1506-1508 ● ●
25 04.686 CONNECTOR
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT 		0-92107-005-0 01 1 1509- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1509- ●
124 04.685 BOLT; EYE,FLEX HOSE,RR BRK
04.681 M10X22 		8-98014-005-0 02 1 1506-1508 ● ●
124 04.685 BOLT; EYE,FLEX HOSE,RR BRK
04.681 M10X22 		8-98014-005-0 02 1 1509-1511 ● ● ●
124 04.685 BOLT; EYE,FLEX HOSE,RR BRK
04.681 M10X22 		8-98014-005-0 02 1 1512- ●
124 04.685 BOLT; EYE,FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> 04.681 M10X22 		8-98014-005-0 02 1 1512- ●
129 04.680 HOSE; FLEX,RR DISC 8-98037-757-2 02 1 1506-1508 ● ●
129 04.680 HOSE; FLEX,RR DISC 8-98037-757-2 02 1 1509-1511 ● ● ●
129 04.680 HOSE; FLEX,RR DISC 8-98037-757-2 02 1 1512- ●
129 04.680 HOSE; FLEX,RR DISC
4 WHEEL DISC BRAKE<JF9> 		8-98037-757-2 02 1 1512- ●
133 04.685 BOLT; CLIP
03.407 M8X10 FLANGE 		0-28050-810-0 04 1 1506-1508 ● ●
133 04.685 BOLT; CLIP
03.407 M8X10 FLANGE 		0-28050-810-0 04 1 1509- ●
133 04.685 BOLT; CLIP
4 WHEEL DISC BRAKE<JF9> 03.407 M8X10 FLANGE 		0-28050-810-0 04 1 1509- ●

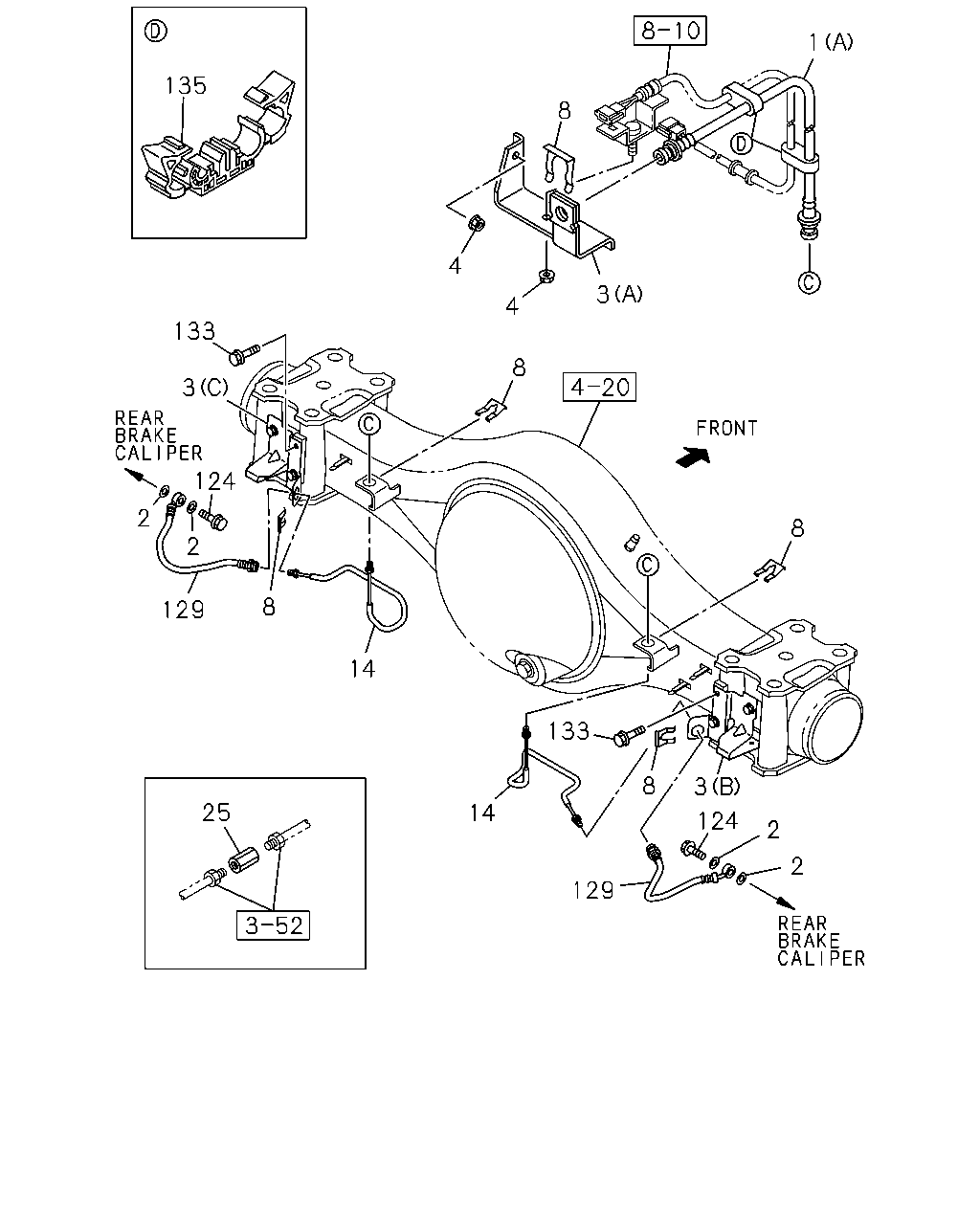

çizim 479400
135 133 3 124 2 2 129 8 14 8 4 4 8 1 3 8 133 8 3 124 2 2 129 14 25
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97253-569-0 01 1 1509- ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97253-570-0 01 1 1509- ●
1 04.680 HOSE; FLEX,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) L=405 		8-97089-061-0 01 1 1509- ●
1 04.680 HOSE; FLEX,RR BRK
(D) L=405 		8-97089-061-0 01 1 1509- ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=310 		8-97035-063-1 01 1 1506-1507 ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=310 		8-97035-063-1 01 1 1508- ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=310 		8-97035-063-1 01 1 1508- ●
1 04.680 HOSE; FLEX,RR BRK
(C) L=345 		8-97230-284-1 01 1 1506-1507 ●
1 04.680 HOSE; FLEX,RR BRK
(C) L=345 		8-97230-284-1 01 1 1508- ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=345 		8-97230-284-1 01 1 1508- ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98194-302-0 01 1 1506-1508 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98194-302-0 01 1 1509- ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98194-303-0 01 1 1506-1508 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98194-303-0 01 1 1509- ●
2 04.686 GASKET; FLEX HOSE,RR BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1506-1508 ● ●
2 04.686 GASKET; FLEX HOSE,RR BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1509-1511 ● ● ●
2 04.686 GASKET; FLEX HOSE,RR BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1512- ●
2 04.686 GASKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1512- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 02 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (D) 		8-97205-199-1 01 1 1506- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (D) 		8-97205-199-1 01 1 1506- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(E) 		8-98117-514-1 01 1 1506- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98117-514-1 01 1 1506- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98037-625-3 01 1 1506-1508 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98037-625-3 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (B) 		8-98037-625-3 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(C) 		8-98037-626-3 01 1 1506-1508 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(C) 		8-98037-626-3 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (C) 		8-98037-626-3 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 02 1 1506-1508 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97205-714-1 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 1509- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1508 ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1509- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 1506-1508 ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 1509- ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97360-054-0 04 1 1509- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1506-1508 ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1509- ● ●
8 04.686 CLIP; RR BRK
4 WHEEL DISC BRAKE<JF9> 		8-97360-054-0 02 1 1509- ●
8 04.686 CLIP; RR BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9> 		8-97360-054-0 02 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97359-749-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97359-748-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9> 		8-97359-746-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98026-040-0 01 1 1506- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98027-462-0 01 1 1506- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98193-493-0 01 1 1506-1508 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) 		8-98193-493-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98193-494-0 01 1 1506-1508 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) 		8-98193-494-0 01 1 1509- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 02 1 1509- ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT 		0-92107-005-0 02 1 1509- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 02 1 1506-1508 ● ●
25 04.686 CONNECTOR
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT 		0-92107-005-0 01 1 1509- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1509- ●
124 04.685 BOLT; EYE,FLEX HOSE,RR BRK
04.681 M10X22 		8-98014-005-0 02 1 1506-1508 ● ●
124 04.685 BOLT; EYE,FLEX HOSE,RR BRK
04.681 M10X22 		8-98014-005-0 02 1 1509-1511 ● ● ●
124 04.685 BOLT; EYE,FLEX HOSE,RR BRK
04.681 M10X22 		8-98014-005-0 02 1 1512- ●
124 04.685 BOLT; EYE,FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> 04.681 M10X22 		8-98014-005-0 02 1 1512- ●
129 04.680 HOSE; FLEX,RR DISC 8-98037-757-2 02 1 1506-1508 ● ●
129 04.680 HOSE; FLEX,RR DISC 8-98037-757-2 02 1 1509-1511 ● ● ●
129 04.680 HOSE; FLEX,RR DISC 8-98037-757-2 02 1 1512- ●
129 04.680 HOSE; FLEX,RR DISC
4 WHEEL DISC BRAKE<JF9> 		8-98037-757-2 02 1 1512- ●
133 04.685 BOLT; CLIP
03.407 M8X10 FLANGE 		0-28050-810-0 04 1 1506-1508 ● ●
133 04.685 BOLT; CLIP
03.407 M8X10 FLANGE 		0-28050-810-0 04 1 1509- ●
133 04.685 BOLT; CLIP
4 WHEEL DISC BRAKE<JF9> 03.407 M8X10 FLANGE 		0-28050-810-0 04 1 1509- ●
135 04.686 CLIP; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97207-699-0 04 1 1509- ●

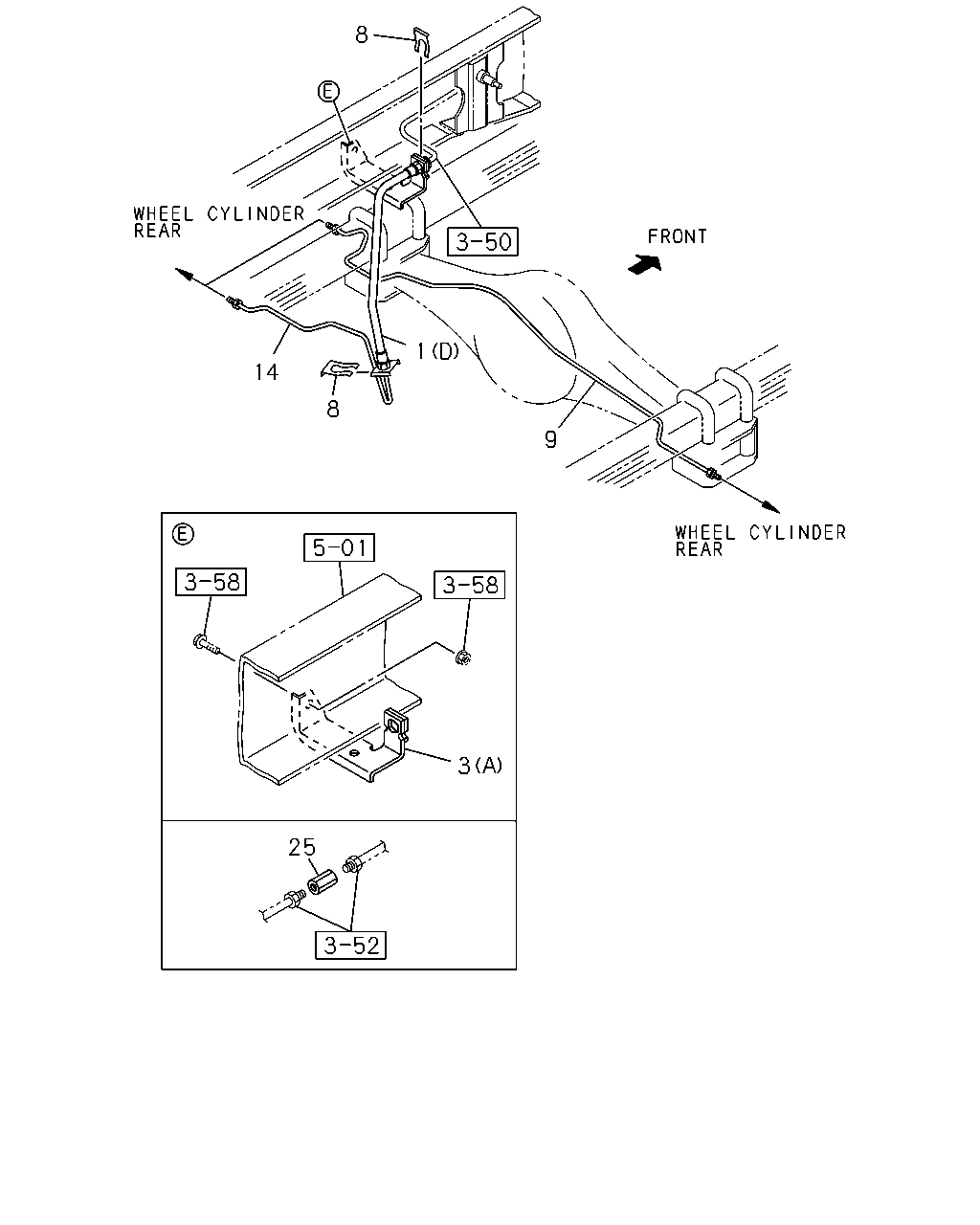

çizim 492492
8 1 9 8 14 3 25
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97253-569-0 01 1 1509- ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL DISC BRAKE<JF9> (A) 		8-97253-570-0 01 1 1509- ●
1 04.680 HOSE; FLEX,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) L=405 		8-97089-061-0 01 1 1509- ●
1 04.680 HOSE; FLEX,RR BRK
(D) L=405 		8-97089-061-0 01 1 1509- ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=310 		8-97035-063-1 01 1 1506-1507 ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=310 		8-97035-063-1 01 1 1508- ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=310 		8-97035-063-1 01 1 1508- ●
1 04.680 HOSE; FLEX,RR BRK
(C) L=345 		8-97230-284-1 01 1 1506-1507 ●
1 04.680 HOSE; FLEX,RR BRK
(C) L=345 		8-97230-284-1 01 1 1508- ●
1 04.680 HOSE; FLEX,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (C) L=345 		8-97230-284-1 01 1 1508- ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98194-302-0 01 1 1506-1508 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98194-302-0 01 1 1509- ●
1 04.680 HOSE; FLEX,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98194-303-0 01 1 1506-1508 ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> FRAME STRAIGHT TYPE<7KJ> (A) 		8-98194-303-0 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 02 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
04.845 (D) 		8-97205-199-1 01 1 1506- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 04.845 (D) 		8-97205-199-1 01 1 1506- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(E) 		8-98117-514-1 01 1 1506- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-98117-514-1 01 1 1506- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98037-625-3 01 1 1506-1508 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98037-625-3 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (B) 		8-98037-625-3 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(C) 		8-98037-626-3 01 1 1506-1508 ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(C) 		8-98037-626-3 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL DISC BRAKE<JF9> (C) 		8-98037-626-3 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-714-1 02 1 1506-1508 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97205-714-1 01 1 1509- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-714-1 01 1 1509- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 1506-1508 ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 1509- ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97360-054-0 04 1 1509- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1506-1508 ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1509- ● ●
8 04.686 CLIP; RR BRK
4 WHEEL DISC BRAKE<JF9> 		8-97360-054-0 02 1 1509- ●
8 04.686 CLIP; RR BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9> 		8-97360-054-0 02 1 1509- ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9> 		8-98026-057-0 01 1 1509- ●
9 04.685 PIPE; BRK,RR AXLE 8-98026-057-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97359-749-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97359-748-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97359-748-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9> 		8-97359-746-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98026-040-0 01 1 1506- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98027-462-0 01 1 1506- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98193-493-0 01 1 1506-1508 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) 		8-98193-493-0 01 1 1509- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98193-494-0 01 1 1506-1508 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) 		8-98193-494-0 01 1 1509- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 02 1 1509- ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT 		0-92107-005-0 02 1 1509- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 02 1 1506-1508 ● ●
25 04.686 CONNECTOR
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT 		0-92107-005-0 01 1 1509- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1509- ●

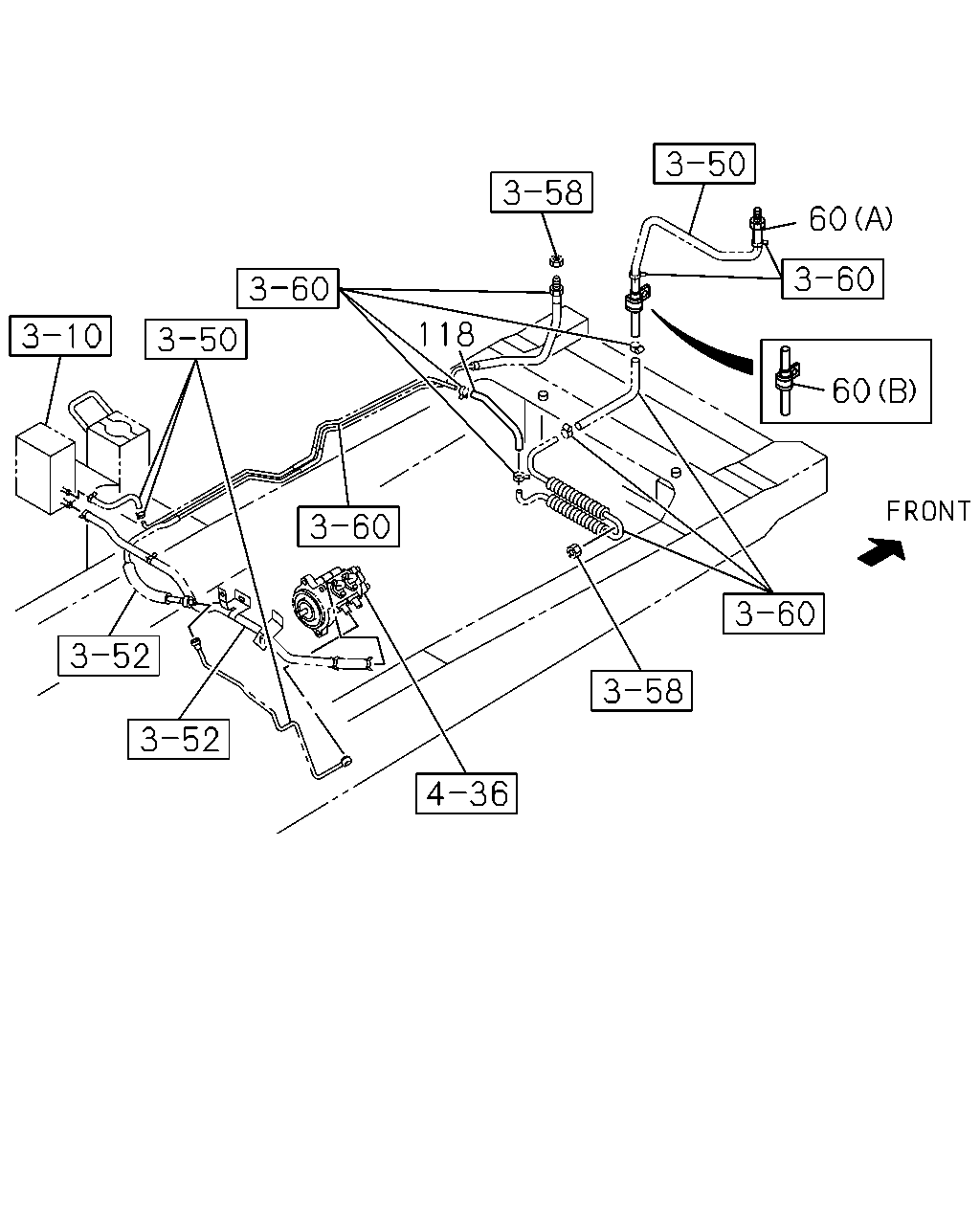

çizim 493126
60 118 60
BalonParca AdiParca NoAdetTipApplied Date A B C
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98080-549-0 01 1 1509- ●
60 04.685 PIPE ASM; BRK
(A) 		8-98080-549-0 01 1 1509- ●
60 04.685 PIPE ASM; BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98127-815-0 01 1 1509- ●
60 04.685 PIPE ASM; BRK
(B) 		8-98127-815-0 01 1 1509- ●
118 04.680 HOSE; PIPE TO PIPE
HYDRO BRAKE BOOSTER(7QQ) 		8-98158-200-0 01 1 1509- ●
118 04.680 HOSE; PIPE TO PIPE 8-98158-200-0 01 1 1509- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
