◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6 ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#162357) — 177 parça

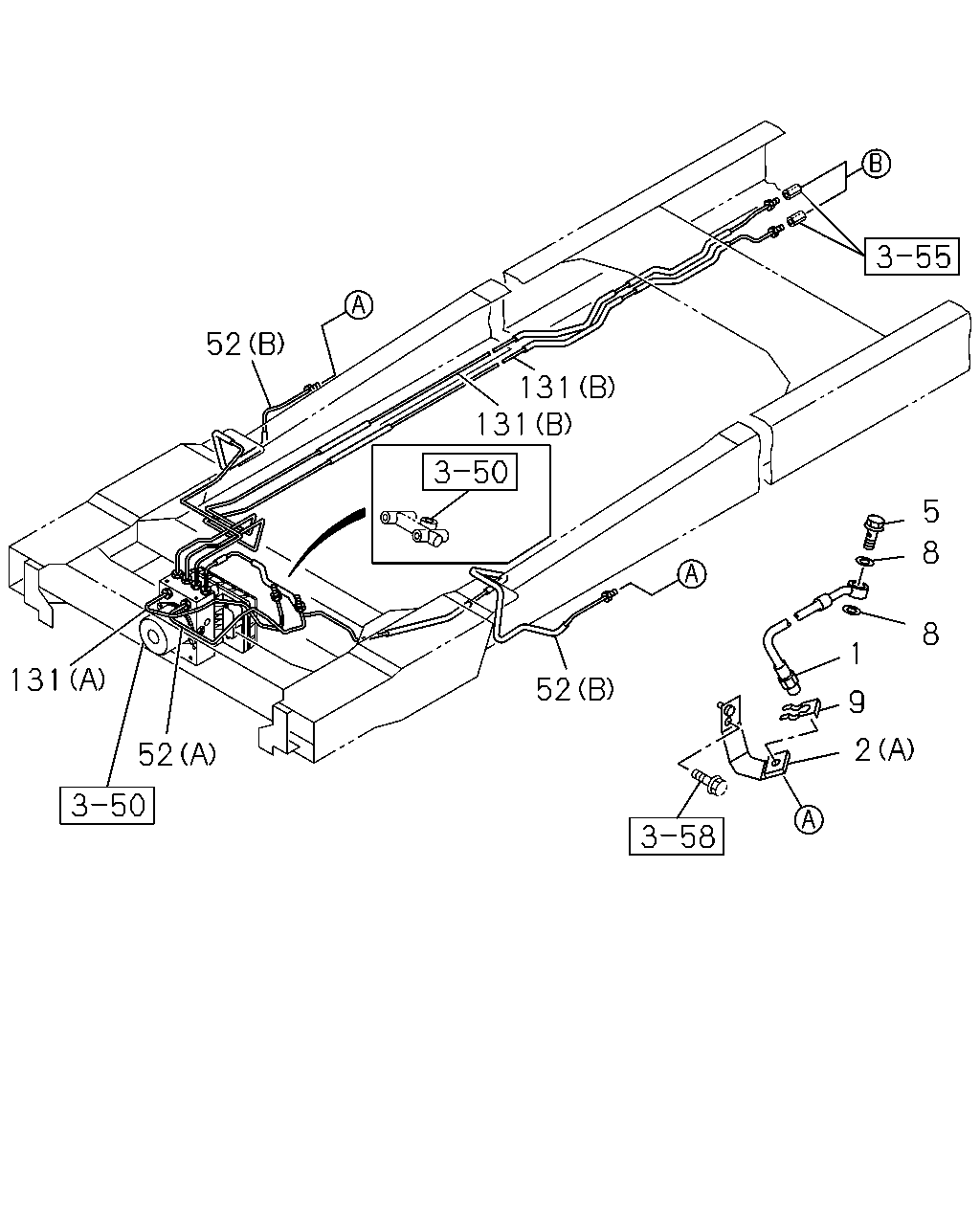

çizim 479607
8 8 5 1 9 2 52 52 131 52 131 131
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.680 HOSE; FLEX,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> FRONT WIDE TREAD<7GV> 		8-98325-205-0 02 1 1509- ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. 4 WHEEL DISC BRAKE<JF9>,FRONT WIDE TREAD<7GV> 		8-97039-543-1 02 1 1509- ●
1 04.680 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 1509- ●
1 04.680 HOSE; FLEX,FRT BRK 8-97365-481-1 02 1 1506-1508 ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97365-481-1 02 1 1509- ●
1 04.680 HOSE; FLEX,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EXC. FRONT WIDE TREAD<7GV> 		8-97365-481-1 02 1 1509- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-578-0 01 1 1509- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98136-578-0 01 1 1509- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-527-1 01 1 1506- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-527-1 01 1 1506- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-528-1 01 1 1506- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-528-1 01 1 1506- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-776-3 01 1 1506- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-778-3 01 1 1506- ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-98014-005-0 02 1 1506-1508 ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-98014-005-0 02 1 1509- ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> M10X22 		8-98014-005-0 02 1 1509- ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1506-1508 ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1509- ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1509- ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1506-1508 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1509- ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97360-054-0 02 1 1509- ● ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),FRAME STRAIGHT TYPE<7KJ> (A) 4WAY TO HU,FRONT 		8-98201-456-0 01 1 1509- ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),FRONT WIDE TREAD<7GV> (A) 4WAY TO HU,FRONT 		8-98201-456-0 01 1 1509- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) (A) 4WAY TO HU,FRONT 		8-98201-456-0 01 1 1509- ●
52 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98220-970-0 01 1 1509- ●
52 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH 		8-98220-971-0 01 1 1509- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL DISC BRAKE<JF9> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98216-264-0 01 1 1509- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL DISC BRAKE<JF9> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98216-265-0 01 1 1509- ●
52 04.685 PIPE; BRK
EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98036-162-0 01 1 1509- ●
52 04.685 PIPE; BRK
(C) 		8-98036-162-0 01 1 1509- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO REAR 		8-98168-430-0 01 1 1509- ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO REAR 		8-98159-766-0 01 1 1509- ●
52 04.685 PIPE; BRK
(D) 2WAY TO REAR 		8-98159-766-0 01 1 1509- ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH 		8-98193-949-0 01 1 1506- ●
52 04.685 PIPE; BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH 		8-98193-949-0 01 1 1506- ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH 		8-98193-951-0 01 1 1506- ●
52 04.685 PIPE; BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH 		8-98193-951-0 01 1 1506- ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-98192-389-1 01 1 1506- ● ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH 		8-98192-394-0 01 1 1506- ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH 		8-98210-359-0 01 1 1506- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),FRAME STRAIGHT TYPE<7KJ> (A) 4WAY TO HU,REAR 		8-98201-457-0 01 1 1509- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),FRONT WIDE TREAD<7GV> (A) 4WAY TO HU,REAR 		8-98201-457-0 01 1 1509- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) (A) 4WAY TO HU,REAR 		8-98201-457-0 01 1 1509- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98110-923-2 01 1 1506- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98110-923-2 01 1 1506- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98110-929-1 01 1 1506- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98110-929-1 01 1 1506- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(A) 4WAY TO HU,REAR 		8-98192-390-0 01 1 1506- ● ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98192-392-0 01 1 1506- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98192-393-1 01 1 1506- ●

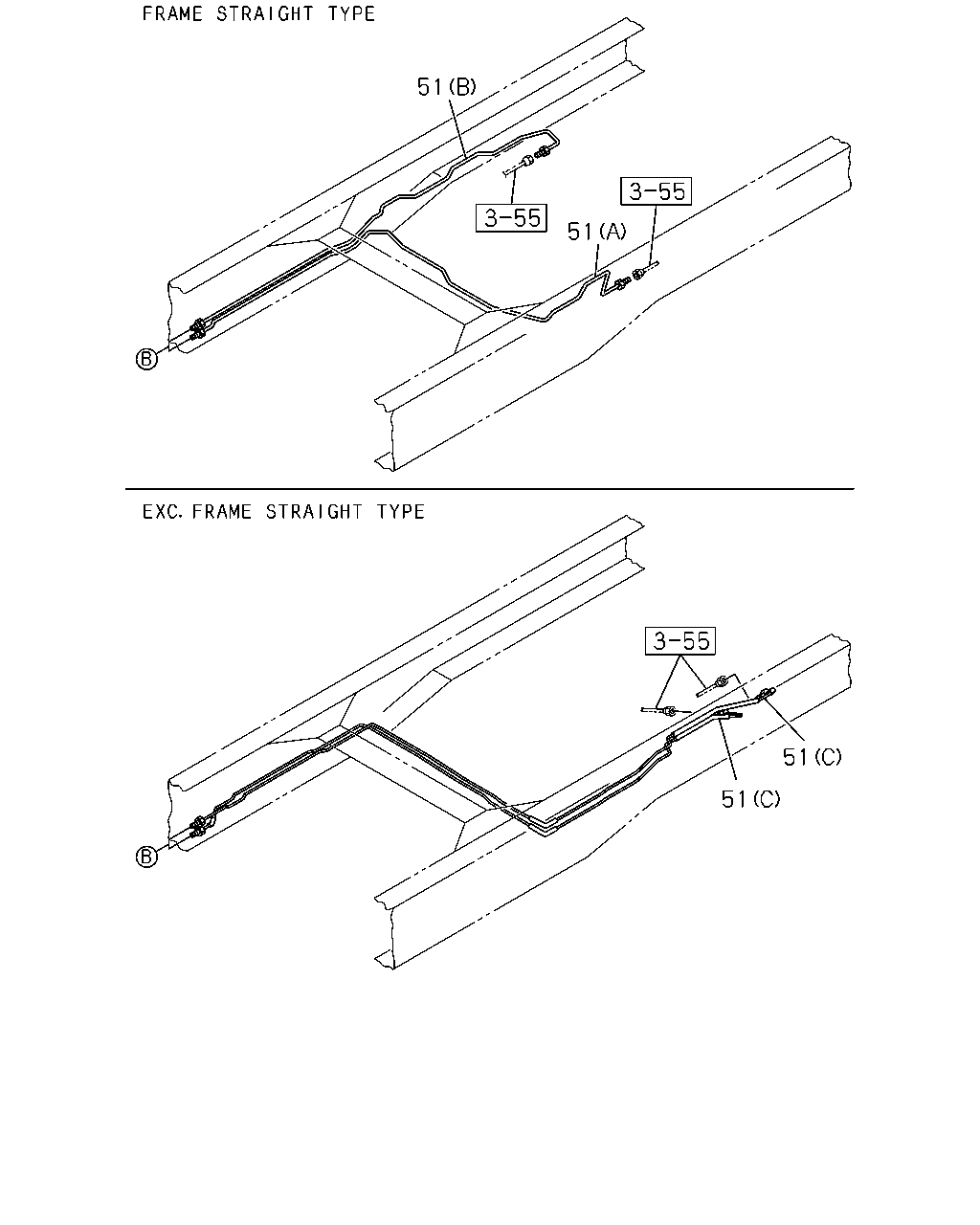

çizim 479902
51 51 51 51
BalonParca AdiParca NoAdetTipApplied Date A B C
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-519-1 01 1 1509- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-532-1 01 1 1509- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 1509- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98112-452-2 01 1 1509- ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 1509- ●
51 04.685 PIPE; BRK
(D) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 1509- ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98159-906-0 01 1 1509- ●
51 04.685 PIPE; BRK
(D) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98159-906-0 01 1 1509- ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 1509- ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98154-659-0 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-057-0 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98159-765-0 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98206-779-0 01 1 1506-1508 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98206-779-0 01 1 1509- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98206-779-0 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98206-785-0 01 1 1506-1508 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98206-785-0 01 1 1509- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98206-785-0 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98206-783-0 01 1 1506-1508 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98206-783-0 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98206-783-0 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98206-786-0 01 1 1506-1508 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98206-786-0 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98206-786-0 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH 		8-98206-784-0 01 1 1506- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 		8-98206-787-0 01 1 1506- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 1506- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98154-660-1 01 1 1506- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 1506- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98112-451-2 01 1 1506- ●

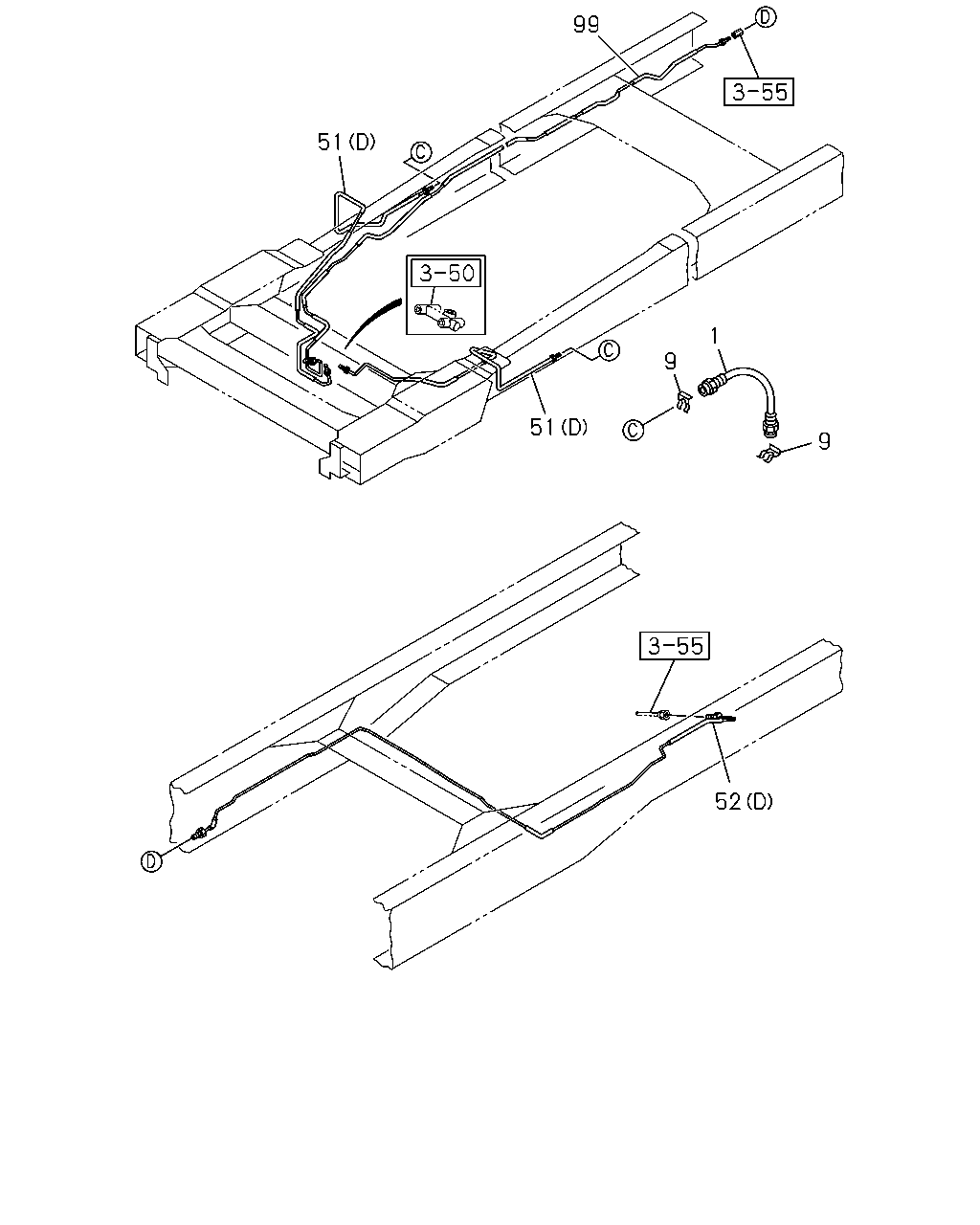

çizim 492454
51 99 51 1 52 9 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.680 HOSE; FLEX,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> FRONT WIDE TREAD<7GV> 		8-98325-205-0 02 1 1509- ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. 4 WHEEL DISC BRAKE<JF9>,FRONT WIDE TREAD<7GV> 		8-97039-543-1 02 1 1509- ●
1 04.680 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 1509- ●
1 04.680 HOSE; FLEX,FRT BRK 8-97365-481-1 02 1 1506-1508 ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97365-481-1 02 1 1509- ●
1 04.680 HOSE; FLEX,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EXC. FRONT WIDE TREAD<7GV> 		8-97365-481-1 02 1 1509- ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1506-1508 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1509- ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97360-054-0 02 1 1509- ● ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-519-1 01 1 1509- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-532-1 01 1 1509- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-97389-520-1 01 1 1509- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-97389-533-1 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98112-452-2 01 1 1509- ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 1509- ●
51 04.685 PIPE; BRK
(D) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 1509- ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98159-906-0 01 1 1509- ●
51 04.685 PIPE; BRK
(D) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98159-906-0 01 1 1509- ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 1509- ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98154-659-0 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-057-0 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98159-765-0 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98206-779-0 01 1 1506-1508 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98206-779-0 01 1 1509- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98206-779-0 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98206-785-0 01 1 1506-1508 ●
51 04.685 PIPE; BRK
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98206-785-0 01 1 1509- ●
51 04.685 PIPE; BRK
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98206-785-0 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98206-783-0 01 1 1506-1508 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98206-783-0 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98206-783-0 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98206-786-0 01 1 1506-1508 ● ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98206-786-0 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98206-786-0 01 1 1509- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR RH 		8-98206-784-0 01 1 1506- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (C) BRAKE SYSTEM,RR LH 		8-98206-787-0 01 1 1506- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 1506- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98154-660-1 01 1 1506- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 1506- ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98112-451-2 01 1 1506- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),FRAME STRAIGHT TYPE<7KJ> (A) 4WAY TO HU,FRONT 		8-98201-456-0 01 1 1509- ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),FRONT WIDE TREAD<7GV> (A) 4WAY TO HU,FRONT 		8-98201-456-0 01 1 1509- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) (A) 4WAY TO HU,FRONT 		8-98201-456-0 01 1 1509- ●
52 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98220-970-0 01 1 1509- ●
52 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH 		8-98220-971-0 01 1 1509- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL DISC BRAKE<JF9> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98216-264-0 01 1 1509- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL DISC BRAKE<JF9> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98216-265-0 01 1 1509- ●
52 04.685 PIPE; BRK
EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98036-162-0 01 1 1509- ●
52 04.685 PIPE; BRK
(C) 		8-98036-162-0 01 1 1509- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO REAR 		8-98168-430-0 01 1 1509- ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO REAR 		8-98159-766-0 01 1 1509- ●
52 04.685 PIPE; BRK
(D) 2WAY TO REAR 		8-98159-766-0 01 1 1509- ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH 		8-98193-949-0 01 1 1506- ●
52 04.685 PIPE; BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH 		8-98193-949-0 01 1 1506- ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH 		8-98193-951-0 01 1 1506- ●
52 04.685 PIPE; BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH 		8-98193-951-0 01 1 1506- ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-98192-389-1 01 1 1506- ● ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH 		8-98192-394-0 01 1 1506- ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH 		8-98210-359-0 01 1 1506- ●
99 04.686 PIPE ASM; 4/5/6 WAY
EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,FRONT WIDE TREAD<7GV> 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 1509- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 1509- ●

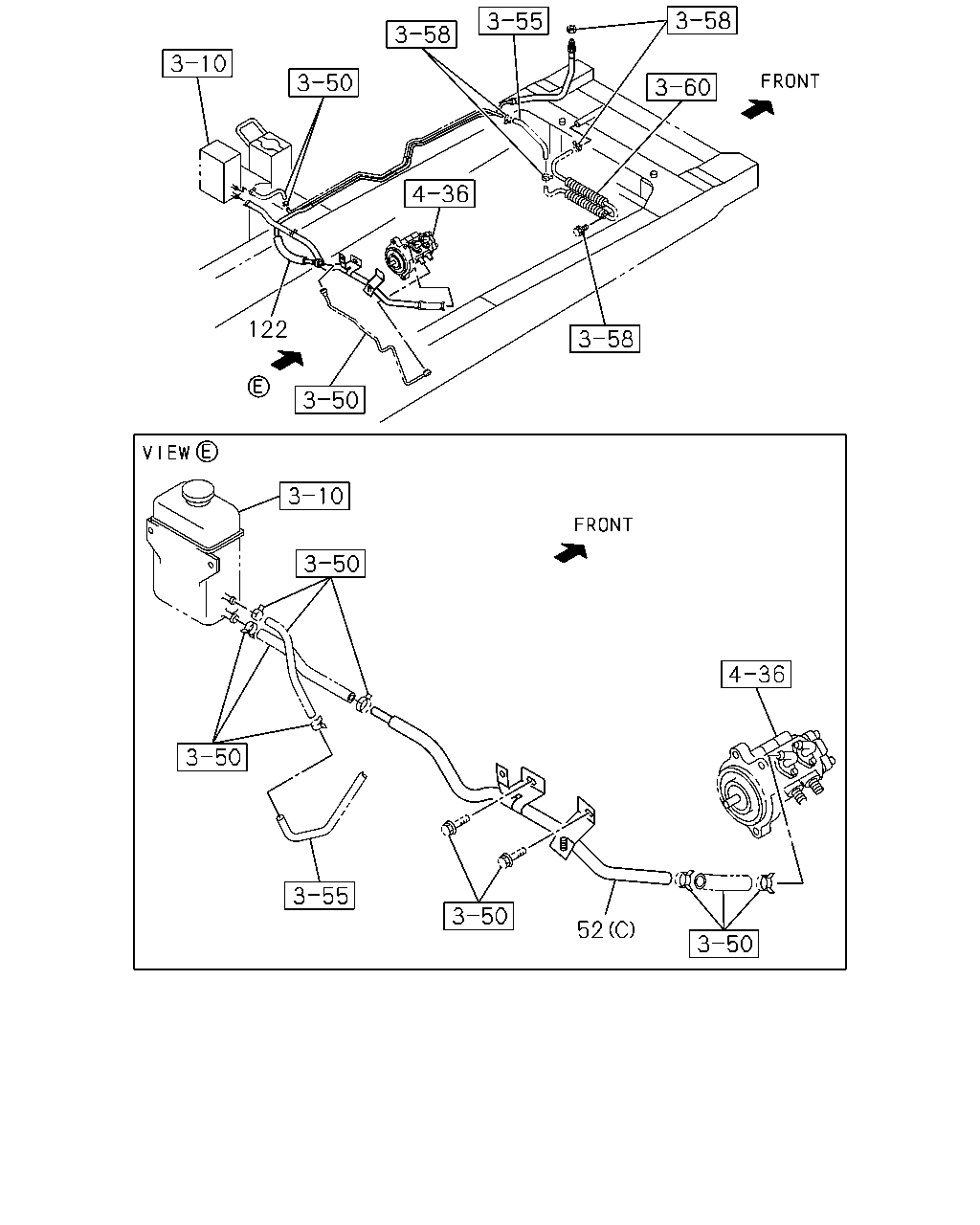

çizim 492463
122 52
BalonParca AdiParca NoAdetTipApplied Date A B C
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),FRAME STRAIGHT TYPE<7KJ> (A) 4WAY TO HU,FRONT 		8-98201-456-0 01 1 1509- ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),FRONT WIDE TREAD<7GV> (A) 4WAY TO HU,FRONT 		8-98201-456-0 01 1 1509- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EURO6 SPECIFICATION(NT6) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) (A) 4WAY TO HU,FRONT 		8-98201-456-0 01 1 1509- ●
52 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98220-970-0 01 1 1509- ●
52 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH 		8-98220-971-0 01 1 1509- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL DISC BRAKE<JF9> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98216-264-0 01 1 1509- ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL DISC BRAKE<JF9> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98216-265-0 01 1 1509- ●
52 04.685 PIPE; BRK
EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98036-162-0 01 1 1509- ●
52 04.685 PIPE; BRK
(C) 		8-98036-162-0 01 1 1509- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO REAR 		8-98168-430-0 01 1 1509- ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) EURO5B+ SPECIFICATION(NT5) FUEL TANK 100 LITTER<N02> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO REAR 		8-98159-766-0 01 1 1509- ●
52 04.685 PIPE; BRK
(D) 2WAY TO REAR 		8-98159-766-0 01 1 1509- ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT RH 		8-98193-949-0 01 1 1506- ●
52 04.685 PIPE; BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH 		8-98193-949-0 01 1 1506- ●
52 04.685 PIPE; BRK
(B) BRAKE SYSTEM,FRT LH 		8-98193-951-0 01 1 1506- ●
52 04.685 PIPE; BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH 		8-98193-951-0 01 1 1506- ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-98192-389-1 01 1 1506- ● ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT RH 		8-98192-394-0 01 1 1506- ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (B) BRAKE SYSTEM,FRT LH 		8-98210-359-0 01 1 1506- ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) L=1284 		8-98136-575-0 01 1 1509- ●
122 04.685 PIPE ASM; BRK,2 WAY
L=1284 		8-98136-575-0 01 1 1509- ●

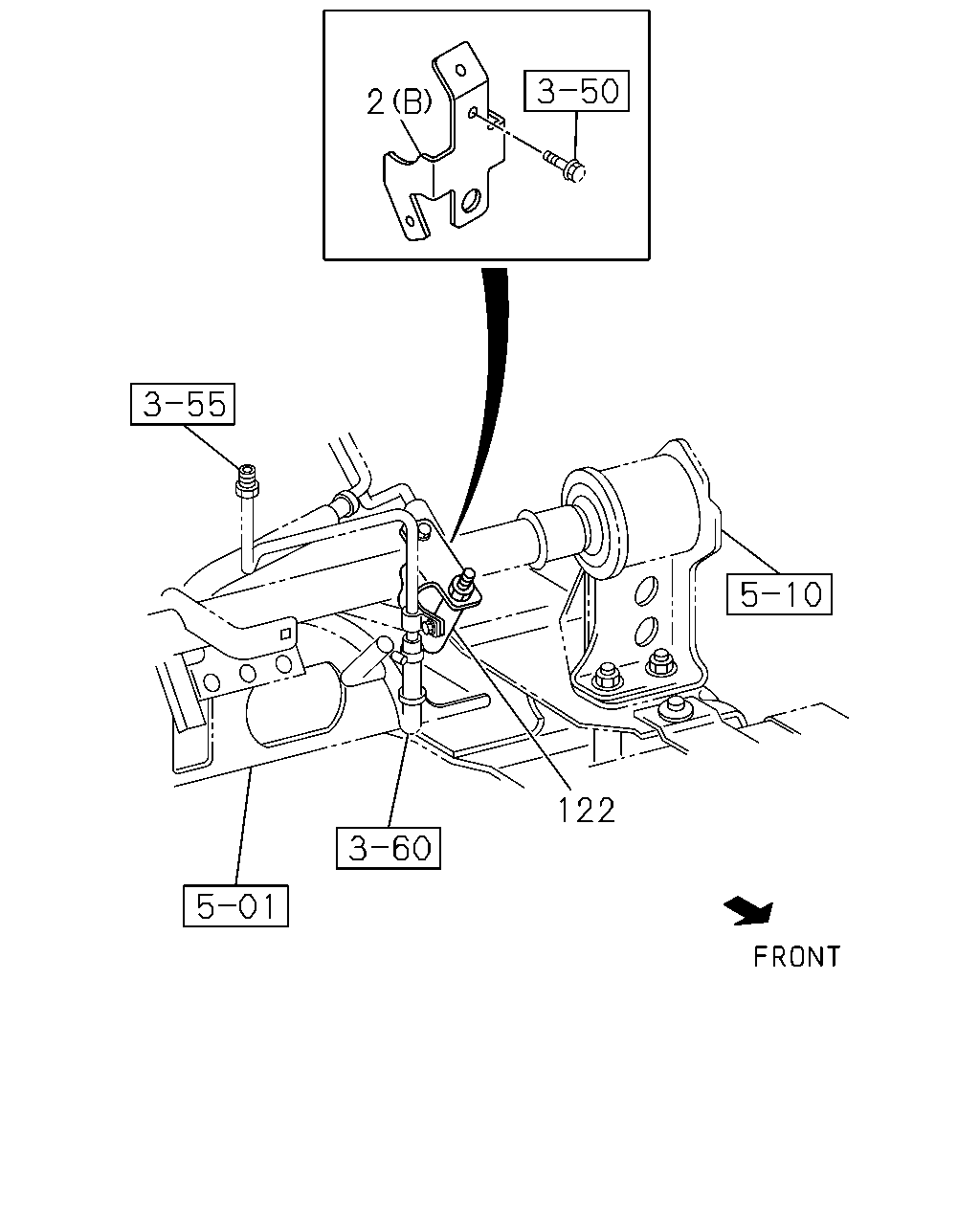

çizim 492996
122 2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98136-578-0 01 1 1509- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(B) 		8-98136-578-0 01 1 1509- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-527-1 01 1 1506- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-527-1 01 1 1506- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
(A) 		8-98047-528-1 01 1 1506- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98047-528-1 01 1 1506- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-776-3 01 1 1506- ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97365-778-3 01 1 1506- ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) L=1284 		8-98136-575-0 01 1 1509- ●
122 04.685 PIPE ASM; BRK,2 WAY
L=1284 		8-98136-575-0 01 1 1509- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
