Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#162356) — 232 parça

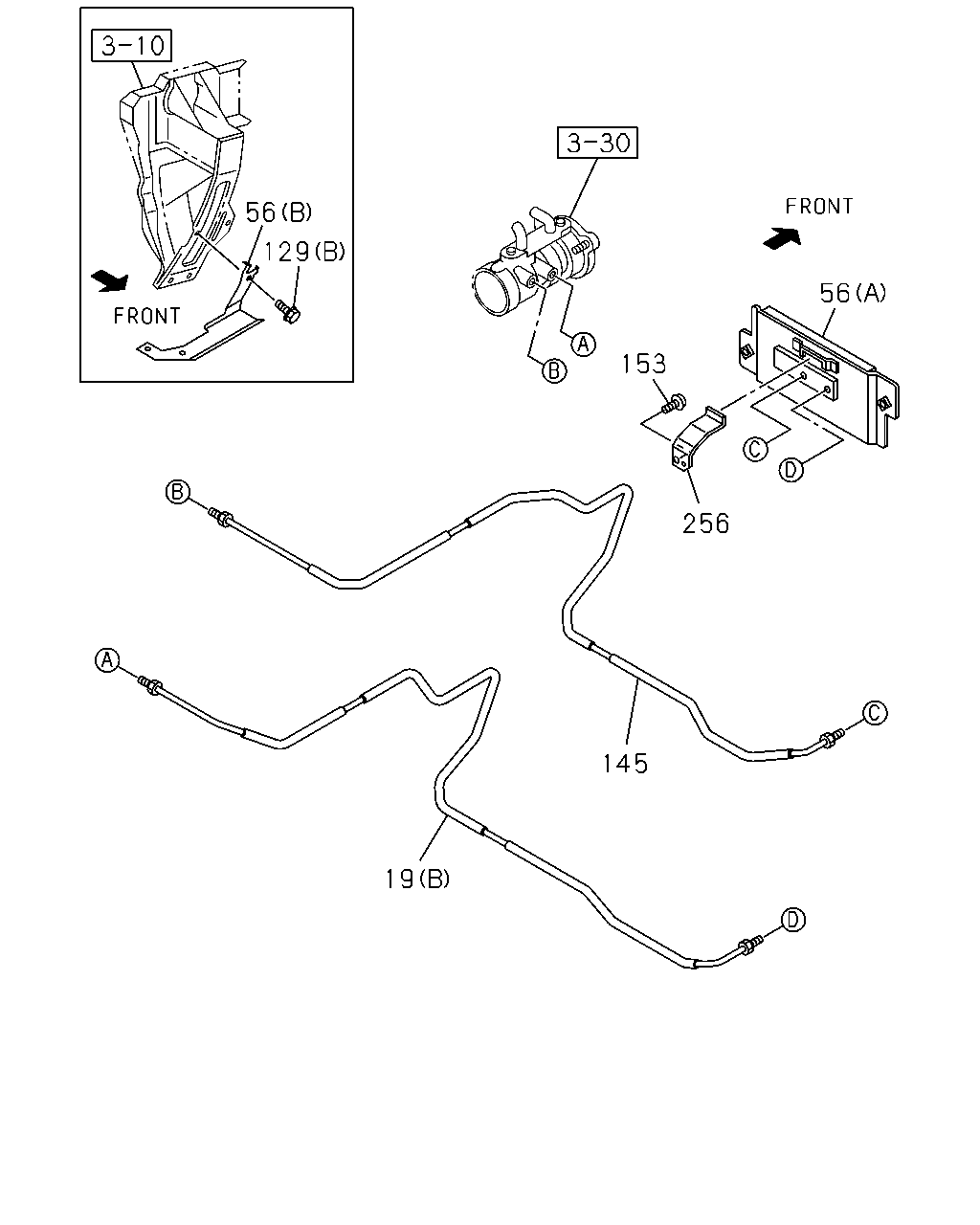

56 153 256 145 19 56 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98099-794-0	01	1	1509-	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) (B)	8-98099-794-0	01	1	1509-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98099-794-0	01	1	1509-		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (B)	8-98197-655-2	01	1	1509-	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),HYDRO BRAKE BOOSTER(7QQ) (B)	8-98197-655-2	01	1	1509-	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-579-1	02	1	1509-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98080-579-1	02	1	1509-		●
19	04.685 PIPE; BRK,M/CYL TO UNION EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (A)	8-98056-155-1	02	1	1509-	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98056-155-1	02	1	1509-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98192-391-1	02	1	1506-	●		●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98191-449-0	01	1	1506-1508	●		●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98191-449-0	01	1	1509-			●
19	04.685 PIPE; BRK,M/CYL TO UNION TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98191-449-0	01	1	1509-	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98196-285-0	01	1	1509-1511	●
56	04.686 BRACKET; UNION,BRK EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (A)	8-98196-285-0	01	1	1512-			●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98196-285-0	01	1	1512-	●
56	04.686 BRACKET; UNION,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (A)	8-98154-271-1	01	1	1509-	●
56	04.686 BRACKET; UNION,BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98154-271-1	01	1	1509-	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-270-1	01	1	1509-	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-270-1	01	1	1509-		●
56	04.686 BRACKET; UNION,BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1509-	●
56	04.686 BRACKET; UNION,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1509-	●
56	04.686 BRACKET; UNION,BRK (B)	8-98097-178-1	01	1	1506-1508	●		●
56	04.686 BRACKET; UNION,BRK (B)	8-98097-178-1	01	1	1509-	●	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98196-284-0	01	1	1506-1508	●		●
56	04.686 BRACKET; UNION,BRK (A)	8-98196-284-0	01	1	1509-1511			●
56	04.686 BRACKET; UNION,BRK TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98196-284-0	01	1	1509-1511	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98196-284-0	01	1	1512-			●
56	04.686 BRACKET; UNION,BRK TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98196-284-0	01	1	1512-	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1509-	●
129	04.710 BOLT; BRKT 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1509-		●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1506-1508	●		●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1509-	●	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1506-1508	●		●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1509-	●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> L=1052	8-98099-793-0	01	1	1509-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) L=1052	8-98099-793-0	01	1	1509-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION L=1052	8-98099-793-0	01	1	1509-		●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)	8-98197-658-1	01	1	1509-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),HYDRO BRAKE BOOSTER(7QQ)	8-98197-658-1	01	1	1509-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-98191-450-0	01	1	1506-1508	●		●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-98191-450-0	01	1	1509-			●
145	04.685 PIPE; BRK,METERING VLV TO UNION TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98191-450-0	01	1	1509-	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1506-1508	●		●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1509-	●		●
153	04.730 SCREW; BRKT FIX EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1509-		●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1506-1508	●		●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1509-	●		●
256	04.840 BRACKET; BRK PIPE EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1509-		●

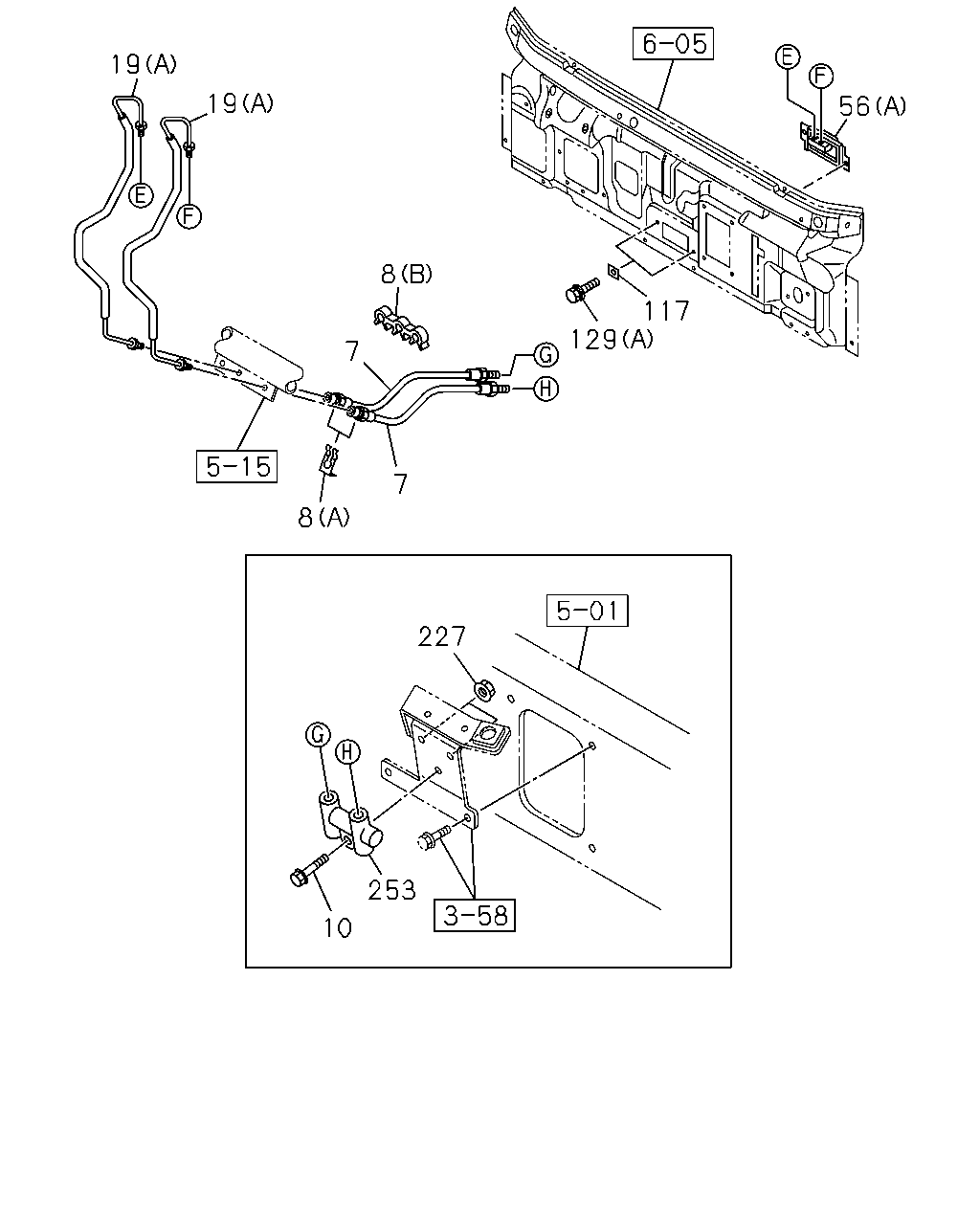

19 19 8 7 8 7 129 117 56 227 253 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98029-865-0	02	1	1509-	●
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12)	8-98029-865-0	02	1	1509-	●
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98029-865-0	02	1	1509-		●
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98191-785-0	02	1	1506-1508	●		●
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98191-785-0	02	1	1509-			●
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98191-785-0	02	1	1509-	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	1506-1508	●		●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	1509-	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	1506-1508	●		●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	1509-	●	●	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	1506-1508	●		●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	1509-	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98099-794-0	01	1	1509-	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) (B)	8-98099-794-0	01	1	1509-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98099-794-0	01	1	1509-		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (B)	8-98197-655-2	01	1	1509-	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),HYDRO BRAKE BOOSTER(7QQ) (B)	8-98197-655-2	01	1	1509-	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-579-1	02	1	1509-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98080-579-1	02	1	1509-		●
19	04.685 PIPE; BRK,M/CYL TO UNION EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (A)	8-98056-155-1	02	1	1509-	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98056-155-1	02	1	1509-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98192-391-1	02	1	1506-	●		●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98191-449-0	01	1	1506-1508	●		●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98191-449-0	01	1	1509-			●
19	04.685 PIPE; BRK,M/CYL TO UNION TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98191-449-0	01	1	1509-	●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98196-285-0	01	1	1509-1511	●
56	04.686 BRACKET; UNION,BRK EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (A)	8-98196-285-0	01	1	1512-			●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98196-285-0	01	1	1512-	●
56	04.686 BRACKET; UNION,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (A)	8-98154-271-1	01	1	1509-	●
56	04.686 BRACKET; UNION,BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98154-271-1	01	1	1509-	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-270-1	01	1	1509-	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-270-1	01	1	1509-		●
56	04.686 BRACKET; UNION,BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1509-	●
56	04.686 BRACKET; UNION,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1509-	●
56	04.686 BRACKET; UNION,BRK (B)	8-98097-178-1	01	1	1506-1508	●		●
56	04.686 BRACKET; UNION,BRK (B)	8-98097-178-1	01	1	1509-	●	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98196-284-0	01	1	1506-1508	●		●
56	04.686 BRACKET; UNION,BRK (A)	8-98196-284-0	01	1	1509-1511			●
56	04.686 BRACKET; UNION,BRK TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98196-284-0	01	1	1509-1511	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98196-284-0	01	1	1512-			●
56	04.686 BRACKET; UNION,BRK TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98196-284-0	01	1	1512-	●
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	1506-1508	●		●
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	1509-	●	●	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1509-	●
129	04.710 BOLT; BRKT 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1509-		●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1506-1508	●		●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1509-	●	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1506-1508	●		●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1509-	●	●	●
227	04.685 NUT; JOINT 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1507	●		●
227	04.685 NUT; JOINT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-1508			●
227	04.685 NUT; JOINT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-1508	●
227	04.685 NUT; JOINT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1508-1508	●
227	04.685 NUT; JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●		●
227	04.685 NUT; JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRONT WIDE TREAD<7GV> 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●	●
227	04.685 NUT; JOINT FRONT WIDE TREAD<7GV> 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
227	04.685 NUT; JOINT EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
227	04.685 NUT; JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,FRONT WIDE TREAD<7GV> 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
227	04.685 NUT; JOINT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EURO5B+ SPECIFICATION(NT5) EXC. FRONT WIDE TREAD<7GV> 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
253	04.840 JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12)	8-97038-940-1	01	1	1509-	●
253	04.840 JOINT FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686	5-47456-009-1	01	1	1509-	●
253	04.840 JOINT 04.686	5-47456-009-1	01	1	1509-		●
253	04.840 JOINT	8-98192-436-0	01	1	1506-1508	●		●
253	04.840 JOINT	8-98192-436-0	01	1	1509-			●
253	04.840 JOINT TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12)	8-98192-436-0	01	1	1509-	●

89 103 72 179 197 94 184 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
72	04.686 BOLT; BRKT TO BODY 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1506-1508	●		●
72	04.686 BOLT; BRKT TO BODY 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1509-			●
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1509-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1-TCS ENG(LFB) WHEEL BASE 4400MM(44W) BRAKE SYSTEM PA TYPE(8BX) TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV>	8-98305-809-0	01	1	1509-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4HK1-TCN ENG(RDQ) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> THROTTLE CONTROL SYSTEM<6XH> HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL DISC BRAKE<JF9>	8-98270-826-0	01	1	1509-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) BRAKE SYSTEM PA TYPE(8BX) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ>	8-98305-859-0	01	1	1509-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) BRAKE SYSTEM PA TYPE(8BX) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV>	8-98305-839-0	01	1	1509-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) BRAKE SYSTEM PA TYPE(8BX) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ>	8-98305-858-0	01	1	1509-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4HK1-TCN ENG(RDQ) WHEEL BASE 3800MM(38W) BRAKE SYSTEM PA TYPE(8BX) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV>	8-98305-838-0	01	1	1509-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) BRAKE SYSTEM PA TYPE(8BX) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) FRONT WIDE TREAD<7GV>	8-98305-857-0	01	1	1509-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) BRAKE SYSTEM PA TYPE(8BX) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) EXC. FRONT WIDE TREAD<7GV>	8-98305-837-0	01	1	1509-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) BRAKE SYSTEM PA TYPE(8BX) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ>	8-98305-856-0	01	1	1509-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) BRAKE SYSTEM PA TYPE(8BX) RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV>	8-98305-836-0	01	1	1509-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4HK1-TCS ENG(RJS) TAIWAN EQUIPMENT(B04),CHILE EQUIPMENT(KE1) 4 WHEEL ANTI LOCK BRAKE<JE5> THROTTLE CONTROL SYSTEM<6XH> HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL DISC BRAKE<JF9>	8-98299-647-0	01	1	1509-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) BRAKE SYSTEM PA TYPE(8BX) TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV>	8-98305-805-0	01	1	1509-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W)	8-98305-825-0	01	1	1506-			●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W)	8-98305-824-0	01	1	1506-			●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ>	8-98305-811-0	01	1	1506-1508	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) BRAKE SYSTEM PA TYPE(8BX) TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV>	8-98305-811-0	01	1	1509-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ>	8-98305-810-0	01	1	1506-1508	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4JJ1-TCS ENG(LFB) WHEEL BASE 3800MM(38W) BRAKE SYSTEM PA TYPE(8BX) TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV>	8-98305-810-0	01	1	1509-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ>	8-98305-807-0	01	1	1506-1508	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) BRAKE SYSTEM PA TYPE(8BX) TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV>	8-98305-807-0	01	1	1509-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ>	8-98305-806-0	01	1	1506-1508	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) BRAKE SYSTEM PA TYPE(8BX) TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV>	8-98305-806-0	01	1	1509-	●
94	04.730 BRACKET; ABS CONT UNIT	8-98131-875-2	01	1	1506-1508	●		●
94	04.730 BRACKET; ABS CONT UNIT	8-98131-875-2	01	1	1509-			●
94	04.730 BRACKET; ABS CONT UNIT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98131-875-2	01	1	1509-	●
103	04.730 NUT; HYDRAULIC UNIT BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1506-1508	●		●
103	04.730 NUT; HYDRAULIC UNIT BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-			●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
103	04.730 NUT; HYDRAULIC UNIT BRKT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1506-1508	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●
179	04.685 SPACER; BRKT	8-98130-134-0	03	1	1506-1508	●		●
179	04.685 SPACER; BRKT	8-98130-134-0	03	1	1509-			●
179	04.685 SPACER; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98130-134-0	03	1	1509-	●
184	04.681 BOLT; CLIP EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●
184	04.681 BOLT; CLIP 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-		●
184	04.681 BOLT; CLIP (A) M6X27 W/PL WASHER	8-98131-461-0	03	1	1506-1508	●		●
184	04.681 BOLT; CLIP (A) M6X27 W/PL WASHER	8-98131-461-0	03	1	1509-			●
184	04.681 BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6X27 W/PL WASHER	8-98131-461-0	03	1	1509-	●
197	04.730 RUBBER; DAMPER	8-98130-133-0	03	1	1506-1508	●		●
197	04.730 RUBBER; DAMPER	8-98130-133-0	03	1	1509-			●
197	04.730 RUBBER; DAMPER 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98130-133-0	03	1	1509-	●

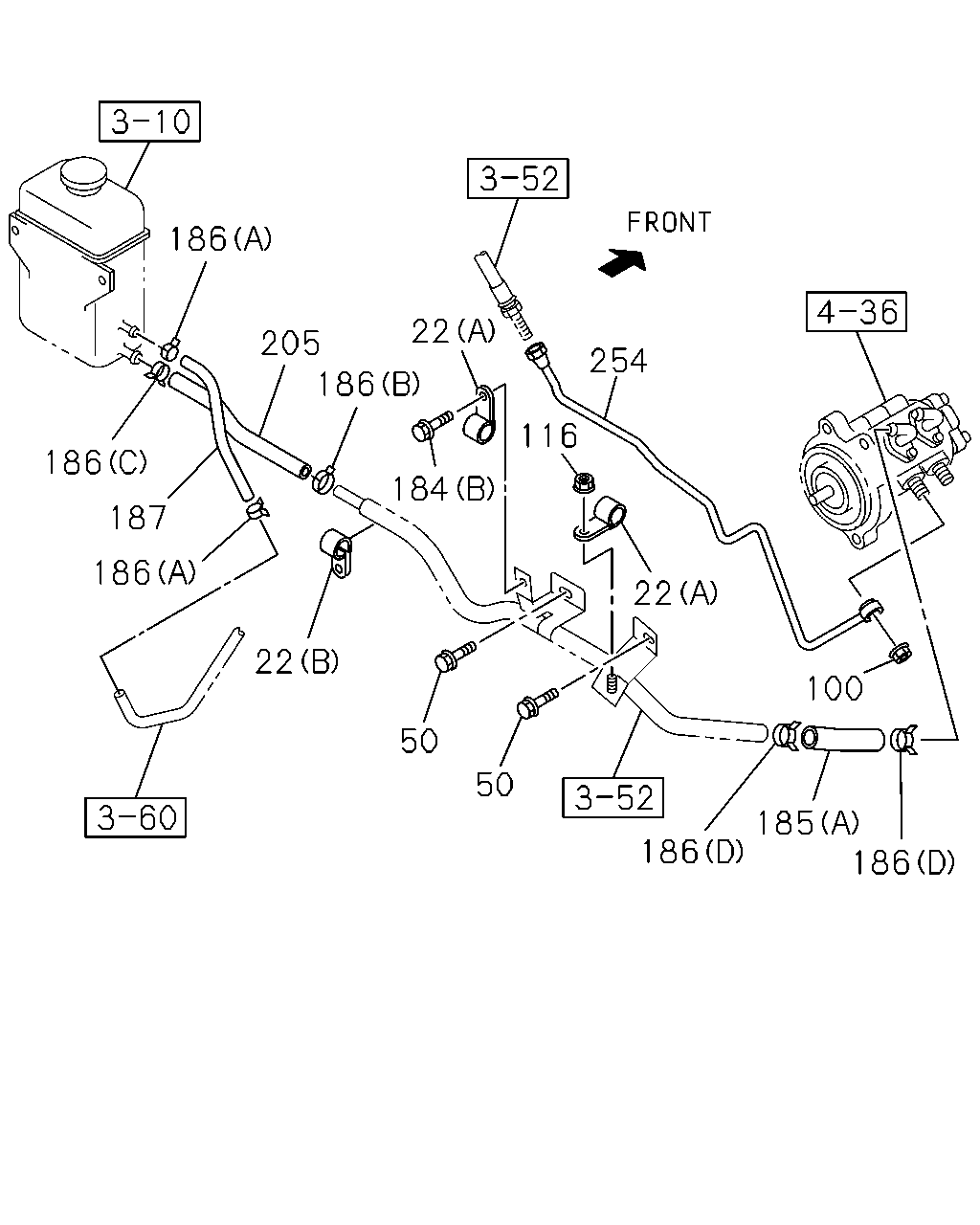

186 186 186 187 22 50 50 185 186 100 22 116 184 186 205 22 254 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	04.685 CLIP EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) (A) ID=10 L=16.5	8-98082-034-0	02	1	1509-	●
22	04.685 CLIP (A) ID=10 L=16.5	8-98082-034-0	02	1	1509-		●
22	04.685 CLIP EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) (B) ID=17 L=21	8-98082-035-0	01	1	1509-	●
22	04.685 CLIP (B) ID=17 L=21	8-98082-035-0	01	1	1509-		●
50	04.710 BOLT; PIPE EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1509-	●
50	04.710 BOLT; PIPE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1509-		●
100	04.730 NUT; HYDRAULIC UNIT EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ)	8-97358-958-0	01	1	1509-	●
100	04.730 NUT; HYDRAULIC UNIT	8-97358-958-0	01	1	1509-		●
116	04.686 NUT EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-	●
116	04.686 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	1509-		●
184	04.681 BOLT; CLIP EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-	●
184	04.681 BOLT; CLIP 02.343 (B) M8X16 FLANGE	0-28050-816-0	01	1	1509-		●
184	04.681 BOLT; CLIP (A) M6X27 W/PL WASHER	8-98131-461-0	03	1	1506-1508	●		●
184	04.681 BOLT; CLIP (A) M6X27 W/PL WASHER	8-98131-461-0	03	1	1509-			●
184	04.681 BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6X27 W/PL WASHER	8-98131-461-0	03	1	1509-	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98082-497-0	01	1	1509-	●
185	04.681 HOSE; RUBBER,SUCTION (B)	8-98082-497-0	01	1	1509-		●
185	04.681 HOSE; RUBBER,SUCTION EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	1509-	●
185	04.681 HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	1509-		●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 03.278 (C) ID=22	8-97359-141-0	01	1	1509-	●
186	04.681 CLIP; HOSE 03.278 (C) ID=22	8-97359-141-0	01	1	1509-		●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) ID=16	8-98008-098-0	02	1	1509-	●
186	04.681 CLIP; HOSE 03.162 (A) ID=16	8-98008-098-0	02	1	1509-		●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (B) ID=21	8-98150-355-0	01	1	1509-	●
186	04.681 CLIP; HOSE (B) ID=21	8-98150-355-0	01	1	1509-		●
186	04.681 CLIP; HOSE EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) 06.672 (D) ID=21	8-94242-034-0	02	1	1509-	●
186	04.681 CLIP; HOSE 06.672 (D) ID=21	8-94242-034-0	02	1	1509-		●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER(7QQ) 06.671 L=220 SERVICED BY L=3000	0-19809-300-0	01	1	1509-	●
187	04.681 HOSE; RUBBER,OIL TANK 06.671 L=220 SERVICED BY L=3000	0-19809-300-0	01	1	1509-		●
205	04.681 HOSE; TANK TO PIPE HYDRO BRAKE BOOSTER(7QQ) 06.670 SERVICED BY L=300	0-09814-300-0	01	1	1509-	●
205	04.681 HOSE; TANK TO PIPE 06.670 SERVICED BY L=300	0-09814-300-0	01	1	1509-		●
254	04.685 PIPE; BRAKE,2WAY EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ)	8-98036-161-0	01	1	1509-	●
254	04.685 PIPE; BRAKE,2WAY	8-98036-161-0	01	1	1509-		●

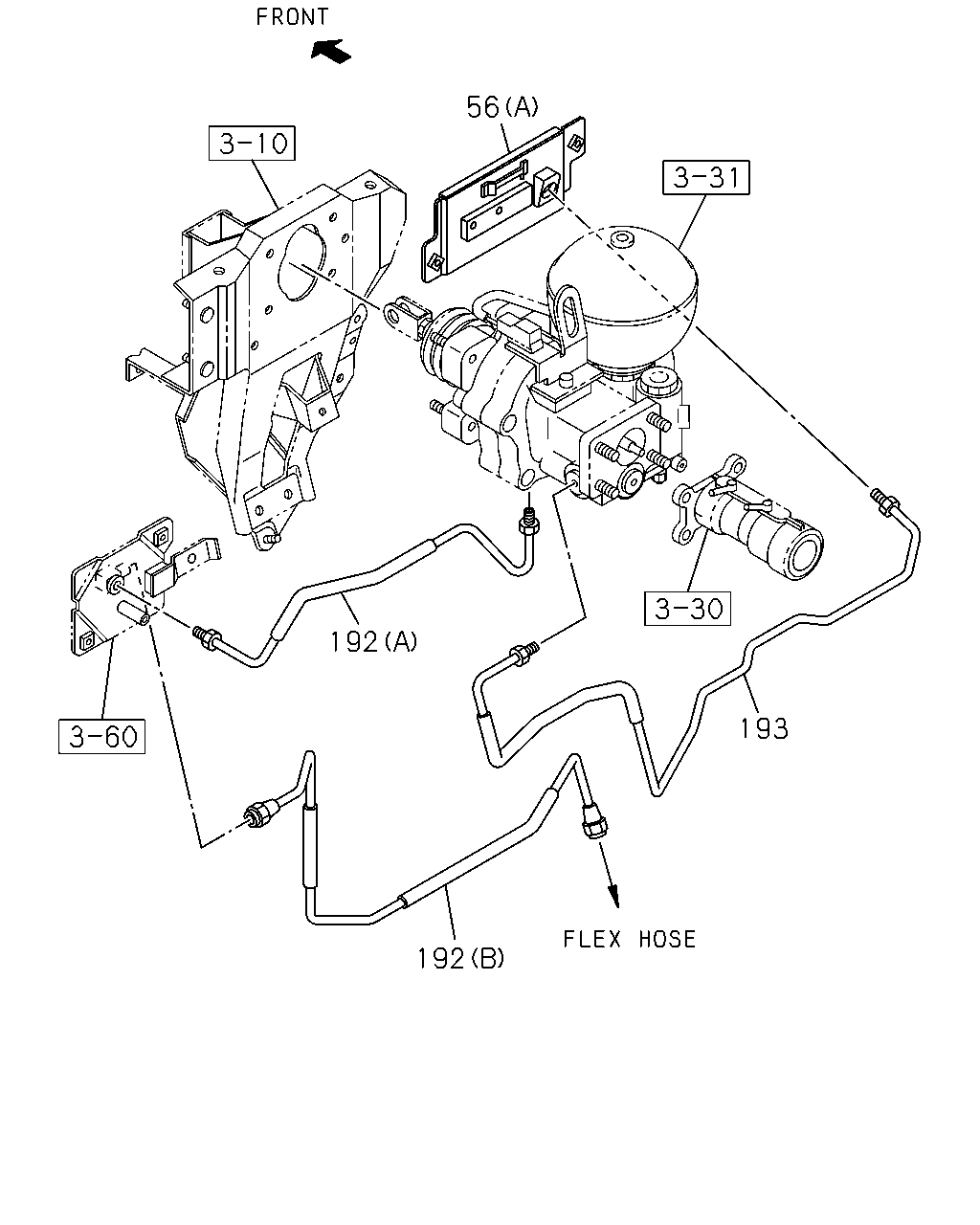

192 192 193 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98196-285-0	01	1	1509-1511	●
56	04.686 BRACKET; UNION,BRK EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (A)	8-98196-285-0	01	1	1512-			●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98196-285-0	01	1	1512-	●
56	04.686 BRACKET; UNION,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (A)	8-98154-271-1	01	1	1509-	●
56	04.686 BRACKET; UNION,BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98154-271-1	01	1	1509-	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-270-1	01	1	1509-	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-270-1	01	1	1509-		●
56	04.686 BRACKET; UNION,BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1509-	●
56	04.686 BRACKET; UNION,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-268-1	01	1	1509-	●
56	04.686 BRACKET; UNION,BRK (B)	8-98097-178-1	01	1	1506-1508	●		●
56	04.686 BRACKET; UNION,BRK (B)	8-98097-178-1	01	1	1509-	●	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98196-284-0	01	1	1506-1508	●		●
56	04.686 BRACKET; UNION,BRK (A)	8-98196-284-0	01	1	1509-1511			●
56	04.686 BRACKET; UNION,BRK TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98196-284-0	01	1	1509-1511	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98196-284-0	01	1	1512-			●
56	04.686 BRACKET; UNION,BRK TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98196-284-0	01	1	1512-	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98033-960-0	01	1	1509-	●
192	04.685 PIPE; PRESSURE (A)	8-98033-960-0	01	1	1509-		●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98033-961-3	01	1	1509-	●
192	04.685 PIPE; PRESSURE (B)	8-98033-961-3	01	1	1509-		●
193	04.685 PIPE; RETURN HYDRO BRAKE BOOSTER(7QQ)	8-98099-795-0	01	1	1509-	●
193	04.685 PIPE; RETURN	8-98099-795-0	01	1	1509-		●

130 130 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)	8-98141-581-0	02	1	1509-1511	●
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) FRONT WIDE TREAD<7GV> (B)	8-98141-581-0	02	1	1512-	●
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9> (A)	8-97080-060-2	02	1	1509-	●
131	04.710 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1506-1508	●	●
131	04.710 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1509-		●
131	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1509-	●

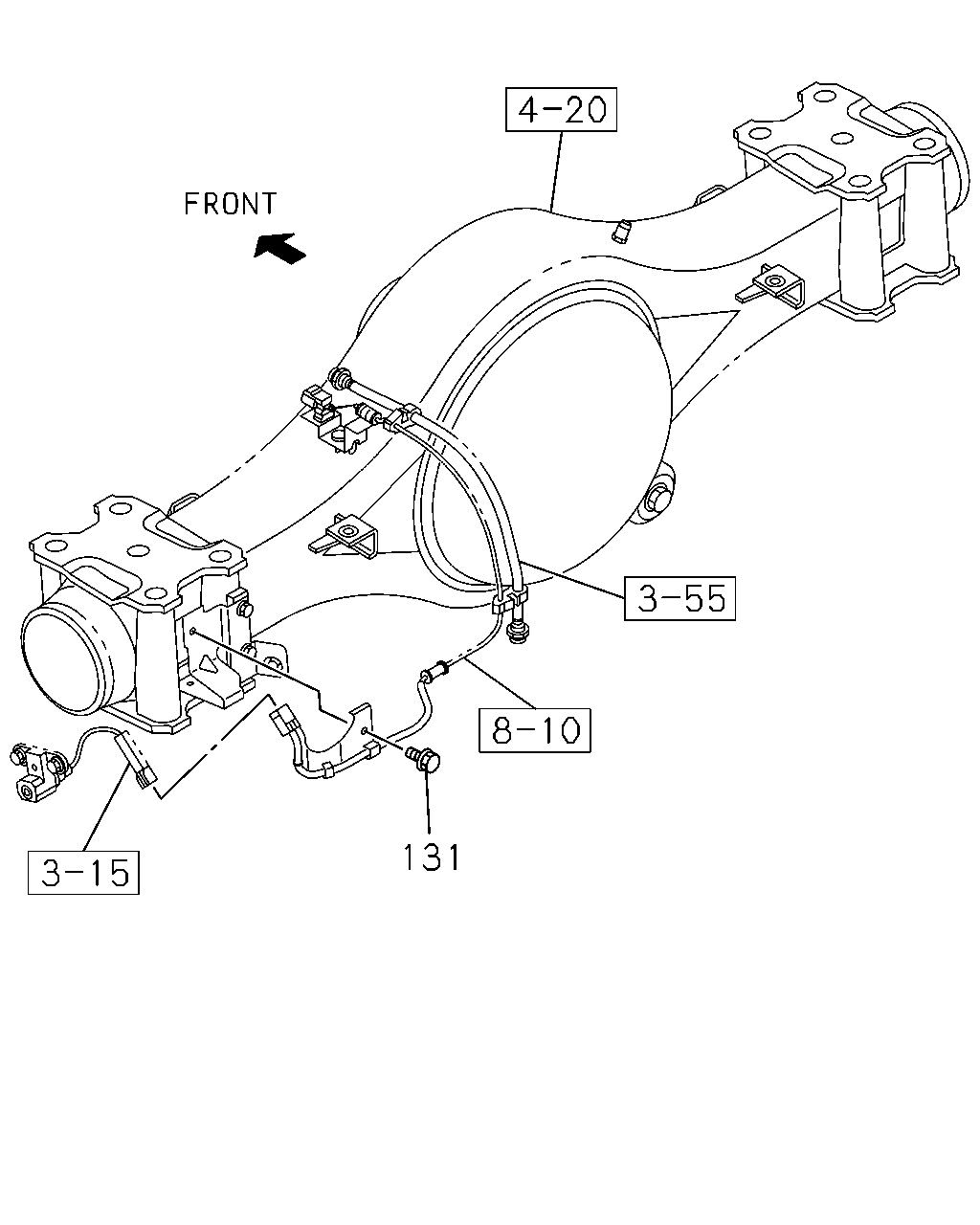

131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
131	04.710 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1506-1508	●	●
131	04.710 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1509-		●
131	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1509-	●

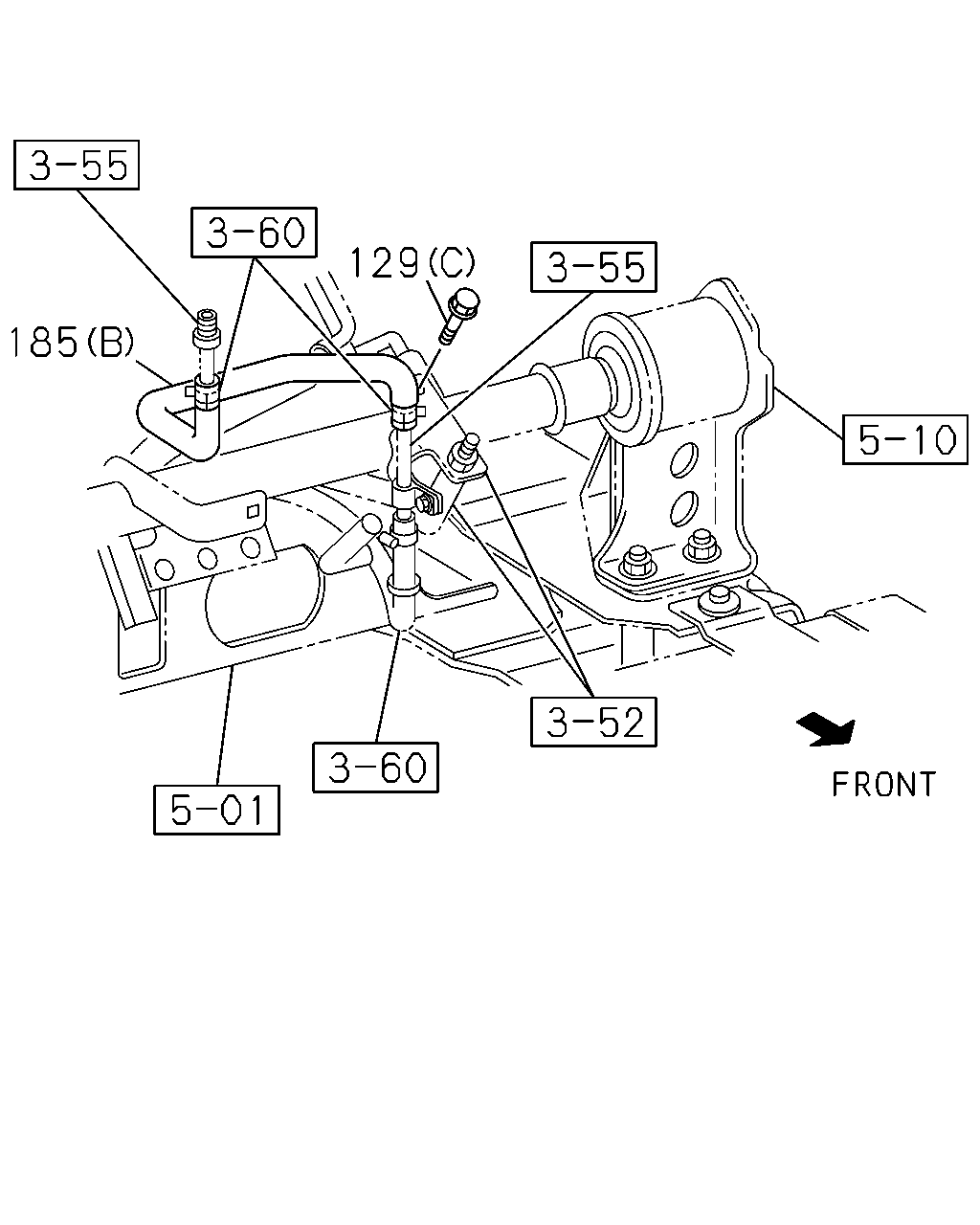

185 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1509-	●
129	04.710 BOLT; BRKT 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1509-		●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1506-1508	●		●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1509-	●	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1506-1508	●		●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1509-	●	●	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98082-497-0	01	1	1509-	●
185	04.681 HOSE; RUBBER,SUCTION (B)	8-98082-497-0	01	1	1509-		●
185	04.681 HOSE; RUBBER,SUCTION EURO5B+ SPECIFICATION(NT5) HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	1509-	●
185	04.681 HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	1509-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
