Isuzu WW
▶
TRUCKS
▶
NNR
▶
51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6
▶
3 - Brakes, Brake System
▶
3-31 - BRAKE MASTER VAC AND BRAKE BOOSTER
▶
3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER
(#162355) — 41 parça
Tümü
A - NPR6SN
B - NPR6SE
C - NPR6SS
◀
[331A] EXC.HYDRO BRAKE BOOSTER (25 parça)
[331A] HYDRO BRAKE BOOSTER (16 parça)
▶
1
17
16
24
15
12
11
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
04.901 MASTER VAC ASM; BRK
EXC. HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX)
8-98226-653-0
01
1
1509-
●
1
04.901 MASTER VAC ASM; BRK
8-98284-337-0
01
1
1506-
●
1
04.901 MASTER VAC ASM; BRK
8-98191-791-1
01
1
1506-1508
●
1
04.901 MASTER VAC ASM; BRK
BRAKE SYSTEM PA TYPE(8BX)
8-98191-791-1
01
1
1509-
●
11
04.906 FILTER; M/VAC
8-97205-576-0
01
1
1506-1508
●
●
11
04.906 FILTER; M/VAC
8-97205-576-0
01
1
1509-
●
11
04.906 FILTER; M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ)
8-97205-576-0
01
1
1509-
●
12
04.906 SILENCER; M/VAC
8-97205-577-0
01
1
1506-1508
●
●
12
04.906 SILENCER; M/VAC
8-97205-577-0
01
1
1509-
●
12
04.906 SILENCER; M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ)
8-97205-577-0
01
1
1509-
●
15
04.906 RETAINER; GUARD,M/VAC
8-94375-083-0
01
1
1506-1508
●
●
15
04.906 RETAINER; GUARD,M/VAC
8-94375-083-0
01
1
1509-
●
15
04.906 RETAINER; GUARD,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ)
8-94375-083-0
01
1
1509-
●
16
04.662 NUT; VLV ROD,M/VAC
M10
1-52139-008-0
01
1
1506-1508
●
●
16
04.662 NUT; VLV ROD,M/VAC
M10
1-52139-008-0
01
1
1509-
●
16
04.662 NUT; VLV ROD,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) M10
1-52139-008-0
01
1
1509-
●
17
04.662 CLEVIS; YOKE,M/VAC
8-97224-610-0
01
1
1506-1508
●
●
17
04.662 CLEVIS; YOKE,M/VAC
8-97224-610-0
01
1
1509-
●
17
04.662 CLEVIS; YOKE,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ)
8-97224-610-0
01
1
1509-
●
24
04.906 GUARD; VLV BODY,M/VAC
8-98184-421-0
01
1
1506-1508
●
●
24
04.906 GUARD; VLV BODY,M/VAC
8-98184-421-0
01
1
1509-
●
24
04.906 GUARD; VLV BODY,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ)
8-98184-421-0
01
1
1509-
●
56
04.910 GASKET KIT; M/CYL TO SERVO UNIT
8-98184-424-0
01
1
1506-1508
●
●
56
04.910 GASKET KIT; M/CYL TO SERVO UNIT
8-98184-424-0
01
1
1509-
●
56
04.910 GASKET KIT; M/CYL TO SERVO UNIT
EXC. HYDRO BRAKE BOOSTER(7QQ)
8-98184-424-0
01
1
1509-
●

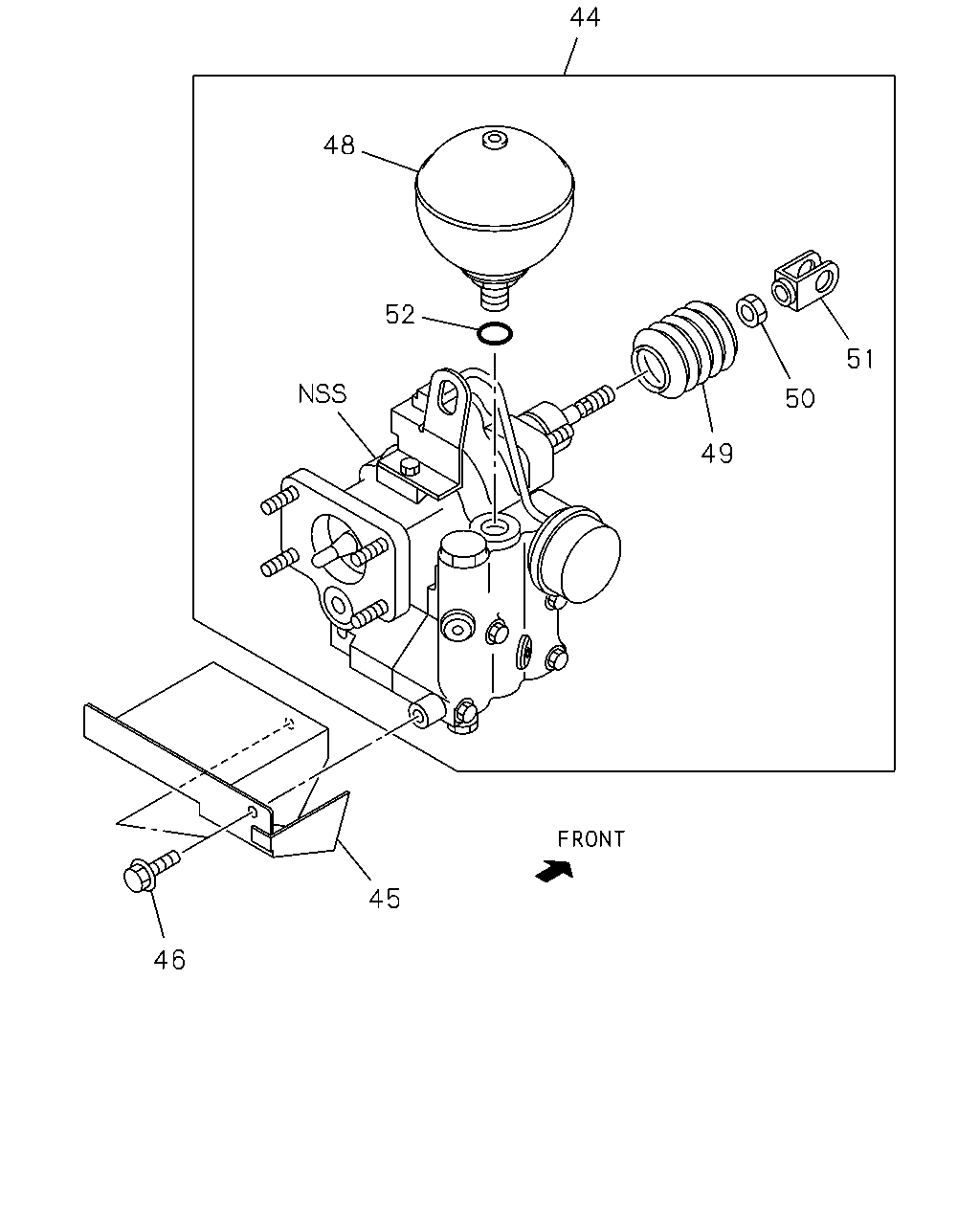

44
48
52
49
50
51
45
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
44
04.901 BOOSTER; HYDRAULIC BRK
HYDRO BRAKE BOOSTER(7QQ)
8-98031-414-0
01
1
1509-
●
44
04.901 BOOSTER; HYDRAULIC BRK
8-98031-414-0
01
1
1509-
●
45
04.901 PROTECTOR; HEAT
HYDRO BRAKE BOOSTER(7QQ)
8-98031-415-1
01
1
1509-
●
45
04.901 PROTECTOR; HEAT
8-98031-415-1
01
1
1509-
●
46
04.901 BOLT; HEAT PROTECTOR
HYDRO BRAKE BOOSTER(7QQ) 03.671 M6X10 FLANGE
0-28050-610-0
02
1
1509-
●
46
04.901 BOLT; HEAT PROTECTOR
03.671 M6X10 FLANGE
0-28050-610-0
02
1
1509-
●
48
04.906 ACCUMULATOR; HYDRO BOOSTER
HYDRO BRAKE BOOSTER(7QQ)
8-98038-346-0
01
1
1509-
●
48
04.906 ACCUMULATOR; HYDRO BOOSTER
8-98038-346-0
01
1
1509-
●
49
04.906 GUARD; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ)
8-97191-043-0
01
1
1509-
●
49
04.906 GUARD; HYDRO BRK BOOSTER
8-97191-043-0
01
1
1509-
●
50
04.906 NUT; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ)
8-98038-349-0
01
1
1509-
●
50
04.906 NUT; HYDRO BRK BOOSTER
8-98038-349-0
01
1
1509-
●
51
04.906 CLEVIS; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ)
8-98038-347-0
01
1
1509-
●
51
04.906 CLEVIS; HYDRO BRK BOOSTER
8-98038-347-0
01
1
1509-
●
52
04.906 GASKET; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ) 04.910
8-97191-038-0
01
1
1509-
●
52
04.906 GASKET; HYDRO BRK BOOSTER
04.910
8-97191-038-0
01
1
1509-
●
