◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6 ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#162354) — 38 parça

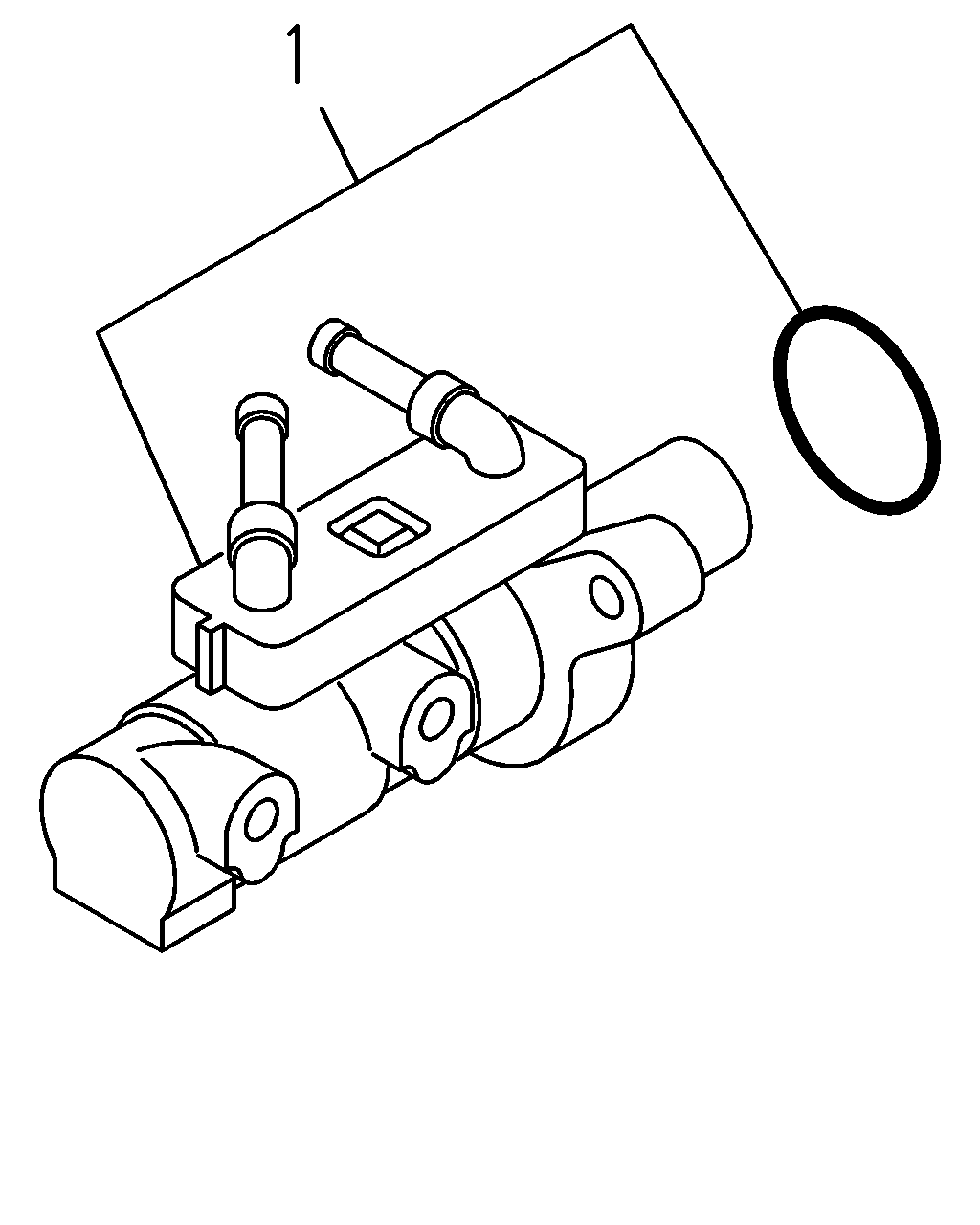

çizim 479698
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.650 CYLINDER ASM; BRK MASTER
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),4 WHEEL DISC BRAKE<JF9> 		8-98032-603-0 01 1 1509- ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98032-603-0 01 1 1509- ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 		8-98201-096-3 01 1 1509- ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98191-786-3 01 1 1506- ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98191-787-3 01 1 1506-1508 ●
1 04.650 CYLINDER ASM; BRK MASTER
BRAKE SYSTEM PA TYPE(8BX) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) 		8-98191-787-3 01 1 1509- ●

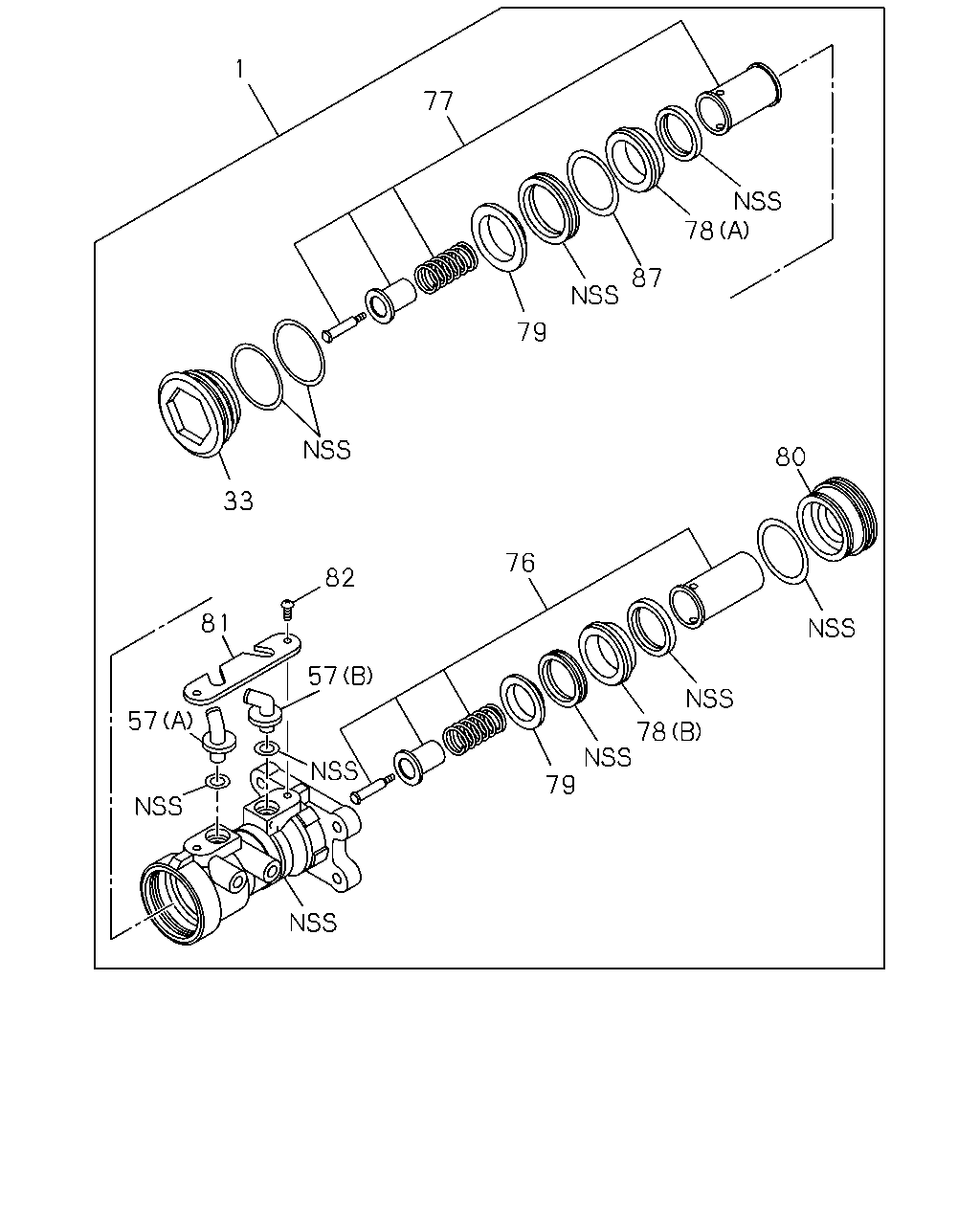

çizim 492521
1 77 79 87 78 80 78 79 57 81 57 82 76 33
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.650 CYLINDER ASM; BRK MASTER
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),4 WHEEL DISC BRAKE<JF9> 		8-98032-603-0 01 1 1509- ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98032-603-0 01 1 1509- ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,4 WHEEL DISC BRAKE<JF9>,HYDRO BRAKE BOOSTER(7QQ),BRAKE SYSTEM PA TYPE(8BX) 		8-98201-096-3 01 1 1509- ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98191-786-3 01 1 1506- ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98191-787-3 01 1 1506-1508 ●
1 04.650 CYLINDER ASM; BRK MASTER
BRAKE SYSTEM PA TYPE(8BX) TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12) 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> G.V.W. 7.5-8.0TON(RPY) 		8-98191-787-3 01 1 1509- ●
33 04.661 PLUG; END,M/CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),4 WHEEL DISC BRAKE<JF9> 		8-97186-699-0 01 1 1509- ●
33 04.661 PLUG; END,M/CYL 8-97186-699-0 01 1 1509- ●
57 04.651 NIPPLE; BRK M/CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),4 WHEEL DISC BRAKE<JF9> (A) 		8-97130-441-0 01 1 1509- ●
57 04.651 NIPPLE; BRK M/CYL
(A) 		8-97130-441-0 01 1 1509- ●
57 04.651 NIPPLE; BRK M/CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),4 WHEEL DISC BRAKE<JF9> (B) 		8-97130-442-0 01 1 1509- ●
57 04.651 NIPPLE; BRK M/CYL
(B) 		8-97130-442-0 01 1 1509- ●
76 04.653 PISTON ASM; PRIMARY
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),4 WHEEL DISC BRAKE<JF9> 		8-97224-641-0 01 1 1509- ●
76 04.653 PISTON ASM; PRIMARY 8-97224-641-0 01 1 1509- ●
77 04.653 PISTON ASM; SECONDARY
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),4 WHEEL DISC BRAKE<JF9> 		8-97224-640-0 01 1 1509- ●
77 04.653 PISTON ASM; SECONDARY 8-97224-640-0 01 1 1509- ●
78 04.651 BUSHING; MASTER CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),4 WHEEL DISC BRAKE<JF9> (A) 		8-97170-695-0 01 1 1509- ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97170-695-0 01 1 1509- ●
78 04.651 BUSHING; MASTER CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),4 WHEEL DISC BRAKE<JF9> (B) 		8-97207-685-0 01 1 1509- ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97207-685-0 01 1 1509- ●
79 04.651 SUPPORTER; CUP
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),4 WHEEL DISC BRAKE<JF9> 		8-97170-698-0 02 1 1509- ●
79 04.651 SUPPORTER; CUP 8-97170-698-0 02 1 1509- ●
80 04.651 COVER; MASTER CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),4 WHEEL DISC BRAKE<JF9> 		8-97170-692-0 01 1 1509- ●
80 04.651 COVER; MASTER CYL 8-97170-692-0 01 1 1509- ●
81 04.651 HOLDER; NIPPLE
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),4 WHEEL DISC BRAKE<JF9> 		8-97315-168-0 01 1 1509- ●
81 04.651 HOLDER; NIPPLE 8-97315-168-0 01 1 1509- ●
82 04.651 SCREW; HOLDER
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),4 WHEEL DISC BRAKE<JF9> 		8-97130-446-0 02 1 1509- ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 1509- ●
87 04.662 SPACER; CUP
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),4 WHEEL DISC BRAKE<JF9> 		8-97170-696-0 01 1 1509- ●
87 04.662 SPACER; CUP 8-97170-696-0 01 1 1509- ●

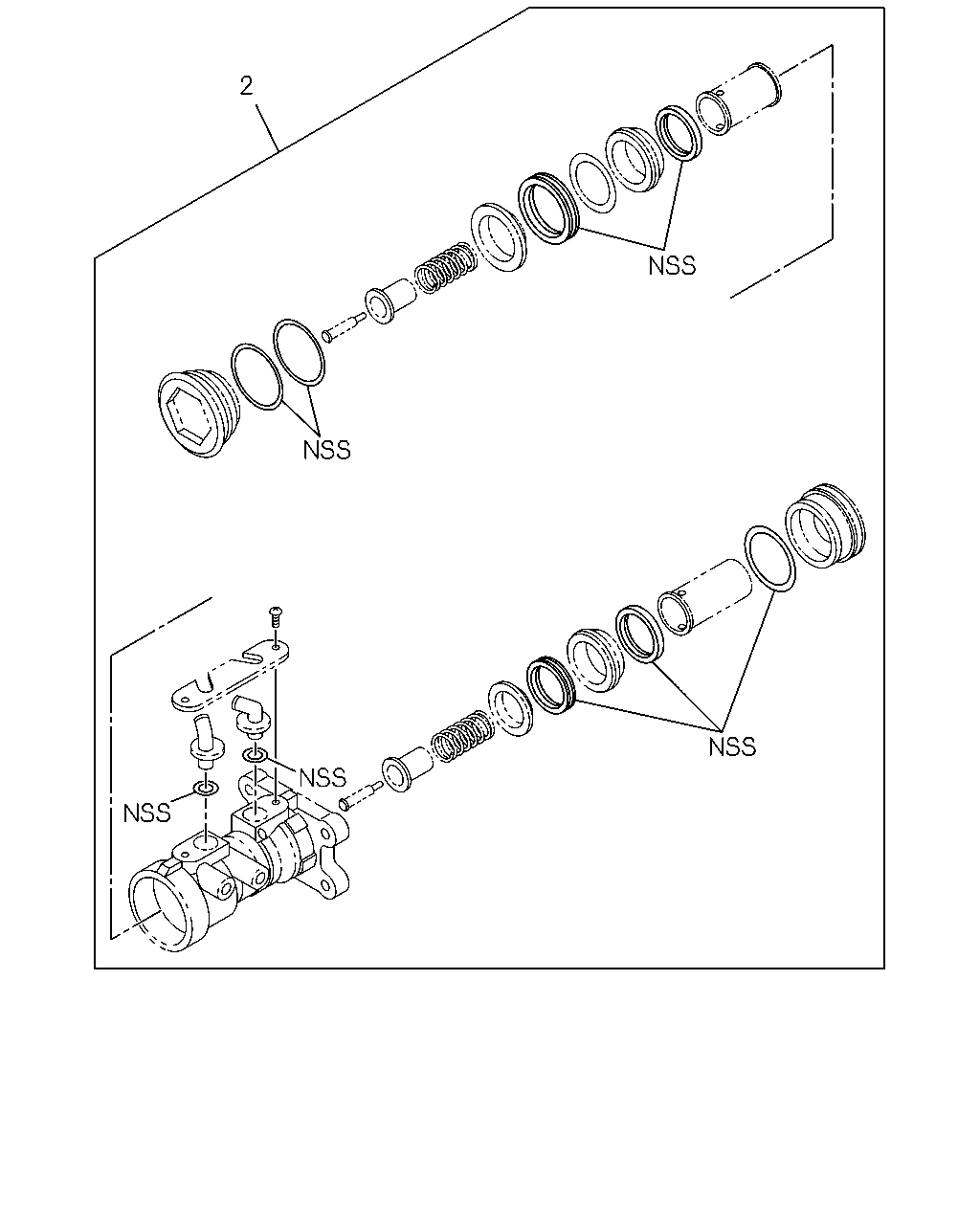

çizim 493401
2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 04.649 REPAIR KIT; BRK,M/CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) EXC. TURKEY EQUIPMENT(B11),RUSSIA EQUIPMENT(B12),4 WHEEL DISC BRAKE<JF9> 		8-97254-775-0 01 1 1509- ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97254-775-0 01 1 1509- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
