3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#162352) — 128 parça

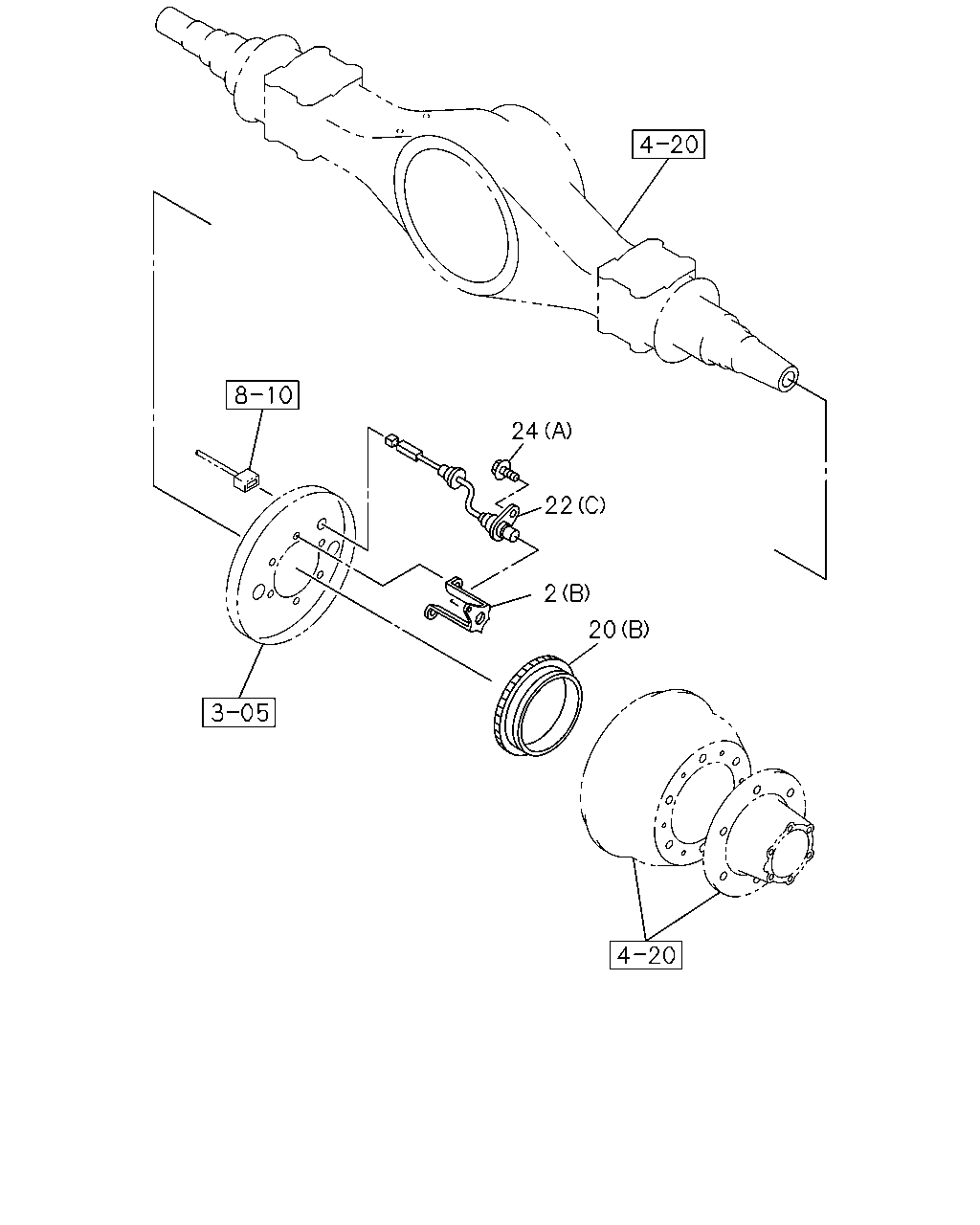

20 2 22 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	04.730 BRACKET; SENSOR G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-98002-440-1	02	1	1509-	●
2	04.730 BRACKET; SENSOR (A)	8-98045-222-0	02	1	1506-1508	●	●
2	04.730 BRACKET; SENSOR (A)	8-98045-222-0	02	1	1509-		●
2	04.730 BRACKET; SENSOR G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> (A)	8-98045-222-0	02	1	1509-	●
20	04.710 ROTOR; SENSOR G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-97206-775-3	02	1	1509-	●
20	04.710 ROTOR; SENSOR 05.809 (A)	8-98187-136-0	02	1	1506-1511		●
20	04.710 ROTOR; SENSOR (A)	8-98312-785-0	02	1	1512-		●
20	04.710 ROTOR; SENSOR (A)	8-98207-952-0	02	1	1506-1508	●
20	04.710 ROTOR; SENSOR G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> (A)	8-98207-952-0	02	1	1509-	●
22	04.710 SENSOR; SPEED G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 04.110 (C)	8-98219-354-0	02	1	1509-	●
22	04.710 SENSOR; SPEED (A)	8-98012-753-1	02	1	1506-1508	●	●
22	04.710 SENSOR; SPEED (A)	8-98012-753-1	02	1	1509-		●
22	04.710 SENSOR; SPEED G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> (A)	8-98012-753-1	02	1	1509-	●
22	04.710 SENSOR; SPEED (B)	8-98220-126-0	01	1	1506-1508	●	●
22	04.710 SENSOR; SPEED (B)	8-98220-126-0	01	1	1509-		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EURO6 SPECIFICATION(NT6) EXC. FRONT WIDE TREAD<7GV> (B)	8-98220-126-0	01	1	1509-	●
22	04.710 SENSOR; SPEED (B)	8-98220-127-0	01	1	1506-1508	●	●
22	04.710 SENSOR; SPEED (B)	8-98220-127-0	01	1	1509-		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EURO6 SPECIFICATION(NT6) EXC. FRONT WIDE TREAD<7GV> (B)	8-98220-127-0	01	1	1509-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EURO5B+ SPECIFICATION(NT5) EXC. FRONT WIDE TREAD<7GV> (B)	8-98219-391-0	01	1	1509-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EURO5B+ SPECIFICATION(NT5) EXC. FRONT WIDE TREAD<7GV> (B)	8-98219-392-0	01	1	1509-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)	8-98325-209-0	01	1	1509-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)	8-98325-210-0	01	1	1509-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-98219-393-0	01	1	1509-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-98219-394-0	01	1	1509-	●
24	04.730 BOLT; SENSOR 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1506-1508	●	●
24	04.730 BOLT; SENSOR 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1509-		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1509-	●
24	04.730 BOLT; SENSOR 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1506-1508	●	●
24	04.730 BOLT; SENSOR 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1509-		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1509-	●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1506-1508	●	●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1509-		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1509-	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	1509-	●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1506-1508	●	●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1509-		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1509-	●
24	04.730 BOLT; SENSOR 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1506-1508	●	●
24	04.730 BOLT; SENSOR 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1509-		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1509-	●
24	04.730 BOLT; SENSOR 01.251 (E) M6X12 HEX SOCKET	0-58330-612-0	12	1	1506-1508	●	●
24	04.730 BOLT; SENSOR 01.251 (E) M6X12 HEX SOCKET	0-58330-612-0	12	1	1509-		●
24	04.730 BOLT; SENSOR G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> 01.251 (E) M6X12 HEX SOCKET	0-58330-612-0	12	1	1509-	●

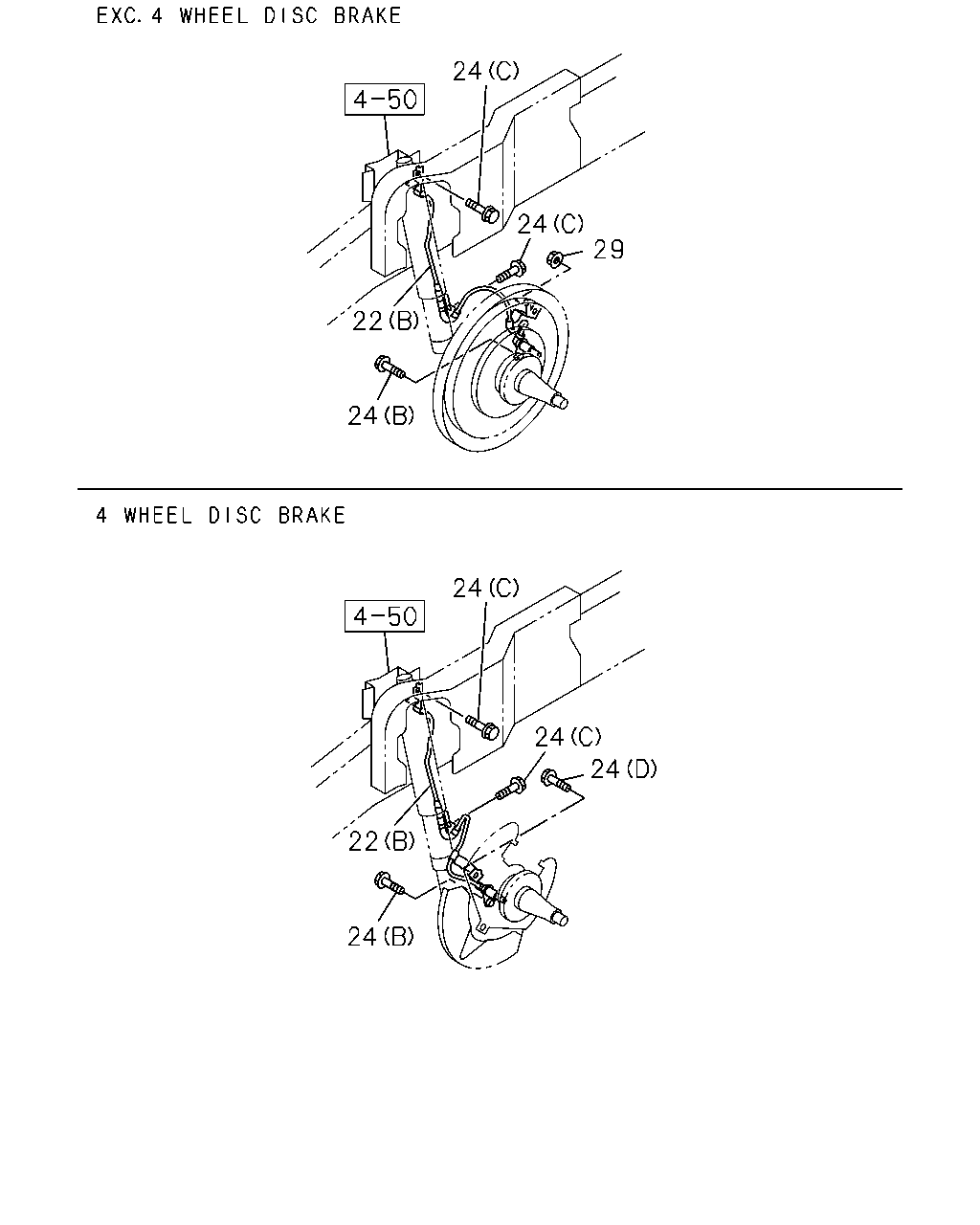

24 24 24 22 24 24 22 24 24 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	04.710 SENSOR; SPEED G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 04.110 (C)	8-98219-354-0	02	1	1509-	●
22	04.710 SENSOR; SPEED (A)	8-98012-753-1	02	1	1506-1508	●	●
22	04.710 SENSOR; SPEED (A)	8-98012-753-1	02	1	1509-		●
22	04.710 SENSOR; SPEED G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> (A)	8-98012-753-1	02	1	1509-	●
22	04.710 SENSOR; SPEED (B)	8-98220-126-0	01	1	1506-1508	●	●
22	04.710 SENSOR; SPEED (B)	8-98220-126-0	01	1	1509-		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EURO6 SPECIFICATION(NT6) EXC. FRONT WIDE TREAD<7GV> (B)	8-98220-126-0	01	1	1509-	●
22	04.710 SENSOR; SPEED (B)	8-98220-127-0	01	1	1506-1508	●	●
22	04.710 SENSOR; SPEED (B)	8-98220-127-0	01	1	1509-		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EURO6 SPECIFICATION(NT6) EXC. FRONT WIDE TREAD<7GV> (B)	8-98220-127-0	01	1	1509-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EURO5B+ SPECIFICATION(NT5) EXC. FRONT WIDE TREAD<7GV> (B)	8-98219-391-0	01	1	1509-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EURO5B+ SPECIFICATION(NT5) EXC. FRONT WIDE TREAD<7GV> (B)	8-98219-392-0	01	1	1509-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)	8-98325-209-0	01	1	1509-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)	8-98325-210-0	01	1	1509-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-98219-393-0	01	1	1509-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-98219-394-0	01	1	1509-	●
24	04.730 BOLT; SENSOR 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1506-1508	●	●
24	04.730 BOLT; SENSOR 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1509-		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1509-	●
24	04.730 BOLT; SENSOR 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1506-1508	●	●
24	04.730 BOLT; SENSOR 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1509-		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1509-	●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1506-1508	●	●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1509-		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1509-	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	1509-	●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1506-1508	●	●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1509-		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1509-	●
24	04.730 BOLT; SENSOR 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1506-1508	●	●
24	04.730 BOLT; SENSOR 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1509-		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1509-	●
24	04.730 BOLT; SENSOR 01.251 (E) M6X12 HEX SOCKET	0-58330-612-0	12	1	1506-1508	●	●
24	04.730 BOLT; SENSOR 01.251 (E) M6X12 HEX SOCKET	0-58330-612-0	12	1	1509-		●
24	04.730 BOLT; SENSOR G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> 01.251 (E) M6X12 HEX SOCKET	0-58330-612-0	12	1	1509-	●
29	04.730 NUT 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●
29	04.730 NUT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9>,FRONT WIDE TREAD<7GV> 01.062 M8 FLANGE	0-91180-108-0	02	1	1509-	●

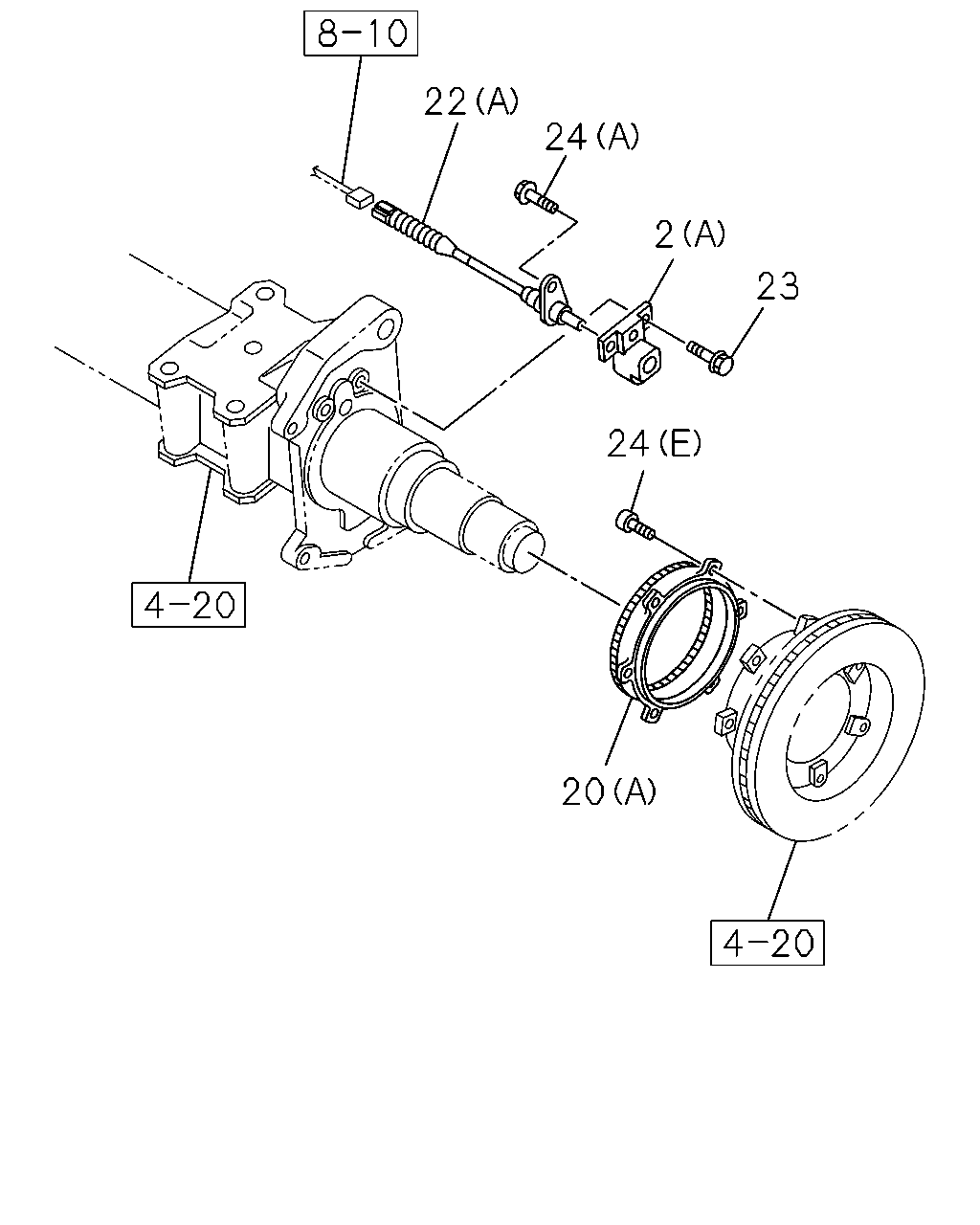

20 24 23 2 24 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	04.730 BRACKET; SENSOR G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-98002-440-1	02	1	1509-	●
2	04.730 BRACKET; SENSOR (A)	8-98045-222-0	02	1	1506-1508	●	●
2	04.730 BRACKET; SENSOR (A)	8-98045-222-0	02	1	1509-		●
2	04.730 BRACKET; SENSOR G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> (A)	8-98045-222-0	02	1	1509-	●
20	04.710 ROTOR; SENSOR G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-97206-775-3	02	1	1509-	●
20	04.710 ROTOR; SENSOR 05.809 (A)	8-98187-136-0	02	1	1506-1511		●
20	04.710 ROTOR; SENSOR (A)	8-98312-785-0	02	1	1512-		●
20	04.710 ROTOR; SENSOR (A)	8-98207-952-0	02	1	1506-1508	●
20	04.710 ROTOR; SENSOR G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> (A)	8-98207-952-0	02	1	1509-	●
22	04.710 SENSOR; SPEED G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 04.110 (C)	8-98219-354-0	02	1	1509-	●
22	04.710 SENSOR; SPEED (A)	8-98012-753-1	02	1	1506-1508	●	●
22	04.710 SENSOR; SPEED (A)	8-98012-753-1	02	1	1509-		●
22	04.710 SENSOR; SPEED G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> (A)	8-98012-753-1	02	1	1509-	●
22	04.710 SENSOR; SPEED (B)	8-98220-126-0	01	1	1506-1508	●	●
22	04.710 SENSOR; SPEED (B)	8-98220-126-0	01	1	1509-		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EURO6 SPECIFICATION(NT6) EXC. FRONT WIDE TREAD<7GV> (B)	8-98220-126-0	01	1	1509-	●
22	04.710 SENSOR; SPEED (B)	8-98220-127-0	01	1	1506-1508	●	●
22	04.710 SENSOR; SPEED (B)	8-98220-127-0	01	1	1509-		●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EURO6 SPECIFICATION(NT6) EXC. FRONT WIDE TREAD<7GV> (B)	8-98220-127-0	01	1	1509-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EURO5B+ SPECIFICATION(NT5) EXC. FRONT WIDE TREAD<7GV> (B)	8-98219-391-0	01	1	1509-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> EURO5B+ SPECIFICATION(NT5) EXC. FRONT WIDE TREAD<7GV> (B)	8-98219-392-0	01	1	1509-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)	8-98325-209-0	01	1	1509-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)	8-98325-210-0	01	1	1509-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-98219-393-0	01	1	1509-	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. 4 WHEEL DISC BRAKE<JF9> (B)	8-98219-394-0	01	1	1509-	●
23	04.710 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	04	1	1506-1508	●	●
23	04.710 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	04	1	1509-		●
23	04.710 BOLT; BRKT G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> 02.343 M8X12 FLANGE	0-28050-812-0	04	1	1509-	●
24	04.730 BOLT; SENSOR 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1506-1508	●	●
24	04.730 BOLT; SENSOR 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1509-		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1509-	●
24	04.730 BOLT; SENSOR 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1506-1508	●	●
24	04.730 BOLT; SENSOR 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1509-		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1509-	●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1506-1508	●	●
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1509-		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1509-	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	1509-	●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1506-1508	●	●
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1509-		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1509-	●
24	04.730 BOLT; SENSOR 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1506-1508	●	●
24	04.730 BOLT; SENSOR 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1509-		●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 4 WHEEL DISC BRAKE<JF9> 06.225 (D) M10X12 FLANGE	0-28051-012-0	02	1	1509-	●
24	04.730 BOLT; SENSOR 01.251 (E) M6X12 HEX SOCKET	0-58330-612-0	12	1	1506-1508	●	●
24	04.730 BOLT; SENSOR 01.251 (E) M6X12 HEX SOCKET	0-58330-612-0	12	1	1509-		●
24	04.730 BOLT; SENSOR G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> 01.251 (E) M6X12 HEX SOCKET	0-58330-612-0	12	1	1509-	●
