◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6 ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#162351) — 565 parça

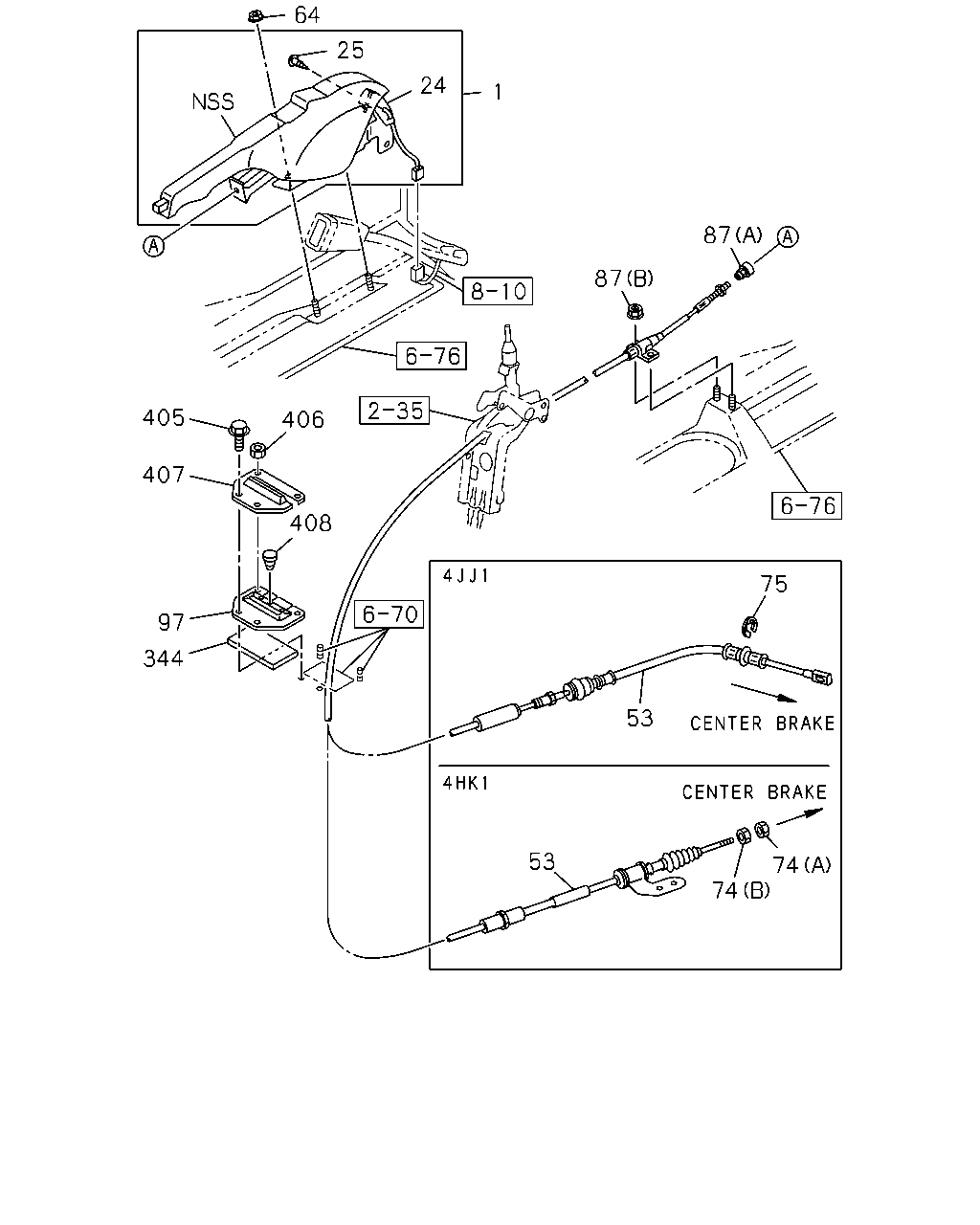

çizim 479533
74 53 53 75 408 97 344 407 405 406 87 87 1 24 25 64 74
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97426-514-0 01 1 1506-1508 ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97426-514-0 01 1 1509- ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1506-1508 ● ●
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1509- ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 1506-1508 ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 1509- ● ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MZZ6U(RSF),M/T MZZ6F(RSR) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1509-1511 ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-643-1 01 1 1509-1511 ●
53 04.779 CABLE; PARK BRK,FRT LWR
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 		8-98211-643-1 01 1 1512- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MZZ6U(RSF),M/T MZZ6F(RSR) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1512- ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-643-1 01 1 1512- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98211-617-4 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-645-1 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-097-4 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98057-441-3 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) 		8-98057-441-3 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98221-555-3 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98144-781-1 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98060-996-3 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR 8-98209-951-1 01 1 1506-1507 ●
53 04.779 CABLE; PARK BRK,FRT LWR 8-98209-951-1 01 1 1508-1508 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MZZ6F(RSR) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1508-1508 ●
53 04.779 CABLE; PARK BRK,FRT LWR 8-98209-951-1 01 1 1509-1511 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MZZ6U(RSF),M/T MZZ6F(RSR) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1509-1511 ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98209-951-1 01 1 1509-1511 ●
53 04.779 CABLE; PARK BRK,FRT LWR
EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98209-951-1 01 1 1512- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MZZ6U(RSF),M/T MZZ6F(RSR) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1512- ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98209-951-1 01 1 1512- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98211-616-4 01 1 1506-1507 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98211-616-4 01 1 1508-1508 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-616-4 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-644-1 01 1 1506-1508 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-644-1 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) 		8-98221-554-3 01 1 1506-1507 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-98221-554-3 01 1 1508-1508 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-554-3 01 1 1509- ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 1506-1508 ● ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 1509- ● ● ●
74 04.785 NUT; CONT WIRE
4HK1-TCS ENG(RJS) 02.334 (A) M8 		0-91110-508-0 01 1 1506-1508 ●
74 04.785 NUT; CONT WIRE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) 02.334 (A) M8 		0-91110-508-0 01 1 1509- ● ●
74 04.785 NUT; CONT WIRE
4HK1-TCS ENG(RJS) (B) M8 FLANGE 		9-46259-016-0 01 1 1506-1508 ●
74 04.785 NUT; CONT WIRE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) (B) M8 FLANGE 		9-46259-016-0 01 1 1509- ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 1506- ●
75 04.790 RING; SNAP,HAND BRK CABLE
4JJ1-TCS ENG(LFB) ID=12 		0-91805-512-0 01 1 1506- ●
87 04.785 NUT
4HK1-TCN ENG(RDQ) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1509-1511 ●
87 04.785 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1509-1511 ●
87 04.785 NUT
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1512- ●
87 04.785 NUT
4HK1-TCN ENG(RDQ) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1512- ●
87 04.785 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1512- ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1506-1508 ● ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1509- ● ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 1506-1508 ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 1509- ● ● ●
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97091-890-0 01 1 1506-1508 ● ●
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97091-890-0 01 1 1509- ● ● ●
344 04.595 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 04.047 		8-97096-753-0 01 1 1506-1508 ● ●
344 04.595 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 04.047 		8-97096-753-0 01 1 1509- ● ● ●
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 1506-1508 ● ●
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 1509- ● ● ●
406 04.785 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 1506-1508 ● ●
406 04.785 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 1509- ● ● ●
407 04.785 RETAINER; GROMMET
04.047 		1-33657-674-0 01 1 1506-1508 ● ●
407 04.785 RETAINER; GROMMET
04.047 		1-33657-674-0 01 1 1509- ● ● ●
408 04.785 CAP; GROMMET
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 04.010 		8-97371-108-0 02 1 1509-1511 ●
408 04.785 CAP; GROMMET
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 04.010 		8-97371-108-0 02 1 1512- ● ●

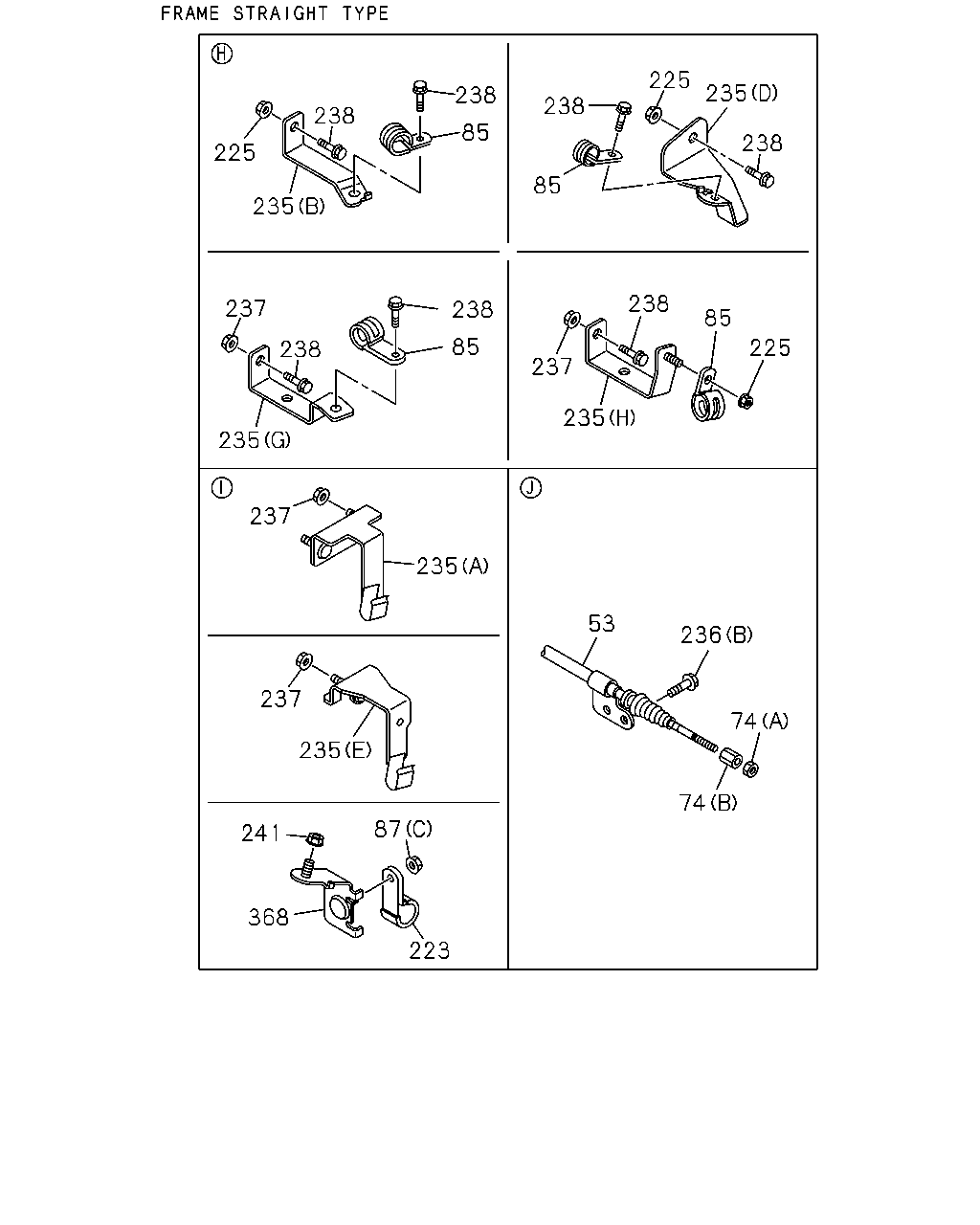

çizim 479618
235 225 238 85 237 235 238 85 225 236 74 74 53 223 368 241 87 235 237 235 237 235 237 238 85 238 238 225 235 238 238
BalonParca AdiParca NoAdetTipApplied Date A B C
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MZZ6U(RSF),M/T MZZ6F(RSR) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1509-1511 ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-643-1 01 1 1509-1511 ●
53 04.779 CABLE; PARK BRK,FRT LWR
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 		8-98211-643-1 01 1 1512- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MZZ6U(RSF),M/T MZZ6F(RSR) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1512- ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-643-1 01 1 1512- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98211-617-4 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-645-1 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-097-4 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98057-441-3 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) 		8-98057-441-3 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98221-555-3 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98144-781-1 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98060-996-3 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR 8-98209-951-1 01 1 1506-1507 ●
53 04.779 CABLE; PARK BRK,FRT LWR 8-98209-951-1 01 1 1508-1508 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MZZ6F(RSR) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1508-1508 ●
53 04.779 CABLE; PARK BRK,FRT LWR 8-98209-951-1 01 1 1509-1511 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MZZ6U(RSF),M/T MZZ6F(RSR) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1509-1511 ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98209-951-1 01 1 1509-1511 ●
53 04.779 CABLE; PARK BRK,FRT LWR
EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98209-951-1 01 1 1512- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MZZ6U(RSF),M/T MZZ6F(RSR) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1512- ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98209-951-1 01 1 1512- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98211-616-4 01 1 1506-1507 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98211-616-4 01 1 1508-1508 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-616-4 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-644-1 01 1 1506-1508 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-644-1 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) 		8-98221-554-3 01 1 1506-1507 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-98221-554-3 01 1 1508-1508 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-554-3 01 1 1509- ●
74 04.785 NUT; CONT WIRE
4HK1-TCS ENG(RJS) 02.334 (A) M8 		0-91110-508-0 01 1 1506-1508 ●
74 04.785 NUT; CONT WIRE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) 02.334 (A) M8 		0-91110-508-0 01 1 1509- ● ●
74 04.785 NUT; CONT WIRE
4HK1-TCS ENG(RJS) (B) M8 FLANGE 		9-46259-016-0 01 1 1506-1508 ●
74 04.785 NUT; CONT WIRE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) (B) M8 FLANGE 		9-46259-016-0 01 1 1509- ● ●
85 04.785 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 1506-1508 ●
85 04.785 CLIP; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> ID=14.5 L=20 		1-09701-012-0 01 1 1506-1508 ●
85 04.785 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 1509-1511 ●
85 04.785 CLIP; BRKT
4HK1-TCN ENG(RDQ) ID=14.5 L=20 		1-09701-012-0 01 1 1509-1511 ●
85 04.785 CLIP; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> ID=14.5 L=20 		1-09701-012-0 01 1 1509-1511 ●
85 04.785 CLIP; BRKT
EXC. SMOOTHER-EX(TYPE2)(8NS) ID=14.5 L=20 		1-09701-012-0 01 1 1512- ●
85 04.785 CLIP; BRKT
4HK1-TCN ENG(RDQ) ID=14.5 L=20 		1-09701-012-0 01 1 1512- ●
85 04.785 CLIP; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> ID=14.5 L=20 		1-09701-012-0 01 1 1512- ●
85 04.785 CLIP; BRKT
FRAME STRAIGHT TYPE<7KJ> ID=13 L=20 		0-95235-236-0 01 1 1506-1508 ●
85 04.785 CLIP; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> ID=13 L=20 		0-95235-236-0 01 1 1509- ●
85 04.785 CLIP; BRKT
ID=13 L=20 		0-95235-236-0 01 1 1509- ●
87 04.785 NUT
4HK1-TCN ENG(RDQ) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1509-1511 ●
87 04.785 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1509-1511 ●
87 04.785 NUT
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1512- ●
87 04.785 NUT
4HK1-TCN ENG(RDQ) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1512- ●
87 04.785 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1512- ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1506-1508 ● ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1509- ● ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 1506-1508 ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 1509- ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HK1-TCN ENG(RDQ) 00.799 ID=13 L=20 		1-09701-138-1 01 1 1509-1511 ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 ID=13 L=20 		1-09701-138-1 01 1 1509-1511 ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 00.799 ID=13 L=20 		1-09701-138-1 01 1 1512- ●
223 04.785 CLIP; PARKING BRK CABLE
4HK1-TCN ENG(RDQ) 00.799 ID=13 L=20 		1-09701-138-1 01 1 1512- ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 ID=13 L=20 		1-09701-138-1 01 1 1512- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1509-1511 ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509-1511 ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509-1511 ● ●
225 04.785 NUT; CABLE CLIP
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509-1511 ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ● ●
225 04.785 NUT; CABLE CLIP
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-98033-907-0 01 1 1509- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 		8-98033-907-0 01 1 1509- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(G) 		8-98033-907-0 01 1 1509- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) 		8-98087-322-0 01 1 1509- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(F) 		8-98235-016-0 01 1 1506-1508 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98235-016-0 01 1 1509-1511 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98235-016-0 01 1 1512- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98235-016-0 01 1 1512- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-410-3 01 1 1506- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98211-624-1 01 1 1506- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98236-444-1 01 1 1506- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) (A) 		8-98074-995-0 01 1 1506-1507 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) (A) 		8-98074-995-0 01 1 1508-1508 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98074-995-0 01 1 1509- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(A) 		8-98074-995-0 01 1 1509- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) (B) 		8-98241-559-2 01 1 1506-1508 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (B) 		8-98241-559-2 01 1 1509- ●
236 04.785 BOLT; BRKT TO FRAME
4HK1-TCS ENG(RJS) 00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 1506-1507 ●
236 04.785 BOLT; BRKT TO FRAME
4HK1-TCS ENG(RJS) 00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 1508-1508 ●
236 04.785 BOLT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 1509- ●
236 04.785 BOLT; BRKT TO FRAME
00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 1509- ●
236 04.785 BOLT; BRKT TO FRAME
4HK1-TCS ENG(RJS) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
236 04.785 BOLT; BRKT TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
237 04.785 NUT; BRKT TO FRAME
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1506-1508 ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1506-1508 ●
237 04.785 NUT; BRKT TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ● ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
237 04.785 NUT; BRKT TO FRAME
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. EURO6 SPECIFICATION(NT6),HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506-1508 ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506-1508 ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506-1508 ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1506-1508 ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1509- ●
238 04.785 BOLT; CLIP TO BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1509- ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1509-1511 ● ●
241 04.785 NUT; BRKT
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509-1511 ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ● ● ●
241 04.785 NUT; BRKT
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ●
368 04.785 BRACKET; T/M SIDE
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97372-863-1 01 1 1509-1511 ●
368 04.785 BRACKET; T/M SIDE
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 		8-97372-863-1 01 1 1512- ●
368 04.785 BRACKET; T/M SIDE
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97372-863-1 01 1 1512- ●
368 04.785 BRACKET; T/M SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98144-584-0 01 1 1509- ●
çizim 479620
223 368 241 235 237 85 225 237 238 324 85 225 235 237 87
BalonParca AdiParca NoAdetTipApplied Date A B C
85 04.785 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 1506-1508 ●
85 04.785 CLIP; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> ID=14.5 L=20 		1-09701-012-0 01 1 1506-1508 ●
85 04.785 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 1509-1511 ●
85 04.785 CLIP; BRKT
4HK1-TCN ENG(RDQ) ID=14.5 L=20 		1-09701-012-0 01 1 1509-1511 ●
85 04.785 CLIP; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> ID=14.5 L=20 		1-09701-012-0 01 1 1509-1511 ●
85 04.785 CLIP; BRKT
EXC. SMOOTHER-EX(TYPE2)(8NS) ID=14.5 L=20 		1-09701-012-0 01 1 1512- ●
85 04.785 CLIP; BRKT
4HK1-TCN ENG(RDQ) ID=14.5 L=20 		1-09701-012-0 01 1 1512- ●
85 04.785 CLIP; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> ID=14.5 L=20 		1-09701-012-0 01 1 1512- ●
85 04.785 CLIP; BRKT
FRAME STRAIGHT TYPE<7KJ> ID=13 L=20 		0-95235-236-0 01 1 1506-1508 ●
85 04.785 CLIP; BRKT
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> ID=13 L=20 		0-95235-236-0 01 1 1509- ●
85 04.785 CLIP; BRKT
ID=13 L=20 		0-95235-236-0 01 1 1509- ●
87 04.785 NUT
4HK1-TCN ENG(RDQ) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1509-1511 ●
87 04.785 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1509-1511 ●
87 04.785 NUT
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1512- ●
87 04.785 NUT
4HK1-TCN ENG(RDQ) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1512- ●
87 04.785 NUT
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1512- ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1506-1508 ● ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1509- ● ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 1506-1508 ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 1509- ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
4HK1-TCN ENG(RDQ) 00.799 ID=13 L=20 		1-09701-138-1 01 1 1509-1511 ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 ID=13 L=20 		1-09701-138-1 01 1 1509-1511 ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 00.799 ID=13 L=20 		1-09701-138-1 01 1 1512- ●
223 04.785 CLIP; PARKING BRK CABLE
4HK1-TCN ENG(RDQ) 00.799 ID=13 L=20 		1-09701-138-1 01 1 1512- ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 00.799 ID=13 L=20 		1-09701-138-1 01 1 1512- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1509-1511 ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509-1511 ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509-1511 ● ●
225 04.785 NUT; CABLE CLIP
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509-1511 ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ● ●
225 04.785 NUT; CABLE CLIP
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-98033-907-0 01 1 1509- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 		8-98033-907-0 01 1 1509- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(G) 		8-98033-907-0 01 1 1509- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) 		8-98087-322-0 01 1 1509- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(F) 		8-98235-016-0 01 1 1506-1508 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98235-016-0 01 1 1509-1511 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JJ1-TCC ENG(RDU) M/T MYY5T(RSM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98235-016-0 01 1 1512- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98235-016-0 01 1 1512- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98034-410-3 01 1 1506- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98211-624-1 01 1 1506- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (D) 		8-98236-444-1 01 1 1506- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) (A) 		8-98074-995-0 01 1 1506-1507 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) (A) 		8-98074-995-0 01 1 1508-1508 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98074-995-0 01 1 1509- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(A) 		8-98074-995-0 01 1 1509- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) (B) 		8-98241-559-2 01 1 1506-1508 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) (B) 		8-98241-559-2 01 1 1509- ●
237 04.785 NUT; BRKT TO FRAME
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1506-1508 ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1506-1508 ●
237 04.785 NUT; BRKT TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ● ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
237 04.785 NUT; BRKT TO FRAME
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. EURO6 SPECIFICATION(NT6),HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506-1508 ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506-1508 ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506-1508 ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1506-1508 ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1509- ●
238 04.785 BOLT; CLIP TO BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1509- ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1509-1511 ● ●
241 04.785 NUT; BRKT
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509-1511 ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ● ● ●
241 04.785 NUT; BRKT
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ●
324 04.785 BRACKET
(F) 		8-98091-693-0 01 1 1506- ●
324 04.785 BRACKET
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98091-693-0 01 1 1506- ●
324 04.785 BRACKET
04.047 (G) 		8-98189-805-0 01 1 1506- ●
324 04.785 BRACKET
EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (G) 		8-98189-805-0 01 1 1506- ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98241-568-1 01 1 1506- ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (C) 		8-98034-185-1 01 1 1506-1508 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (C) 		8-98034-185-1 01 1 1509- ●
324 04.785 BRACKET
04.047 (C) 		8-98034-185-1 01 1 1509- ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.010 (D) 		8-98189-804-0 01 1 1506-1508 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.010 (D) 		8-98189-804-0 01 1 1509- ●
324 04.785 BRACKET
04.010 (D) 		8-98189-804-0 01 1 1509- ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98216-763-1 01 1 1506-1508 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98216-763-1 01 1 1509- ●
324 04.785 BRACKET
(A) 		8-98216-763-1 01 1 1509- ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98207-274-1 01 1 1506-1507 ●
324 04.785 BRACKET
EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98207-274-1 01 1 1508-1508 ●
324 04.785 BRACKET
EXC. EURO5B+ SPECIFICATION(NT5),FRAME STRAIGHT TYPE<7KJ> (H) 		8-98207-274-1 01 1 1509- ●
324 04.785 BRACKET
4HK1-TCS ENG(RJS) 04.047 (B) 		8-98061-626-1 01 1 1506-1507 ●
324 04.785 BRACKET
4HK1-TCS ENG(RJS) 04.047 (B) 		8-98061-626-1 01 1 1508-1508 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (B) 		8-98061-626-1 01 1 1509- ●
324 04.785 BRACKET
04.047 (B) 		8-98061-626-1 01 1 1509- ●
324 04.785 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98222-356-1 01 1 1506-1507 ●
324 04.785 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98222-356-1 01 1 1508-1508 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98222-356-1 01 1 1509- ●
324 04.785 BRACKET
(E) 		8-98222-356-1 01 1 1509- ●
368 04.785 BRACKET; T/M SIDE
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97372-863-1 01 1 1509-1511 ●
368 04.785 BRACKET; T/M SIDE
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 		8-97372-863-1 01 1 1512- ●
368 04.785 BRACKET; T/M SIDE
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97372-863-1 01 1 1512- ●
368 04.785 BRACKET; T/M SIDE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98144-584-0 01 1 1509- ●

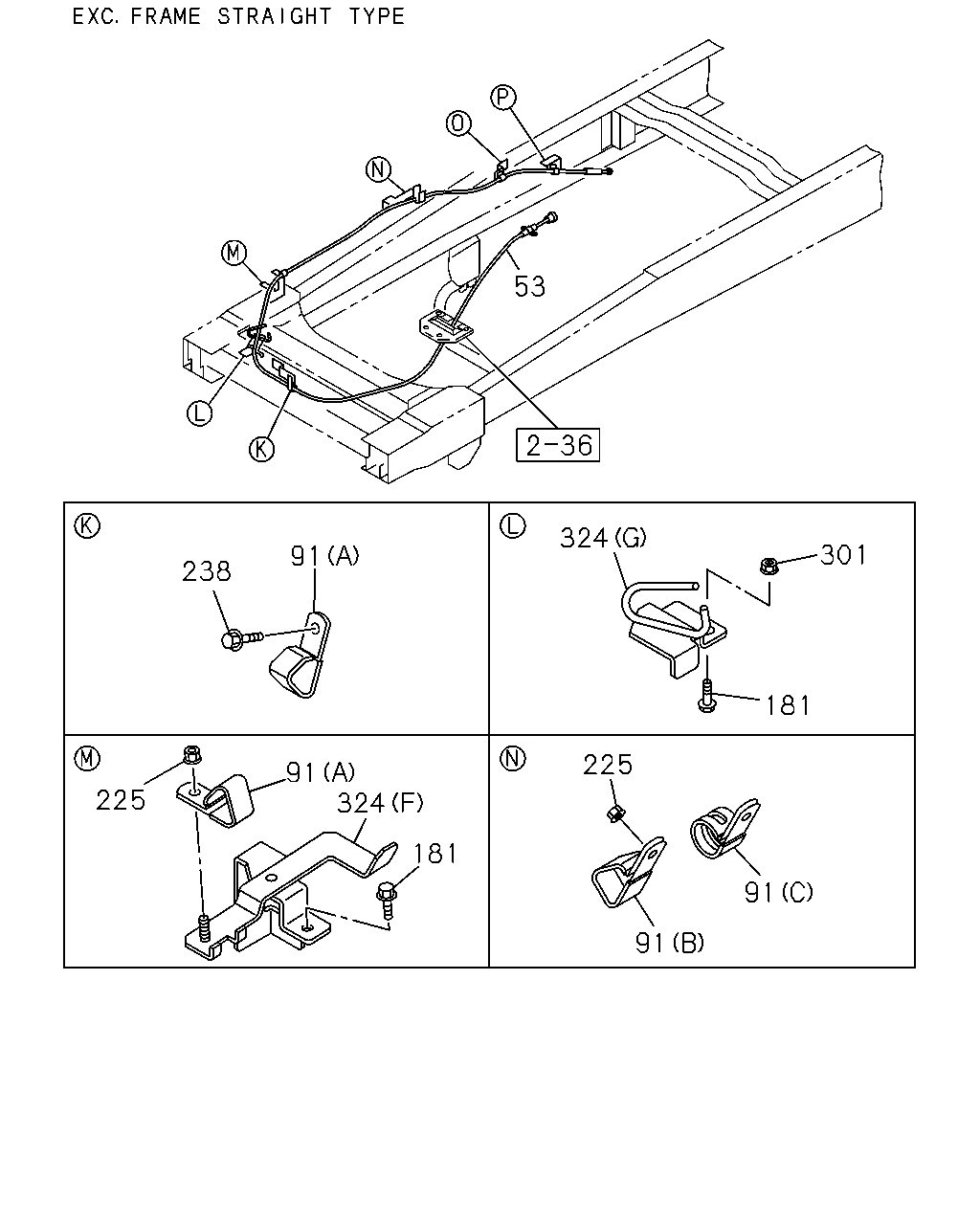

çizim 479730
53 324 91 238 225 91 324 225 181 91 91 181 301
BalonParca AdiParca NoAdetTipApplied Date A B C
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MZZ6U(RSF),M/T MZZ6F(RSR) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1509-1511 ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-643-1 01 1 1509-1511 ●
53 04.779 CABLE; PARK BRK,FRT LWR
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 		8-98211-643-1 01 1 1512- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MZZ6U(RSF),M/T MZZ6F(RSR) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1512- ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-643-1 01 1 1512- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98211-617-4 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-645-1 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-097-4 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98057-441-3 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) 		8-98057-441-3 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98221-555-3 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98144-781-1 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98060-996-3 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR 8-98209-951-1 01 1 1506-1507 ●
53 04.779 CABLE; PARK BRK,FRT LWR 8-98209-951-1 01 1 1508-1508 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MZZ6F(RSR) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1508-1508 ●
53 04.779 CABLE; PARK BRK,FRT LWR 8-98209-951-1 01 1 1509-1511 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MZZ6U(RSF),M/T MZZ6F(RSR) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1509-1511 ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98209-951-1 01 1 1509-1511 ●
53 04.779 CABLE; PARK BRK,FRT LWR
EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98209-951-1 01 1 1512- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MZZ6U(RSF),M/T MZZ6F(RSR) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1512- ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98209-951-1 01 1 1512- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98211-616-4 01 1 1506-1507 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98211-616-4 01 1 1508-1508 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-616-4 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-644-1 01 1 1506-1508 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-644-1 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) 		8-98221-554-3 01 1 1506-1507 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-98221-554-3 01 1 1508-1508 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-554-3 01 1 1509- ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 01.540 (D) ID=13 L=28 		0-95235-255-0 01 1 1509-1511 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 01.540 (D) ID=13 L=28 		0-95235-255-0 01 1 1509-1511 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 01.540 (D) ID=13 L=28 		0-95235-255-0 01 1 1512- ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 01.540 (D) ID=13 L=28 		0-95235-255-0 01 1 1512- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 06.672 (E) ID=16 L=28 		0-95235-556-0 01 1 1509-1511 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 06.672 (E) ID=16 L=28 		0-95235-556-0 01 1 1512- ● ●
91 04.785 CLIP; PARKING BRK CABLE
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=24 L=40 		1-09701-139-0 01 1 1509-1511 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (C) ID=24 L=40 		1-09701-139-0 01 1 1512- ●
91 04.785 CLIP; PARKING BRK CABLE
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=24 L=40 		1-09701-139-0 01 1 1512- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1506-1507 ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1506-1507 ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 04.047 (A) 		8-97036-333-1 01 1 1506-1507 ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1508-1508 ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1508-1508 ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 04.047 (A) 		8-97036-333-1 01 1 1508-1508 ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1509-1511 ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1509-1511 ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 1509-1511 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 1509-1511 ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 1509-1511 ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1509-1511 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.047 (A) 		8-97036-333-1 01 1 1512- ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.047 (A) 		8-97036-333-1 01 1 1512- ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 1512- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1512- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1512- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1512- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (B) 		8-97036-332-1 01 1 1506-1507 ●
91 04.785 CLIP; PARKING BRK CABLE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (B) 		8-97036-332-1 01 1 1506-1507 ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (B) 		8-97036-332-1 01 1 1508-1508 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (B) 		8-97036-332-1 01 1 1508-1508 ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (B) 		8-97036-332-1 01 1 1509-1511 ●
91 04.785 CLIP; PARKING BRK CABLE
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (B) 		8-97036-332-1 01 1 1509-1511 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. SMOOTHER-EX(TYPE2)(8NS) 04.047 (B) 		8-97036-332-1 01 1 1512- ●
91 04.785 CLIP; PARKING BRK CABLE
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (B) 		8-97036-332-1 01 1 1512- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506-1508 ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1506-1508 ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1509- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1509- ●
181 04.785 BOLT; BRKT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1506-1507 ●
181 04.785 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1508-1508 ●
181 04.785 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5),FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1509- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1509-1511 ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509-1511 ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509-1511 ● ●
225 04.785 NUT; CABLE CLIP
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509-1511 ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ● ●
225 04.785 NUT; CABLE CLIP
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506-1508 ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506-1508 ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506-1508 ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1506-1508 ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1509- ●
238 04.785 BOLT; CLIP TO BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1509- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1508 ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1509- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 02 1 1509- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1506-1507 ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508-1508 ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
EXC. EURO5B+ SPECIFICATION(NT5),FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
324 04.785 BRACKET
(F) 		8-98091-693-0 01 1 1506- ●
324 04.785 BRACKET
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98091-693-0 01 1 1506- ●
324 04.785 BRACKET
04.047 (G) 		8-98189-805-0 01 1 1506- ●
324 04.785 BRACKET
EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (G) 		8-98189-805-0 01 1 1506- ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98241-568-1 01 1 1506- ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (C) 		8-98034-185-1 01 1 1506-1508 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (C) 		8-98034-185-1 01 1 1509- ●
324 04.785 BRACKET
04.047 (C) 		8-98034-185-1 01 1 1509- ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.010 (D) 		8-98189-804-0 01 1 1506-1508 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.010 (D) 		8-98189-804-0 01 1 1509- ●
324 04.785 BRACKET
04.010 (D) 		8-98189-804-0 01 1 1509- ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98216-763-1 01 1 1506-1508 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98216-763-1 01 1 1509- ●
324 04.785 BRACKET
(A) 		8-98216-763-1 01 1 1509- ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98207-274-1 01 1 1506-1507 ●
324 04.785 BRACKET
EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98207-274-1 01 1 1508-1508 ●
324 04.785 BRACKET
EXC. EURO5B+ SPECIFICATION(NT5),FRAME STRAIGHT TYPE<7KJ> (H) 		8-98207-274-1 01 1 1509- ●
324 04.785 BRACKET
4HK1-TCS ENG(RJS) 04.047 (B) 		8-98061-626-1 01 1 1506-1507 ●
324 04.785 BRACKET
4HK1-TCS ENG(RJS) 04.047 (B) 		8-98061-626-1 01 1 1508-1508 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (B) 		8-98061-626-1 01 1 1509- ●
324 04.785 BRACKET
04.047 (B) 		8-98061-626-1 01 1 1509- ●
324 04.785 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98222-356-1 01 1 1506-1507 ●
324 04.785 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98222-356-1 01 1 1508-1508 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98222-356-1 01 1 1509- ●
324 04.785 BRACKET
(E) 		8-98222-356-1 01 1 1509- ●

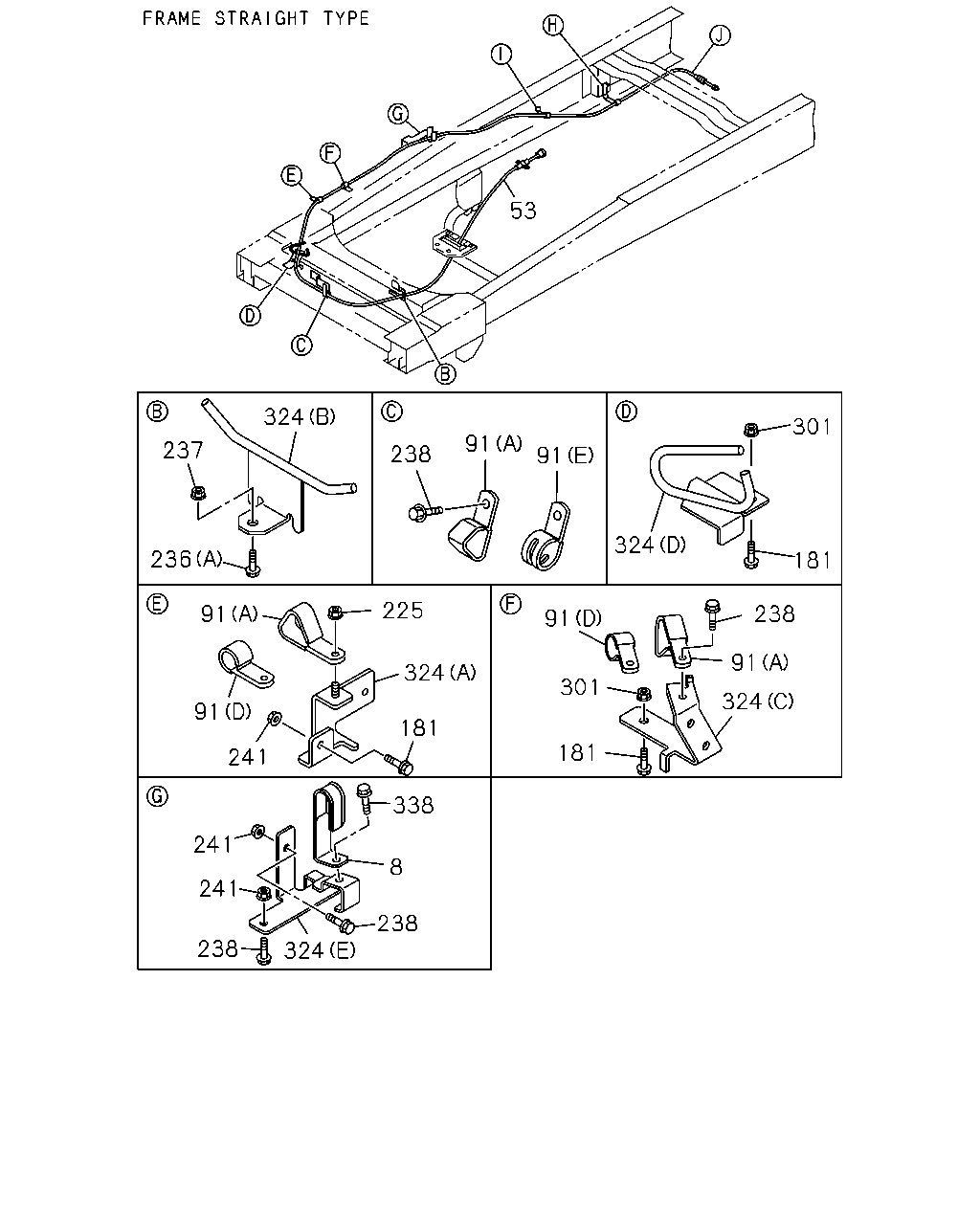

çizim 479862
238 91 324 181 301 91 324 181 301 91 91 238 225 324 181 338 8 238 324 238 241 241 241 91 91 237 236 324 53
BalonParca AdiParca NoAdetTipApplied Date A B C
8 04.592 GUIDE; PARKING BRK
FRAME STRAIGHT TYPE<7KJ> 		8-98222-357-0 01 1 1506-1508 ●
8 04.592 GUIDE; PARKING BRK
FRAME STRAIGHT TYPE<7KJ> 		8-98222-357-0 01 1 1509- ●
8 04.592 GUIDE; PARKING BRK 8-98222-357-0 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MZZ6U(RSF),M/T MZZ6F(RSR) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1509-1511 ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-643-1 01 1 1509-1511 ●
53 04.779 CABLE; PARK BRK,FRT LWR
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 		8-98211-643-1 01 1 1512- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MZZ6U(RSF),M/T MZZ6F(RSR) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-643-1 01 1 1512- ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-643-1 01 1 1512- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98211-617-4 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-645-1 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-097-4 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98057-441-3 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) 		8-98057-441-3 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98221-555-3 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98144-781-1 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) EURO5B+ SPECIFICATION(NT5) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98060-996-3 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR 8-98209-951-1 01 1 1506-1507 ●
53 04.779 CABLE; PARK BRK,FRT LWR 8-98209-951-1 01 1 1508-1508 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MZZ6F(RSR) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1508-1508 ●
53 04.779 CABLE; PARK BRK,FRT LWR 8-98209-951-1 01 1 1509-1511 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MZZ6U(RSF),M/T MZZ6F(RSR) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1509-1511 ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98209-951-1 01 1 1509-1511 ●
53 04.779 CABLE; PARK BRK,FRT LWR
EXC. SMOOTHER-EX(TYPE2)(8NS) 		8-98209-951-1 01 1 1512- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MZZ6U(RSF),M/T MZZ6F(RSR) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98209-951-1 01 1 1512- ●
53 04.779 CABLE; PARK BRK,FRT LWR
EURO5B+ SPECIFICATION(NT5) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98209-951-1 01 1 1512- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98211-616-4 01 1 1506-1507 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 		8-98211-616-4 01 1 1508-1508 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98211-616-4 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-644-1 01 1 1506-1508 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4JJ1-TCS ENG(LFB) M/T MYY6S(RST) EURO6 SPECIFICATION(NT6) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98211-644-1 01 1 1509- ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) 		8-98221-554-3 01 1 1506-1507 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 		8-98221-554-3 01 1 1508-1508 ●
53 04.779 CABLE; PARK BRK,FRT LWR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-554-3 01 1 1509- ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 01.540 (D) ID=13 L=28 		0-95235-255-0 01 1 1509-1511 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 01.540 (D) ID=13 L=28 		0-95235-255-0 01 1 1509-1511 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 01.540 (D) ID=13 L=28 		0-95235-255-0 01 1 1512- ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 01.540 (D) ID=13 L=28 		0-95235-255-0 01 1 1512- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 06.672 (E) ID=16 L=28 		0-95235-556-0 01 1 1509-1511 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) 06.672 (E) ID=16 L=28 		0-95235-556-0 01 1 1512- ● ●
91 04.785 CLIP; PARKING BRK CABLE
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=24 L=40 		1-09701-139-0 01 1 1509-1511 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER DELET E(8GJ) (C) ID=24 L=40 		1-09701-139-0 01 1 1512- ●
91 04.785 CLIP; PARKING BRK CABLE
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=24 L=40 		1-09701-139-0 01 1 1512- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1506-1507 ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1506-1507 ● ●
91 04.785 CLIP; PARKING BRK CABLE
4JJ1-TCS ENG(LFB),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> 04.047 (A) 		8-97036-333-1 01 1 1506-1507 ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1508-1508 ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1508-1508 ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> 04.047 (A) 		8-97036-333-1 01 1 1508-1508 ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1509-1511 ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1509-1511 ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 1509-1511 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 1509-1511 ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 1509-1511 ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1509-1511 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.047 (A) 		8-97036-333-1 01 1 1512- ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 04.047 (A) 		8-97036-333-1 01 1 1512- ● ●
91 04.785 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 1512- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1512- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1512- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1512- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (B) 		8-97036-332-1 01 1 1506-1507 ●
91 04.785 CLIP; PARKING BRK CABLE
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (B) 		8-97036-332-1 01 1 1506-1507 ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (B) 		8-97036-332-1 01 1 1508-1508 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (B) 		8-97036-332-1 01 1 1508-1508 ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (B) 		8-97036-332-1 01 1 1509-1511 ●
91 04.785 CLIP; PARKING BRK CABLE
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (B) 		8-97036-332-1 01 1 1509-1511 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. SMOOTHER-EX(TYPE2)(8NS) 04.047 (B) 		8-97036-332-1 01 1 1512- ●
91 04.785 CLIP; PARKING BRK CABLE
EURO5B+ SPECIFICATION(NT5),EURO6 SPECIFICATION(NT6) EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (B) 		8-97036-332-1 01 1 1512- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506-1508 ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ● ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1506-1508 ●
181 04.785 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1509- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 1509- ●
181 04.785 BOLT; BRKT
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1506-1507 ●
181 04.785 BOLT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1508-1508 ●
181 04.785 BOLT; BRKT
EXC. EURO5B+ SPECIFICATION(NT5),FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1509- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ● ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1509-1511 ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509-1511 ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509-1511 ● ●
225 04.785 NUT; CABLE CLIP
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509-1511 ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ● ●
225 04.785 NUT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ● ●
225 04.785 NUT; CABLE CLIP
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ●
236 04.785 BOLT; BRKT TO FRAME
4HK1-TCS ENG(RJS) 00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 1506-1507 ●
236 04.785 BOLT; BRKT TO FRAME
4HK1-TCS ENG(RJS) 00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 1508-1508 ●
236 04.785 BOLT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 1509- ●
236 04.785 BOLT; BRKT TO FRAME
00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 1509- ●
236 04.785 BOLT; BRKT TO FRAME
4HK1-TCS ENG(RJS) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1506-1508 ●
236 04.785 BOLT; BRKT TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MZZ6U(RSF),M/T MZZ6F(RSR) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1509- ● ●
237 04.785 NUT; BRKT TO FRAME
4HK1-TCS ENG(RJS) EURO5B+ SPECIFICATION(NT5) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1509- ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1506-1508 ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1506-1508 ●
237 04.785 NUT; BRKT TO FRAME
EXC. FRAME STRAIGHT TYPE<7KJ>, TRANSMISSION CONTROL-SMOOTHER(8GF), SMOOTHER-EX(TYPE2)(8NS) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ● ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ● ●
237 04.785 NUT; BRKT TO FRAME
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
237 04.785 NUT; BRKT TO FRAME
4HK1-TCS ENG(RJS) EURO6 SPECIFICATION(NT6) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
237 04.785 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> EXC. EURO6 SPECIFICATION(NT6),HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506-1508 ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506-1508 ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506-1508 ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ● ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1506-1508 ●
238 04.785 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1509- ●
238 04.785 BOLT; CLIP TO BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1509- ●
241 04.785 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1509-1511 ● ●
241 04.785 NUT; BRKT
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1509-1511 ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ● ● ●
241 04.785 NUT; BRKT
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1512- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1506-1508 ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1509- ● ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1506-1508 ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1509- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 02 1 1509- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1506-1507 ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1508-1508 ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
EXC. EURO5B+ SPECIFICATION(NT5),FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 01 1 1509- ●
324 04.785 BRACKET
(F) 		8-98091-693-0 01 1 1506- ●
324 04.785 BRACKET
EXC. FRAME STRAIGHT TYPE<7KJ> (F) 		8-98091-693-0 01 1 1506- ●
324 04.785 BRACKET
04.047 (G) 		8-98189-805-0 01 1 1506- ●
324 04.785 BRACKET
EXC. FRAME STRAIGHT TYPE<7KJ> 04.047 (G) 		8-98189-805-0 01 1 1506- ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) FRAME STRAIGHT TYPE<7KJ> (E) 		8-98241-568-1 01 1 1506- ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (C) 		8-98034-185-1 01 1 1506-1508 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (C) 		8-98034-185-1 01 1 1509- ●
324 04.785 BRACKET
04.047 (C) 		8-98034-185-1 01 1 1509- ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.010 (D) 		8-98189-804-0 01 1 1506-1508 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.010 (D) 		8-98189-804-0 01 1 1509- ●
324 04.785 BRACKET
04.010 (D) 		8-98189-804-0 01 1 1509- ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98216-763-1 01 1 1506-1508 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98216-763-1 01 1 1509- ●
324 04.785 BRACKET
(A) 		8-98216-763-1 01 1 1509- ●
324 04.785 BRACKET
4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98207-274-1 01 1 1506-1507 ●
324 04.785 BRACKET
EXC. FRAME STRAIGHT TYPE<7KJ> (H) 		8-98207-274-1 01 1 1508-1508 ●
324 04.785 BRACKET
EXC. EURO5B+ SPECIFICATION(NT5),FRAME STRAIGHT TYPE<7KJ> (H) 		8-98207-274-1 01 1 1509- ●
324 04.785 BRACKET
4HK1-TCS ENG(RJS) 04.047 (B) 		8-98061-626-1 01 1 1506-1507 ●
324 04.785 BRACKET
4HK1-TCS ENG(RJS) 04.047 (B) 		8-98061-626-1 01 1 1508-1508 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> 04.047 (B) 		8-98061-626-1 01 1 1509- ●
324 04.785 BRACKET
04.047 (B) 		8-98061-626-1 01 1 1509- ●
324 04.785 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98222-356-1 01 1 1506-1507 ●
324 04.785 BRACKET
4HK1-TCS ENG(RJS) (E) 		8-98222-356-1 01 1 1508-1508 ●
324 04.785 BRACKET
FRAME STRAIGHT TYPE<7KJ> (E) 		8-98222-356-1 01 1 1509- ●
324 04.785 BRACKET
(E) 		8-98222-356-1 01 1 1509- ●
338 04.785 SCREW; GUIDE
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1506-1508 ●
338 04.785 SCREW; GUIDE
FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ●
338 04.785 SCREW; GUIDE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1509- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
