3-08 — PARKING BRAKE (#16235) — 57 parça

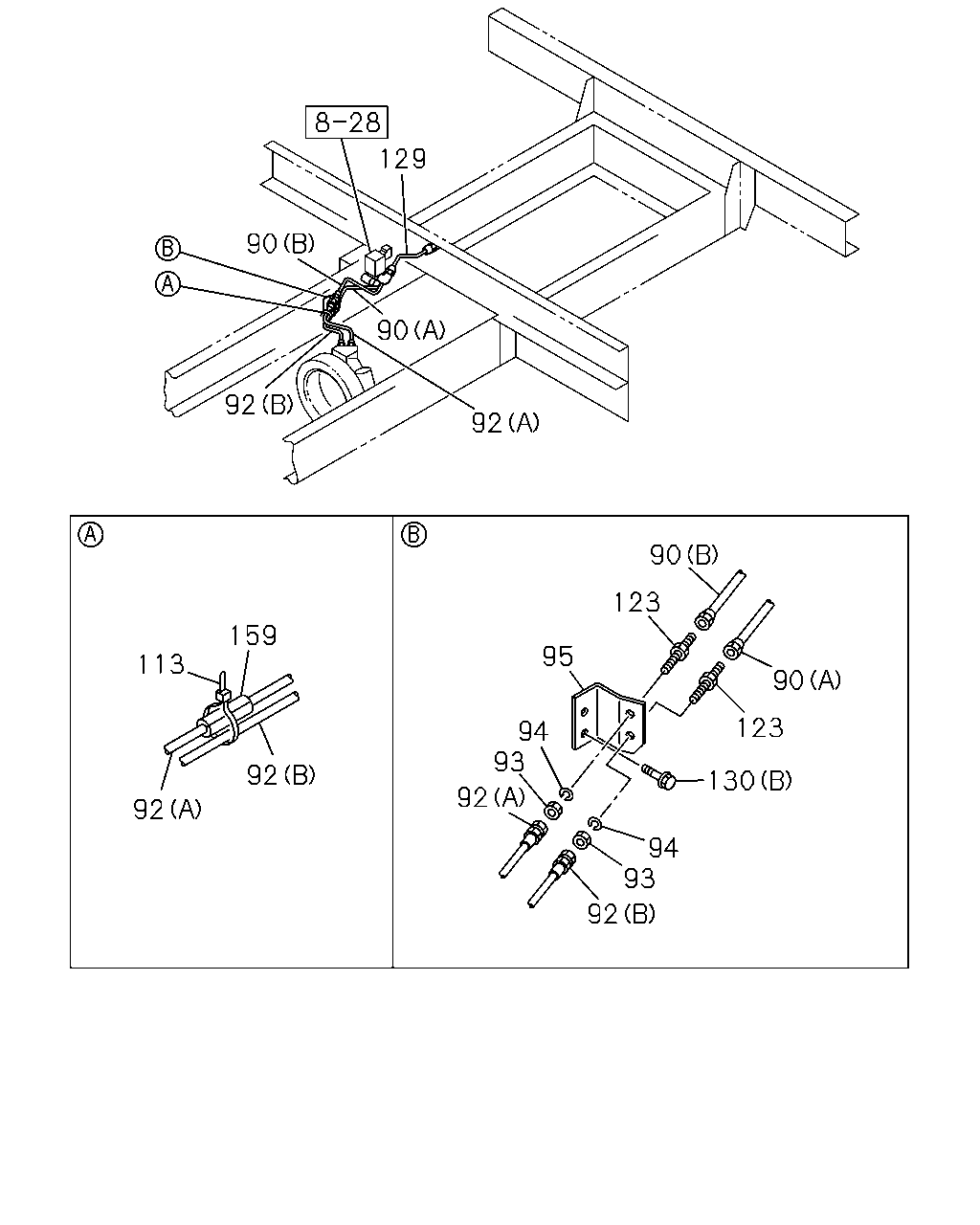

129 90 90 92 92 90 123 159 95 113 90 123 94 93 92 130 92 92 94 93 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
90	PIPE; AIR,MAG VLV TO FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (B) L=289 SERVICED BY L=300	1-47428-804-0	01	1	0907-
90	PIPE; AIR,MAG VLV TO FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (A) L=178 SERVICED BY L=250	1-47428-803-0	01	1	0907-
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> (B) L=280	1-09363-672-0	01	1	0907-
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> (A) L=260	1-09363-876-0	01	1	0907-
93	NUT; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> M12	9-09840-280-0	02	1	0907-
94	WASHER; LK,FLEX HOSE BRAKE SYSTEM RETARDER<RE2> ID=12.2	0-91510-512-0	02	1	0907-
95	BRACKET; FLEX HOSE,RETARDER BRAKE SYSTEM RETARDER<RE2>	1-47478-905-0	01	1	0907-
113	CLIP; HOSE BRAKE SYSTEM RETARDER<RE2> L=140	5-09707-031-1	01	1	0907-
123	UNION BRAKE SYSTEM RETARDER<RE2> M12 L=56.5	0-92113-106-0	02	1	0907-
129	PIPE; AIR,UNION TO MAG VLV BRAKE SYSTEM RETARDER<RE2> L=161	8-97616-167-0	01	1	0907-
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (B) M8X45 FLANGE	0-28050-845-0	02	1	0907-
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M6X14 HEX SOCKET	1-48629-145-0	03	1	0907-
159	SLEEVE BRAKE SYSTEM RETARDER<RE2> ID=14 OD=18 L=60	1-09337-030-0	01	1	0907-

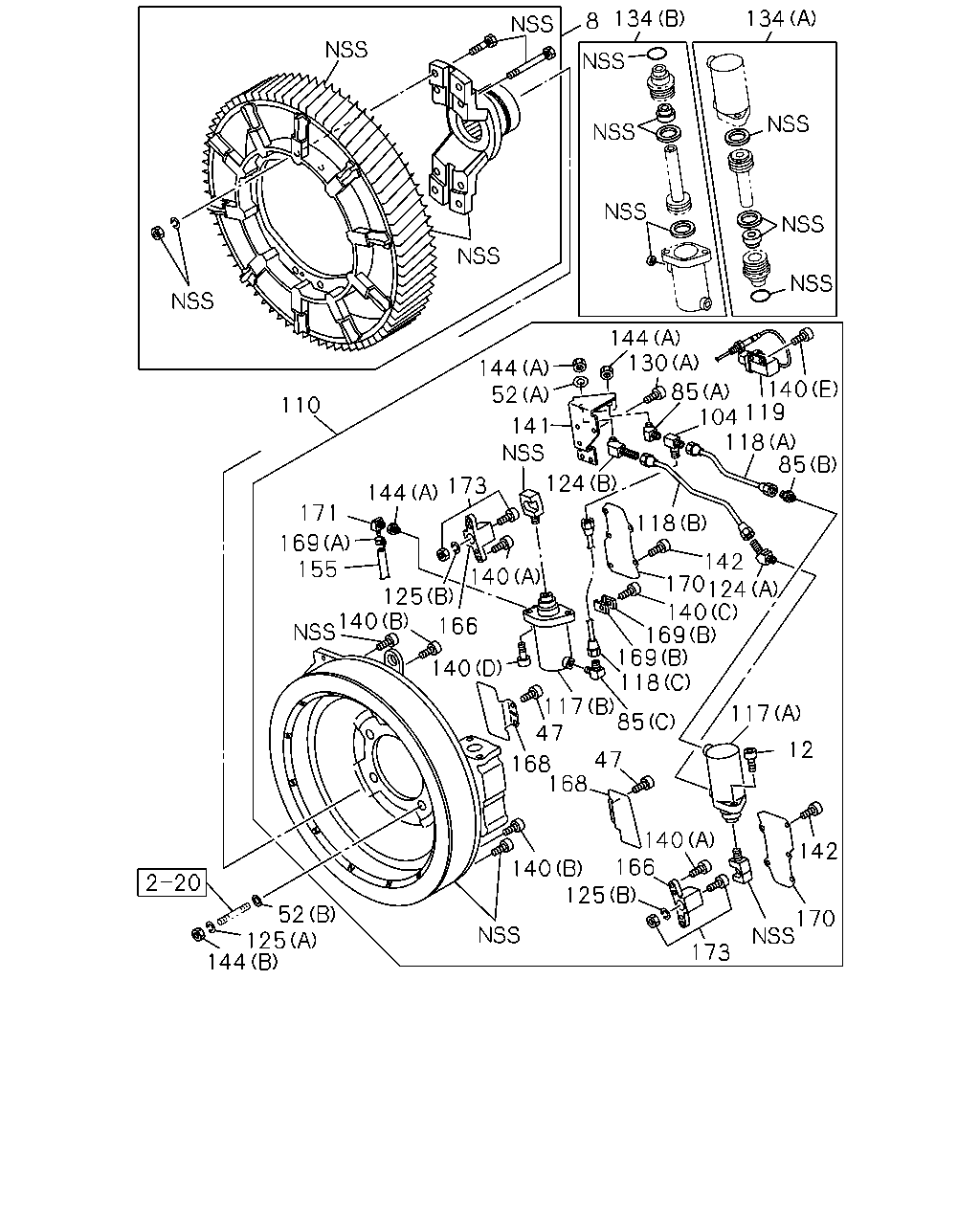

134 134 8 144 130 144 52 85 140 119 104 118 85 110 141 124 173 144 171 118 140 169 155 142 170 124 140 169 169 118 117 85 47 125 140 166 140 117 12 168 47 168 140 140 166 125 142 52 125 144 170 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	FLANGE; PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-46210-264-3	01	1	0907-1204
8	FLANGE; PARKING BRK BRAKE SYSTEM RETARDER<RE2>	8-98213-323-0	01	1	1205-
12	BOLT; FIX BRAKE SYSTEM RETARDER<RE2>	1-48629-170-0	02	1	0907-
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER<RE2> M6X10 HEX SOCKET	1-48629-133-0	02	1	0907-
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (A) ID=12.5 OD=26	0-91610-612-0	01	1	0907-
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (B) ID=17	9-09164-516-0	04	1	0907-1011
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> (B) ID=17	0-91614-516-0	04	1	1012-
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (B) M12 & PT1/8	0-92111-806-0	01	1	0907-
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/8	0-92124-306-0	01	1	0907-
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-267-0	01	1	0907-
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2>	1-48629-202-0	01	1	0907-
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-431-6	01	1	0907-0909
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	8-98134-962-0	01	1	0910-
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-286-0	01	1	0907-
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-287-0	01	1	0907-
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-271-0	01	1	0907-
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-272-0	01	1	0907-
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-273-0	01	1	0907-
119	SWITCH; THERMO BRAKE SYSTEM RETARDER<RE2>	1-82450-054-0	01	1	0907-
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-267-0	01	1	0907-
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-268-0	01	1	0907-
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B) ID=6.1	0-91510-506-0	02	1	0907-
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2	0-91510-516-0	04	1	0907-
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (B) M8X45 FLANGE	0-28050-845-0	02	1	0907-
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> (A) M6X14 HEX SOCKET	1-48629-145-0	03	1	0907-
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-284-0	01	1	0907-
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-285-0	01	1	0907-
140	BOLT BRAKE SYSTEM RETARDER<RE2> (E) M6X10 HEX SOCKET	1-48629-133-0	02	1	0907-
140	BOLT BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-170-0	02	1	0907-
140	BOLT BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-182-0	08	1	0907-
140	BOLT BRAKE SYSTEM RETARDER<RE2> (B) M8X12	1-48629-205-0	02	1	0907-
140	BOLT BRAKE SYSTEM RETARDER<RE2> (C) M6X20 HEX SOCKET	1-48629-270-0	01	1	0907-
141	BRACKET BRAKE SYSTEM RETARDER<RE2>	1-48629-266-0	01	1	0907-
142	SCREW BRAKE SYSTEM RETARDER<RE2> M6X10 HEX SOCKET	1-48629-133-0	10	1	0907-
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M16	0-91110-516-0	04	1	0907-
144	NUT BRAKE SYSTEM RETARDER<RE2> (A) M12	9-09840-280-0	03	1	0907-
155	TUBE BRAKE SYSTEM RETARDER<RE2>	1-48629-092-0	01	1	0907-
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER<RE2>	1-48629-261-0	02	1	0907-
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER<RE2>	1-48629-194-0	02	1	0907-
169	CLAMP BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-126-0	01	1	0907-
169	CLAMP BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-249-0	02	1	0907-
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2>	1-48629-260-0	02	1	0907-
171	BREATHER BRAKE SYSTEM RETARDER<RE2>	1-48629-144-0	01	1	0907-
173	FOLLOWER BRAKE SYSTEM RETARDER<RE2>	1-48629-159-0	02	1	0907-
