3-06 — REAR DISC BRAKE CALIPER (#162348) — 60 parça

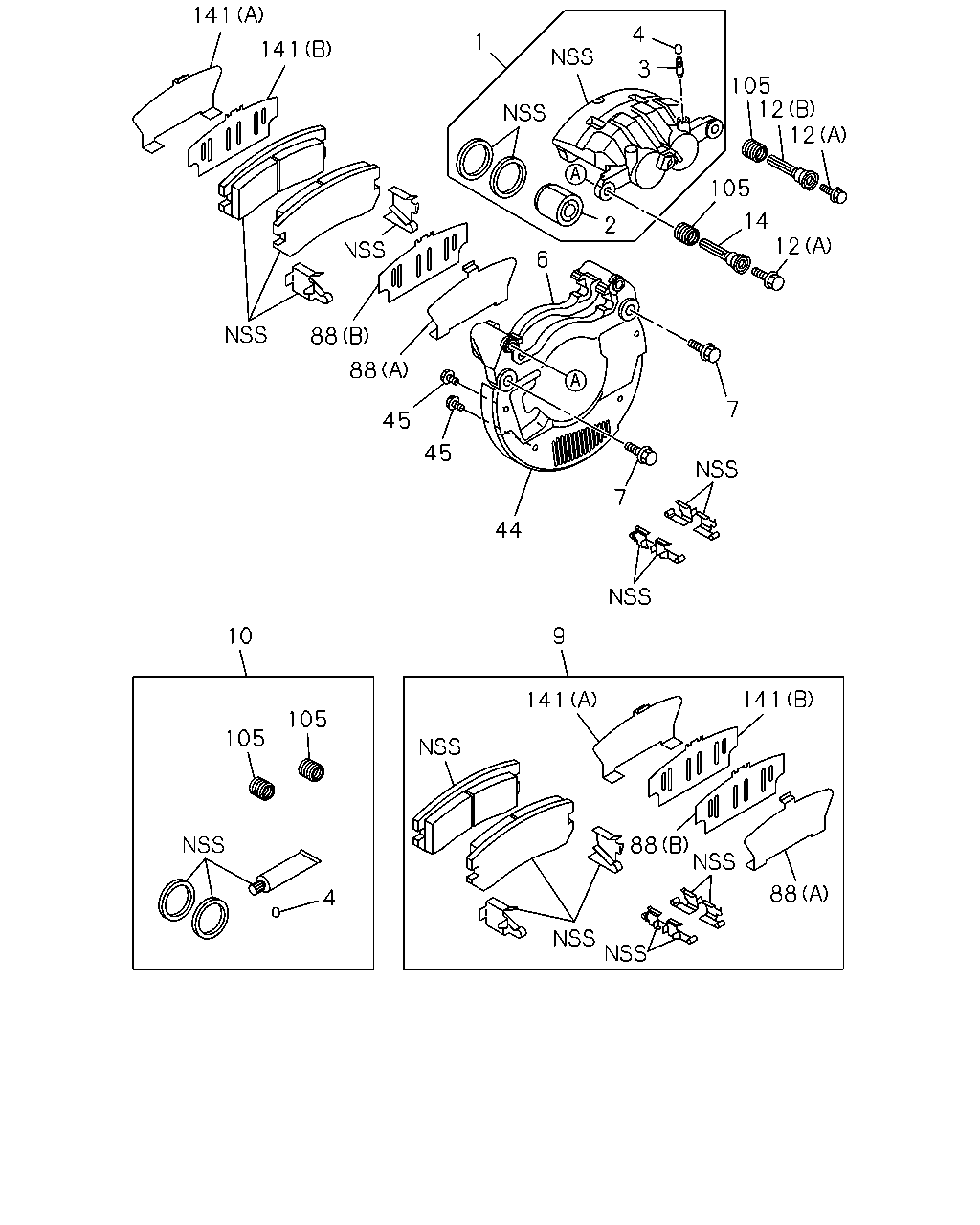

çizim 479529
88 88 141 141 10 105 105 4 7 7 44 45 45 88 88 6 141 141 1 4 3 2 105 12 12 105 14 12 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.665 CALIPER; RR DISC BRK 8-98303-471-0 01 1 1506- ●
1 04.665 CALIPER; RR DISC BRK 8-98303-472-0 01 1 1506- ●
1 04.665 CALIPER; RR DISC BRK 8-98303-467-0 01 1 1506-1508 ●
1 04.665 CALIPER; RR DISC BRK
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> 		8-98303-467-0 01 1 1509- ●
1 04.665 CALIPER; RR DISC BRK 8-98303-468-0 01 1 1506-1508 ●
1 04.665 CALIPER; RR DISC BRK
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> 		8-98303-468-0 01 1 1509- ●
2 04.665 PISTON; CALIPER,RR 8-98082-934-0 04 1 1506- ●
2 04.665 PISTON; CALIPER,RR
04.668 		8-97365-279-0 04 1 1506-1508 ●
2 04.665 PISTON; CALIPER,RR
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> 04.668 		8-97365-279-0 04 1 1509- ●
3 04.665 SCREW; BLEEDER,CALIPER,RR
04.666 		8-98050-476-0 02 1 1506-1508 ● ●
3 04.665 SCREW; BLEEDER,CALIPER,RR
04.666 		8-98050-476-0 02 1 1509- ●
3 04.665 SCREW; BLEEDER,CALIPER,RR
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> 04.666 		8-98050-476-0 02 1 1509- ●
4 04.665 CAP; BLEEDER SCREW,CALIPER,RR
04.666 		8-98050-479-0 02 1 1506-1508 ● ●
4 04.665 CAP; BLEEDER SCREW,CALIPER,RR
04.666 		8-98050-479-0 02 1 1509- ●
4 04.665 CAP; BLEEDER SCREW,CALIPER,RR
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> 04.666 		8-98050-479-0 02 1 1509- ●
6 04.665 BRACKET; SUPPORT,RR DISC BRK 8-98082-935-0 02 1 1506- ●
6 04.665 BRACKET; SUPPORT,RR DISC BRK 8-98240-313-0 02 1 1506-1508 ●
6 04.665 BRACKET; SUPPORT,RR DISC BRK
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> 		8-98240-313-0 02 1 1509- ●
7 04.665 BOLT; DISC BRK
04.681 M16X48 FLANGE 		8-98033-656-0 04 1 1506-1508 ● ●
7 04.665 BOLT; DISC BRK
04.681 M16X48 FLANGE 		8-98033-656-0 04 1 1509- ●
7 04.665 BOLT; DISC BRK
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> 04.681 M16X48 FLANGE 		8-98033-656-0 04 1 1509- ●
9 04.667 PAD KIT; CALIPER,RR
05.017 		8-98216-921-0 01 1 1506- ●
9 04.667 PAD KIT; CALIPER,RR
05.017 		8-98244-794-0 01 1 1506-1508 ●
9 04.667 PAD KIT; CALIPER,RR
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> 05.017 		8-98244-794-0 01 1 1509- ●
10 04.665 REPAIR KIT; DISC BRK,RR 8-98302-533-0 01 1 1506- ●
10 04.665 REPAIR KIT; DISC BRK,RR
04.667 W/GREASE 		8-98302-532-0 01 1 1506-1508 ●
10 04.665 REPAIR KIT; DISC BRK,RR
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> 04.667 W/GREASE 		8-98302-532-0 01 1 1509- ●
12 04.665 PIN; RET,CALIPER,RR DISC BRK
(B) 		8-98047-532-0 02 1 1506- ●
12 04.665 PIN; RET,CALIPER,RR DISC BRK
(A) 		8-97365-264-0 04 1 1506-1508 ● ●
12 04.665 PIN; RET,CALIPER,RR DISC BRK
(A) 		8-97365-264-0 04 1 1509- ●
12 04.665 PIN; RET,CALIPER,RR DISC BRK
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> (A) 		8-97365-264-0 04 1 1509- ●
12 04.665 PIN; RET,CALIPER,RR DISC BRK
(B) 		8-98047-531-0 02 1 1506-1508 ●
12 04.665 PIN; RET,CALIPER,RR DISC BRK
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> (B) 		8-98047-531-0 02 1 1509- ●
14 04.665 PIN; GUIDE,CALIPER 8-98047-530-0 02 1 1506- ●
14 04.665 PIN; GUIDE,CALIPER 8-98047-529-0 02 1 1506-1508 ●
14 04.665 PIN; GUIDE,CALIPER
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> 		8-98047-529-0 02 1 1509- ●
44 04.665 COVER; DUST 8-98191-950-0 01 1 1506-1508 ● ●
44 04.665 COVER; DUST 8-98191-950-0 01 1 1509- ●
44 04.665 COVER; DUST
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> 		8-98191-950-0 01 1 1509- ●
44 04.665 COVER; DUST 8-98191-951-0 01 1 1506-1508 ● ●
44 04.665 COVER; DUST 8-98191-951-0 01 1 1509- ●
44 04.665 COVER; DUST
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> 		8-98191-951-0 01 1 1509- ●
45 04.665 BOLT; DUST COVER SET
02.343 M8X12 FLANGE 		0-28050-812-0 08 1 1506-1508 ● ●
45 04.665 BOLT; DUST COVER SET
02.343 M8X12 FLANGE 		0-28050-812-0 08 1 1509- ●
45 04.665 BOLT; DUST COVER SET
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> 02.343 M8X12 FLANGE 		0-28050-812-0 08 1 1509- ●
88 04.665 SHIM; PAD INNER,RR DISC BRK
(A) 		8-98092-330-0 02 1 1506- ●
88 04.665 SHIM; PAD INNER,RR DISC BRK
(B) 		8-98092-331-0 02 1 1506- ●
88 04.665 SHIM; PAD INNER,RR DISC BRK
(A) 		8-97368-924-0 02 1 1506-1508 ●
88 04.665 SHIM; PAD INNER,RR DISC BRK
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> (A) 		8-97368-924-0 02 1 1509- ●
88 04.665 SHIM; PAD INNER,RR DISC BRK
(B) 		8-97368-925-0 02 1 1506-1508 ●
88 04.665 SHIM; PAD INNER,RR DISC BRK
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> (B) 		8-97368-925-0 02 1 1509- ●
105 04.665 BOOT; PIN 8-98120-354-0 04 1 1506-1508 ● ●
105 04.665 BOOT; PIN 8-98120-354-0 04 1 1509- ●
105 04.665 BOOT; PIN
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> 		8-98120-354-0 04 1 1509- ●
141 04.665 SHIM; PAD OUTER,RR DISC BRK
(A) 		8-98092-330-0 02 1 1506- ●
141 04.665 SHIM; PAD OUTER,RR DISC BRK
(B) 		8-98092-331-0 02 1 1506- ●
141 04.665 SHIM; PAD OUTER,RR DISC BRK
(A) 		8-97368-924-0 02 1 1506-1508 ●
141 04.665 SHIM; PAD OUTER,RR DISC BRK
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> (A) 		8-97368-924-0 02 1 1509- ●
141 04.665 SHIM; PAD OUTER,RR DISC BRK
(B) 		8-97368-925-0 02 1 1506-1508 ●
141 04.665 SHIM; PAD OUTER,RR DISC BRK
G.V.W. 7.5-8.0TON(RPY) 4 WHEEL DISC BRAKE<JF9> (B) 		8-97368-925-0 02 1 1509- ●
