◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51628 - NNR/NPR/NQR LHD EUROPE EURO5/5B+/6 ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶
3-01 — FRONT WHEEL BRAKE (#162346) — 115 parça

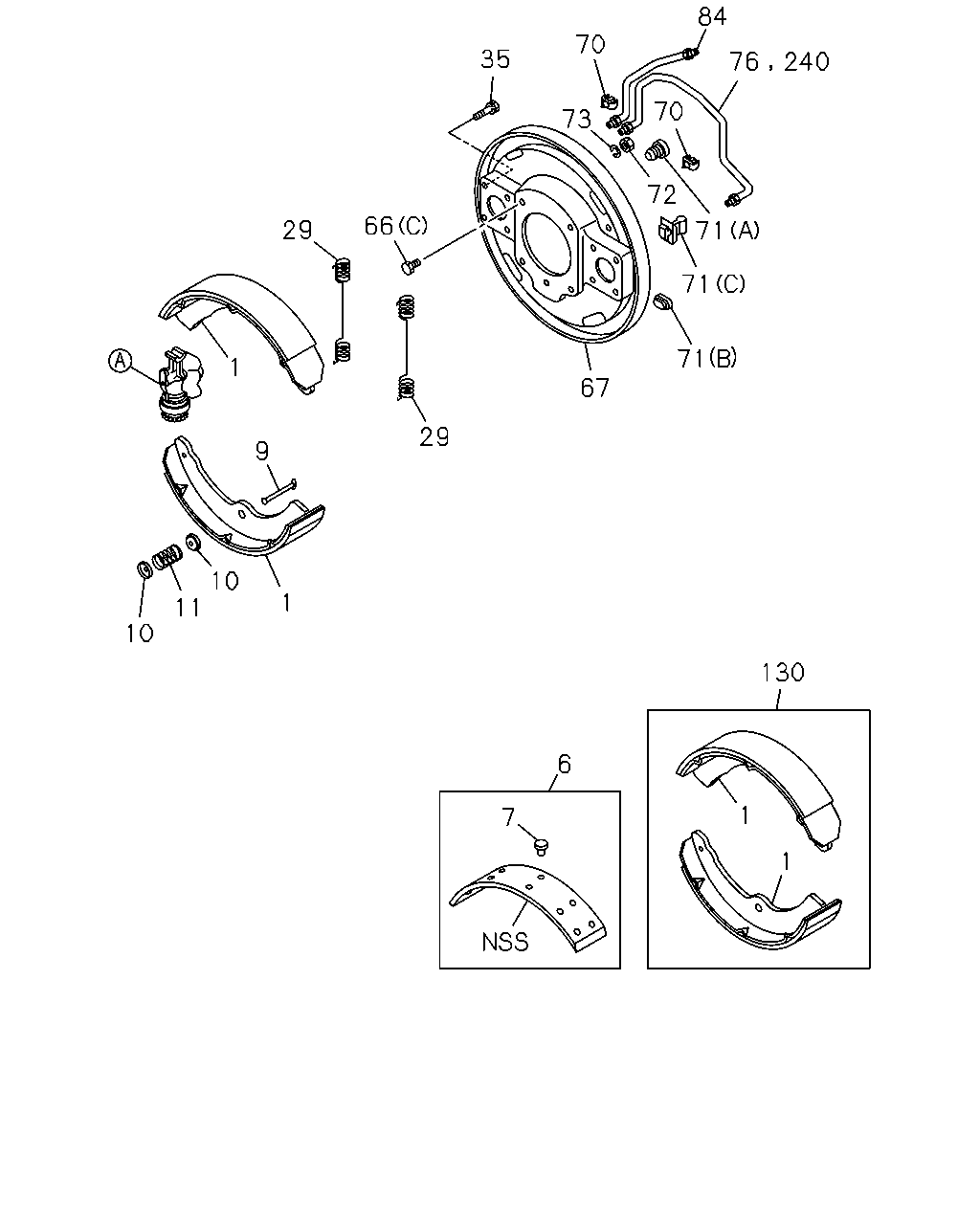

çizim 479794
240 76 84 70 70 71 71 71 72 73 35 67 29 66 29 1 9 1 10 11 10 130 1 1 6 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 05.017 SHOE; BRK,FRT
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97188-455-0 04 1 1509- ●
1 05.017 SHOE; BRK,FRT 8-97188-455-0 04 1 1509- ●
1 05.017 SHOE; BRK,FRT
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97201-061-0 04 1 1509- ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		5-87831-692-0 01 1 1509- ●
6 05.018 LINING KIT; FRT BRK 5-87831-692-0 01 1 1509- ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> 		5-87831-774-0 01 1 1509- ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> BEST VALUE PARTS 		5-87610-119-0 01 1 1509- ●
6 05.018 LINING KIT; FRT BRK
BEST VALUE PARTS 		5-87610-119-0 01 1 1509- ●
6 05.018 LINING KIT; FRT BRK
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> BEST VALUE PARTS 		5-87610-120-0 01 1 1509- ●
7 05.019 RIVET; LINING,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		1-09732-029-0 64 1 1509- ●
7 05.019 RIVET; LINING,FRT BRK 1-09732-029-0 64 1 1509- ●
7 05.019 RIVET; LINING,FRT BRK
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> 		1-09732-029-0 48 1 1509- ●
9 05.026 PIN; SHOE HOLDER
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 05.043 		8-97122-870-0 04 1 1509- ●
9 05.026 PIN; SHOE HOLDER
05.043 		8-97122-870-0 04 1 1509- ●
9 05.026 PIN; SHOE HOLDER
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> 05.043 		8-97022-089-0 04 1 1509- ●
10 05.043 CUP; SHOE HOLDING
EXC. 4 WHEEL DISC BRAKE<JF9> 		9-47165-096-0 08 1 1509- ●
10 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 1509- ●
11 05.027 SPRING; SHOE HOLDING
EXC. 4 WHEEL DISC BRAKE<JF9> 05.043 		5-09580-101-1 04 1 1509- ●
11 05.027 SPRING; SHOE HOLDING
05.043 		5-09580-101-1 04 1 1509- ●
29 05.026 SPRING; RETURN,FRT BRK SHOE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97122-869-0 04 1 1509- ●
29 05.026 SPRING; RETURN,FRT BRK SHOE 8-97122-869-0 04 1 1509- ●
29 05.026 SPRING; RETURN,FRT BRK SHOE
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97022-087-0 04 1 1509- ●
35 04.665 BOLT; FRT WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97081-305-0 16 1 1509- ●
35 04.665 BOLT; FRT WHEEL CYL 8-97081-305-0 16 1 1509- ●
66 05.815 BOLT; OIL SHIELD COVER
EXC. 4 WHEEL DISC BRAKE<JF9> 05.002 (C) M14X40 		8-98007-879-0 08 1 1509- ●
66 05.815 BOLT; OIL SHIELD COVER
05.002 (C) M14X40 		8-98007-879-0 08 1 1509- ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 1506-1508 ● ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 1509- ●
66 05.815 BOLT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9> (B) M14X43 		8-97168-638-1 06 1 1509- ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 1506-1508 ● ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 1509- ●
66 05.815 BOLT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9> (A) M14X23.5 		8-97359-814-0 02 1 1509- ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97358-868-0 01 1 1509- ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97358-869-0 01 1 1509- ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98072-847-0 01 1 1509- ●
67 05.001 PLATE; BACK,FRT BRK
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98072-848-0 01 1 1509- ●
67 05.001 PLATE; BACK,FRT BRK 8-97160-410-0 01 1 1509- ●
67 05.001 PLATE; BACK,FRT BRK 8-97160-411-0 01 1 1509- ●
70 04.685 CLIP; PIPE HOLD
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97022-086-0 04 1 1509- ●
70 04.685 CLIP; PIPE HOLD 8-97022-086-0 04 1 1509- ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 04.670 (A) 		1-47154-008-0 04 1 1509- ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (B) 		8-97017-507-0 06 1 1509- ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> (B) 		8-97017-507-0 02 1 1509- ●
71 05.002 GROMMET; CHECK HOLE
(B) 		8-97017-507-0 02 1 1509- ●
71 05.002 GROMMET; CHECK HOLE
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> (C) 		8-97044-742-1 04 1 1509- ●
71 05.002 GROMMET; CHECK HOLE
(C) 		8-97044-742-1 04 1 1509- ●
72 05.815 NUT; OIL SHIELD COVER
EXC. 4 WHEEL DISC BRAKE<JF9> 07.833 M14 		0-91110-514-0 08 1 1509- ●
72 05.815 NUT; OIL SHIELD COVER
07.833 M14 		0-91110-514-0 08 1 1509- ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 1506-1508 ● ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 1509- ●
72 05.815 NUT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9> 		8-97359-815-0 06 1 1509- ●
73 05.815 WASHER; LK,OIL SHIELD COVER
EXC. 4 WHEEL DISC BRAKE<JF9> 06.174 ID=14.2 		0-91510-814-0 08 1 1509- ●
73 05.815 WASHER; LK,OIL SHIELD COVER
06.174 ID=14.2 		0-91510-814-0 08 1 1509- ●
76 04.685 PIPE; OIL,BACKWARD,FRT BRK
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97079-847-0 02 1 1509- ●
76 04.685 PIPE; OIL,BACKWARD,FRT BRK 8-97079-847-0 02 1 1509- ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97039-676-0 01 1 1509- ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-676-0 01 1 1509- ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97039-677-0 01 1 1509- ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-677-0 01 1 1509- ●
130 05.017 SHOE KIT; BRK,FRT
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		5-87831-693-0 01 1 1509- ●
130 05.017 SHOE KIT; BRK,FRT 5-87831-693-0 01 1 1509- ●
130 05.017 SHOE KIT; BRK,FRT
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> 		5-87831-775-0 01 1 1509- ●
240 04.685 PIPE; OIL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97079-847-0 02 1 1509- ●
çizim 492439
17 16 255 302 24 253 252 254 25 16 17 24 25 18 19 15 15 26
BalonParca AdiParca NoAdetTipApplied Date A B C
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT 		8-98081-290-0 01 1 1509- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A) FRONT 		8-98081-291-0 01 1 1509- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR 		8-98081-292-0 01 1 1509- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> (A) REAR 		8-98081-293-0 01 1 1509- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> (B) REAR 		8-97139-818-0 01 1 1509- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> (B) REAR 		8-97139-819-0 01 1 1509- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> (B) FRONT 		8-97139-820-0 01 1 1509- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> (B) FRONT 		8-97139-821-0 01 1 1509- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
(B) FRONT 		8-97353-573-0 01 1 1509- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
(B) FRONT 		8-97353-574-0 01 1 1509- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
(B) REAR 		8-97353-575-0 01 1 1509- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
(B) REAR 		8-97353-576-0 01 1 1509- ●
16 04.666 SCREW; BLEEDER,FRT BRK
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98050-477-0 02 1 1509- ●
16 04.666 SCREW; BLEEDER,FRT BRK 8-98050-477-0 02 1 1509- ●
16 04.666 SCREW; BLEEDER,FRT BRK
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98050-476-0 02 1 1509- ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL
EXC. 4 WHEEL DISC BRAKE<JF9> 		8-98050-479-0 02 1 1509- ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 02 1 1509- ●
18 05.107 STOPPER; ADJ SCREW
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-94128-486-0 04 1 1509- ●
18 05.107 STOPPER; ADJ SCREW 8-94128-486-0 04 1 1509- ●
19 05.107 SCREW; STOPPER SETTING
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-94128-727-0 04 1 1509- ●
19 05.107 SCREW; STOPPER SETTING 8-94128-727-0 04 1 1509- ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-731-0 02 1 1509- ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97349-732-0 02 1 1509- ●
24 04.668 PISTON; FRT WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-94414-700-1 04 1 1509- ●
24 04.668 PISTON; FRT WHEEL CYL 8-97353-579-0 04 1 1509- ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 04.666 		8-97349-741-0 02 1 1509- ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 04.666 		8-97349-742-0 02 1 1509- ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> 04.666 		8-94414-702-0 04 1 1509- ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
04.666 		8-94414-702-0 04 1 1509- ●
26 04.667 CUP SET; FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 04.665 		5-87832-051-0 01 1 1509- ●
26 04.667 CUP SET; FRT WHEEL CYL
G.V.W. 7.0-7.5TON(RPX) EXC. 4 WHEEL DISC BRAKE<JF9> 04.665 		5-87831-598-0 01 1 1509- ●
26 04.667 CUP SET; FRT WHEEL CYL
04.665 		5-87832-080-0 01 1 1509- ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97358-894-0 02 1 1509- ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 		8-97358-895-0 02 1 1509- ●
253 04.665 WASHER; THRUST
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 05.110 		8-97349-736-0 04 1 1509- ●
254 04.665 SPRING; ADJ LEVER
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 05.107 		8-97349-745-0 04 1 1509- ●
255 04.665 LEVER; ADJ
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 05.103 		8-97349-743-0 02 1 1509- ●
255 04.665 LEVER; ADJ
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 05.103 		8-97349-744-0 02 1 1509- ●
302 04.665 SCREW; ADJ LEVER
G.V.W. 7.5-8.0TON(RPY) EXC. 4 WHEEL DISC BRAKE<JF9> 04.666 		8-97349-747-0 04 1 1509- ●

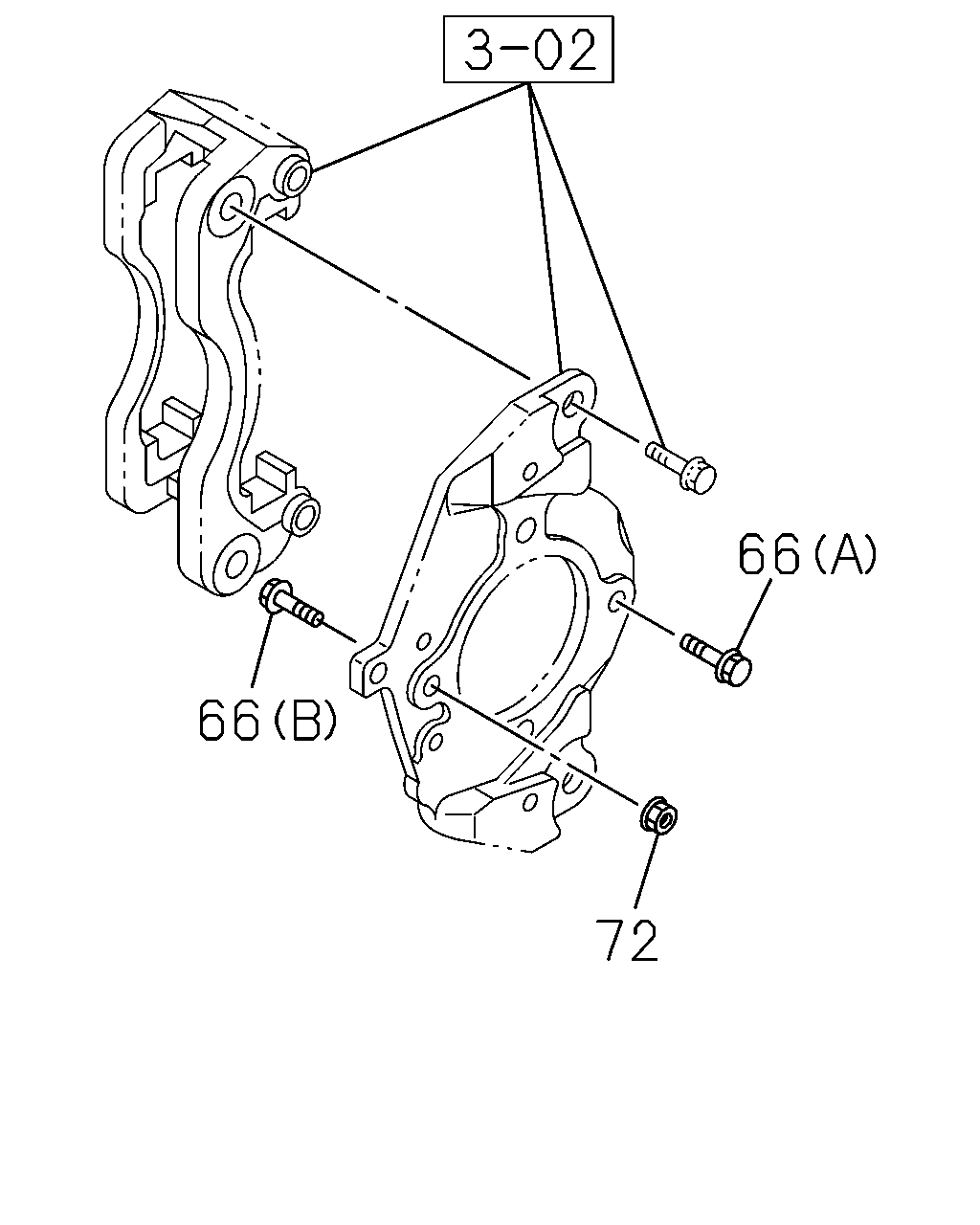

çizim 493129
66 66 72
BalonParca AdiParca NoAdetTipApplied Date A B C
66 05.815 BOLT; OIL SHIELD COVER
EXC. 4 WHEEL DISC BRAKE<JF9> 05.002 (C) M14X40 		8-98007-879-0 08 1 1509- ●
66 05.815 BOLT; OIL SHIELD COVER
05.002 (C) M14X40 		8-98007-879-0 08 1 1509- ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 1506-1508 ● ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 1509- ●
66 05.815 BOLT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9> (B) M14X43 		8-97168-638-1 06 1 1509- ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 1506-1508 ● ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 1509- ●
66 05.815 BOLT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9> (A) M14X23.5 		8-97359-814-0 02 1 1509- ●
72 05.815 NUT; OIL SHIELD COVER
EXC. 4 WHEEL DISC BRAKE<JF9> 07.833 M14 		0-91110-514-0 08 1 1509- ●
72 05.815 NUT; OIL SHIELD COVER
07.833 M14 		0-91110-514-0 08 1 1509- ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 1506-1508 ● ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 1509- ●
72 05.815 NUT; OIL SHIELD COVER
4 WHEEL DISC BRAKE<JF9> 		8-97359-815-0 06 1 1509- ●
